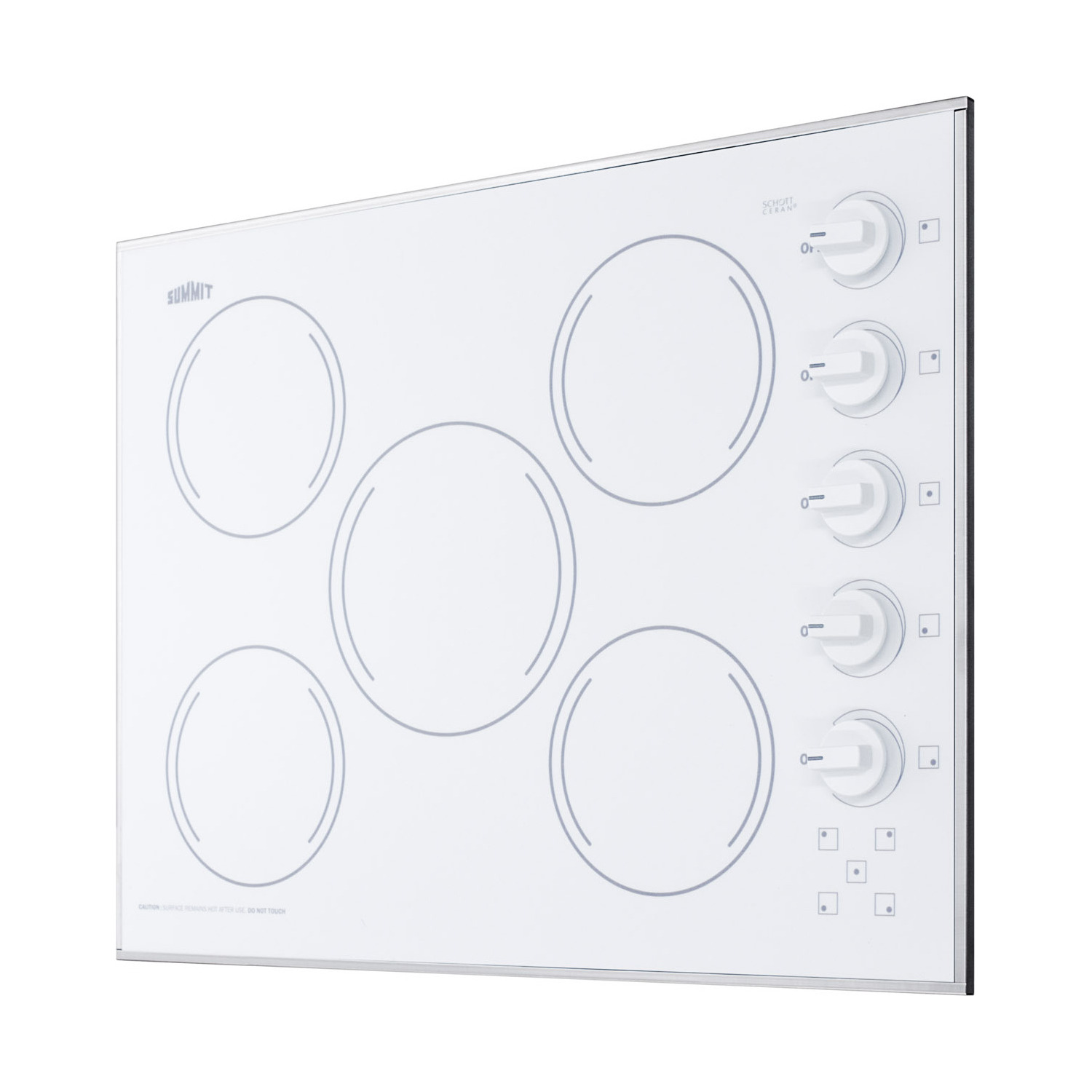

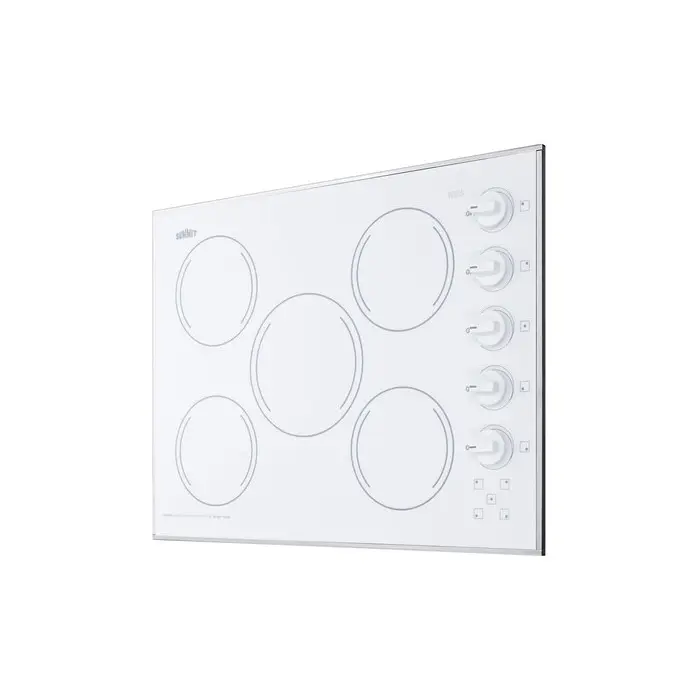

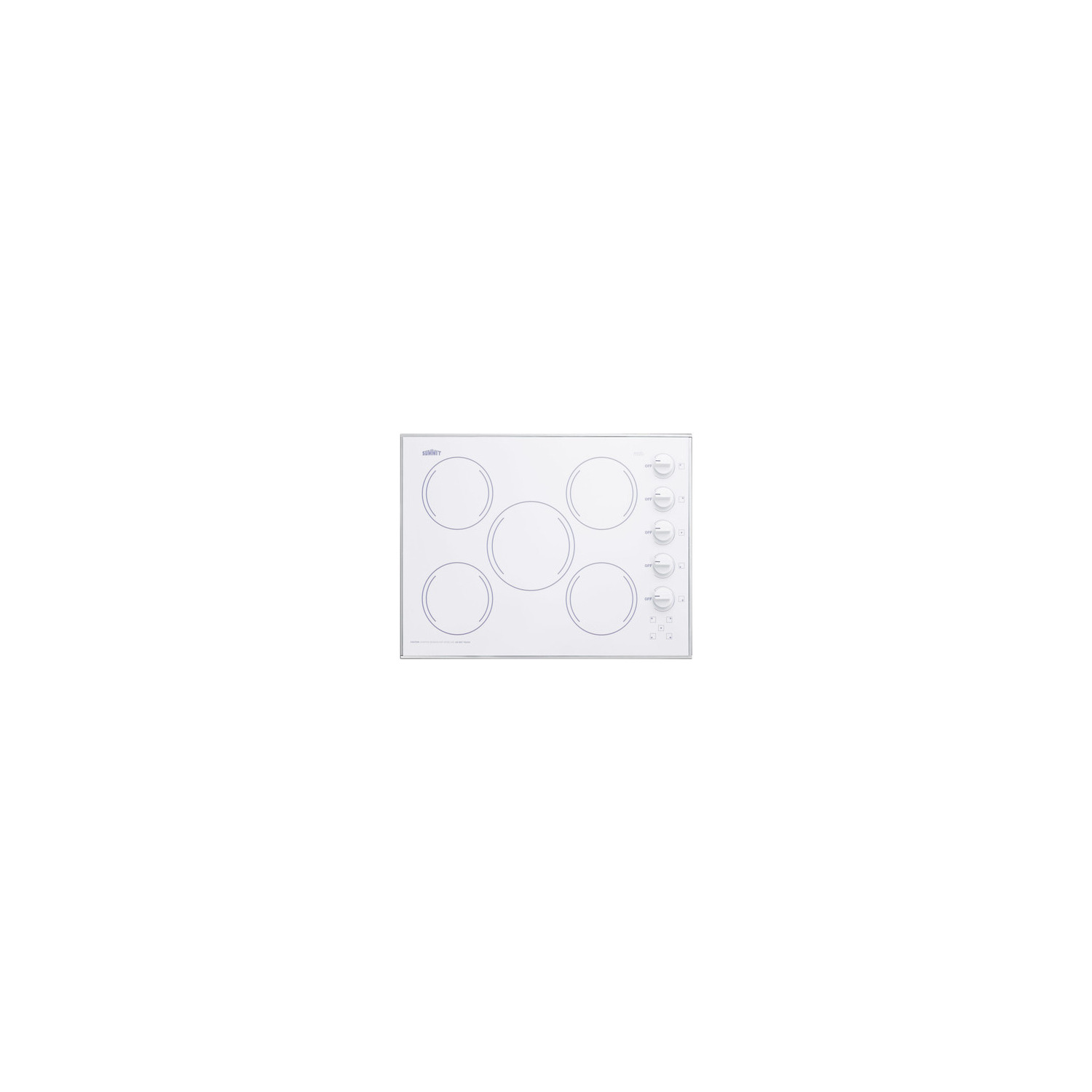

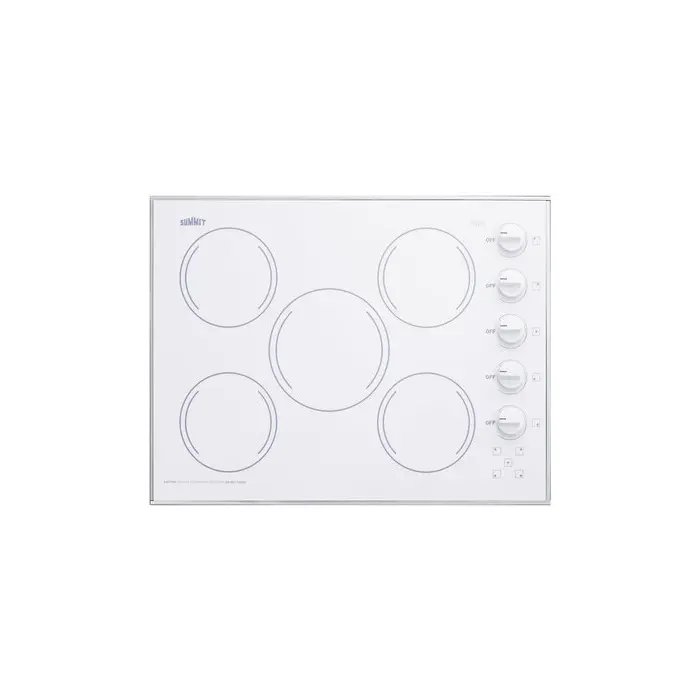

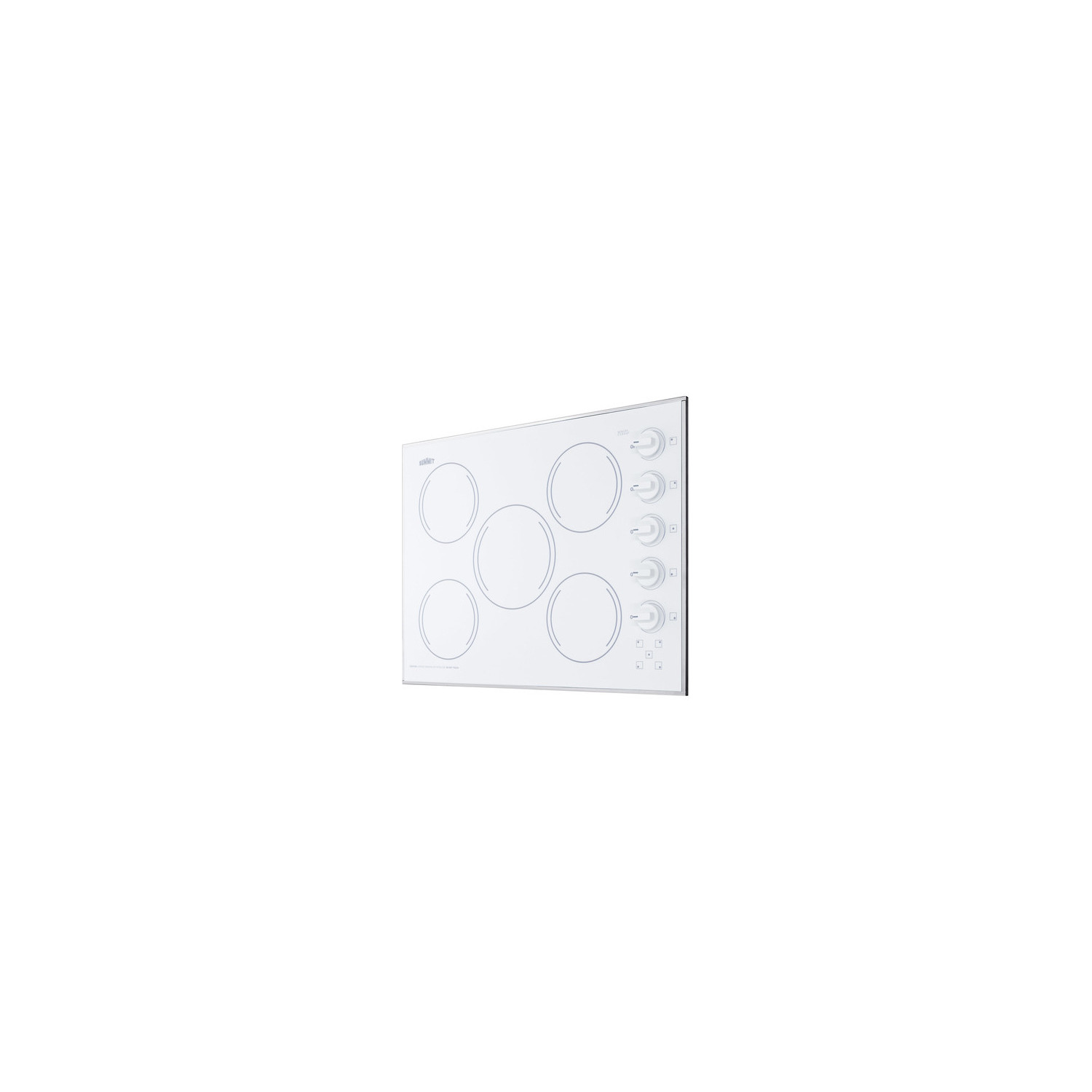

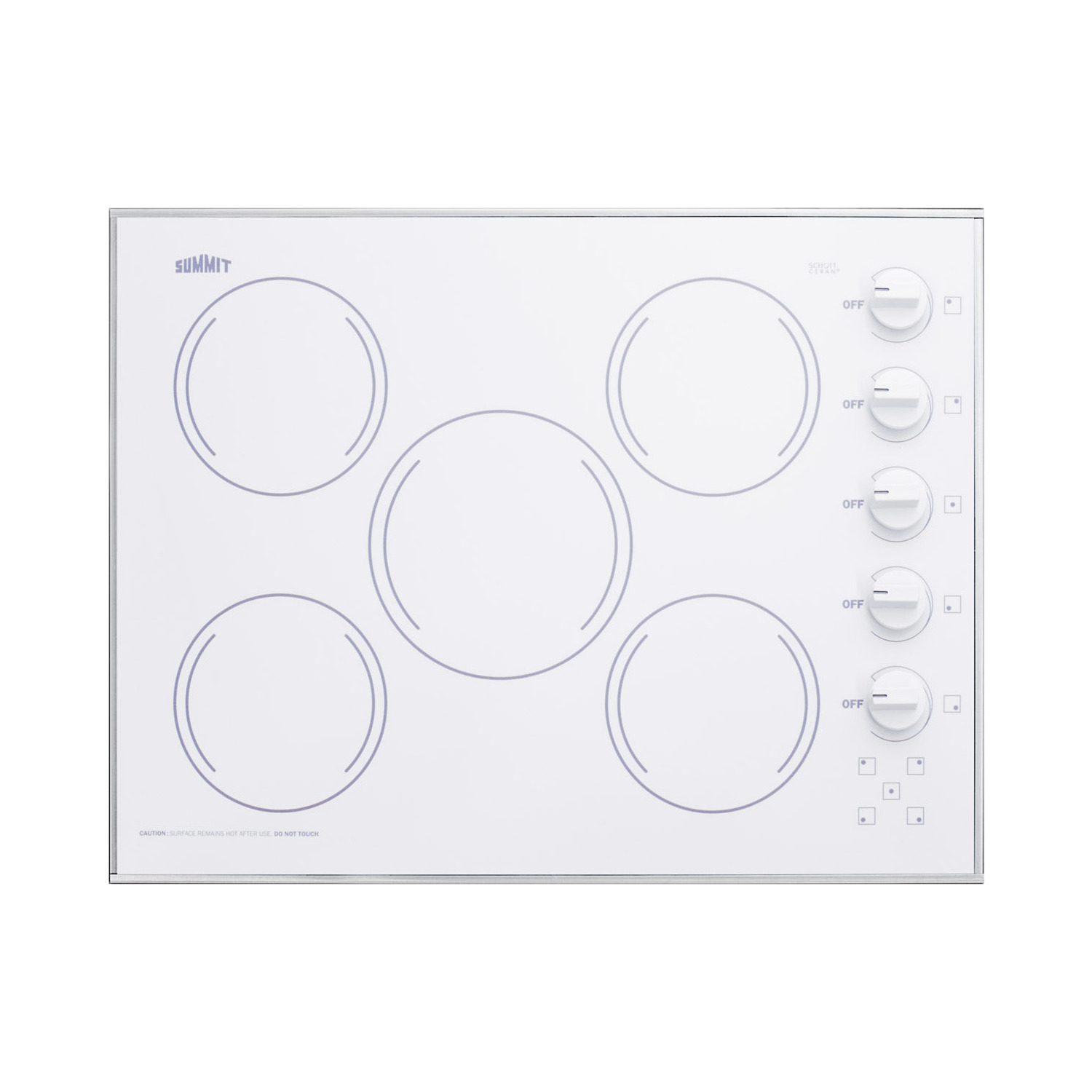

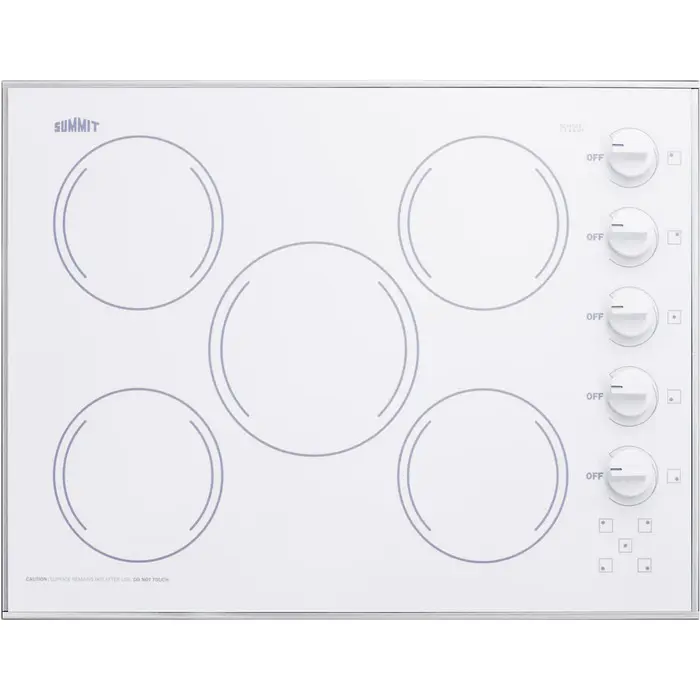

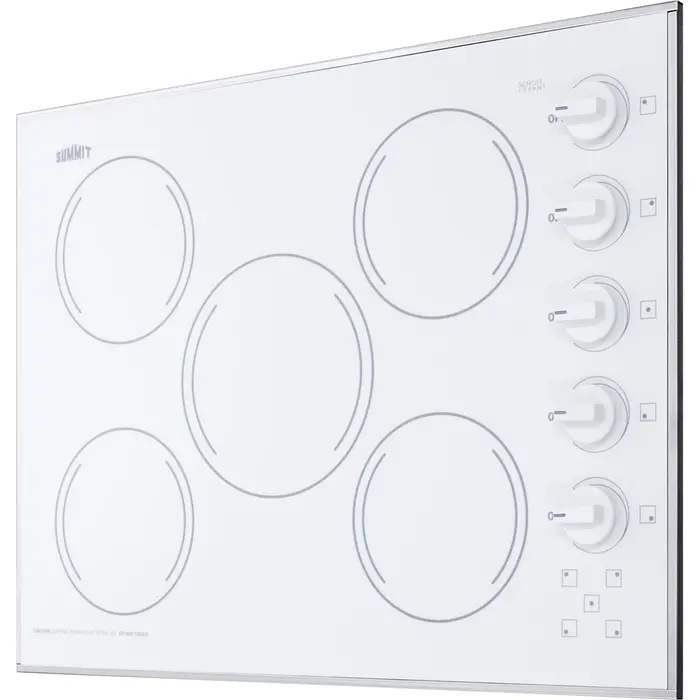

Summit 27 inch wide 5-burner radiant cooktop made in the USA in smooth white ceramic glass finish, 7.61101e+011, CR5B274W
$1,120.04
Retail Price: $1,485.00
Free shipping
$ 1,120.04
Description
SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements.
The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish to complete the look. Each burner includes an indicator light.
The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep.
Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR5B273B.
SPECIFICATIONS
Overview
Nominal Height 3.13" (8 cm)
Height of Cabinet 3.13" (8 cm)
Nominal Width 27.0" (69 cm)
Width 27.0" (69 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 25.0
Voltage/Frequency 230 V AC/60 Hz
Weight 35.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
UPC 761101060330
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 5
Controls Dial
Countertop Cutout Width 25.25" (64 cm)
Countertop Cutout Depth 18.75" (48 cm)
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 1800.0
Element #2 Size 6.5" (17 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 1200.0
Element #4 Size 6.5" (17 cm)
Element #4 Wattage 1200.0
Element #5 Size 6.5" (17 cm)
Element #5 Wattage 1200.0
Power Cord Included No
FEATURES
27" width Designed to fit 25.25" W x 18.75" D cutouts
Schott Ceran surface Smooth ceramic glass cooking surface in a classic white finish
High output burner Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
Standard burners Four 6.5" 1200W burners meet most heating needs
E.G.O. burners Considered by many to be the industry's best cooking technology

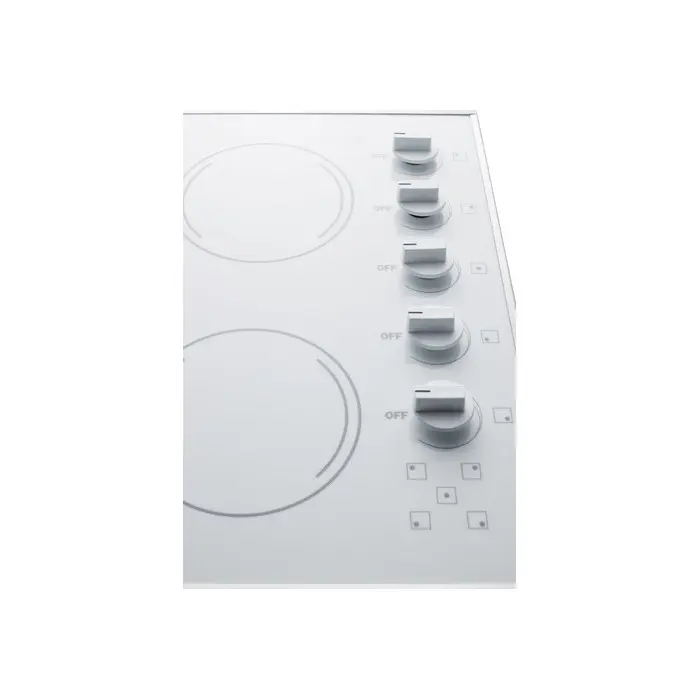

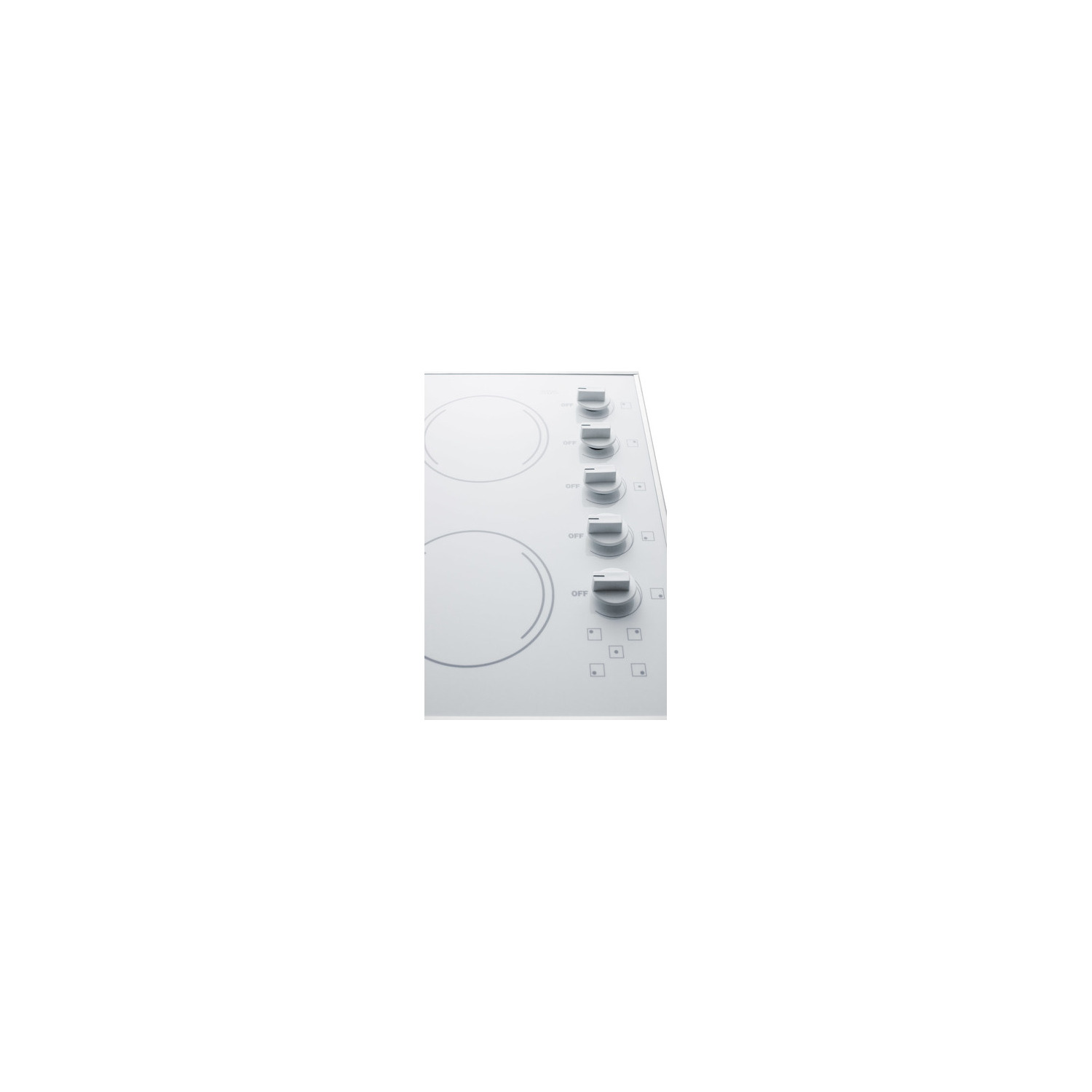

Push-to-turn knobs Controls require a gentle push to help prevent cooking accidents
Indicator lights Each burner includes an indicator light to show when the unit is on
Stainless steel trim Stainless steel border adds an extra touch of style
230V operation Requires professional hardwired installation to 230V power supply
DOWNLOADS
BROCHURE w/ DRAWINGS (CR5B274W.pdf)
TECHNICAL DRAWING (.dwg) (-_CR5B273B-274W_Brochure__A-C_2010__2.dwg)
ASSEMBLY DRAWING (CR5B273B-74W_Cooktop_Cabinet_2.pdf)
REVIT MODEL (QF_Summit_CR5B274W_Electric_Cooktop.rfa)
