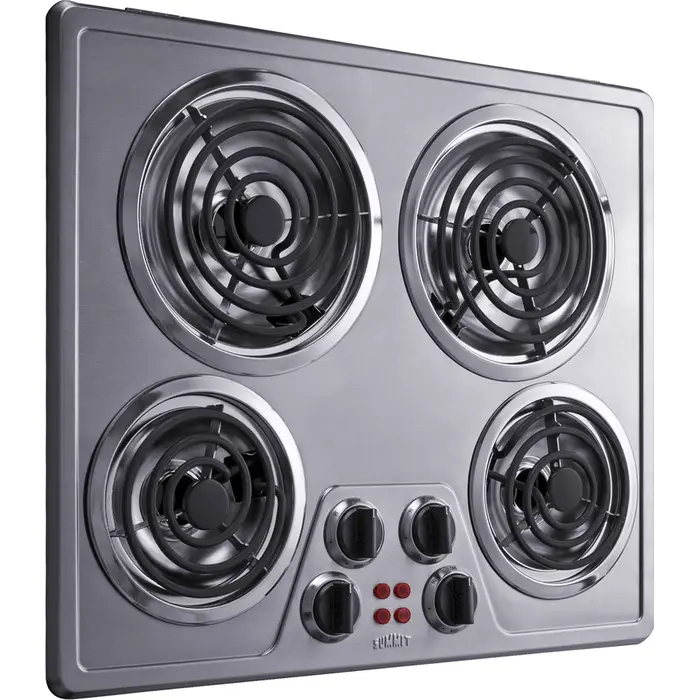

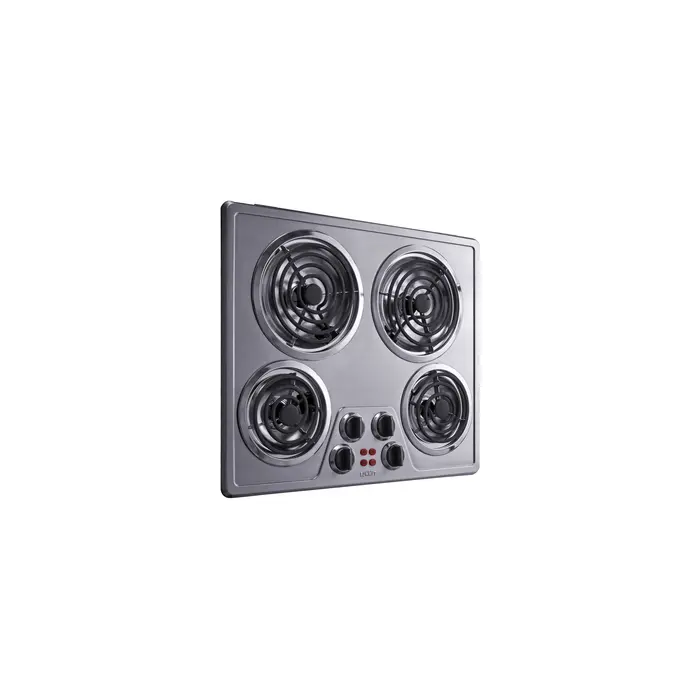

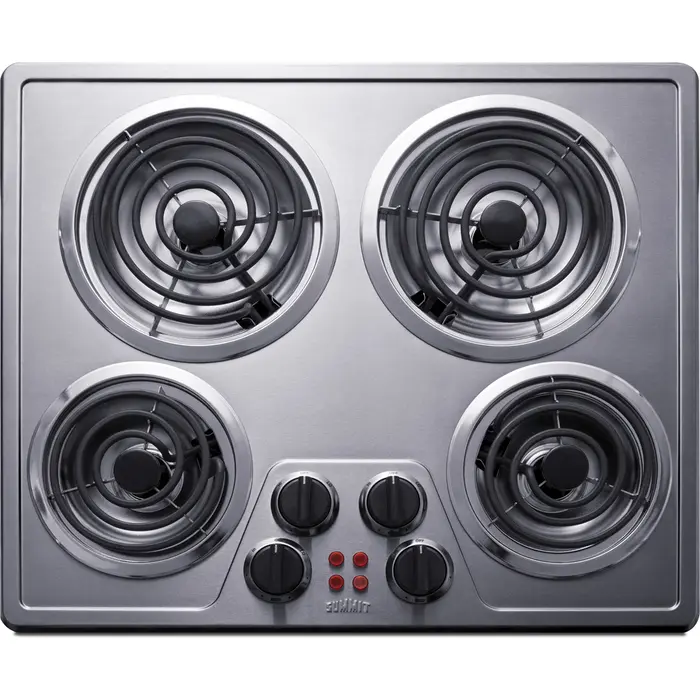

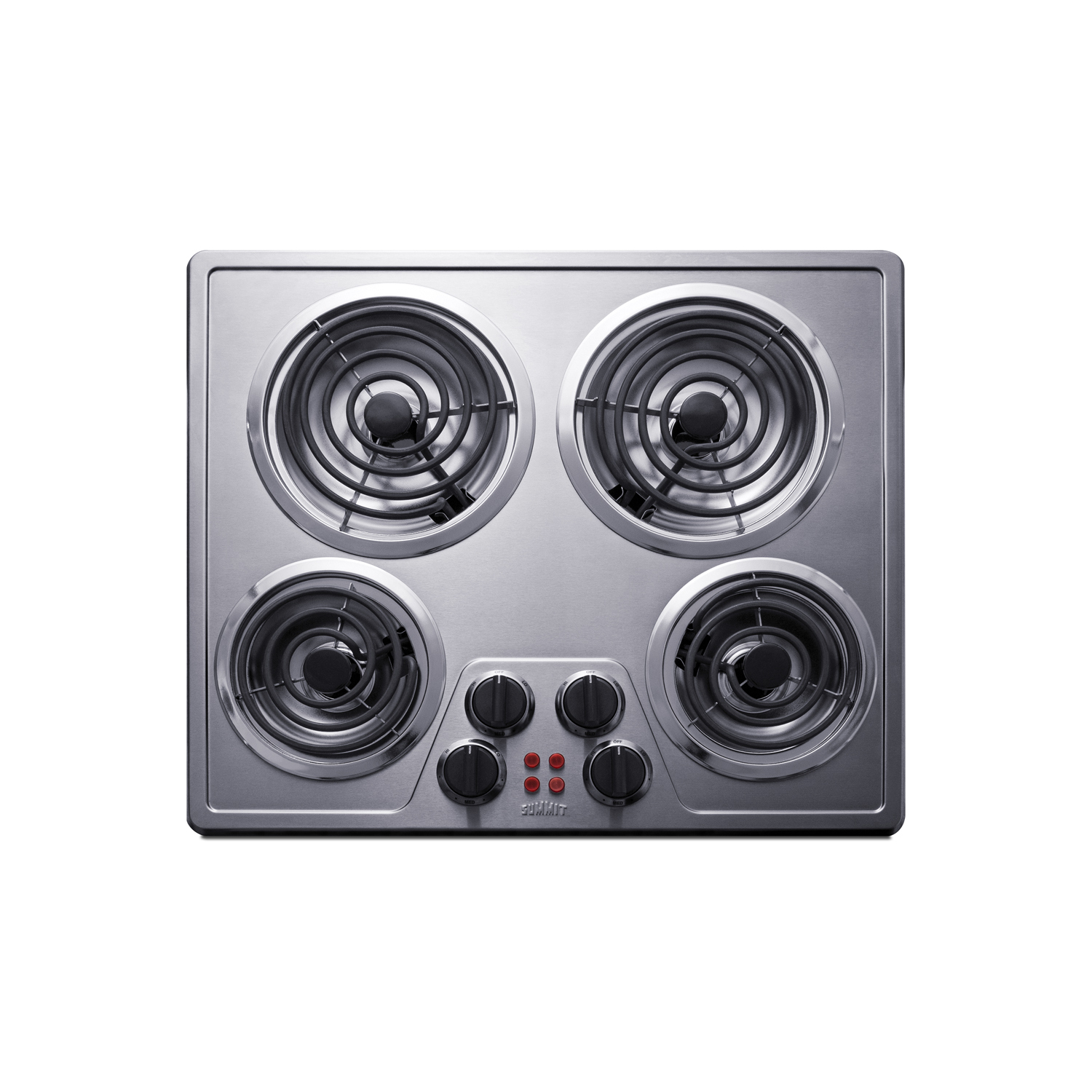

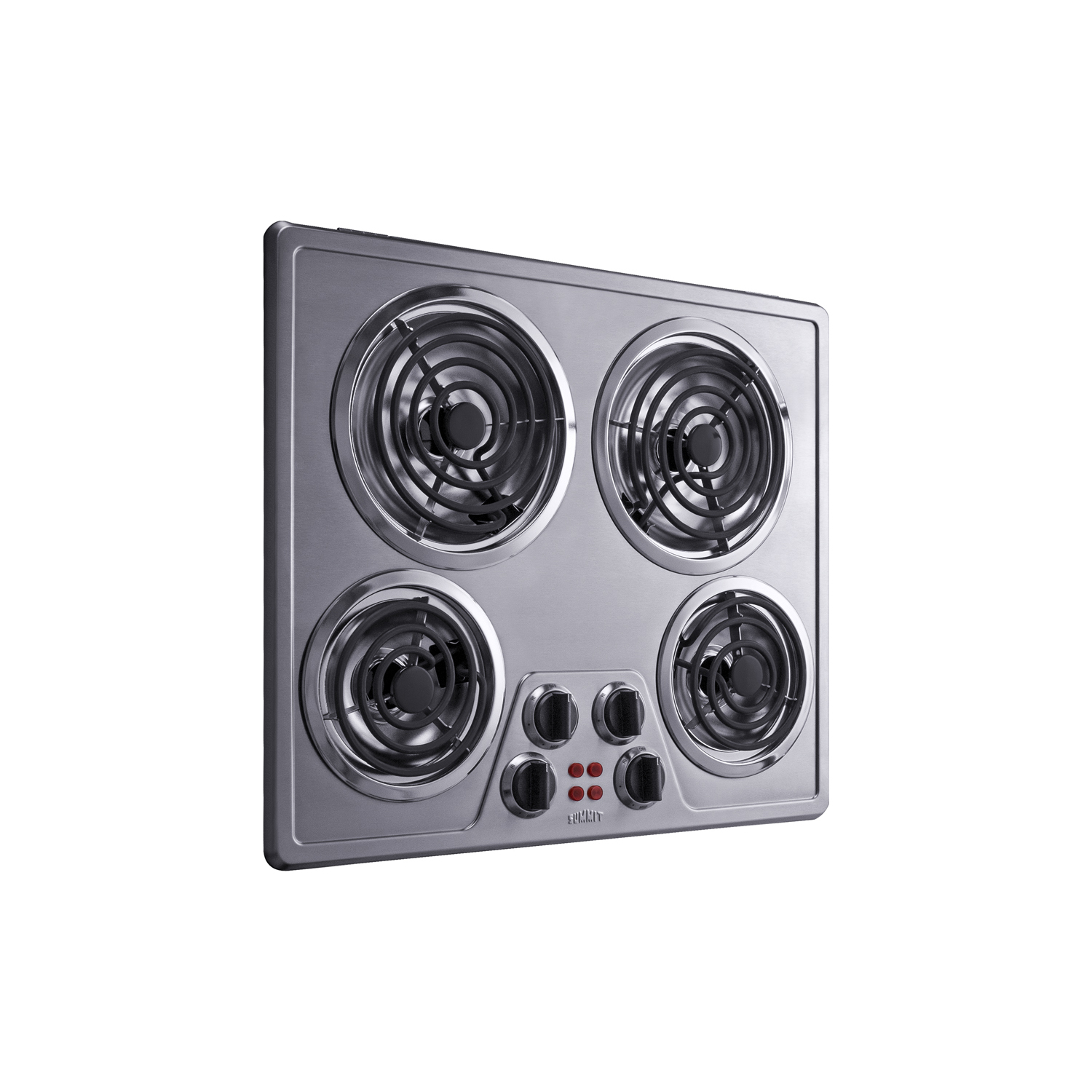

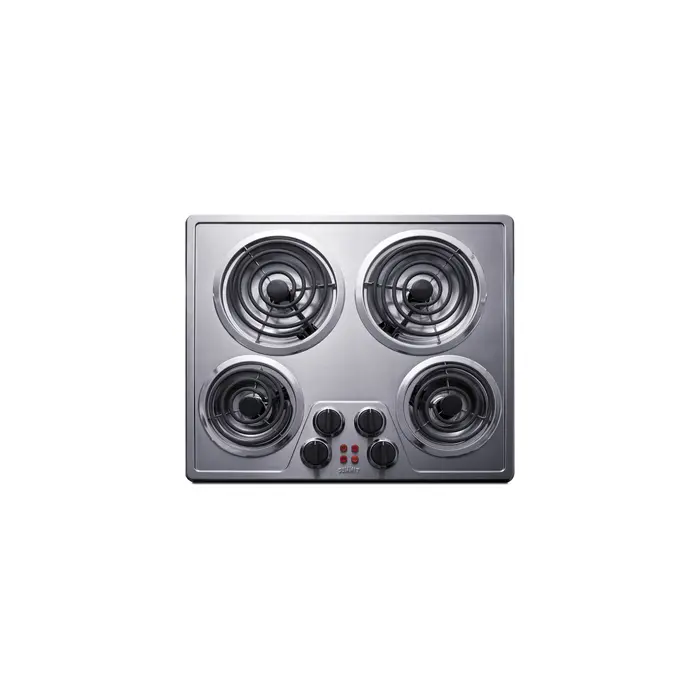

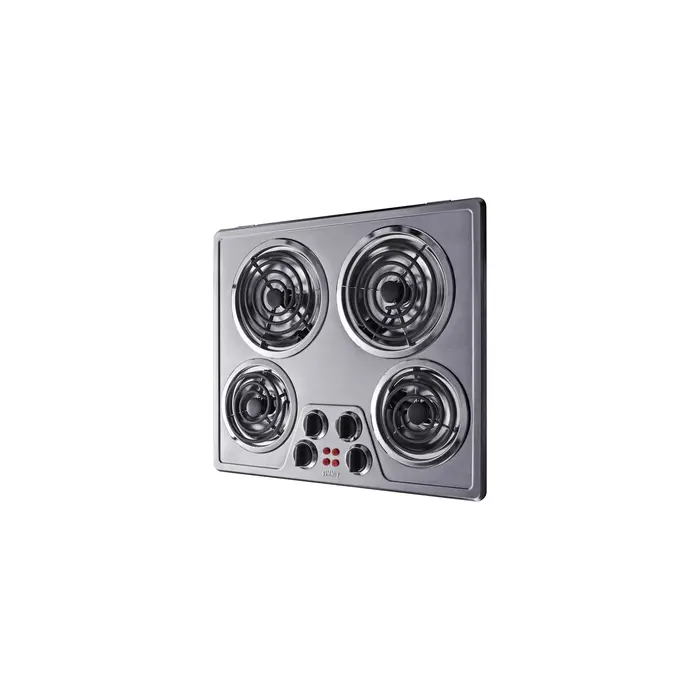

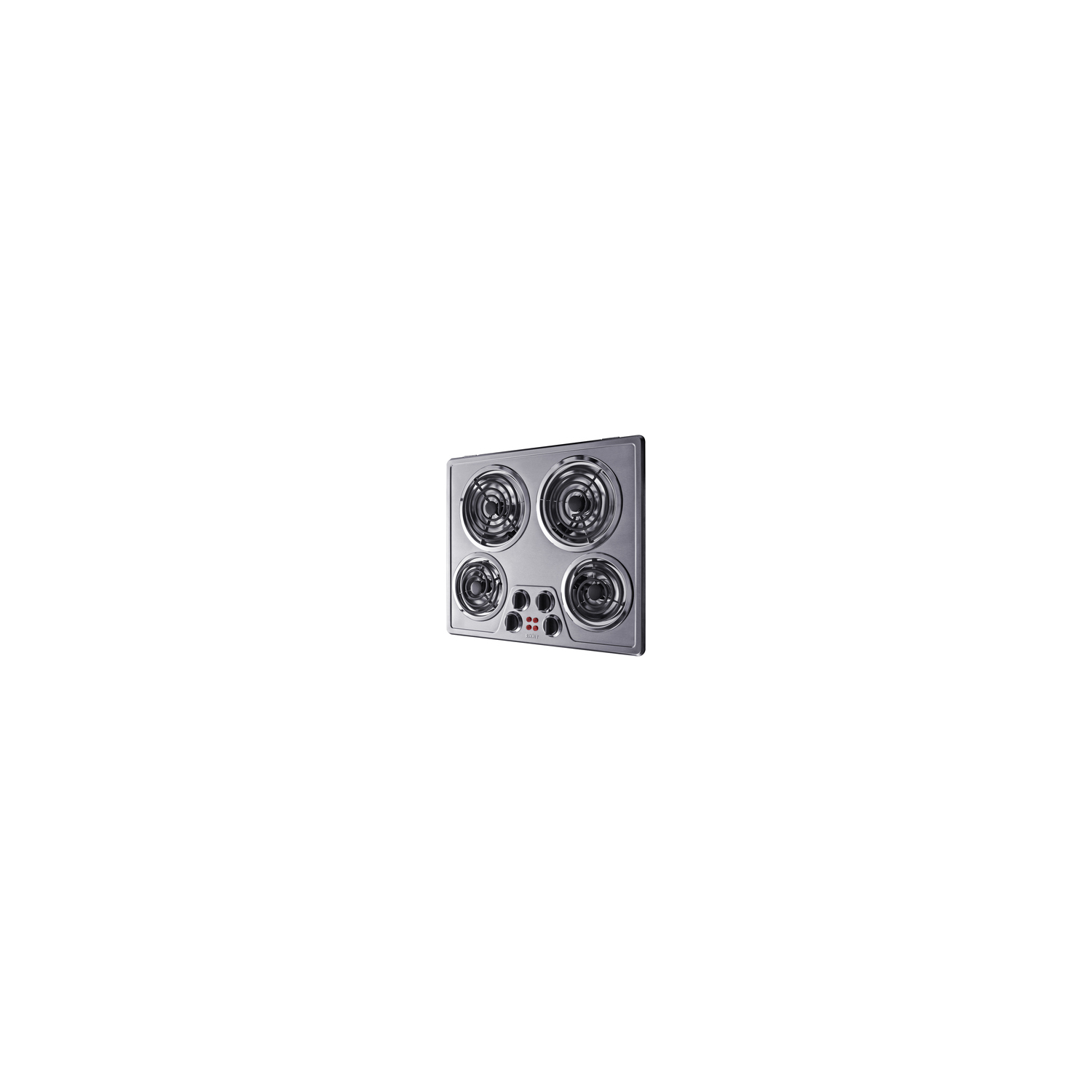

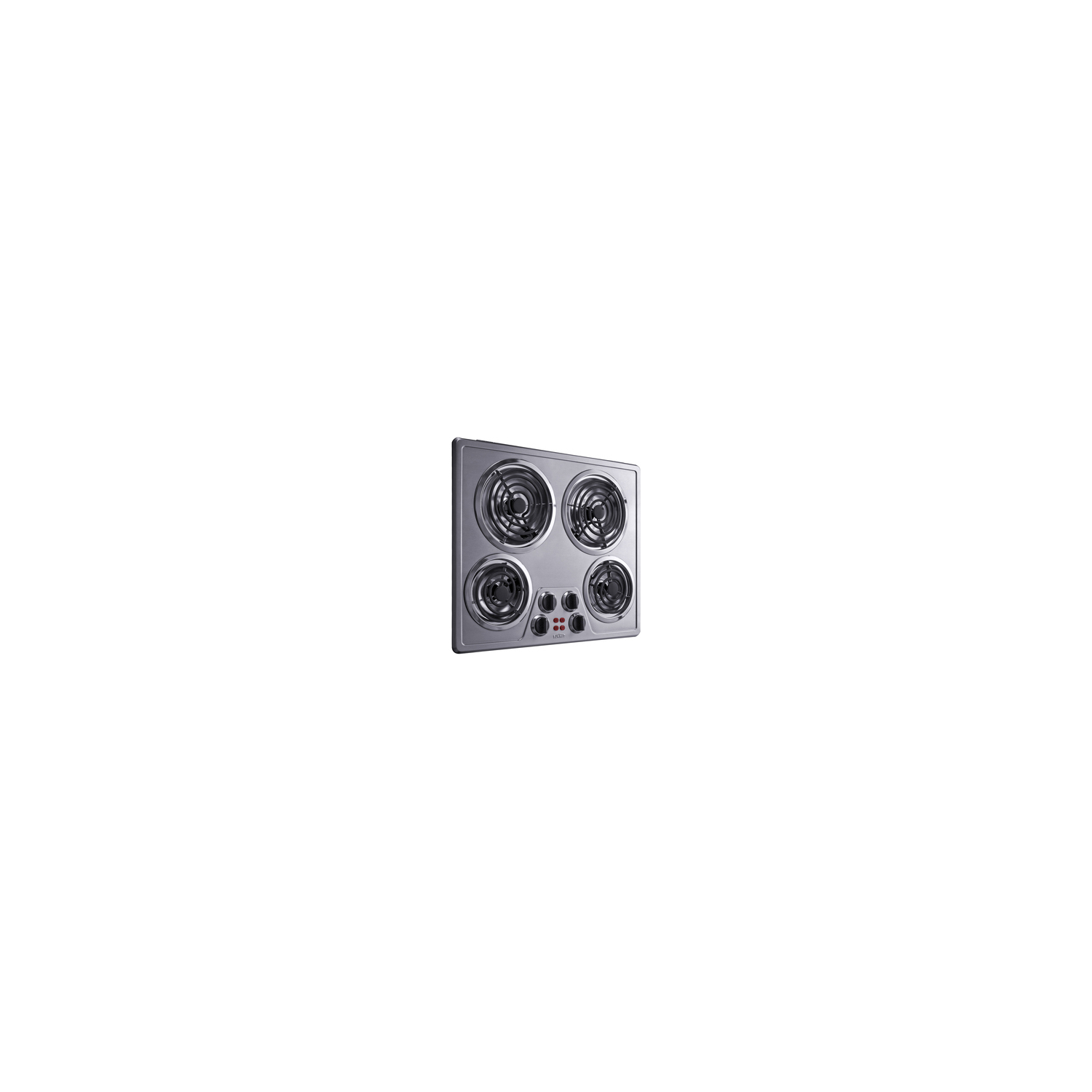

Summit 24 inch wide 230V electric cooktop with four coil elements and stainless steel finish, 7.61101e+011, CR4SS24
$495.98
Retail Price: $620.00
Free shipping
$ 495.98
Description
Summit's collection of electric cooktops offers the perfect fit and finish for a variety of kitchen spaces.
Sized at 24" wide, the CR4SS24 is a 208-240V cooktop with four coil elements. The two rear 8" elements offer a full 1800W each of cooking power, ideal for heating large pots and pans. The 1200W front burners are sized at a standard 6". Each burner includes a removable chrome drip bowl for easy cleanup. These elements are designed to the most current UL safety standards and include a safety function to cycle off before reaching dangerous flashpoint temperatures. Heating resumes automatically.
The CR4SS24 comes in a stainless steel finish, ideal for matching any home or hotel kitchen style. The push-to-turn knobs are centrally located for easy and safer use that complies with ADA guidelines, eliminating any need to reach over hot burners to adjust the temperature. Indicator lights help to identify which burners are in use.
The CR4SS24 is designed for professional installation in 22.5" W x 18.5" D cutouts and does not include a cord. With its attractive style and user-friendly layout, this is the perfect cooktop for completing your kitchen at a friendly price.
SPECIFICATIONS
Overview
Height of Cabinet 2.56" (7 cm)
Width 23.5" (60 cm)
Depth 20.0" (51 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 240 V AC/60 Hz
Weight 18.0 lbs. (8 kg)
Parts & Labor Warranty 1 Year
UPC 761101066141
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 22.5" (57 cm)
Countertop Cutout Depth 18.5" (47 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 1800.0
Element #3 Size 8.0" (20 cm)
Element #3 Wattage 1800.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1200.0
Power Cord Included No
FEATURES
Stainless steel finish Surface is made from stainless steel for an attractive and easy to clean look
2 1800W elements 8" elements located in the rear to accommodate large pots and pans
2 1200W elements Front elements features a 6" diameter to handle most standard cooking applications

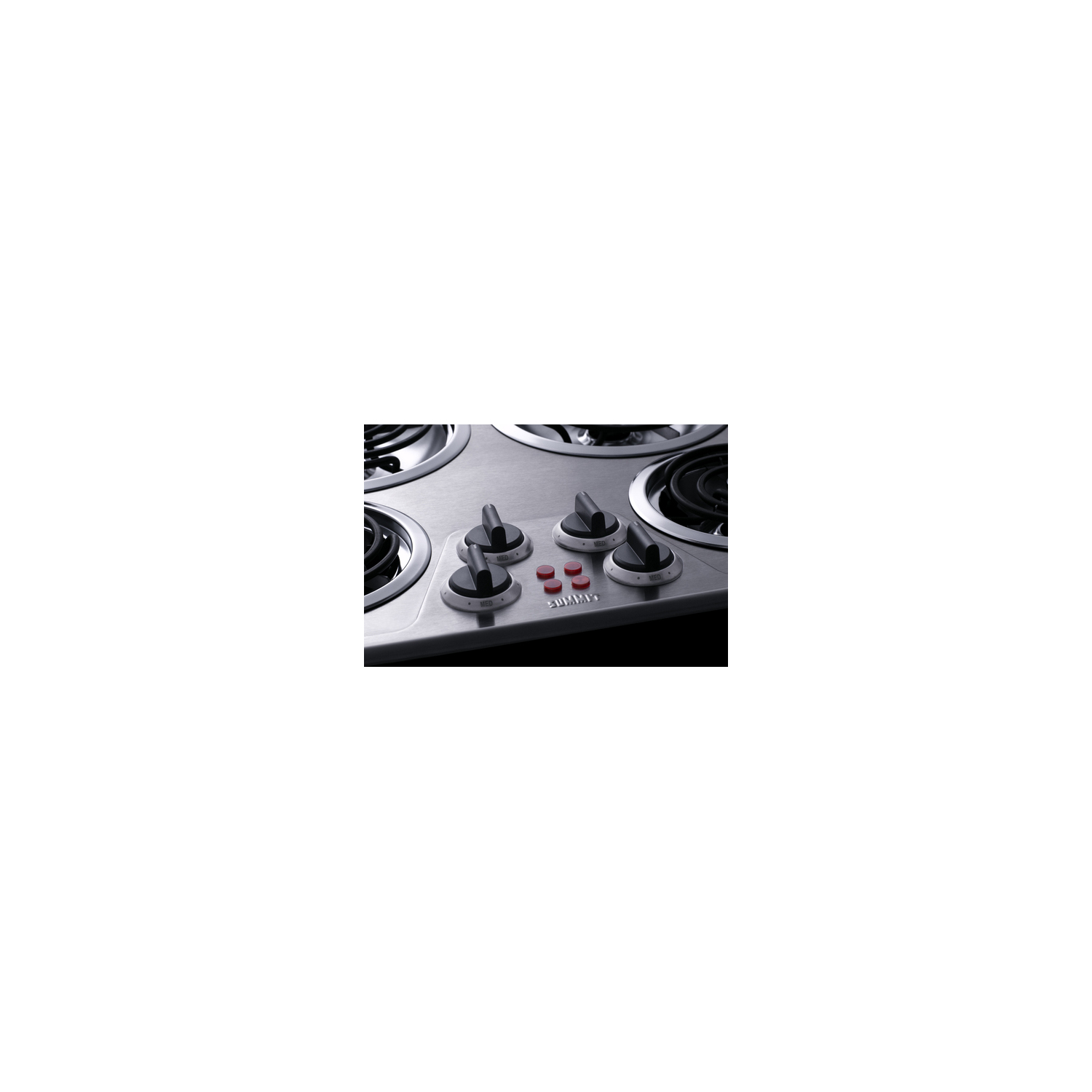

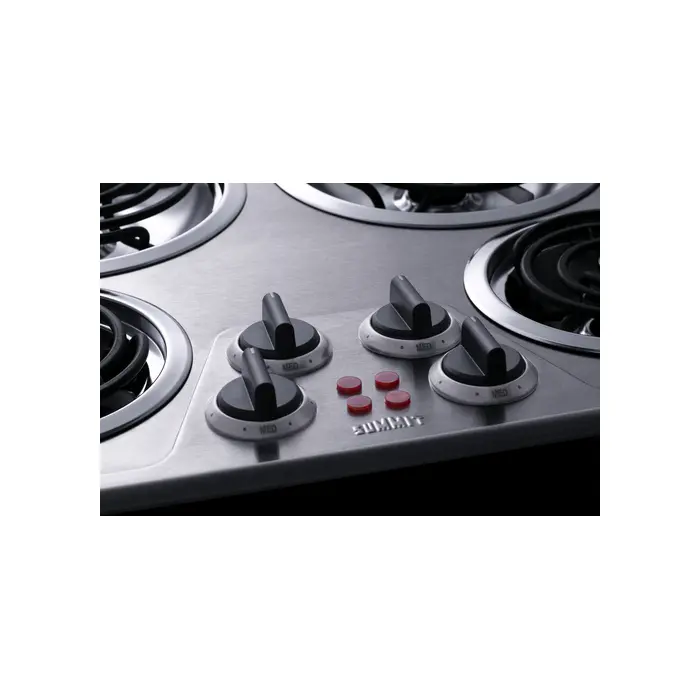

Upfront controls Easily accessible controls allow you to adjust your cooking without reaching over burners
Black matte finish on knobs Attractive style offers a modern complement to the brushed stainless steel cooktop finish
Removable chrome drip bowls Drip pans help to contain spills and can be removed for easy cleaning
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Individual lights for each burner allow you to easily see which zone is in use for added safety when cooking
Fits popular cutout size Designed for built-in installation in 22.5" x 18.5" cutouts
230V operation Professional installation required
DOWNLOADS
BROCHURE w/ DRAWINGS (CR4SS24.pdf)
TECHNICAL DRAWING (.dwg) (CR4SS24_ELE._COIL_COOKTOP__A-C_018_.dwg)
ASSEMBLY DRAWING (CR4SS24_CUTOUT.pdf)
