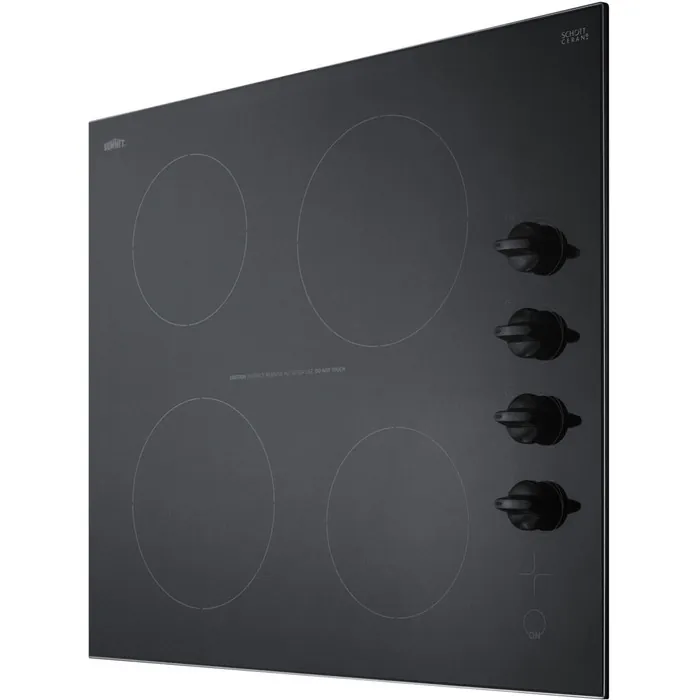

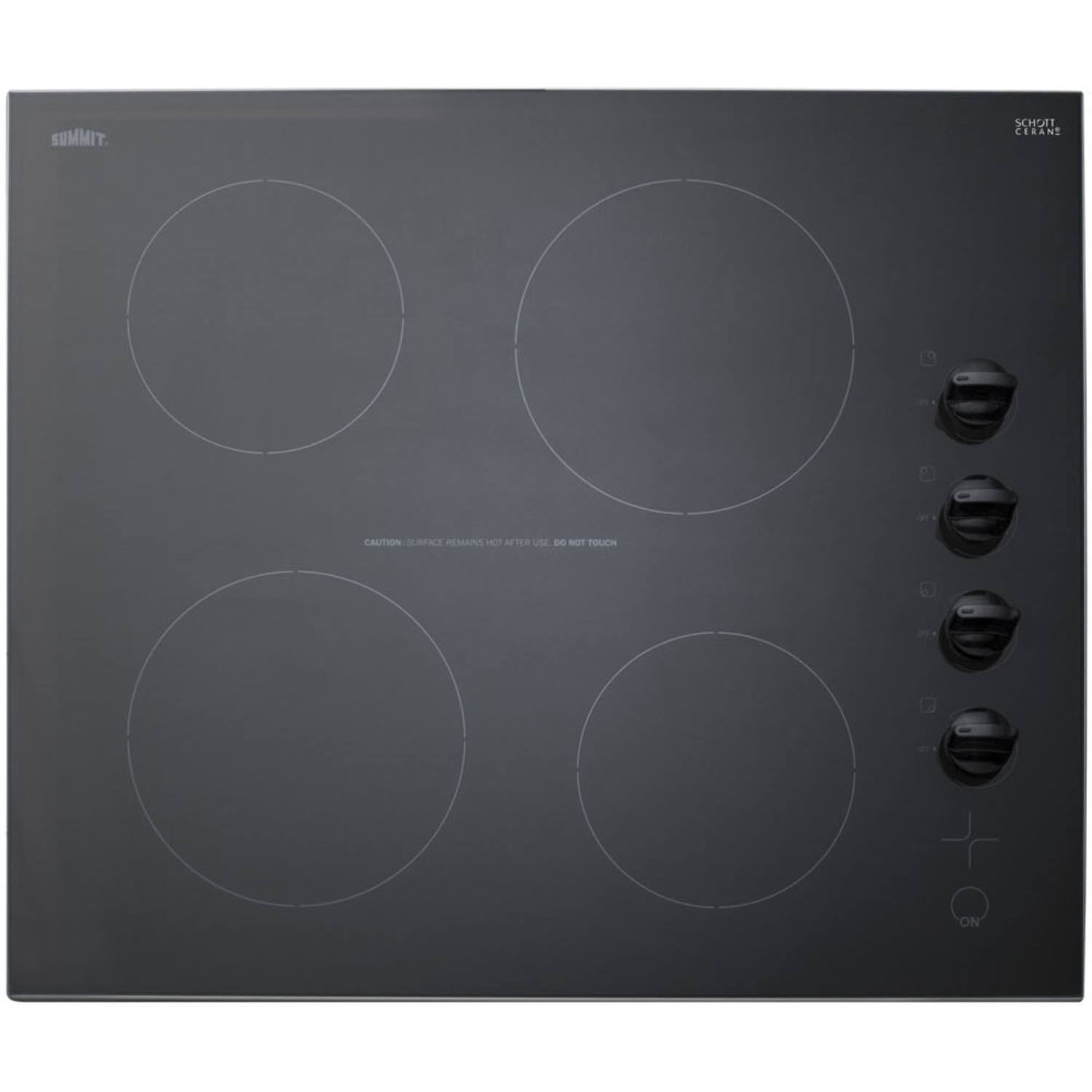

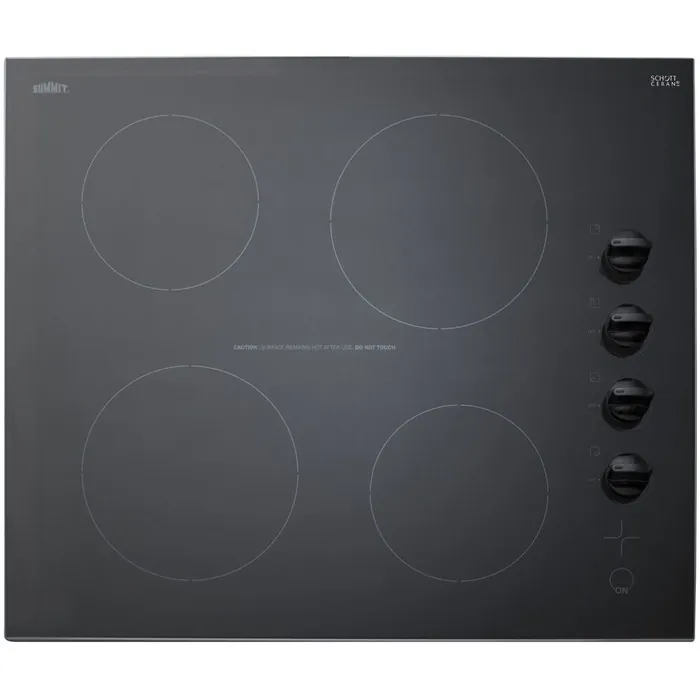

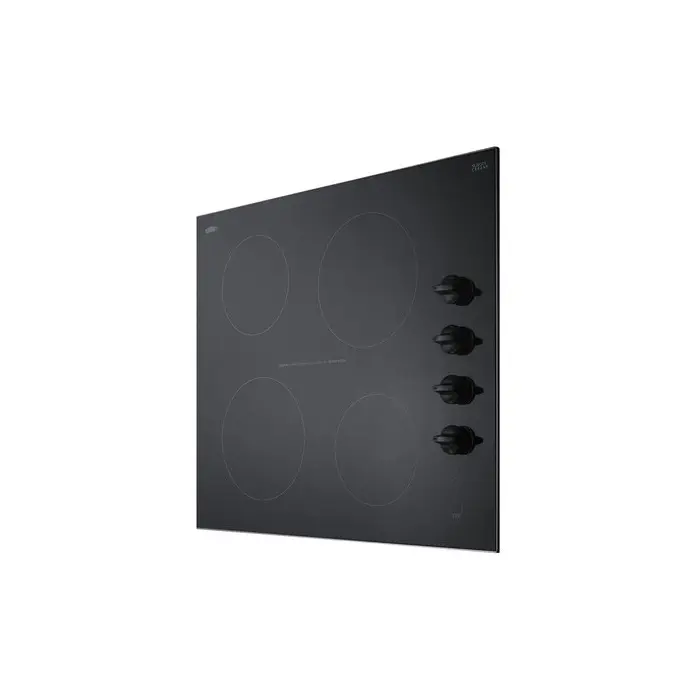

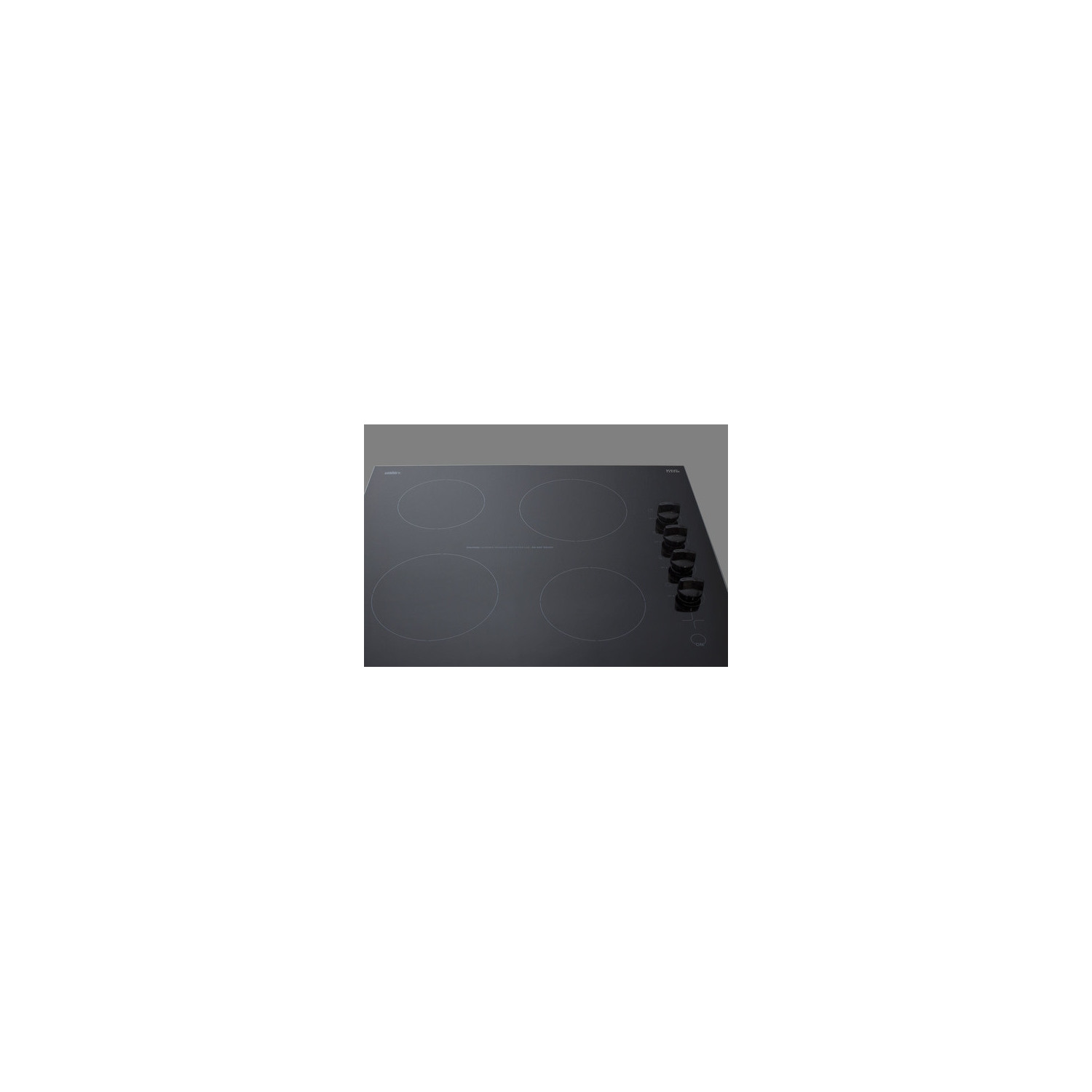

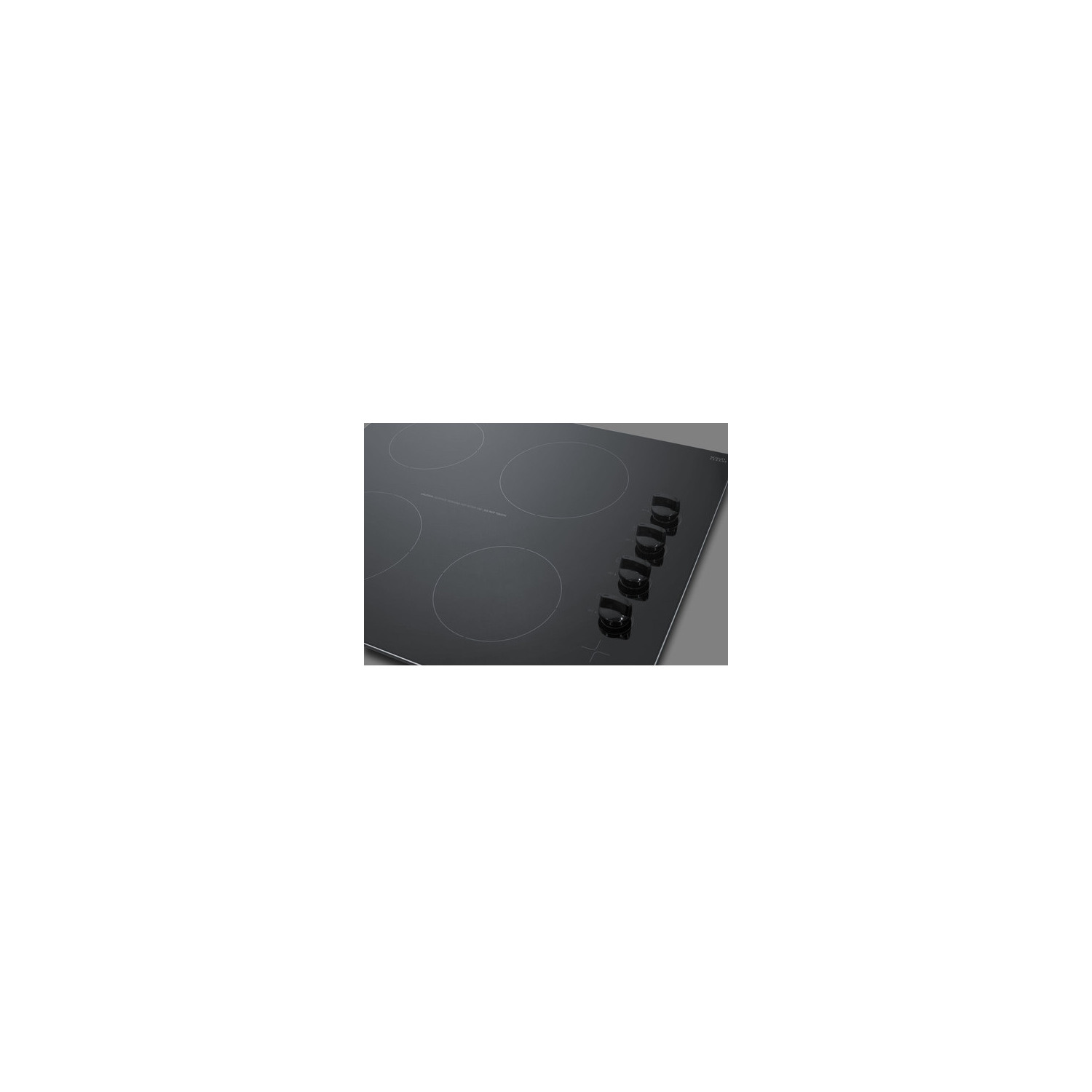

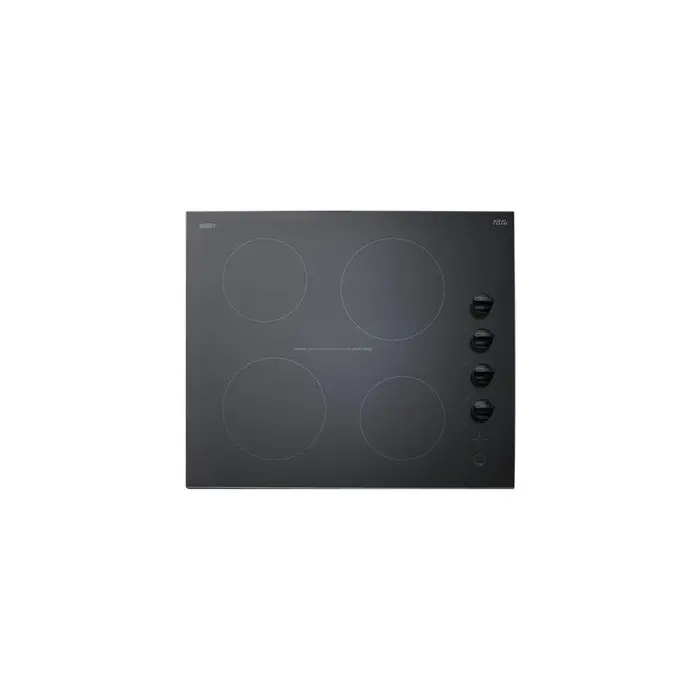

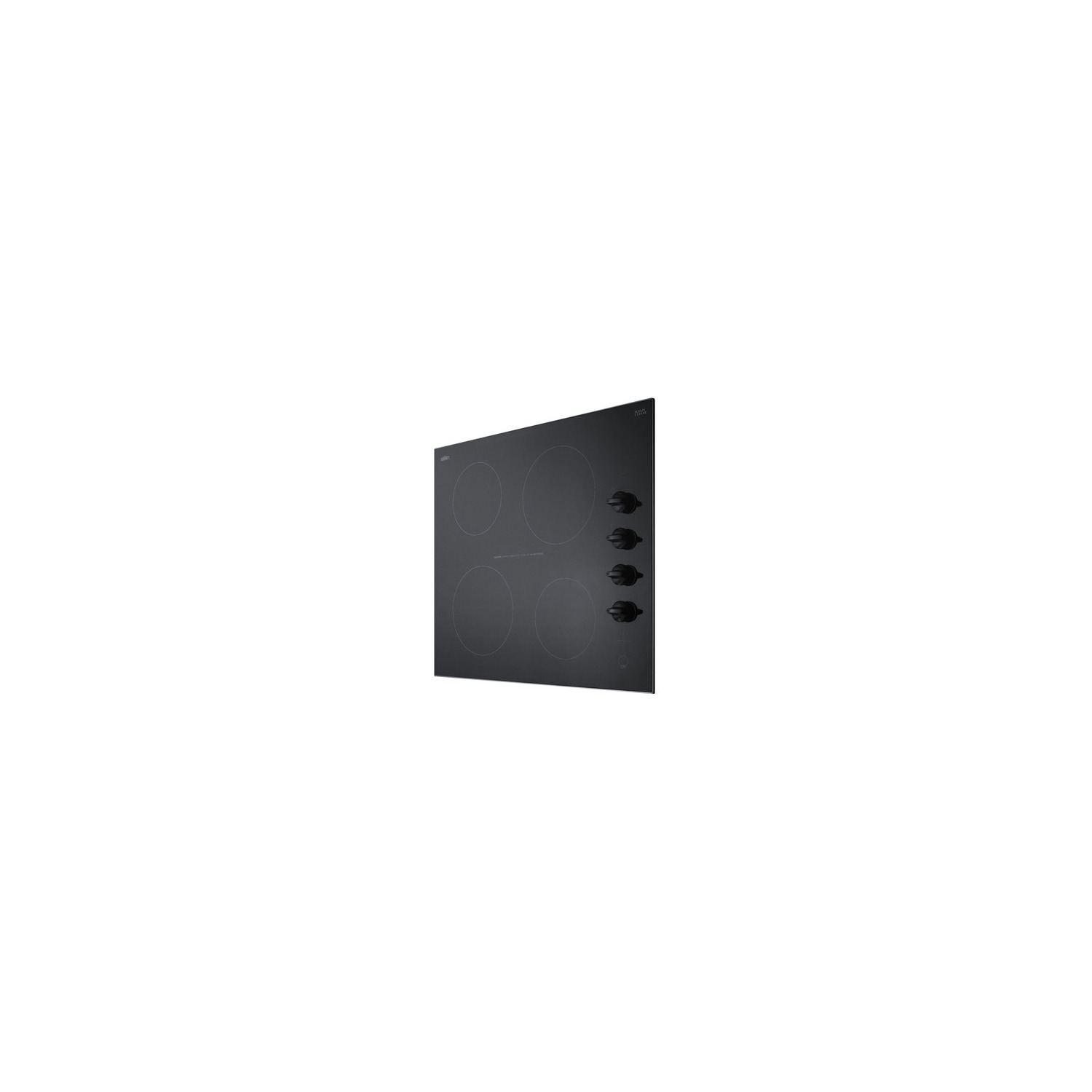

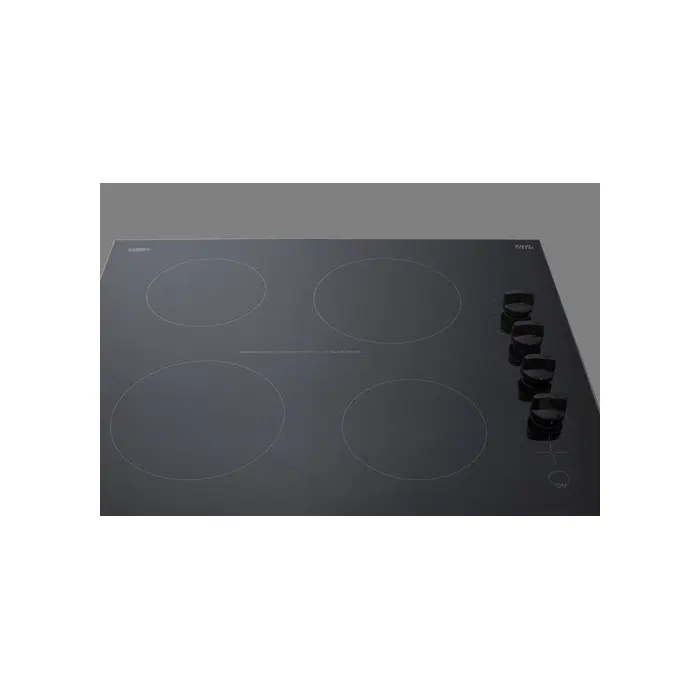

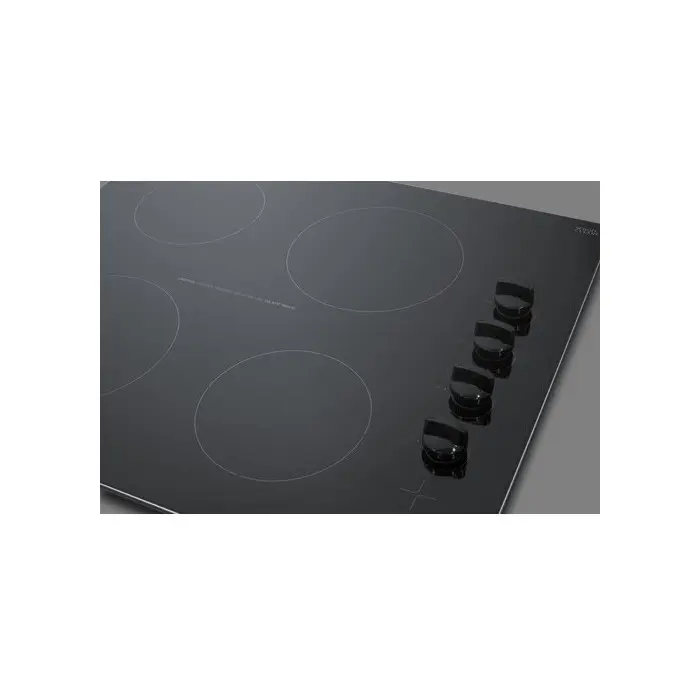

Summit 24 inch wide 4-burner smooth-top cooktop in black, 7.61101e+011, CR4B242BK
$575.60
Retail Price: $730.00
Free shipping
$ 575.60
Description
Summit offers an extensive selection of radiant cooktops for all kitchen spaces, including 24" wide European choices.
The CR4B242BK is a 230V 6000W electric cooktop designed to fit common 22 1/8" W x 19 3/8" D cutouts. Two 7.5" elements offer 1800W of power for larger cooking vessels, with two standard 6" 1200 elements to handle lighter cooking needs. The glass surface comes in a striking jet black finish. Color-matched push-to-turn knobs complete the look. The side-mounted control panel helps to free up space in front when cooking. This unit includes individual indicator lights to show which burners are in use.
In addition to the CR4B242BK, Summit offers a variety of cooktop choices, including white glass models, induction cooktops, coil cooktops, and more. Browse our website to explore our full selection.
SPECIFICATIONS
Overview
Nominal Height 3.0" (8 cm)
Height of Cabinet 3.0" (8 cm)
Nominal Width 24.0" (61 cm)
Width 24.0" (61 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet Black
US Electrical Safety UL
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
UPC 761101078731
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 4
Controls Dial
Countertop Cutout Height 4.0" (10 cm)
Countertop Cutout Width 22.13" (56 cm)
Countertop Cutout Depth 19.38" (49 cm)
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.5" (19 cm)
Element #2 Wattage 1800.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 7.5" (19 cm)
Element #4 Wattage 1800.0
Power Cord Included No
FEATURES
24" width Designed to fit 22.13" W x 19.38" D cutouts
Schott ceramic glass surface Smooth ceramic glass cooking surface in a sleek black finish
2 High output burners Front left and rear right burners are sized at 7.5" with 1800W of cooking power for larger pots and pans`
2 Standard burners Front right and rear left burners are sized at 6" with 1200W of cooking power to meet most heating needs
Push-to-turn knobs Controls require a gentle push to help prevent cooking accidents
Indicator lights Individual indicator lights show which burner is in use
220-240V operation Requires professional hardwired installation
DOWNLOADS
BROCHURE w/ DRAWINGS (CR4B242BK.pdf)
TECHNICAL DRAWING (.dwg) (CR4B242BL_Cooktop__A-C_2018_.dwg)
