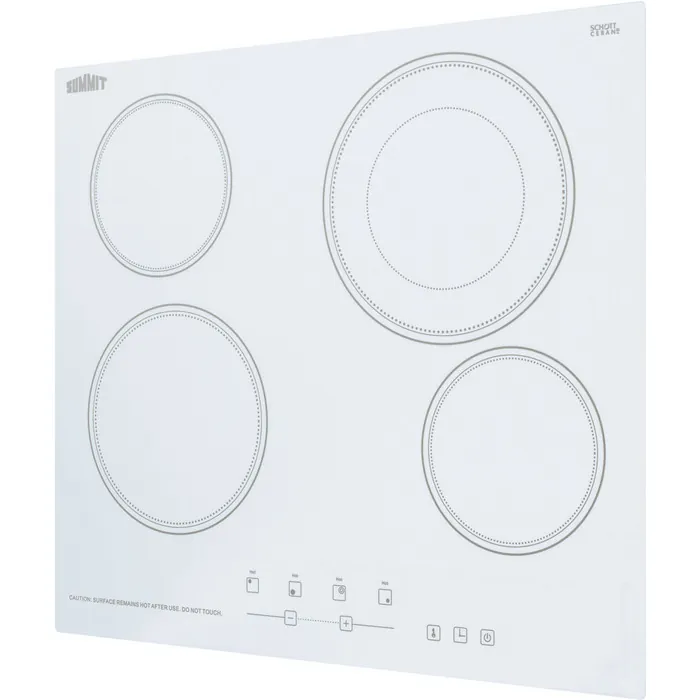

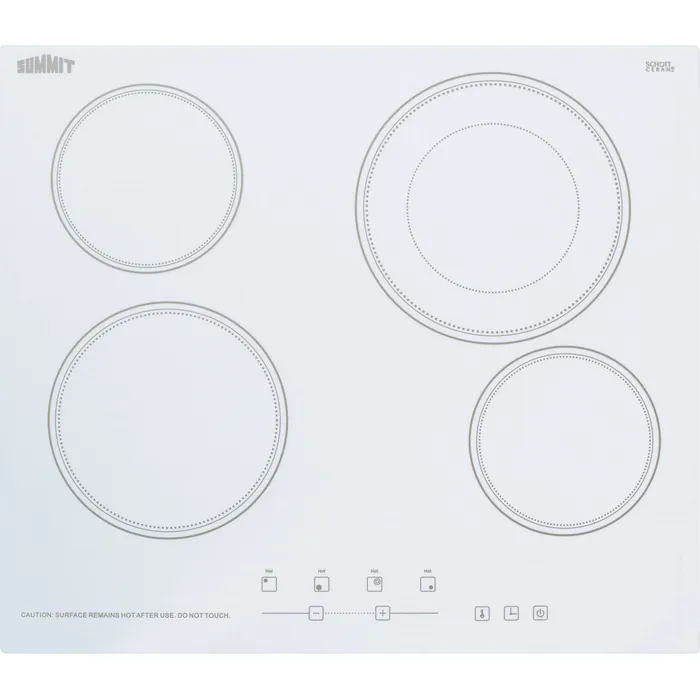

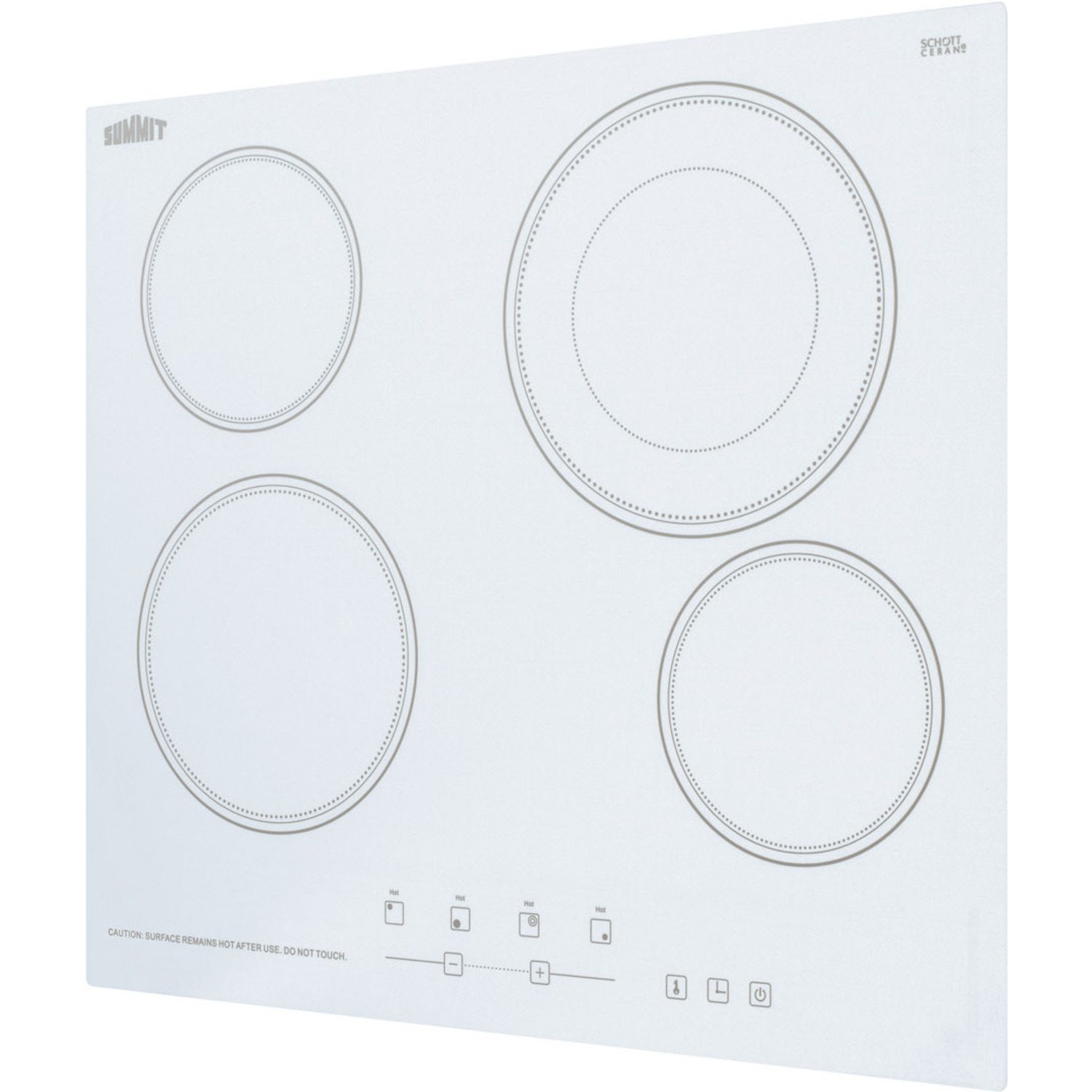

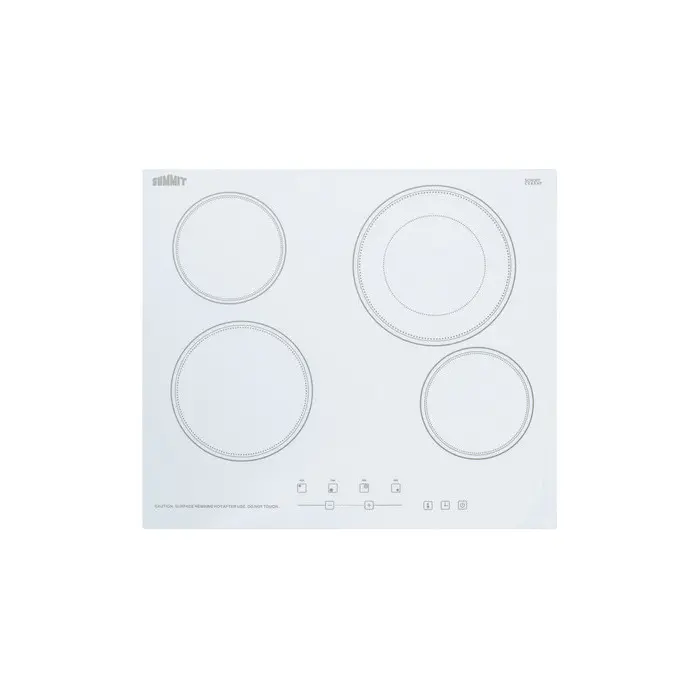

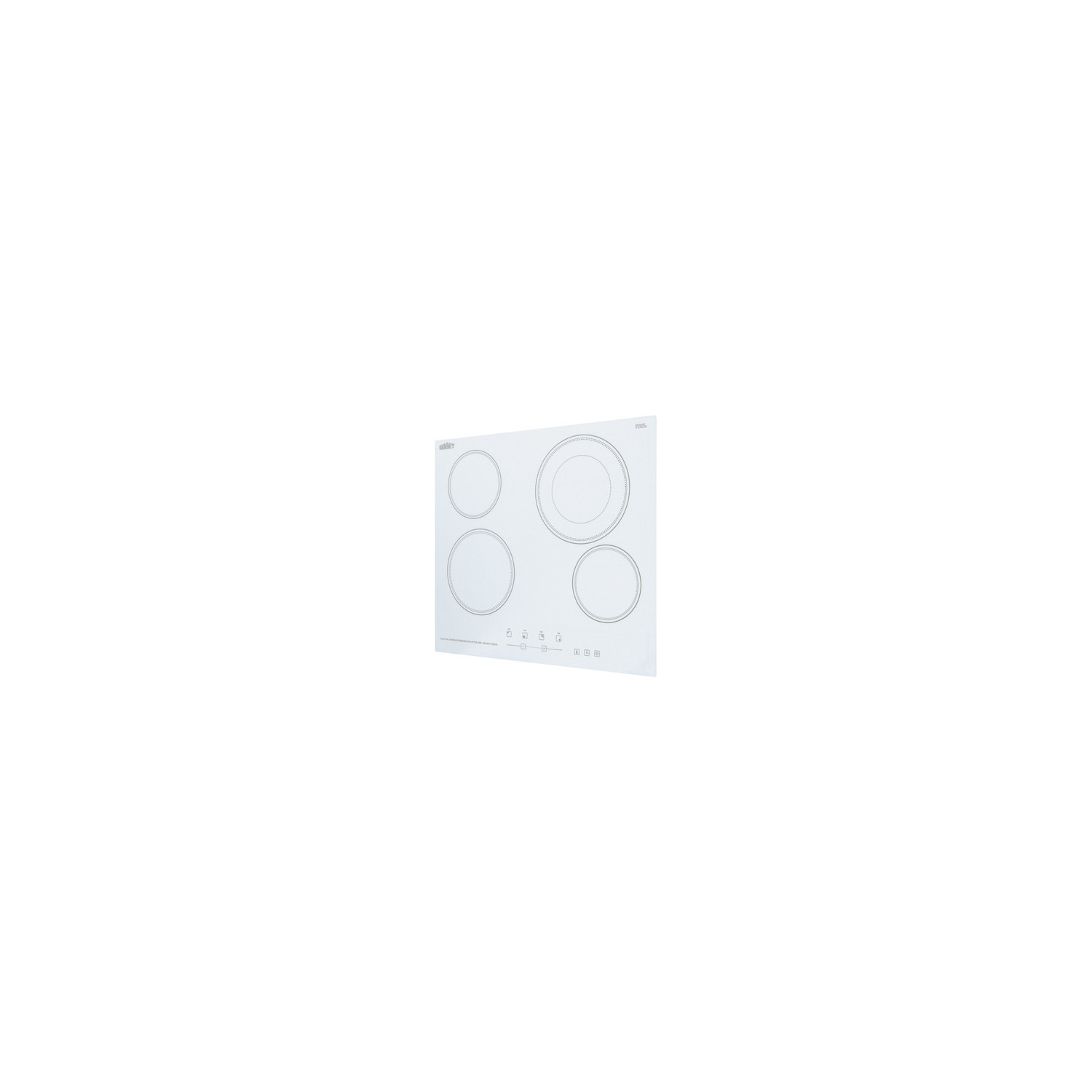

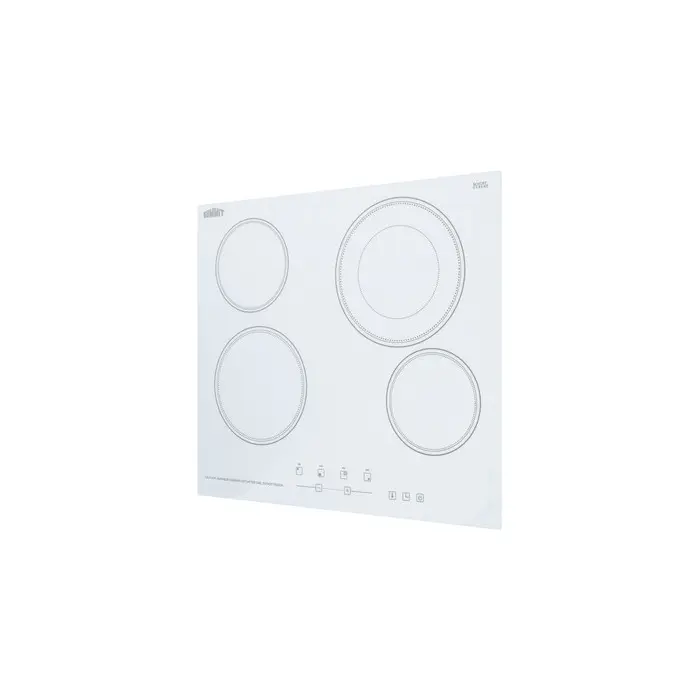

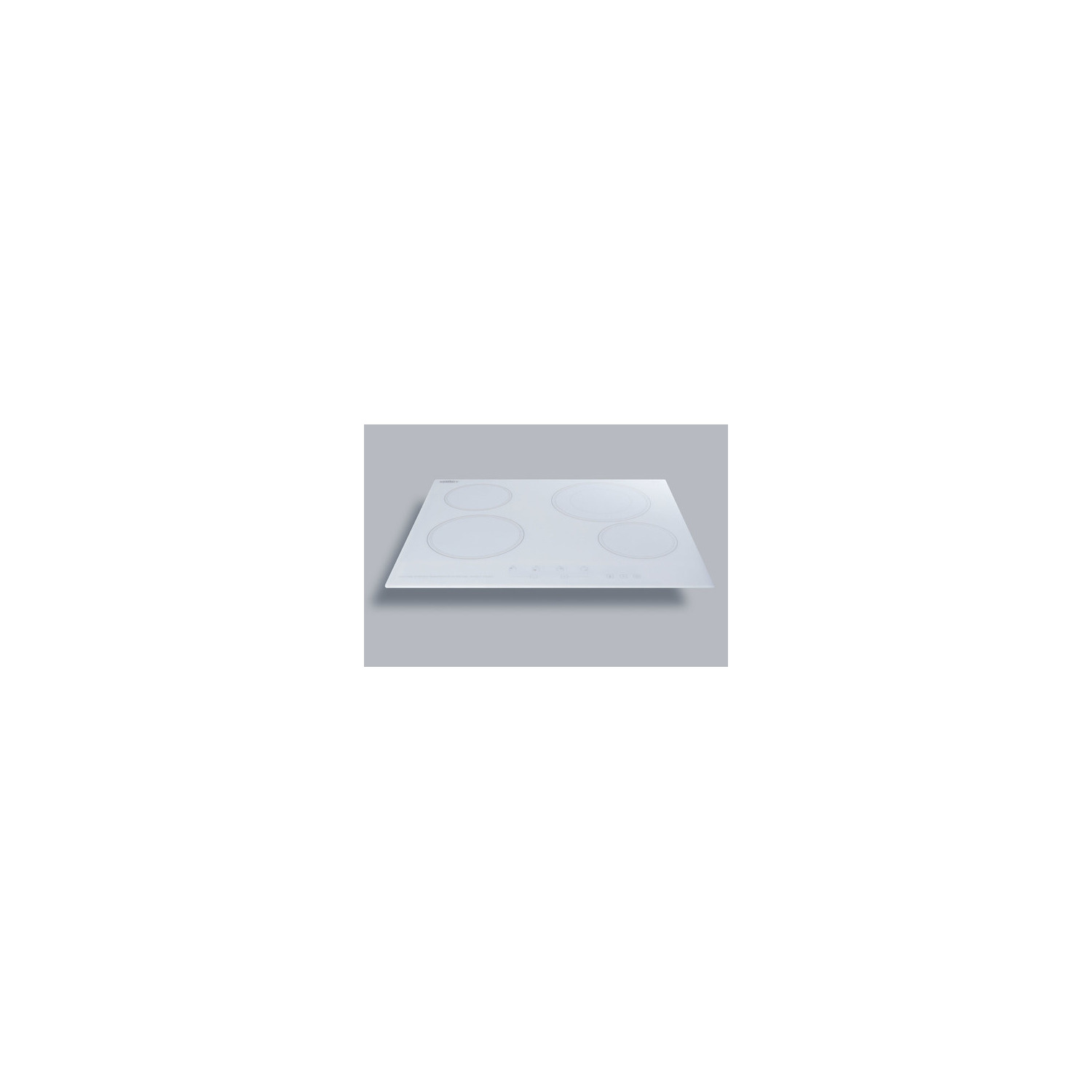

Summit 230V 4-burner cooktop in white ceramic Schott glass with digital touch controls and an extra large 8 inch dual cooking element, 7.61101e+011, CR4B23T6W
$833.51
Retail Price: $1,085.00
Shipping: $250
$ 833.51
Description
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

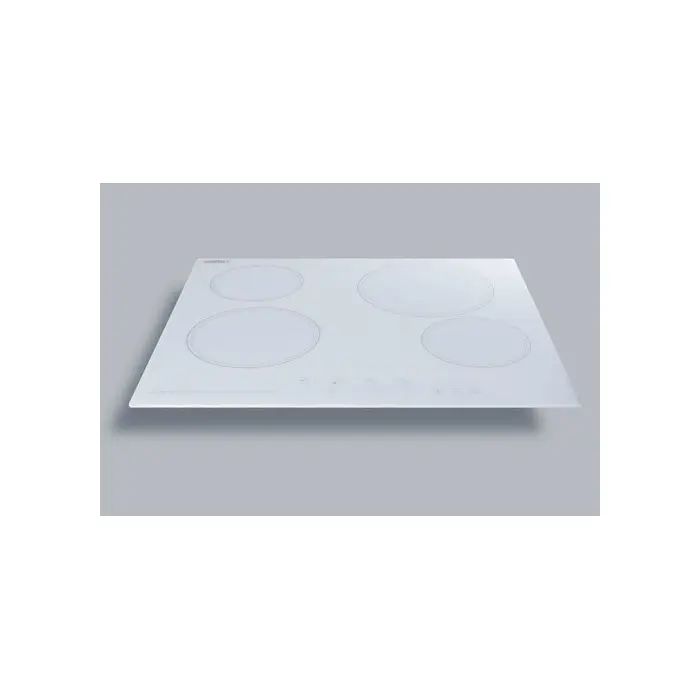

The CR4B23T6W is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

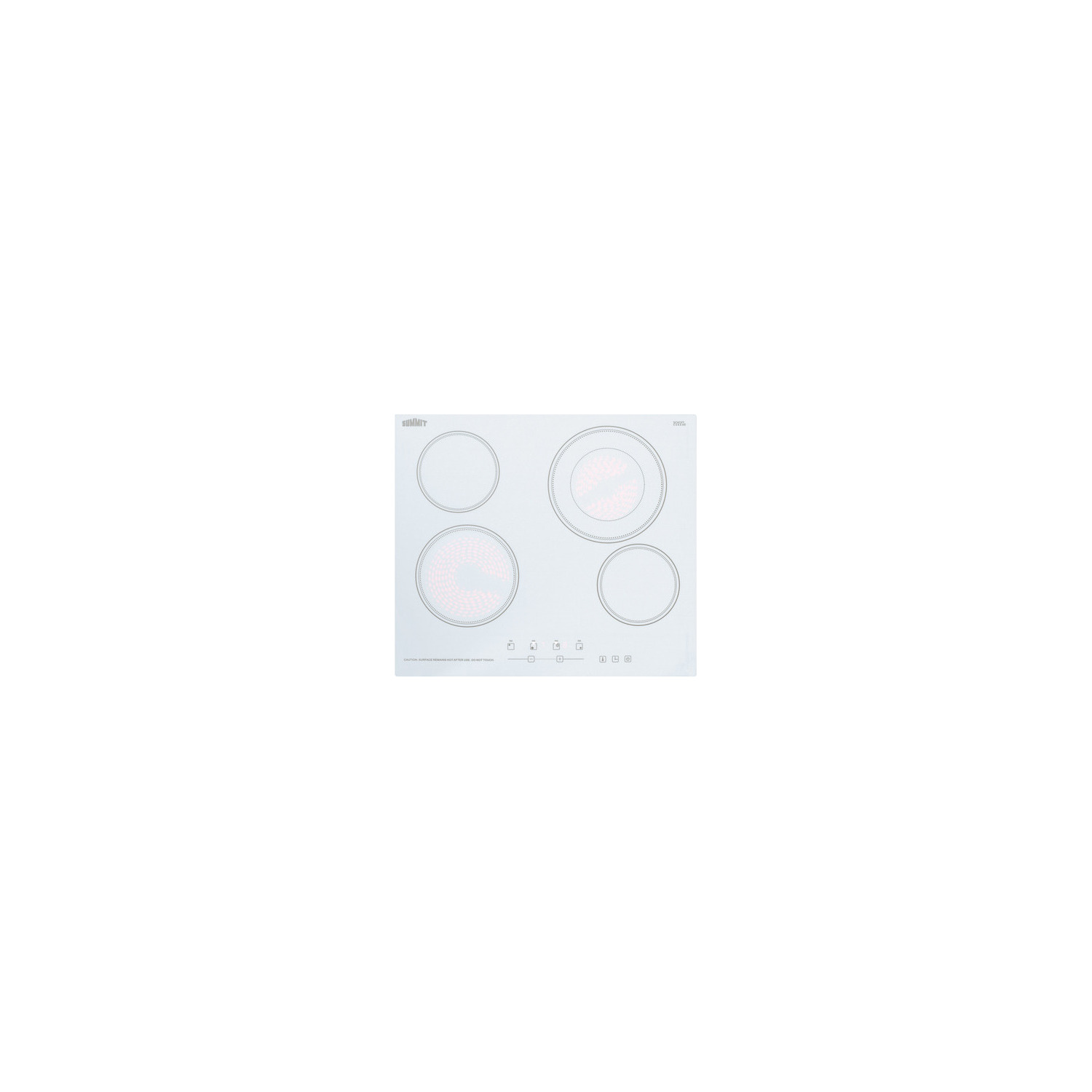

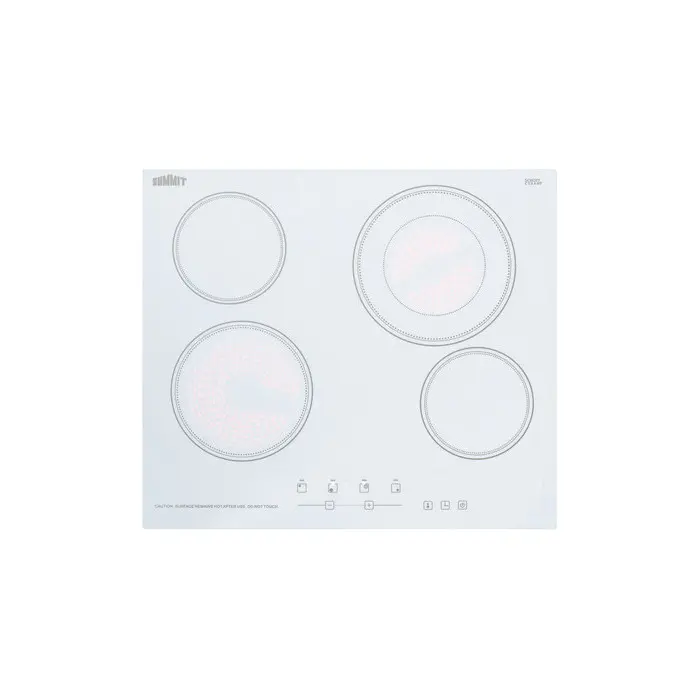

Unlike many other 24" wide cooktops, the CR4B23T6W includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals.
The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements.
With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T6W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
SPECIFICATIONS
Overview
Nominal Height 2.0" (5 cm)
Height of Cabinet 2.0" (5 cm)
Nominal Width 24.0" (61 cm)
Width 23.25" (59 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 30.0
Voltage/Frequency 230 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
UPC 761101053264
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 4
Controls Digital
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Depth 19.5" (50 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 8.1" (21 cm)
Element #2 Wattage 2200.0
Element #3 Size 5.5" (14 cm)
Element #3 Wattage 1200.0
Element #4 Size 7.0" (18 cm)
Element #4 Wattage 1800.0
Power Cord Included No
FEATURES
24" Wide 4-Burner Cooktop Smooth-top radiant cooktop for installation in smaller kitchen spaces
Schott glass surface Made in Germany, the white Schott glass offers easier cleanup and lasting durabilty
Extra large 2200W burner Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
Large 1800W burner Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
2 Standard 1200W burners Front right and rear left burners are 5.5" in diameter to meet most cooking needs
Dual cooking zone Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

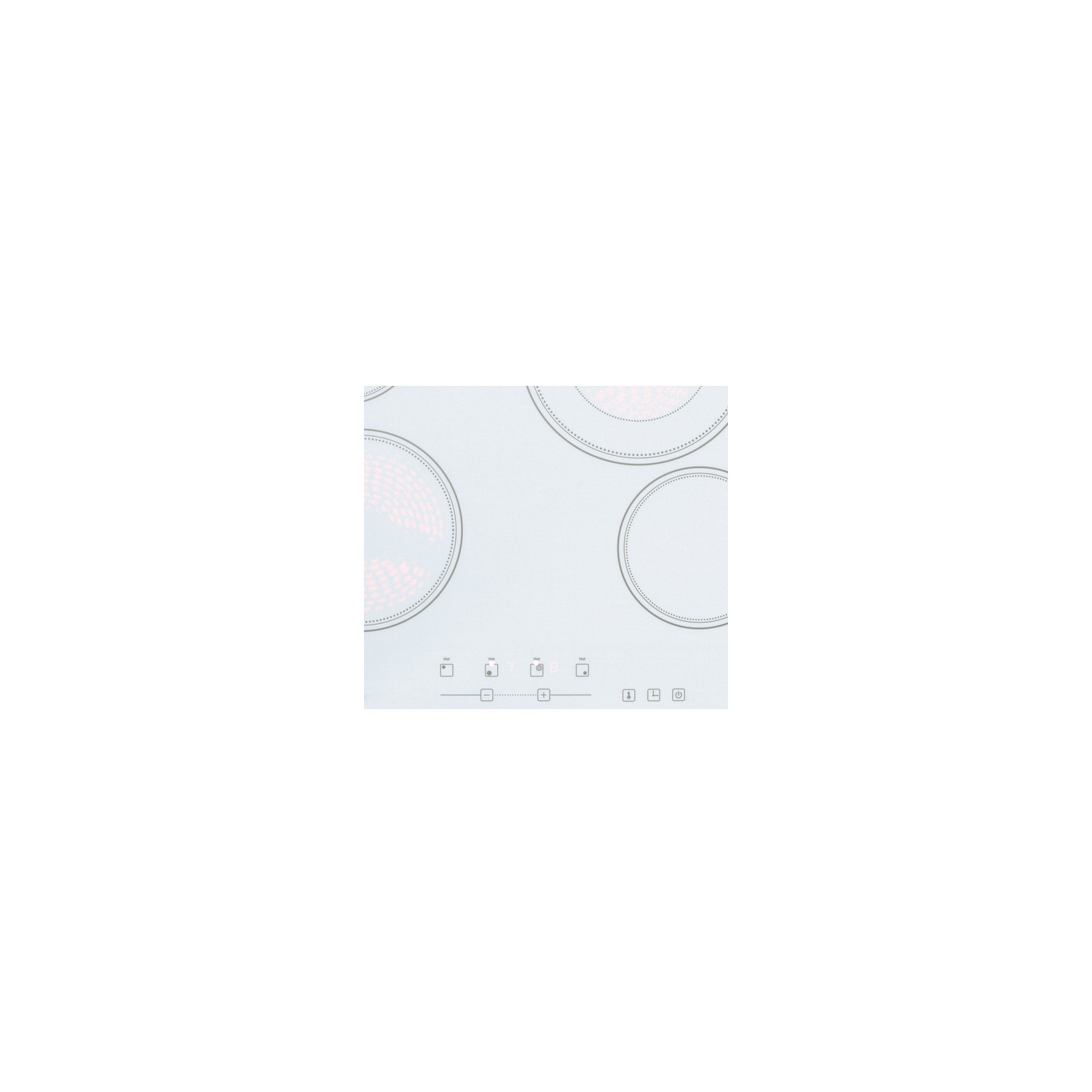

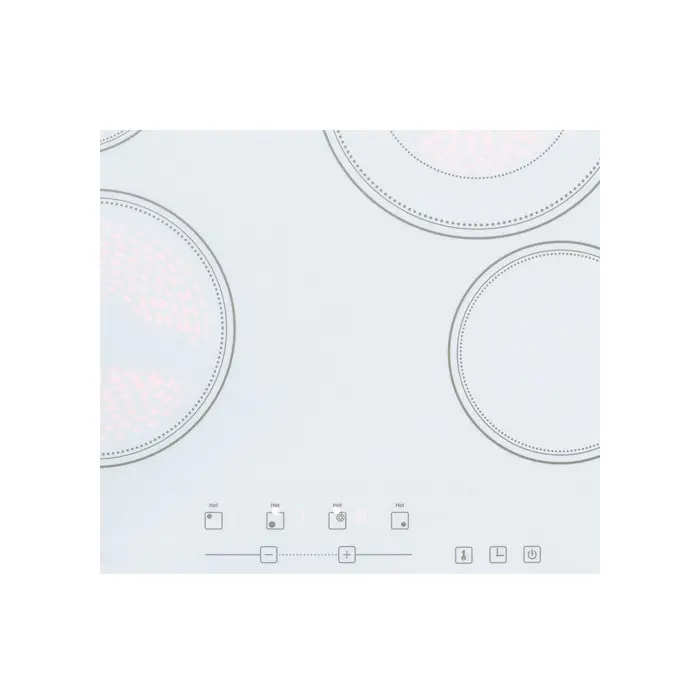

Digital touch controls Easy operation with a digital control panel and digital display
9 power levels Select and adjust your heating levels at the touch of a button
Timer Allows you to program either burner to heat at a specified level for up to 99 minutes
Residual heat indicator lights Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

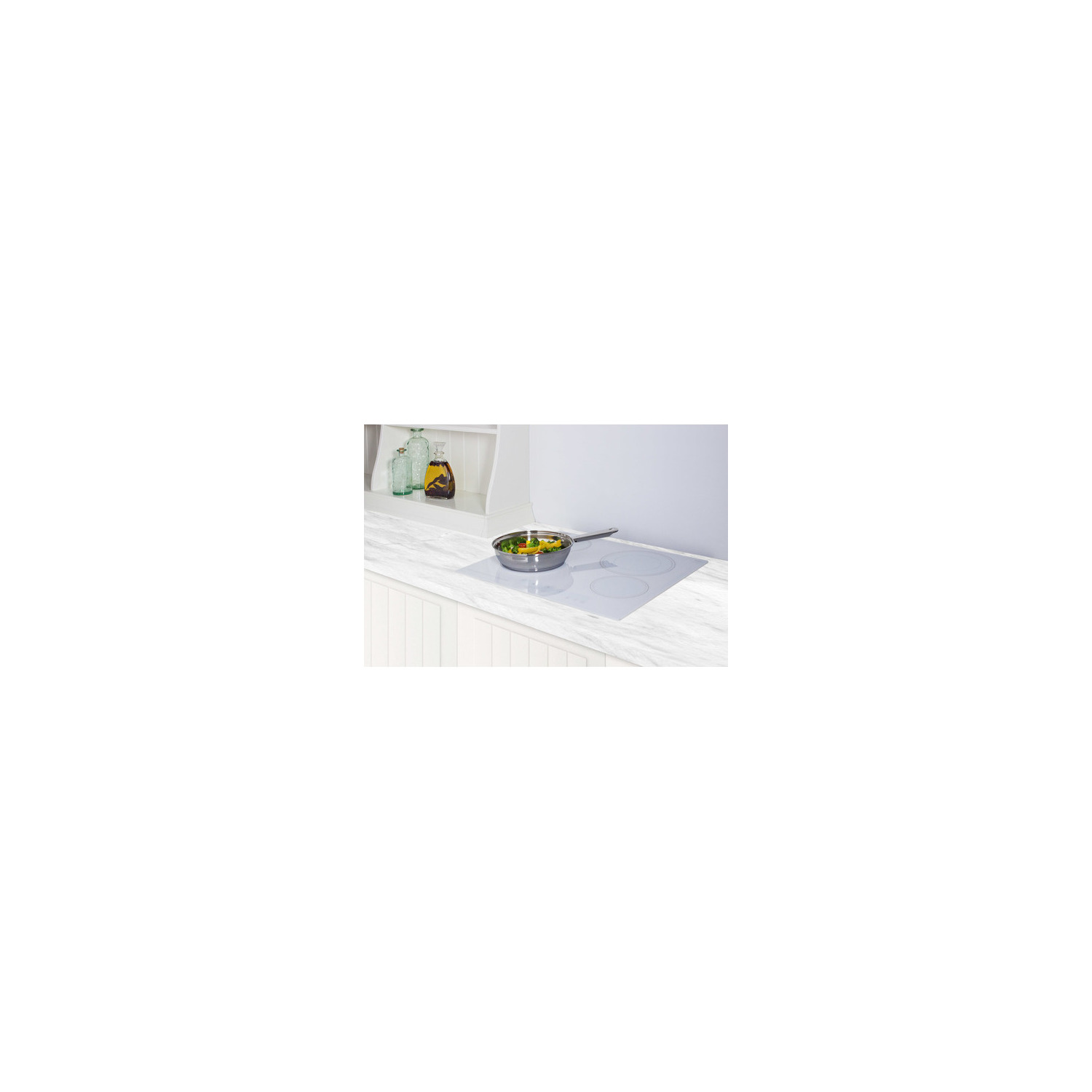

Designed for built-in installation Fits counter cutout sizes that are 22" wide by 19.5" deep
ADA compliant design Upfront controls meet ADA guidelines for easier accessibility
Child lock Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
230V operation Requires professional hardwired installation to 230V power supply
DOWNLOADS
BROCHURE w/ DRAWINGS (CR4B23T6W.pdf)
TECHNICAL DRAWING (.dwg) (CR4B23T5B_T6W_COOKTOP__A-C_2000_.dwg)
REVIT MODEL (QF_Summit_CR4B23T6W_4_Burner_Radiant_Cooktop.rfa)
