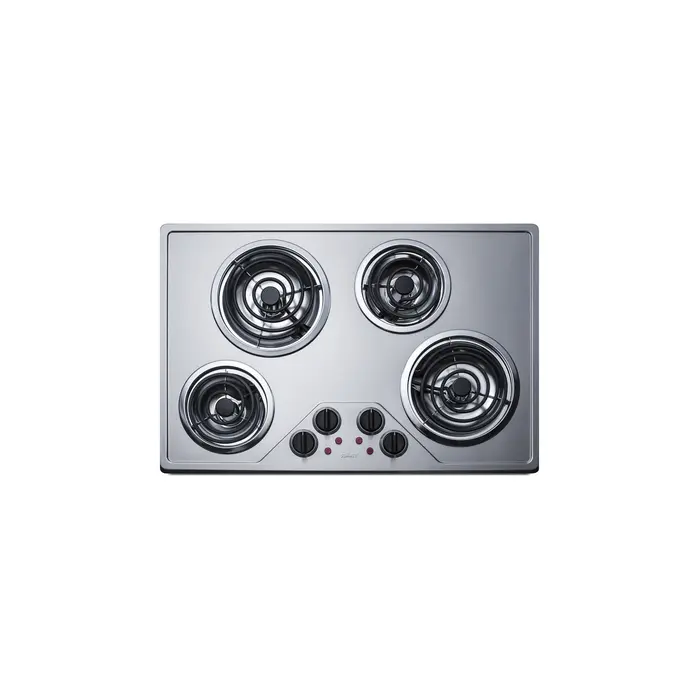

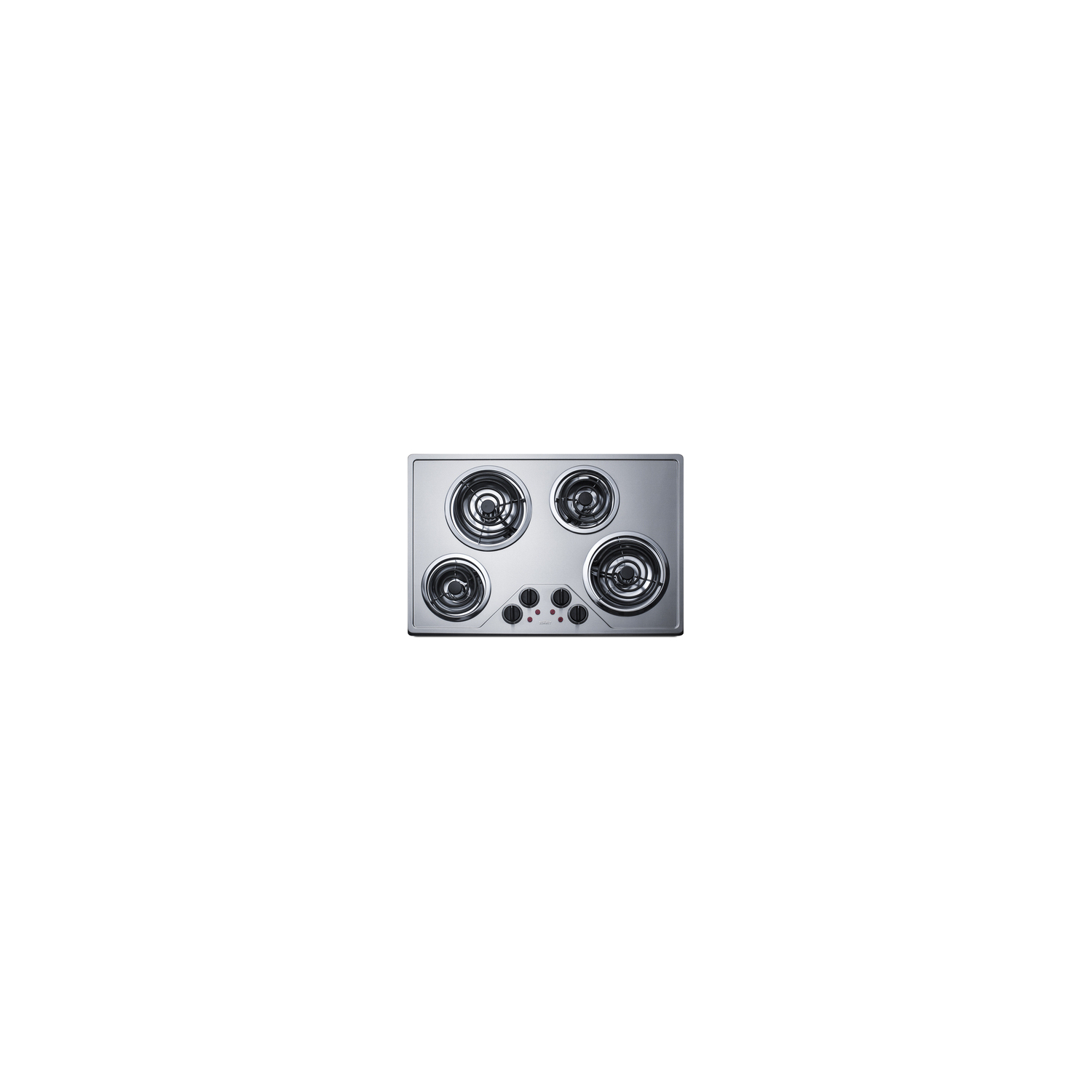

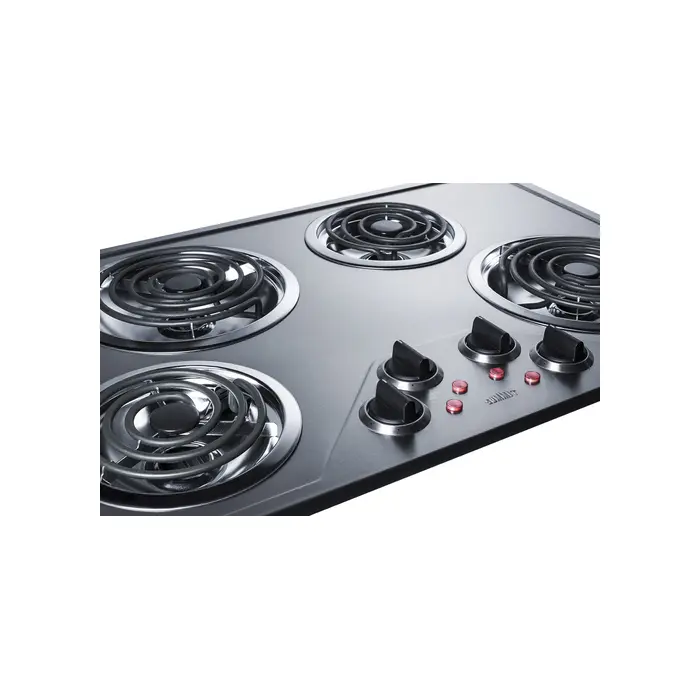

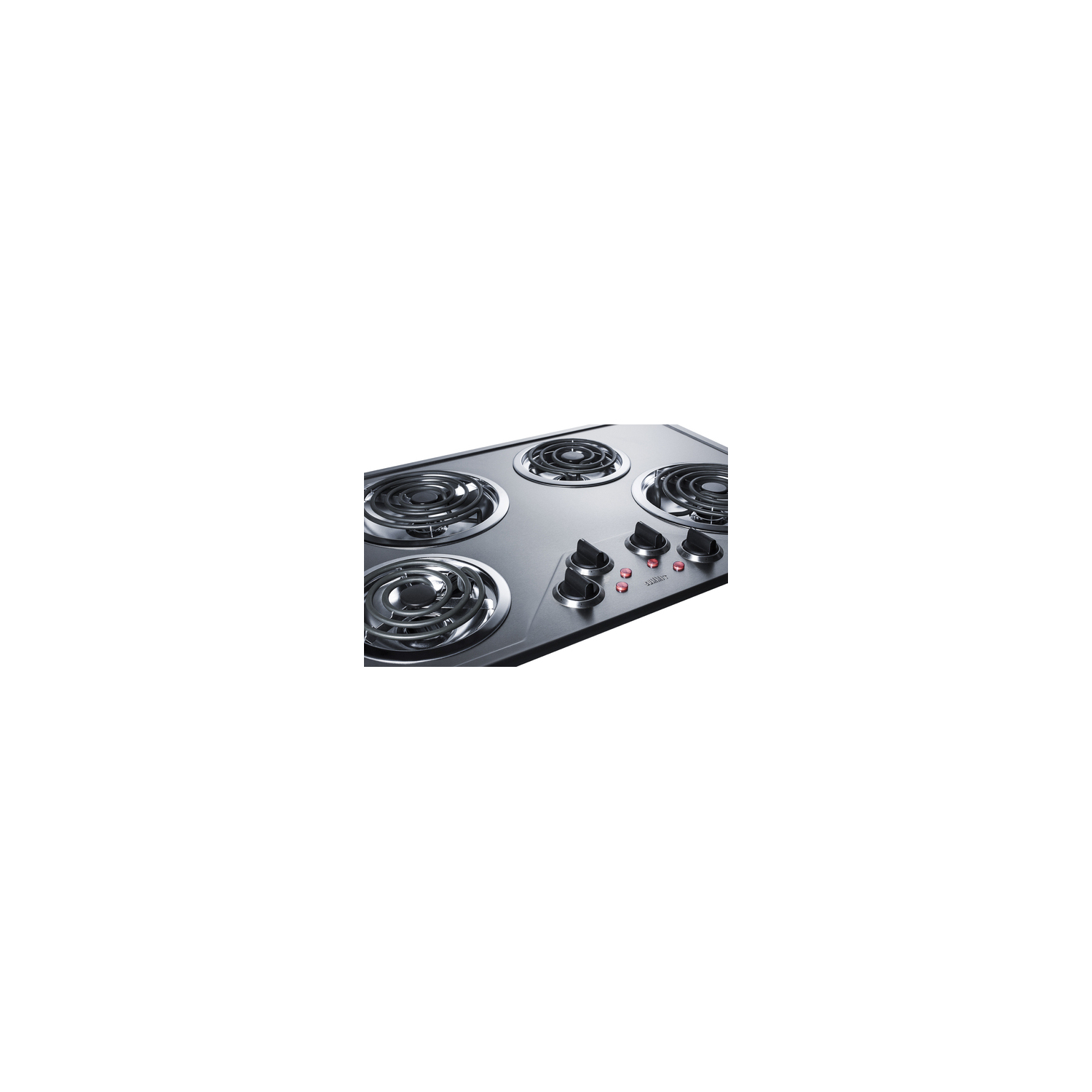

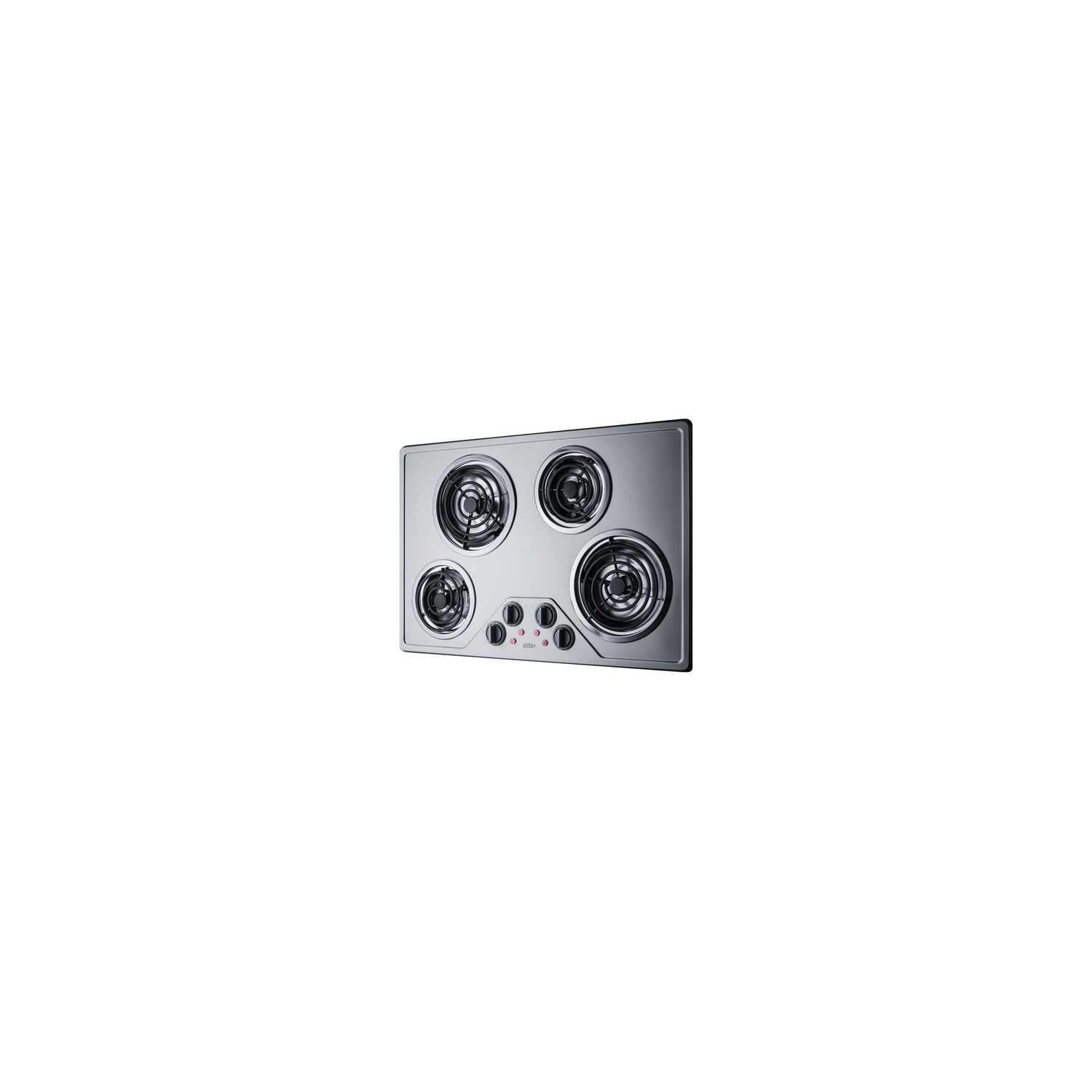

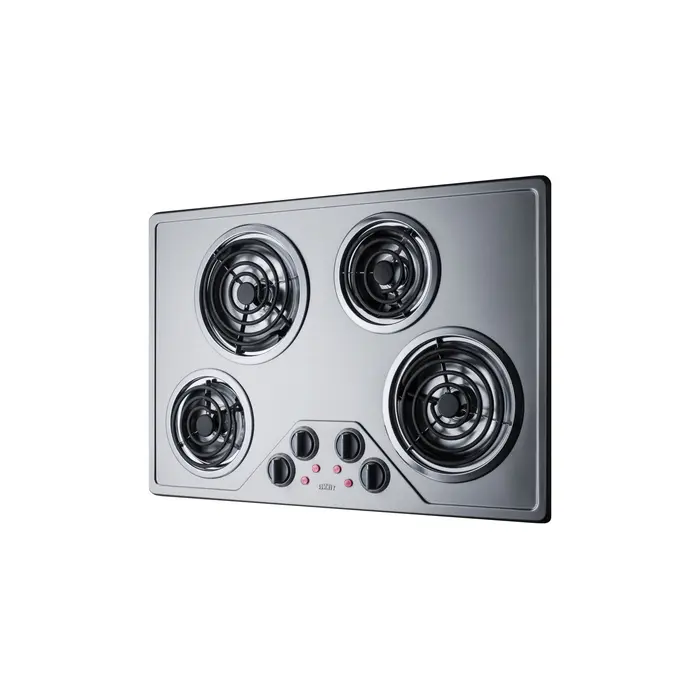

Summit 30 inch Wide 230V 4-Burner Coil Cooktop, CR431SS
$603.20
Retail Price: $770.00
Free shipping
$ 603.20
Description
Summit's collection of electric cooktops offers the perfect fit and finish for a variety of kitchen spaces.
Model CR431SS is a 208-240V electric cooktop. Sized at a traditional 30 1/4" width, it is designed to fit common 28" W x 19 1/2" D cutouts, making this unit an ideal replacement for both gas and electric models. It comes in a heavy gauge stainless steel finish for lasting durability.
This cooktop features four coil elements. The convenient layout puts a large 1800W burner in the front right side and rear left side, with two standard 1200W elements ensuring the perfect setup to cook multiple dishes with efficiency. Each burner includes a removable chrome drip bowl for easy cleanup. The push-to-turn knobs are centrally located for easy and safer use, eliminating any need to reach over hot burners to adjust the temperature. Indicator lights help to identify which burners are in use.
With its durable construction and convenient size, the CR431SS is a budget-friendly choice for new and remodeled kitchens. This cooktop requires professional installation and does not include a power cord. Additional options are available in 12" and 24" fits, as well as more choices in radiant, induction, solid disk, and gas. Browse the full Summit collection for the perfect cooking solution.
SPECIFICATIONS
Overview
Height of Cabinet 2.63" (7 cm)
Width 30.25" (77 cm)
Depth 21.5" (55 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 230 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101161198
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Coils
Number of Elements 4
Controls Dial
Countertop Cutout Width 28.0" (71 cm)
Countertop Cutout Depth 19.5" (50 cm)
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 1800.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Element #3 Size 8.0" (20 cm)
Element #3 Wattage 1800.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1200.0
Power Cord Included No
FEATURES
4-Burner Coil Cooktop 30 1/4" wide electric cooktop with four coil elements
Stainless steel finish Surface is made from heavy gauge stainless steel for an attractive and easy to clean look
2 1800W elements Located in the front right and rear left, the 8" wide 1800W elements are ideal for heating larger cooking vessels
2 1200W elements The front left and rear right elements are 6" wide and cook at 1200W, perfect for handling smaller dishes

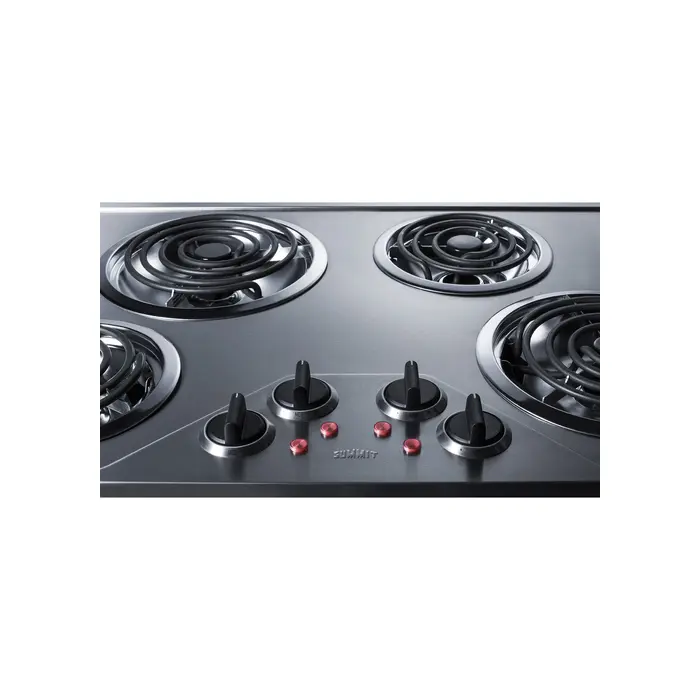

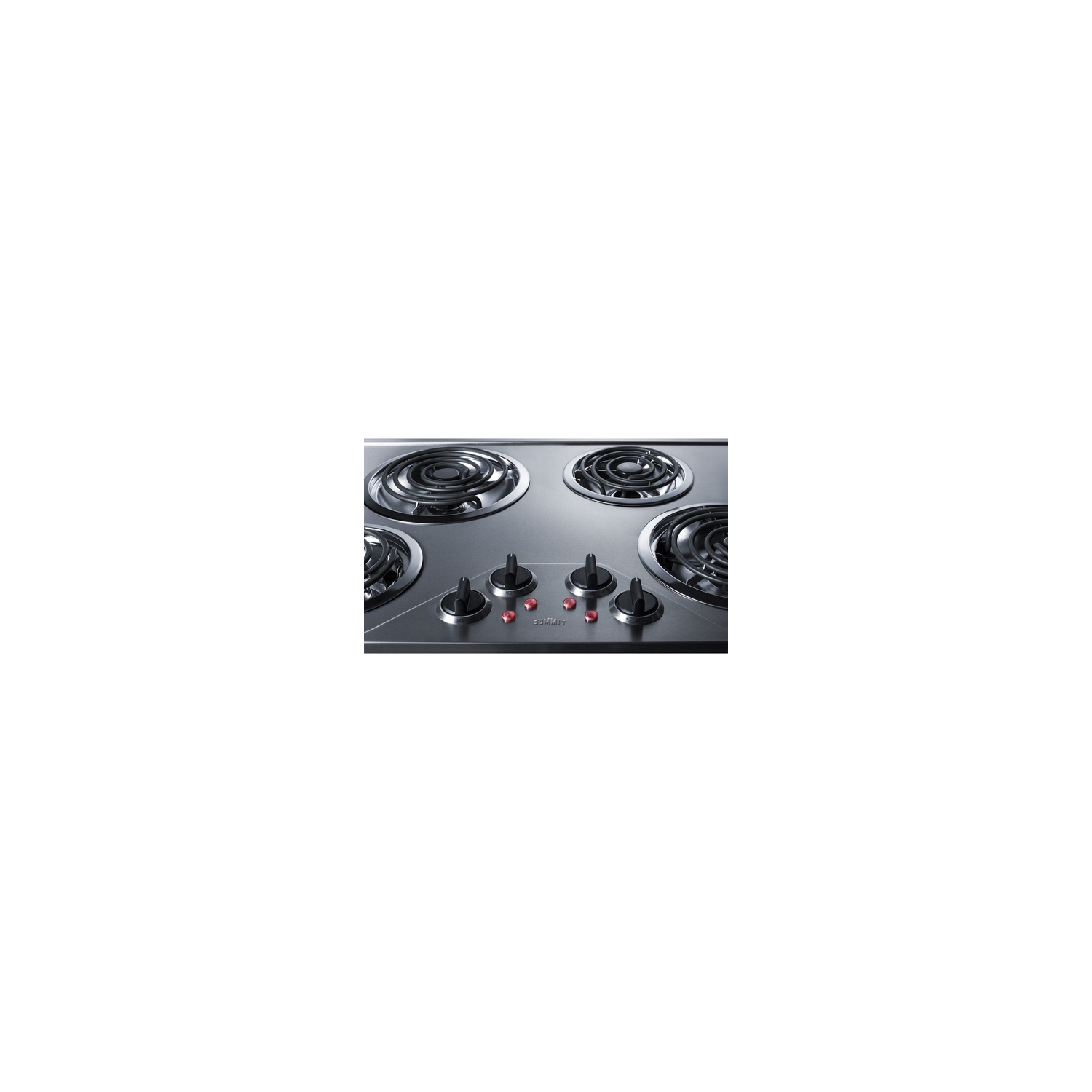

Upfront controls Easily accessible controls allow you to adjust your cooking without reaching over burners
Black matte finish on knobs Attractive style offers a modern complement to the brushed stainless steel cooktop finish
Removable chrome drip bowls Drip pans help to contain spills and can be removed for easy cleaning
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Individual lights for each burner allow you to easily see which zone is in use for added safety when cooking
Fits popular cutout size Designed for built-in installation in 28" x 19.5" cutouts
208-240V operation Professional installation required
DOWNLOADS
TECHNICAL DRAWING (.dwg) (CR431SS.dwg)
