Summit 230V 2-burner cooktop in black ceramic Schott glass with digital touch controls and stainless steel frame to allow installation in 15 inch wide counter cutouts, 3000W, 7.61101e+011, CR2B23T3BTK15
$575.60
Retail Price: $700.00
Shipping: $250
$ 575.60
Description
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

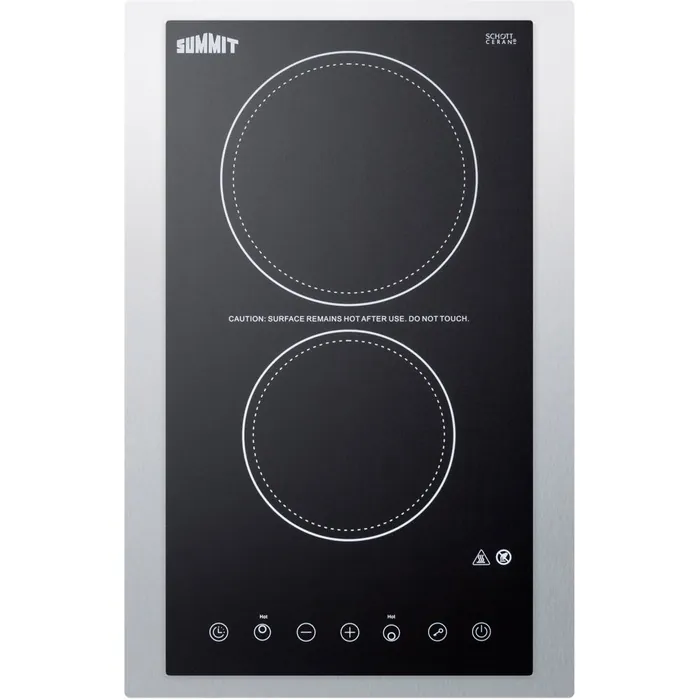

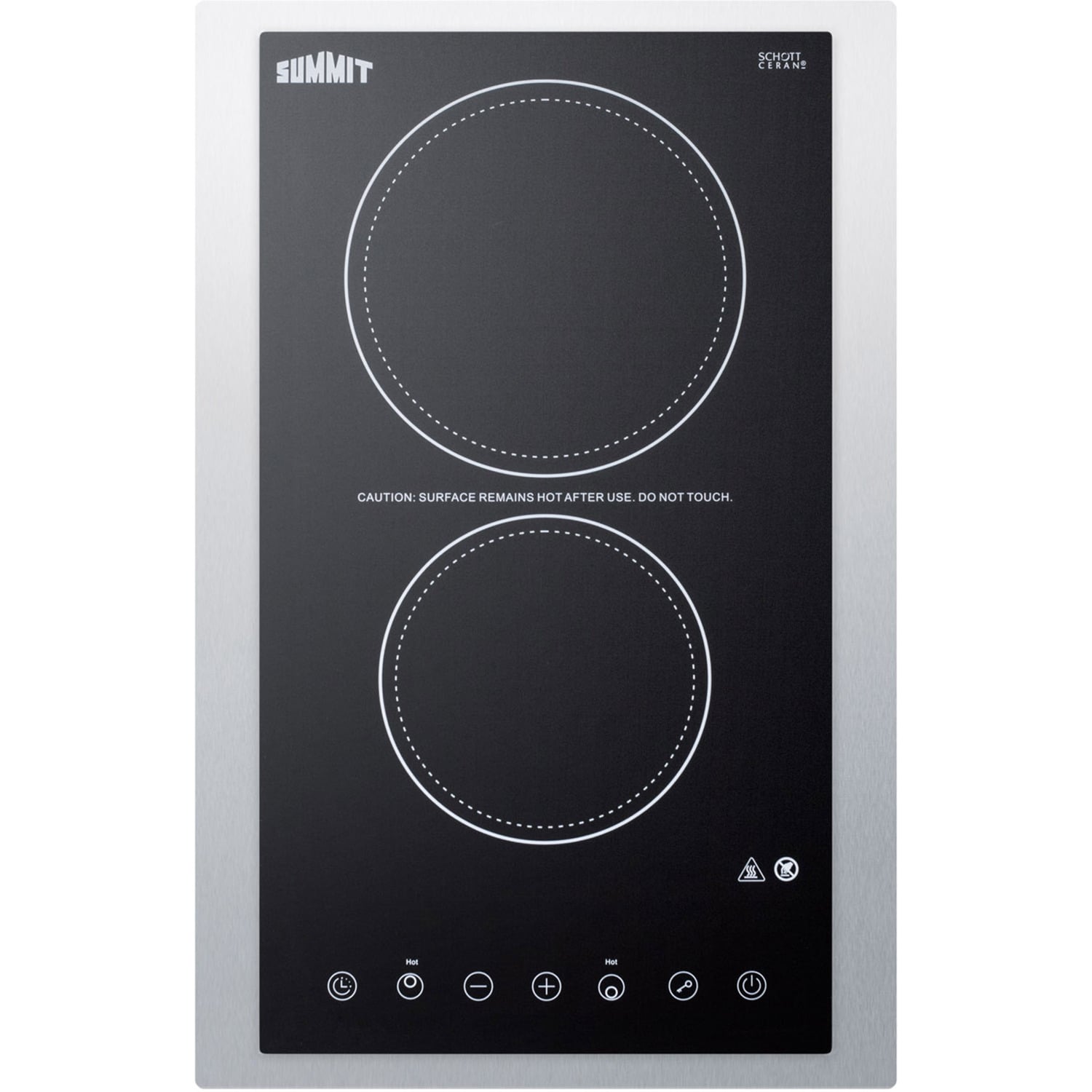

The CR2B23T3BTK15 is an ENERGY STAR certified 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not include a power cord and must be hard-wired by a professional. It ships with a stainless steel trim kit that allows the cooktop to be installed in 15" wide counter cutouts.
For true cooking versatility, the CR2B23T3BTK15 features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.
With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3BTK15 brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
SPECIFICATIONS
Overview
Nominal Height 2.0" (5 cm)
Height of Cabinet 2.0" (5 cm)
Nominal Width 16.0" (41 cm)
Width 15.13" (38 cm)
Nominal Depth 22.0" (56 cm)
Depth 21.75" (55 cm)
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 15.0
Voltage/Frequency 230 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101056258
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 5.9" (15 cm)
Countertop Cutout Width 10.75" (27 cm)
Countertop Cutout Depth 19.9" (51 cm)
Power Source 230V
Element #1 Size 7.0" (18 cm)
Element #1 Wattage 1800.0
Element #2 Size 5.5" (14 cm)
Element #2 Wattage 1200.0
Power Cord Included No
FEATURES
2-Burner Radiant Cooktop 230V cooktop with digital controls and a smooth glass surface
ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Schott glass surface Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Large 1800W burner Rear 7" burner offers 1800W for faster heating of larger cooking vessels
Standard 1200W burner Front burner is 5.5" in diameter to meet most cooking needs
Digital touch controls Easy operation with a digital control panel and digital display
9 power levels Select and adjust your heating levels at the touch of a button
Residual heat indicator lights Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
Designed for built-in installation Fits counter cutout sizes that are 10.75" wide by 19.9" deep, with a trim kit that allows the cooktop to fill 15" wide openings
Trim Kit for 15" wide applications Ships with a seamless stainless steel exterior trim kit that allows users to install this cooktop in 15" wide cutouts
ADA compliant design Upfront controls meet ADA guidelines for easier accessibility
Timer Allows you to program either burner to heat at a specified level for up to 99 minutes
Child lock Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
230V operation Requires professional hardwired installation to 230V power supply
DOWNLOADS
REVIT MODEL (QF_Summit_CR2B23T3B_Electric_Cooktop_3.rfa)
