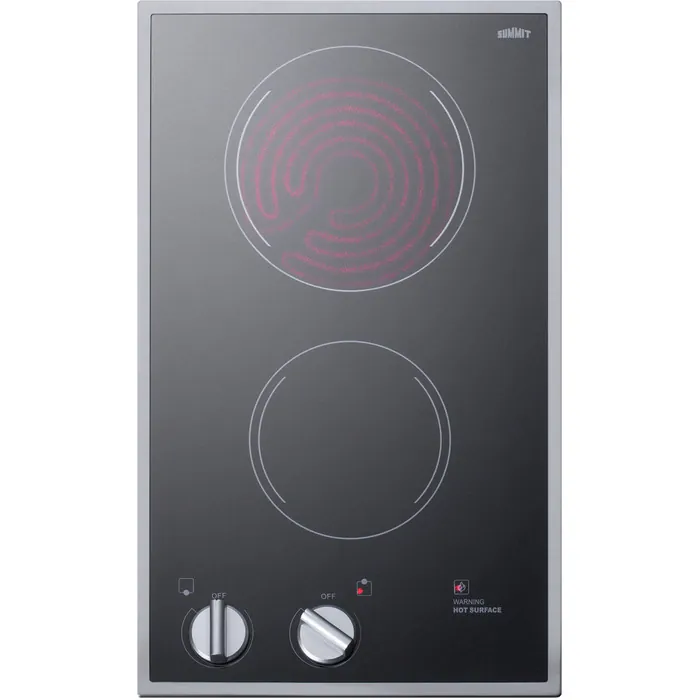

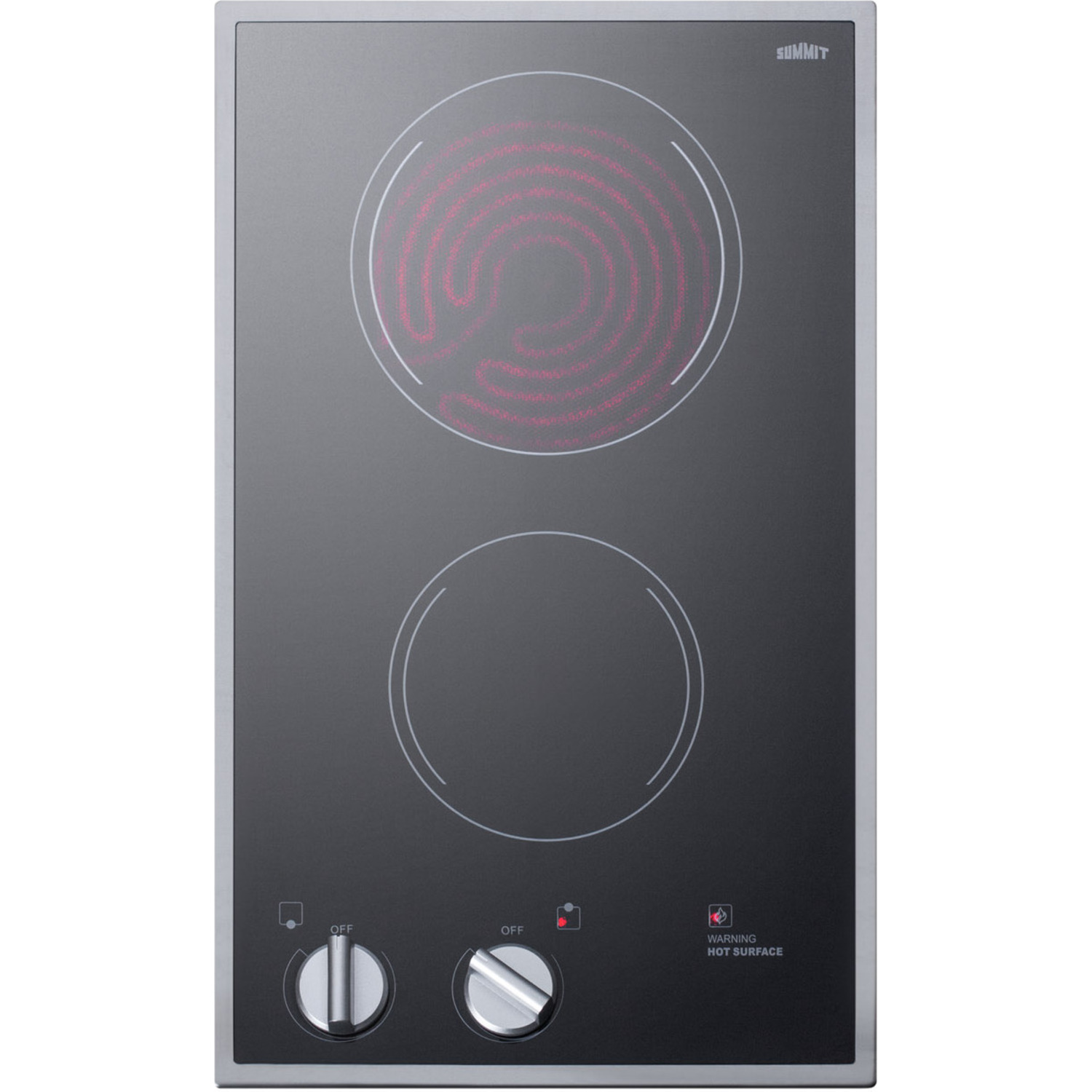

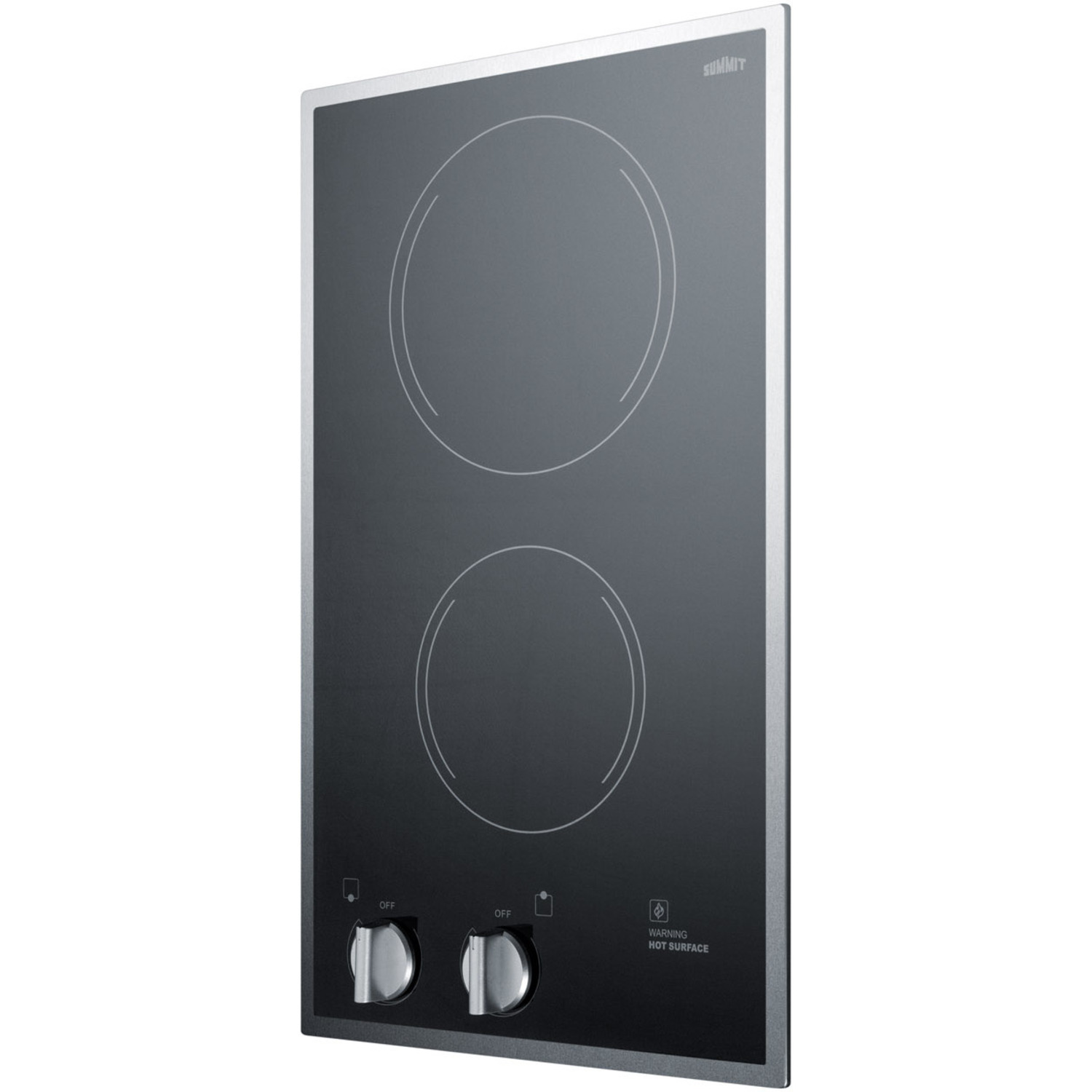

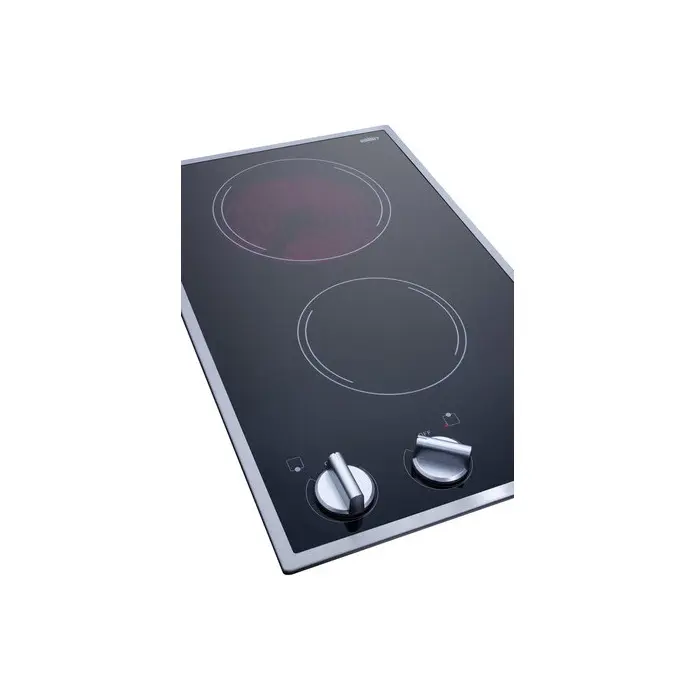

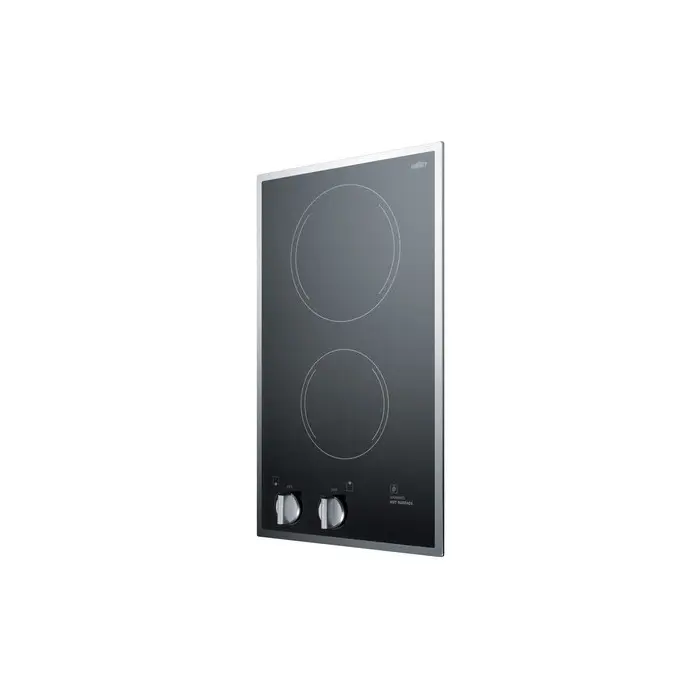

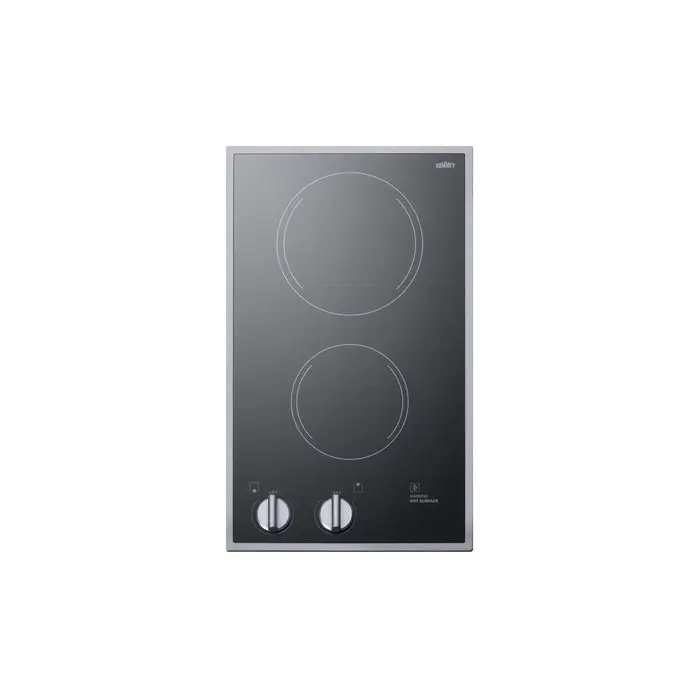

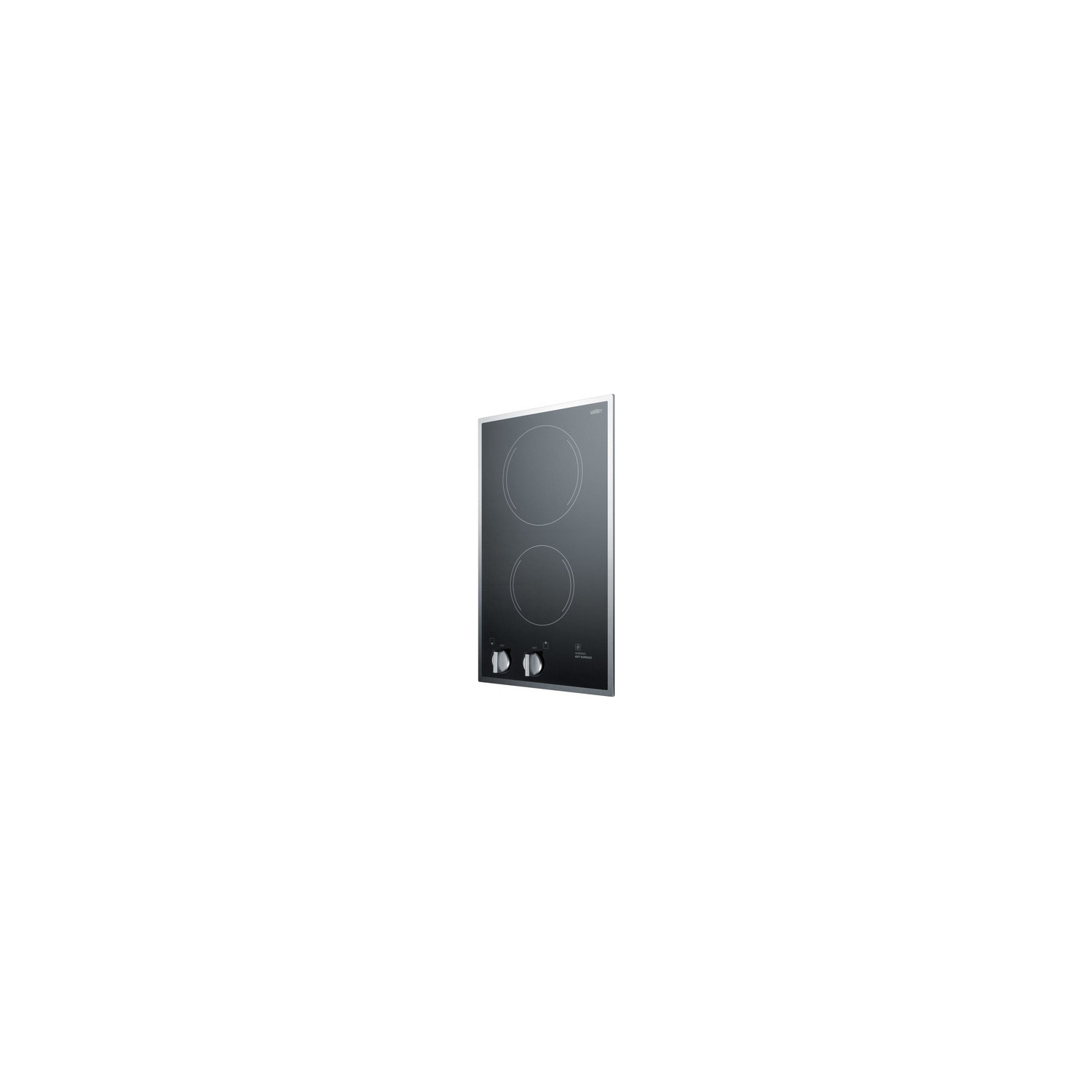

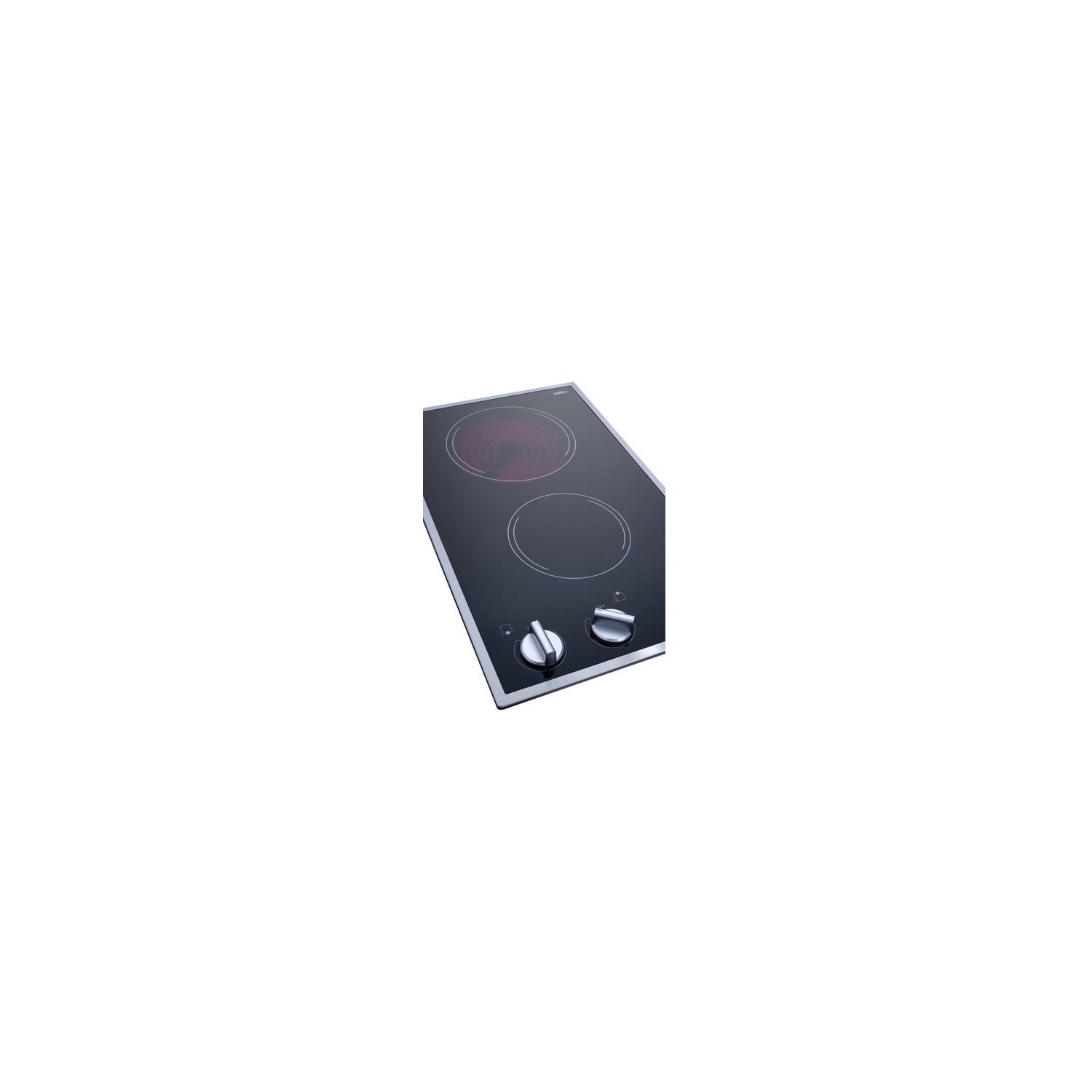

Summit 2-burner 230V radiant cooktop in black ceramic glass, 7.61101e+011, CR2B22ST
$443.95
Retail Price: $520.00
Free shipping
$ 443.95
Description
Summit's selection of radiant glass cooktops offers excellent performance in a modern design, ideal for a variety of kitchens.
The CR2SB22ST is a 220/240V 2-burner cooktop for built-in installation with cutout dimensions of 11" W x 19" D. The black EuroKera ceramic glass surface adds durability and makes cleaning easy. Its smooth edges ensure safety in a seamless design, while a stainless steel trim completes the look.
The CR2SB22ST includes a rear 7" 1800W burner for larger pans and cooking needs, and a smaller front 5½" 1200W burner ideal for heating smaller cookware. Push-to-turn knobs in a silver finish are located toward the front, preventing users from having to reach over burners. Front located controls also help to comply with ADA guidelines on accessibility. Indicator lights tell when each burner is in use, while a residual heat light lets users know when the cooktop is too hot to touch for added safety.
Offering great performance in an excellent price, the CR2B22ST is the perfect addition to any kitchen. For the same cooktop with 115V operation, see the CR2B12ST.
Note: This cooktop requires professional installation.
SPECIFICATIONS
Overview
Nominal Height 3.0" (8 cm)
Height of Cabinet 3.0" (8 cm)
Nominal Width 12.0" (30 cm)
Width 11.88" (30 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.75" (50 cm)
Cabinet Black Glass
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 230 V AC/60 Hz
Weight 12.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101063119
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Dial
Countertop Cutout Width 11.0" (28 cm)
Countertop Cutout Depth 19.0" (48 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 1800.0
Cutout Height 5.0" (13 cm)
Cutout Width 11.0" (28 cm)
Cutout Depth 19.0" (48 cm)
Power Cord Included No
FEATURES
Black ceramic glass surface Smooth EuroKera surface offers modern style in an easy-to-clean design
Two heating elements One 1800W and one 1200W burner to meet a variety of cooking needs
Stainless steel trim Provides added elegance to your kitchen
Indicator lights Show when and which burners are turned on
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Residual heat indicator light Offers added safety by alerting when burners are too hot to touch
ADA compliant design Upfront, easy-to-turn controls help to comply with ADA guidelines for accessibility
220/240V operation Use with 20 amp circuits and requires professional installation
Designed for built-in installation Cutout dimensions: 11" W x 19" D
DOWNLOADS
BROCHURE w/ DRAWINGS (CR2B22ST.pdf)
TECHNICAL DRAWING (.dwg) (CR2B22ST_COOKTOP__A-C_2018_.dwg.dwg)
