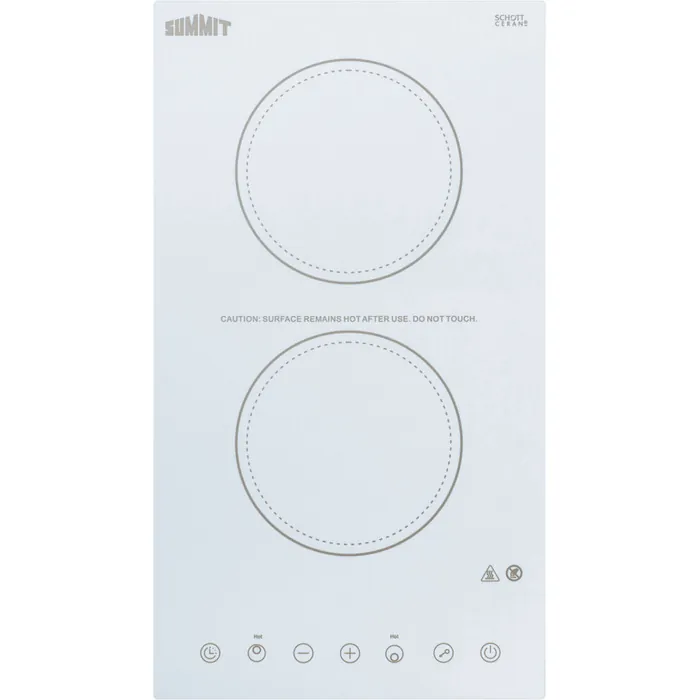

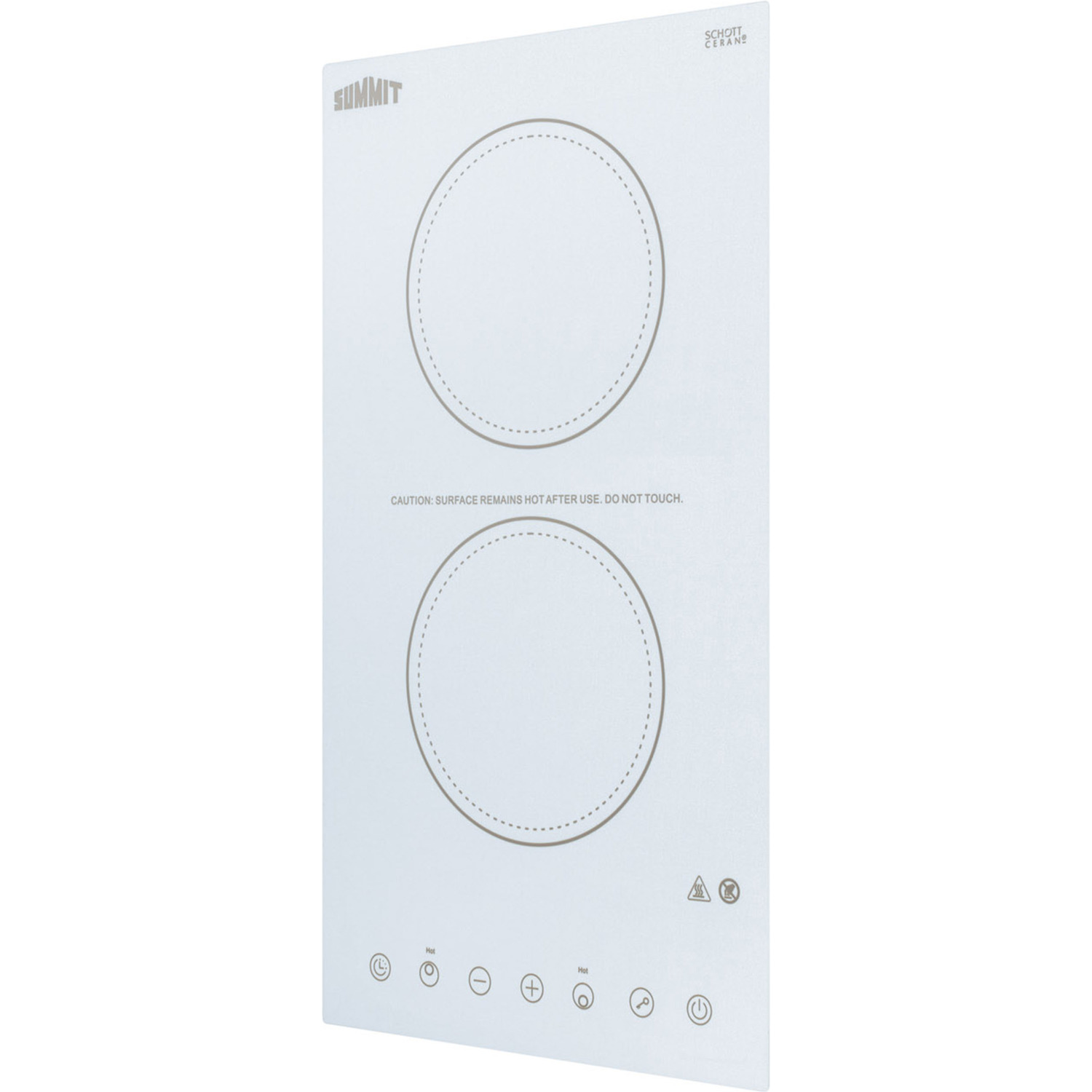

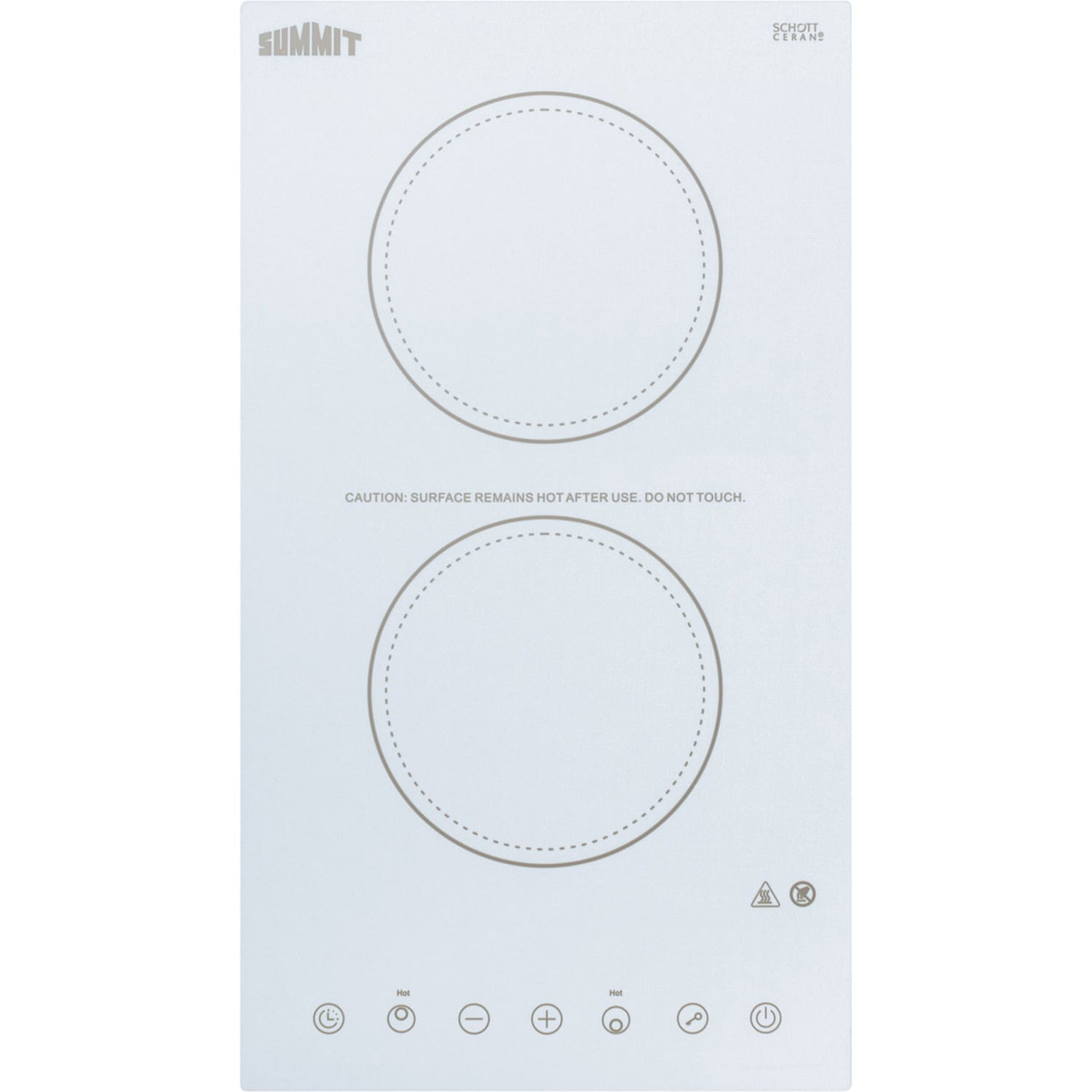

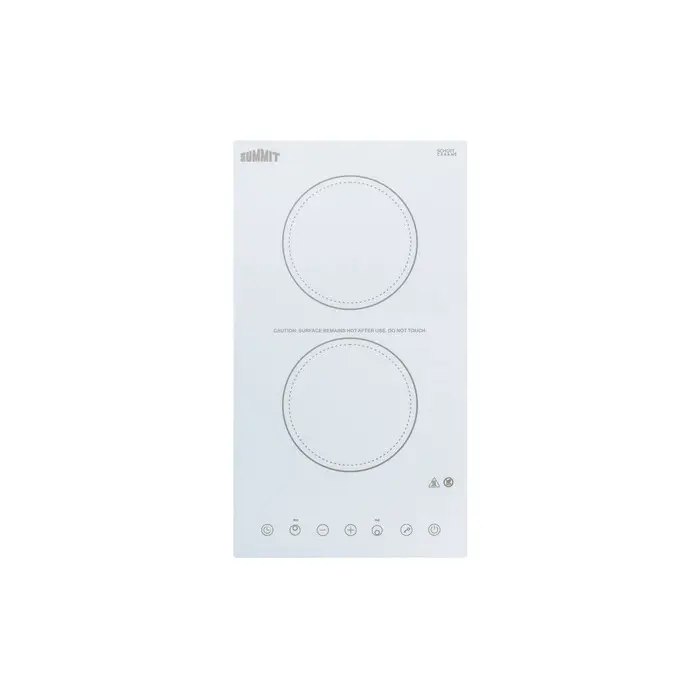

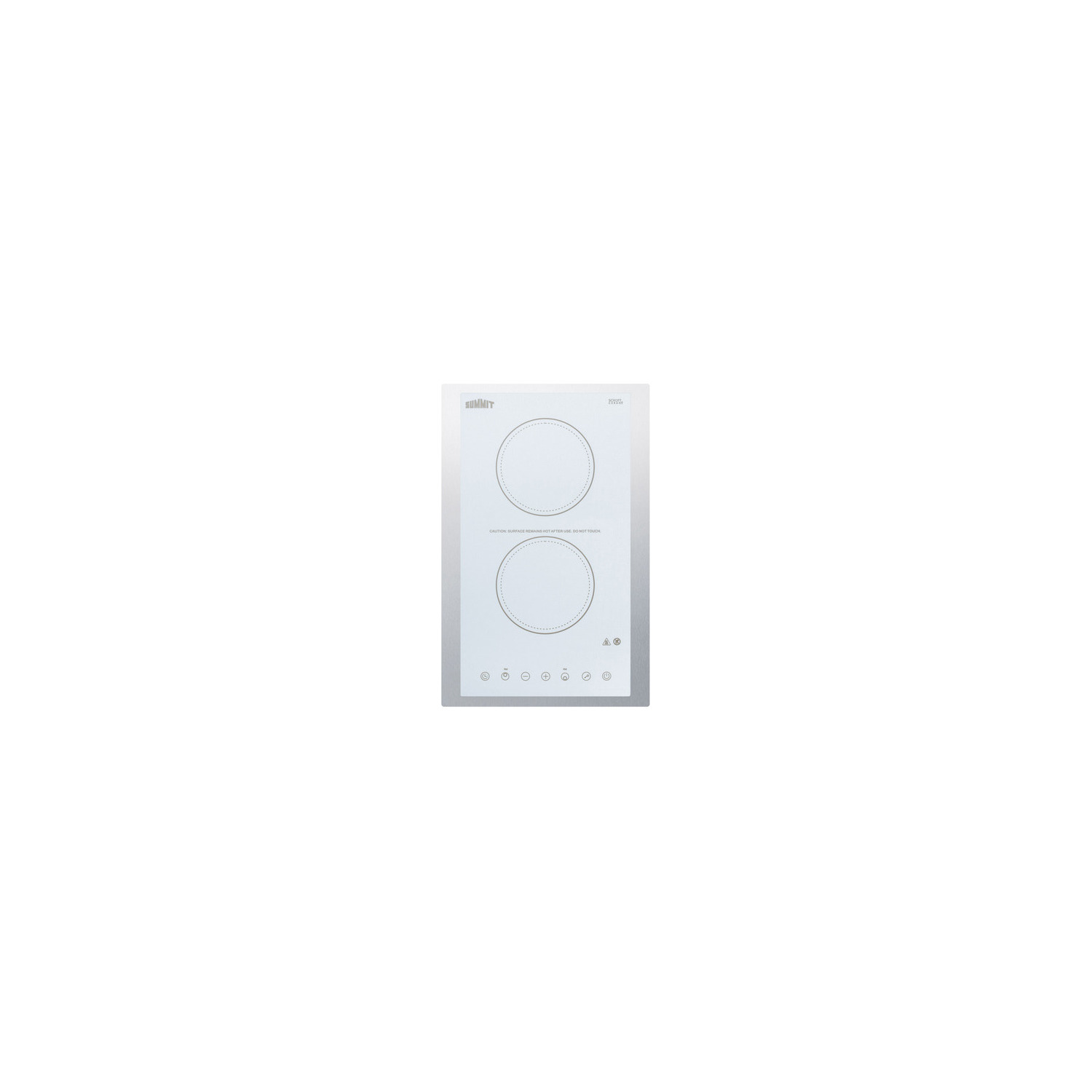

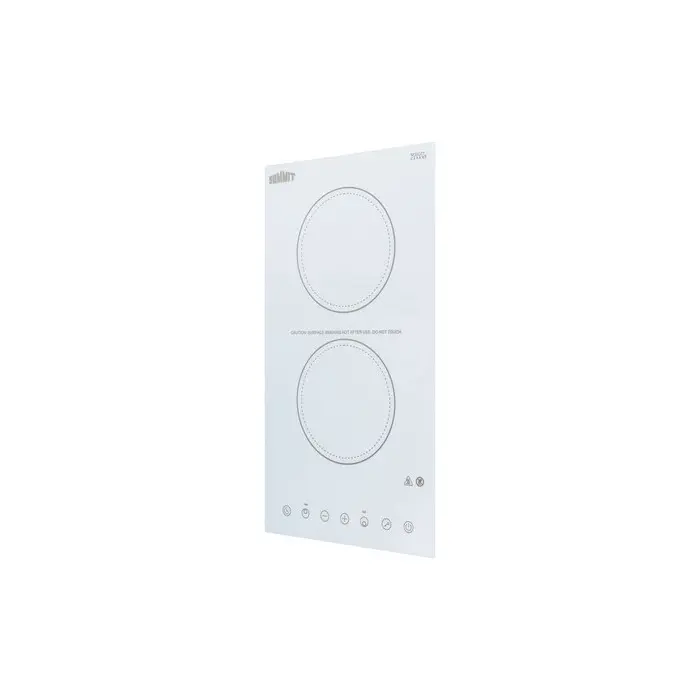

Summit 115V 2-burner cooktop in white ceramic Schott glass with digital touch controls, 2400W, 7.61101e+011, CR2B15T2W
$586.40
Retail Price: $715.00
Shipping: $250
$ 586.40
Description
SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

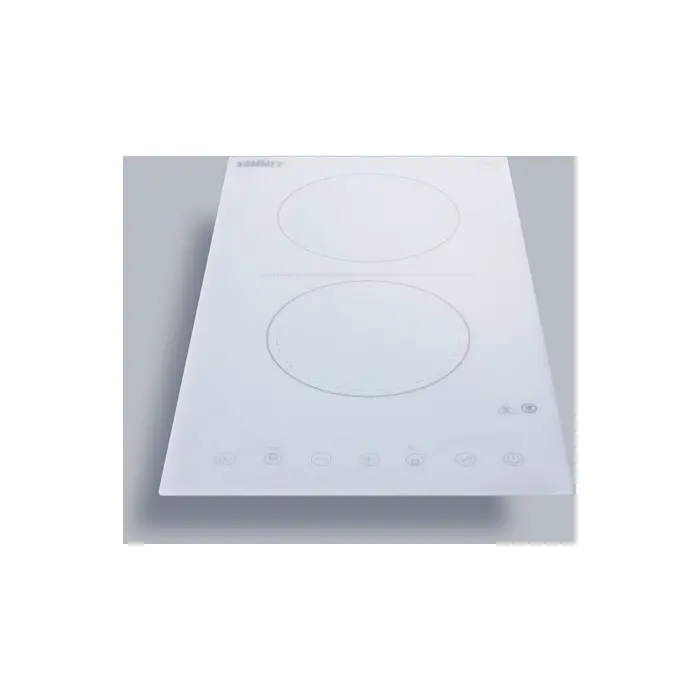

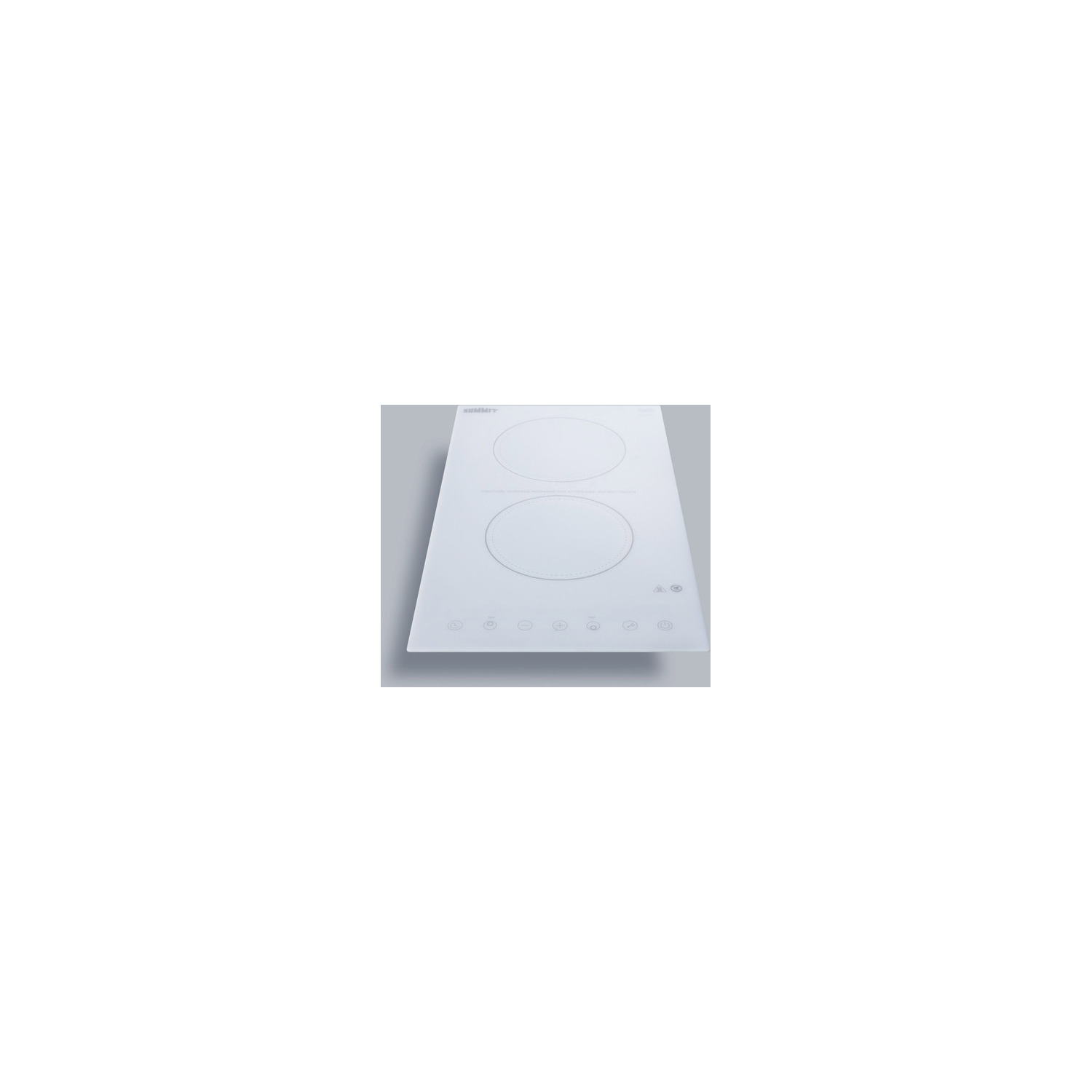

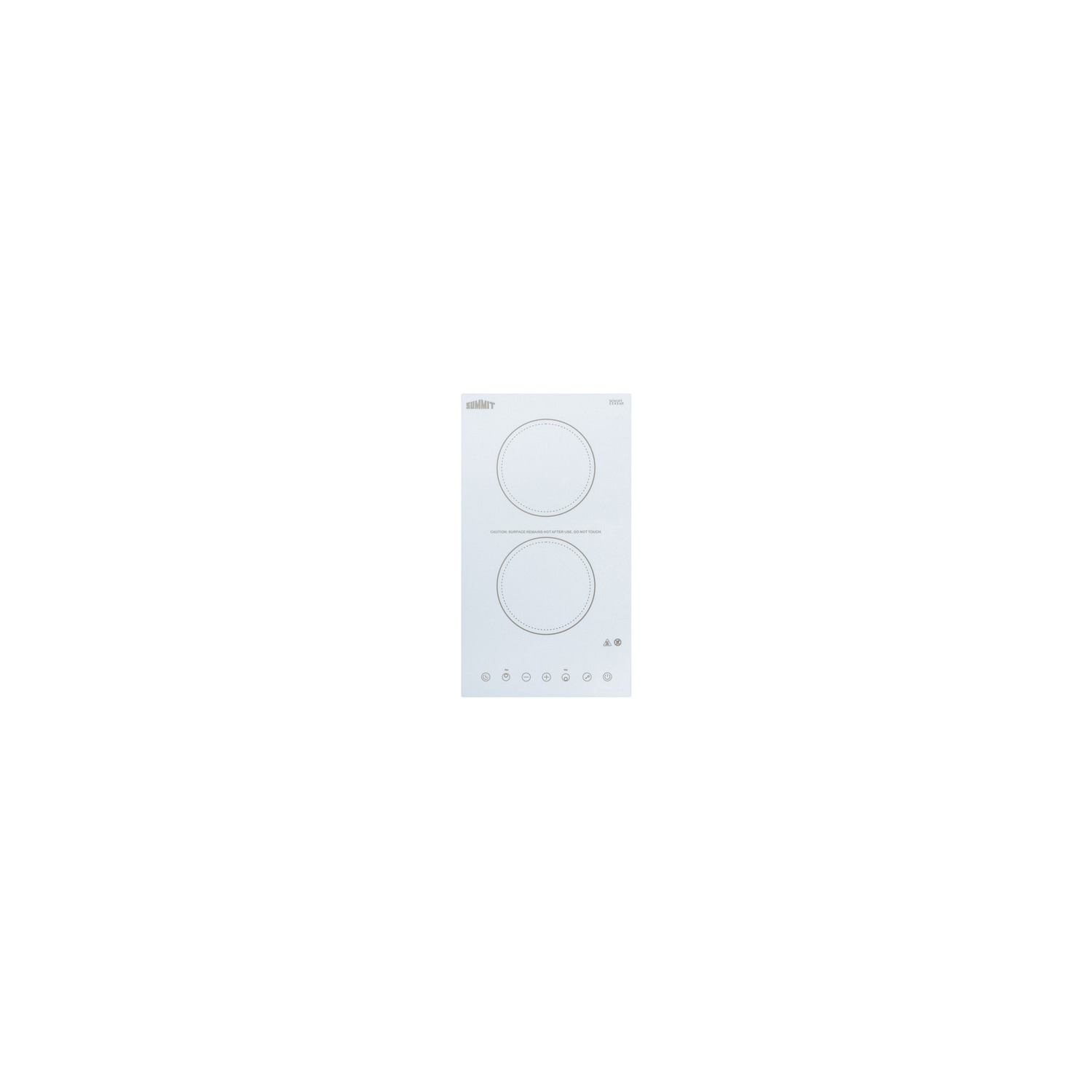

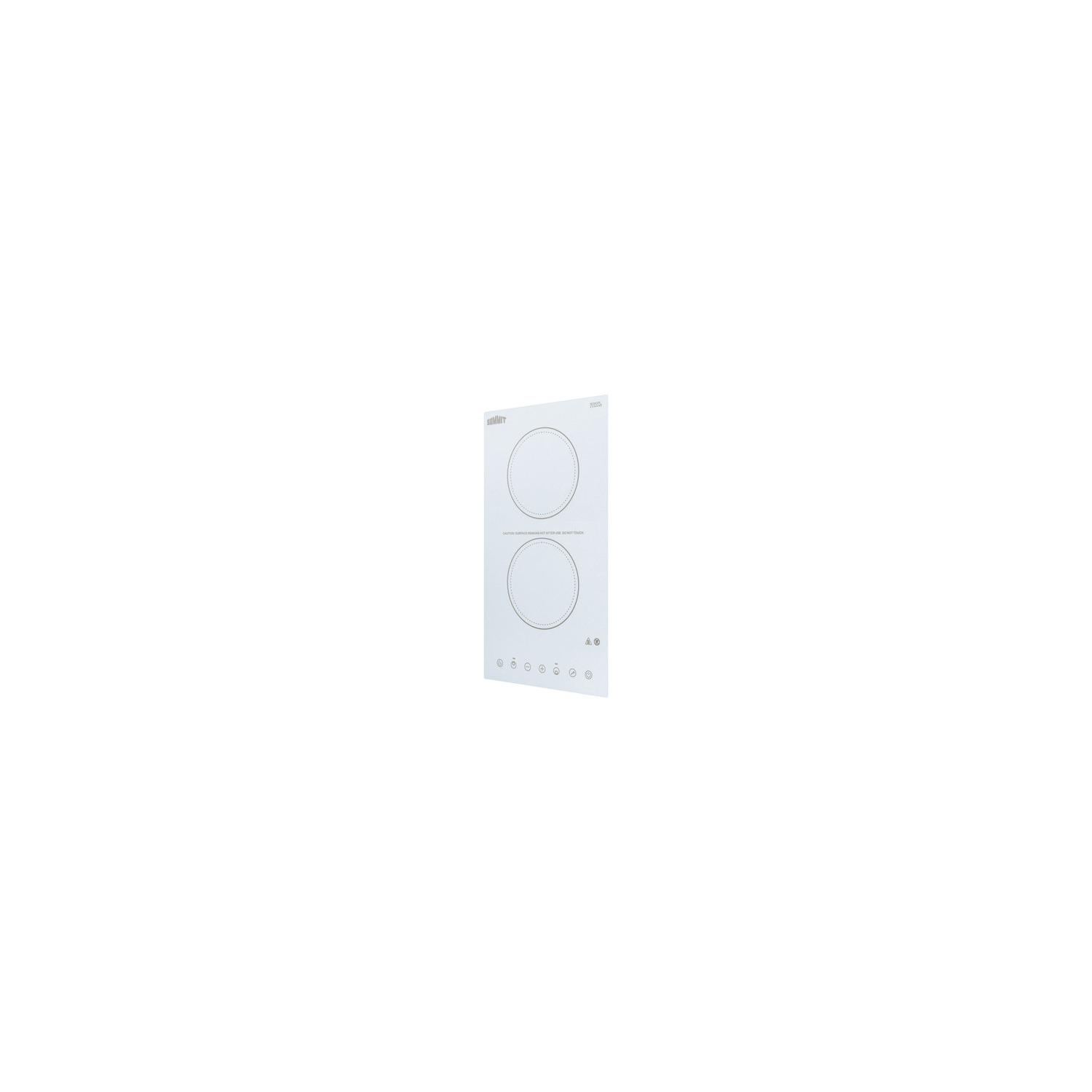

The CR2B15T2W is an ENERGY STAR certified 12" wide 115V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

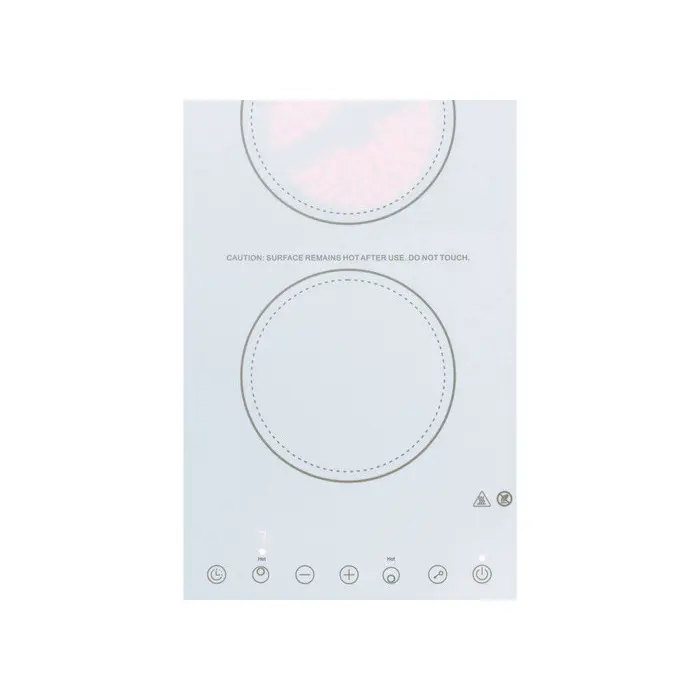

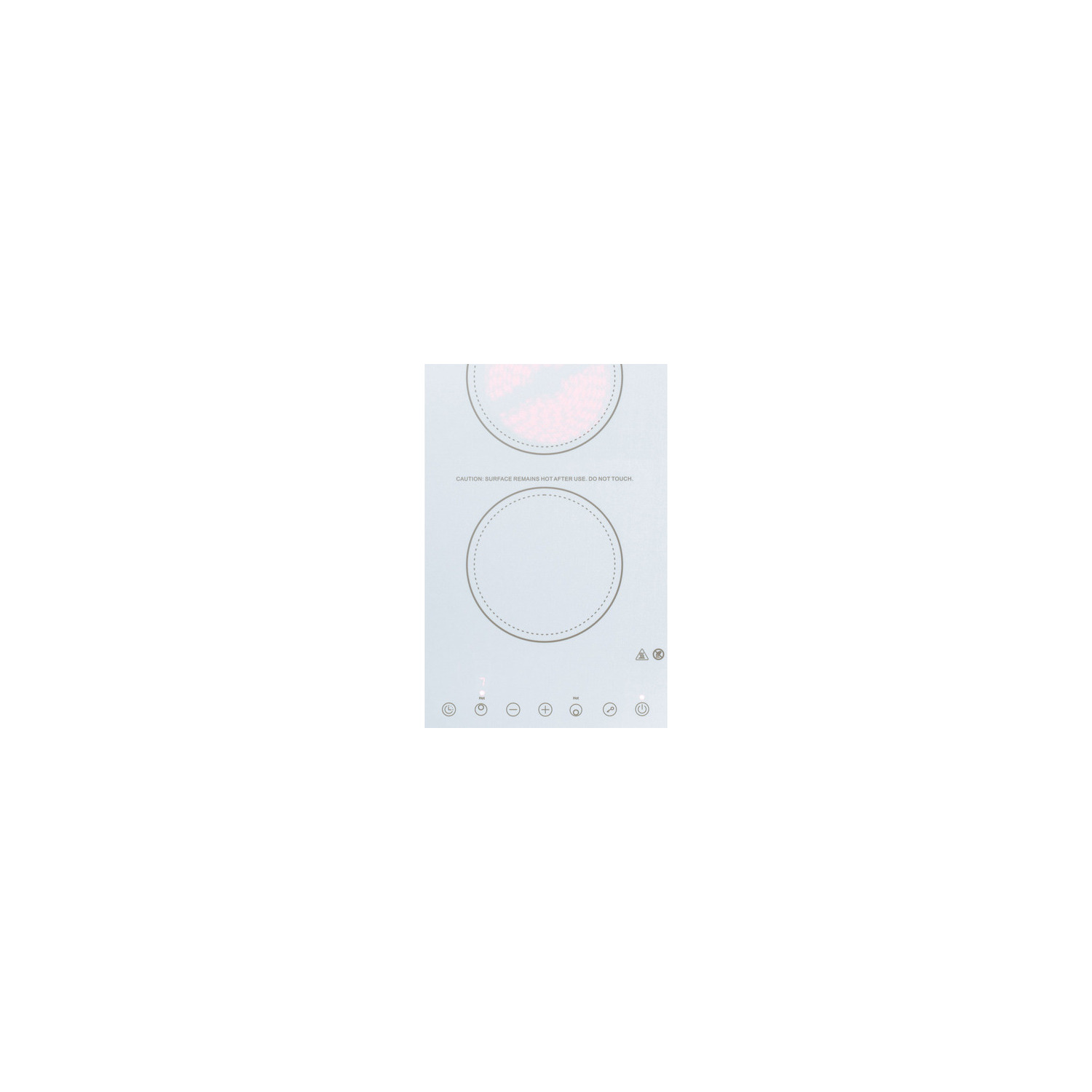

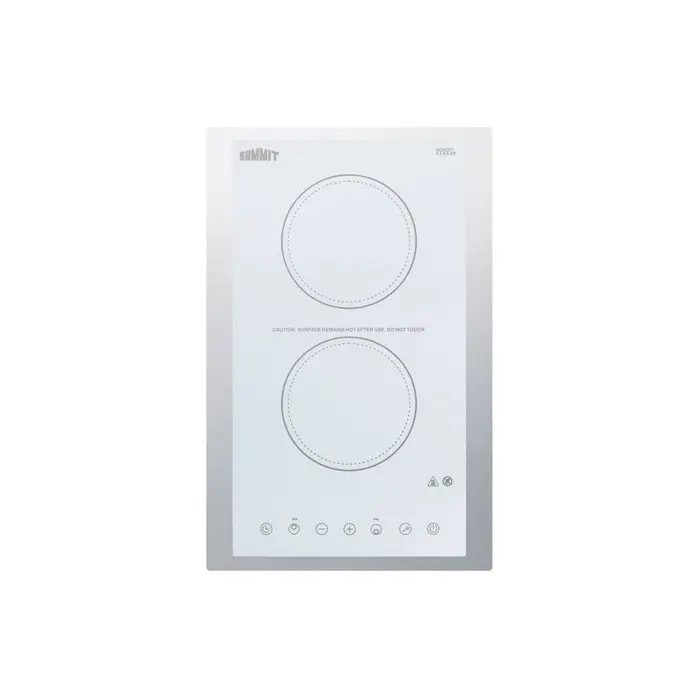

Two 5 1/2" burners each feature 1200W operation to cover most cooking needs. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, with a digital display that makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.
With its attractive design, ideal size, and intuitive touch controls, the CR2B15T2W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
SPECIFICATIONS
Overview
Nominal Height 2.0" (5 cm)
Height of Cabinet 2.0" (5 cm)
Nominal Width 12.0" (30 cm)
Width 11.38" (29 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 25.0
Voltage/Frequency 115 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101053288
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 5.9" (15 cm)
Countertop Cutout Width 10.75" (27 cm)
Countertop Cutout Depth 19.9" (51 cm)
Power Source 115V
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #2 Size 5.5" (14 cm)
Element #2 Wattage 1200.0
Power Cord Included No
FEATURES
2-Burner Radiant Cooktop 115V cooktop with digital controls and a smooth glass surface
ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
Schott glass surface Made in Germany, the white Schott glass offers easier cleanup and lasting durability
Two heating elements Includes 2 1200W 5 1/5" burners to cover most cooking needs
Digital touch controls Easy operation with a digital control panel and digital display
9 power levels Select and adjust your heating levels at the touch of a button
Residual heat indicator lights Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
Designed for built-in installation Fits counter cutout sizes that are 10.75" wide by 19.9" deep
ADA compliant design Upfront controls meet ADA guidelines for easier accessibility
Timer Allows you to program either burner to heat at a specified level for up to 99 minutes
Child lock Safety feature lets you lock the cooktop to prevent unsupervised heating
Automatic shutoff If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
Safety cut-off function If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
115V operation Requires hardwired installation to 115V power supply or professional installation of a NEMA 5-20 plug
