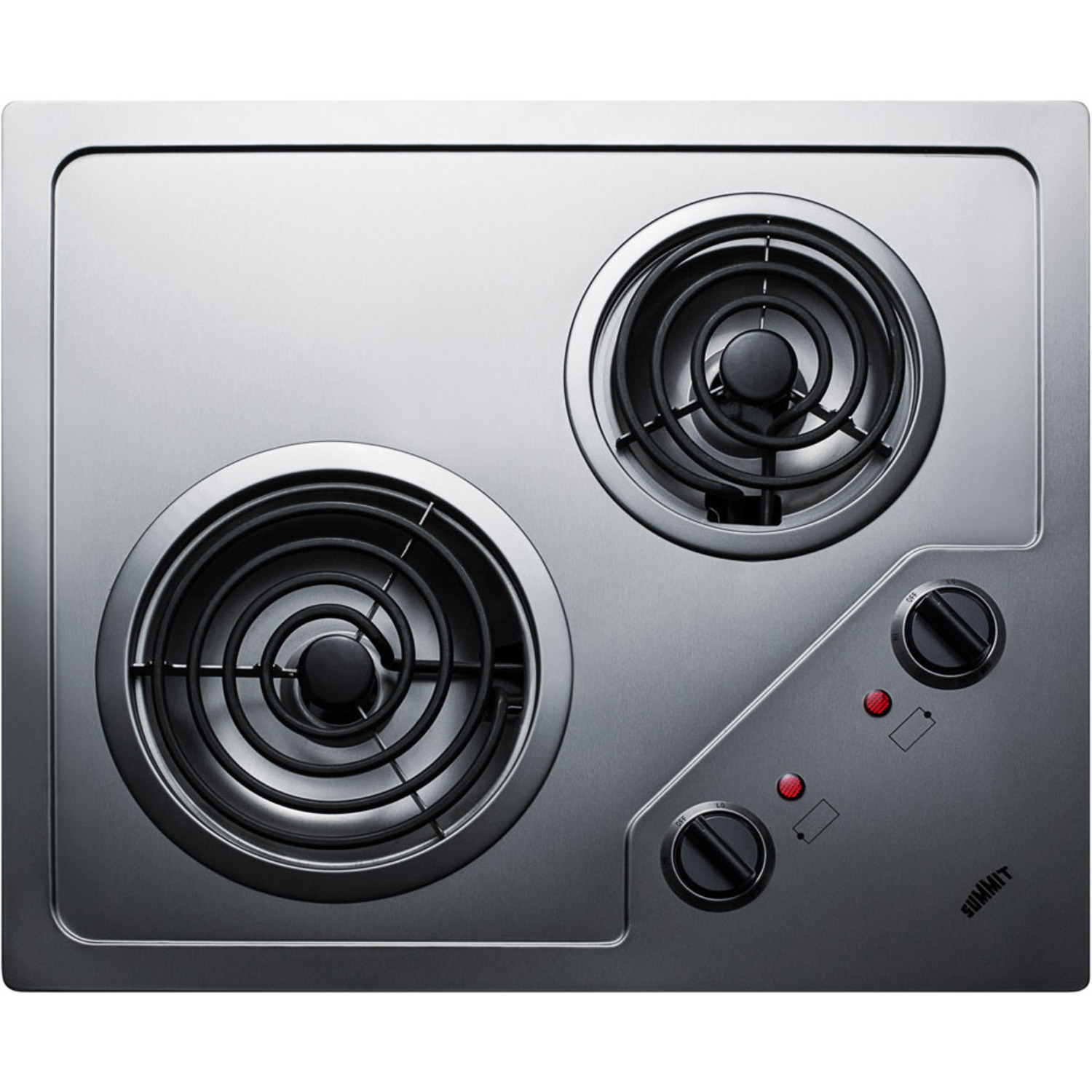

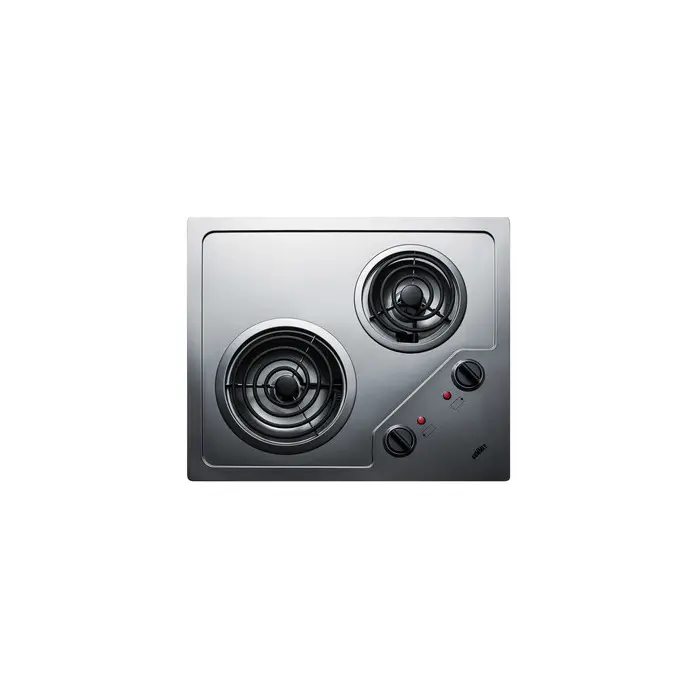

Summit 2-burner 120V electric cooktop designed for portrait or landscape installation, with coil elements and stainless steel finish, 7.61101e+011, CR2B122
$456.05
Retail Price: $535.00
Shipping: $250
$ 456.05
Description
Summit offers a quality lineup of electric cooktops designed to suit any residential or hotel kitchen setup.
The CR2B122 is a 120V cooktop made from attractive stainless steel. This unit is designed to fit many common counter cutouts sized 20" x 16". The burners and knobs are specially laid out so that they are easy and intuitive to use when the unit is installed in a landscape or portrait configuration.
This unit features a large 7" 900W coil element and a 5 1/2" 500W coil element, letting you accommodate a variety of sizes. Additional safety features include indicator lights and push-to-turn knobs.
With its innovative design and quality construction, the CR2B122 brings modern convenience to a classic cooktop size.
SPECIFICATIONS
Overview
Nominal Height 3.38" (9 cm)
Height of Cabinet 3.38" (9 cm)
Nominal Width 22.0" (56 cm)
Width 21.25" (54 cm)
Nominal Depth 18.0" (46 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 5.0 lbs. (2 kg)
Parts & Labor Warranty 1 Year
UPC 761101050478
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Coils
Number of Elements 2
Controls Dial
Countertop Cutout Height 3.0" (8 cm)
Countertop Cutout Width 20.0" (51 cm)
Countertop Cutout Depth 16.0" (41 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Wattage 500.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 900.0
Power Cord Included Yes
FEATURES
2-Burner Radiant Cooktop 115V coil cooktop designed to fit popular 20" x 16" cutouts in hotels and other smaller kitchen spaces

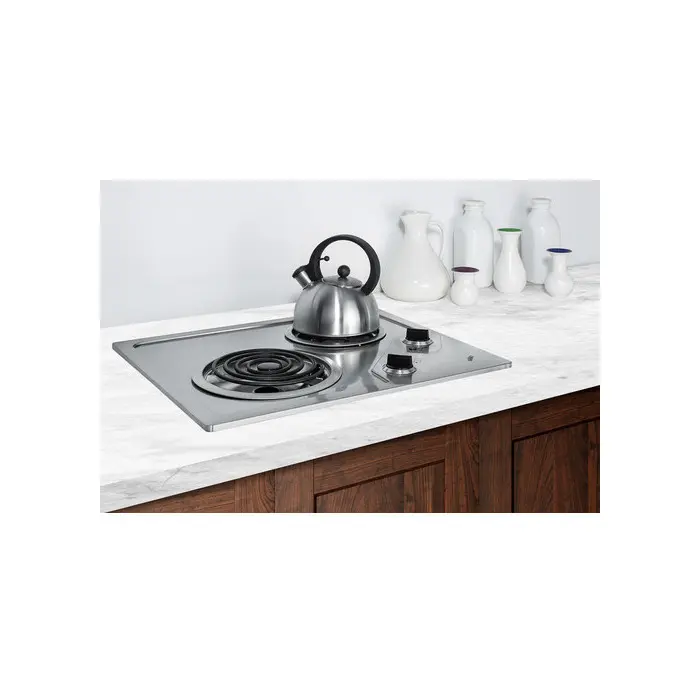

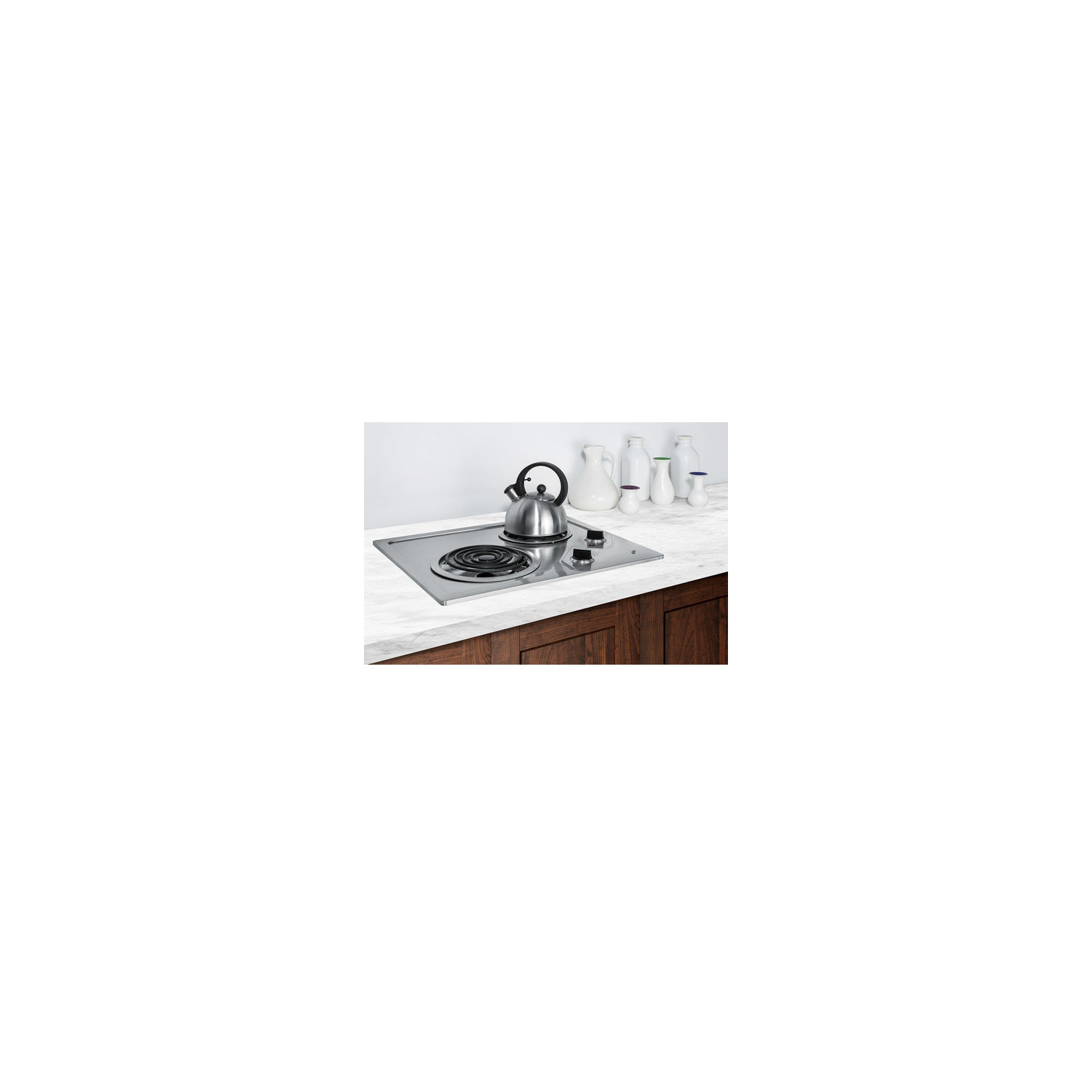

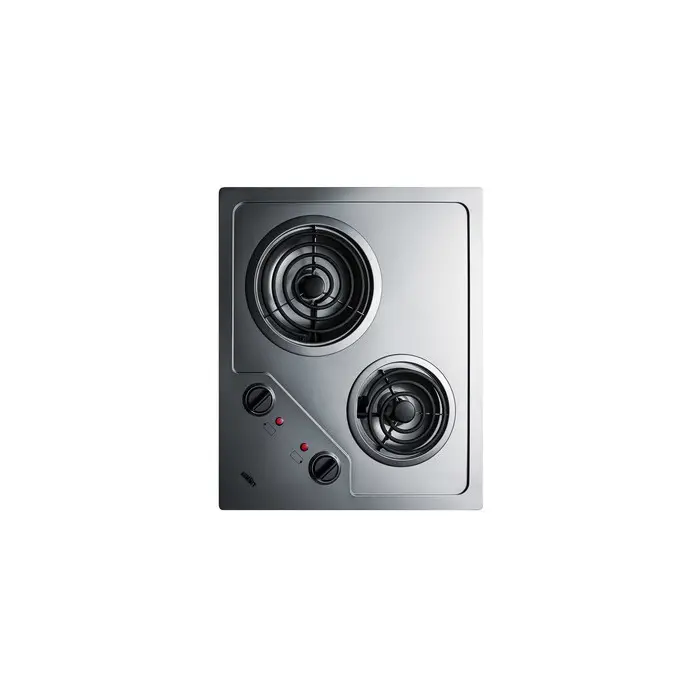

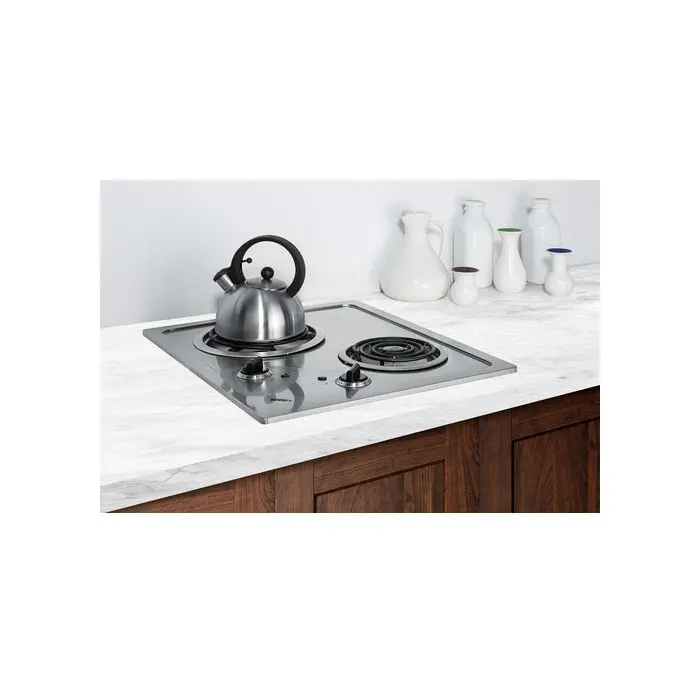

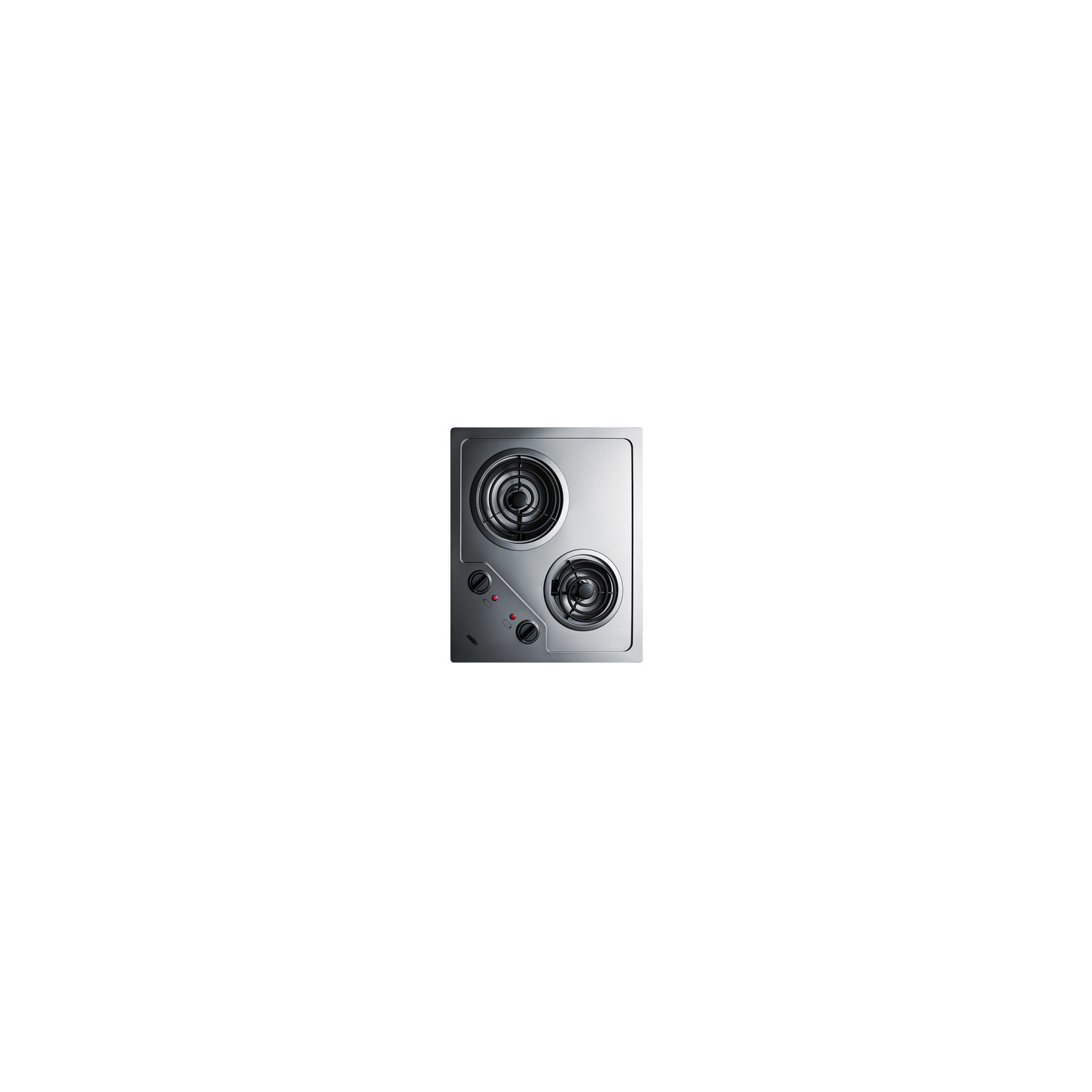

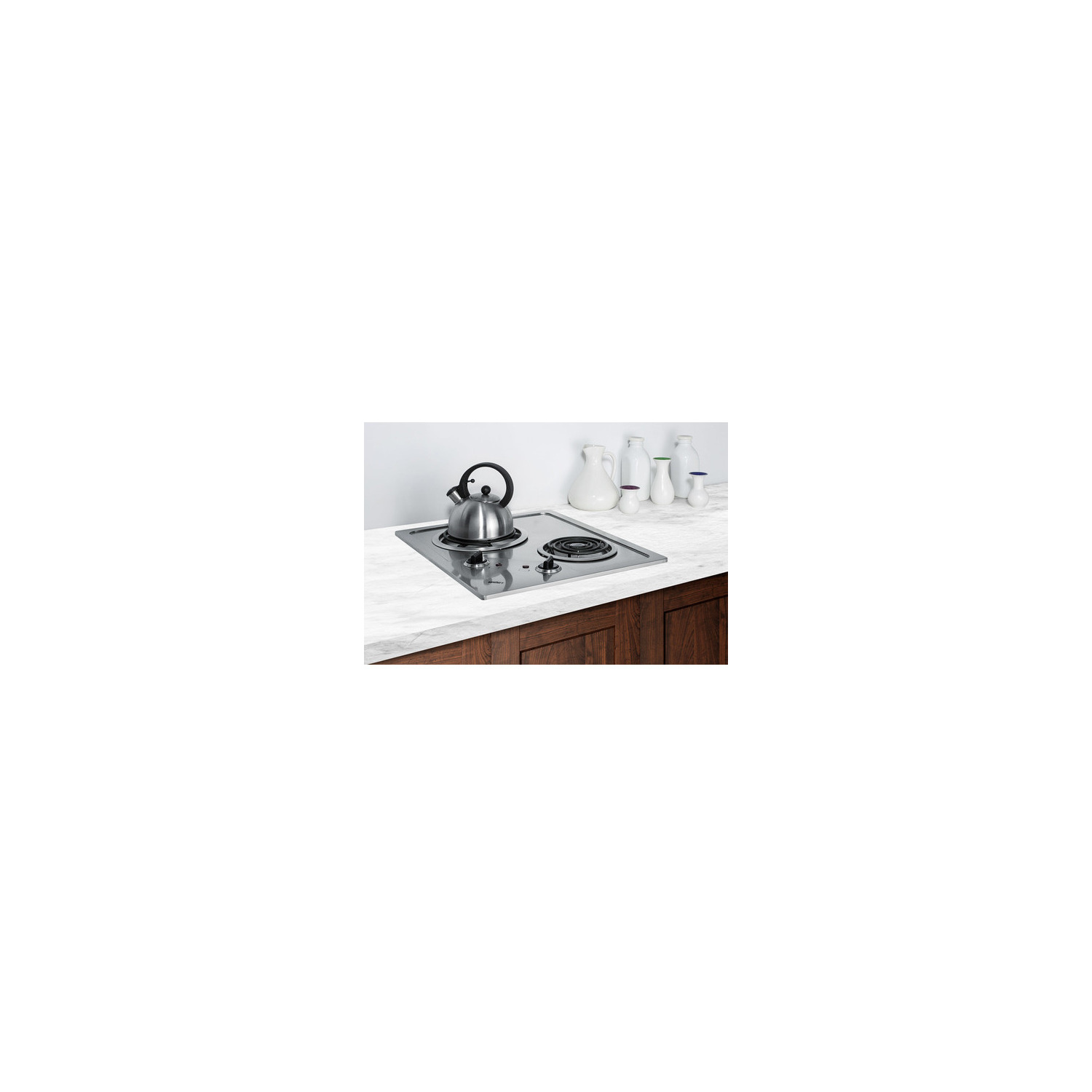

Versatile placement Specially designed to be mounted portrait or landscape style with controls being easy to read and manage in either direction
Stainless steel finish Surface is made from stainless steel for an attractive and easy to clean look
Fits popular cutout size Designed for built-in installation in 20" x 16" cutouts
Two heating elements One 900W 7" coil element and one 500W 5 1/2" coil element
115V operation Designed to work with standard 115V/60Hz electrical supplies with proper grounding
Push-to-turn knobs Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Operating indicators light up to show which burner is in use
Cord included Pre-installed cord with a 115V NEMA 5-15P 3-pronged plug for easier setup
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
DOWNLOADS
BROCHURE w/ DRAWINGS (CR2B122.pdf)
TECHNICAL DRAWING (.dwg) (CR2B122_COOKTOP__A-C_2000_.dwg)
