Summit 115V 2-burner radiant cooktop with smooth white ceramic glass surface and preinstalled cord, 7.61101e+011, CR2B120WH
$453.63
Retail Price: $530.00
Free shipping
$ 453.63
Description
Summit's collection of radiant cooktops offers quality choices for a variety of small kitchen applications.

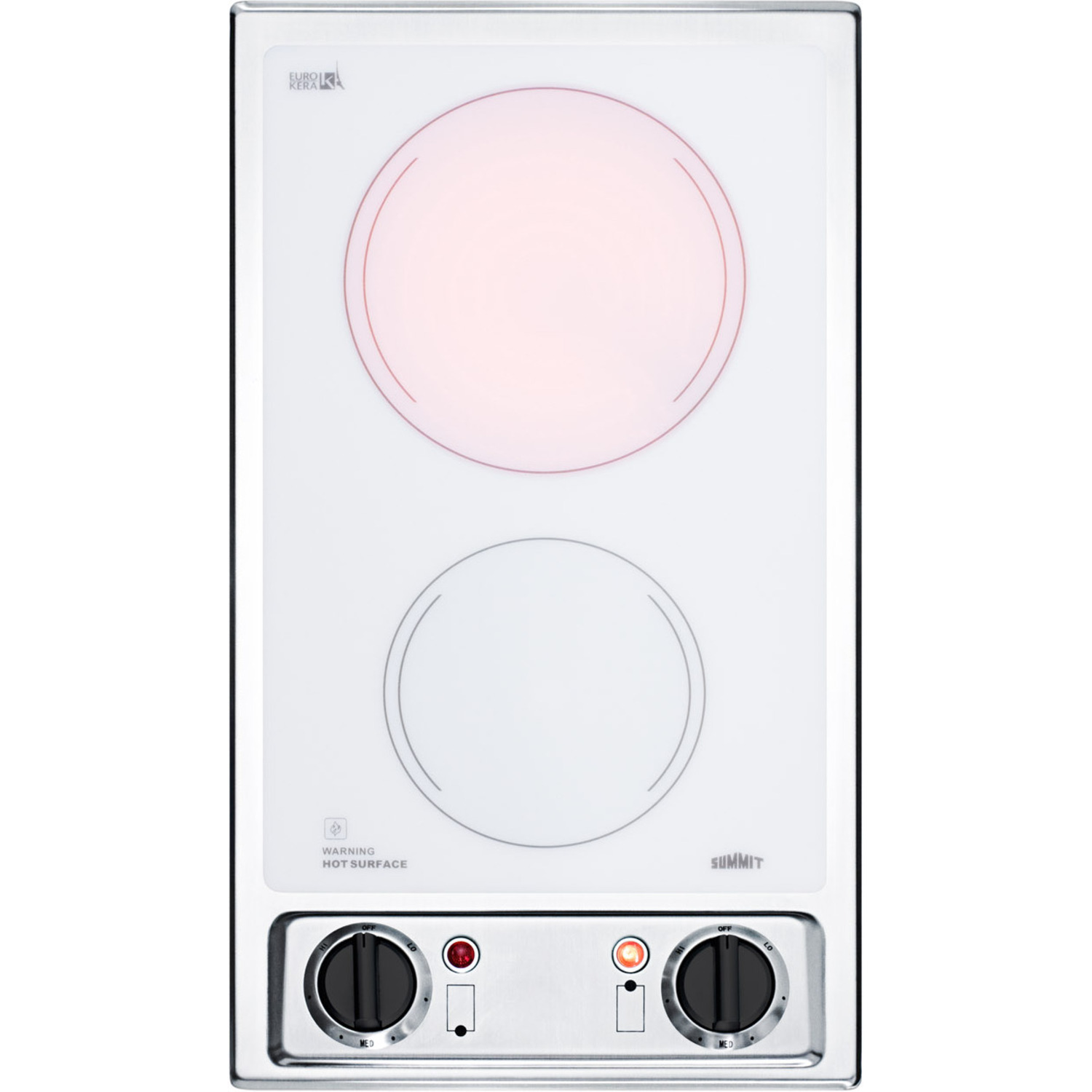

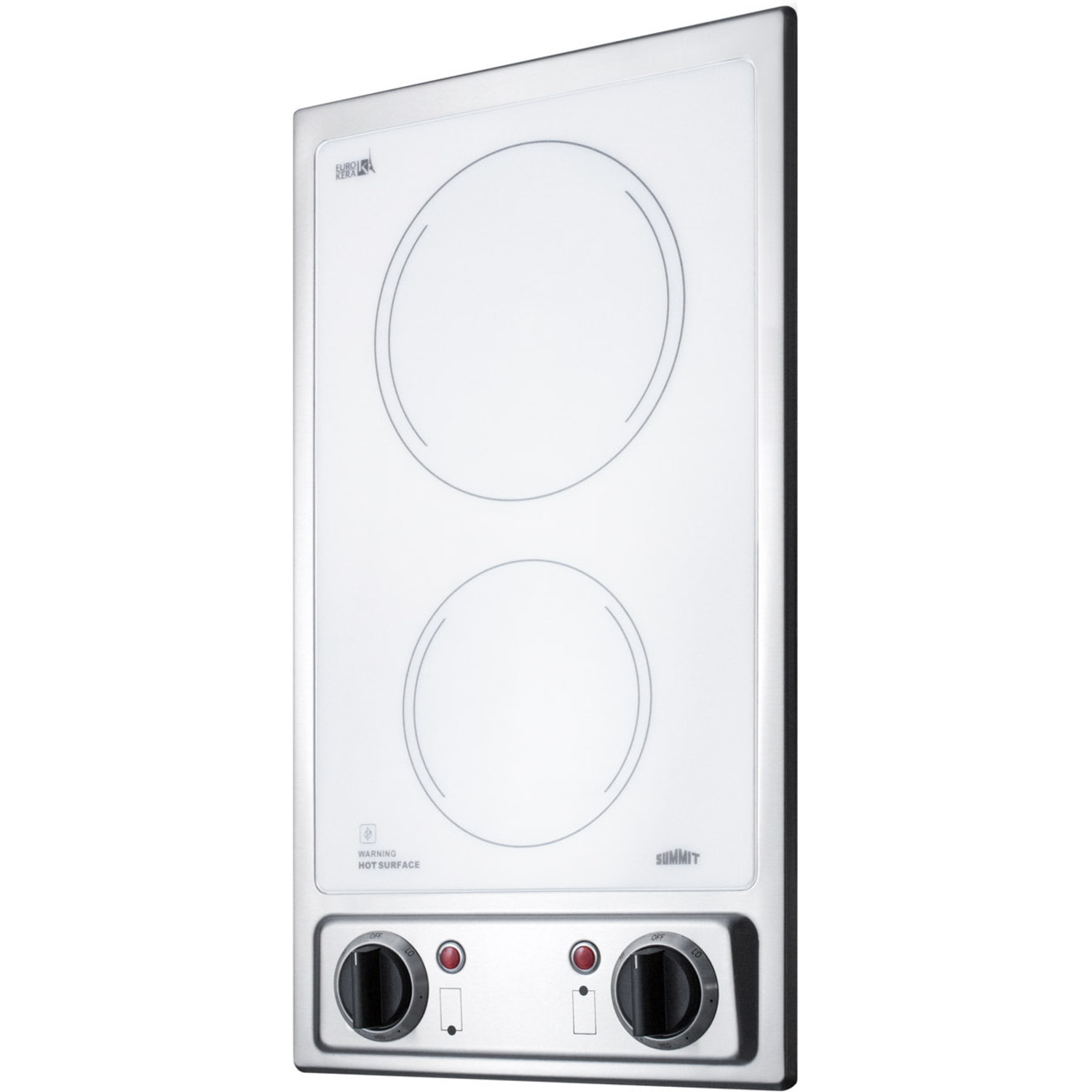

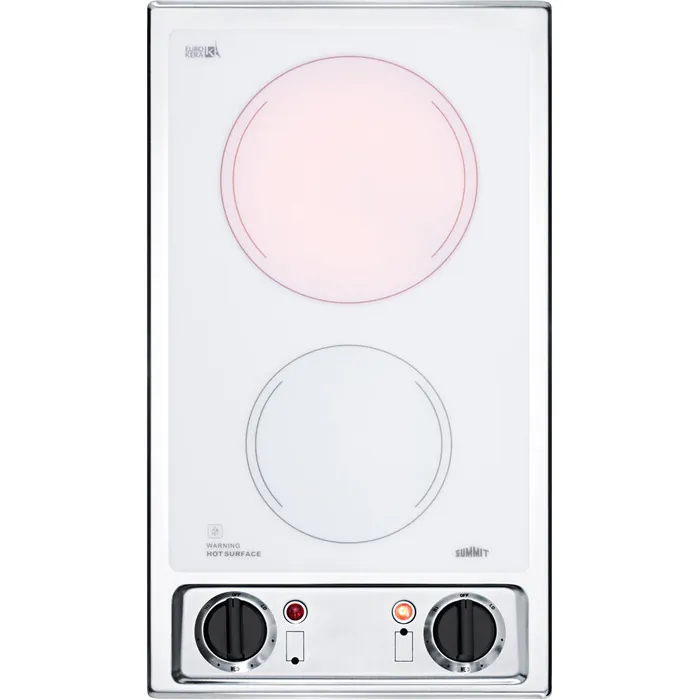

The CR2B120WH is a 120V 2-burner cooktop for built-in installation in cutouts sized 10 1/8" W x 18 5/8" D. The surface is made from EuroKera ceramic glass in a classic white finish, offering easier cleanup and faster cooking than traditional coils. The base and trim are finished in brushed stainless steel.
The CR2B120WH includes a rear 7" 900W burner for larger cooking vessels, and a smaller 5.75" 500W front burner ideal for heating smaller pans. Push-to-turn knobs in a matte black finish help to prevent accidents, with indicator lights for each burner for added safety. The controls are located towards the front, preventing users from having to reach over hot burners. The CR2B120WH includes a pre-installed 3-pronged cord for faster setup.
With a clean design and great price, Summit’s electric cooktops offer top value for homes, hotels, yachts, and other settings with unique kitchen needs. Browse our website for additional cooktop choices, including 220V radiant cooktops in white and black, gas cooktops, and induction burners.
SPECIFICATIONS
Overview
Nominal Height 2.5" (6 cm)
Height of Cabinet 2.5" (6 cm)
Nominal Width 12.0" (30 cm)
Width 11.25" (29 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
UPC 761101059297
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Dial
Countertop Cutout Height 2.5" (6 cm)
Countertop Cutout Width 10.13" (26 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 5.75" (15 cm)
Element #1 Wattage 500.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 900.0
Power Cord Included Yes
FEATURES
EuroKera glass surface Easier cleanup with a smooth ceramic top in a white finish
115V operation Designed to work with standard 115V/60Hz electrical supplies with proper grounding
Cord included Ships with 3-pronged cord preinstalled
Two heating elements One 900W burner and one 500W burner in smooth ceramic glass
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Both burners are equipped with indicator lights to display when the cooktop is in use
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
Designed for built-in installation Cutout dimensions: 10 1/8" W x 18 5/8" D
DOWNLOADS
BROCHURE w/ DRAWINGS (CR2B120WH.pdf)
ASSEMBLY DRAWING (CR2B120_ASSY.pdf)
ASSEMBLY DRAWING (CR2B120_ASSY2.pdf)
REVIT MODEL (QF_Summit_CR2B120_Electric_Cooktop.rfa)
USE & CARE (CR2B120WH-User-Manual.pdf)
