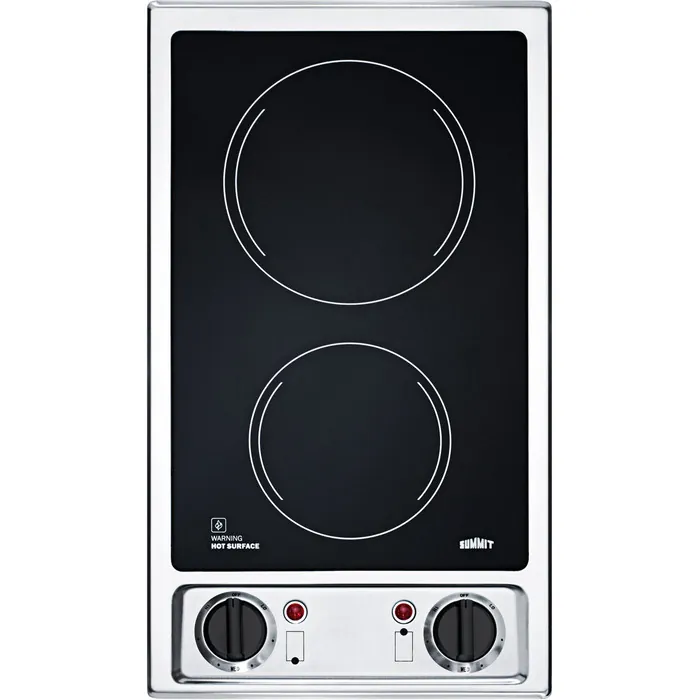

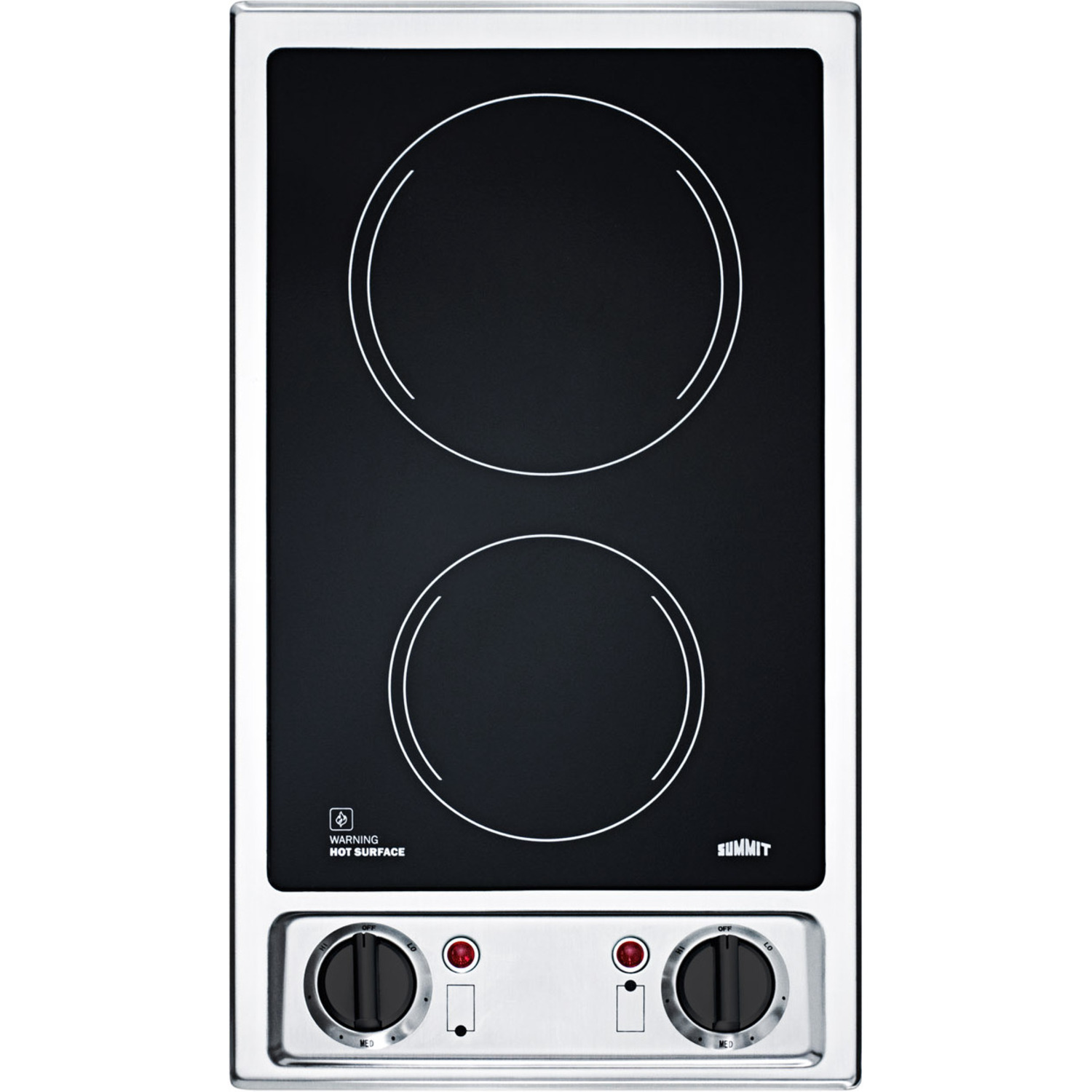

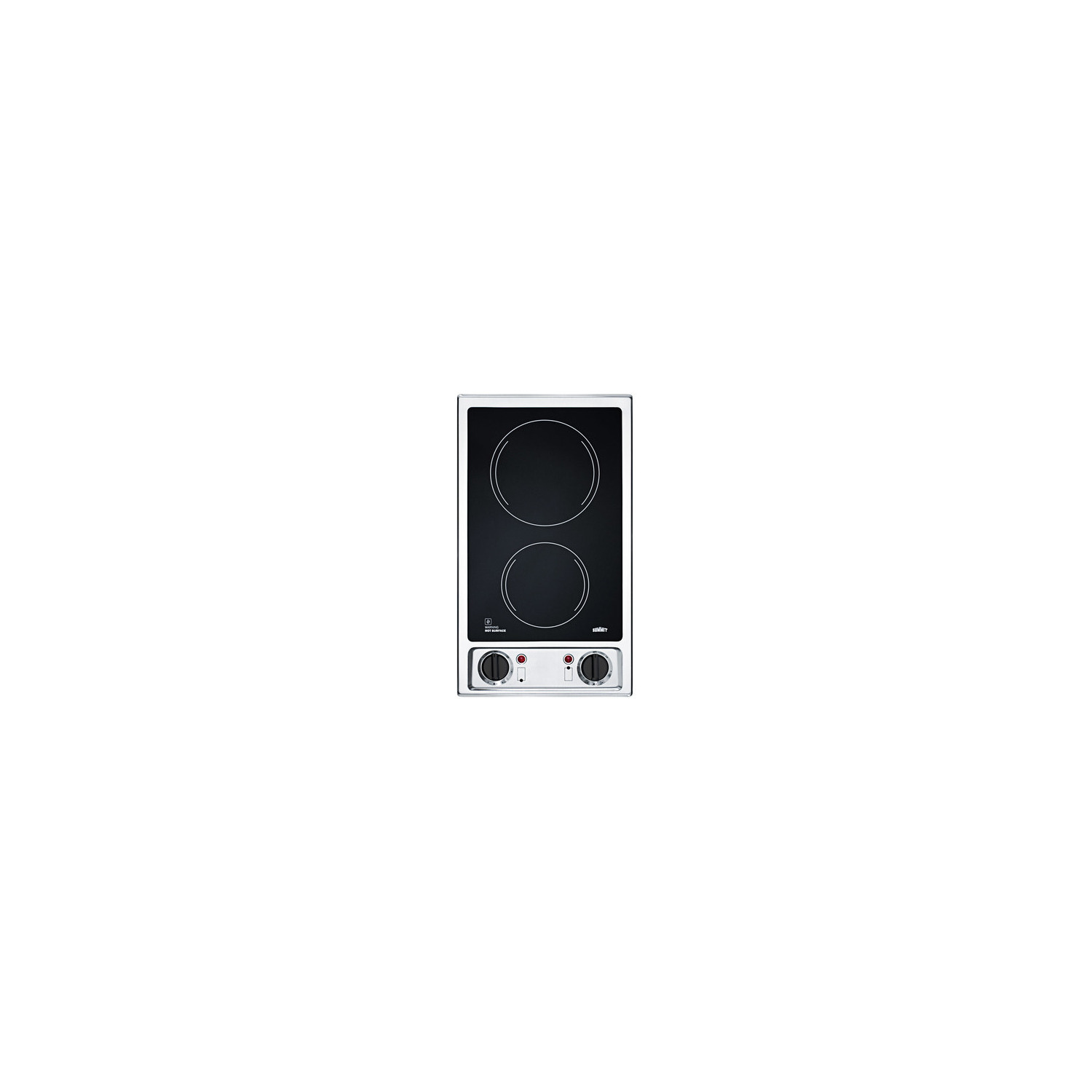

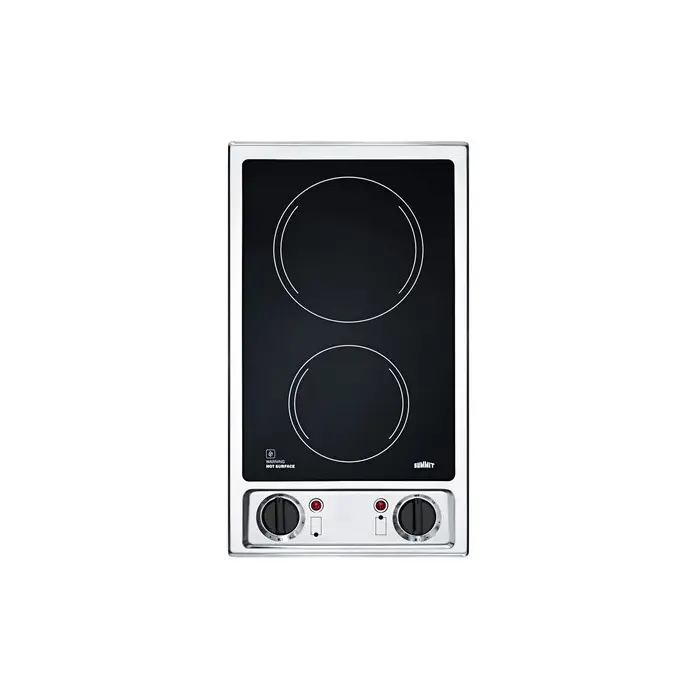

Summit 115V 2-burner radiant cooktop with smooth black ceramic glass surface and preinstalled cord, 7.61101e+011, CR2B120
$389.50
Retail Price: $445.00
Shipping: $250
$ 389.50
Description
Summit's collection of radiant cooktops offers quality choices for a variety of small kitchen applications.
The CR2B120 is a 120V 2-burner cooktop for built-in installation in cutouts sized 10 1/8" W x 18 5/8" D. The surface is made from ceramic glass in a classic black finish, offering easier cleanup and faster cooking than traditional coils. The base and trim are finished in brushed stainless steel.
The CR2B120 includes a rear 7" 900W burner for larger cooking vessels, and a smaller 5.75" 500W front burner ideal for heating smaller pans. Push-to-turn knobs in a matte black finish help to prevent accidents, with indicator lights for each burner for added safety. The controls are located towards the front, preventing users from having to reach over hot burners. The CR2B120WH includes a pre-installed 3-pronged cord for faster setup.
With a clean design and great price, Summit’s electric cooktops offer top value for homes, hotels, yachts, and other settings with unique kitchen needs.
SPECIFICATIONS
Overview
Nominal Height 2.5" (6 cm)
Height of Cabinet 2.5" (6 cm)
Nominal Width 12.0" (30 cm)
Width 11.25" (29 cm)
Nominal Depth 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
UPC 761101023946
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Dial
Countertop Cutout Height 2.5" (6 cm)
Countertop Cutout Width 10.13" (26 cm)
Countertop Cutout Depth 18.63" (47 cm)
Element #1 Size 5.75" (15 cm)
Element #1 Wattage 500.0
Element #2 Size 7.0" (18 cm)
Element #2 Wattage 900.0
Power Cord Included Yes
FEATURES
Smooth black ceramic surface Easy cleanup and elegant style on a smooth ceramic glass surface
Two heating elements One 900W burner and one 500W burner in smooth ceramic glass
115V operation Standard 3-plug cord included for use with 20 amp circuits
Push-to-turn controls Prevents accidents by requiring a small amount of force to turn on cooktop heat
Indicator lights Show when and which burners are turned on
Designed for built-in installation Cutout dimensions: 10 1/8" W x 18 5/8" D
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
Cord included Ships with standard 3-pronged cord pre-installed
DOWNLOADS
BROCHURE w/ DRAWINGS (CR2B120.pdf)
ASSEMBLY DRAWING (CR2B120_ASSY2_2.pdf)
ASSEMBLY DRAWING (CR2B120_ASSY_3.pdf)
REVIT MODEL (QF_Summit_CR2B120_Electric_Cooktop_2.rfa)
