Summit 115V 2-burner cooktop in white ceramic glass, made in Europe, 7.61101e+011, CR2110WHE

Summit's selection of European radiant cooktops brings reliable heating to a variety of slimmer living spaces, from hotel suites to apartment kitchens.

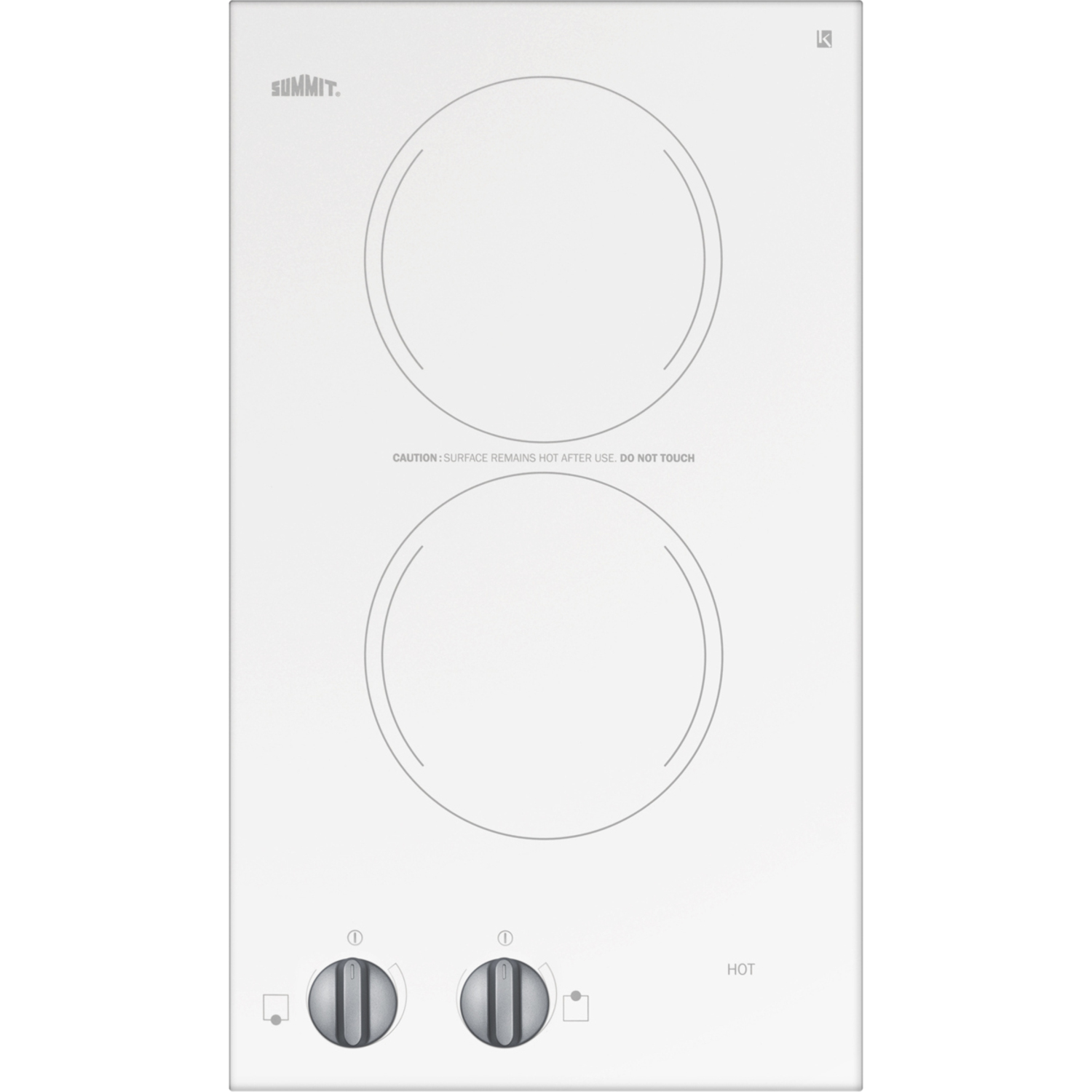

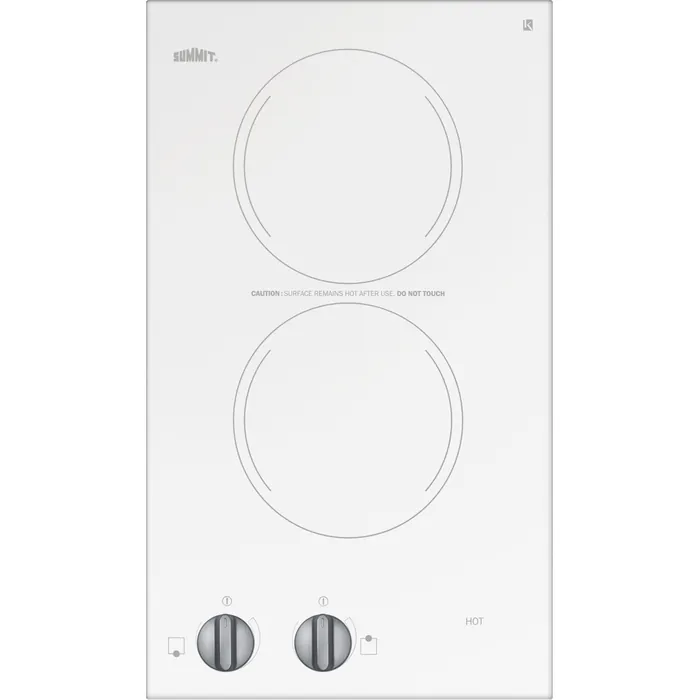

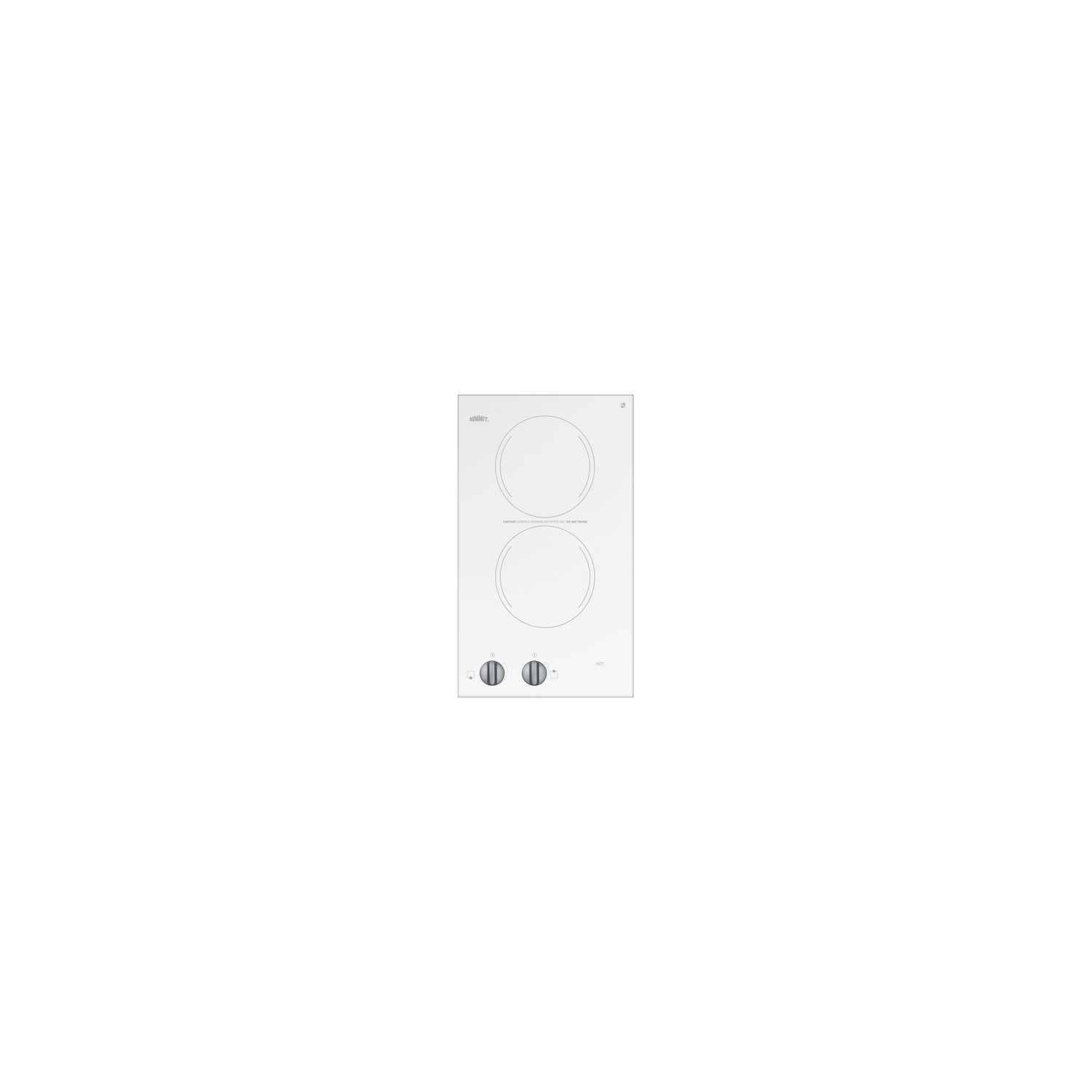

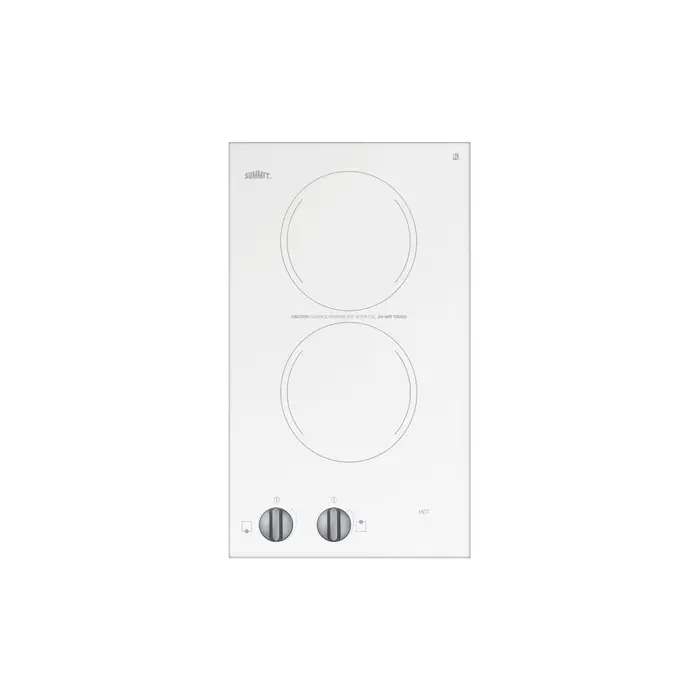

Model CR2110WHE is a 2-burner 115V radiant cooktop sized just under 12" wide to fit common 10 3/4" W x 19" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. It features a durable surface made from EuroKera glass in a clean white finish. Two 1200W radiant elements in a 6" diameter cover most cooking needs. The push-to-turn knobs are located upfront to comply with ADA guidelines for easier accessibility, with a silver finish to add a modern touch. A residual heat indicator light shows if the surface is still hot to touch.

With its easy fitting size and lasting durability, the CR2110WHE is the perfect cooktop for small homes, apartments, tiny houses, and other smaller kitchen spaces. For the same unit in a black finish, see the CR2110B. Additional choices are available for 220V connections, as well as in other burner configurations. Browse the full Summit cooking line to find your perfect fit.

NOTE: This unit is a direct replacement to the CR2110WH.

SPECIFICATIONS

Overview

Nominal Height 4.38" (11 cm)

Height of Cabinet 4.38" (11 cm)

Nominal Width 12.0" (30 cm)

Width 11.88" (30 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.75" (50 cm)

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Amps 20.0

Voltage/Frequency 115 V AC/60 Hz

Weight 14.0 lbs. (6 kg)

Parts & Labor Warranty 1 Year

UPC 761101080765

Electric Cooktop

Heating Type Radiant

Surface Glass

Element Type Glasstop

Number of Elements 2

Controls Dial

Countertop Cutout Height 5.0" (13 cm)

Countertop Cutout Width 10.75" (27 cm)

Countertop Cutout Depth 19.0" (48 cm)

Power Source 115V

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 1200.0

Element #2 Size 6.0" (15 cm)

Element #2 Wattage 1200.0

Power Cord Included No

FEATURES

2-burner design Two evenly sized 6" elements for easy cooking

Powerful heating Both elements can operate at 1200W to help cover most of your heating needs

Ceramic glass surface EuroKera glass in a classic white finish for a modern, clean look

Easy cleanup Smooth glass surface with no cracks or crevices allows you to wipe down easily

Push-to-turn controls Knobs require a gentle push to help prevent cooking accidents

Residual heat indicator light Indicates when surface is still hot to touch

Indicator lights Individual indicator lights show which burner is in use

Designed for built-in installation Fits counter cutout sizes that are 10 3/4" wide by 19" deep

ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility

115V operation Requires hardwired installation to 115V power supply or professional installation of a NEMA 5-20 plug

DOWNLOADS

BROCHURE w/ DRAWINGS (CR2110WHE.pdf)

TECHNICAL DRAWING (.dwg) (CR2110B_2.dwg)

ASSEMBLY DRAWING (CR2110B-Cutout_2.pdf)

ASSEMBLY DRAWING (CR2110B-Assembly_2.pdf)

REVIT MODEL (QF_Summit_CR2110B_2_Burner_Cooktop_2.rfa)

OTHER (HowToCleanYourGlassCooktop.pdf)

USE & CARE (CR2110WHE-User-Manual.pdf)
