Summit 115V 2-burner cooktop in black ceramic glass, made in Europe, 7.61101e+011, CR2110B
$407.65
Retail Price: $470.00
Free shipping
$ 407.65
Description
Summit's selection of European radiant cooktops brings reliable heating to a variety of slimmer living spaces, from hotel suites to apartment kitchens.

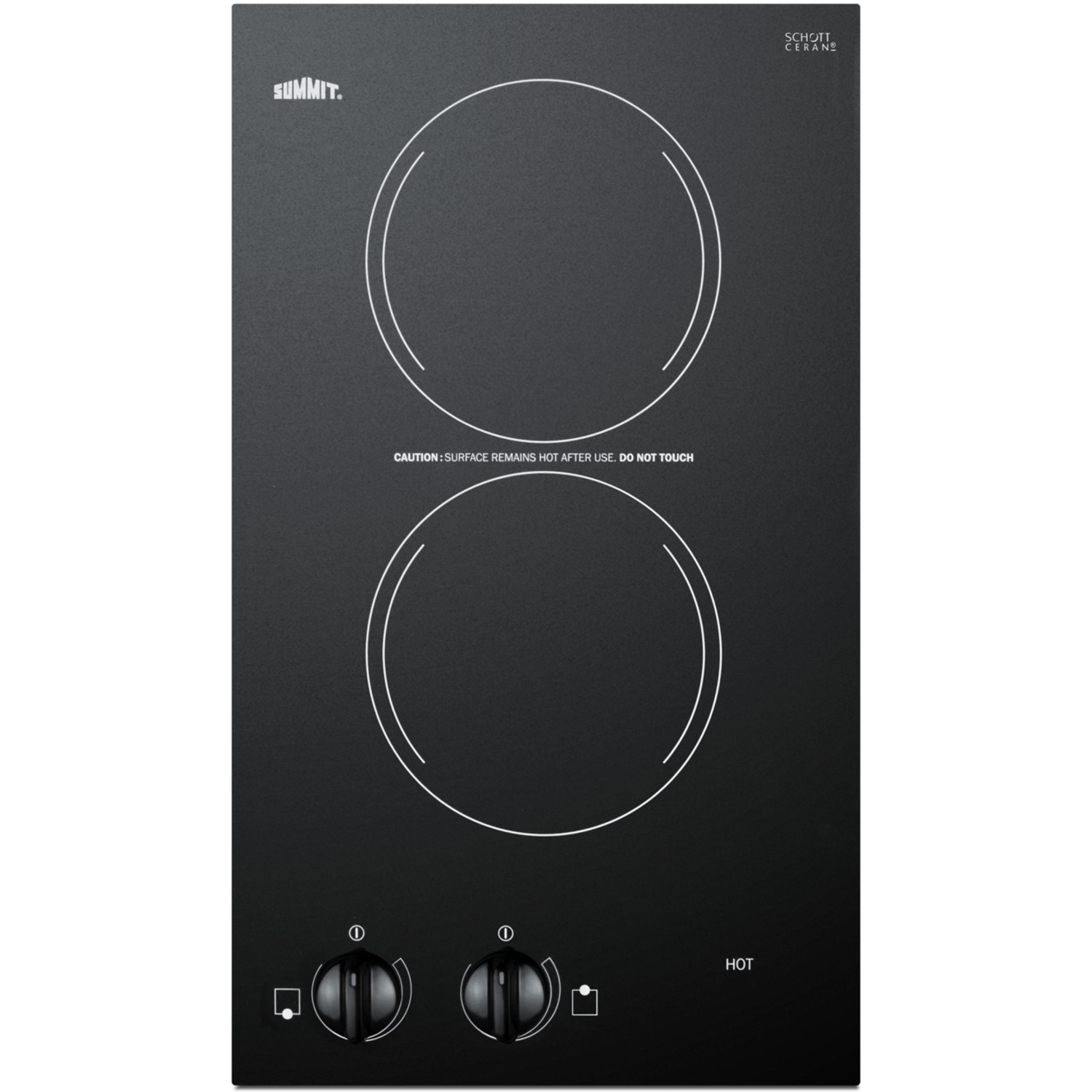

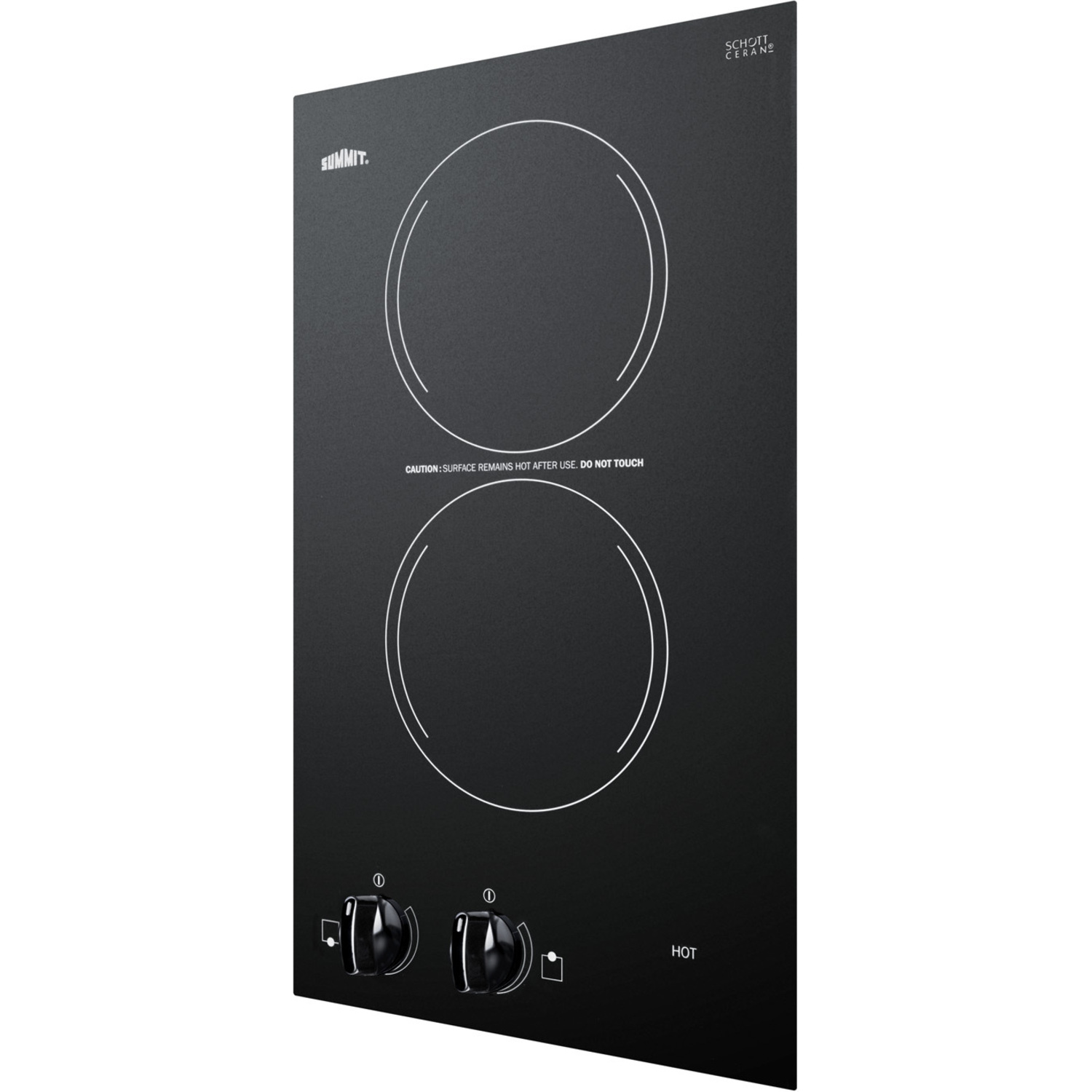

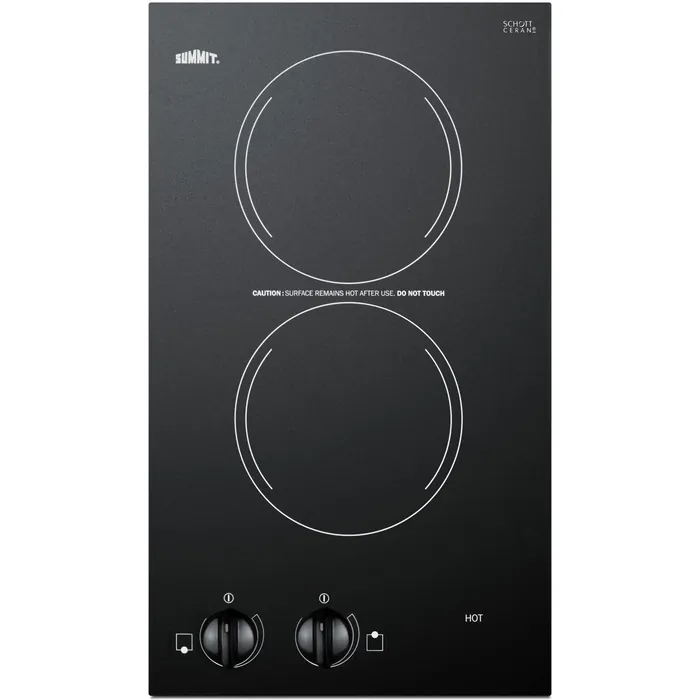

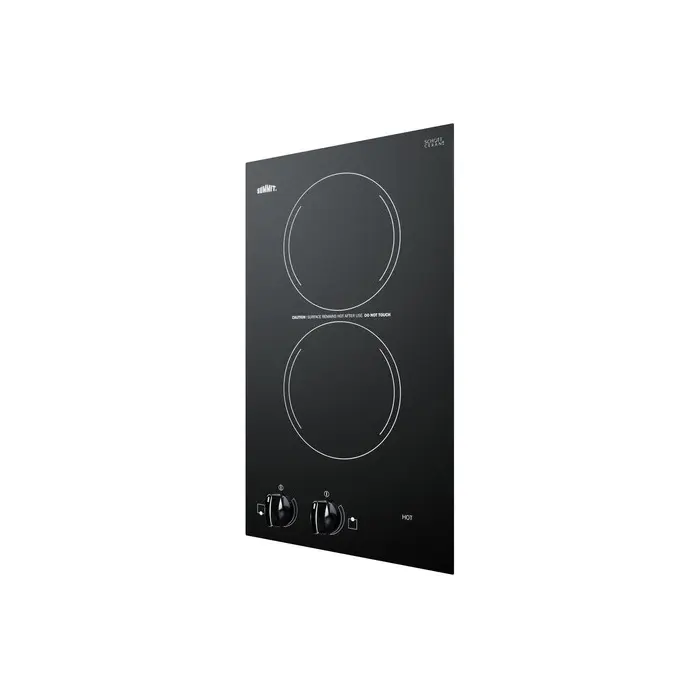

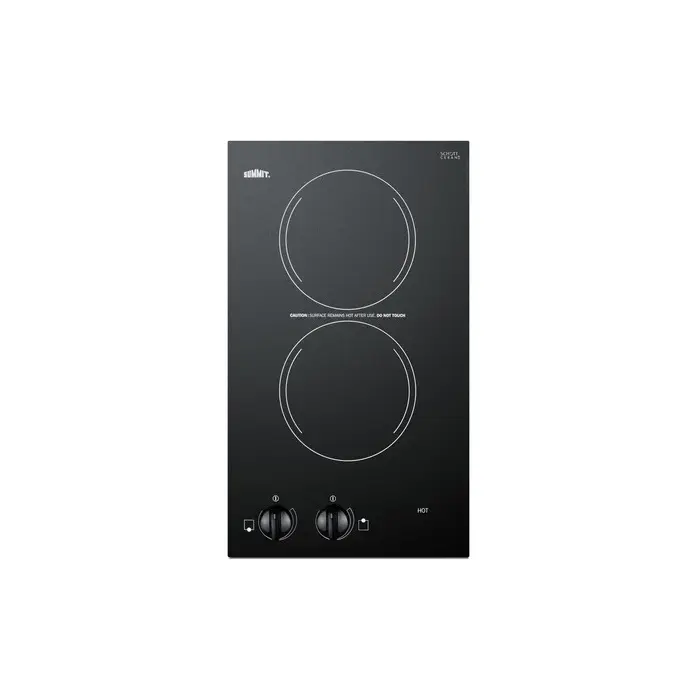

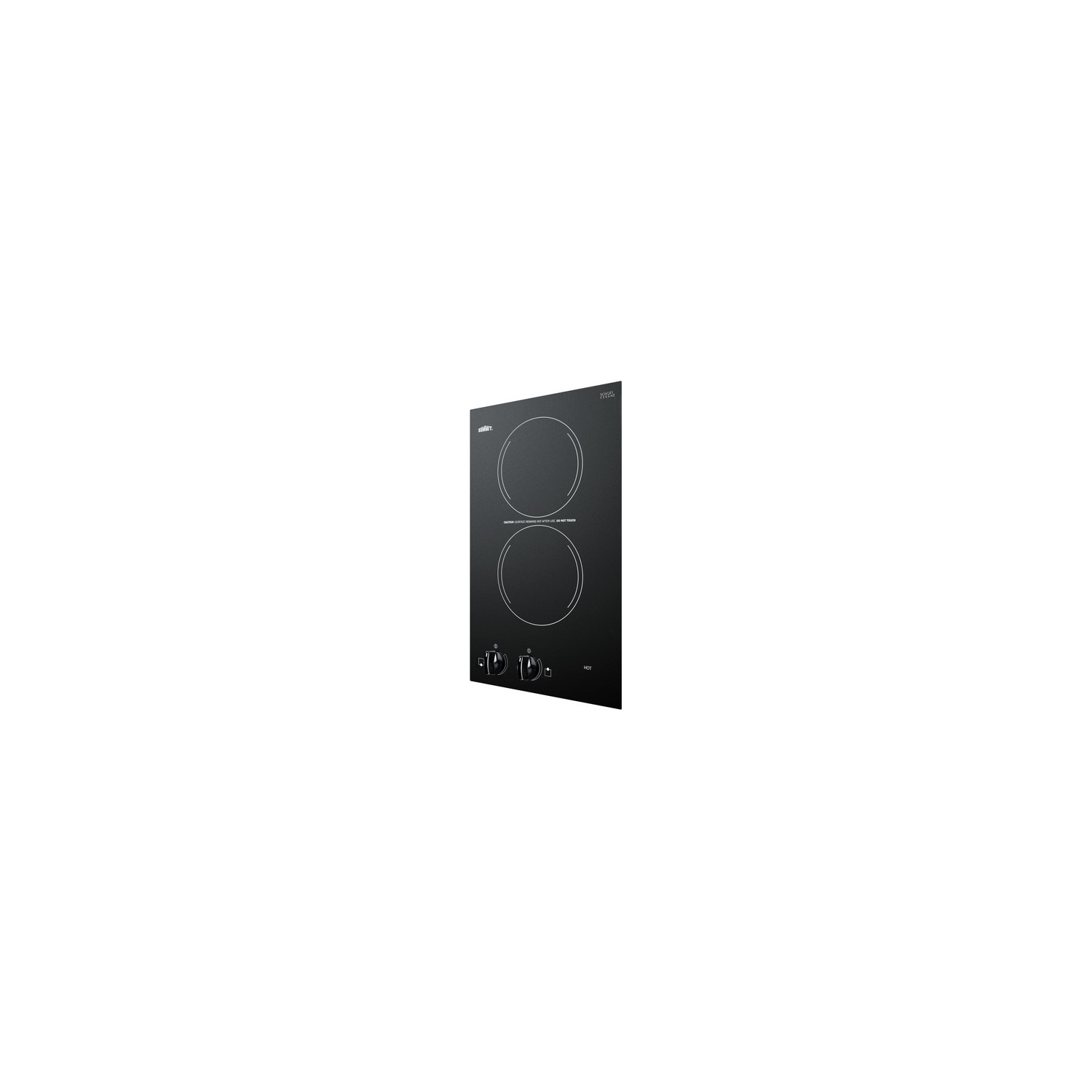

Model CR2110B is a 2-burner 115V radiant cooktop sized just under 12" wide to fit common 10 3/4" W x 19" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. The jet black glass is made by SCHOTT CERAN®, creating a durable, modern surface that offers easy cleanup and fast heating. Two 1200W radiant elements in a 6" diameter cover most cooking needs. The push-to-turn knobs are located upfront to comply with ADA guidelines for easier accessibility. A residual heat indicator light shows if the surface is still hot to touch.

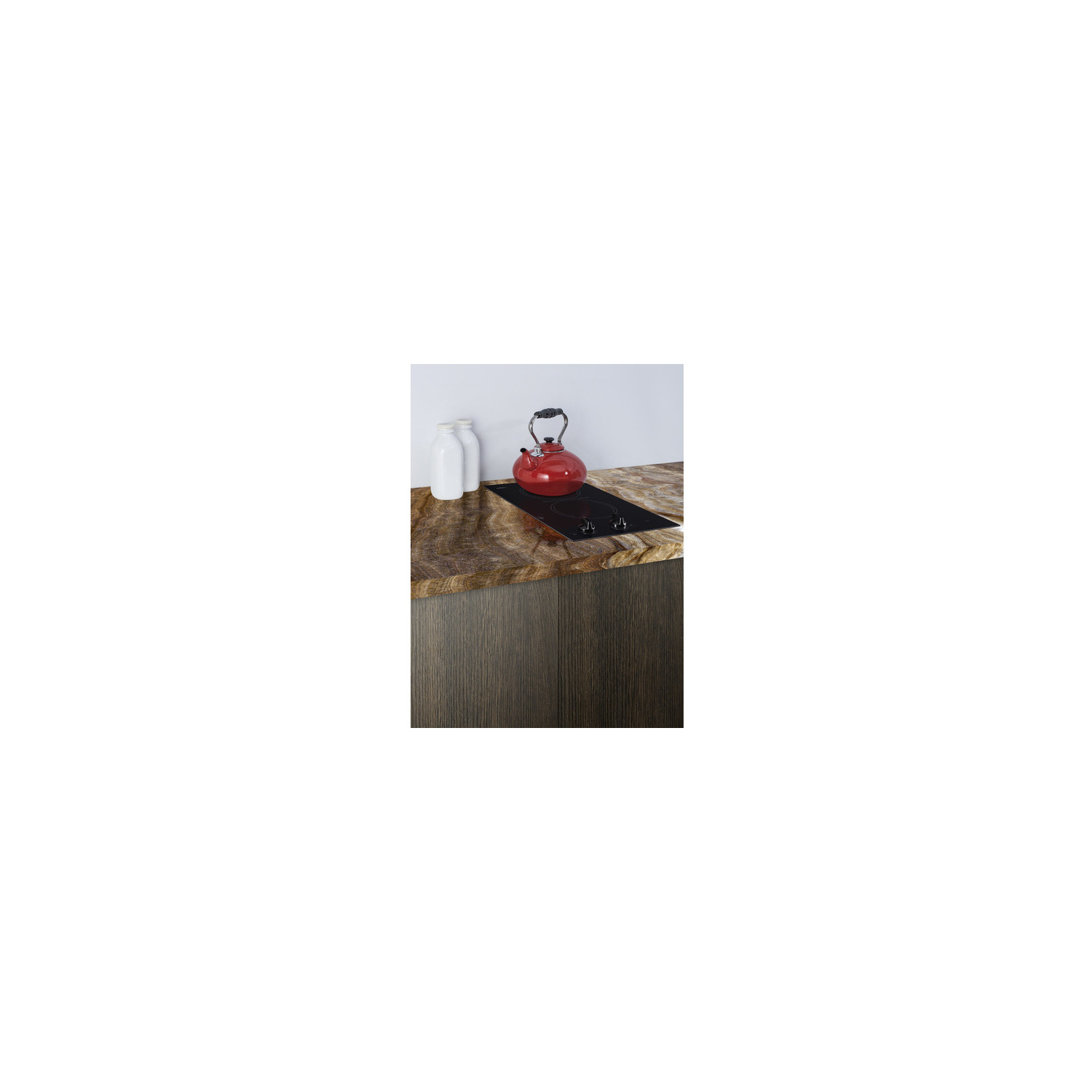

With its easy fitting size and lasting durability, the CR2110B is the perfect cooktop for small homes, apartments, tiny houses, and other smaller kitchen spaces. For the same unit in a white finish, see the CR2110WHE. Additional choices are available for 220V connections, as well as in other burner configurations. Browse the full Summit cooking line to find your perfect fit.
NOTE: This unit is a direct replacement for Summit CR2110, with the same dimensions/specifications and an upgraded ceramic glass surface.
SPECIFICATIONS
Overview
Nominal Height 4.38" (11 cm)
Height of Cabinet 4.38" (11 cm)
Nominal Width 12.0" (30 cm)
Width 11.88" (30 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.75" (50 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 20.0
Voltage/Frequency 115 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Parts & Labor Warranty 1 Year
UPC 761101079882
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 2
Controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 10.75" (27 cm)
Countertop Cutout Depth 19.0" (48 cm)
Power Source 115V
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Power Cord Included No
FEATURES
2-Burner Radiant Cooktop Two evenly sized 6" elements for easy cooking
Powerful heating Both elements can operate at 1200W to help cover most of your heating needs
Easy cleanup Smooth glass surface with no cracks or crevices allows you to wipe down easily

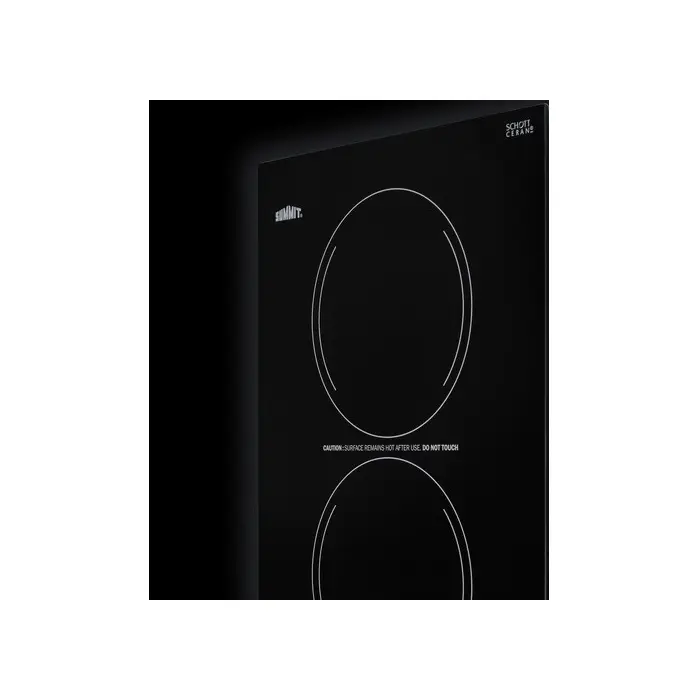

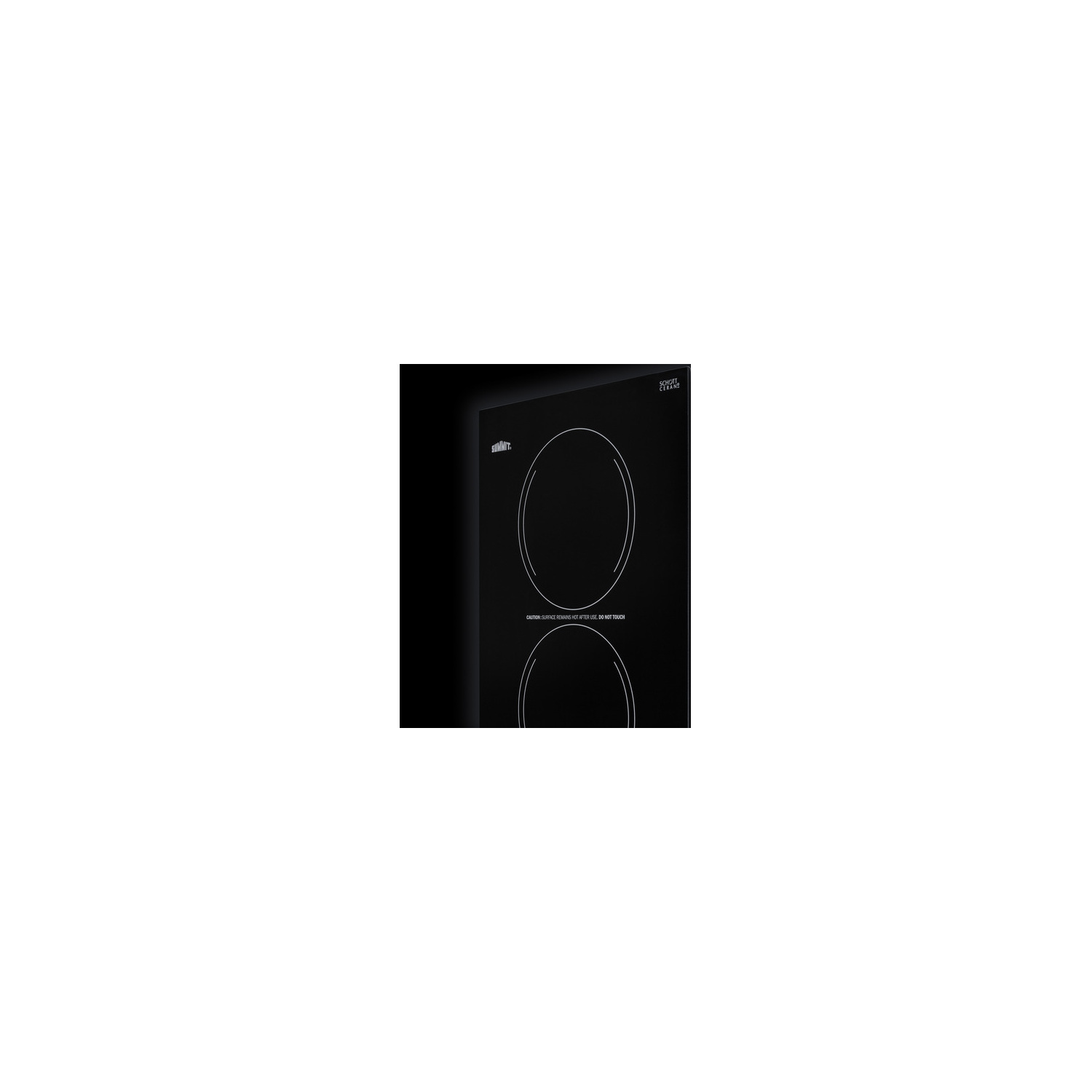

SCHOTT CERAN® glass surface Durable glass in an attractive jet black finish to suit any setting

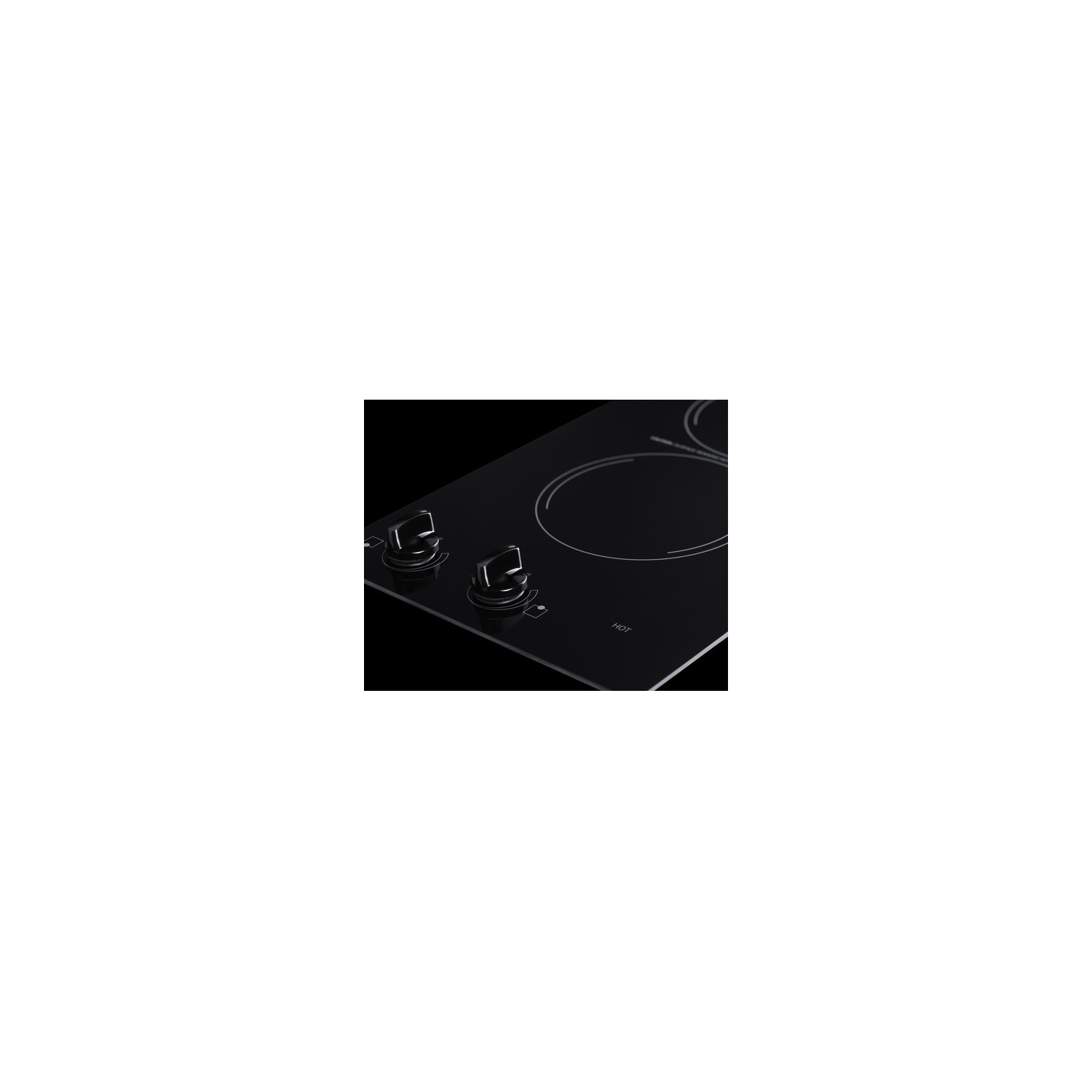

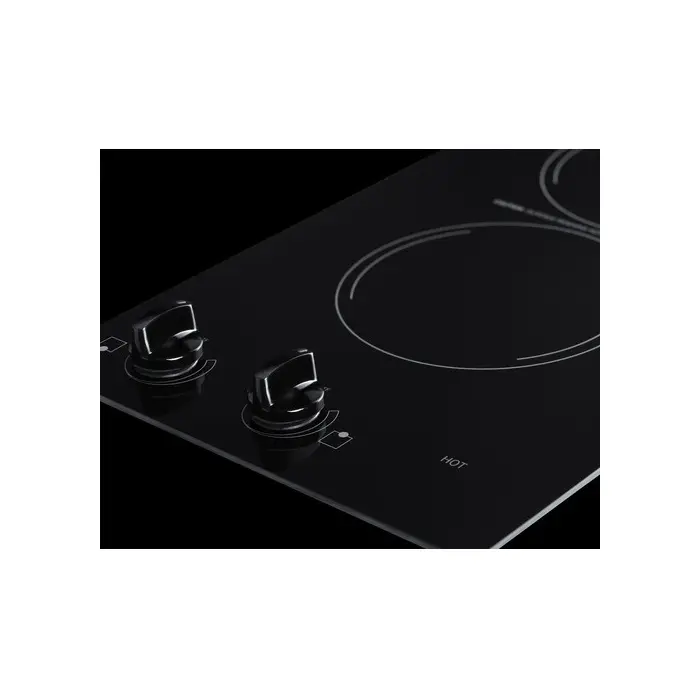

Push-to-turn controls Knobs require a gentle push to help prevent cooking accidents
Color-matched knobs Jet black knobs complement the glass to offer a sleek, modern look
Residual heat indicator light Indicates when surface is still hot to touch
Indicator lights Individual indicator lights show which burner is in use

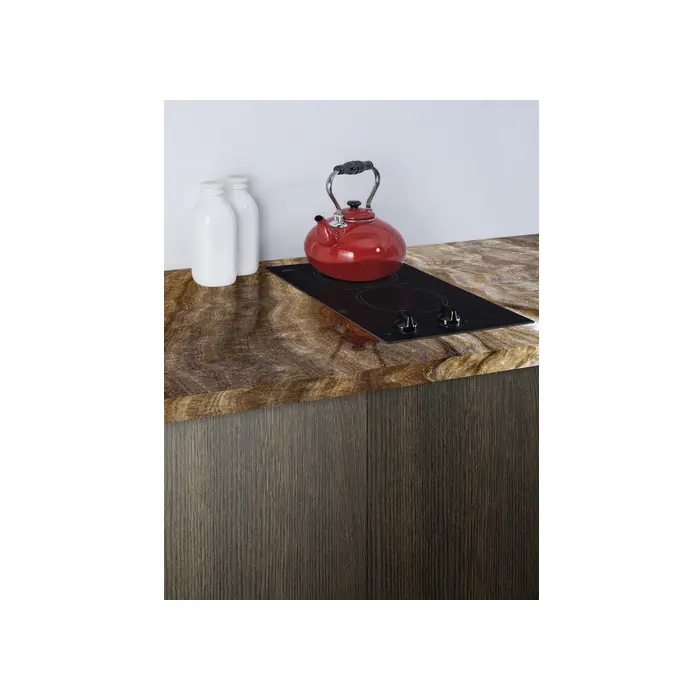

Designed for built-in installation Fits counter cutout sizes that are 10 3/4" wide by 19" deep
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
115V operation Requires hardwired installation to 115V power supply or professional installation of a NEMA 5-20 plug
DOWNLOADS
BROCHURE w/ DRAWINGS (CR2110B.pdf)
TECHNICAL DRAWING (.dwg) (CR2110B.dwg)
ASSEMBLY DRAWING (CR2110B-Cutout.pdf)
ASSEMBLY DRAWING (CR2110B-Assembly.pdf)
REVIT MODEL (QF_Summit_CR2110B_2_Burner_Cooktop.rfa)
