Summit 115V single burner cooktop in black ceramic glass, made in Europe, 7.61101e+011, CR1115
$407.65
Retail Price: $470.00
Shipping: $250
$ 407.65
Description
Summit's selection of European radiant cooktops brings reliable heating to a variety of slimmer living spaces, from hotel suites to apartment kitchens.

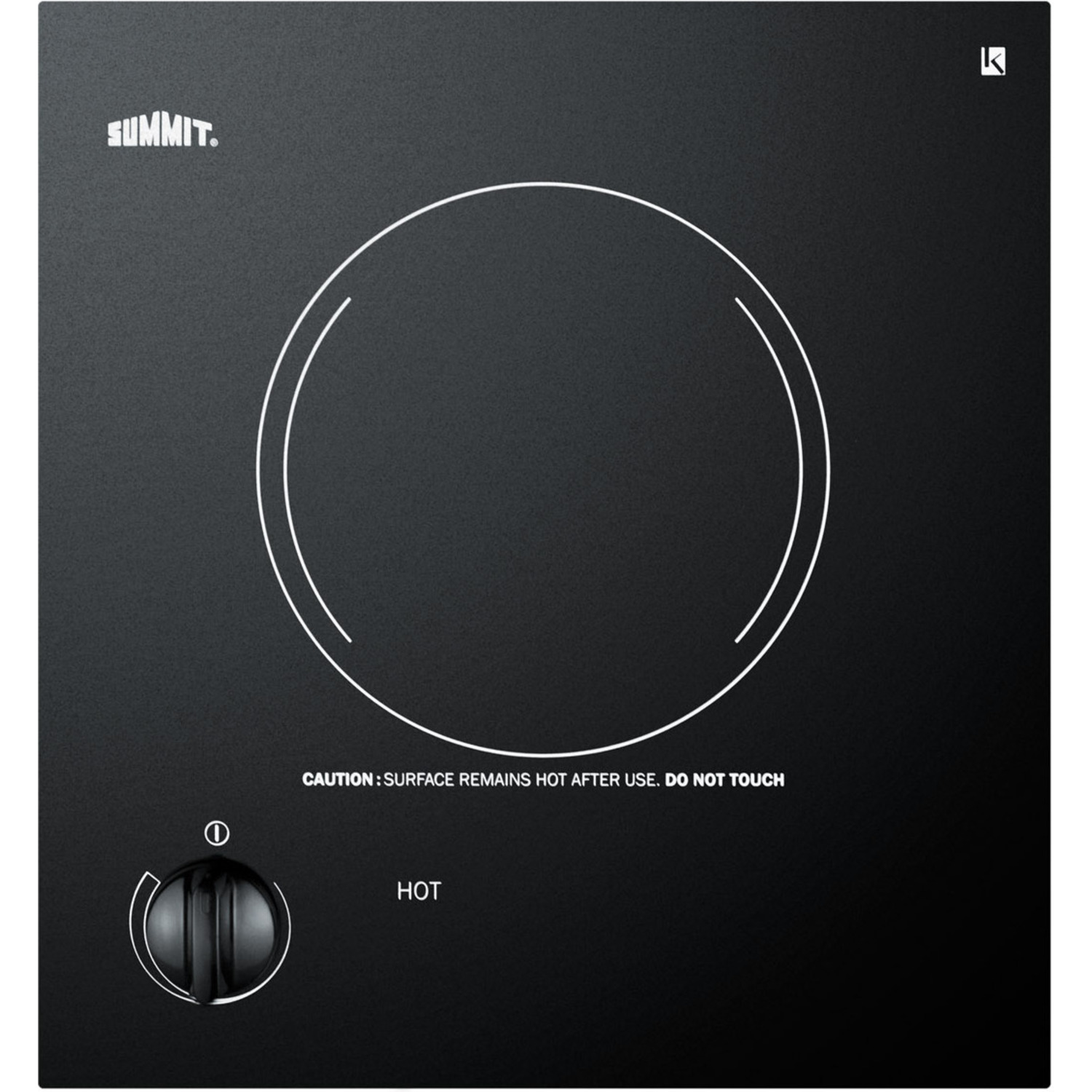

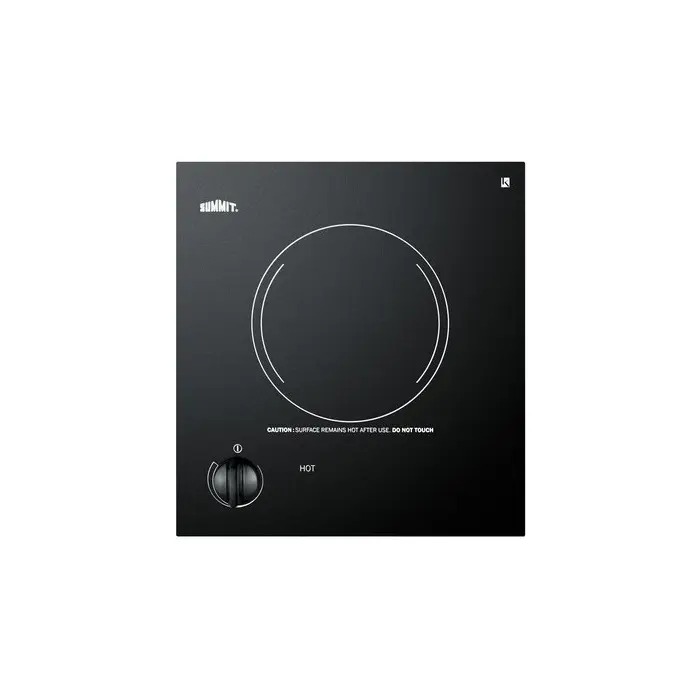

The CR1115 is a single burner 115V cooktop designed for built-in installation in 11 1/8" wide by 11 7/8" deep counters. Made from Eurokera ceramic glass, the CR1115 offers modern style and convenience with an easy-to-clean jet black cooking surface. The 1200W radiant element features a 6" diameter, manufactured in Germany by E.G.O. An upfront push-to-turn control knob provides infinite heat control and a residual heat light indicates when the surface is still hot. This unit requires professional hard-wiring or installation of a NEMA 5-15P cord.
Perfect as an extra burner in kitchens, or for mobile homes, hotel rooms, and other smaller spaced areas with specific heating needs. Additional choices are available in 2, 3, 4, and 5-burner configurations.
SPECIFICATIONS
Overview
Nominal Height 3.38" (9 cm)
Height of Cabinet 3.38" (9 cm)
Nominal Width 12.0" (30 cm)
Width 11.88" (30 cm)
Nominal Depth 13.0" (33 cm)
Depth 12.63" (32 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Voltage/Frequency 115 V AC/60 Hz
Weight 10.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101023618
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 1
Controls Dial
Countertop Cutout Height 3.38" (9 cm)
Countertop Cutout Width 11.13" (28 cm)
Countertop Cutout Depth 11.88" (30 cm)
Power Source 115V
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Power Cord Included No
FEATURES
1-Burner Cooktop Built-in radiant cooktop with one 1200W element

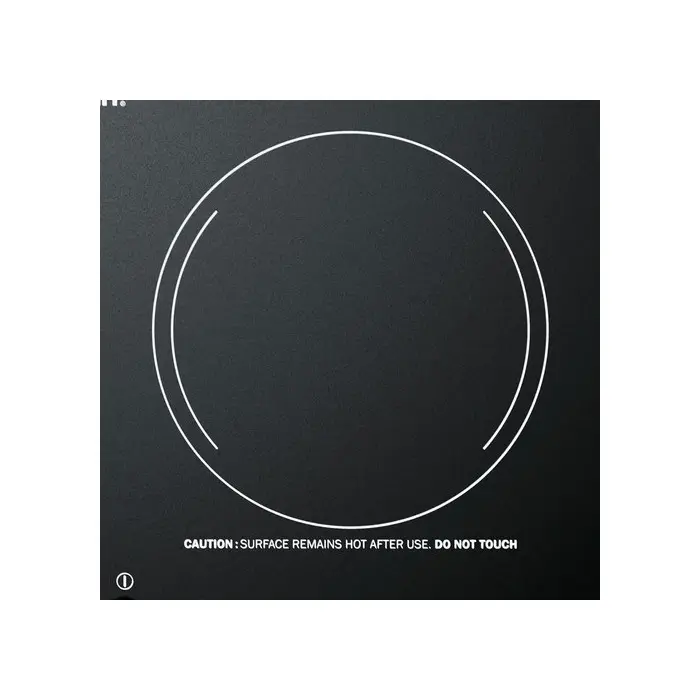

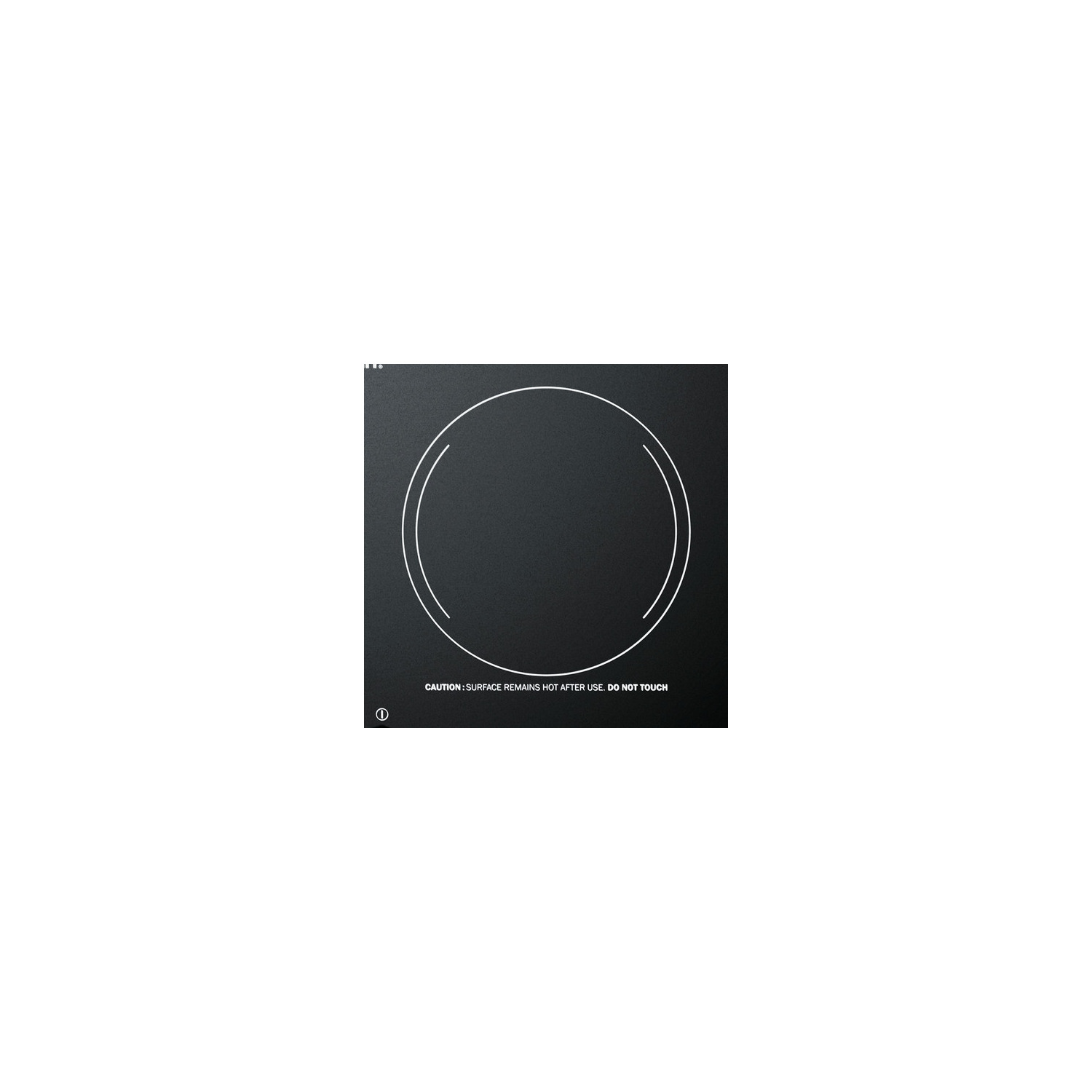

Smooth black surface made from Eurokera glass Easy cleanup and elegant style on a smooth ceramic glass surface
Single heating element One 1200W burner, with 6" diameter, manufactured for SUMMIT by E.G.O. of Germany, considered by many to be the finest in the world

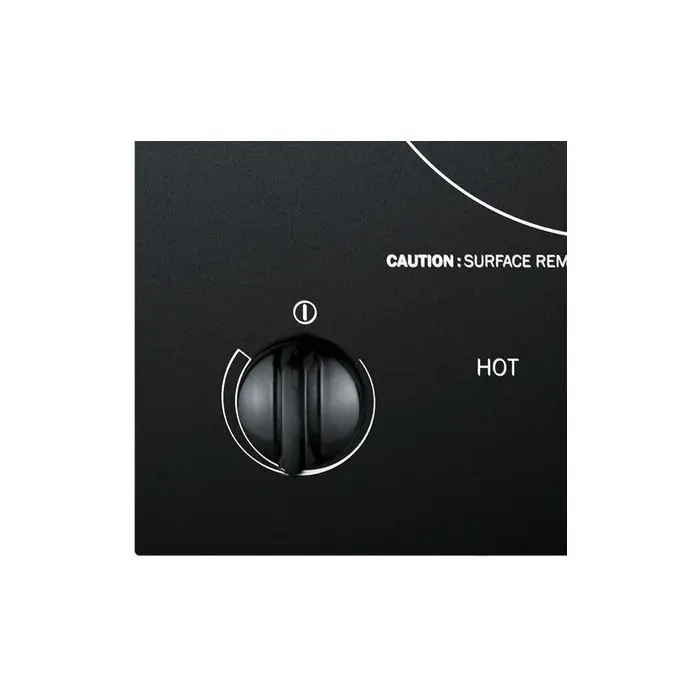

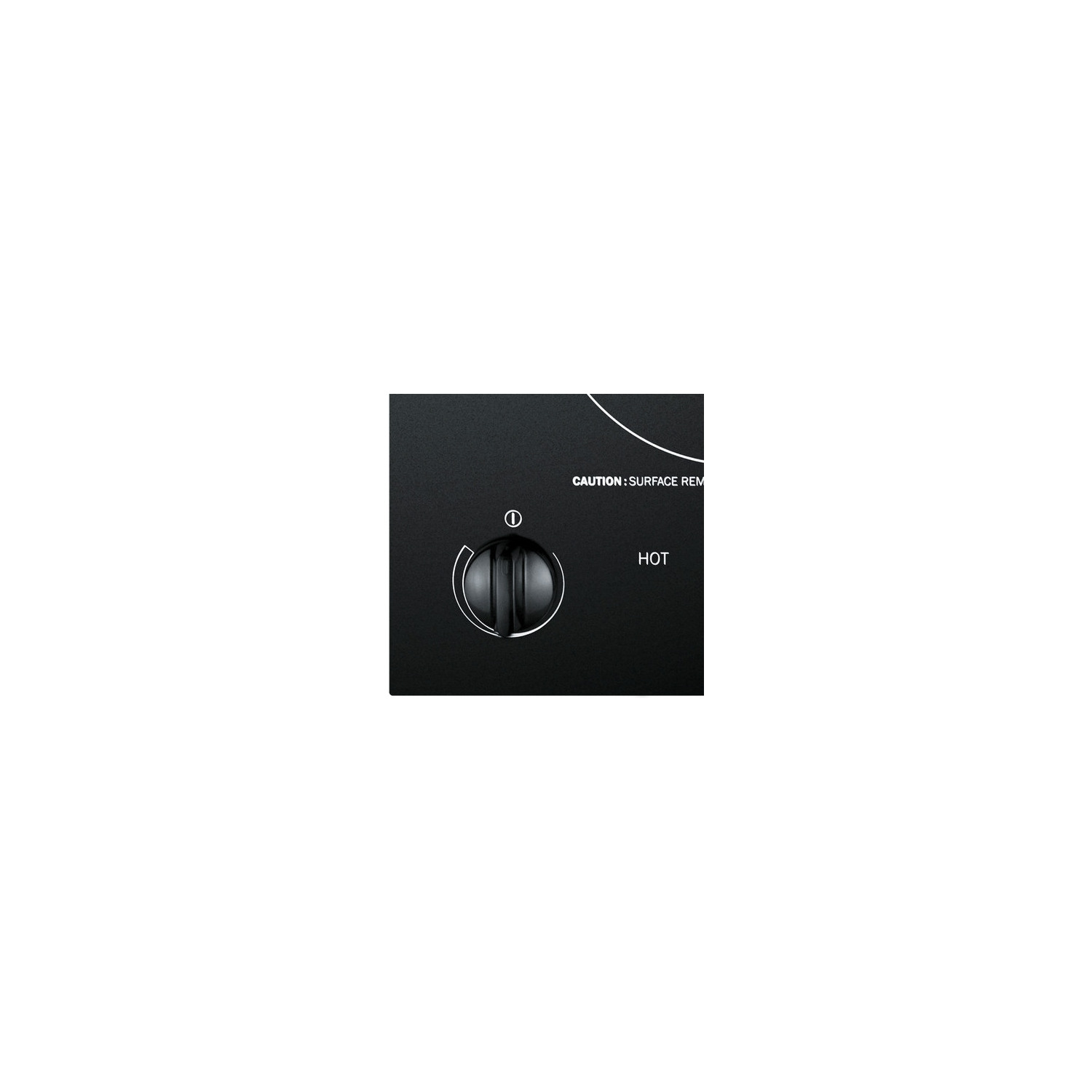

Push-to-turn control Prevents accidents by requiring a small amount of force to turn on cooktop heat
Color-matched knob Jet black knob complements the glass to offer a sleek, modern look
Residual heat indicator light Indicates when surface is still hot to touch
Easy cleanup Smooth glass surface with no cracks or crevices allows you to wipe down easily
Designed for built-in installation Fits counter cutout sizes that are 11 1/8" wide by 11 7/8" deep
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility
115V operation Requires hardwired installation to 115V power supply or professional installation of a NEMA 5-15 plug
DOWNLOADS
ASSEMBLY DRAWING (CR1115-ASSY.pdf)
REVIT MODEL (QF_Summit_CR1115_Electric_Cooktop.rfa)
