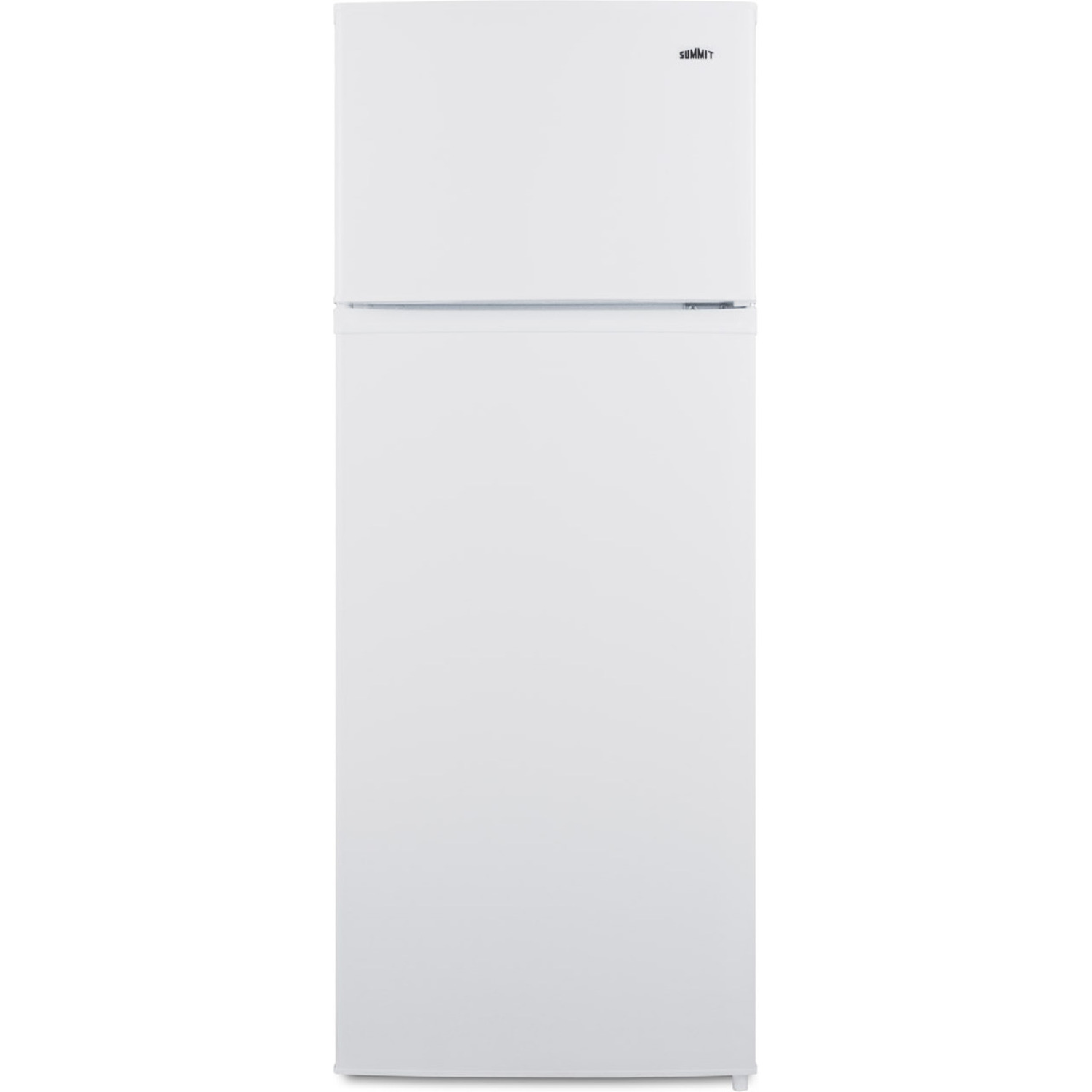

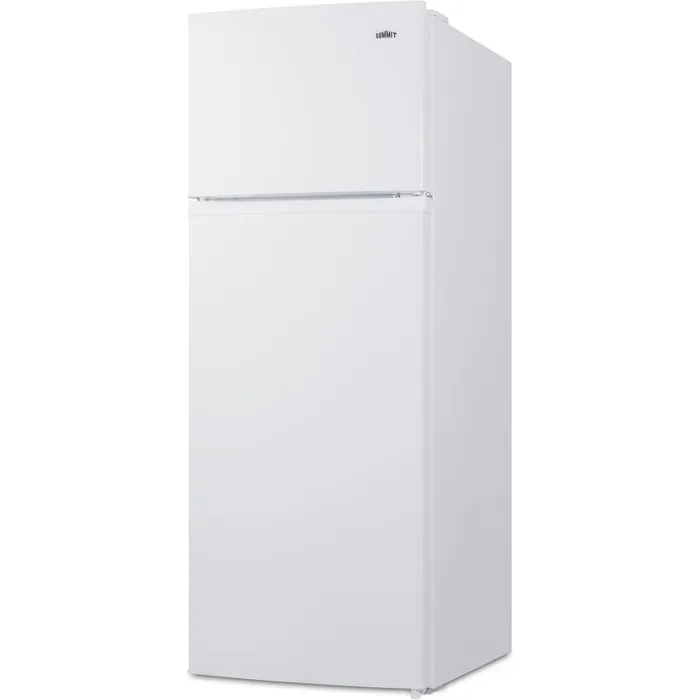

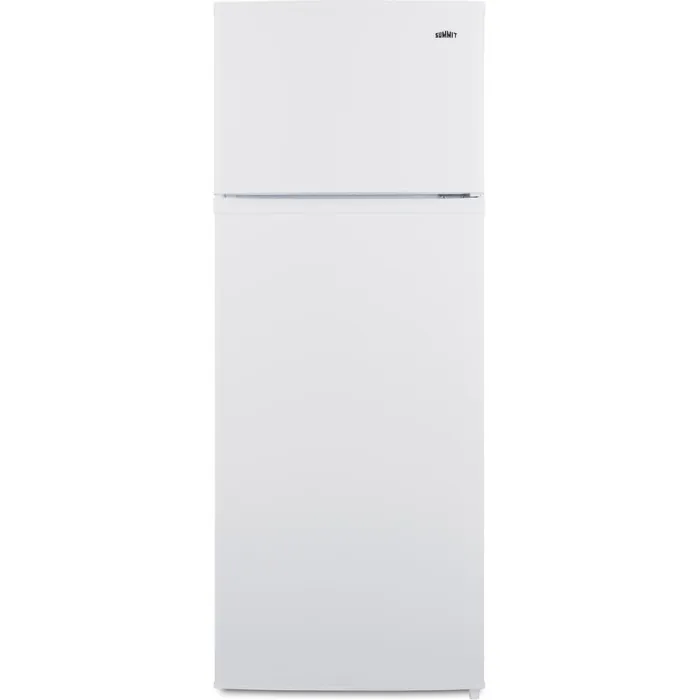

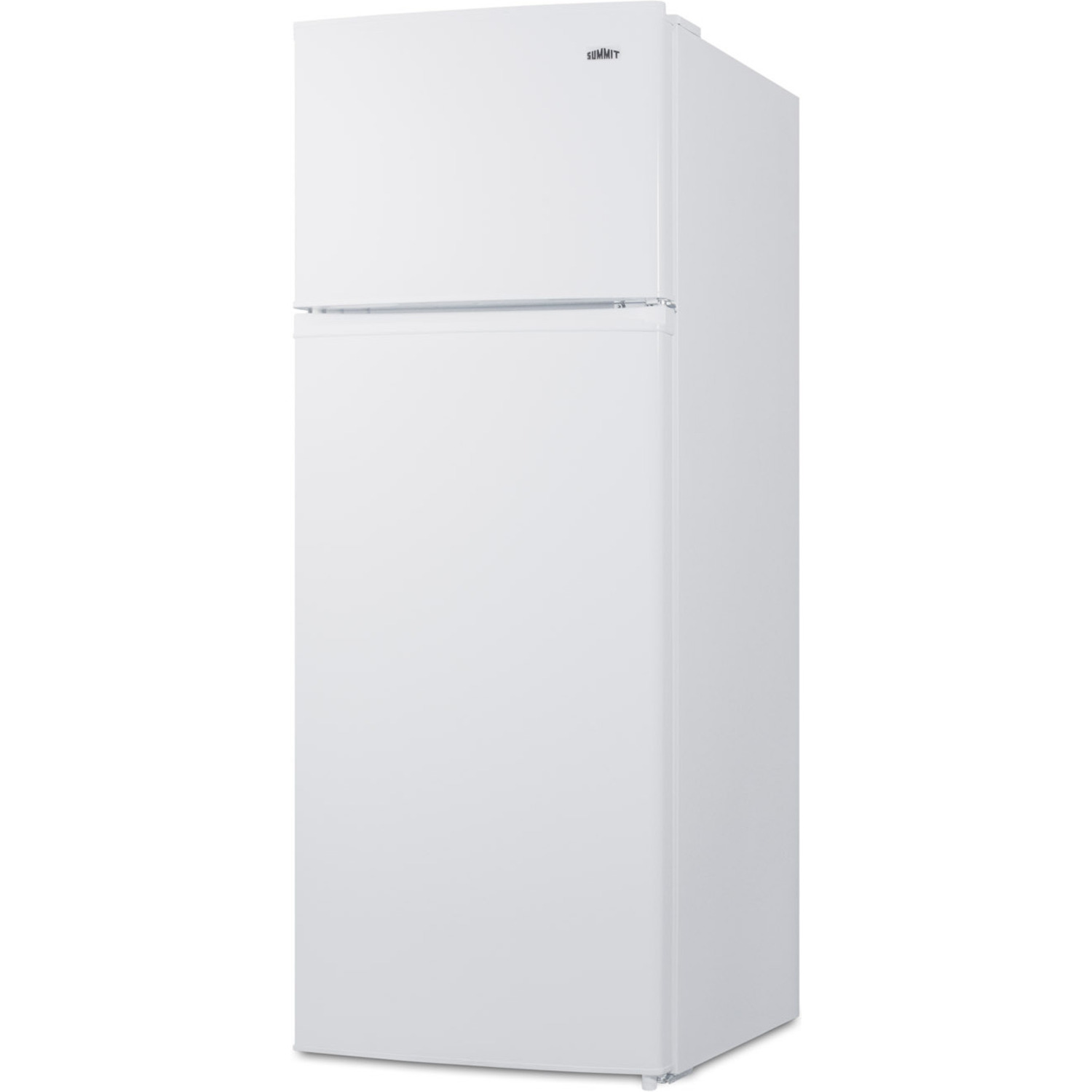

Summit 2-door cycle defrost refrigerator-freezer in slim width and white finish, 7.61101e+011, CP962

SUMMIT carries a quality line of uniquely sized refrigerator-freezers specially designed for space-challenged kitchens.

Less than 22" wide and 56" high, the CP962 offers a generous 7.1 cu.ft. storage capacity in a slim fit that also meets standards for ADA compliance. This unit comes in a white finish, with a sealed back design to ensure easier cleanup. The door swing is user-reversible, making it easy to adjust the unit to best accommodate your setup.

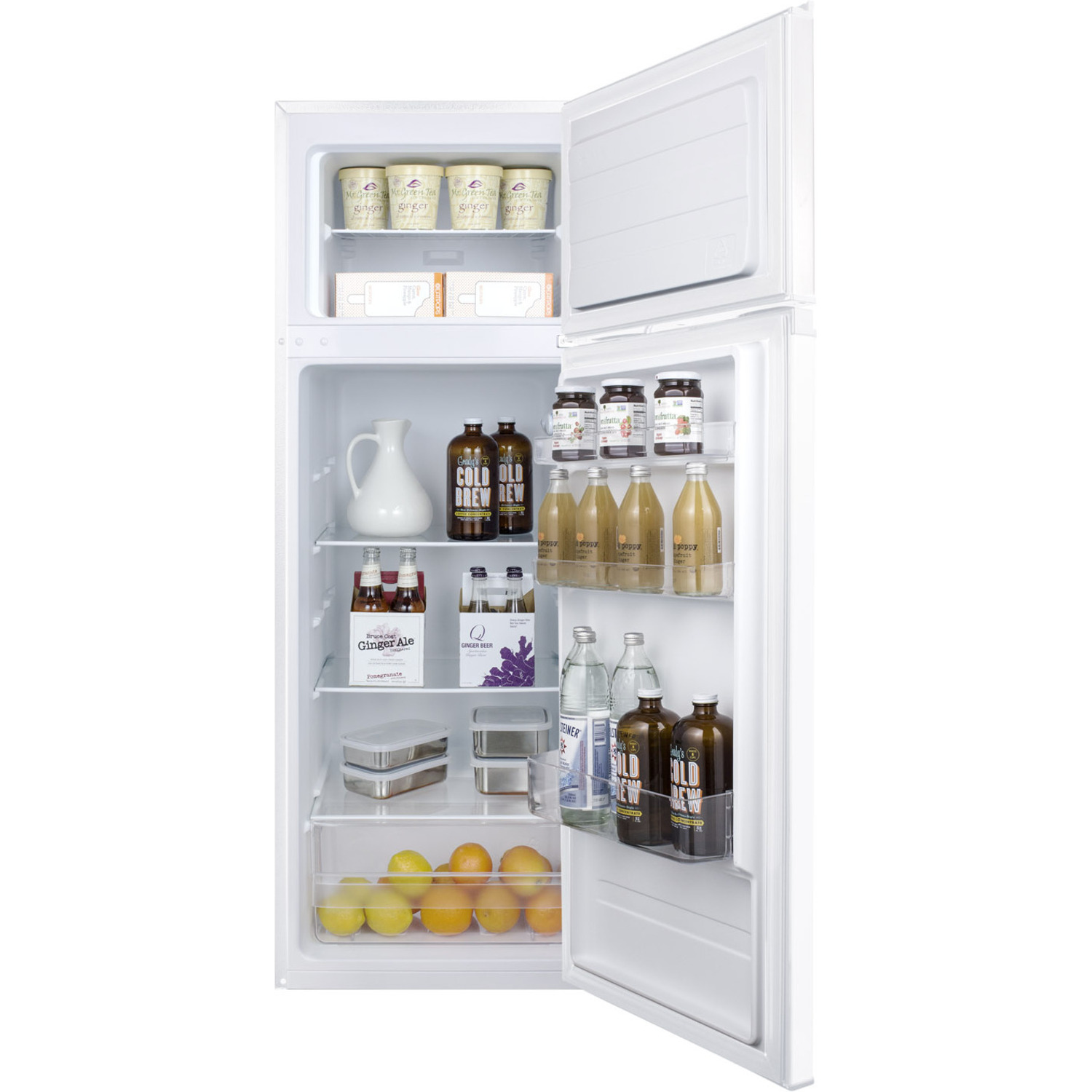

Inside, the CP962 utilizes low maintenance automatic defrost in the refrigerated section and static manual defrost in the freezer. The fresh food section comes fully featured with interior lighting, spill-proof adjustable glass shelves, a large clear crisper, and door storage. The freezer compartment includes a removable wire shelf for added storage convenience.

With its lean size, the CP962 is the ideal refrigerator for studio apartments, yachts, offices, and other settings in need of reliable cooling in a slim-fitting footprint.

SPECIFICATIONS

Overview

Nominal Height 56.0" (142 cm)

Height of Cabinet 56.0" (142 cm)

Height to Hinge Cap 56.63" (144 cm)

Nominal Width 22.0" (56 cm)

Width 21.5" (55 cm)

Width with Door Open 22.25" (57 cm)

Nominal Depth 22.0" (56 cm)

Depth 21.75" (55 cm)

Depth with door at 90° 41.5" (105 cm)

Capacity 7.1 cu.ft. (201 L)

Defrost Type Cycle

Door White

Cabinet White

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Energy Usage/Year 375.0kWh/year

Amps 0.54

Voltage/Frequency 115 V AC/60 Hz

Weight 97.0 lbs. (44 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101056159

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 36.5" (93 cm)

Refrigerator - Interior Width 17.5" (44 cm)

Refrigerator - Interior Depth 17.0" (43 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 10.38" (26 cm)

Freezer - Interior Width 15.5" (39 cm)

Freezer - Interior Depth 16.0" (41 cm)

Freezer - Shelf Type Wire

Freezer - Shelf Qty 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.62 oz.

High Side PSI 245.0

Low Side PSI 110.0

Level Legs 2

Sound Level 32.3 dB

FEATURES

Top-Mount Refrigerator-Freezer Slim-fitting solution with a 2-door design ideal for small kitchens

Thin-line design Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

ADA compliant Lower height makes this unit an ideal choice for locations complying with ADA guidelines for accessibility

Cycle defrost Combines an automatic defrosting refrigerator with a manual defrost freezer for a quality performance with energy savings

Door storage 3 full racks offer convenient storage for condiments and bottles

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Reversible doors User-reversible door swing for added flexibility

Interior light Automatically illuminates when you open the door

Removable freezer shelf Wire shelf provided for flexible storage

Sealed back Space-saving design that offers easier cleanability

White exterior finish Cabinet and doors come in a clean white finish

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CP962.pdf)

TECHNICAL DRAWING (.dwg) (CP972SS_REF._FRE__A-C_2000_.dwg)

REVIT MODEL (QF_Summit_CP962_Two_Door_Refrigerator_Freezer.rfa)

USE & CARE (CP962-User-Manual.pdf)

MSDS INFORMATION (R600a_AO.pdf)

Energy Guide
