Summit 2-door cycle defrost refrigerator-freezer in platinum, 4.5 cu.ft., 7.61101e+011, CP73PL

SUMMIT's line of refrigerator-freezers feature slim dimensions for smaller kitchens and superior construction for years of reliable service.

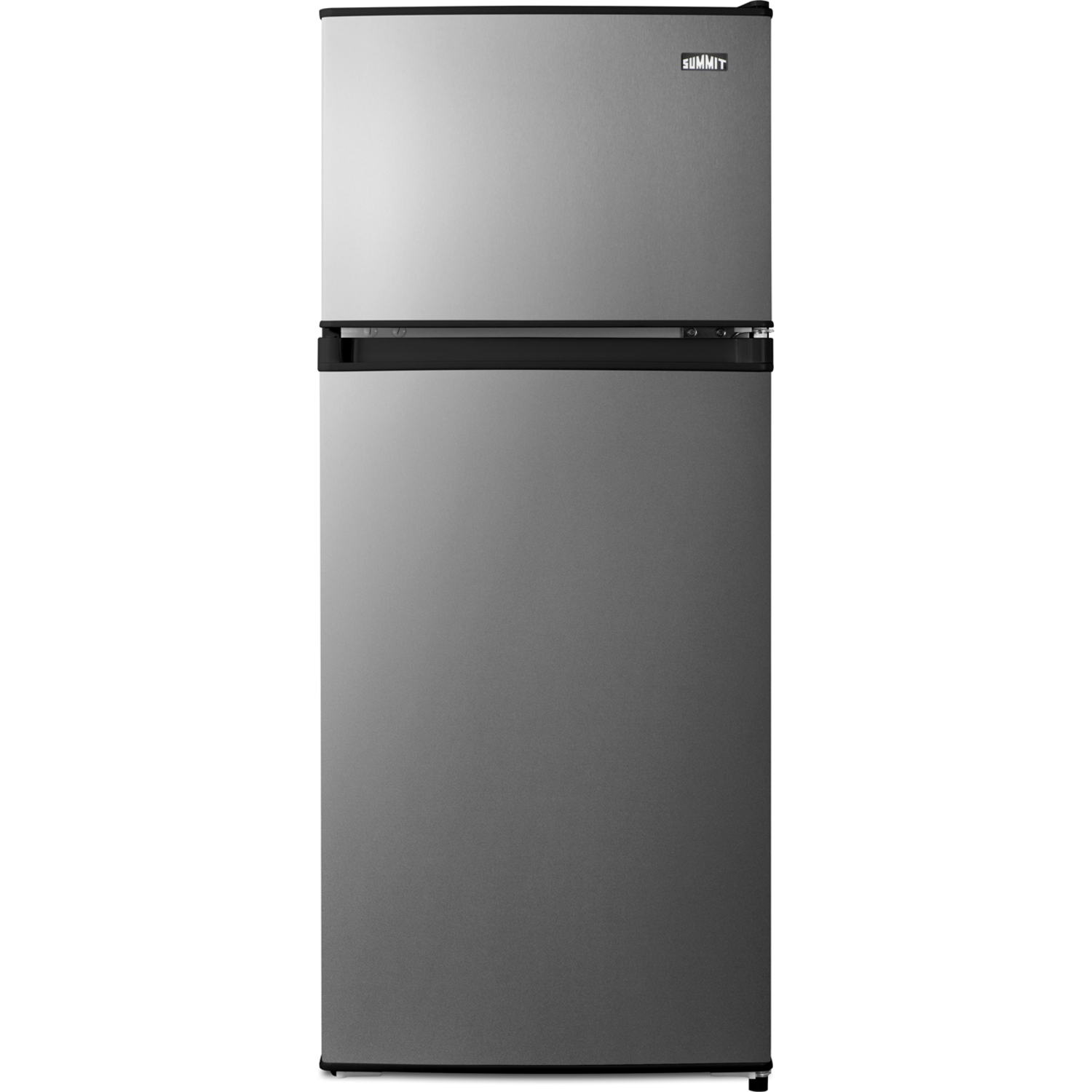

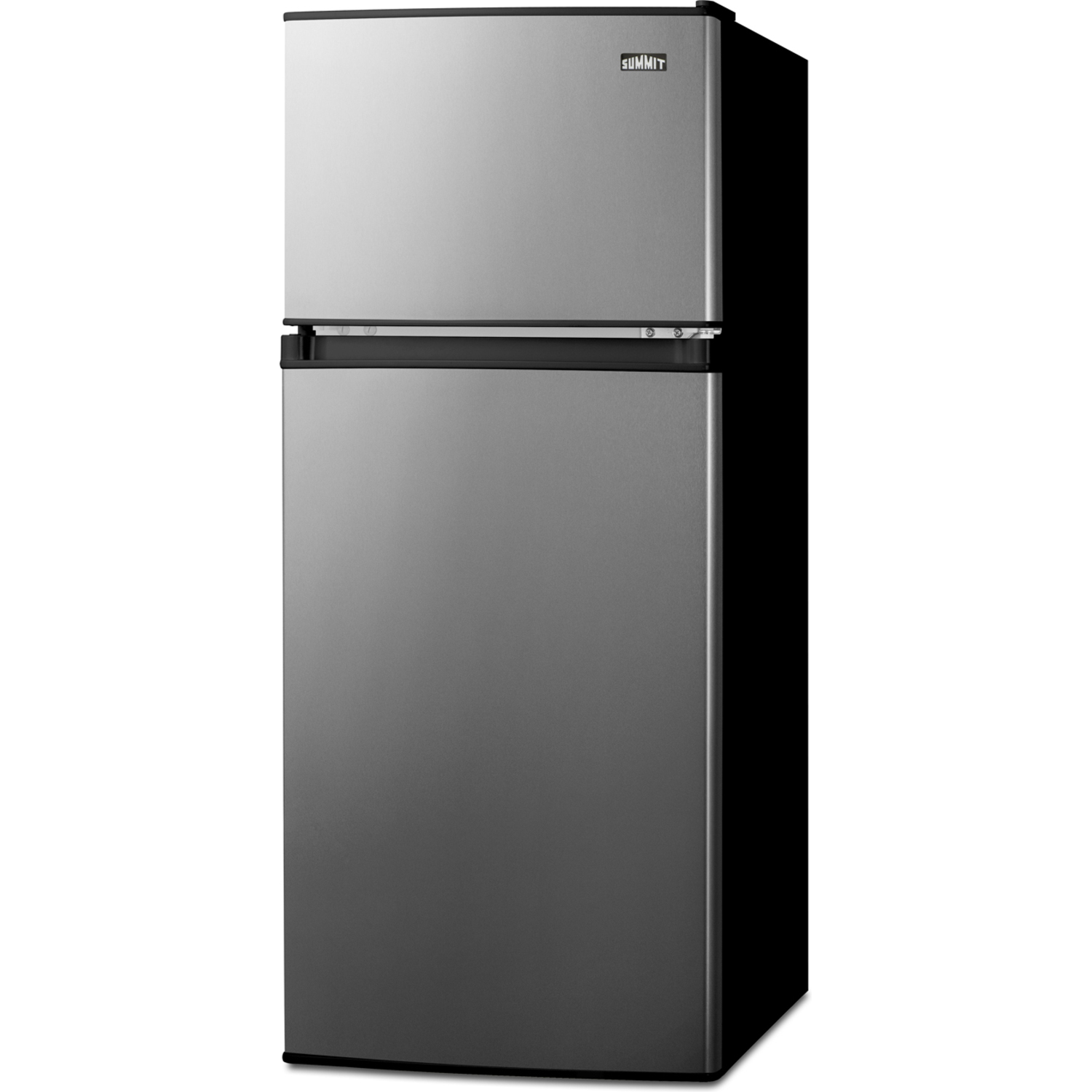

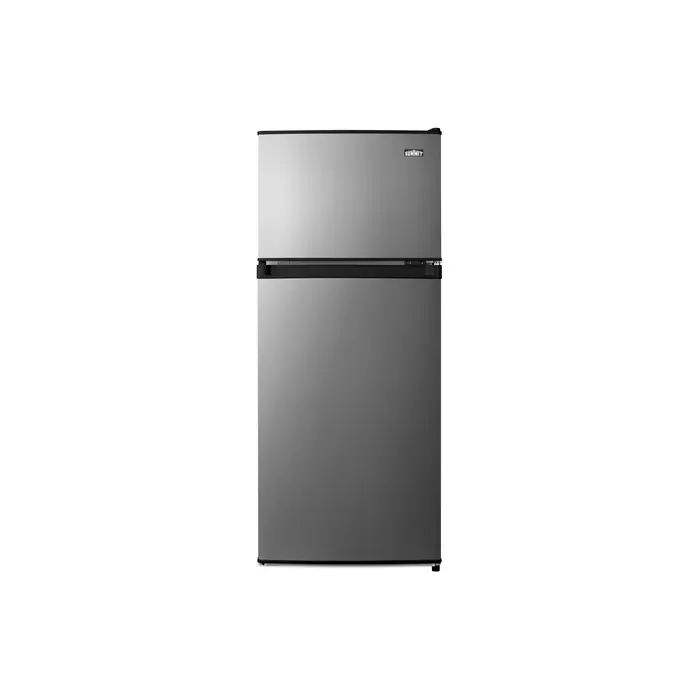

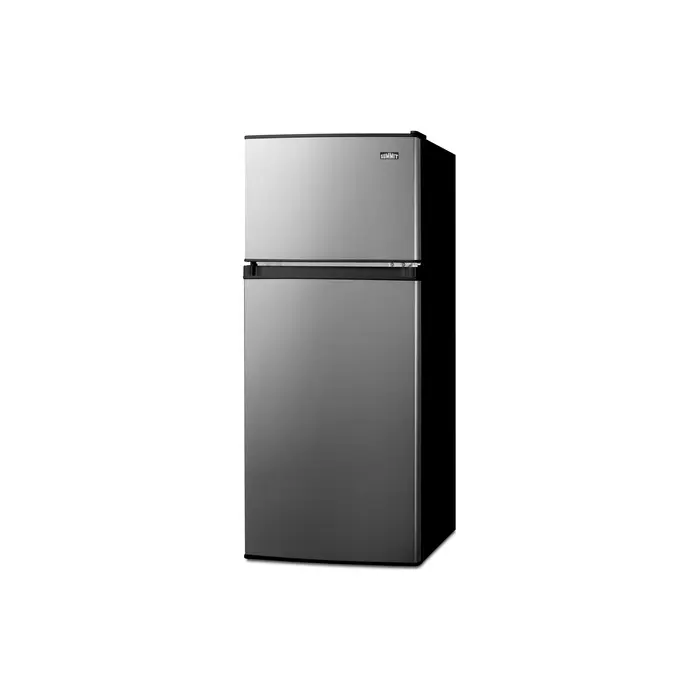

The CP73PL is a two-door refrigerator-freezer sized just under 19" wide, with a 45" height that meets ADA guidelines to provide accessibility to wheelchair users. It features a black cabinet finish with user-reversible fingerprint-free doors with a stainless steel look. The sealed back allows for a better fit and easier cleanability.

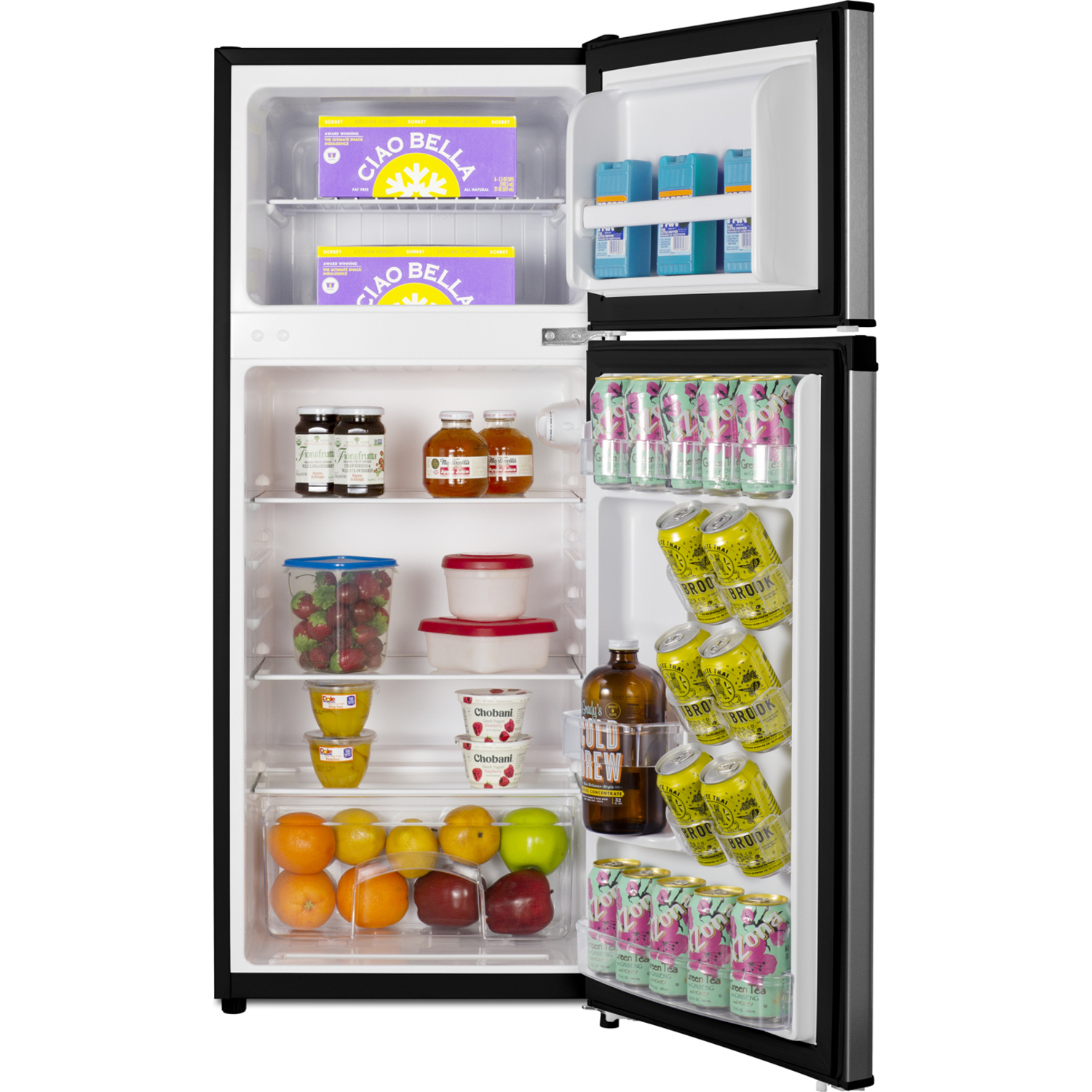

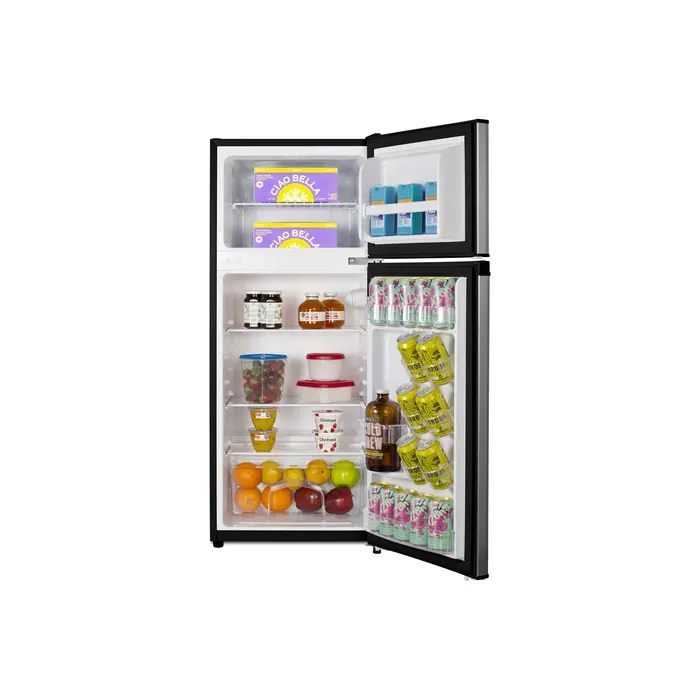

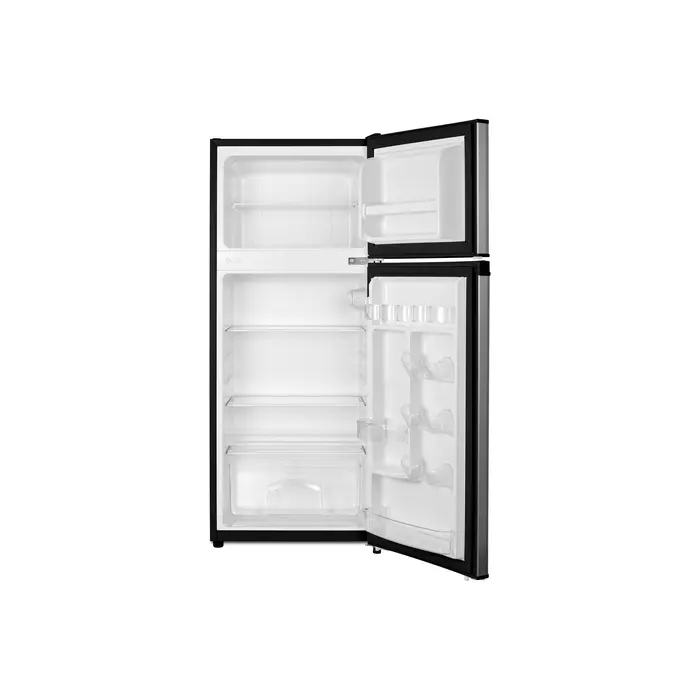

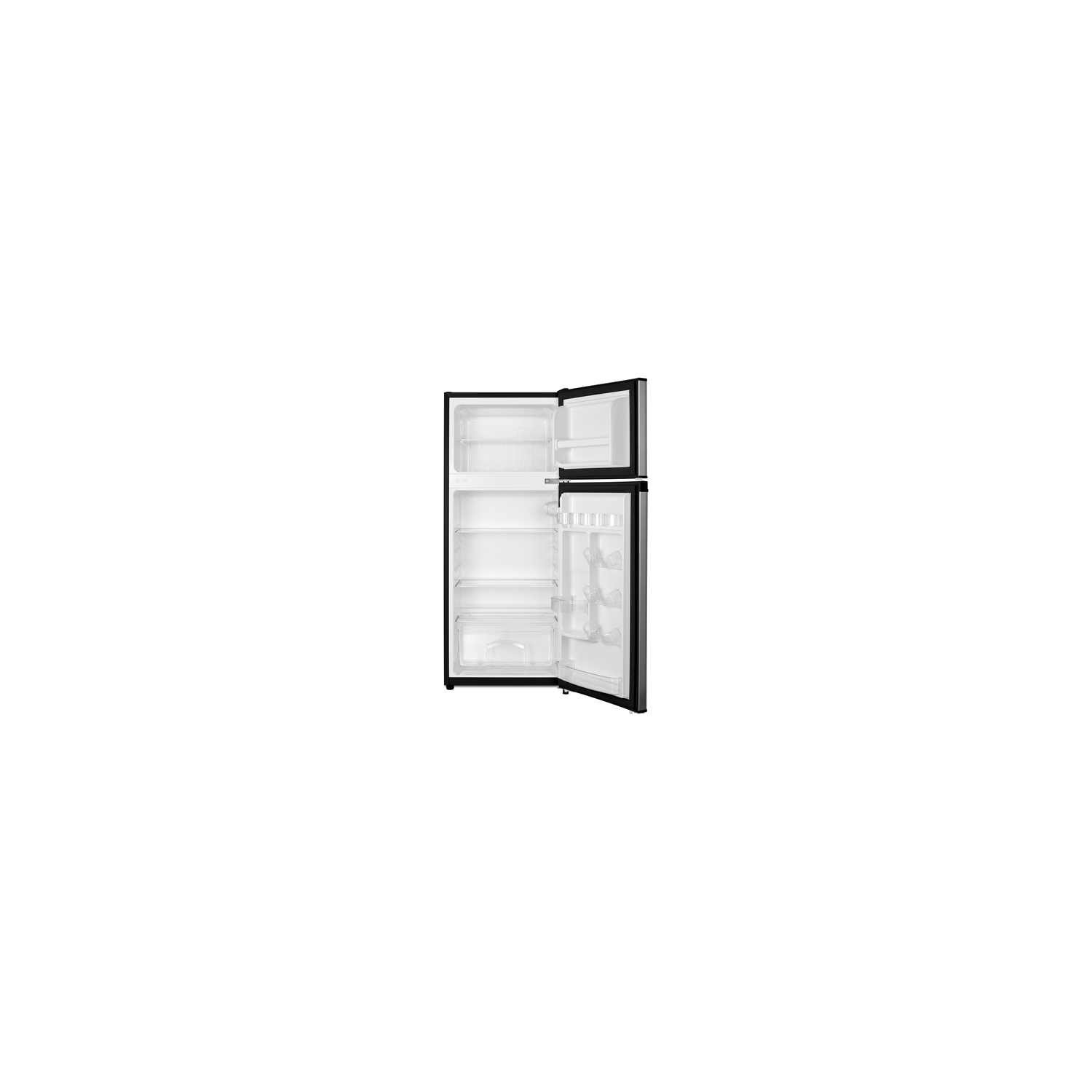

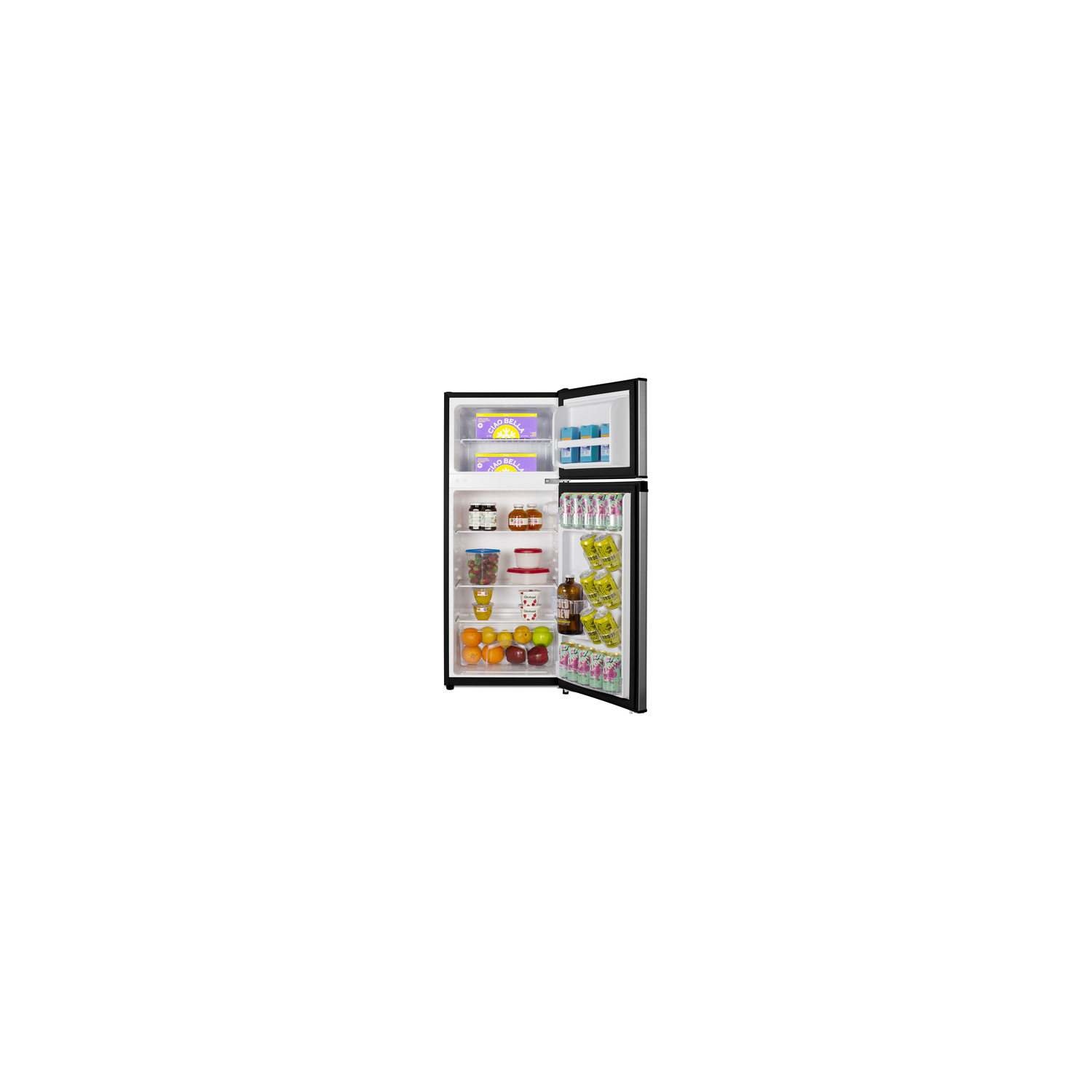

Inside, the CP73PL utilizes low maintenance automatic defrost in the refrigerated section and static manual defrost in the freezer. The refrigerator has two adjustable spill-proof glass shelves for easy storage, while door storage includes a mixture of curved shelves for holding cans and bottles in place and straight shelves for condiments and other refrigerated items for added versatility. A large pull-out crisper drawer keeps your greens fresh. The freezer section comes with a removable wire shelf, as well as a full door rack, for storage convenience. A dial thermostat provides easy temperature management of the 4.5 cu.ft. interior, while the refrigerator section includes an automatic interior light for an easy view of stored contents.

With its unique size, ENERGY STAR certified performance, and fully-featured interior, the CP73PL is ideal for studio apartments, dormitories, offices, and other small-spaced environments seeking reliable cold storage in a slim-fitting design. For this unit with a white finish, see the CP72W.

SPECIFICATIONS

Overview

Nominal Height 45.0" (114 cm)

Height of Cabinet 44.63" (113 cm)

Height to Hinge Cap 44.63" (113 cm)

Nominal Width 19.0" (48 cm)

Width 18.5" (47 cm)

Width with Door Open 19.5" (50 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.13" (49 cm)

Depth with door at 90° 36.0" (91 cm)

Capacity 4.5 cu.ft. (127 L)

Defrost Type Cycle

Door Stainless Look

Cabinet Black

US Electrical Safety CSA

Canadian Electrical Safety CSA-C

Energy Usage/Year 327.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 61.0 lbs. (28 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101076201

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 27.0" (69 cm)

Refrigerator - Interior Width 15.5" (39 cm)

Refrigerator - Interior Depth 14.5" (37 cm)

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 6

Refrigerator - Full Door Shelves 2

Refrigerator - Half Door Shelves 4

Can Storage Yes

Freezer - Interior Height 9.63" (24 cm)

Freezer - Interior Width 14.0" (36 cm)

Freezer - Interior Depth 14.0" (36 cm)

Freezer - Shelf Type Wire

Freezer - Shelf Qty 1

Freezer - Full Door Shelves 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.37 oz.

High Side PSI 150.0

Low Side PSI 60.0

Level Legs 2

Compressor Step Height 7.5" (19 cm)

Compressor Step Width 15.5" (39 cm)

Compressor Step Depth 4.0" (10 cm)

FEATURES

Top Freezer Refrigerator Two-door design in a uniquely slim 19" width for full convenience in small kitchens

ENERGY STAR certified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Compact size Unique dimensions offers a full 4.5 cu.ft. capacity in a conveniently slim fit

ADA compliant design Low height and accessible controls meet ADA guidelines for user accessibility

Adjustable glass shelves Two spill-proof shelves made from solid safety glass offer convenient and flexible storage in the refrigerator compartment

Door storage Door shelves in both the refrigerator and freezer compartments offer convenient storage

Curved door racks Curved door racks in the refrigerator compartment hold cans and bottles in place for added convenience

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Full freezer shelf Removable wire shelf included to accommodate a variety of sizes inside the top freezer compartment

Interior light Automatically illuminates when you open the door of the fresh food section

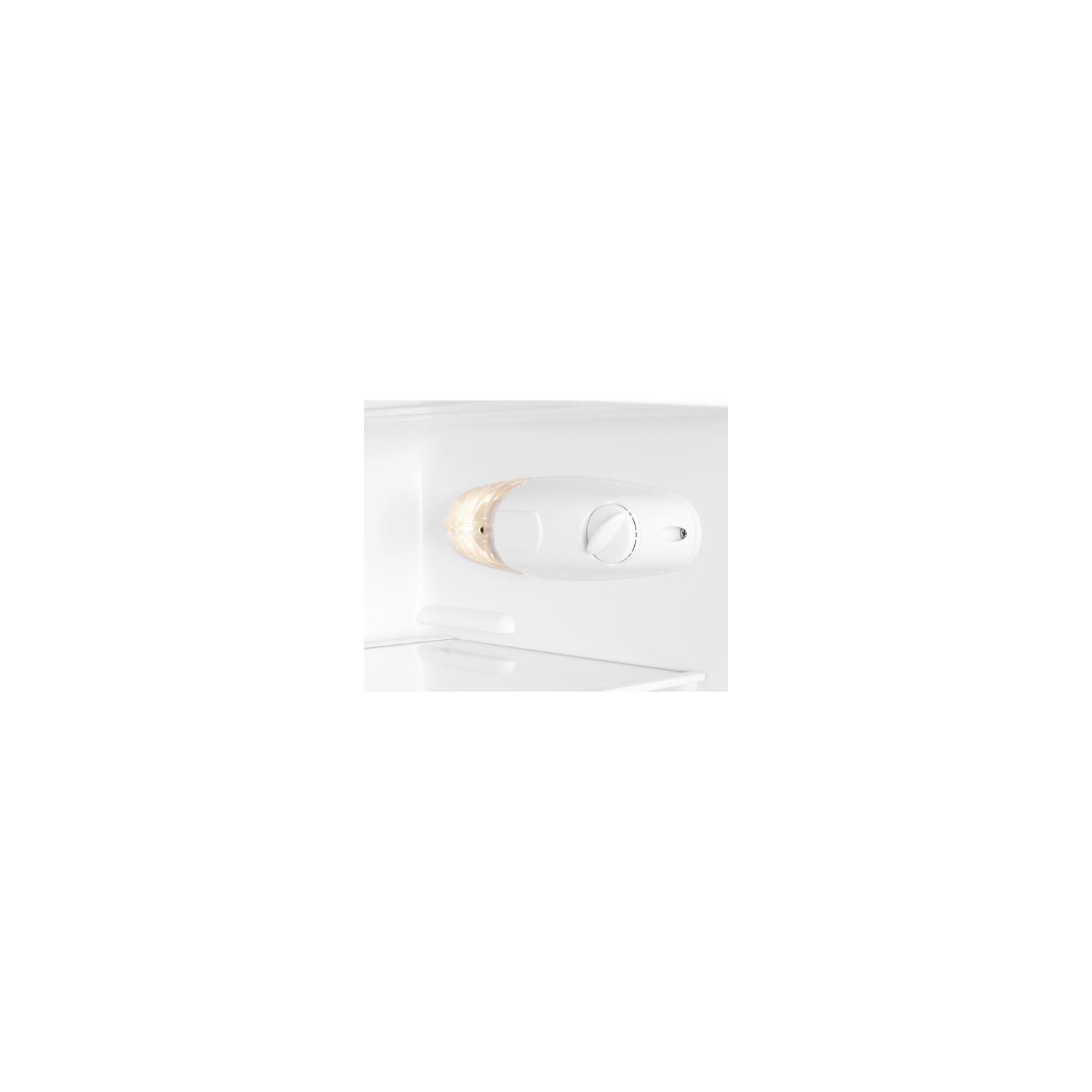

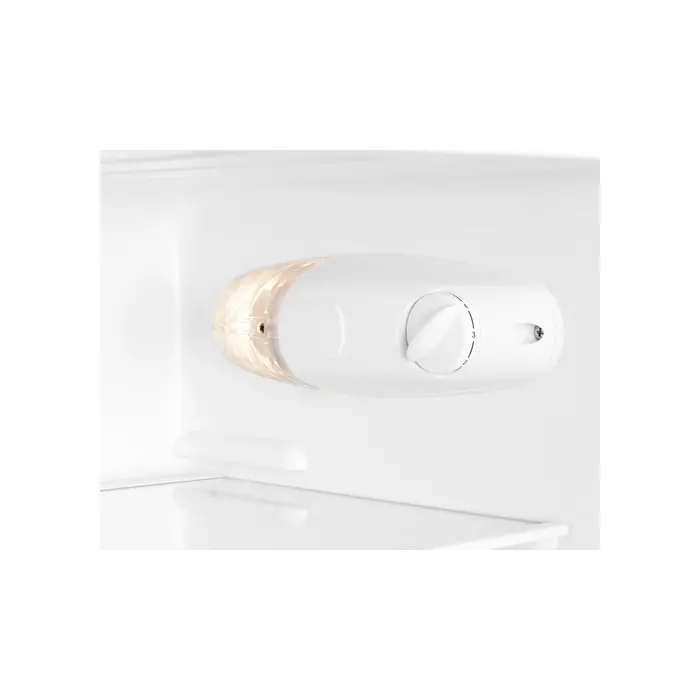

Adjustable thermostat Dial thermostat located inside for easy temperature management

Cycle defrost Combines an automatic defrosting refrigerator with a manual defrost freezer for a quality performance with energy savings

Stainless steel look Doors offer the look of stainless steel complete with a vertical grain, but the easier cleanability of a fingerprint-resistant steel finish

Reversible doors User-reversible door swing allows you to switch the configuration for a better fit in your kitchen

Black cabinet finish Black cabinet allows the unit to be freestanding

Sealed back Space-saving design with no exposed coils in the rear offers easy cleanability

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CP73PL.pdf)

TECHNICAL DRAWING (.dwg) (CP72W_CP73PL_REF._FREEZER__A-C_2018__2.dwg)

USE & CARE (CP73PL-User-Manual.pdf)

Energy Guide
