Summit Compact ENERGY STAR listed 2-door refrigerator-freezer, 7.61101e+011, CP34BSS

Summit's ENERGY STAR qualified collection of compact refrigerator-freezers offers uniquely sized units with energy-efficient performances.

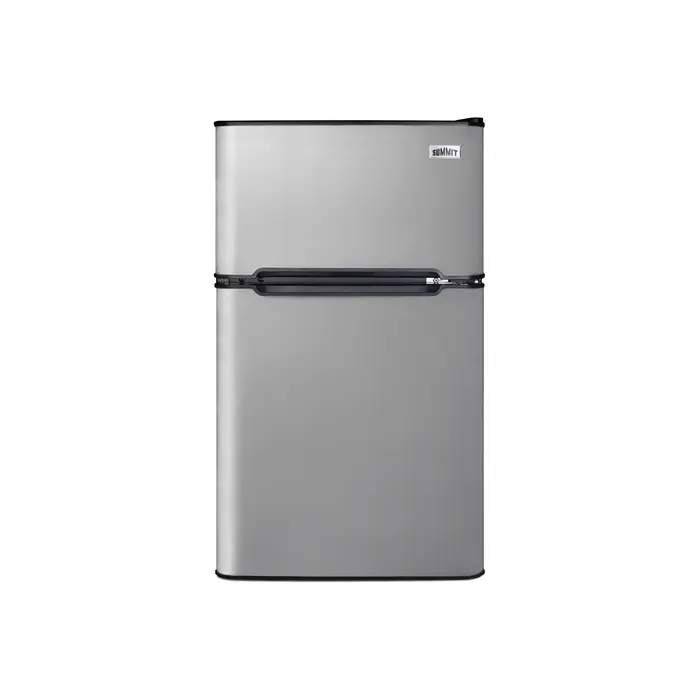

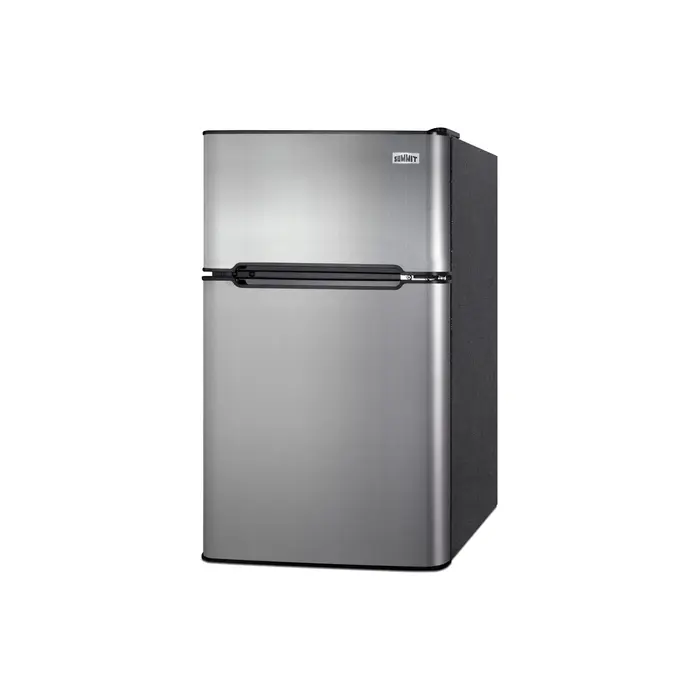

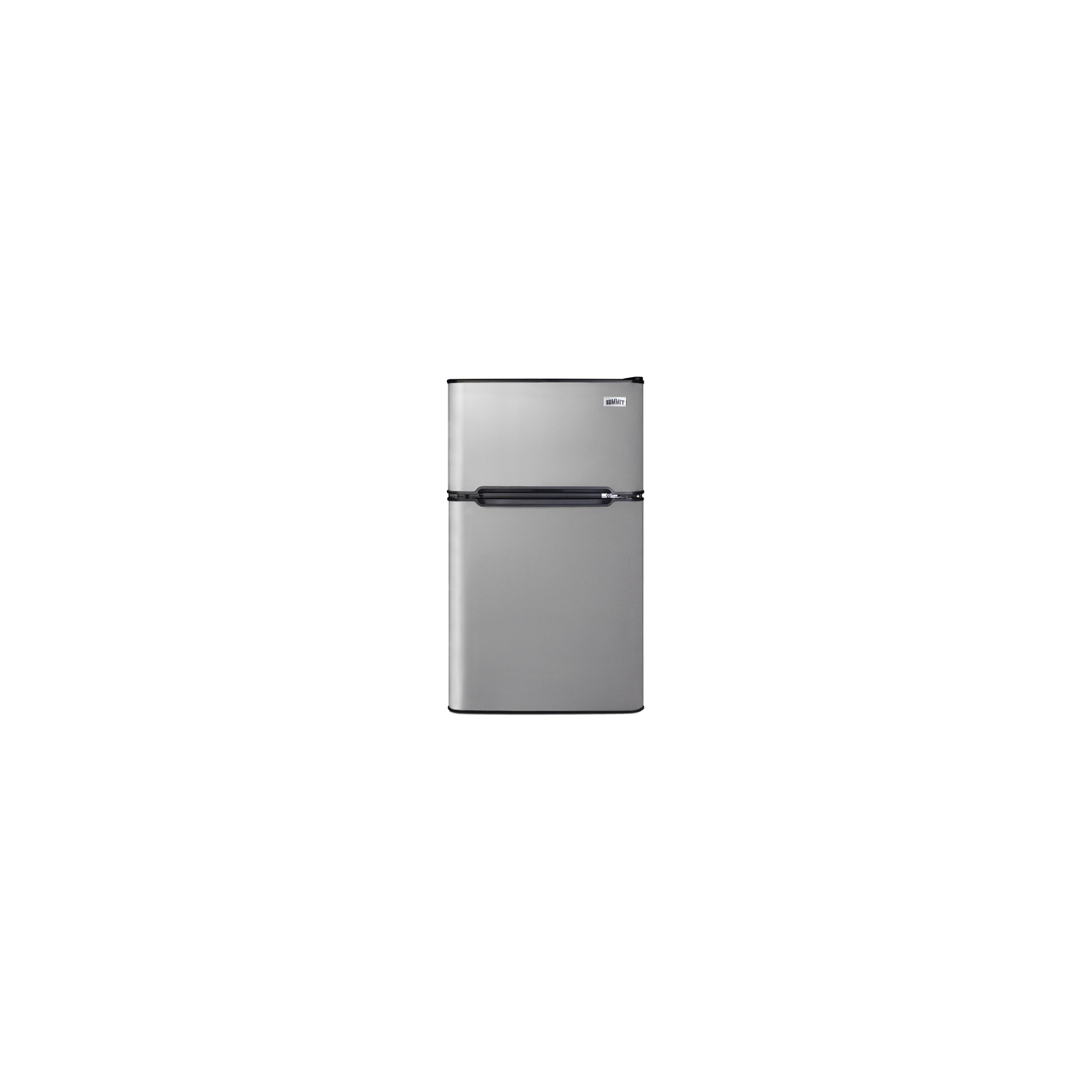

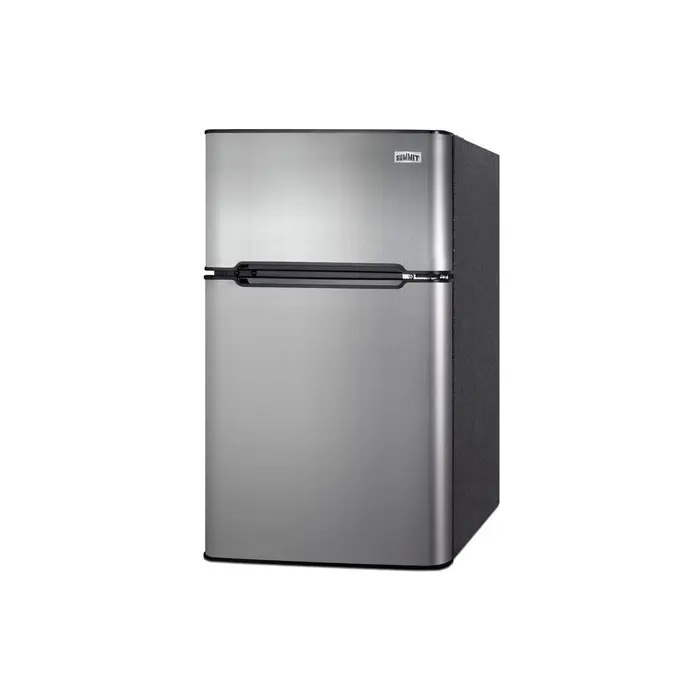

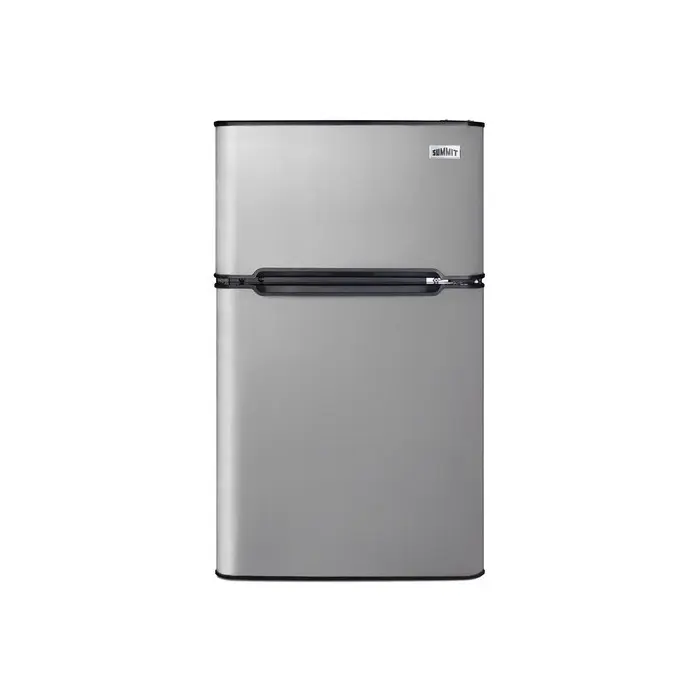

The CP34BSS is a counter height two-door refrigerator-freezer sized at 19" wide. It features a jet black cabinet and reversible stainless steel doors for added convenience. This unit is designed for freestanding use. It has a sealed back that allows for a better fit and easier cleaning. Two leveling legs help to ensure the unit is even when placed on uneven surfaces.

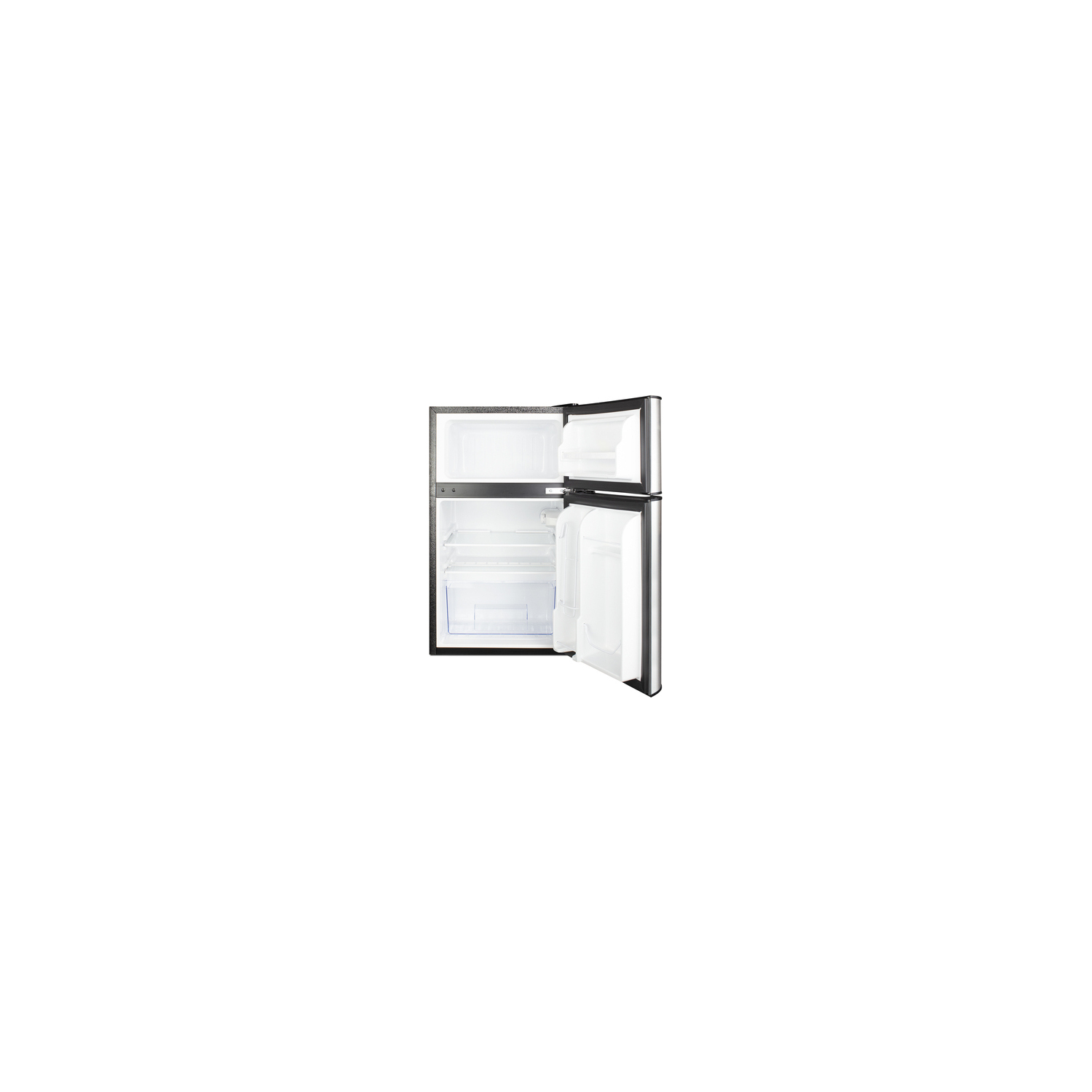

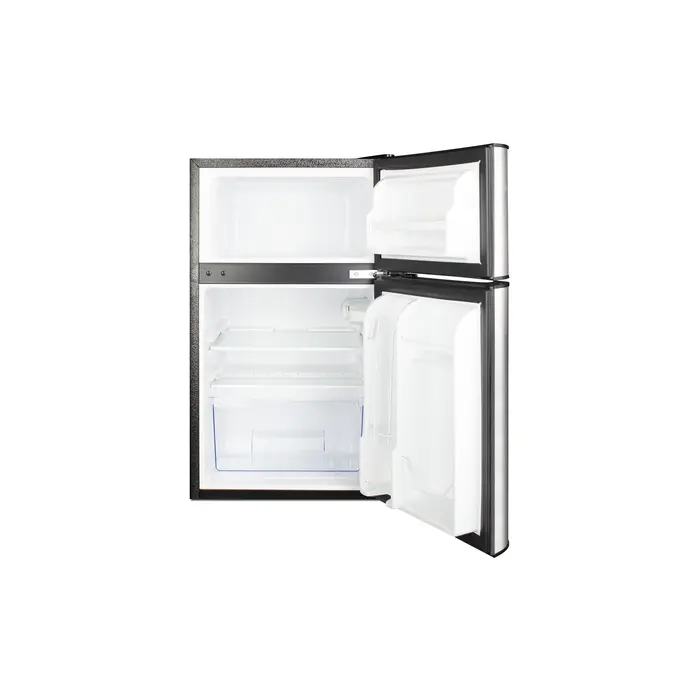

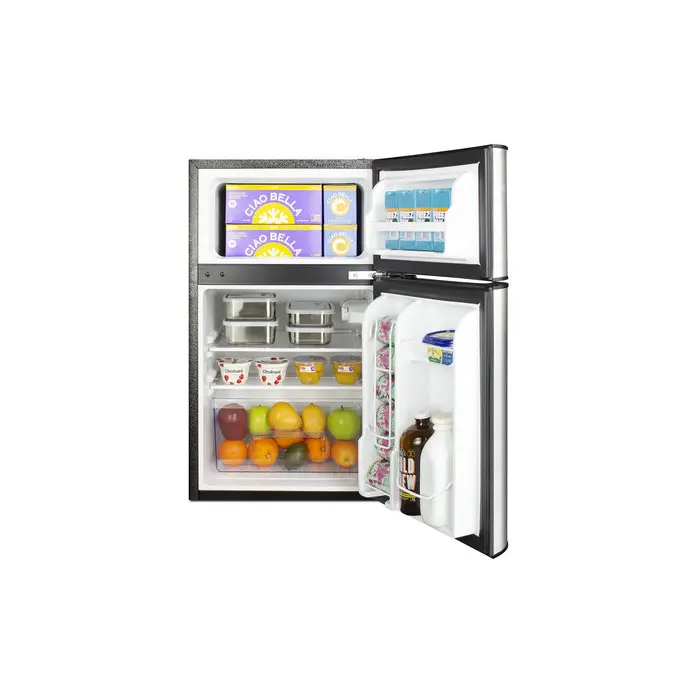

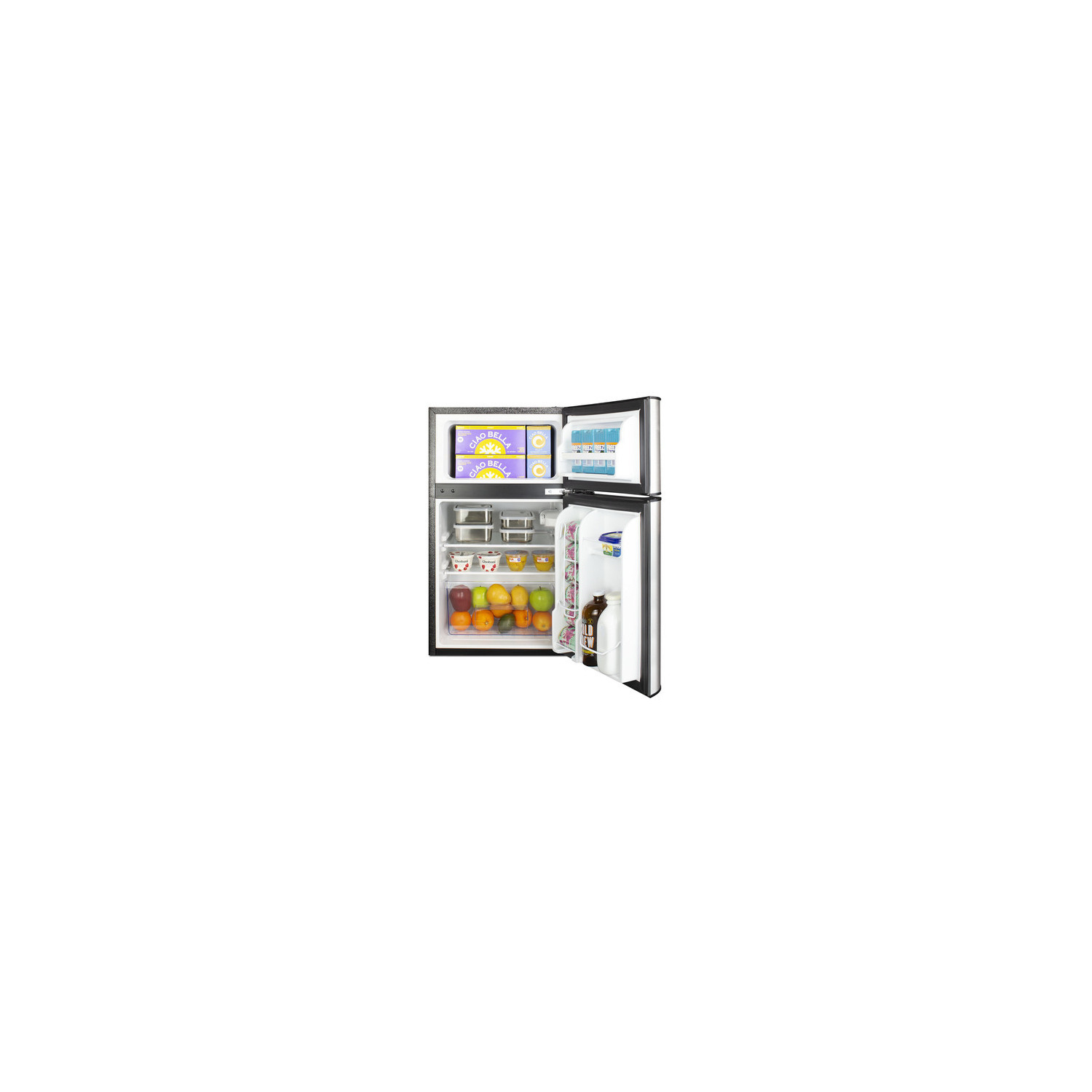

Inside, the CP34BSS utilizes a dual evaporator system to separately cool the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. The refrigerator includes an adjustable glass shelf for protection against spills, a large crisper drawer to keep produce fresh, and door storage for tall bottles. The "Dispense-A-Can" door compartment can hold up to six standard-sized beverage cans for convenient access. A dial thermostat with seven temperature settings make for easy temperature management, while an interior light illuminates the white interior for an easy view of stored contents. The generously sized freezer section includes a large door shelf for easy storage. An ice scraper and ice cube tray are also included.

The CP34BSS is ENERGY STAR qualified with an efficient performance designed to save on utility costs and energy usage. With its unique size and quality design, this unit is ideal for college dorms, small apartments, offices, and other settings in need of a reliable, energy-efficient compact refrigerator-freezer. For this unit in white, see the CP34W.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 33.0" (84 cm)

Height to Hinge Cap 33.38" (85 cm)

Nominal Width 19.0" (48 cm)

Width 19.0" (48 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.75" (50 cm)

Depth with door at 90° 36.75" (93 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Stainless Look

Cabinet Black

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 322.0kWh/year

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 51.0 lbs. (23 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101065496

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 18.5" (47 cm)

Refrigerator - Interior Width 15.75" (40 cm)

Refrigerator - Interior Depth 15.0" (38 cm)

Refrigerator - Capacity 3.2 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 1

Refrigerator - Full Door Shelves 2

Can Storage Yes

Freezer - Interior Height 7.5" (19 cm)

Freezer - Interior Width 14.0" (36 cm)

Freezer - Interior Depth 14.0" (36 cm)

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Level Legs 2

Compressor Step Height 9.0" (23 cm)

Compressor Step Width 15.75" (40 cm)

Compressor Step Depth 5.0" (13 cm)

FEATURES

ENERGY STAR qualified Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Slim-fitting design 19" wide for an easy fit in space-challenged areas

Two-door design Allows you to better separate your frozen and fresh food items for optimum storage

Reversible stainless steel doors User-reversible door swing for added flexibility

Door storage Store tall bottles and condiments right on the door for convenient access

Dispense-A-Can door compartment Holds six regularly sized beverage cans for user convenience

Adjustable glass shelf Rearrange your refrigerator space to accommodate all shapes and sizes or remove for a simple clean-up

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a clear basket

Cycle defrost Combines an automatic defrosting refrigerator with a static manual defrosting freezer to minimize maintenance while protecting freezer contents

Freezer compartment Large freezer space provides ample storage for frozen foods

Interior light Automatically illuminates when the refrigerator door is opened

Adjustable thermostat Dial thermostat located inside for easy temperature management

Sealed back Allows for a better fit and easier cleanability

Ice scraper and ice cube tray Included for user convenience

Leveling legs Two leveling legs ensure the unit is even when placed on uneven surfaces

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CP34BSS.pdf)

TECHNICAL DRAWING (.dwg) (CP34W_REF._FREEZER__A-C_2018_.dwg)

3D DRAWING (CP34BSSNoCord.obj)

3D DRAWING (CP34BSS.dwg)

3D DRAWING (CP34BSS.3ds)

USE & CARE (CP34BSS-User-Manual.pdf)

Energy Guide
