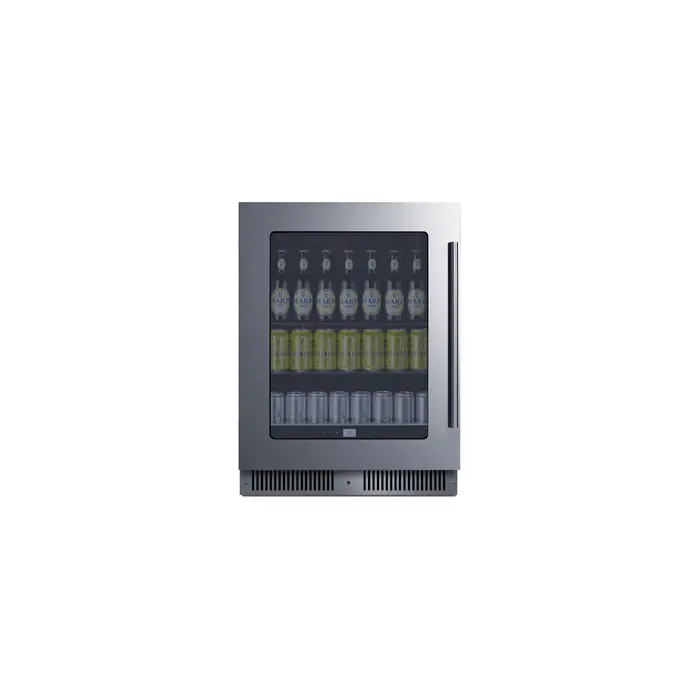

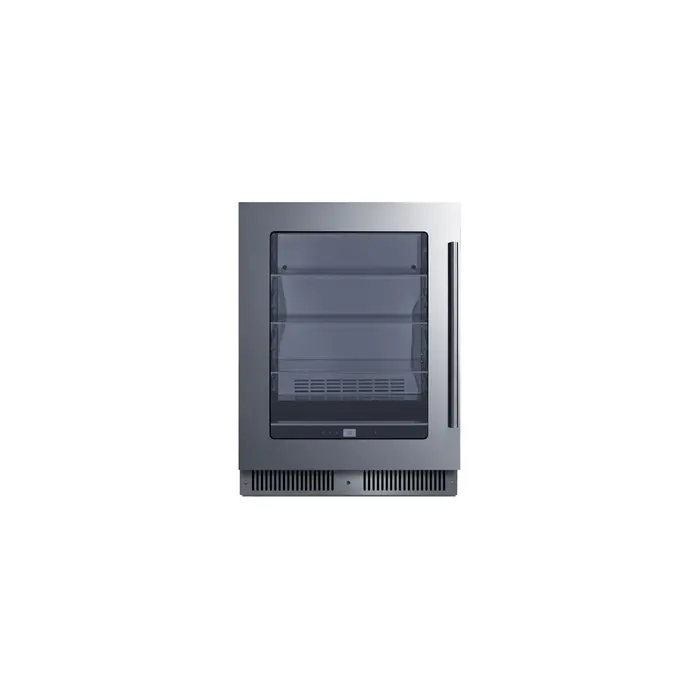

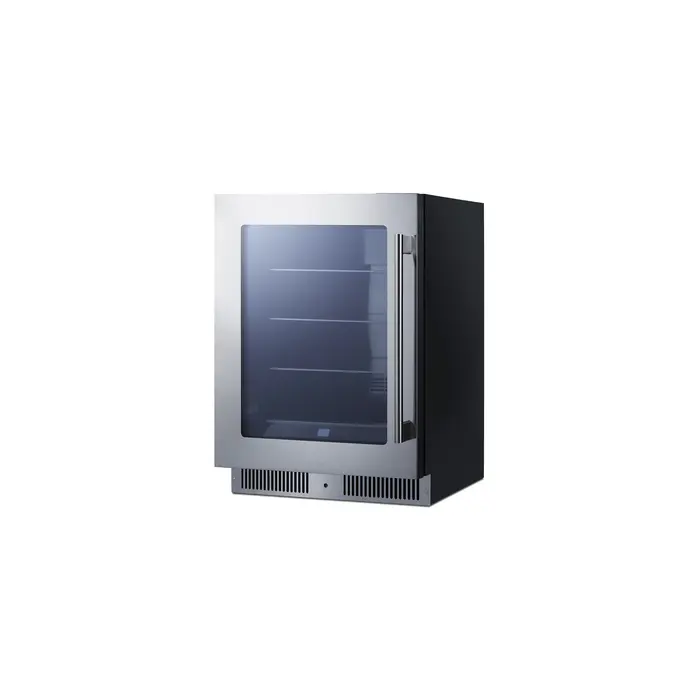

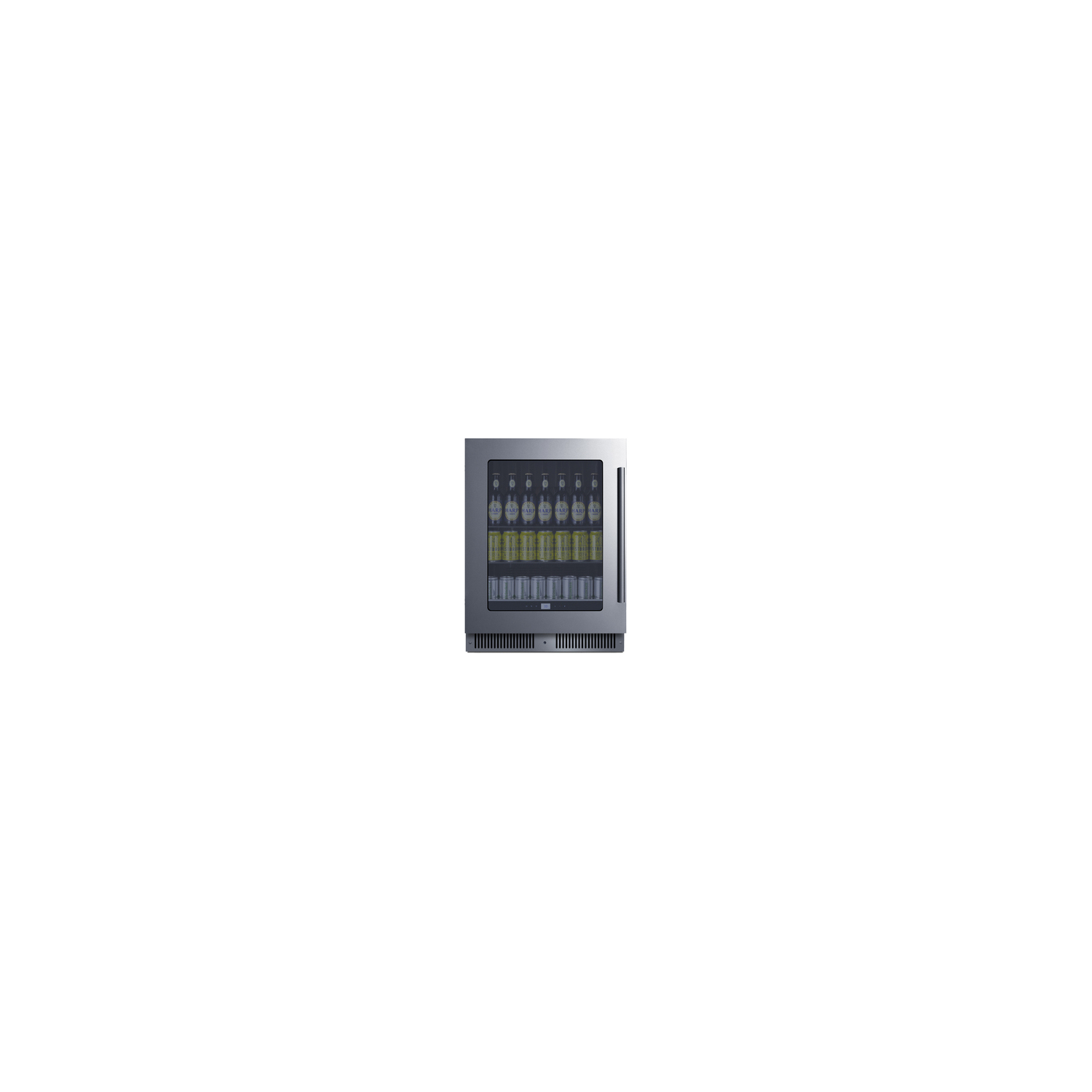

Summit 24 inch wide premium built-in undercounter beverage center, 7.61101e+011, CL24BV1LHD
$2,037.80
Retail Price: $2,960.00
Free shipping
$ 2,037.80
Description
Summit's collection of premium built-in undercounter beverage centers brings full functionality, convenience, and elevated style to kitchens and home bars.

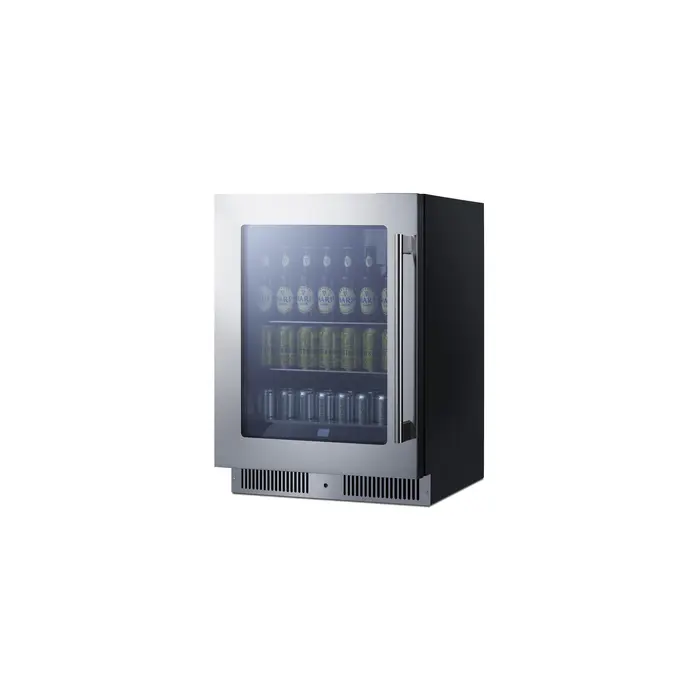

Summit's CL24BV1LHD is a 24" wide beverage center designed for residential use, with 4.73 cu. ft. of storage space. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures a smoother opening. A lock is located in the kickplate for added convenience and security.

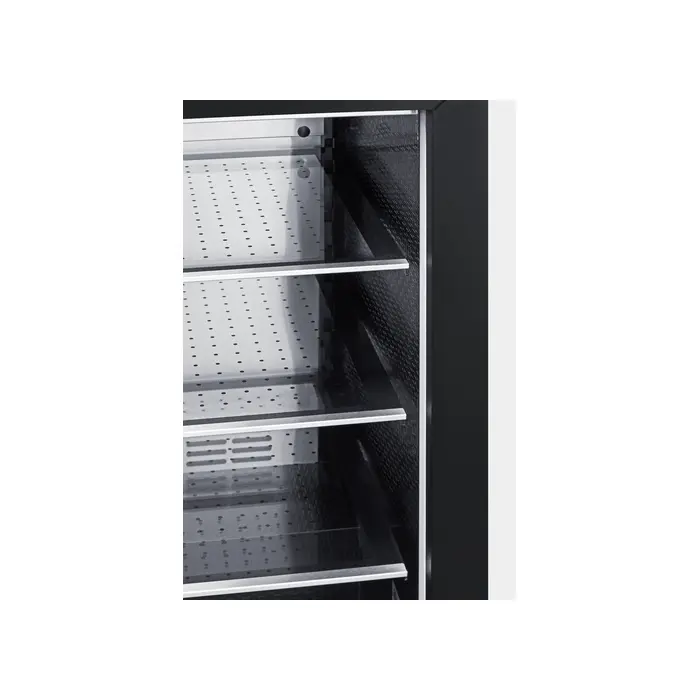

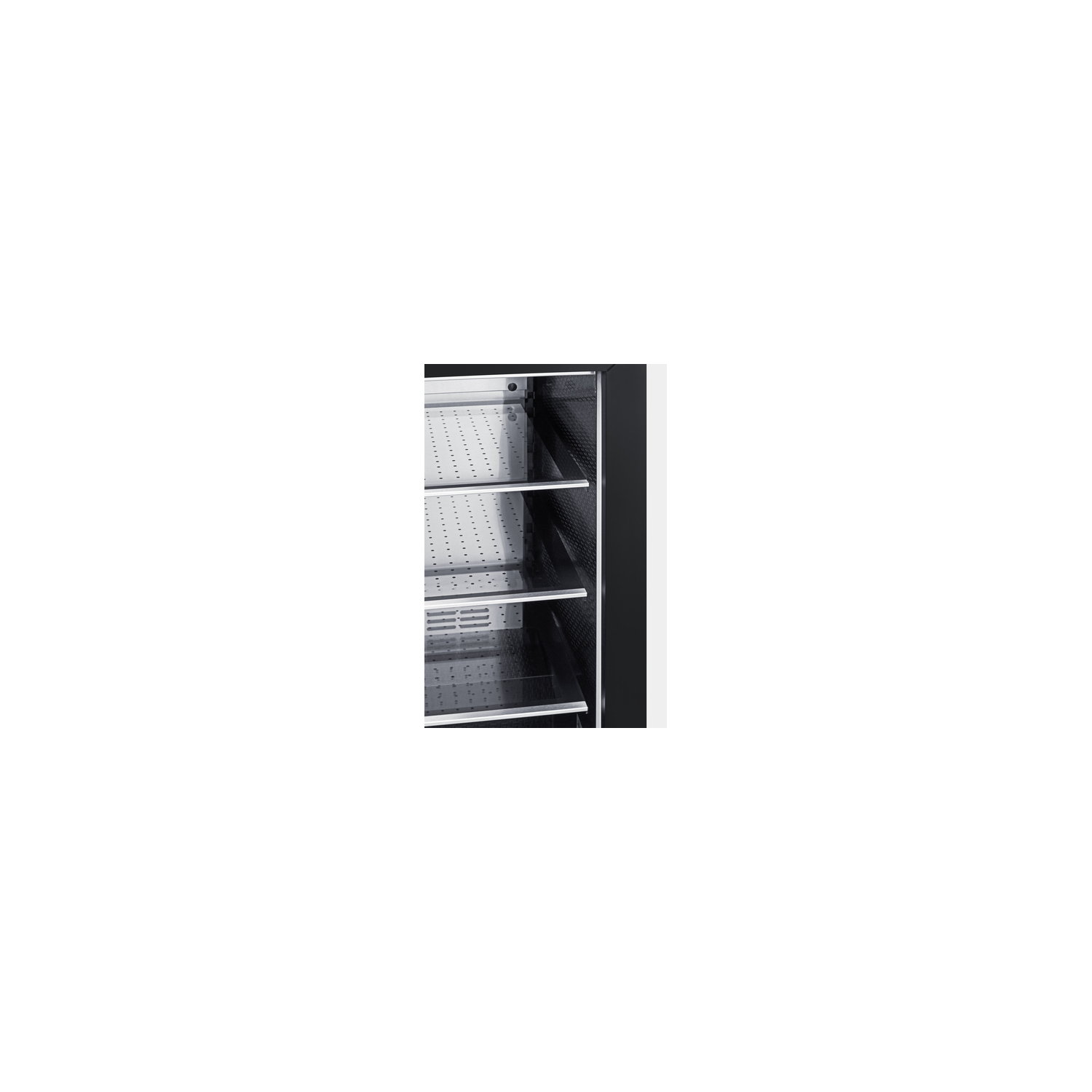

Inside, model CL24BV1LHD features a stainless steel rear wall for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. Three glass shelves ensure flexible storage to accommodate any size bottle.
The interior includes an angled digital thermostat for increased accessibility, with a readout viewable in Celsius or Fahrenheit. The unit's floor features a dipped flat design to allow you to store certain beverages upright. Additional features include sabbath mode for observance periods and a temperature memory function to restore the set temperature during power loss. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature.
Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.
Uniquely styled and fully featured, the CL24BV1LHD brings true convenience to kitchen or bar spaces. For this unit in a 15" width, see model CL156BV1LHD. Create a matching set by pairing this with our 24" wide wine cellar, model CL244WC2LHD, or our 15" wide wine cellar, model CL155WC1LHD. This unit comes with a left hand door swing. For this model with a right-hand door, see model CL24BV.
Explore all of Summit's beverage centers and wine cellars at summitappliance.com
SPECIFICATIONS
Overview

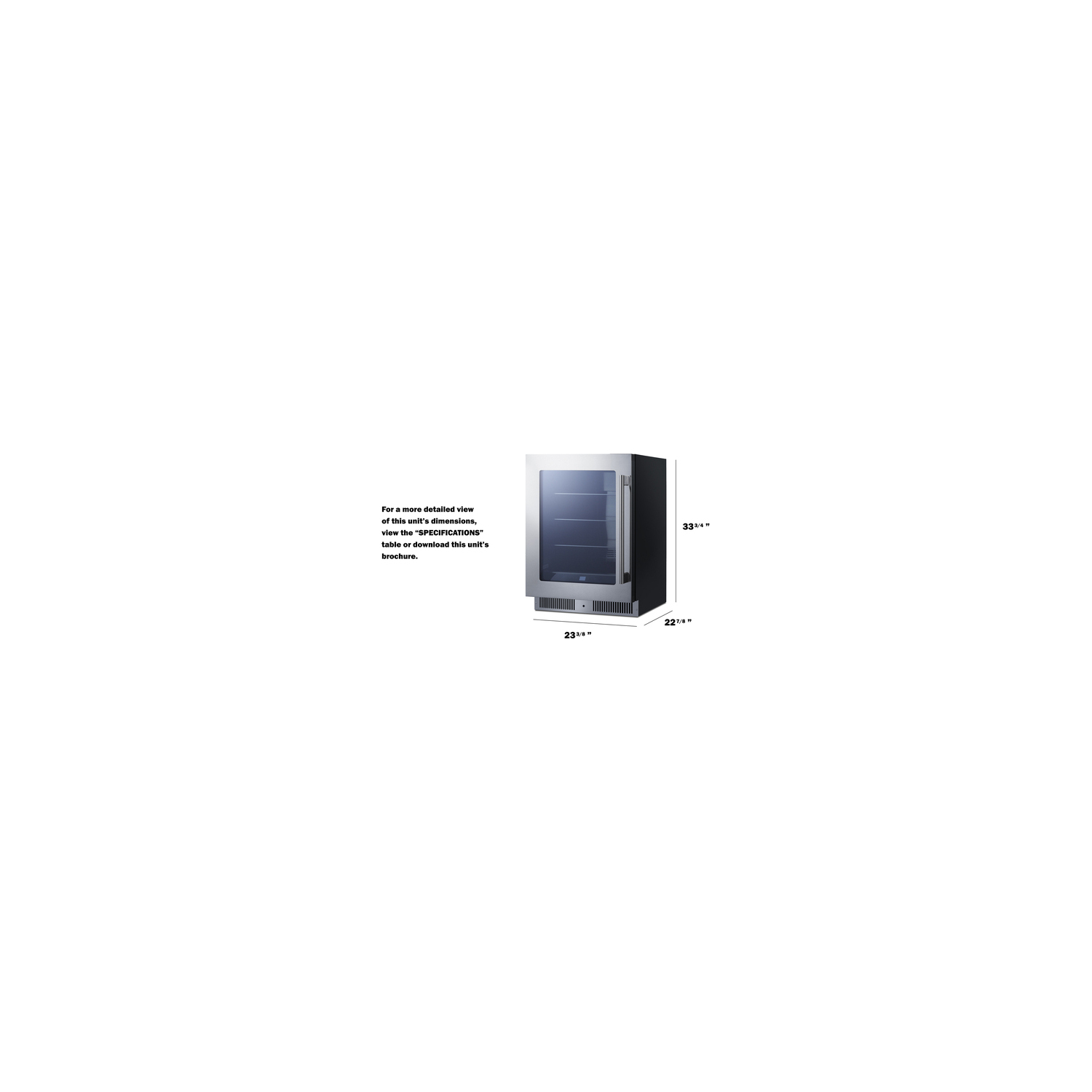

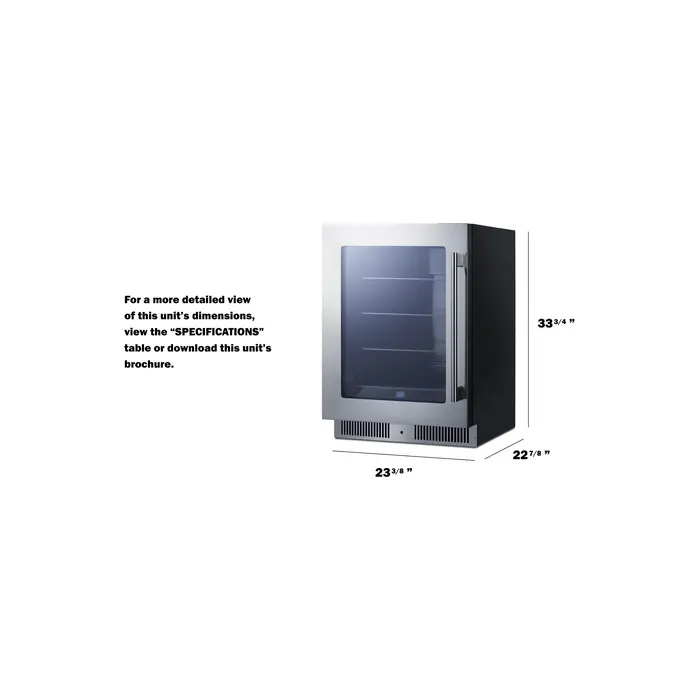

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 24.0" (61 cm)
Depth 22.88" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 46.63" (118 cm)
Capacity 4.73 cu.ft. (134 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 280.0kWh/year
Amps 3.0
Voltage/Frequency 115 V AC/60 Hz
Weight 117.0 lbs. (53 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101156064
Refrigerator Features
Sabbath Mode Yes
Door Swing LHD
Reversible No
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38oz.
Interior Light Yes
Temperature Range 36°F to 43°F
Sound Level 32.3 dB
Drawer Dimensions
Interior Height 1 3.75" (10 cm)
Interior Width 1 19.25" (49 cm)
Interior Depth 1 5.0" (13 cm)
Dimensions
Interior Height 26.0" (66 cm)
Interior Width 19.25" (49 cm)
Interior Depth 17.0" (43 cm)
FEATURES
24" Wide Premium Beverage Center Premium glass door beverage refrigerator for residential use
Built-in undercounter design Front-breathing design lets you make the best use of space by installing your appliance under the counter

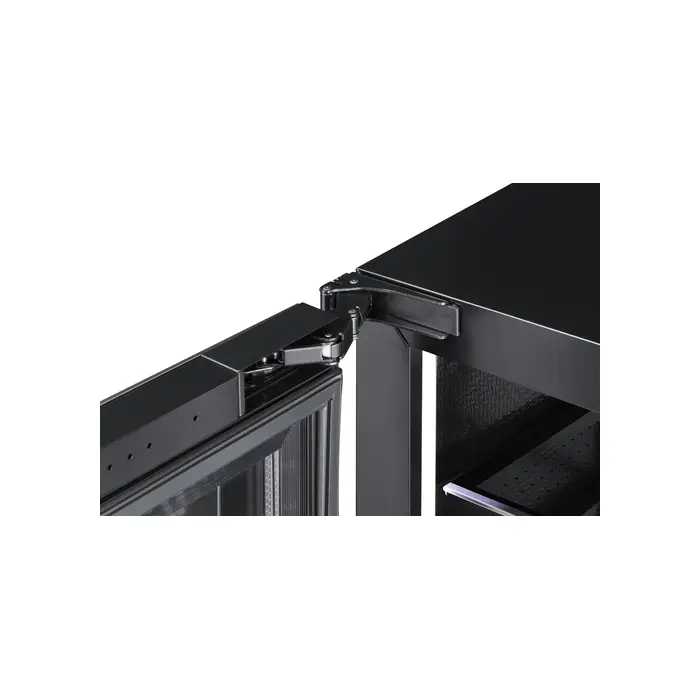

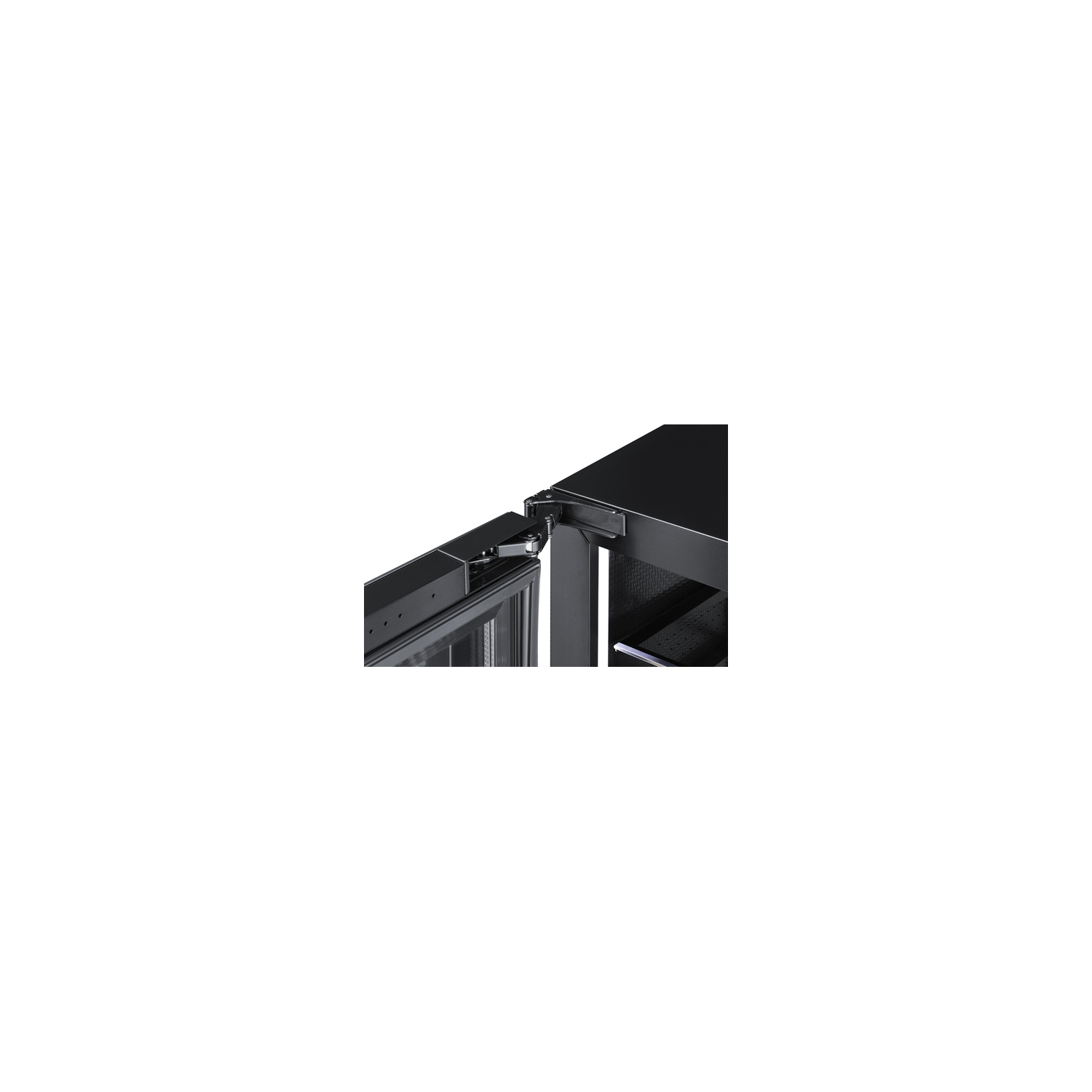

Fully articulating door hinge European style hinge design ensures a flush fit and allows for a smoother opening
Unbranded exterior Allows for seamless integration with other appliances

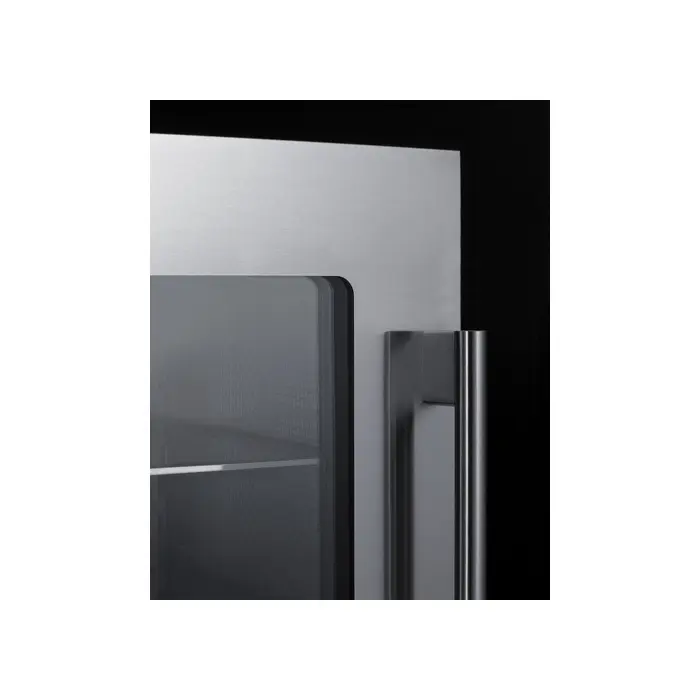

Seamless 304 grade stainless steel door trim Single-piece stainless steel door trim offers a more deluxe look
Gently tinted door Attractive tinted glass door provides a complete but protected display of stored contents

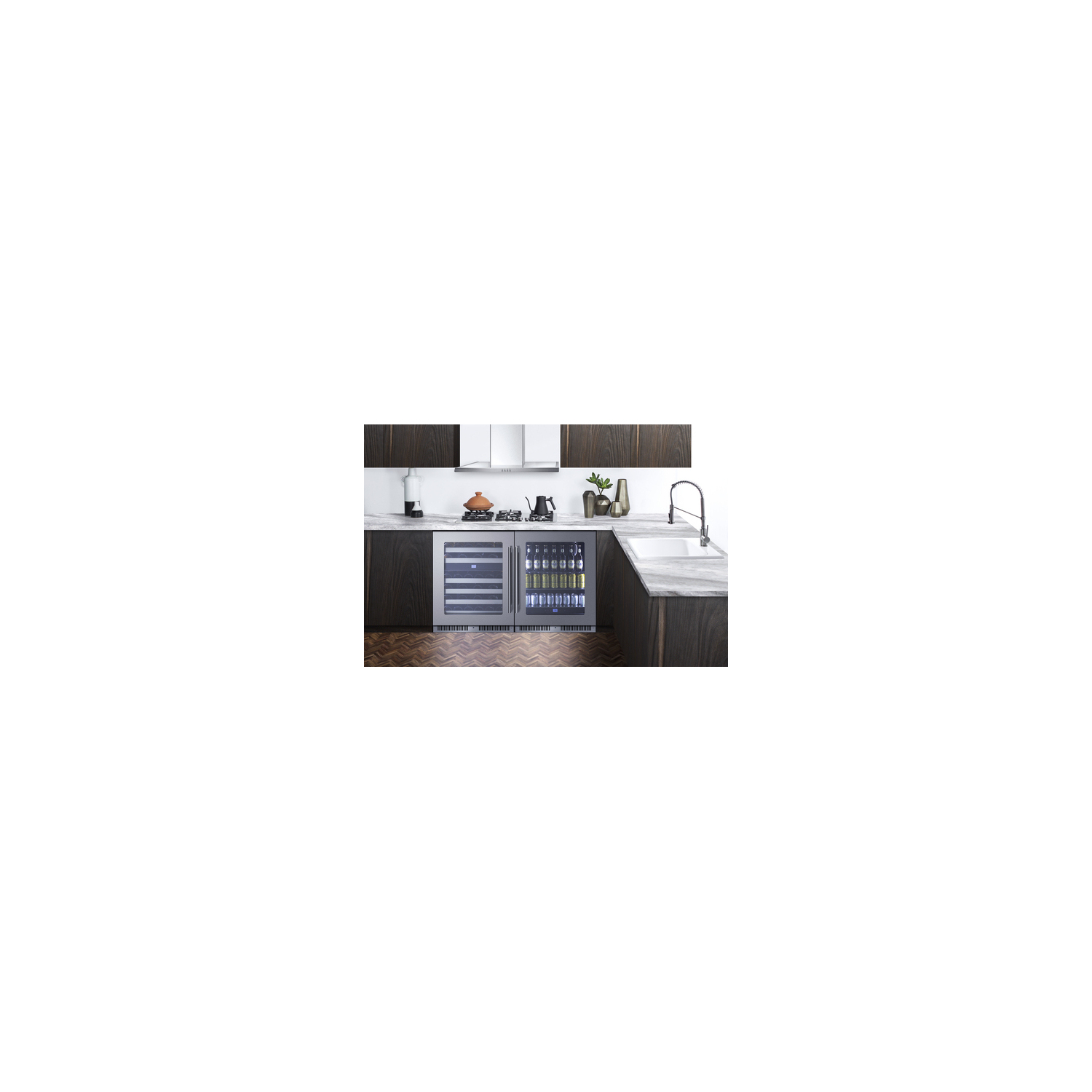

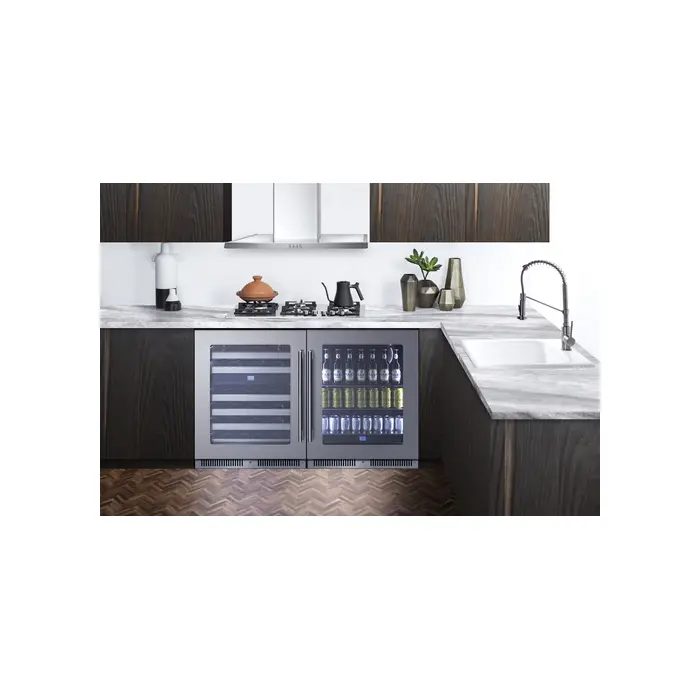

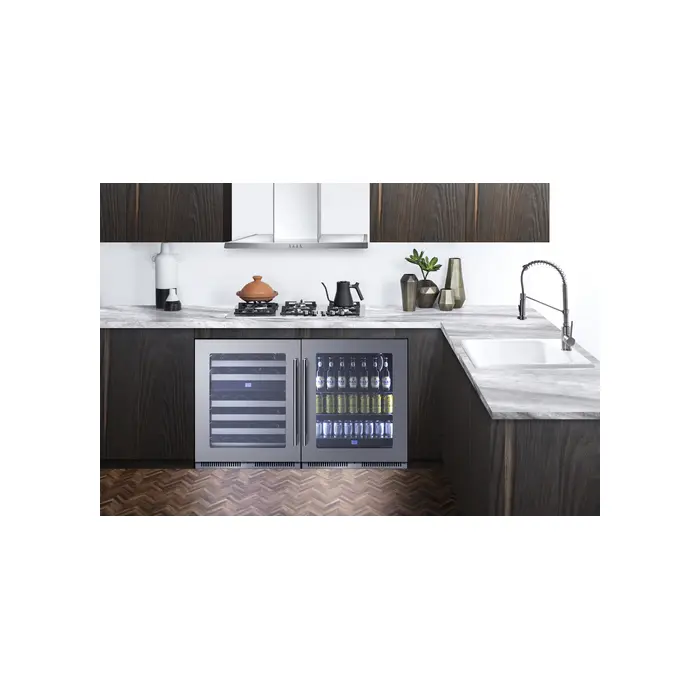

Matching sets Pair with our 24” wide wine cellar, model CL244WC2, for a matching side-by-side set under standard-height counters. This unit can also be paired with our 15” wine cellar, see model CL155WC1, to fit your unique needs
Professional handle Stainless steel look for added elegance
Generous storage space 4.7 cu. ft. of interior storage space
Adjustable glass shelves Three easy-to-clean glass shelves for flexible storage
Flat bottom with high front The unit's dipped flat floor design makes it easier to store certain beverages in an upright position
Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Vibration-free Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle
Angled control panel Ensures a more accessible view of the digital controls and thermostat, keeping the temperature in view without the need to bend to read it
Digital thermostat Easy-to-use digital controls for precise temperature management
Digital temperature display Temperature readout can be shown in Celsius or Fahrenheit
Tri-colored LED lighting Rotate your presentation style with a choice of blue, white, or amber LED lighting
Automatic defrost No-frost operation for minimum user maintenance
Open door alarm Audible alarm will sound if the door is left open longer than one minute
High/low temperature alarm Temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature memory function Unit will retain its last settings when power is restored in the event of power loss
Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours
Factory installed lock Keyed lock located in the kickplate for added security as needed
Sealed back Space-saving design with no exposed coils that offers easier cleanability
Fully finished black cabinet Allows the unit to be used freestanding
Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Stainless steel kickplate Complete luxury down to the toe kick
Anti-tip bracket Bracket (included) helps prevent tipping for added safety
Quiet operation Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.3 dB
Left hand door swing For this unit with the door opening from the other side, see model CL24BV1
100% CFC free Environmentally friendly design with no ozone-damaging chemicals
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DOWNLOADS
TECHNICAL DRAWING (.dwg) (CL24BV1_4.dwg)
ASSEMBLY DRAWING (CL24BV1-Assembly_4.pdf)
USE & CARE (CL24BV1LHD-User-Manual.pdf)
Energy Guide
