Summit 24 inch wide premium dual zone undercounter wine cellar with panel-ready glass door, 7.61101e+011, CL244WC2PNRLHD

Summit's collection of premium built-in undercounter wine cellars brings full functionality, convenience, and elevated style to kitchens and home bars.

Summit's CL244WC2PNRLHD is a 24" wide dual zone wine cellar designed for residential settings. The front-breathing system allows built-in installation, while the fully finished black cabinet allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the gently tinted glass door for an elevated look. This unit has a sealed rear and right-angle cord for a better fit. The fully articulating European-style hinge design ensures a smoother opening, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. A lock is located in the kickplate for added convenience and security.

Inside, model CL244WC2PNRLHD features a stainless steel rear wall for improved durability and sanitation. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. The easy-to-use digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white or sparkling wine, while the lower zone is designed to store red wine between 50 and 64ºF. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

Six full-extension steel shelves in a jet black finish slide out smoothly on ball-bearing glides, with an attractive stainless steel front trim to complete the classic look. The unit's steel shelves have a flat design ideal for storing cans and other styles of beverages. Optimal storage capacity accommodates up to 48 standard 750ml Bordeaux or Burgundy style bottles (note: your capacity may vary depending on the bottle style).

Model CL244WC2PNRLHD has two different running modes: Silent mode, which minimizes vibrations to lower noise emissions and creates a more stable storage environment, ideal for preserving your wine's quality. The second, DynaClima mode, optimizes both temperature and humidity distribution for long-term wine storage, mimicking the conditions of a traditional wine storage cabinet.

Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range.

Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Uniquely styled and fully featured, the CL244WC2PNRLHD brings true luxury to small kitchen spaces. For this unit with a single zone design in a 15" width, see the CL155WC1PNRLHD. Create a matching set by pairing this with our 24" wide deluxe beverage center, model CL24BV1PNRLHD, or our 15" wide beverage center, model CL156BV1PNRLHD. This unit comes with a left hand door swing. For this model with a right-hand door, see model CL244WC2PNR.

Explore all of Summit's wine cellars and beverage centers at summitappliance.com

SPECIFICATIONS

Overview

Height of Cabinet 33.75" (86 cm)

Width 23.38" (59 cm)

Depth 22.88" (58 cm)

Depth with Panel 23.63" (60 cm)

Depth with door at 90° 46.63" (118 cm)

Bottles 48 bottles

Defrost Type Automatic

Door Glass/Panel-Ready Frame

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 3.0

Voltage/Frequency 115 V AC/60 Hz

Weight 117.0 lbs. (53 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101156118

Wine Cellar

Number of Zones 2

Door Swing LHD

Reversible No

Adjustable Shelves Yes

Shelf Type Steel

Shelf Qty 6

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38 oz.

Interior Height 1 8.5" (22 cm)

Interior Width 1 19.25" (49 cm)

Interior Depth 1 15.0" (38 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 19.25" (49 cm)

Compressor Step Depth 5.0" (13 cm)

Temperature Range Upper zone: 41º to 50ºF; Lower zone: 50º to 64ºF

Interior Height 2 15.5" (39 cm)

Interior Width 2 19.25" (49 cm)

Interior Depth 2 15.0" (38 cm)

Sabbath Mode Yes

Sound Level 32.4 dB

FEATURES

24" Wide Premium Wine Cellar Premium dual zone built-in undercounter wine cooler for residential storage

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Custom style Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen or bar

Easy panel installation with included 2-piece bracket kit Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 23 1/4" W with a 3 1/4" inner frame

Gently tinted glass door Attractive glass door provides a complete but protected display of stored contents

Seamless 304 grade stainless steel door trim Single-piece stainless steel door trim offers a more deluxe look

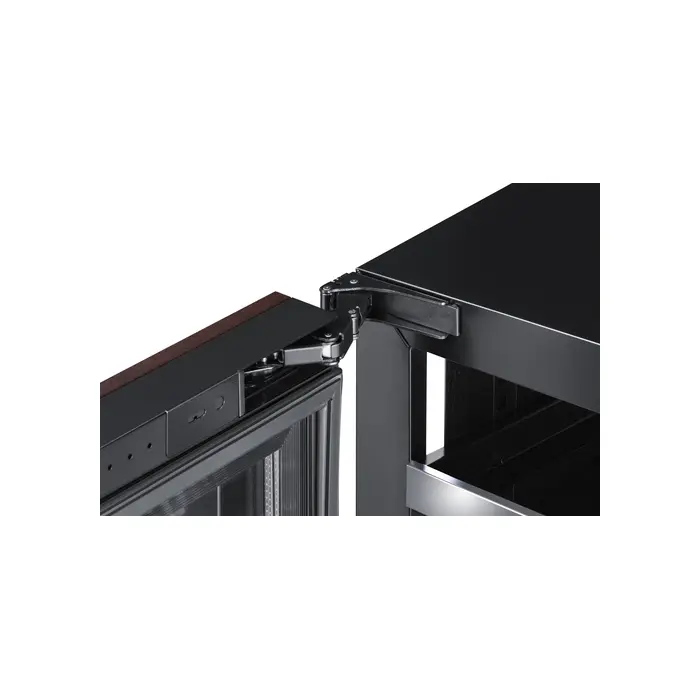

Fully articulating style hinge European style hinge design ensures a flush fit and allows for a smoother opening

Factory-installed lock Keyed lock located in the kickplate for added security as needed

Matching sets Universal collection design allows you to pair this unit with our 24" wide deluxe beverage center, model CL24BV1PNR, or our 15" wide beverage center, model CL156BV1PNR, depending on your need

Dual zone storage Upper zone operates between 41 and 50ºF for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64ºF to best preserve red wine

Generous bottle capacity Each shelf can hold up to 8 Burgundy or Bordeaux style bottles for an overall 48-bottle capacity to meet your storage needs (NOTE: capacity may vary depending on specific bottle style)

Deluxe wine shelving Removable flat steel shelves in a black finish with stainless steel trim for an elegant but modern look

Full-extension shelving Six shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Flat shelf design Shelf design makes it easier to store cans and other styles of beverages

Vibration-free Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

Stainless steel interior rear wall Stainless steel rear wall protects the unit's integrity and is easier to clean

Tri-colored LED lighting Rotate your presentation style with a choice of blue, white, or amber LED lighting

Digital thermostat Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Digital temperature display Temperature readout can be shown in Celsius or Fahrenheit

DynaClima mode This function provides consistent temperature and humidity distribution, mimicking a natural wine cellar environment

Silent mode Reduces vibration disturbances by slowing down and pausing the cooling unit's operation

Automatic defrost No-frost operation for minimum user maintenance

Stainless steel kickplate Complete luxury down to the toe kick

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Quiet operation Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.4 dB

Left hand door swing For this unit with the door opening from the other side, see model CL244WC2PNR

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (CL244WC2PNRLHD.pdf)

TECHNICAL DRAWING (.dwg) (CL244WC2PNR_2.dwg)

ASSEMBLY DRAWING (CL244WC2PNR-Assembly__1_(2).pdf)

USE & CARE (CL244WC2PNRLHD-User-Manual.pdf)
