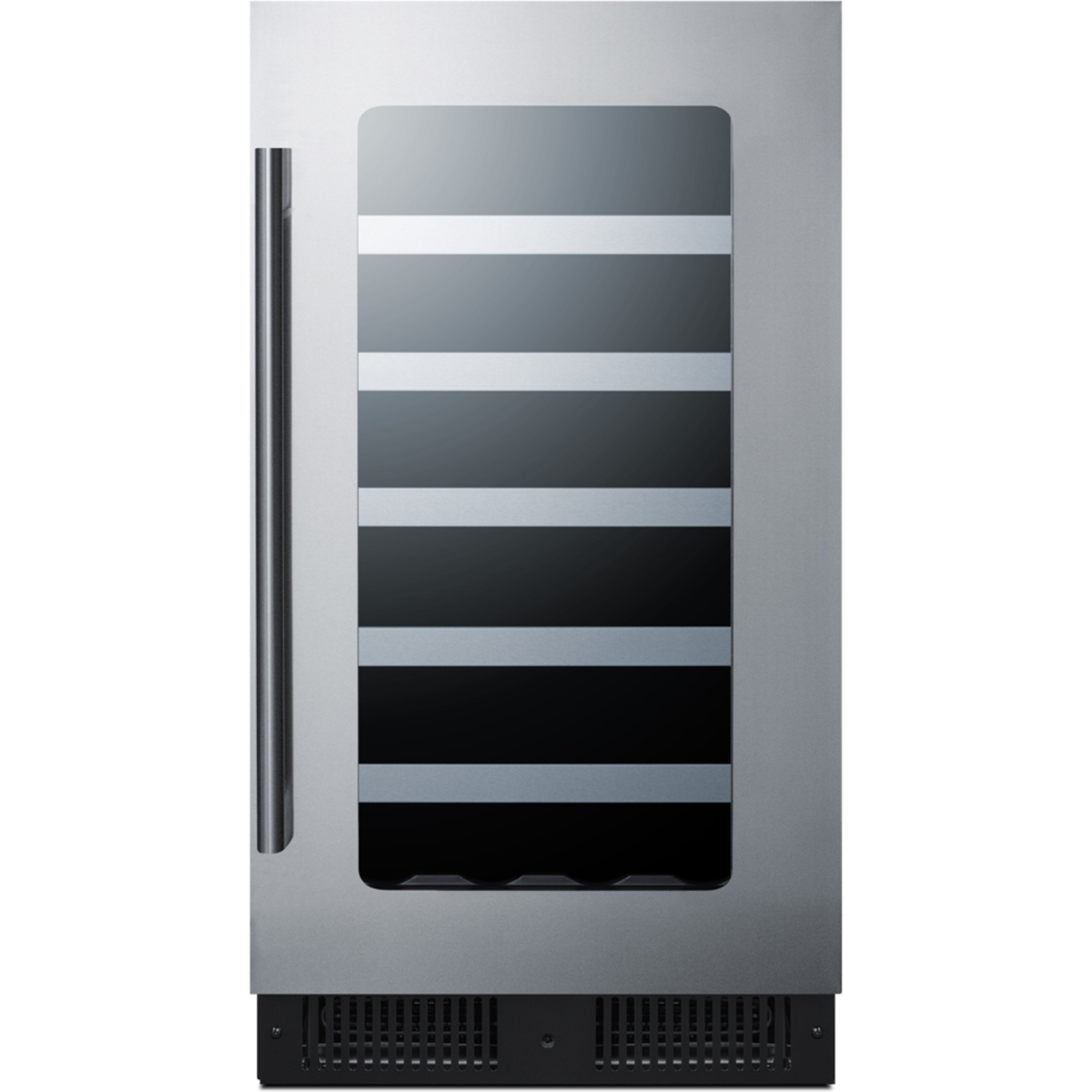

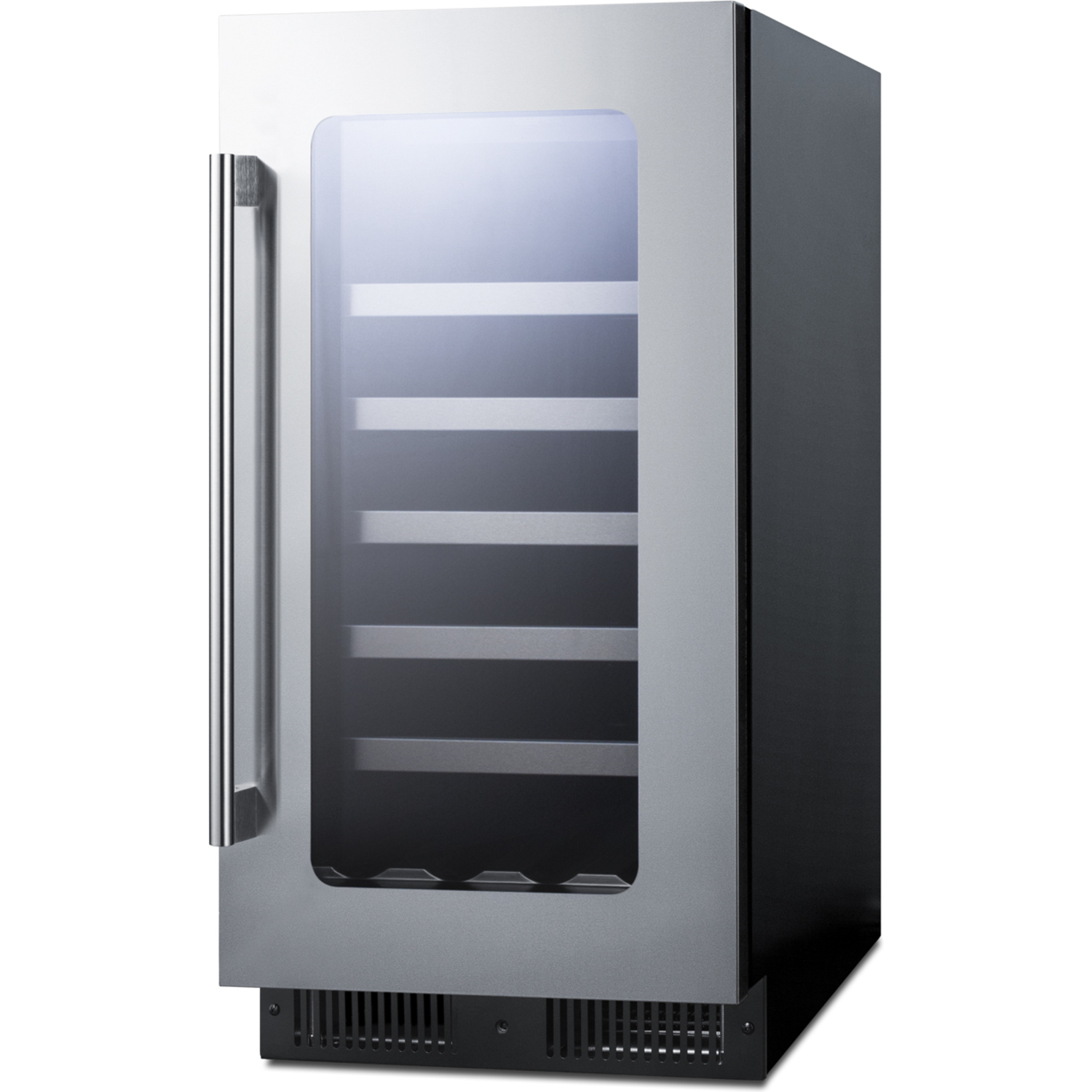

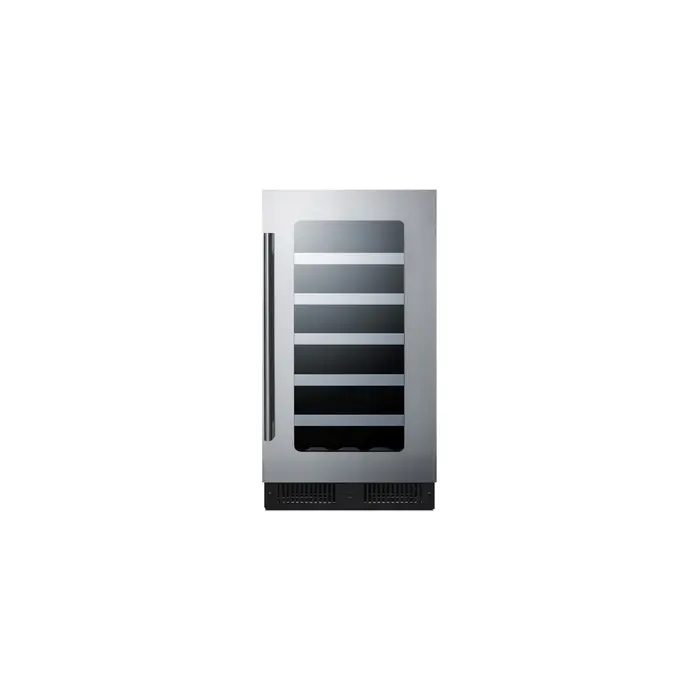

Summit 18 inch wide built-in wine cellar with seamless stainless steel trimmed glass door, 7.61101e+011, CL18WC

Summit manufactures deluxe undercounter appliances designed to bring modern luxury into the home.

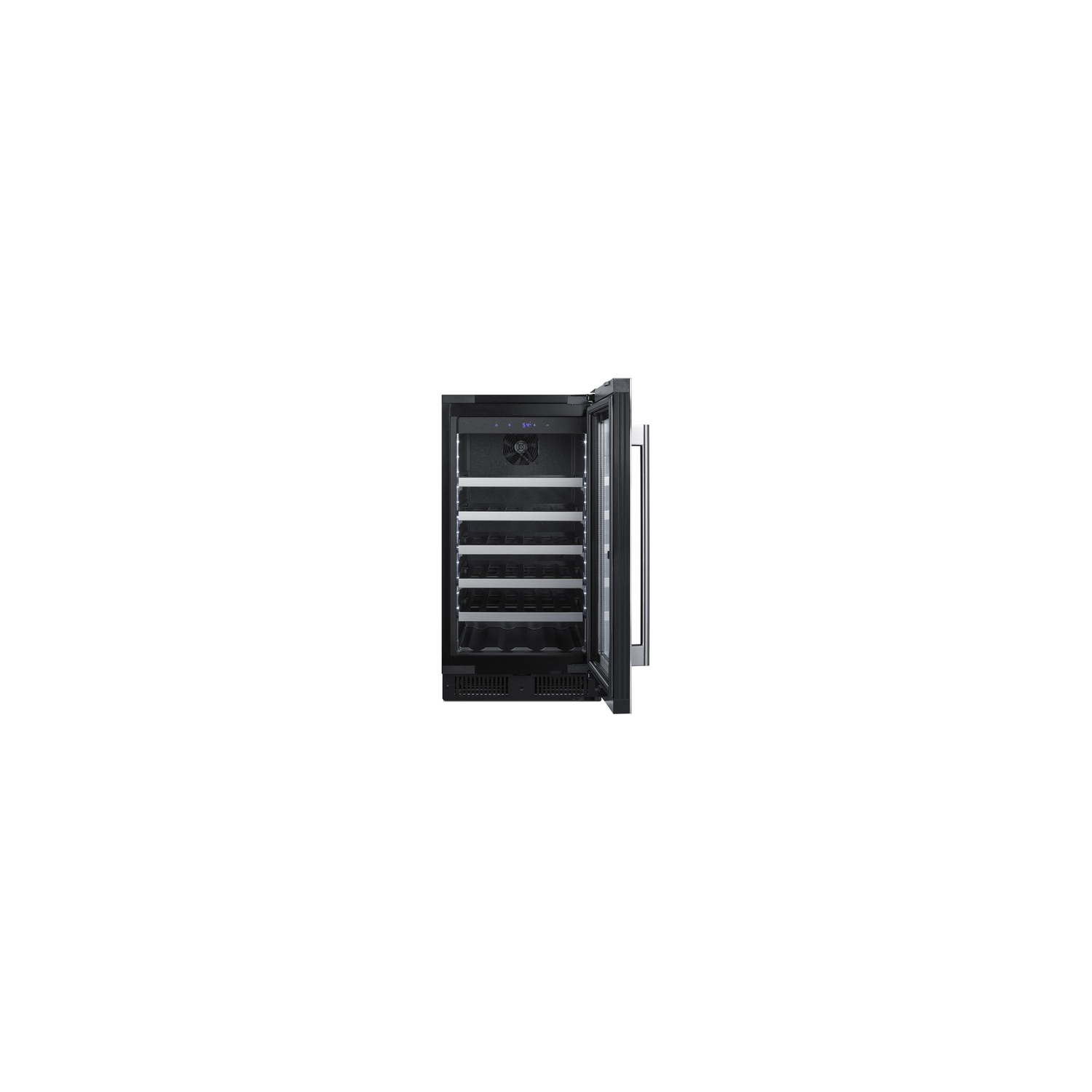

The CL18WC is an 18" wide single zone wine cellar. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This unit includes a fully articulating European-style hinge for smoother openings. Inside, white LED lighting located on the side walls complements the black interior to provide an attractive presentation of your stored collection. A lock is located in the kickplate for convenient security.

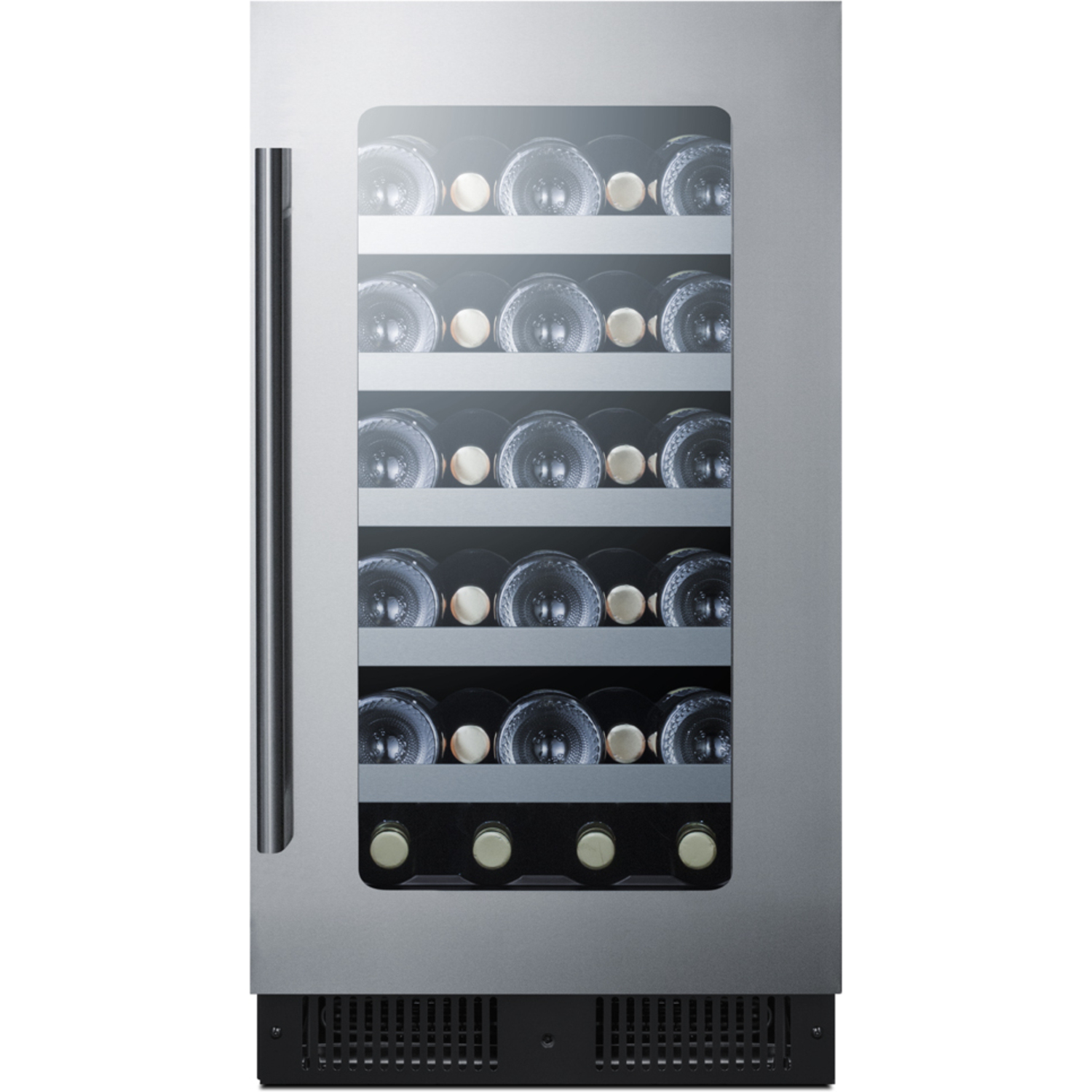

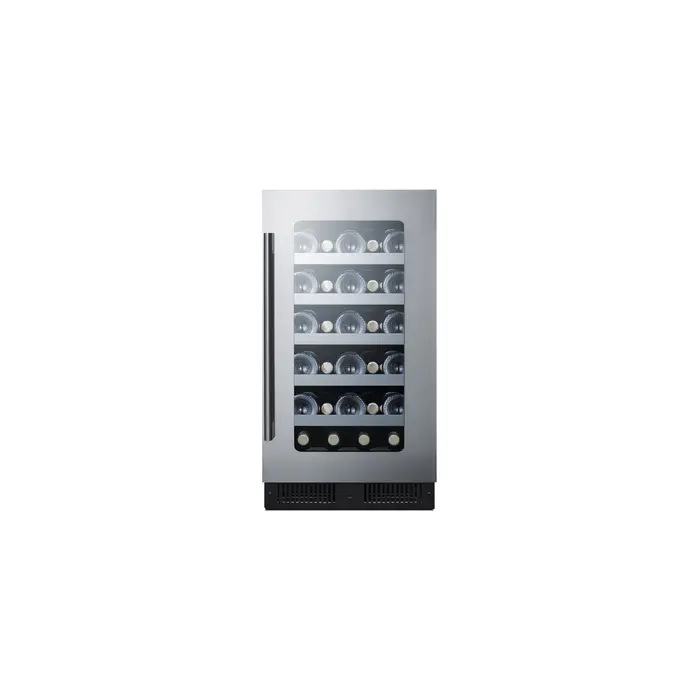

The CL18WC can store up to 29 Bordeaux or Burgundy style bottles. The black wooden shelves feature stainless steel trim. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature, offering added protection for your wine storage.

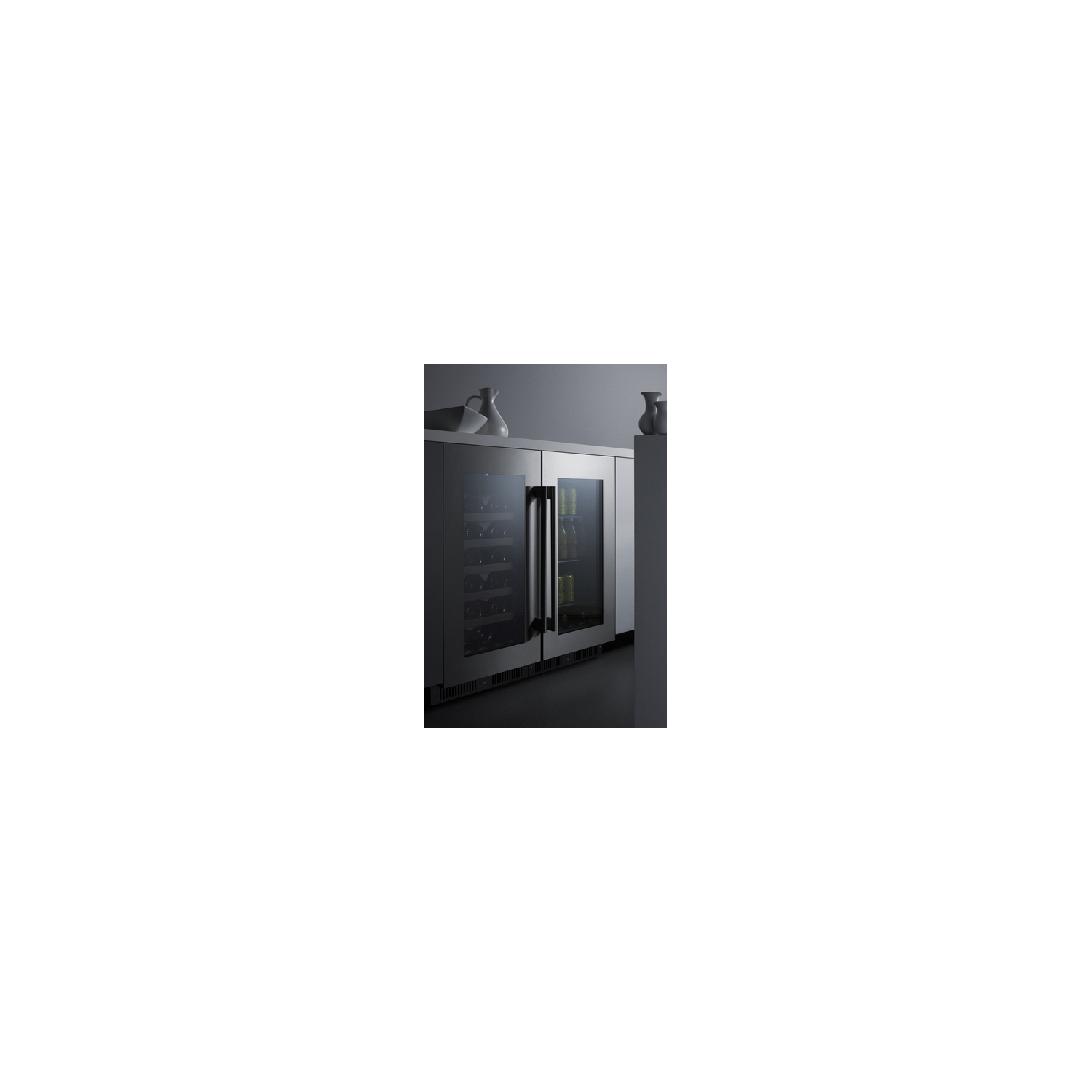

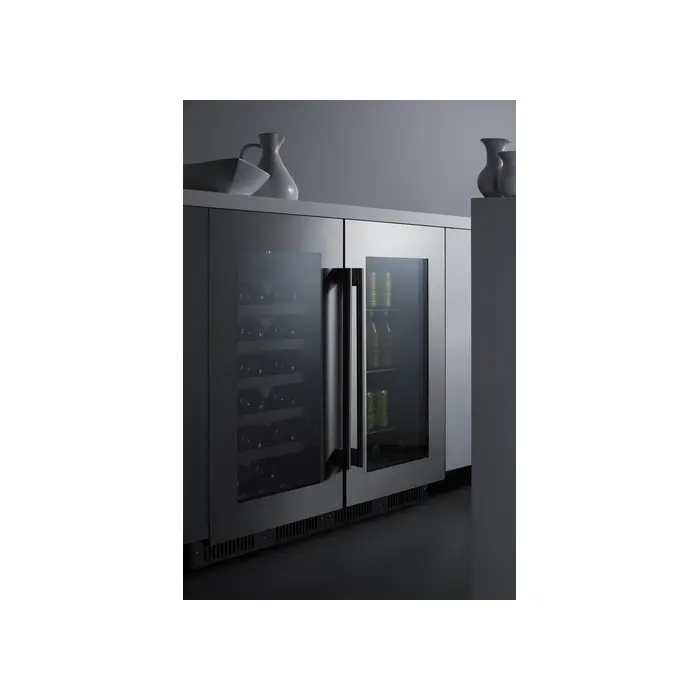

Uniquely styled and fully featured, the CL18WC brings true luxury to small kitchen and wet bar spaces. For a matching beverage center, see model CL181WBV.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 18.0" (46 cm)

Width 17.5" (44 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.75" (58 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 40.13" (102 cm)

Capacity 2.9 cu.ft. (82 L)

Bottles 29 bottles

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 88.0 lbs. (40 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101053455

Wine Cellar

Number of Zones 1

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Wood

Shelf Qty 5

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64 oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Height 1 23.5" (60 cm)

Interior Width 1 14.0" (36 cm)

Interior Depth 1 16.63" (42 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 14.0" (36 cm)

Compressor Step Depth 5.5" (14 cm)

Level Legs 2

Temperature Range 41 to 72ºF

Sabbath Mode Yes

Sound Level 32.5 dB

FEATURES

18" Wide Wine Cellar Undercounter single zone wine cellar for built-in or freestanding use

Built-in capable Make the best use of space by installing your appliance under the counter

Double pane tempered glass door Heat-safe glass ensures your collection is protected

Seamless stainless steel trim One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

Digital thermostat Electronic controls for precise temperature management

Digital display Temperature readout can be shown in Celsius or Fahrenheit

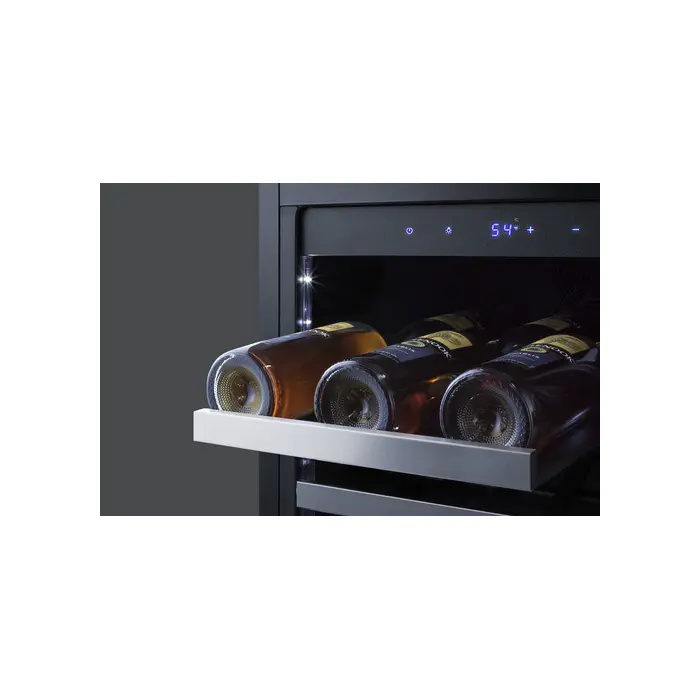

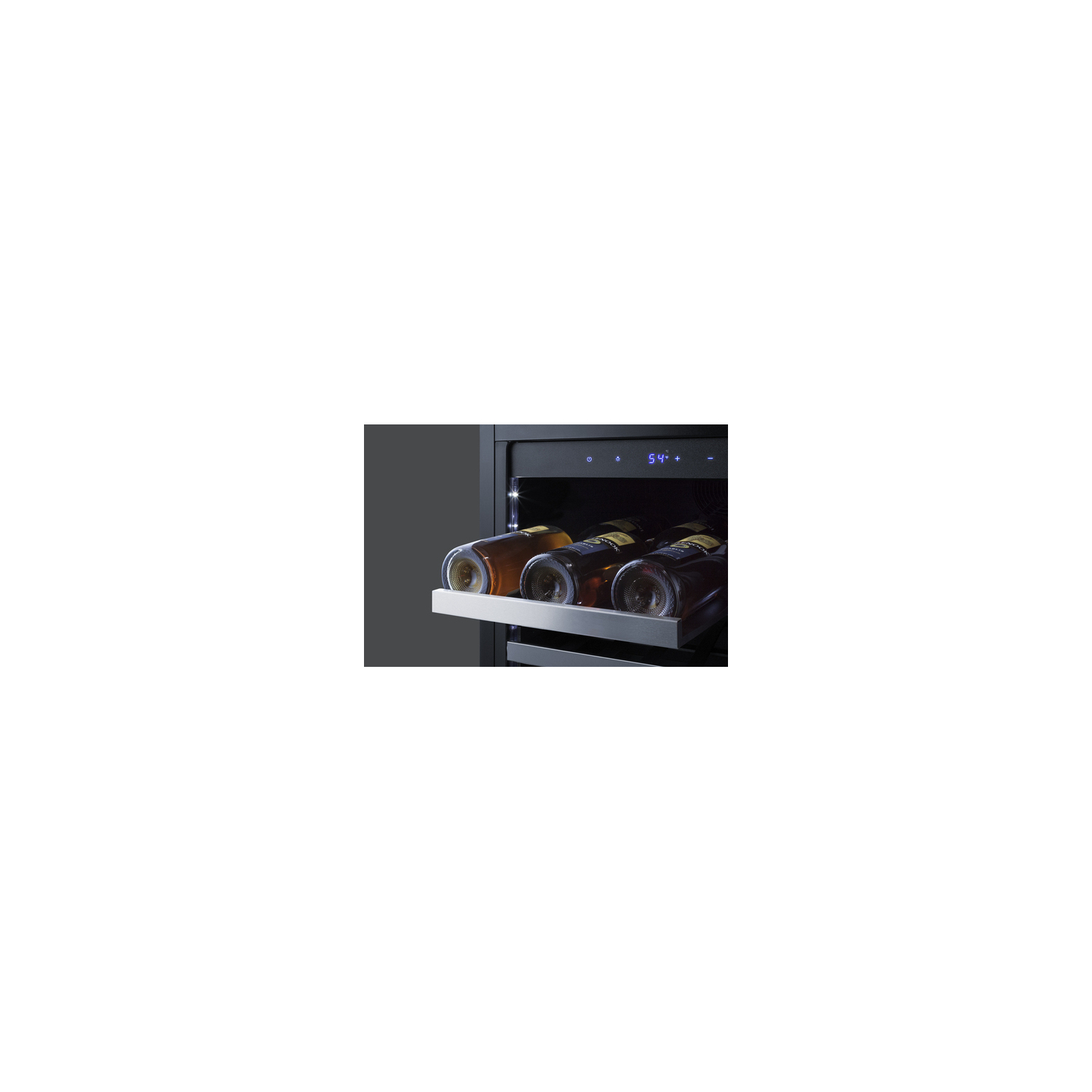

Stainless steel trimmed wooden shelves Black wooden shelves feature stainless steel trim for an added touch of elegance

Factory-installed lock Keyed lock located in the kickplate for optional security

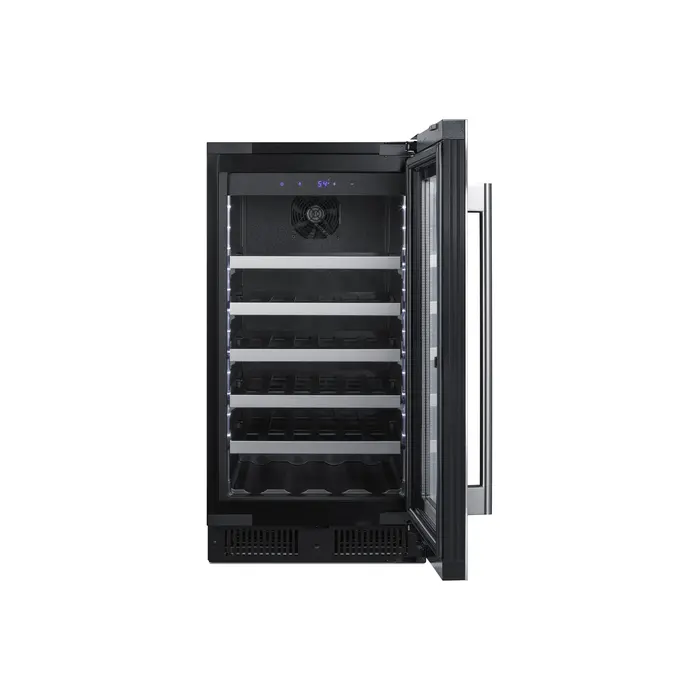

White LED lighting Unique white lighting located inside the walls offers elegant illumination for the jet black interior

Professional handle Vertically mounted handle in brushed stainless steel

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Bottle slots Floor is specially slotted to store wine bottles safely in place

Temperature alarm Audibly alerts if the interior temperature is too warm

Open door alarm Audible alarm will sound if the door is left ajar for over 60 seconds

Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost Reduced maintenance and steady temperature performance

Sealed back Space saving design with easier cleanability

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Fully finished black cabinet Allows the unit to be used freestanding

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

29 bottle capacity Holds up to 29 Bordeaux or Burgundy style bottles

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CL18WC.pdf)

TECHNICAL DRAWING (.dwg) (CL18WC.dwg)

ASSEMBLY DRAWING (CL18WC-Assembly.pdf)

REVIT MODEL (QF_Summit_CL18WC_Refrigerator.rfa)

USE & CARE (CL18WC-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)
