Summit 18 inch wide built-in beverage center with seamless stainless steel trimmed glass door, 7.61101e+011, CL181WBV

Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in the home.

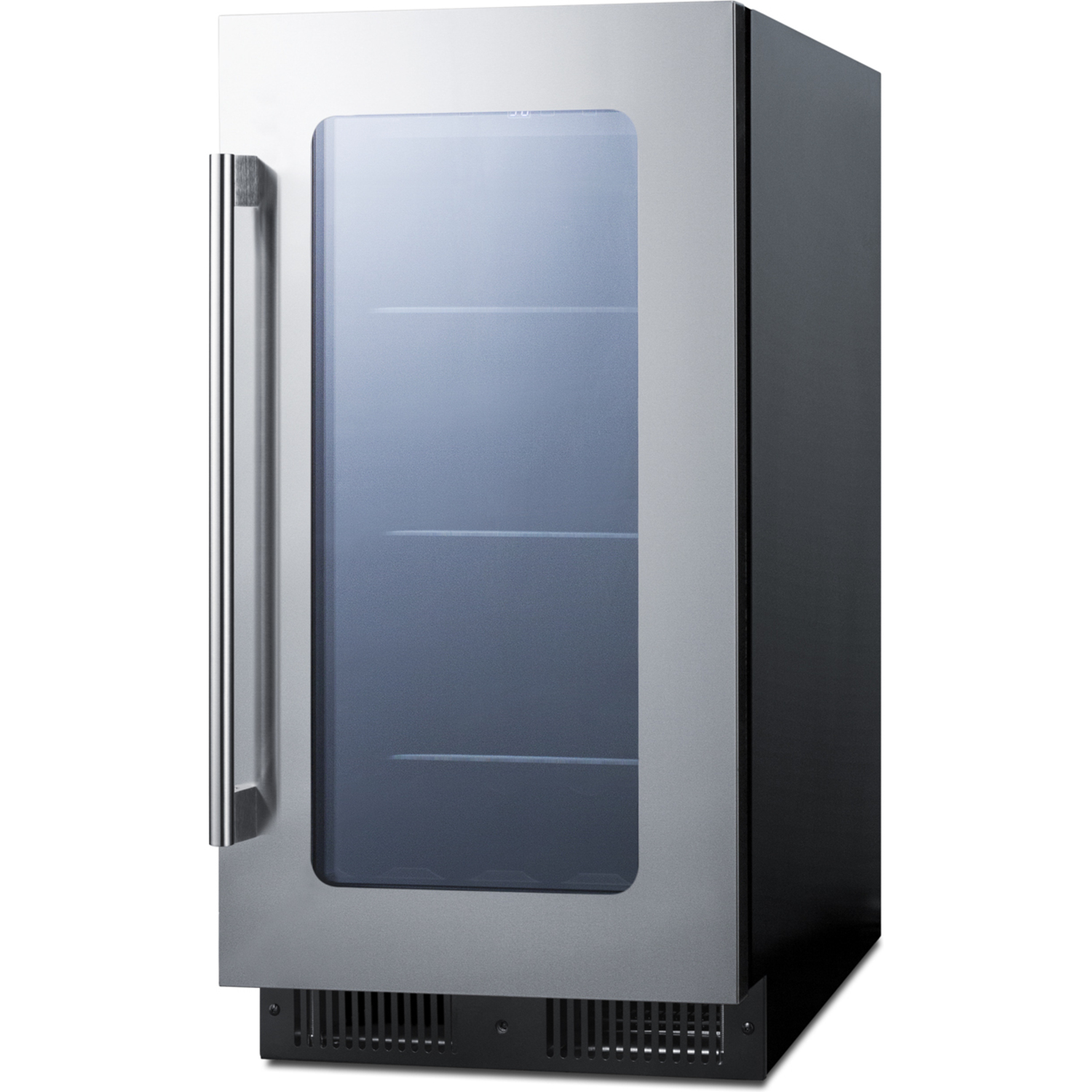

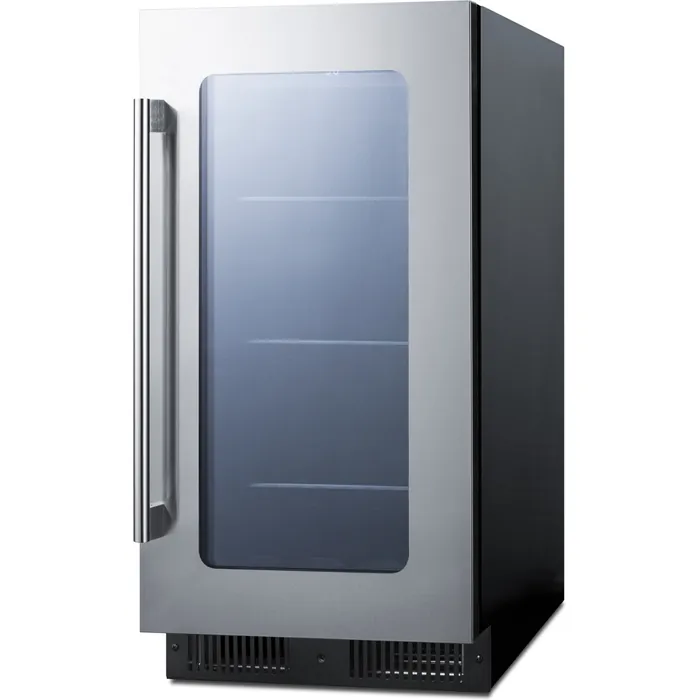

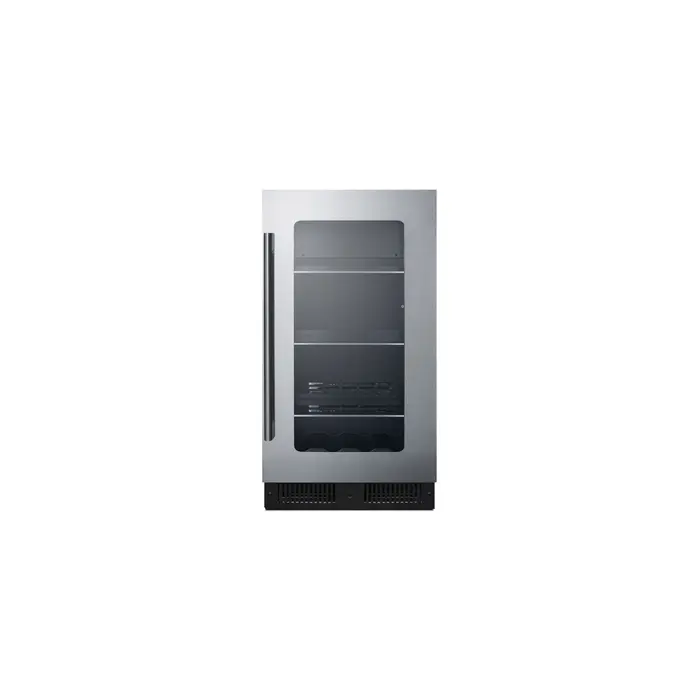

The CL181WBV is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle fully articulating European hinge system for a smoother fit. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products. A lock is located in the kickplate for convenient security.

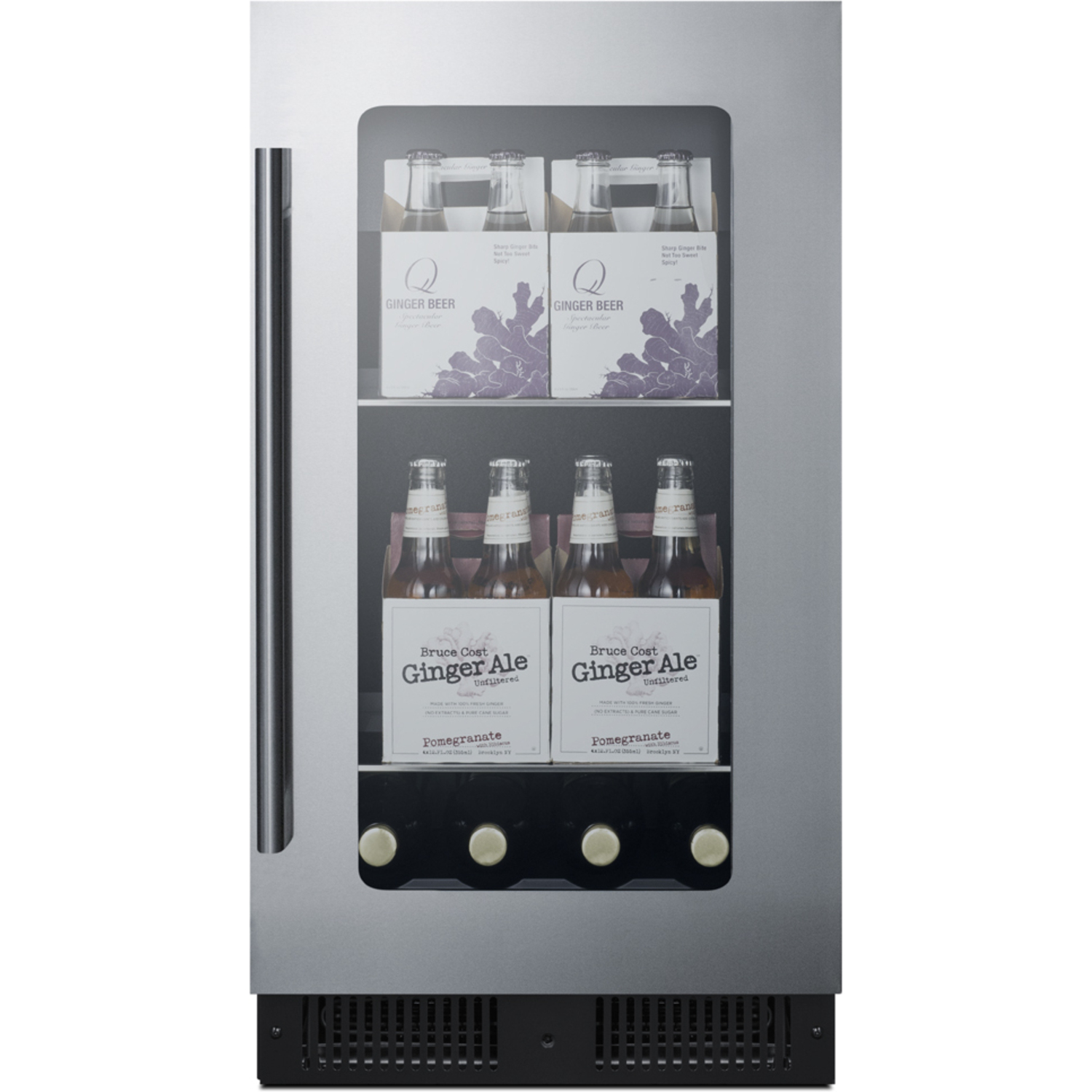

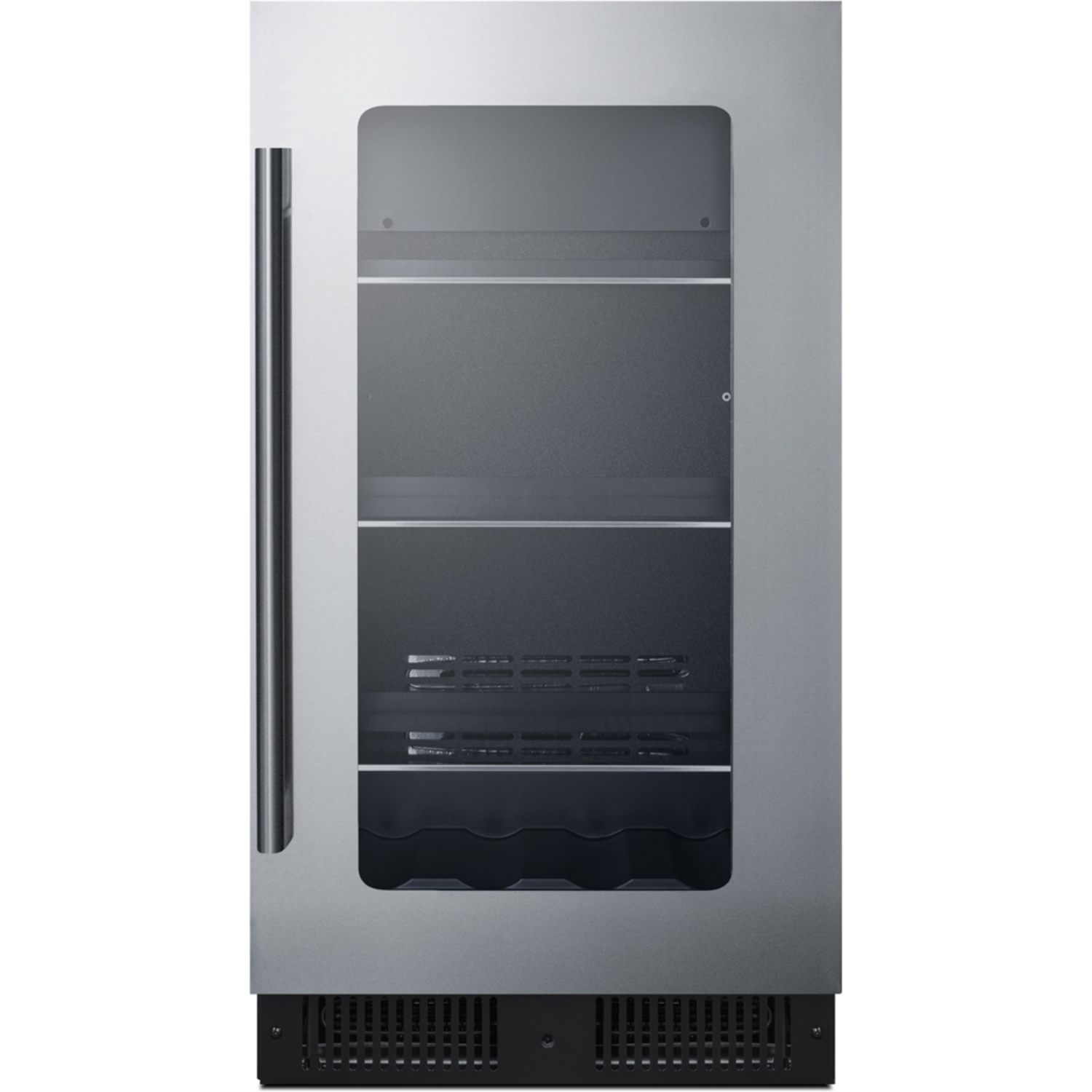

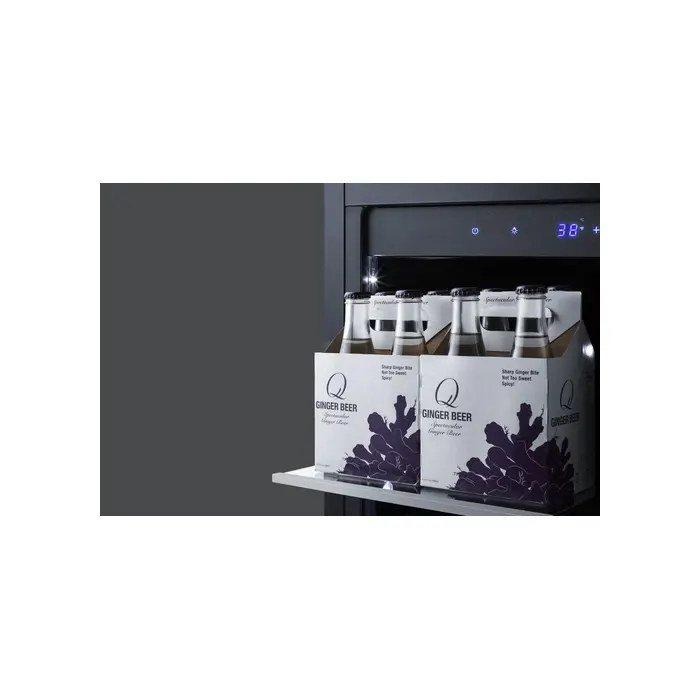

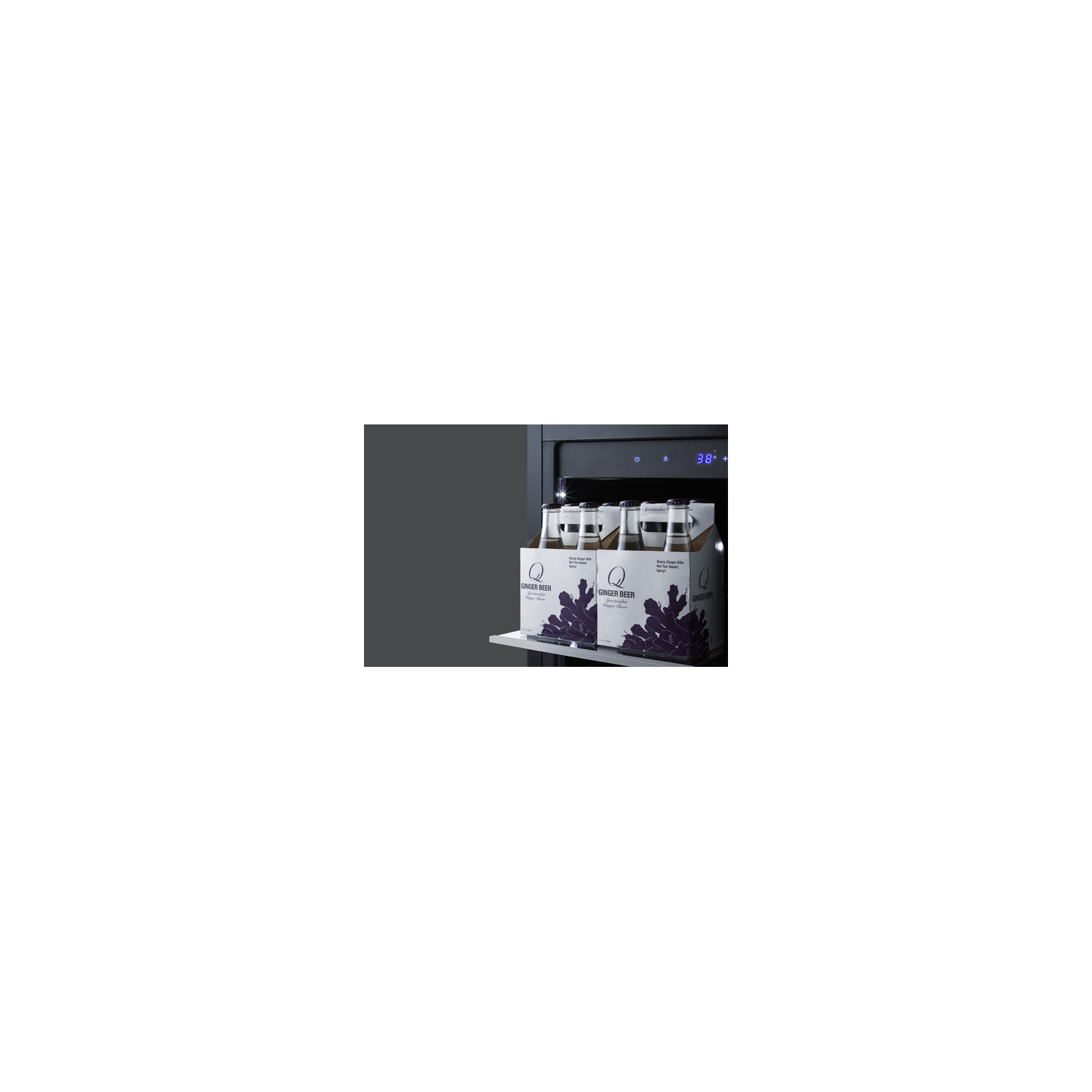

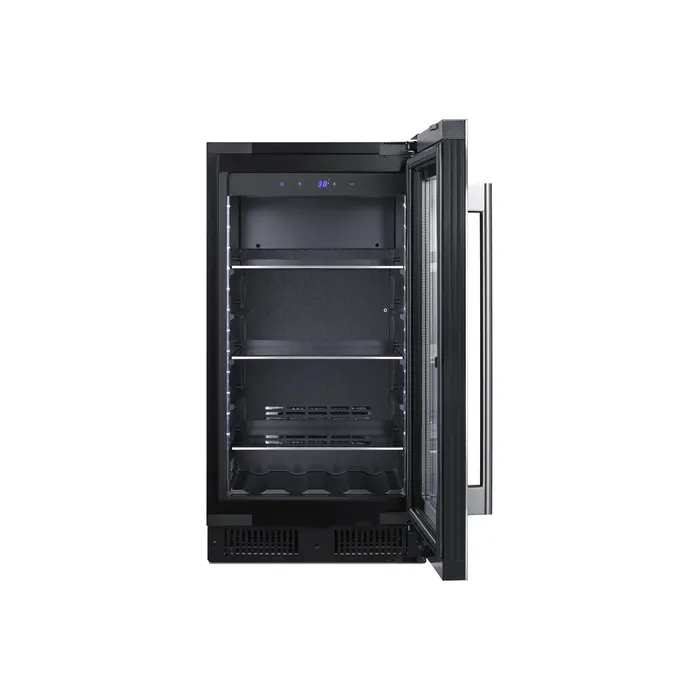

The CL181WBV includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature.

Uniquely styled and fully featured, the CL181WBV is an elegant solution to bringing reliable beverage storage to a variety of settings. In addition to this beverage centers, Summit manufactures a variety of 18" wide undercounter units, including wine cellars, freezers, icemakers, and drawer refrigerators. Browse the full lineup to find the right fit for your space.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 18.0" (46 cm)

Width 17.5" (44 cm)

Nominal Depth 24.0" (61 cm)

Depth 22.75" (58 cm)

Depth with Handle 25.38" (64 cm)

Depth with door at 90° 39.63" (101 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Automatic

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 285.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 88.0 lbs. (40 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101053462

Refrigerator Features

Sabbath Mode Yes

Door Swing Reversible

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.85oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Light Yes

Temperature Range 36 to 43ºF

Dimensions

Interior Height 23.0" (58 cm)

Interior Width 12.25" (31 cm)

Interior Depth 17.5" (44 cm)

Compressor Step Height 3.25" (8 cm)

Compressor Step Width 12.25" (31 cm)

Compressor Step Depth 5.25" (13 cm)

FEATURES

18" Wide Beverage Center Undercounter glass door beverage refrigerator for built-in or freestanding use

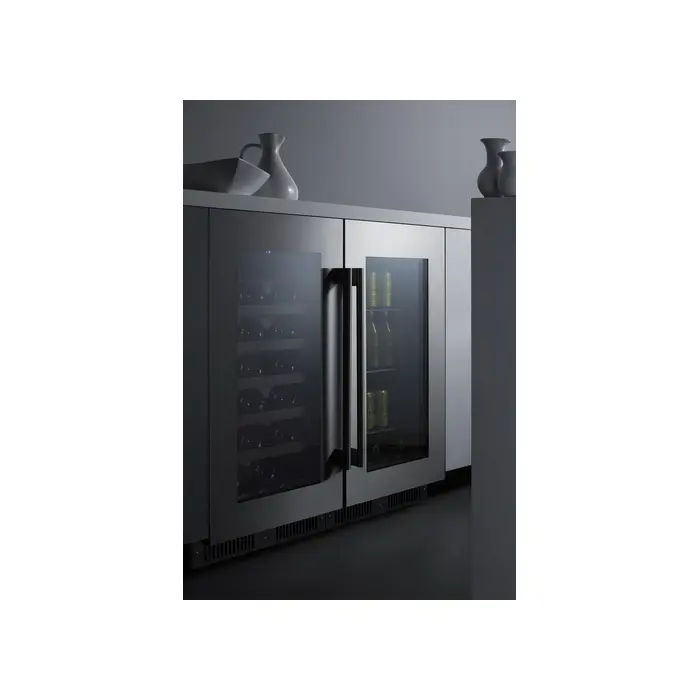

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Double pane tempered glass door Heat-safe glass ensures your items are stored safely

Seamless stainless steel trim One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

Digital thermostat Electronic controls for precise temperature management

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Adjustable glass shelves Spill-proof glass shelves make it easy to store and display bottles and cans

Bottle slots Floor is specially slotted to store wine and other bottles safely in place

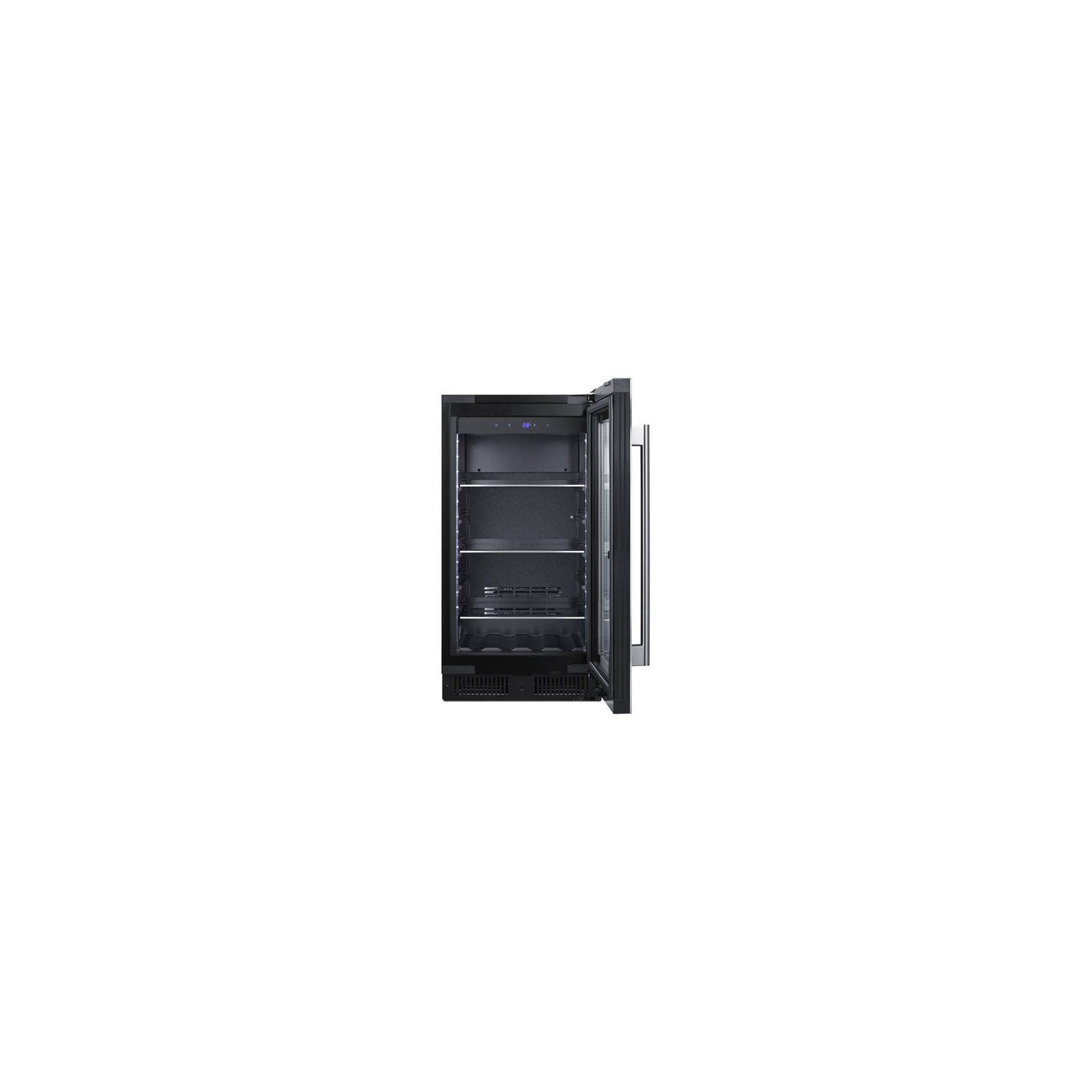

White LED lighting Unique white lighting located inside the walls offers elegant illumination for the jet black interior

Professional handle Vertically mounted handle in brushed stainless steel

Reversible door User-reversible door swing allows for more flexibility in placing the unit

Factory-installed lock Keyed lock located in the kickplate for optional security

Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature alarm Audibly alerts if the interior temperature is too warm

Open door alarm Audible alarm will sound if the door is left ajar for over 60 seconds

Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost Reduced maintenance and steady temperature performance

Sealed back Space saving design with easier cleanability

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet Allows the unit to be used freestanding

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CL181WBV.pdf)

TECHNICAL DRAWING (.dwg) (CL181WBV.dwg)

ASSEMBLY DRAWING (CL181WBV-Assembly.pdf)

REVIT MODEL (QF_Summit_CL181WBV_Refrigerator.rfa)

USE & CARE (CL181WBV-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
