Summit 15 inch wide built-in beverage center with panel-ready glass door, 7.61101e+011, CL156BV1PNR

Summit's collection of built-in undercounter beverage centers brings full functionality and premium style to kitchens everywhere.

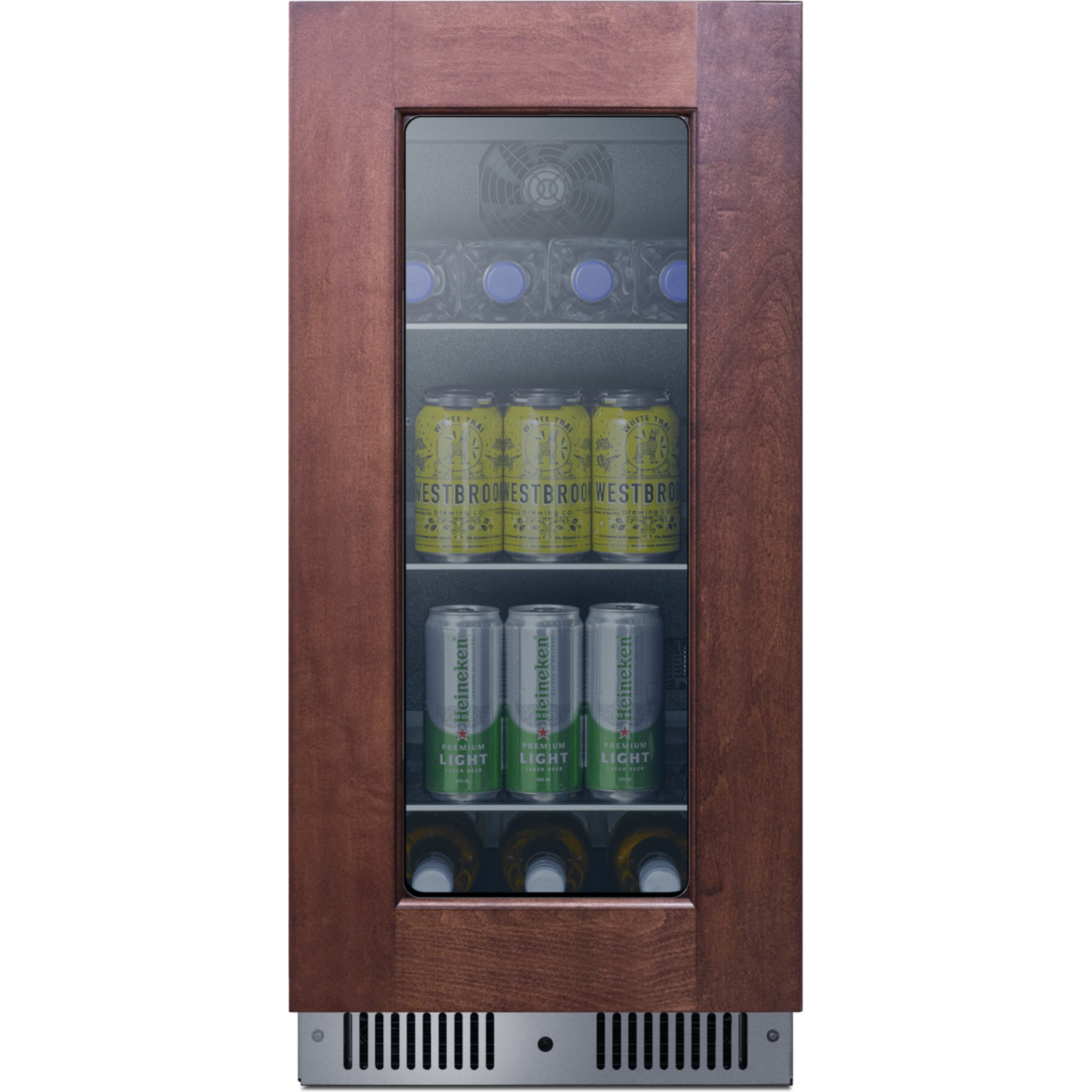

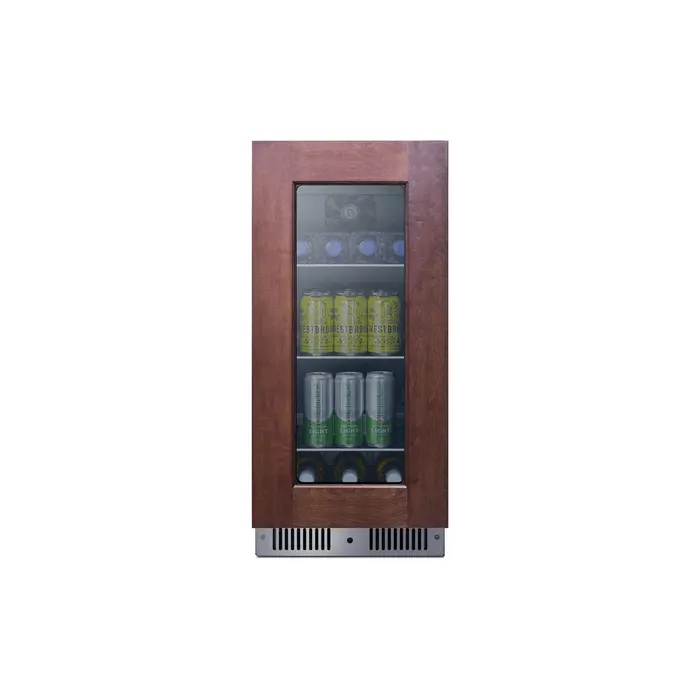

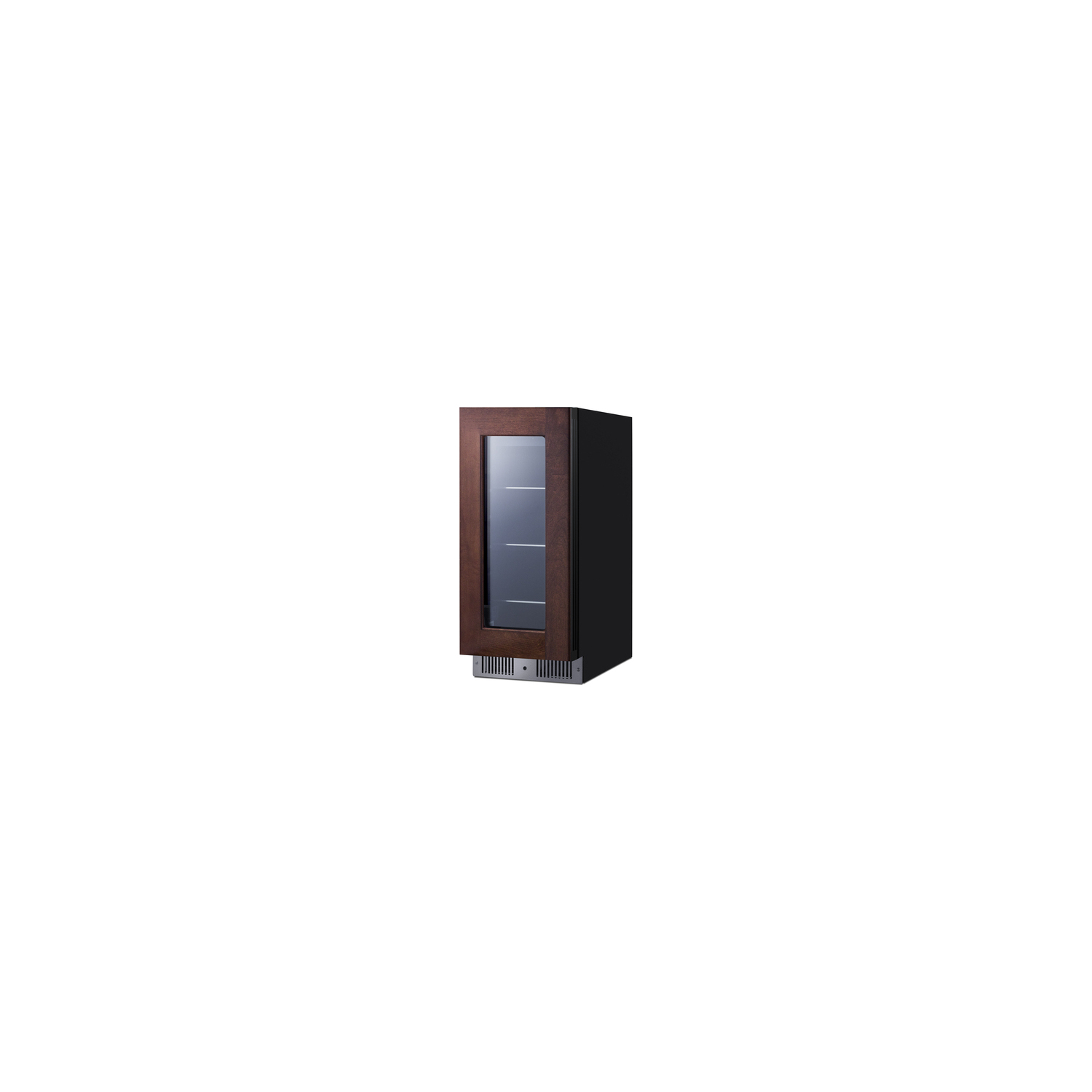

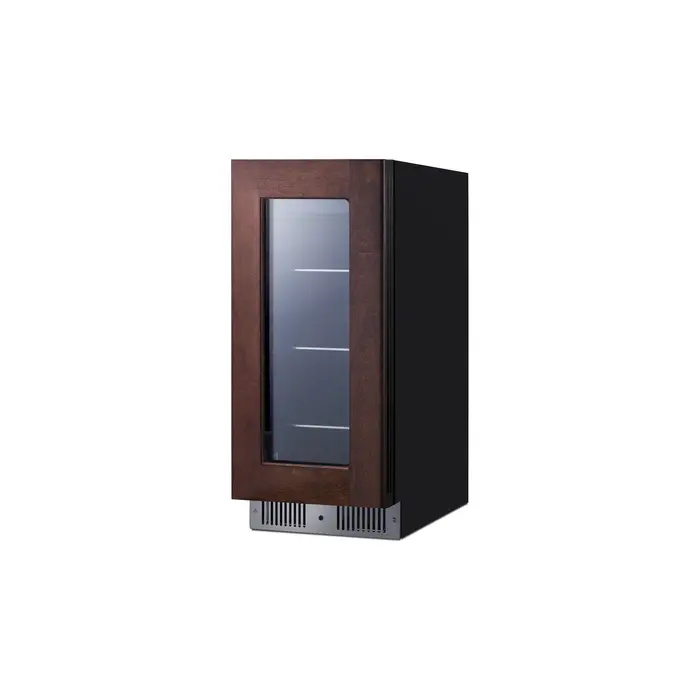

Summit's CL156BV1PNR is a 15" wide beverage center designed for residential settings. The front-breathing system allows built-in installation, while the fully finished black cabinet allows freestanding use. A seamless 304 grade stainless steel trim blends smoothly into the gently tinted glass door for an elevated look. This unit has a sealed rear and right-angle cord for an improved flush fit. The fully articulating European-style hinge design ensures a smoother opening, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. The user-reversible door swing allows easy adjustment as needed. A lock is located in the kickplate for added convenience and security.

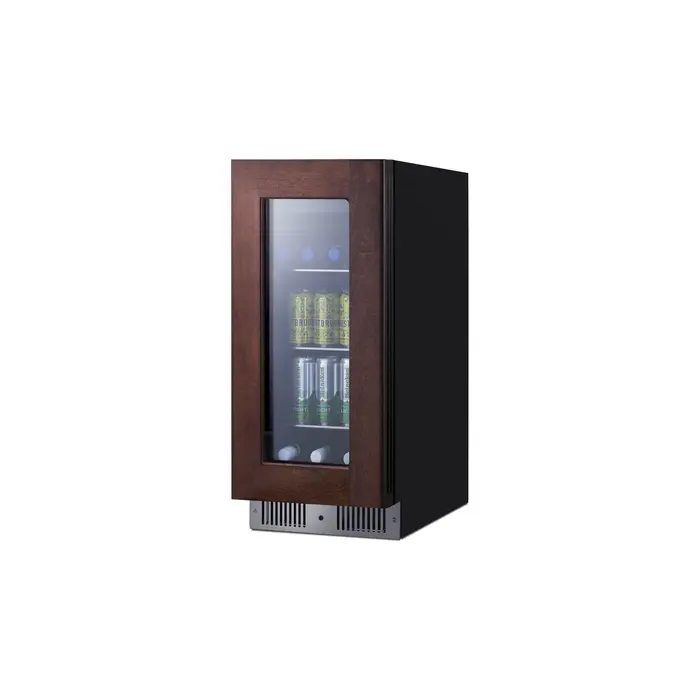

Inside, model CL156BV1PNR features fan-forced cooling to ensure even temperature distribution and fast temperature recovery. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes LED interior lighting for an attractive illumination of its contents. Three adjustable glass shelves and a slotted floor ensure flexible storage to accommodate any size bottle or can.

The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, a sabbath mode for observance periods, and a temperature memory function to restore the set temperature in the event of power loss. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature.

Uniquely styled and fully featured, the CL156BV1PNR brings true convenience and a deluxe aesthetic to kitchen spaces. For this unit with a 24" width, see model CL24BV1. Create a matching set by pairing this with our 15" wide wine cellar, model CL155WC1PNR, or our 24" wide wine cellar, model CL244WC2PNR.

Note: This unit comes with an anti-tip bracket that should be installed to help prevent tipping of the unit for added safety.

Explore all of Summit's beverage centers and wine cellars at summitappliance.com

SPECIFICATIONS

Overview

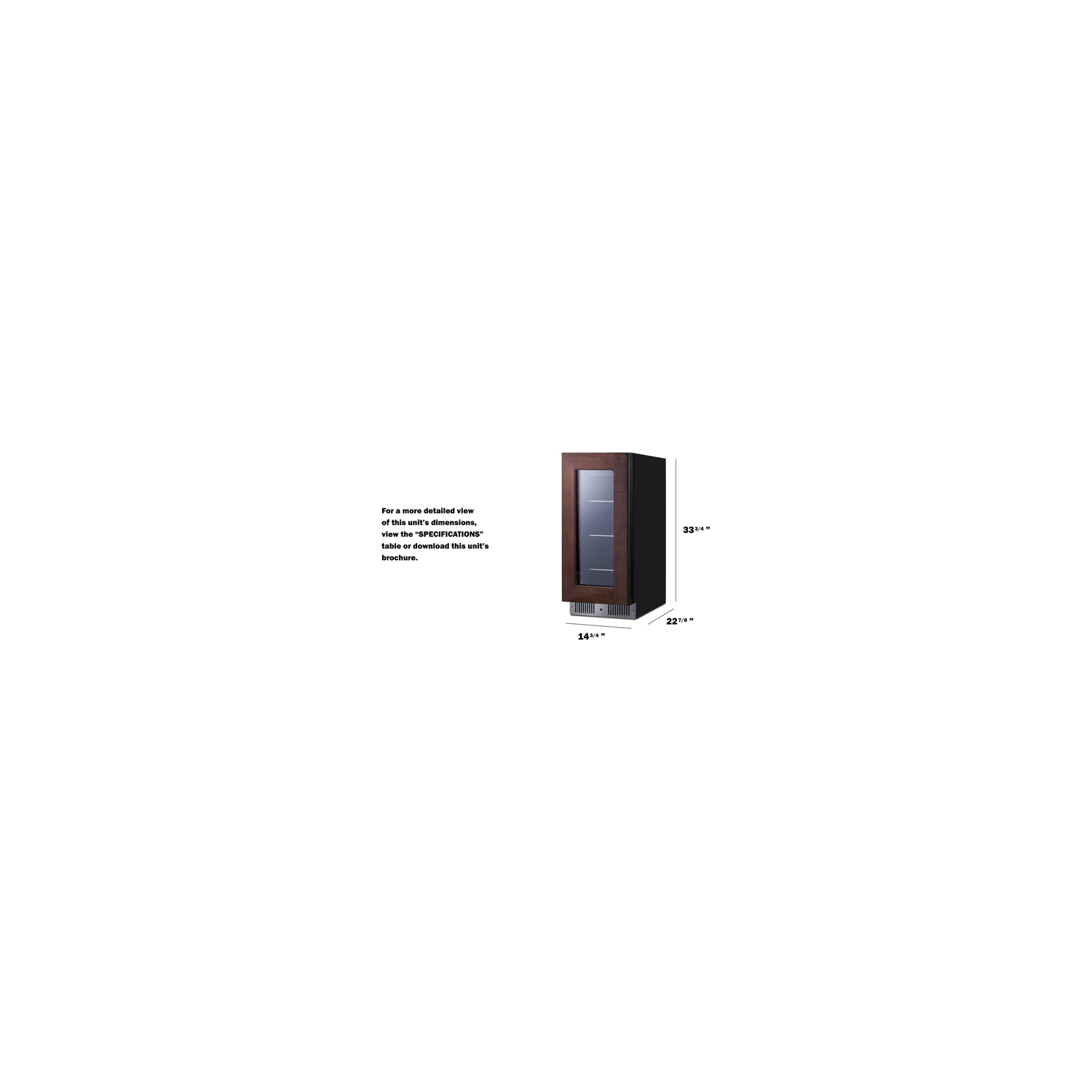

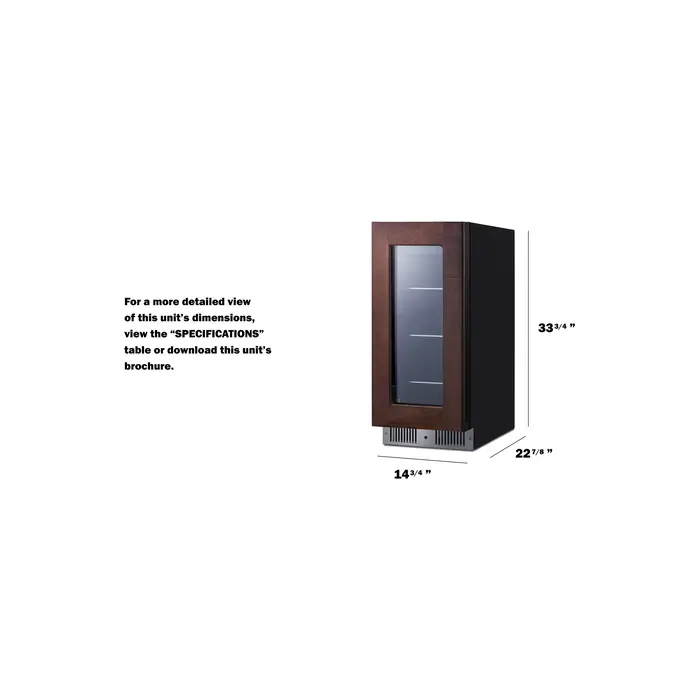

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.75" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 24.0" (61 cm)

Depth 22.88" (58 cm)

Depth with Panel 23.63" (60 cm)

Depth with door at 90° 37.5" (95 cm)

Capacity 2.6 cu.ft. (74 L)

Defrost Type Automatic

Door Glass/Panel-Ready Frame

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 280.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 73.0 lbs. (33 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101156125

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.86oz.

High Side PSI 270.0

Low Side PSI 105.0

Interior Light Yes

Temperature Range 36° F to 43°F

Drawer Dimensions

Interior Height 1 3.75" (10 cm)

Interior Width 1 11.5" (29 cm)

Interior Depth 1 5.0" (13 cm)

Dimensions

Interior Height 25.0" (64 cm)

Interior Width 11.5" (29 cm)

Interior Depth 16.75" (43 cm)

FEATURES

15" Wide Beverage Center Undercounter glass door beverage refrigerator for residential use

Built-in undercounter design Front-breathing design lets you make the best use of space by installing your appliance under the counter

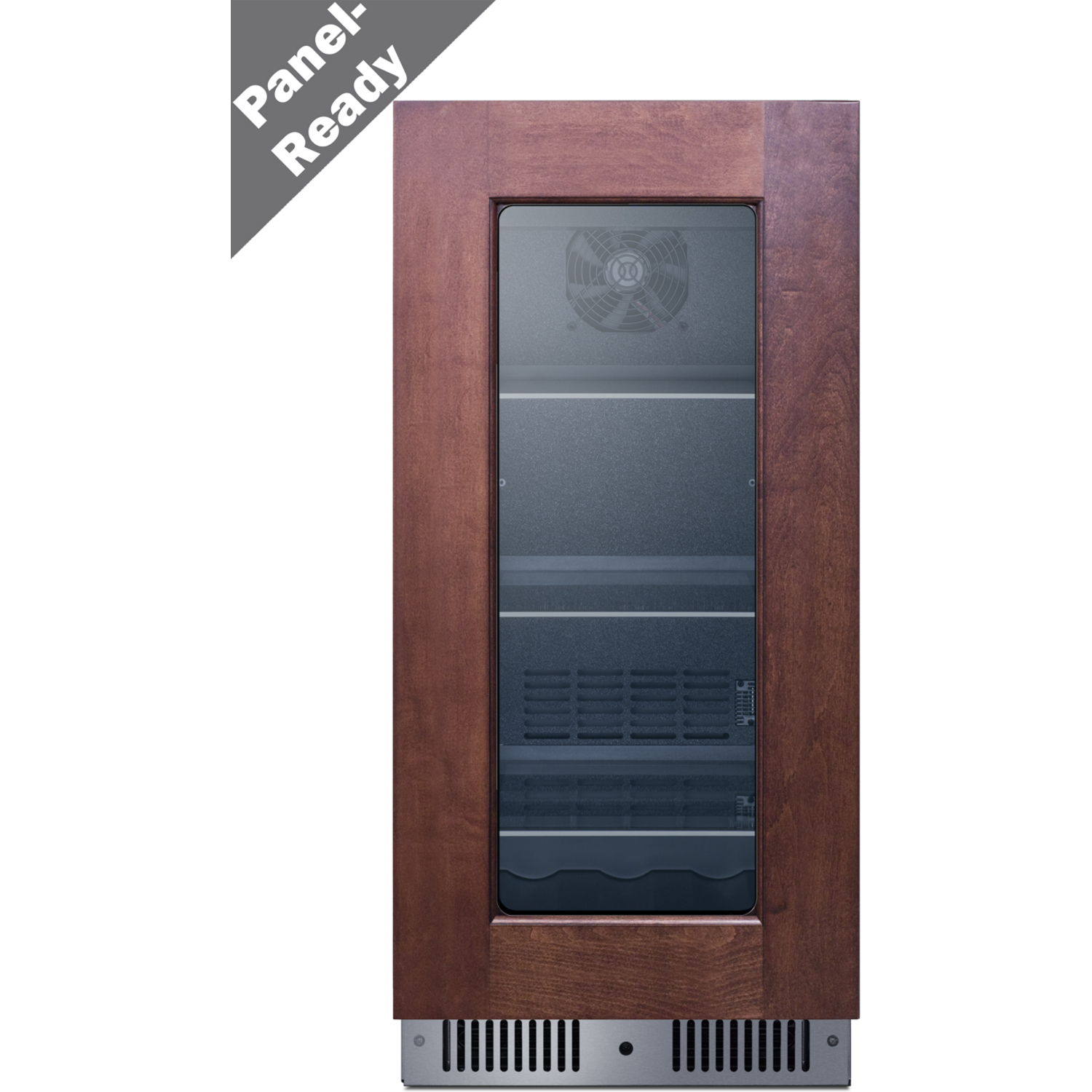

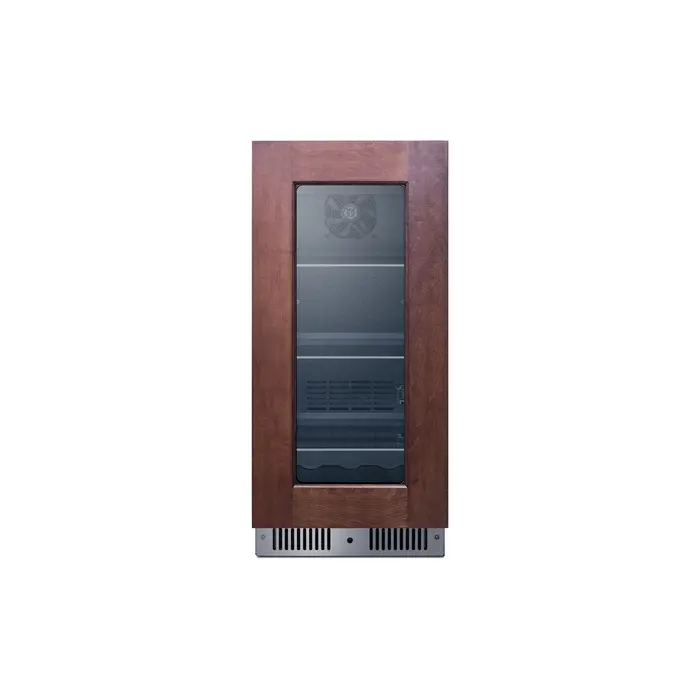

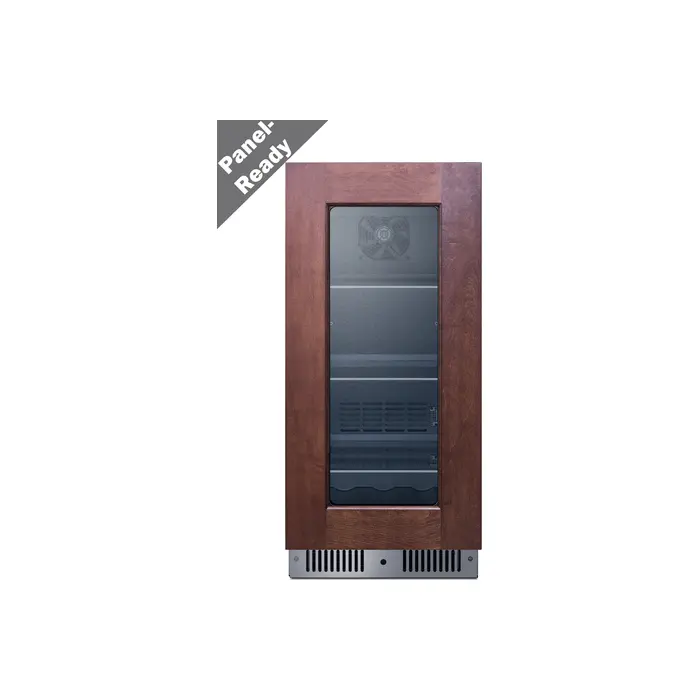

Custom style Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar

Easy panel installation with included 2-piece bracket kit Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" inner frame

Fully articulating door hinge European style hinge design ensures a flush fit and allows for a smoother opening

Seamless 304 grade stainless steel door trim Single-piece 304 grade stainless steel door trim offers a more deluxe look

Gently tinted door Attractive tinted glass door provides a complete but protected display of stored contents

Unbranded exterior Allows for seamless integration with other appliances

Factory-installed lock Keyed lock located in the kickplate for added security as needed

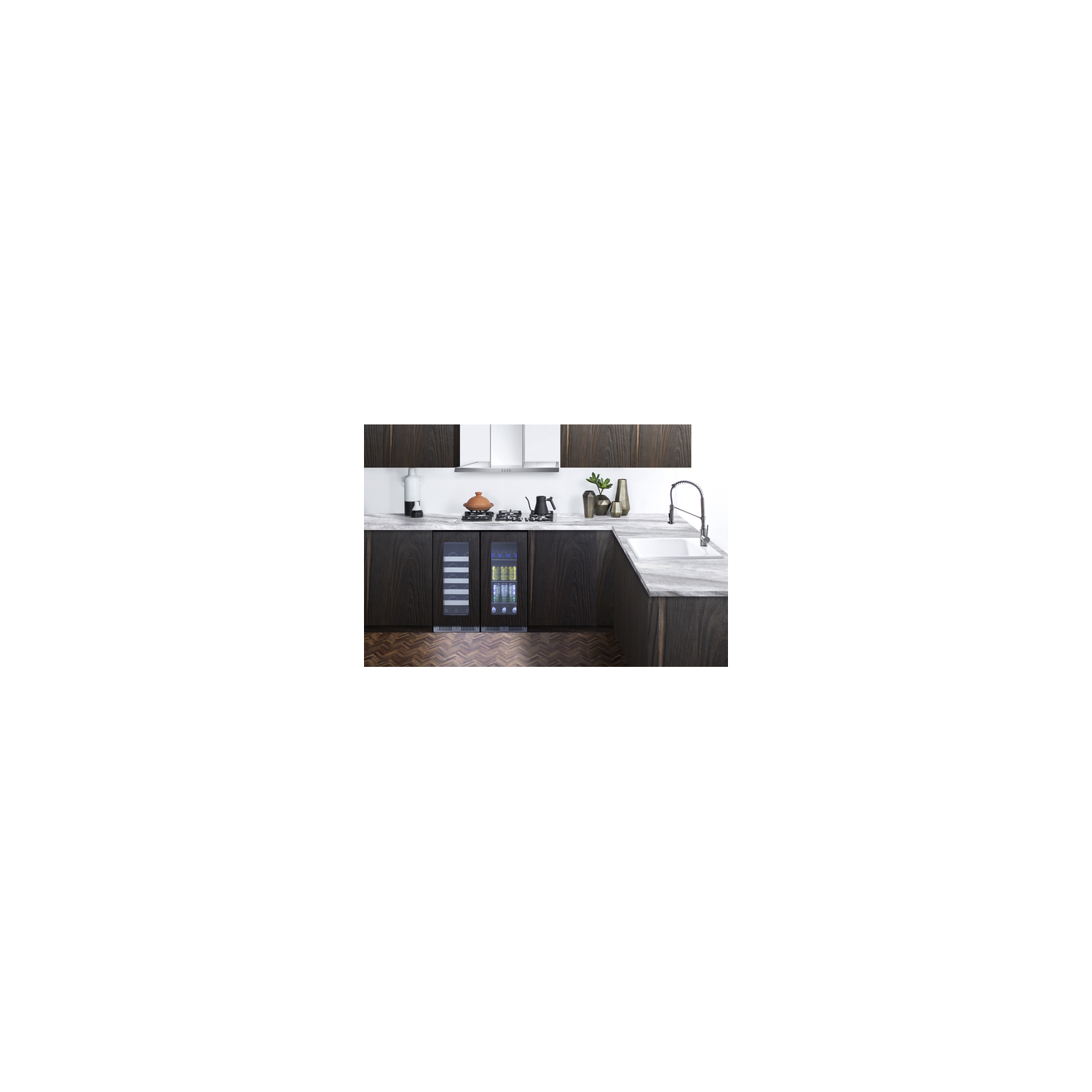

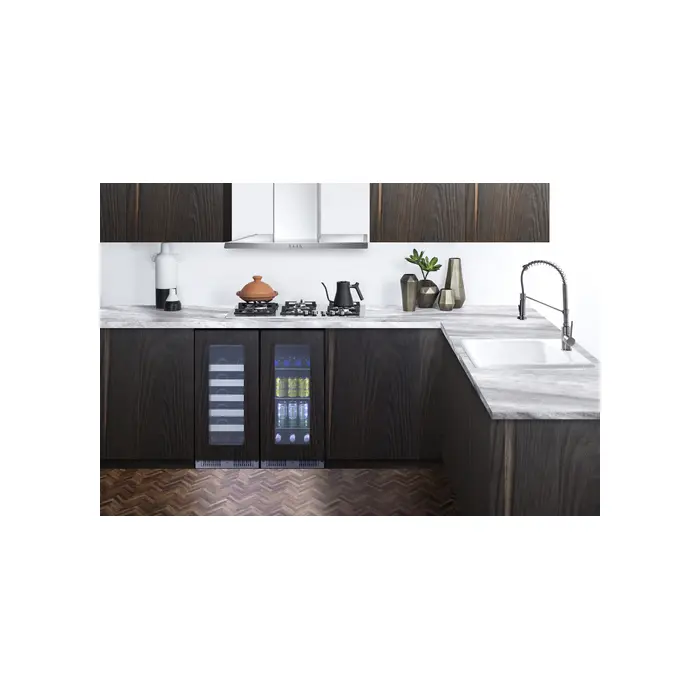

Matching sets Universal collection design allows you to pair this unit with our 24" wide deluxe wine cellar, model CL244WC2PNR, or our 15" wide wine cellar, model CL155WC1PNR, depending on your needs

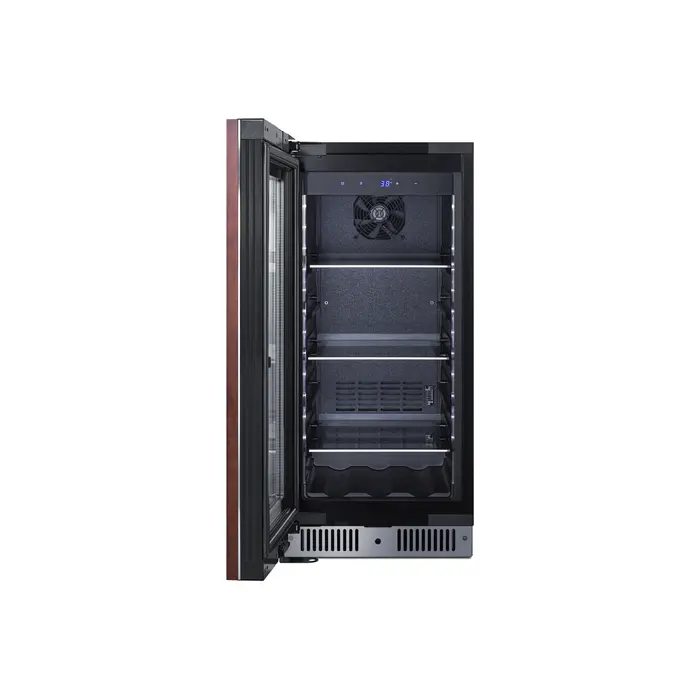

Adjustable glass shelves Three easy-to-clean glass shelves for flexible storage

Slotted floor Floor includes slots to hold bottles in place

Automatic defrost No-frost operation for minimum user maintenance

Internal fan Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Digital thermostat Easy-to-use digital controls for precise temperature management

Digital temperature display Temperature readout can be shown in Celsius or Fahrenheit

LED lighting Efficient lighting with a convenient on/off switch on the control panel

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High/low temperature alarm Temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature memory function Unit will retain its last settings when power is restored in the event of power loss

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 96 hours

Sealed back Space-saving design with no exposed coils that offers easier cleanability

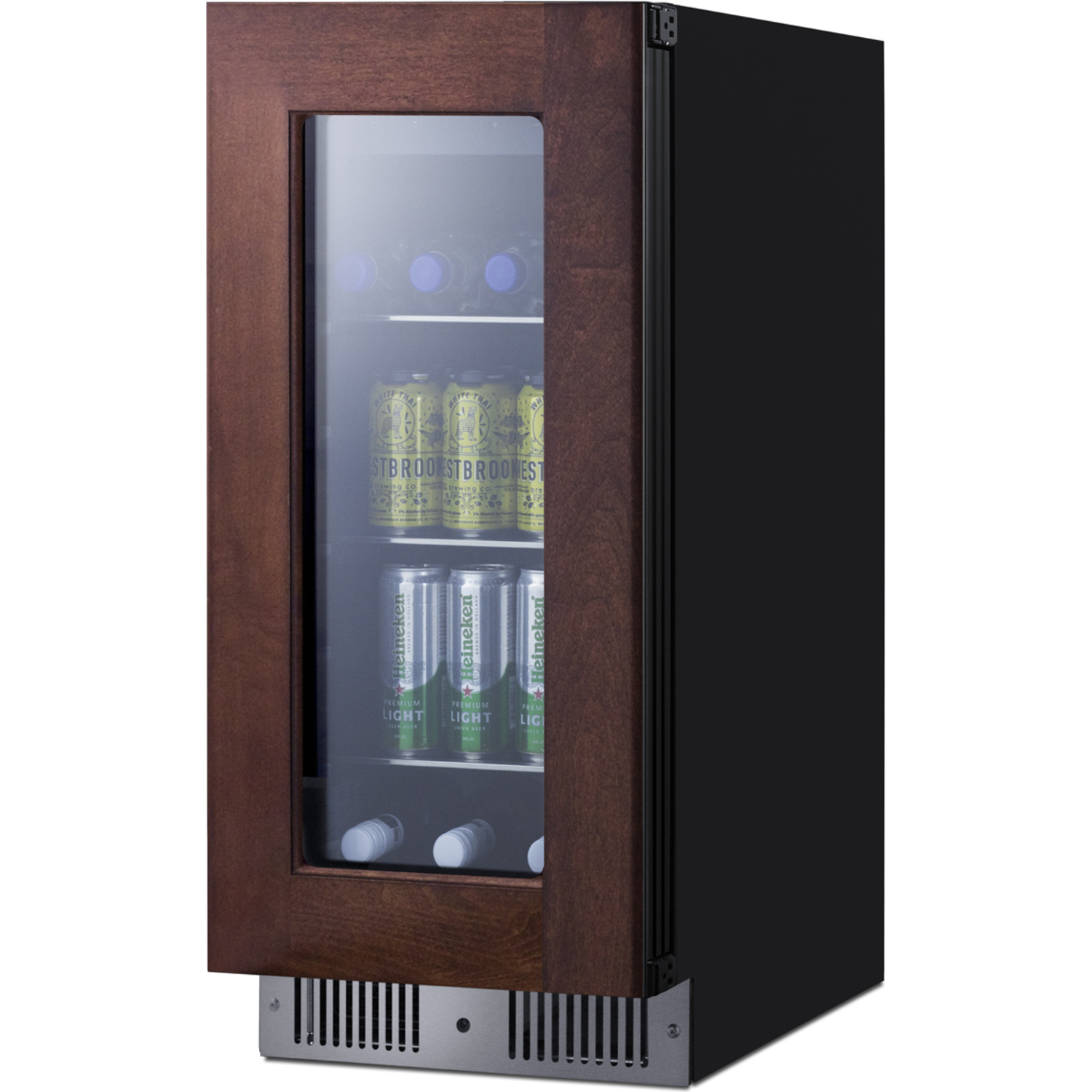

Fully finished black cabinet Allows the unit to be used freestanding

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket Bracket (included) helps prevent tipping for added safety

Reversible door User-reversible door swing for added flexibility to best accommodate your setting

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
