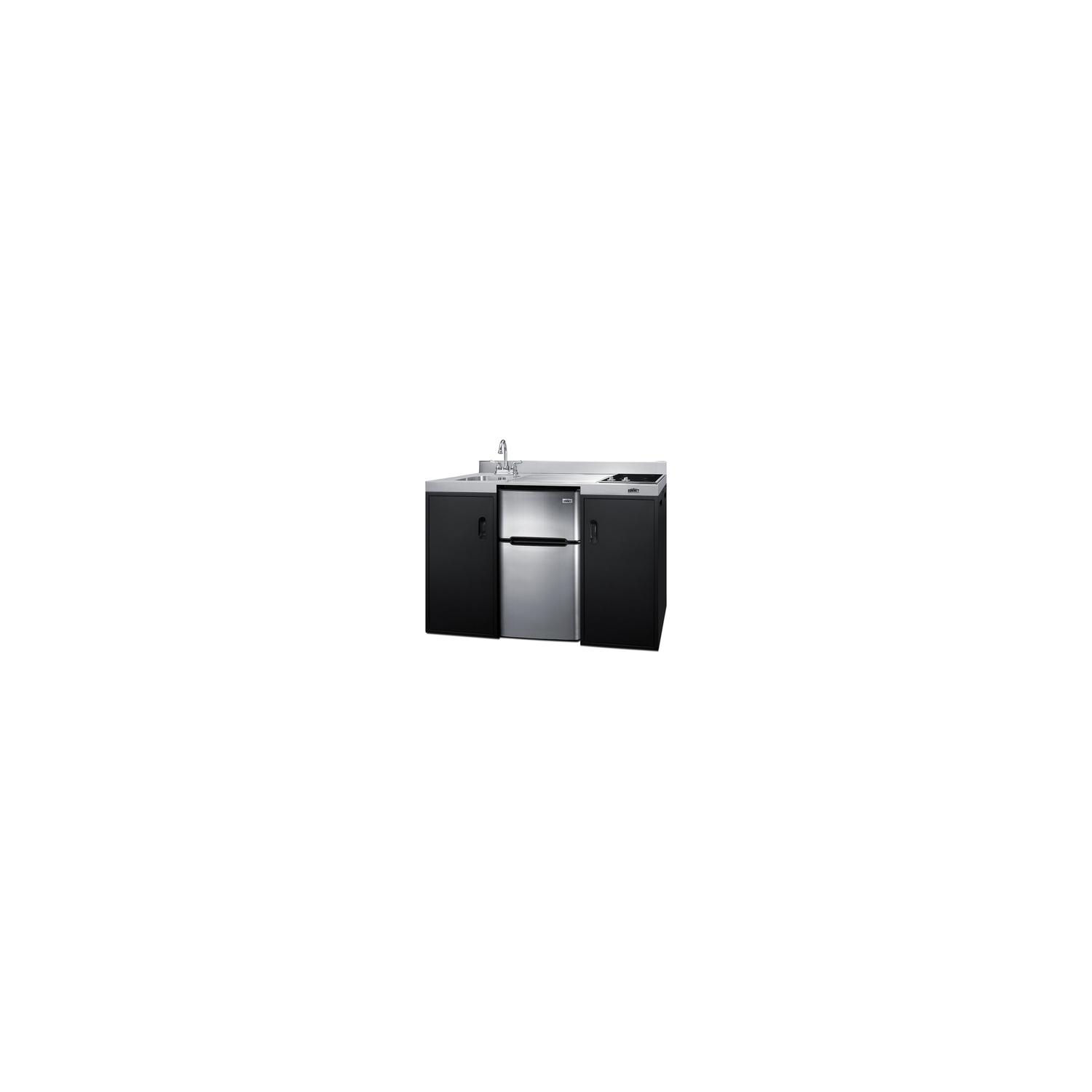

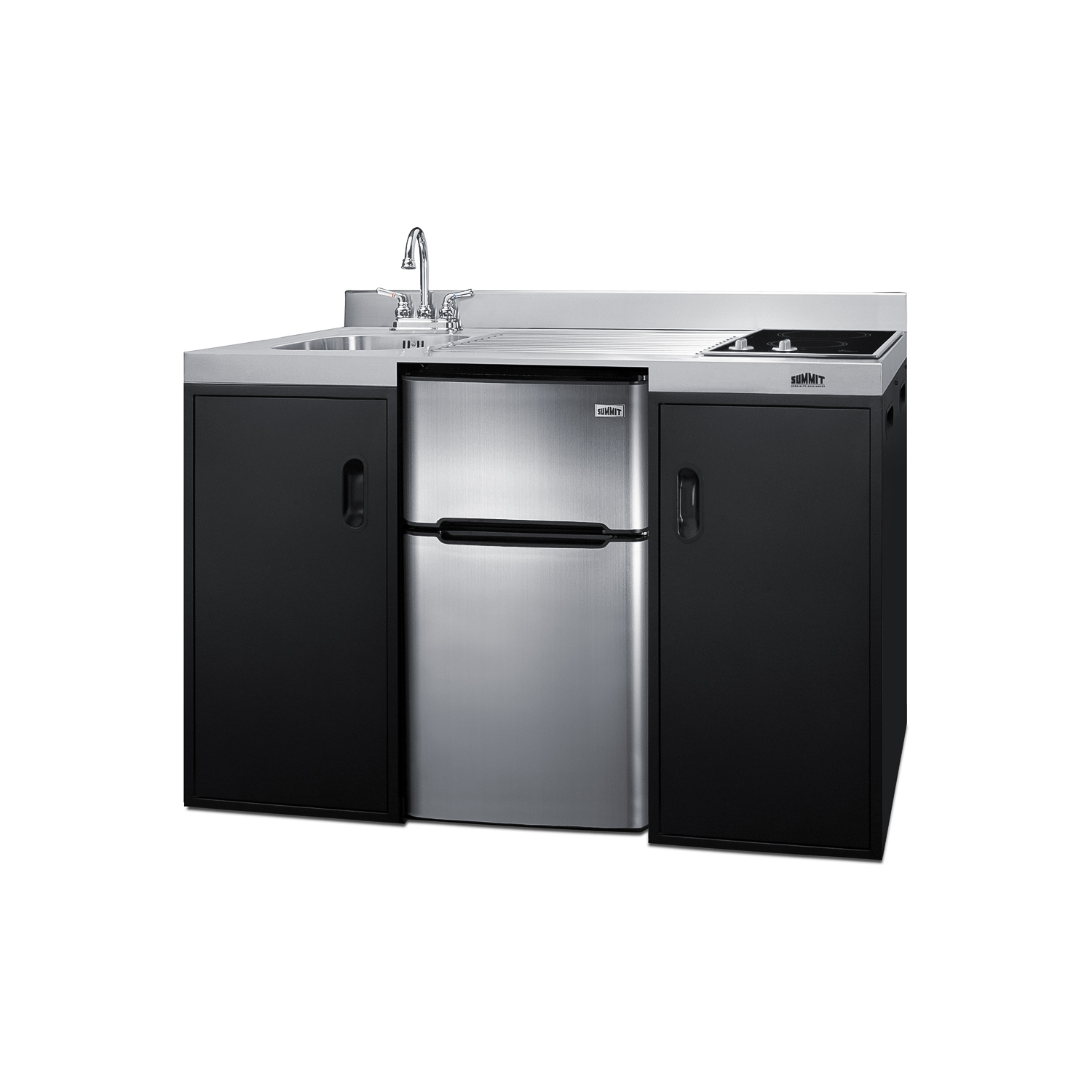

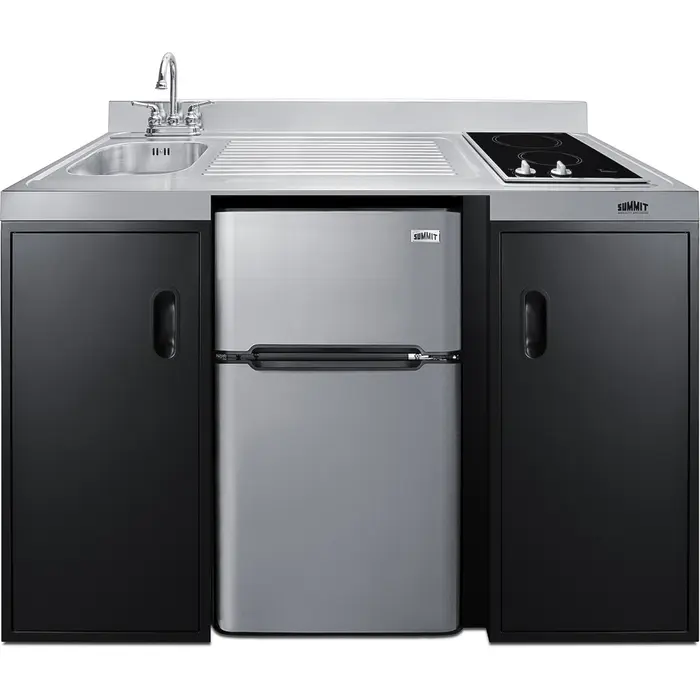

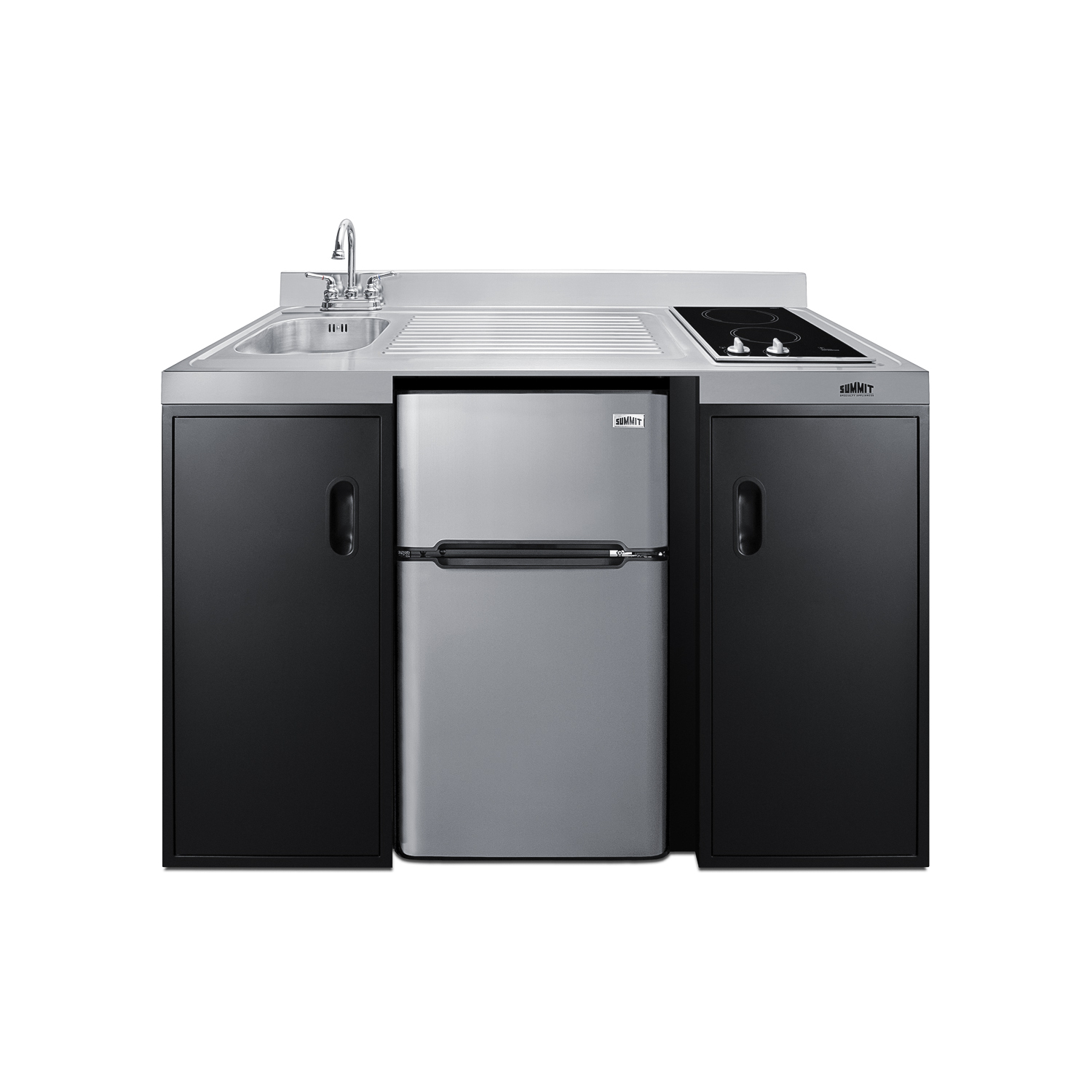

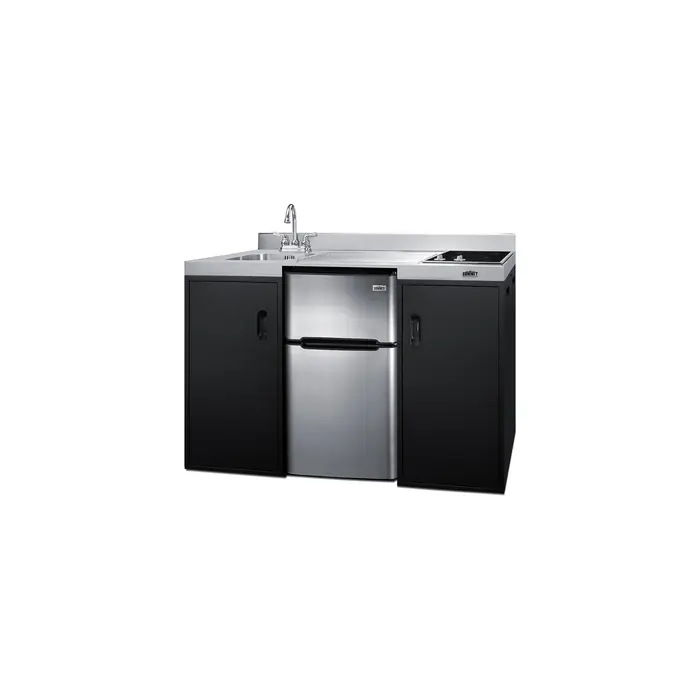

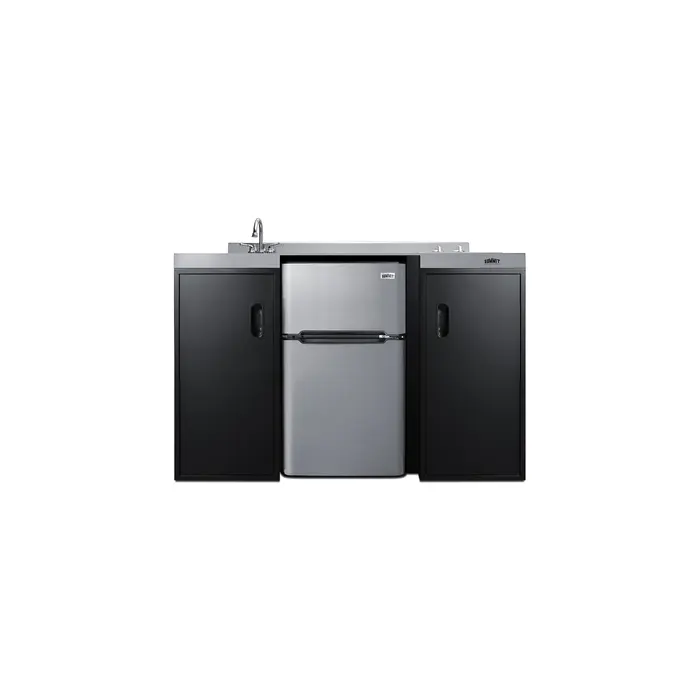

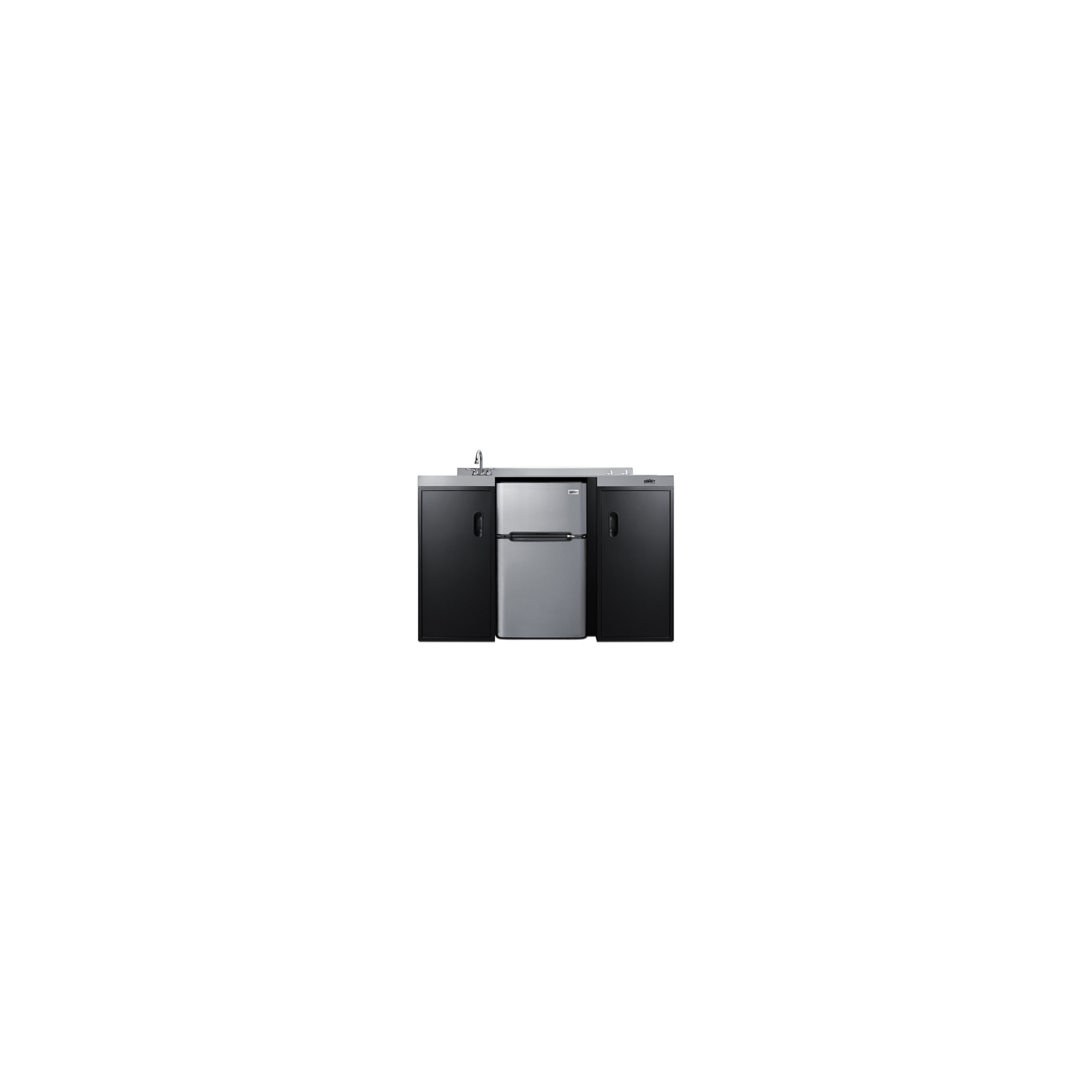

Summit 54 inch wide ADA height all-in-one kitchenette with 2-burner 115V smooth-top cooktop, refrigerator-freezer, sink on left side, and storage cabinet, CK55ADASINKL

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinets, and refrigerator with a freezer compartment.

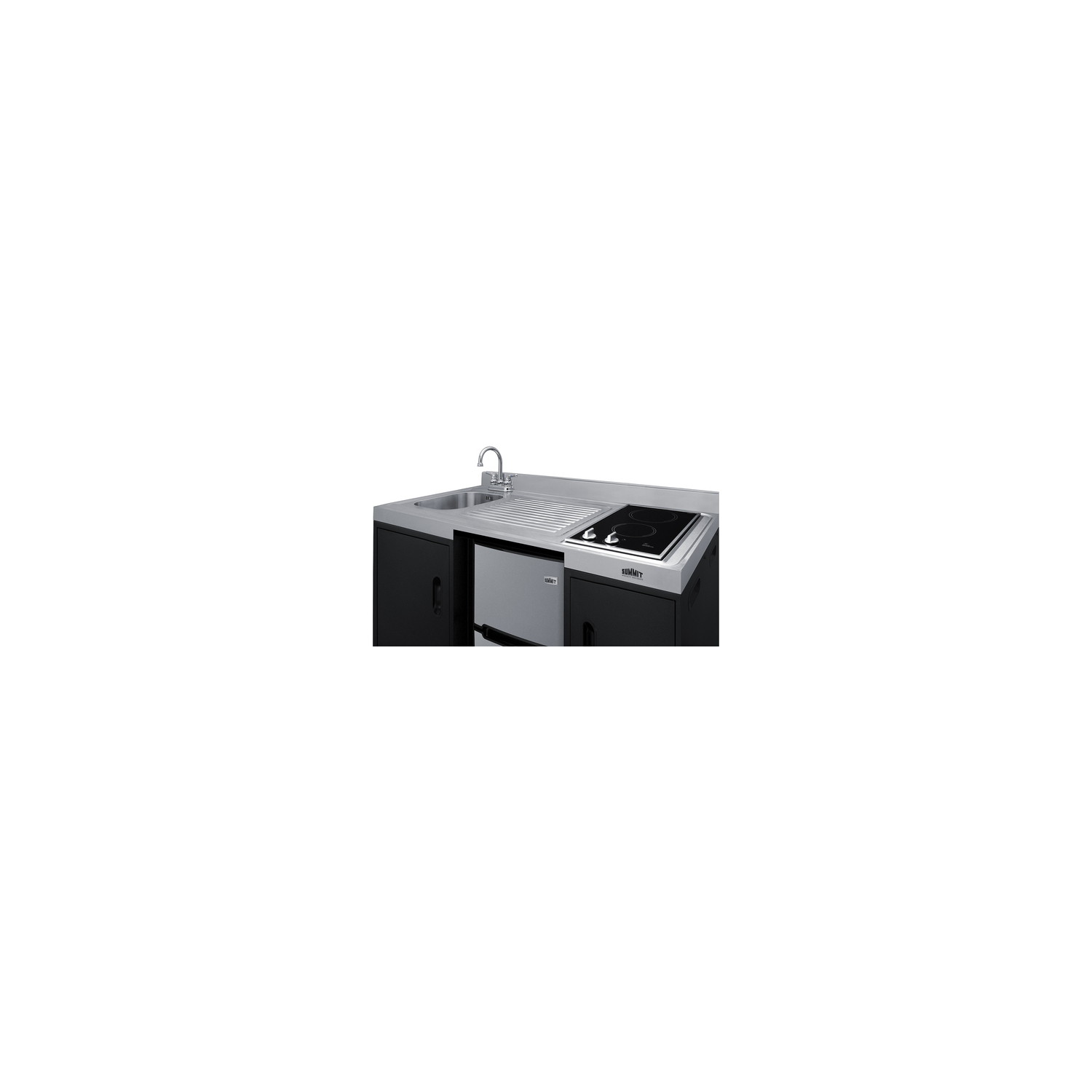

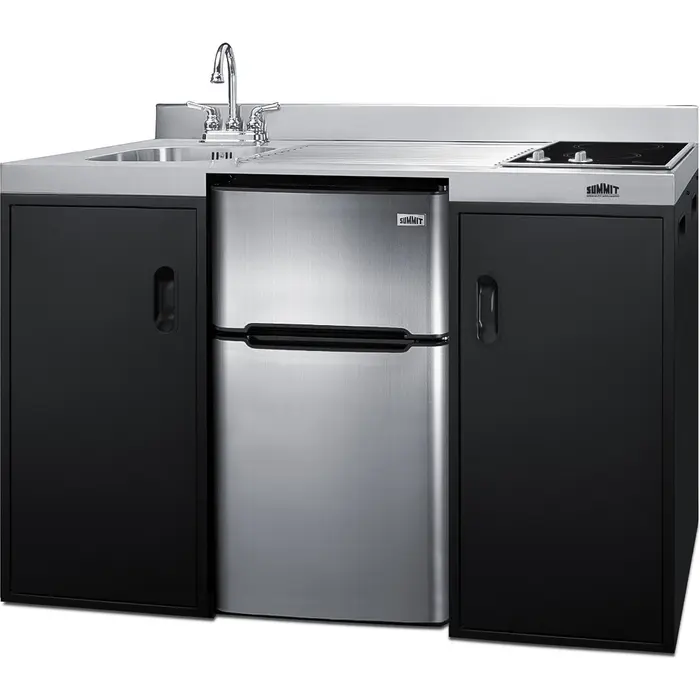

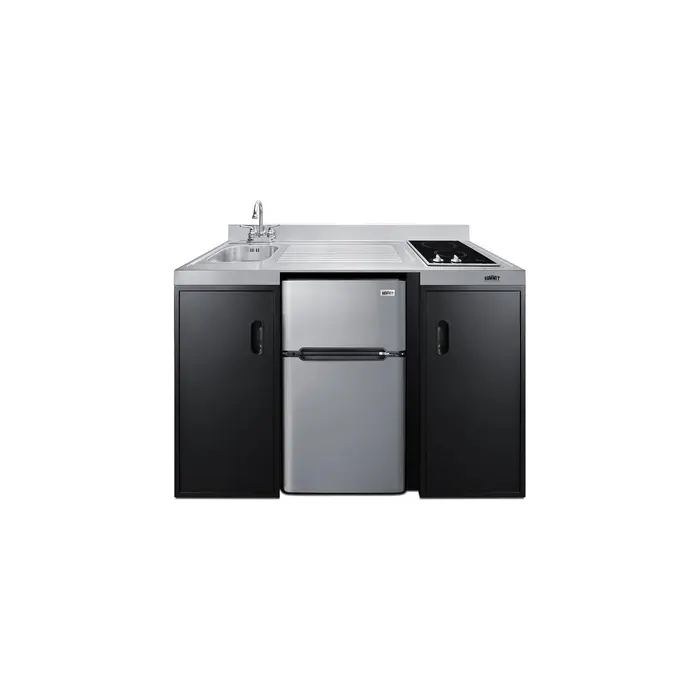

The CK55ADASINKL is 54" wide in an easy-fitting 24" depth. The counter is sized at 34" high to comply with ADA guidelines for user accessibility. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a rear 7" 900W and a front 5½" 500W heating element. The power cord comes pre-installed for easy setup. The right side of the kitchenette features a compact sink with ready-to-use faucet. A single-door cabinet under the sink includes a removable wire shelf, perfect for storing cleaning supplies, while a French-door style cabinet under the work surface has a solid removable shelf, ideal for dry storage. Two grooved handles on each side allow for easy movement of the unit.

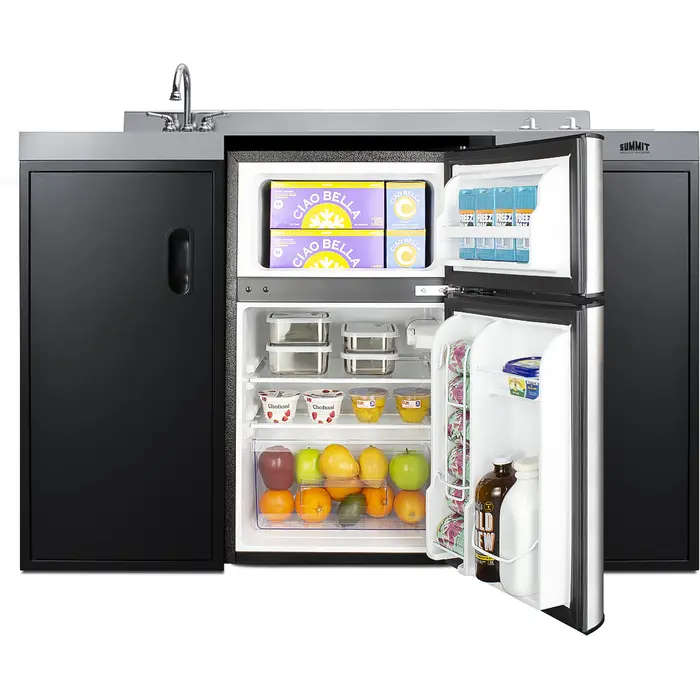

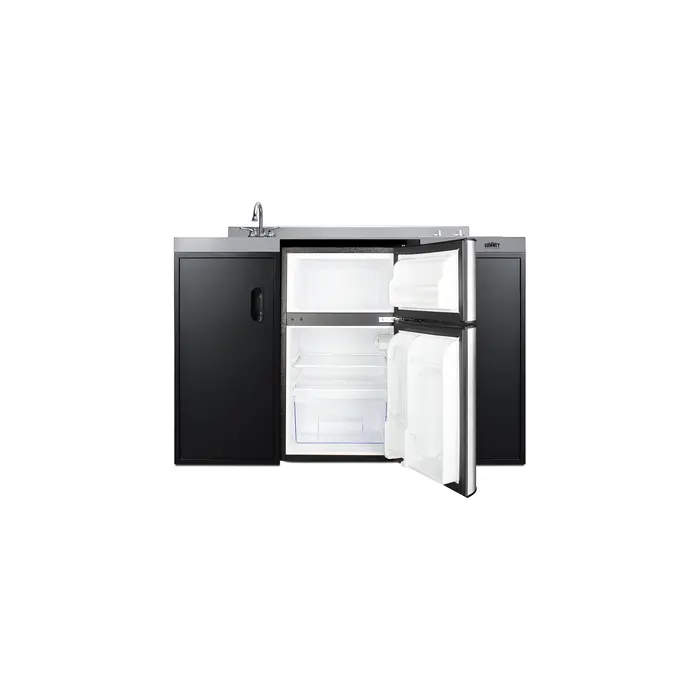

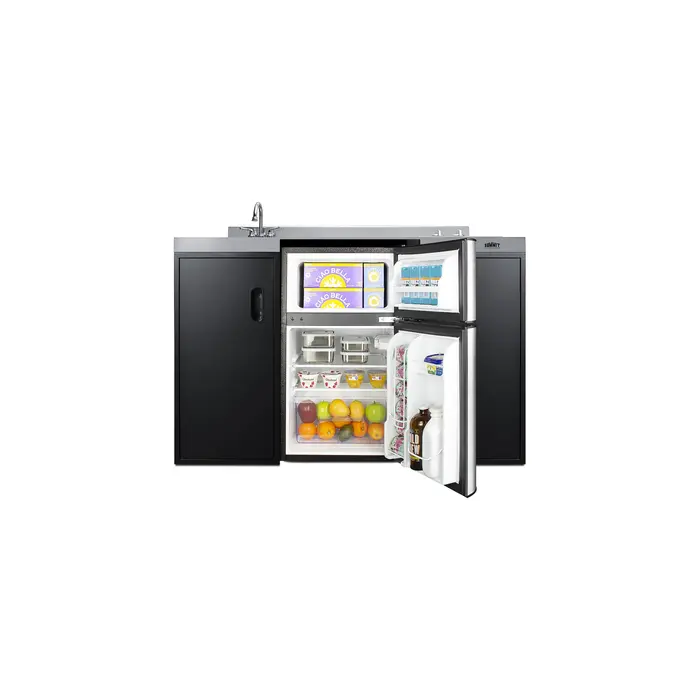

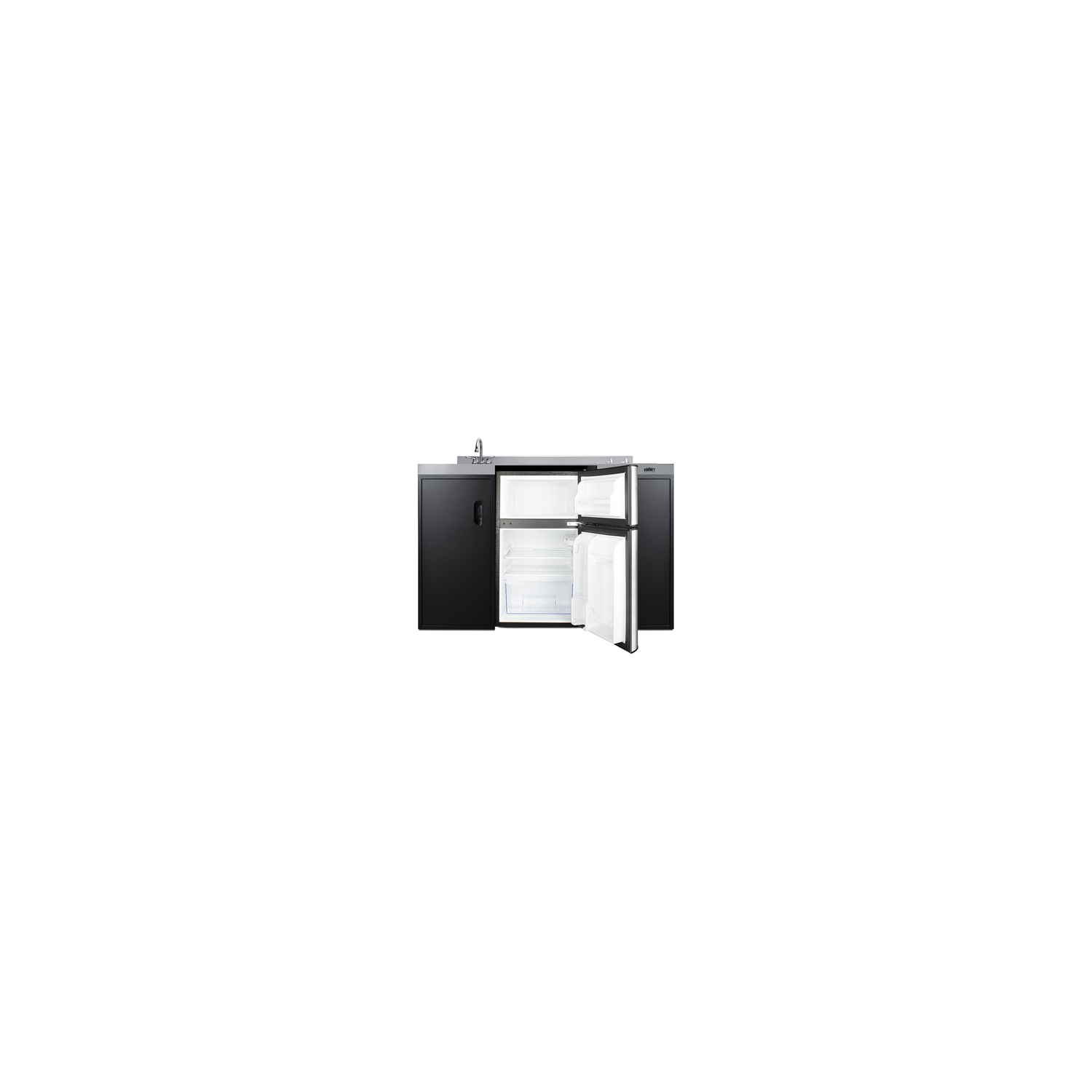

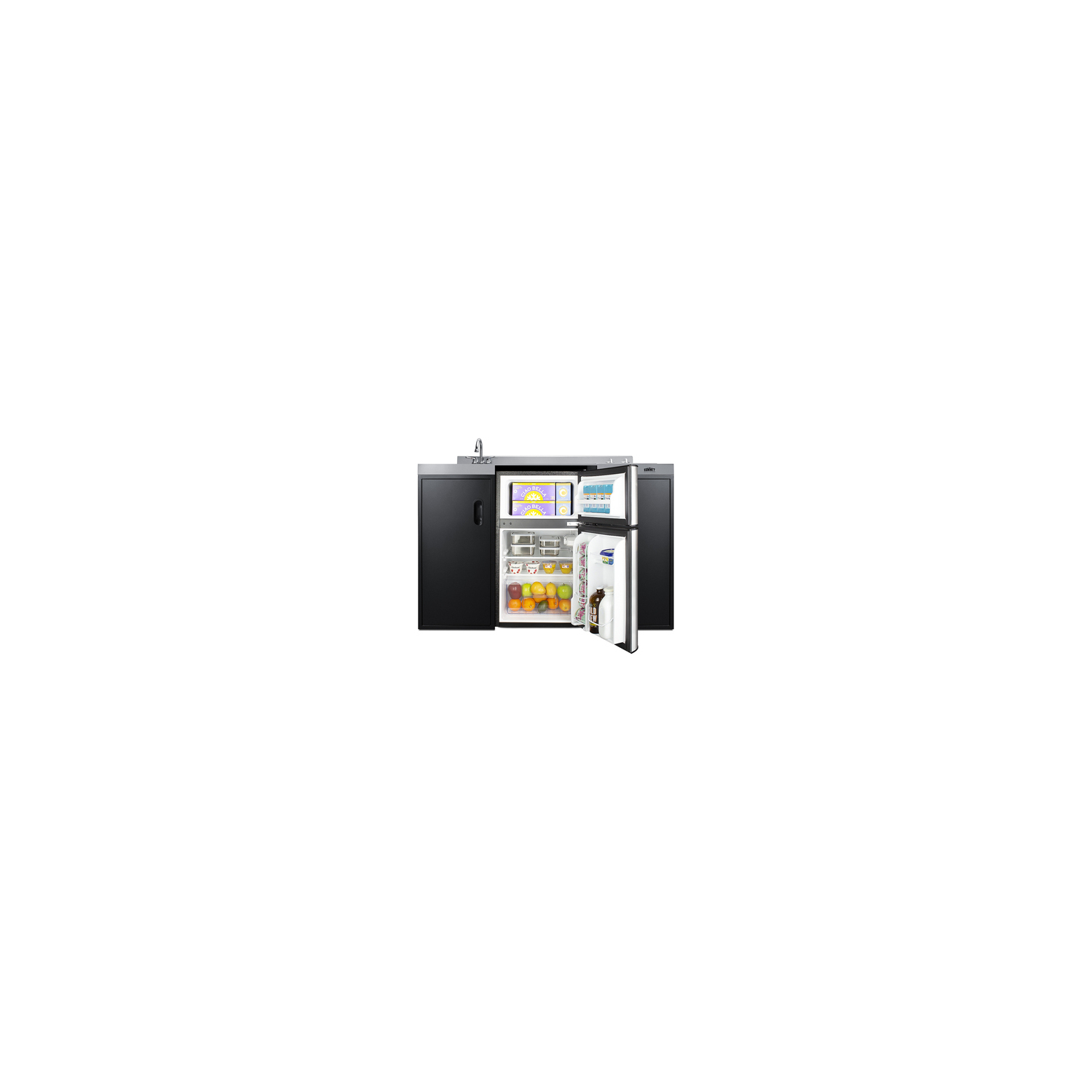

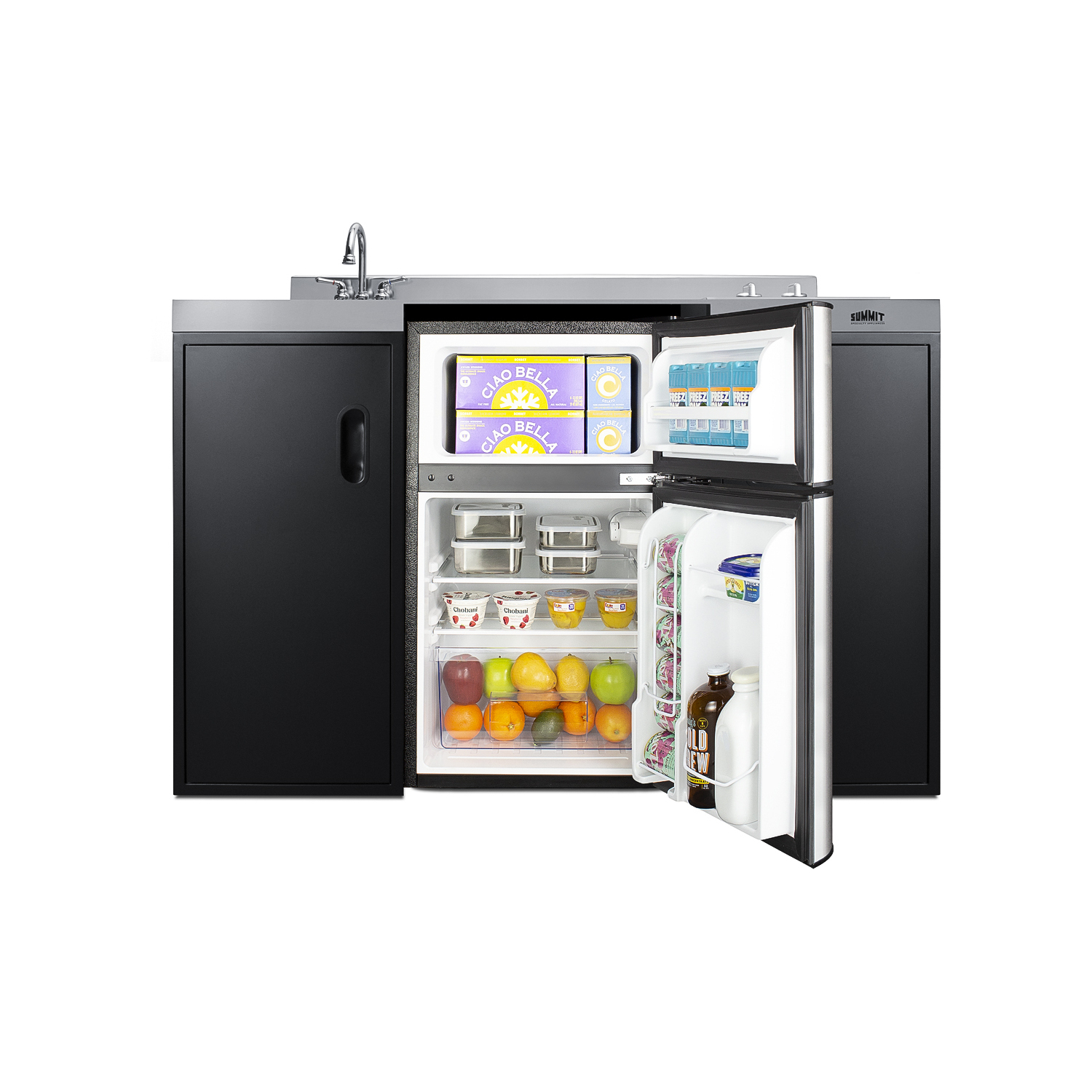

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK55ADASINKL includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.

The CK55ADASINKL is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of low maintenance, fully-featured compact kitchenette. For this unit with a sink located on the right of the kitchenette, see the CK55ADASINKR. Additional styles are available in a range of choices, as well as storage accessories including matching wall cabinets and appliance shelves.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 55.0" (140 cm)

Width 54.13" (137 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Depth with door at 90° 39.13" (99 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Black/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 322.0kWh/year

Other Energy Info Cooktop is 20 Amps; Refrigerator-Freezer is 1.1 Amps

Amps 21.1

Voltage/Frequency 115 V AC/60 Hz

Weight 145.0 lbs. (66 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101089096

Kitchenette

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Smooth-Top Cooktop

Number of Burners 2

Cooktop Controls Dial

Interior Height 1 18.5" (47 cm)

Interior Width 1 15.75" (40 cm)

Interior Depth 1 15.0" (38 cm)

Interior Height 2 7.5" (19 cm)

Interior Width 2 14.0" (36 cm)

Interior Depth 2 14.0" (36 cm)

Sink Height 4.0" (10 cm)

Sink Width 11.0" (28 cm)

Sink Depth 13.0" (33 cm)

FEATURES

Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation

ADA counter height 34" counter height helps to comply with the guidelines set by the Americans with Disabilities Act (ADA) for improved accessibility

2-door refrigerator-freezer included CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Sink and faucet Stainless steel sink with ready-to-use gooseneck faucet included

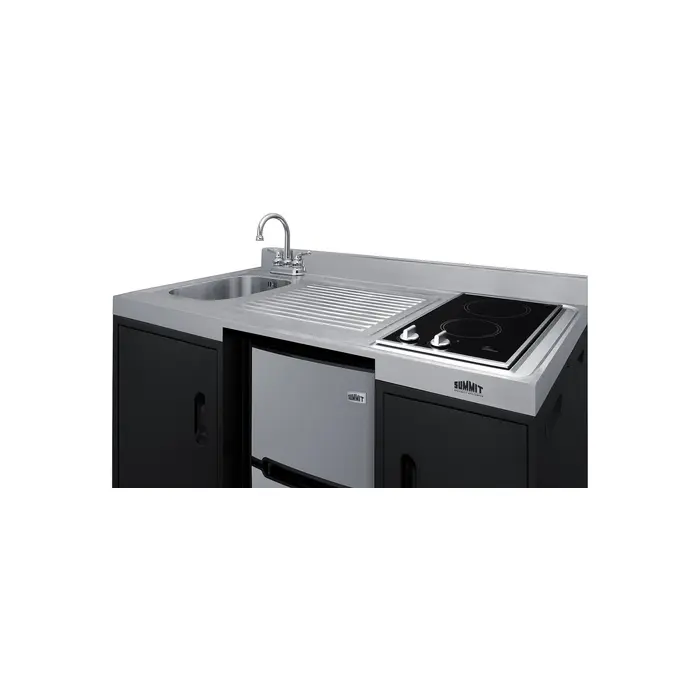

2-burner smooth-top cooktop Includes a 5½" 500W front element and a 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

115V operation with pre-installed cords Both the cooktop (20amps) and refrigerator (1.1amps) include 3-pronged cords for easy setup

ADA compliant cooking Cooktop features upfront knobs to comply with ADA guidelines

Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights Operating indicators light up to show which burner is in use

Black and stainless steel exterior finish Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors

One piece stainless steel countertop Easy-to-clean surface with a professional look

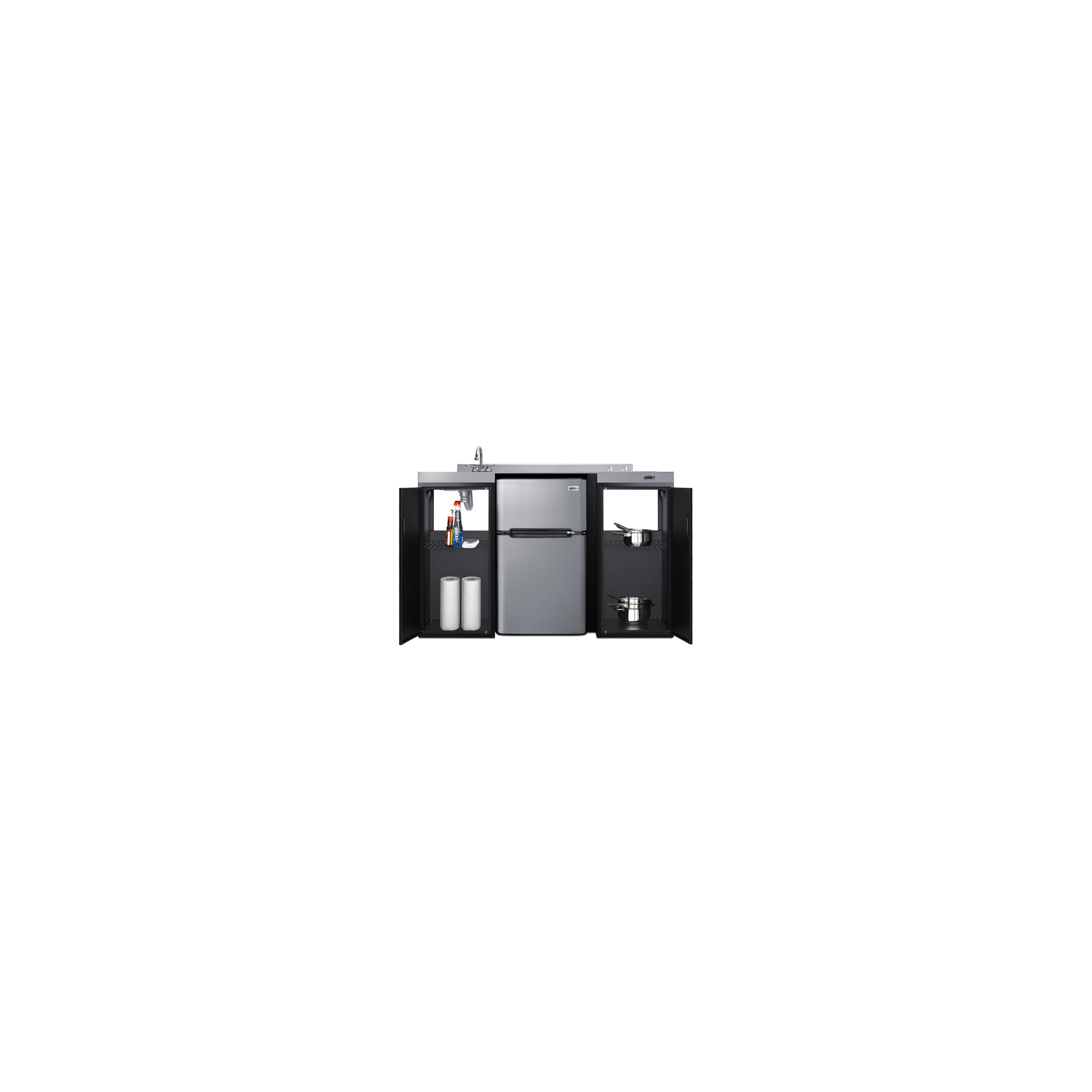

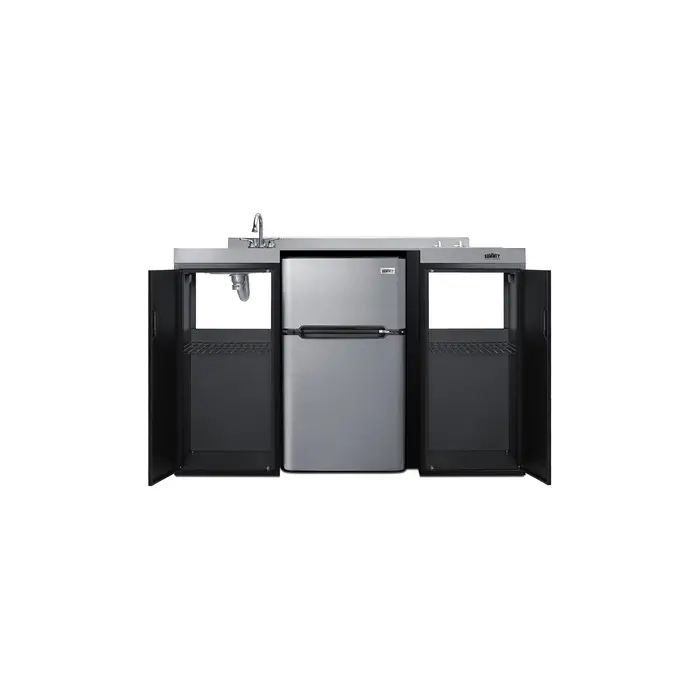

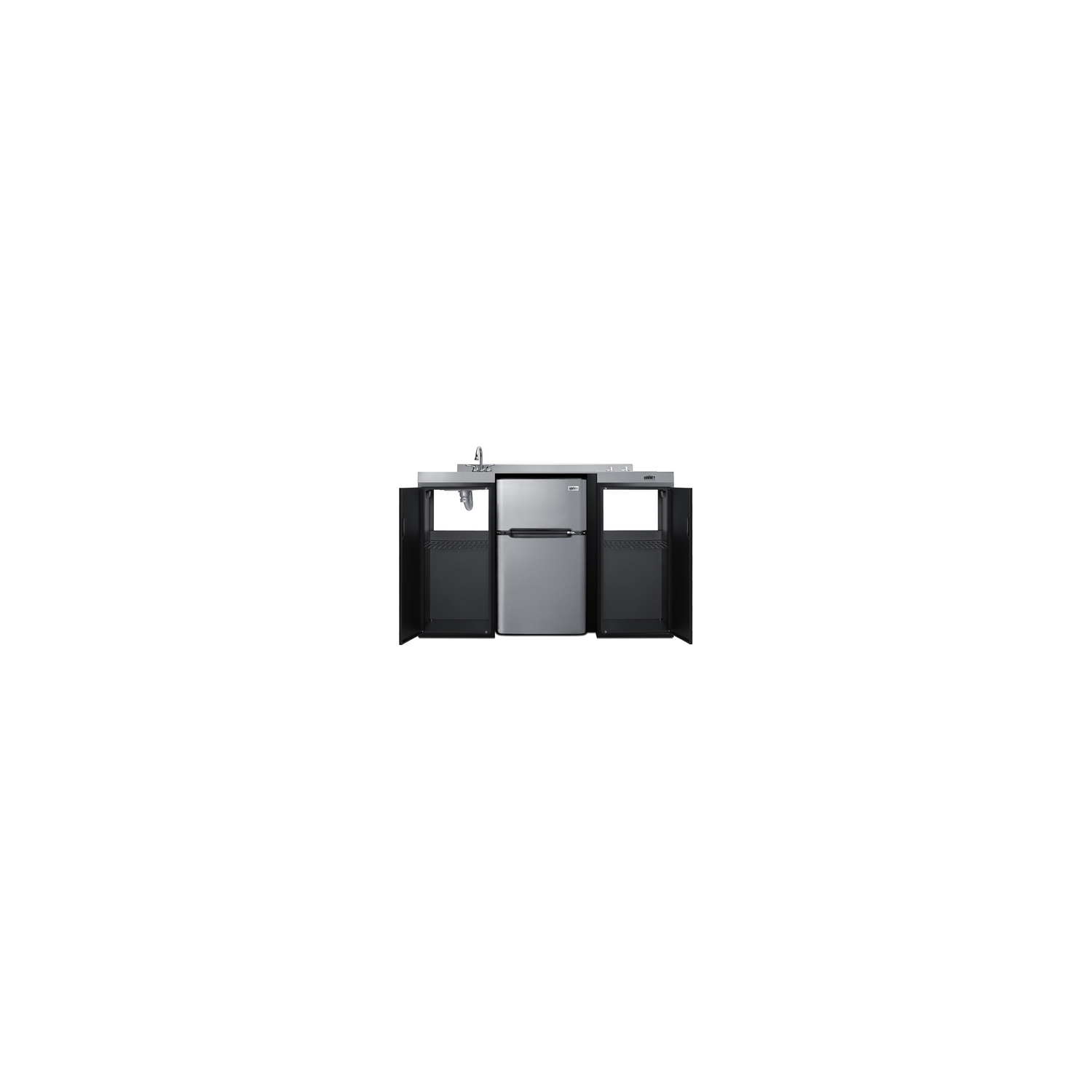

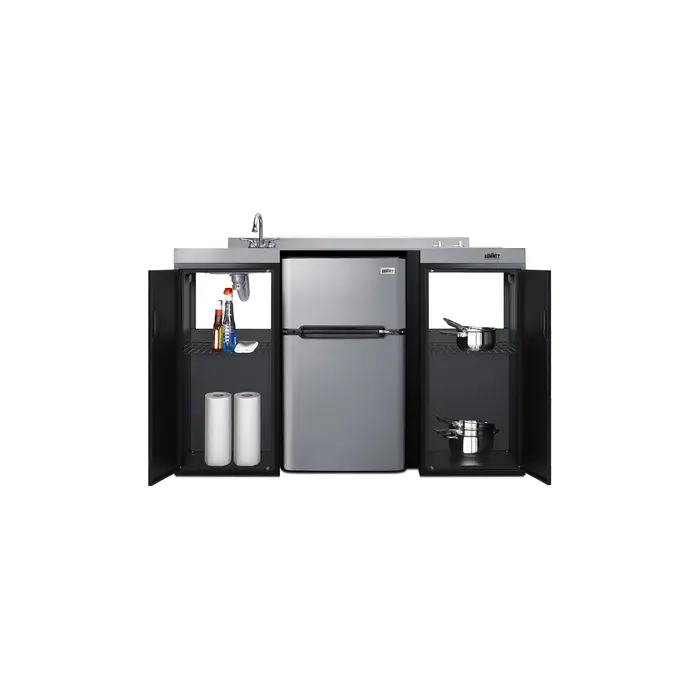

Storage compartments Single and double-door lower cabinet storage compartments with removable shelves provide ample storage capacity for cleaning supplies, dry goods, and similar contents

Ships fully assembled in one box Kitchenette is shipped in one piece, with reinforced packaging for added protection

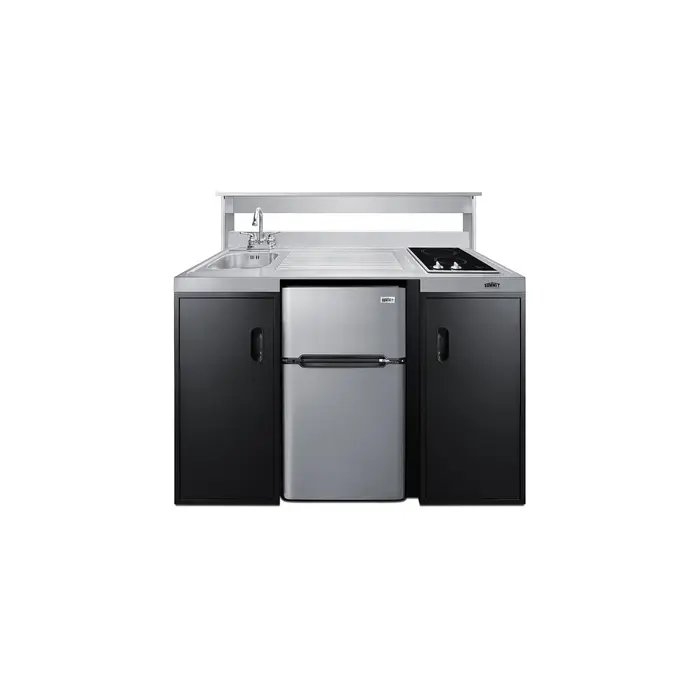

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible doors User-reversible door swings on the refrigerator-freezer for added flexibility

Grooved handles Side indents afford easy movement of the unit for added portability

Additional choices For this unit with a sink on the right of the kitchenette, see the CK55ADASINKR. Also, additional models are available in a variety of widths and finishes. Visit summitappliance.com to view the entire line

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (CK55ADASINKL.pdf)

TECHNICAL DRAWING (.dwg) (CK55ADASINKL.dwg)

ASSEMBLY DRAWING (CK55ADASINKL-Assembly.pdf)

REVIT MODEL (QF_Summit_CK55ADASINKL_Kitchenette.rfa)

USE & CARE (CK55ADASINKL-User-Manual.pdf)

USE & CARE (CK55ADASINKL-User-Manual_2.pdf)

ENERGY GUIDES (EnergyGuide-CP34BSS.pdf)

Energy Guide
