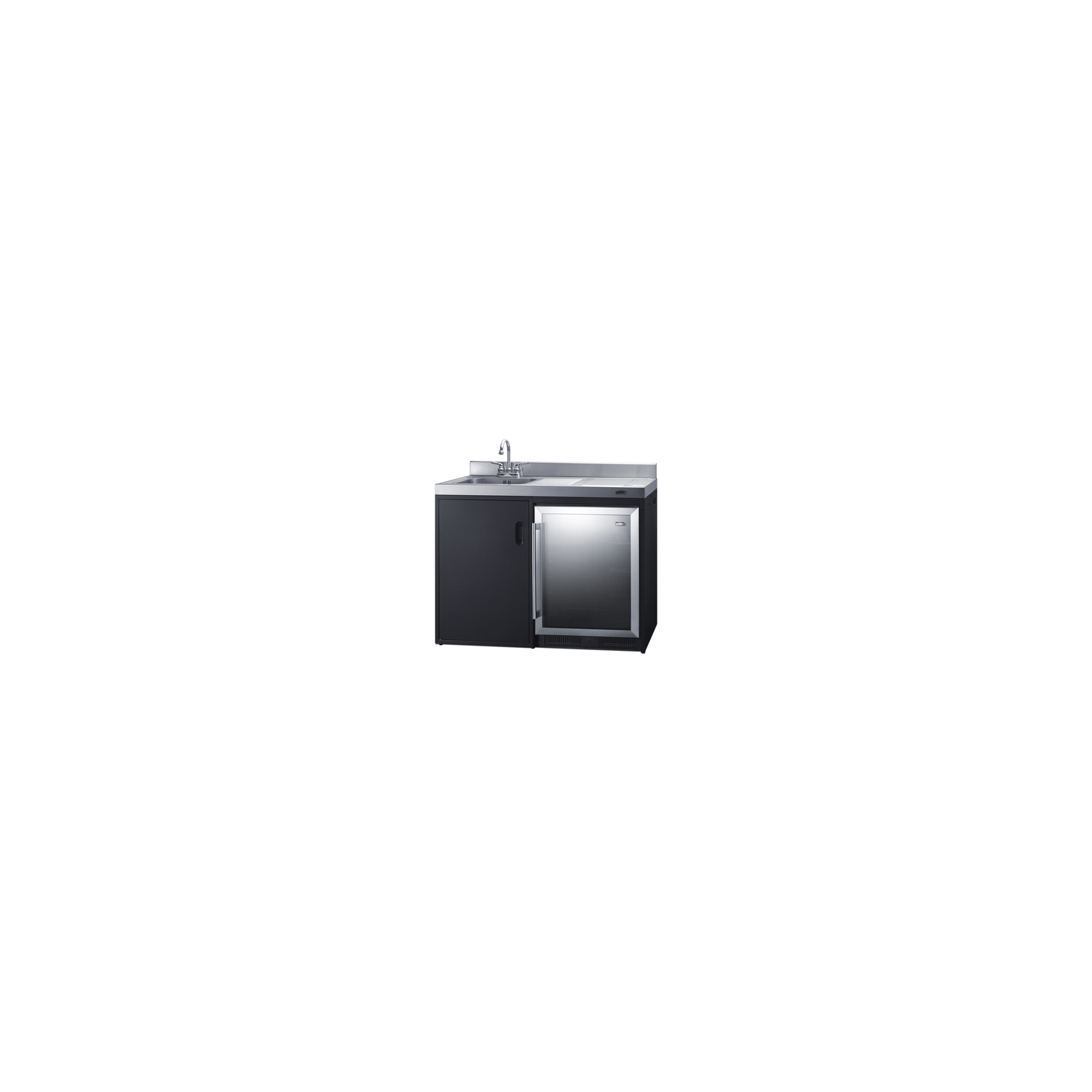

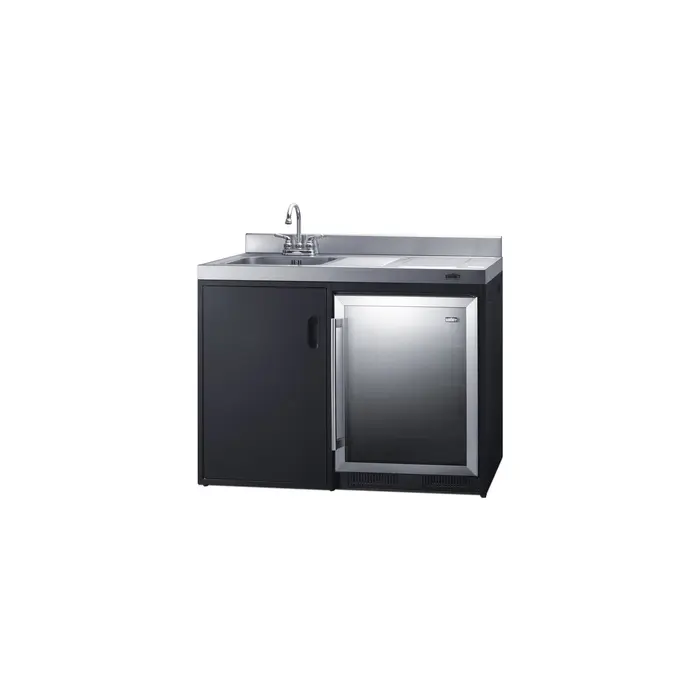

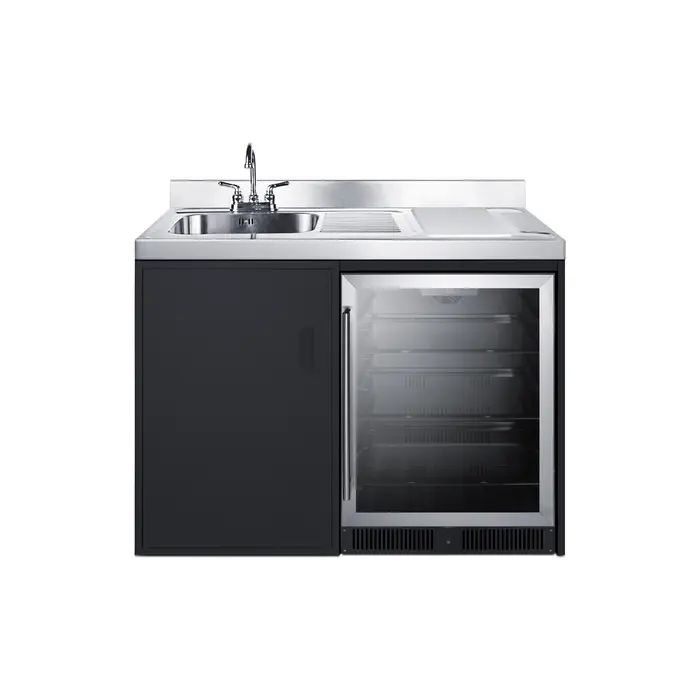

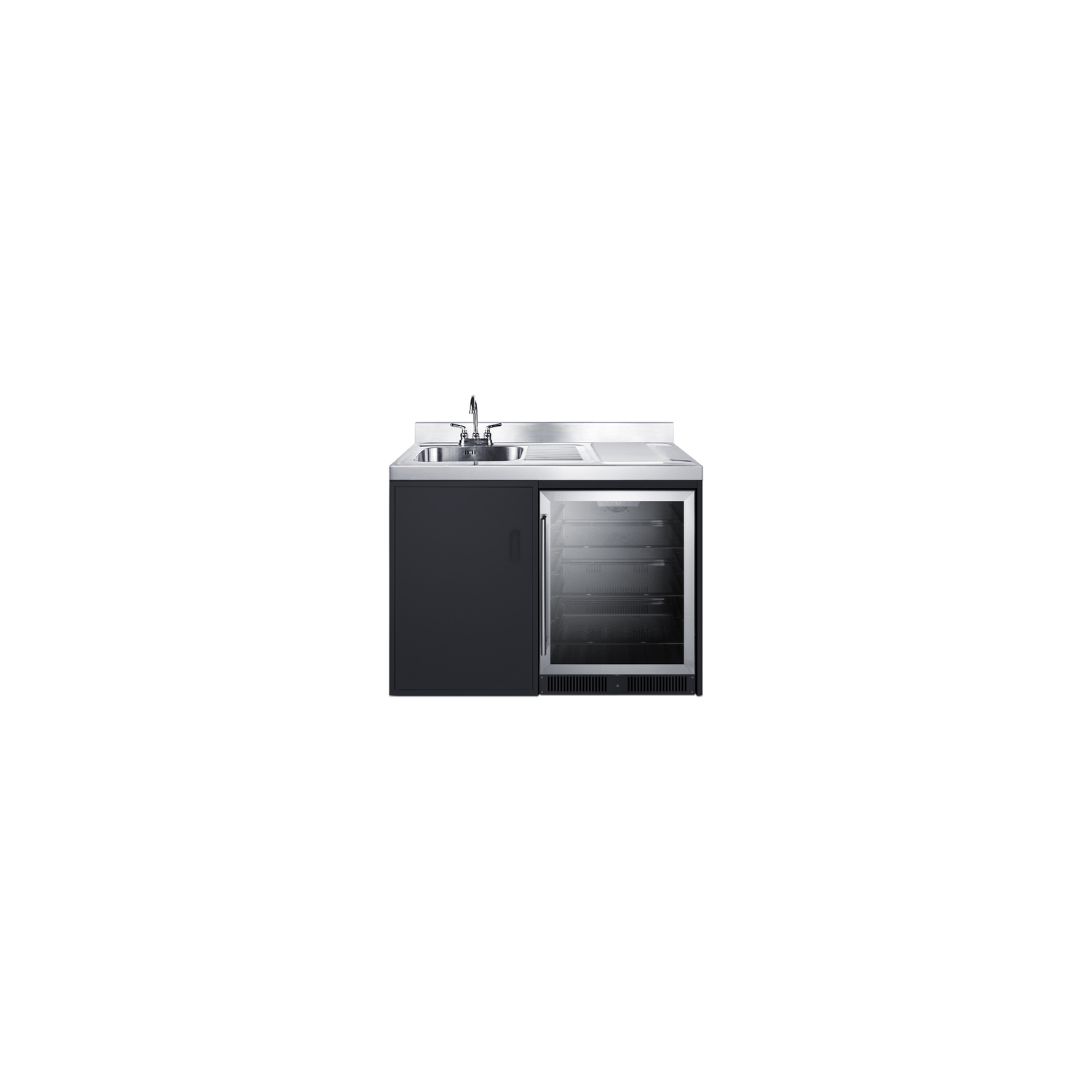

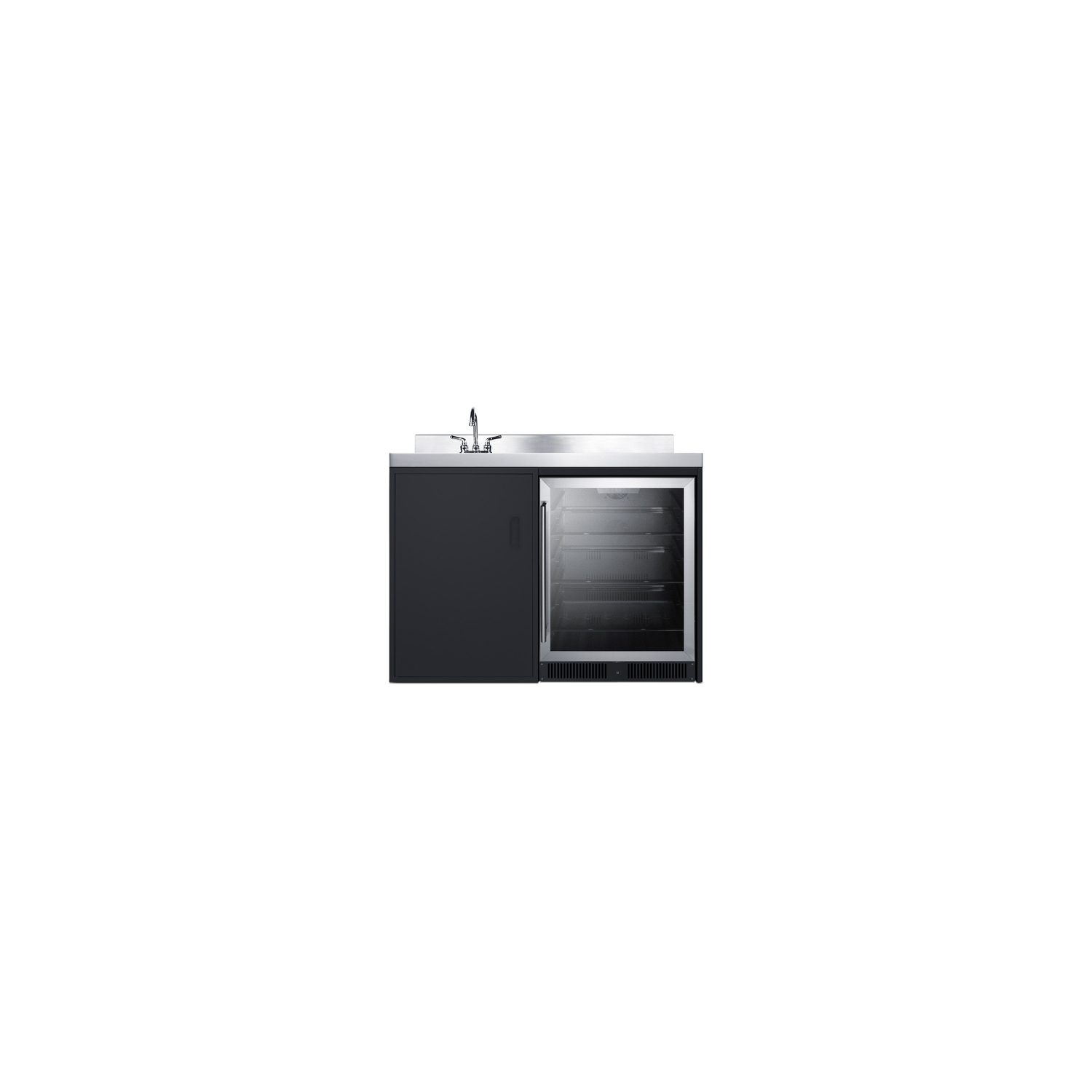

Summit 48 inch wide kitchenette with beverage center (no cooking), CK48NCSINKL

Summit brings true convenience to commercial and hospitality spaces with all-in-one kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for elevated entertainment, including a full sink complete with faucet, a frost-free beverage center, and stainless steel construction.

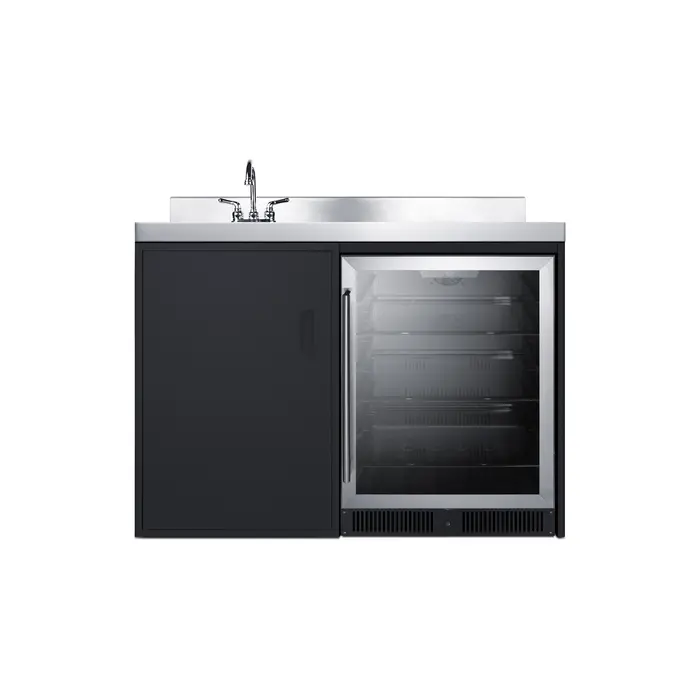

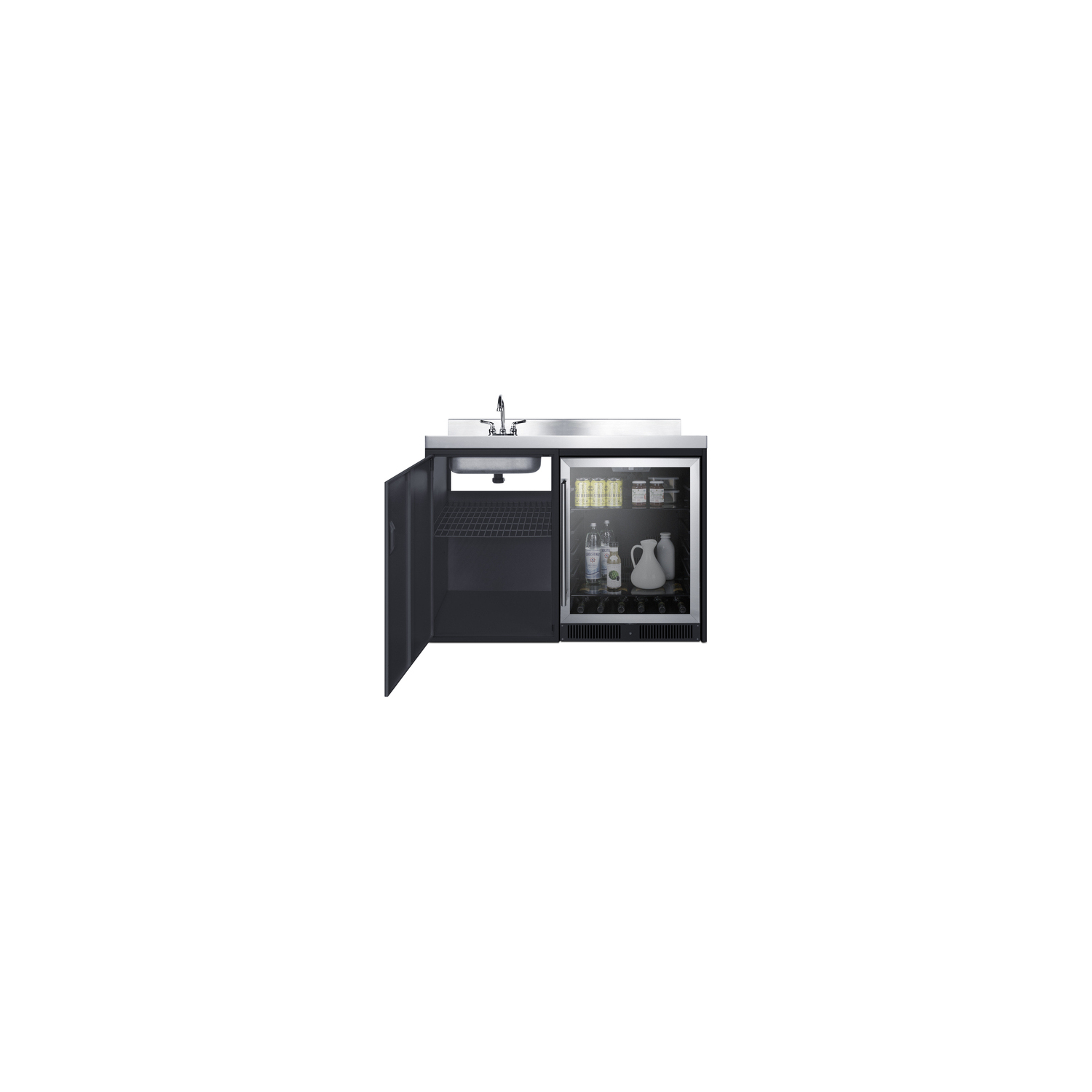

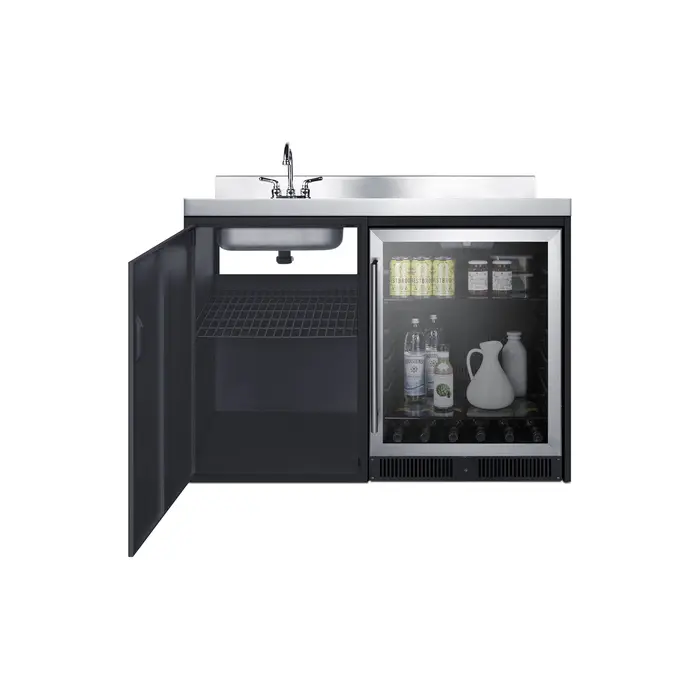

The CK48NCSINKL is one of our deluxe combination kitchens in a full 48" width. At 24" deep, it is ideal for rental properties, office break rooms, hotels, and commercial settings with limited space. It comes in a jet black finish with a stainless steel work surface for durable, professional use. The left side of the kitchenette features a compact sink with ready-to-use faucet and a large storage cabinet below. We include our popular frost-free commercial grade beverage center (model AL57G) with 5 cu.ft. of storage capacity. This premium refrigerator features double-pane tempered glass door and stainless steel handle that completes the elevated look. The kickplate includes a factory-installed lock for optional security.

Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

Model CK48NCSINKL is shipped fully assembled in one box. Setup involves unpacking the unit and setting it into place. Then plug the beverage center into a standard 115V outlet, have a plumber connect your sink to a water line, and enjoy full kitchen prep functionality.

For this unit with a sink on the right side, see model CK48NCSINKR. In addition to this model, Summit also manufactures kitchenettes with full cooking capabilities, portable weatherproof bars for outdoor entertaining, and a full assortment of hardwood wet and dry bars from our Turnkey collection.

Browse the full Summit product line to discover the perfect solution for your commercial space.

SPECIFICATIONS

Overview

Height of Cabinet 36.0" (91 cm)

Width 47.25" (120 cm)

Depth 23.75" (60 cm)

Depth with door at 90° 46.25" (117 cm)

Capacity 5.0 cu.ft. (142 L)

Defrost Type Frost-Free

Door Black/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 205.0 lbs. (93 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101149585

Kitchenette

Refrigerator Included AL57G

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 3

Crisper Cover Glass

Thermostat Type Digital

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 270.0

Low Side PSI 105.0

Temperature Range 36 to 43ºF

Interior Height 1 25.0" (64 cm)

Interior Width 1 20.0" (51 cm)

Interior Depth 1 17.5" (44 cm)

Interior Height 2 31.0" (79 cm)

Interior Width 2 20.5" (52 cm)

Interior Depth 2 23.75" (60 cm)

Sink Height 8.0" (20 cm)

Sink Width 17.0" (43 cm)

Sink Depth 15.0" (38 cm)

FEATURES

48" Wide All-In-One Kitchenette All-in-one kitchen is built with virtually everything you need for elevated entertainment

Easy setup Ships fully assembled in one box. Simply plug the beverage center in, connect your sink to a water line, and start serving

Black and stainless steel exterior finish Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and glass door beverage center

One piece stainless steel countertop Easy-to-clean surface with a professional look

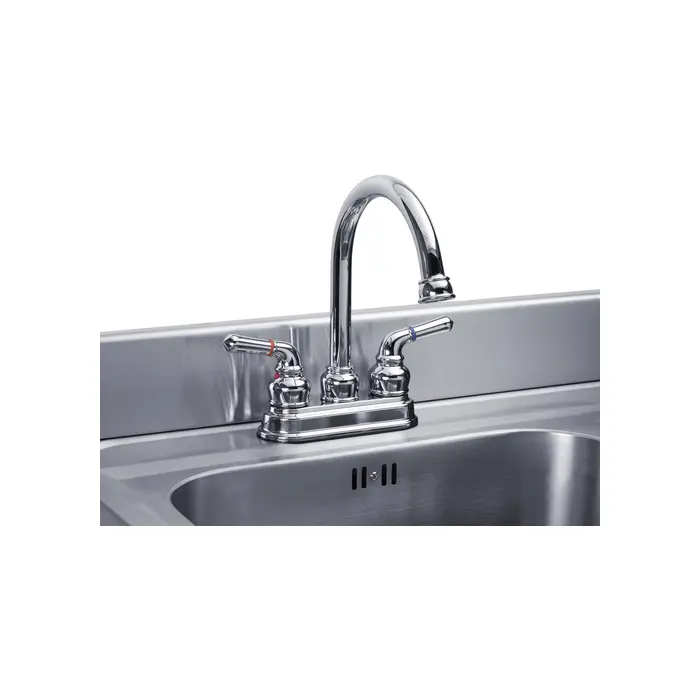

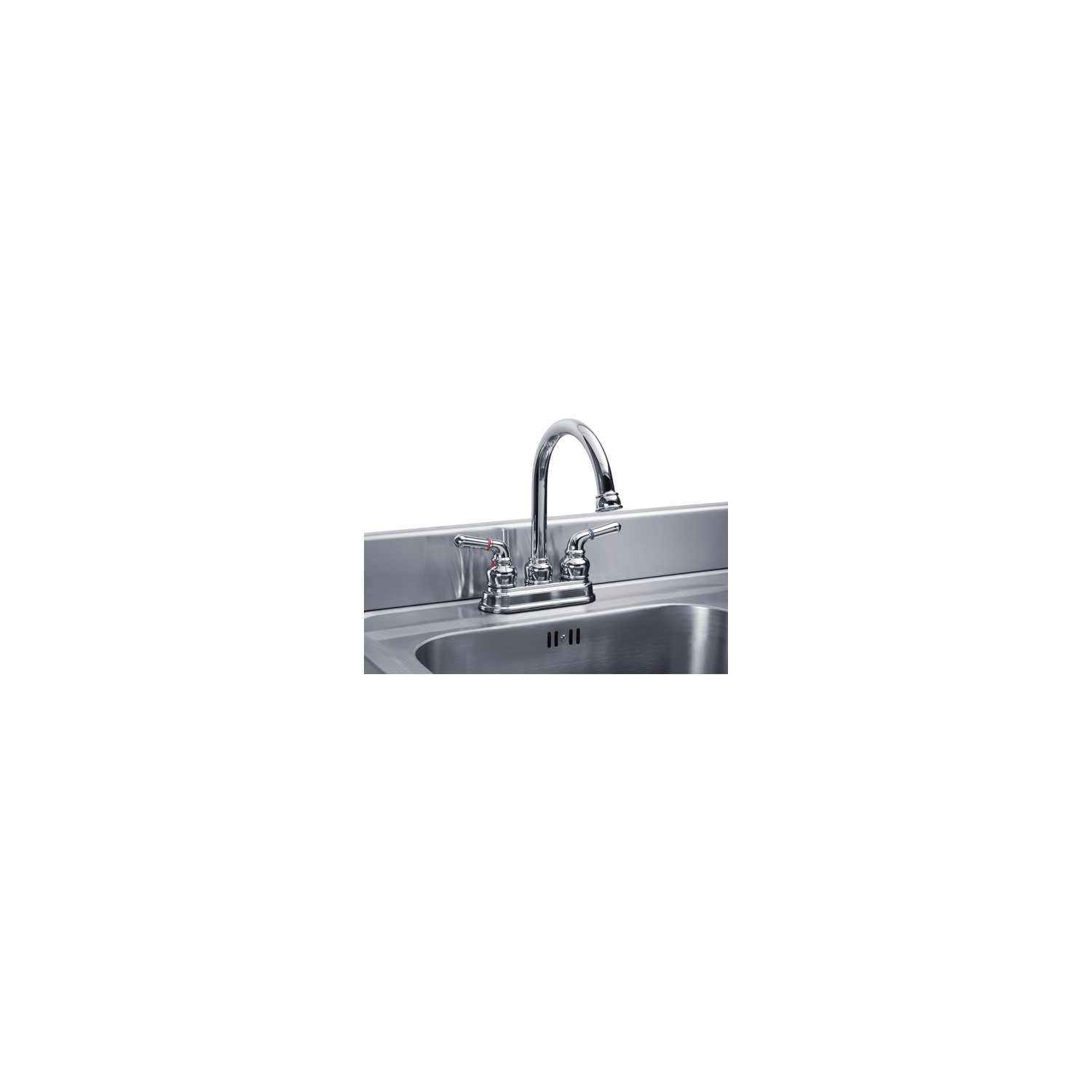

Sink and faucet Stainless steel sink with faucet included

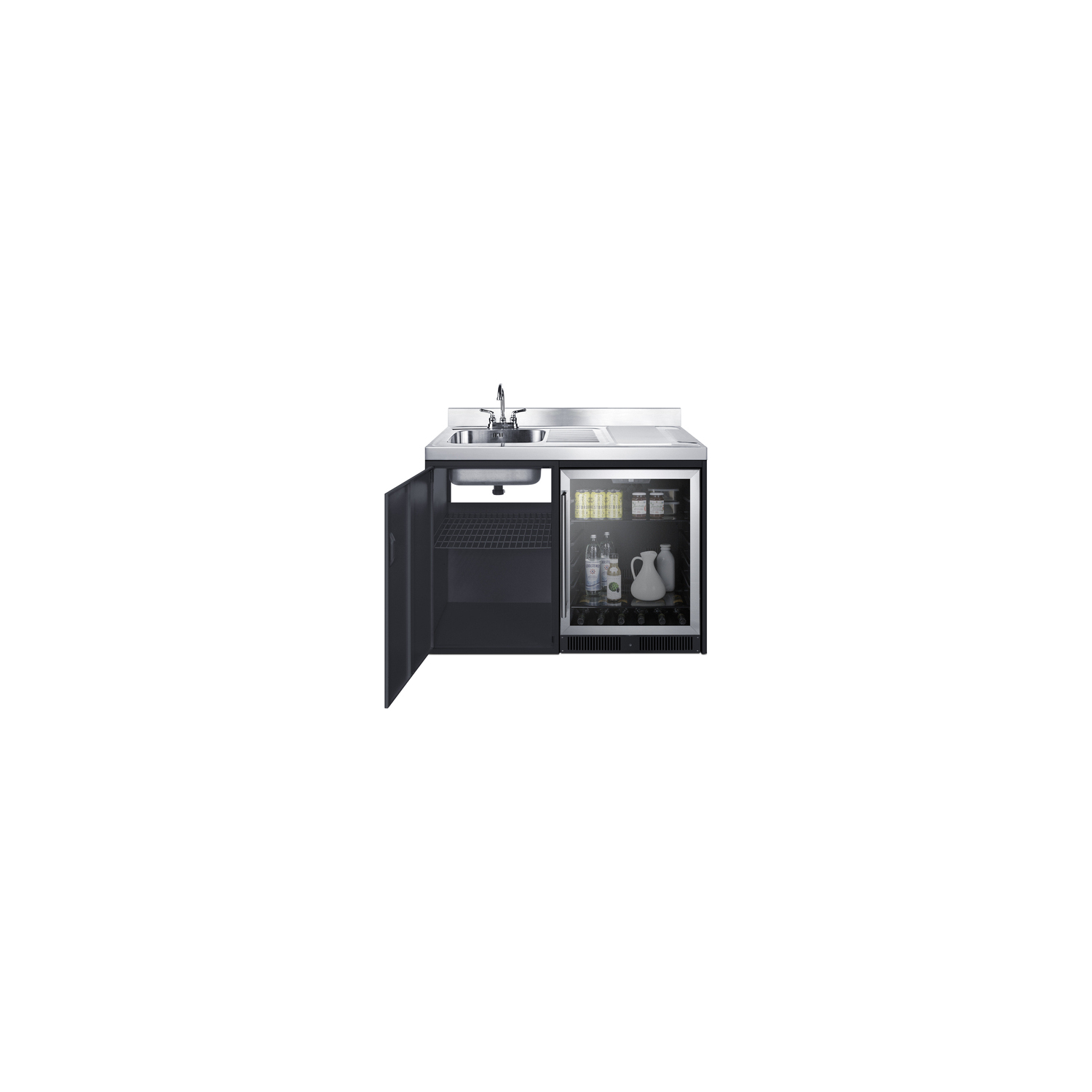

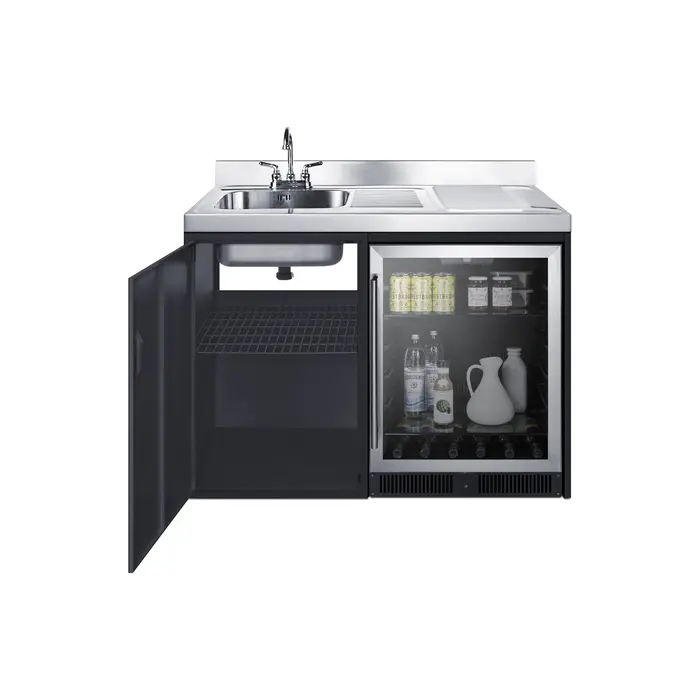

Storage compartment Convenient lower cabinet underneath sink lets you store dry goods

Premium beverage center This unit includes commercial grade model AL57G, a 24" wide frost-free beverage center with full 5 cu.ft. capacity

Frost-free operation (beverage center) Beverage center features no-frost operation for minimum user maintenance

Double pane tempered glass door (beverage center) Stainless steel trimmed glass door offers a heat-safe view of the interior

Digital thermostat (beverage center) Electronic controls located inside the unit for precise temperature management

Recessed LED lighting (beverage center) Efficient and attractive presentation with LED lighting

Bottle slots (beverage center) Floor is specially slotted to store wine and other bottles safely in place

Factory installed lock (beverage center) Keyed lock for a secure interior

Grooved handles Side indents afford easy movement of the unit for added portability

Optional stainless steel backguard Includes a stainless steel backguard for optional installation to complete the look and offer added protection to your walls

Ships Fully Assembled Kitchenette is shipped in one piece, with reinforced packaging for added protection

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
