Summit 36 inch wide all-in-one kitchenette with 2-burner 115V smooth-top cooktop, refrigerator-freezer, sink, and storage cabinet, CK36ELGLASS

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner smooth-top cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.

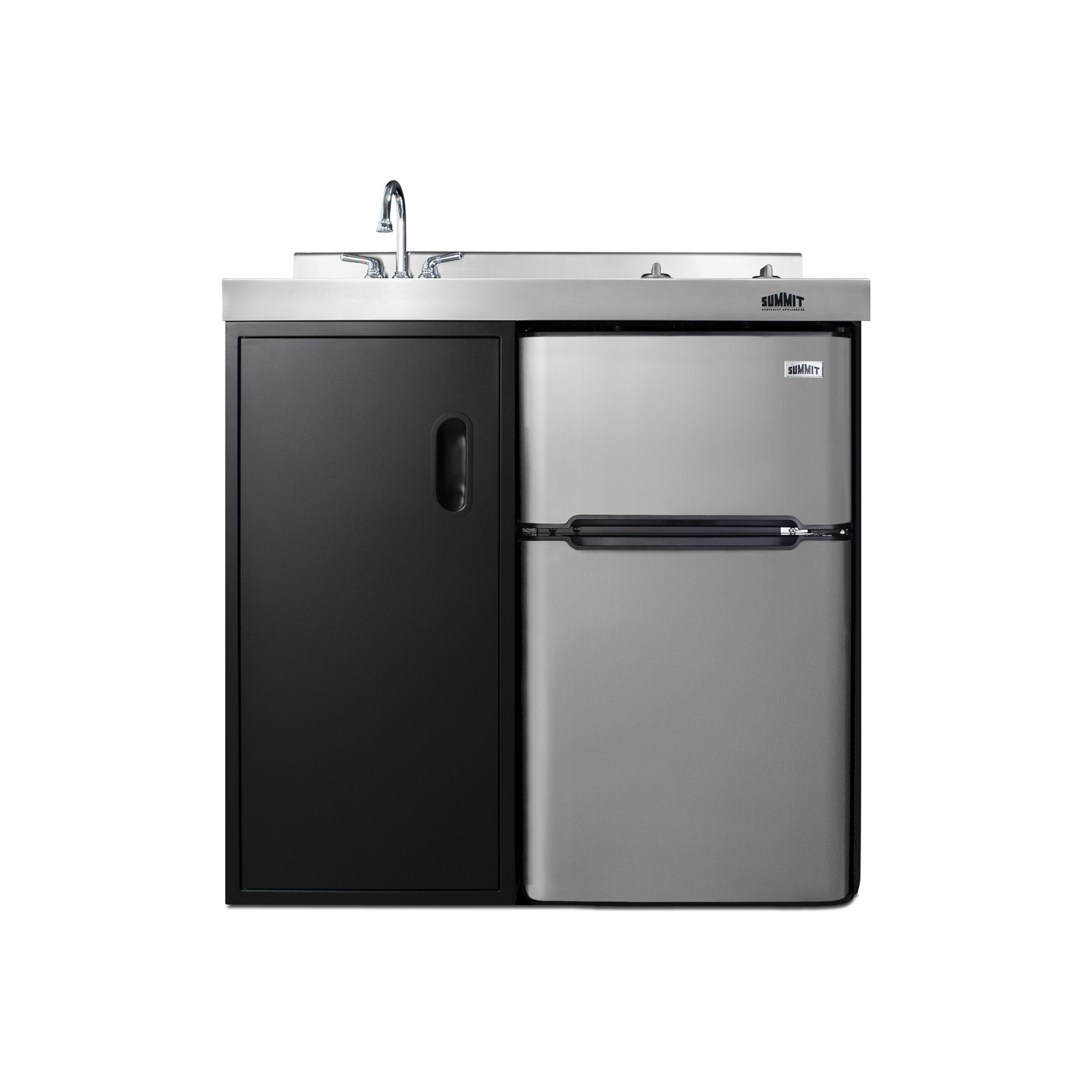

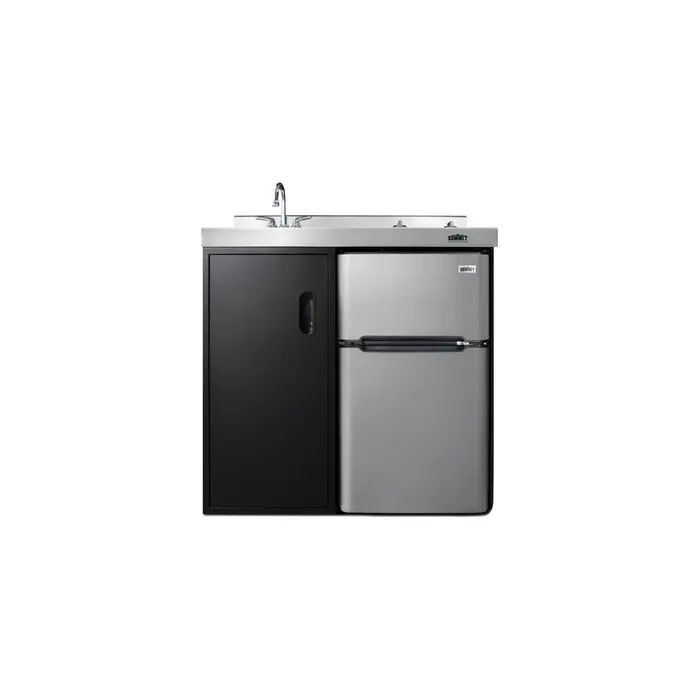

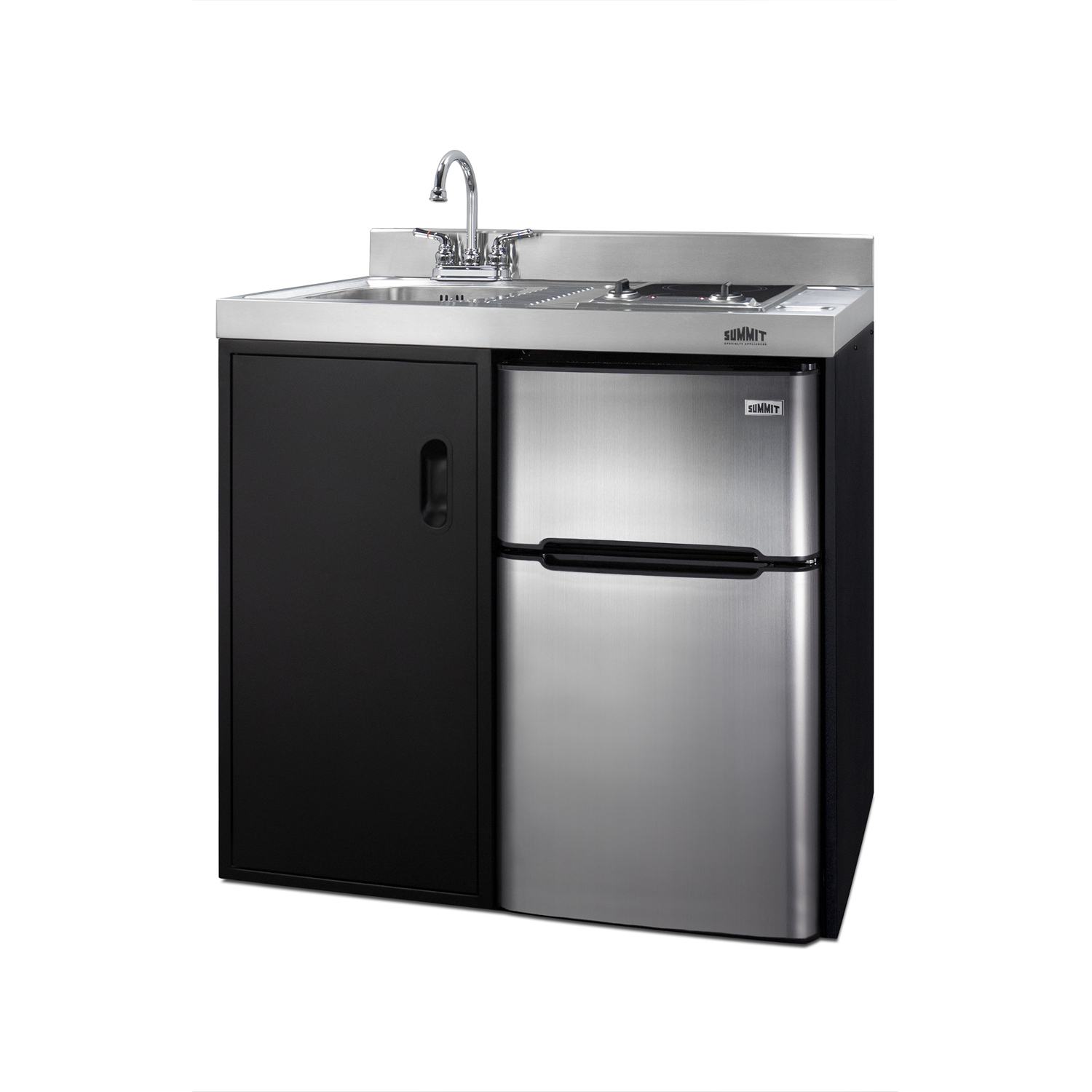

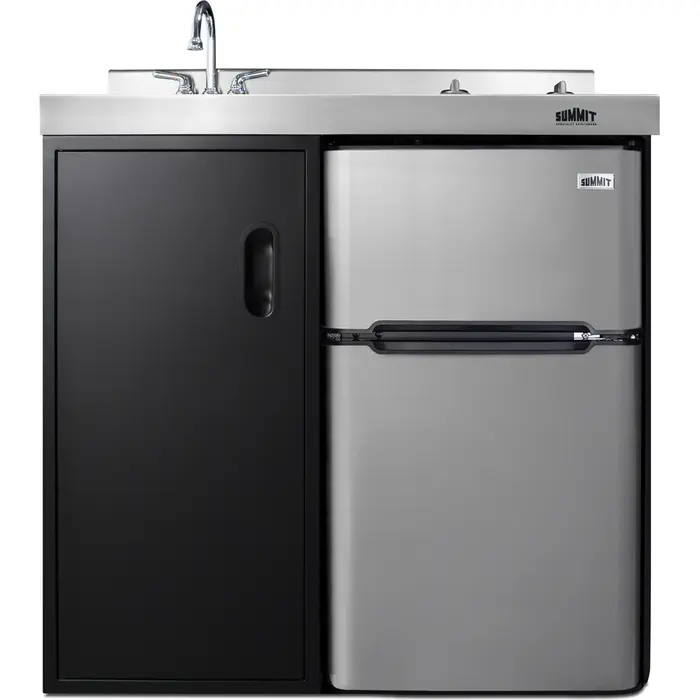

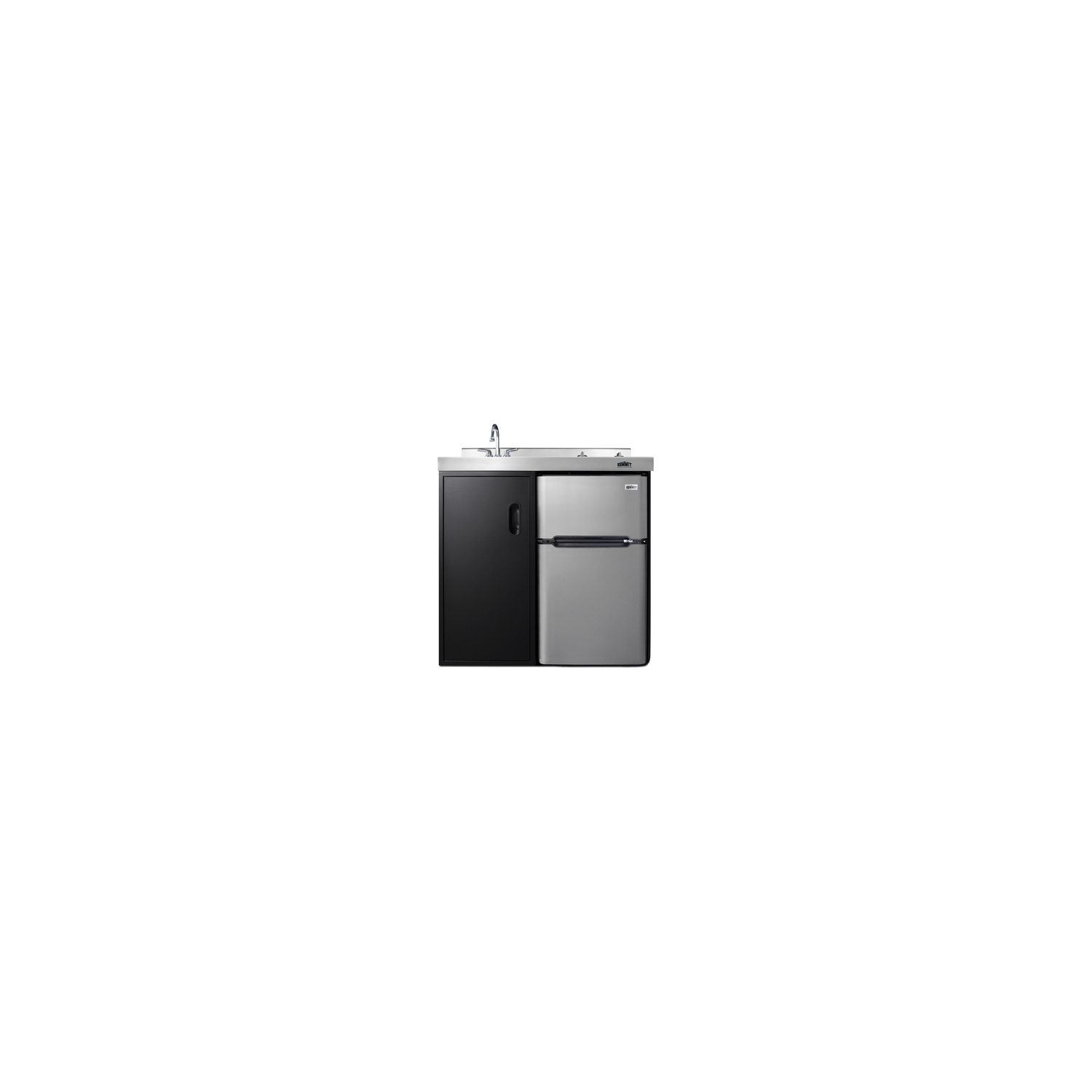

The CK36ELGLASS is a 36" wide kitchenette with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. This unit includes a built-in 115V smooth-top cooktop with a 6" 600W and 7" 900W heating element. The power cord comes pre-installed for easy setup. The left side of the kitchenette features a compact sink with ready-to-use faucet. A cabinet with a removable shelf is located below the sink for dry storage.

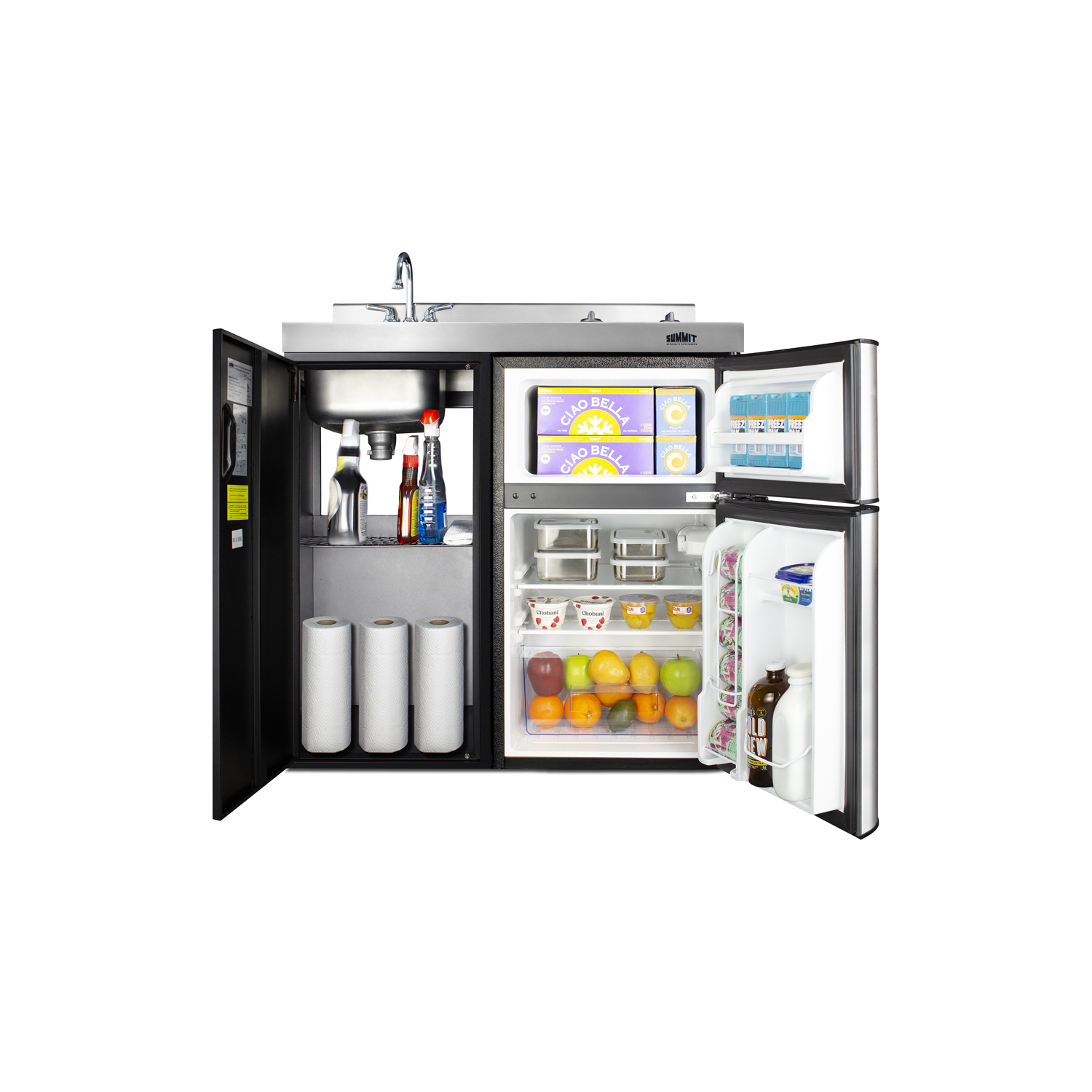

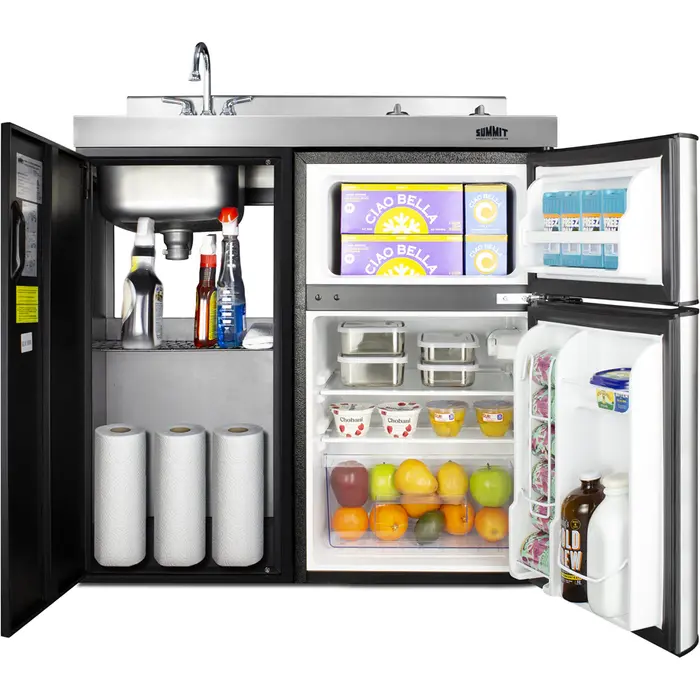

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The CK36ELGLASS includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.

The CK36ELGLASS is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette. Additional choices are available with radiant cooktops, and in 30", 39", 48", and 60" wide sizes. Browse our website for more.

SPECIFICATIONS

Overview

Nominal Height 40.0" (102 cm)

Height of Cabinet 40.0" (102 cm)

Nominal Width 37.0" (94 cm)

Width 36.13" (92 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 41.88" (106 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Black/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 13.1

Voltage/Frequency 115 V AC/60 Hz

Weight 116.0 lbs. (53 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101033709

Kitchenette

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Smooth-Top Cooktop

Number of Burners 2

Cooktop Controls Dial

Interior Height 1 18.5" (47 cm)

Interior Width 1 15.75" (40 cm)

Interior Depth 1 15.0" (38 cm)

Interior Height 2 7.5" (19 cm)

Interior Width 2 14.0" (36 cm)

Interior Depth 2 14.0" (36 cm)

Sink Height 7.25" (18 cm)

Sink Width 12.0" (30 cm)

Sink Depth 12.0" (30 cm)

FEATURES

Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation

2-door refrigerator-freezer included CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Sink and faucet Stainless steel sink with ready-to-use gooseneck faucet included

2-burner smooth-top cooktop Includes a 5 3/4" 600W front element and 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

115V operation with pre-installed cords Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup

Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights Operating indicators light up to show which burner is in use

Black and stainless steel exterior finish Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors

One piece stainless steel countertop Easy-to-clean surface with a professional look

Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods

Ships fully assembled in one box Kitchenette is shipped in one piece, with reinforced packaging for added protection

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible doors User-reversible door swings on the refrigerator-freezer for added flexibility

Optional storage cabinet Add more storage convenience with Summit wall cabinets, 12" or 18" wide choices with powder-coated metal construction in white or black finishes

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
