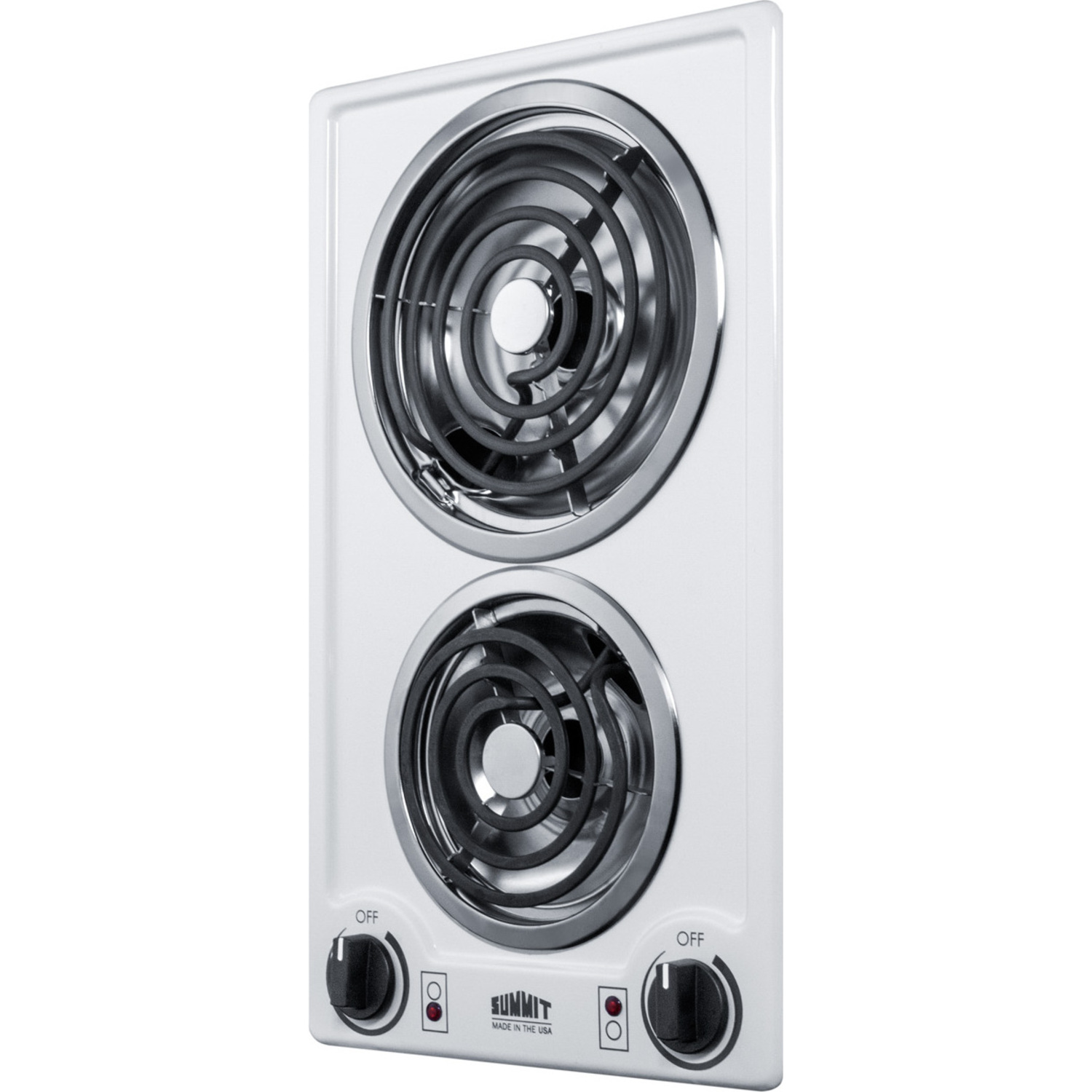

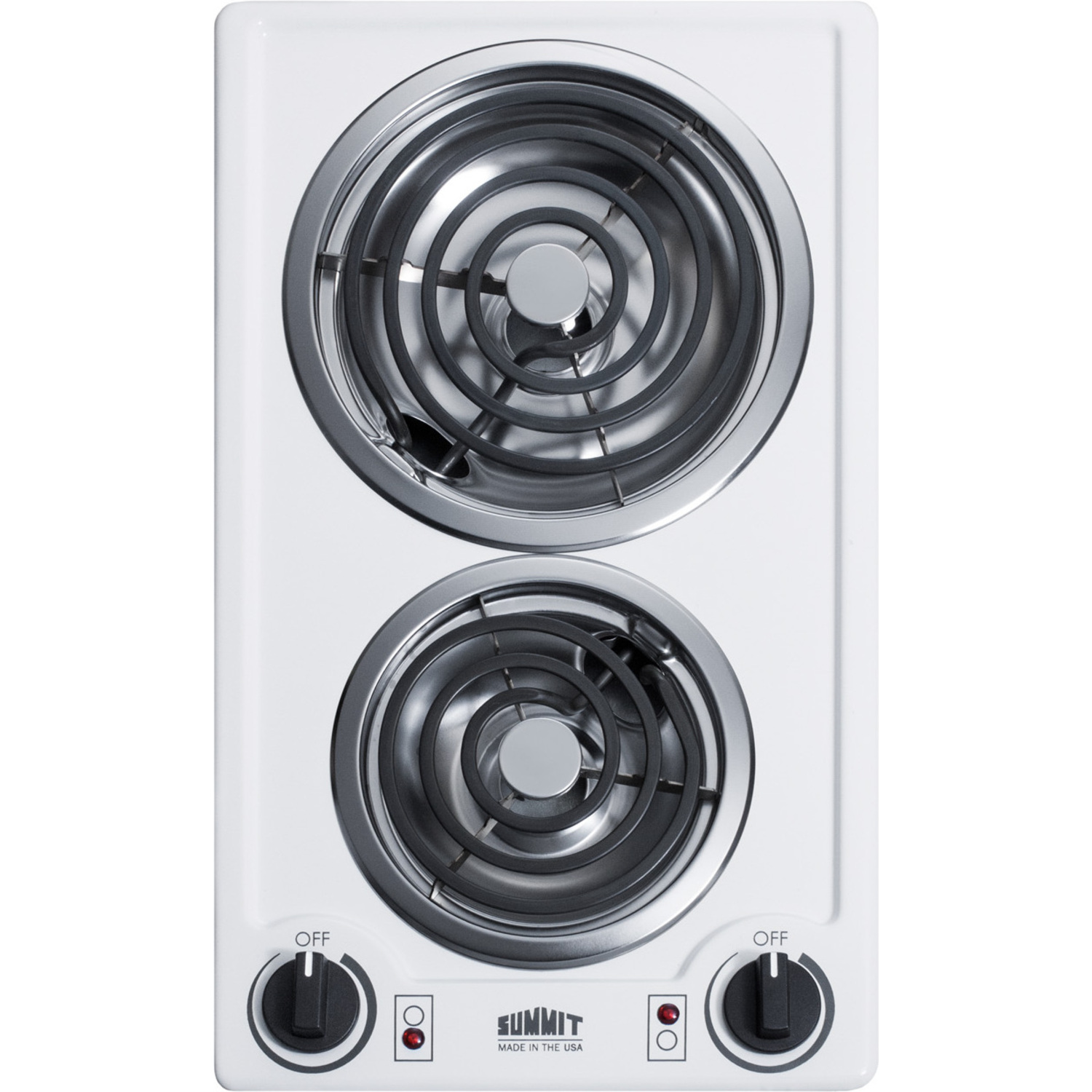

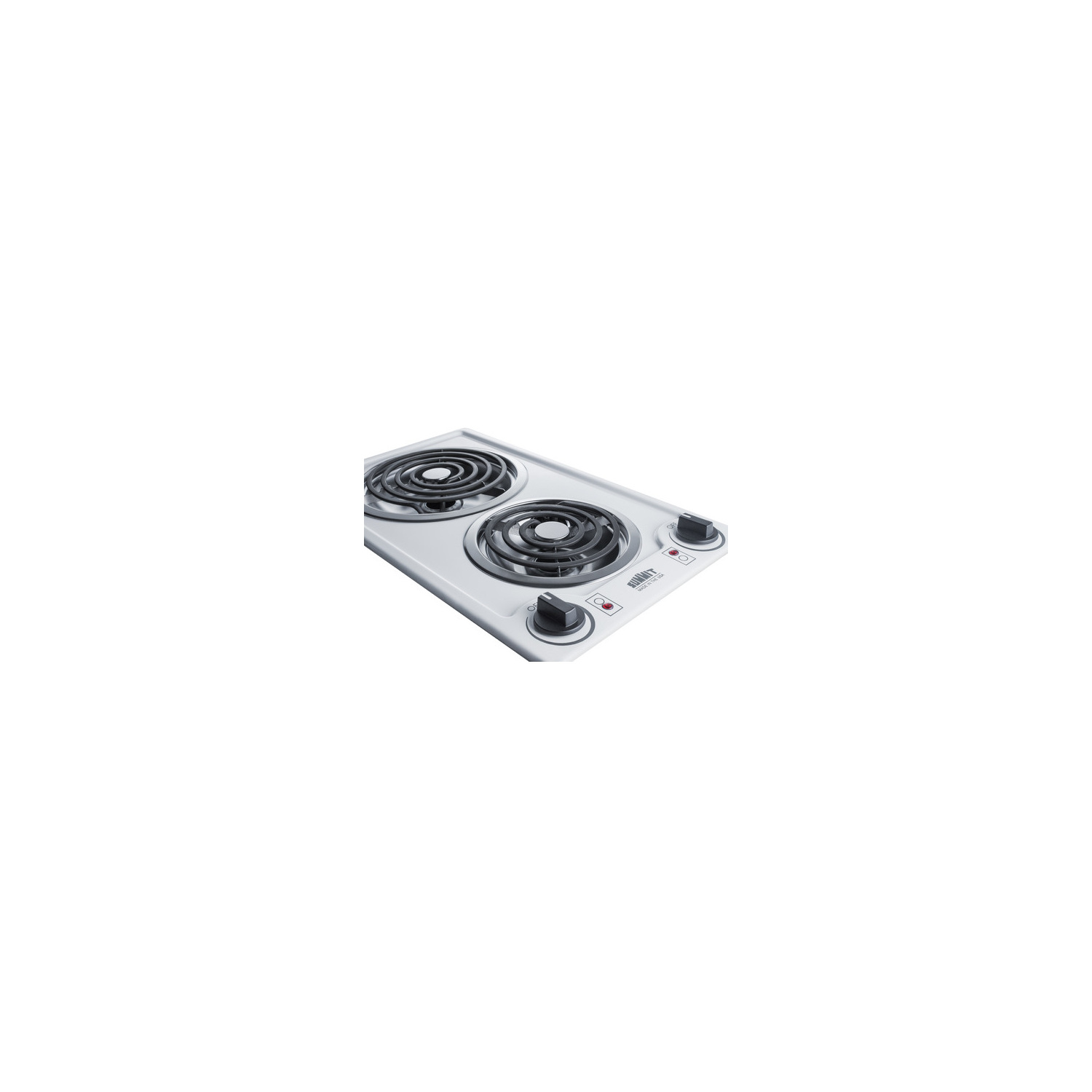

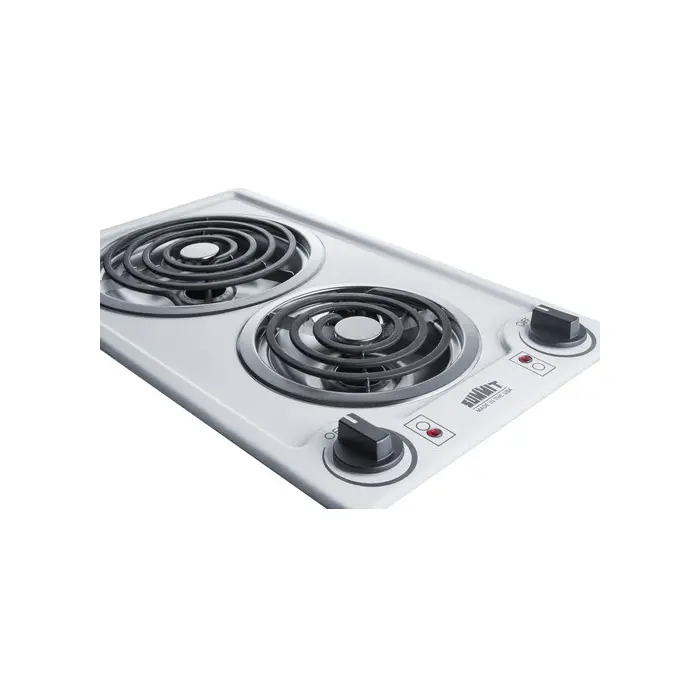

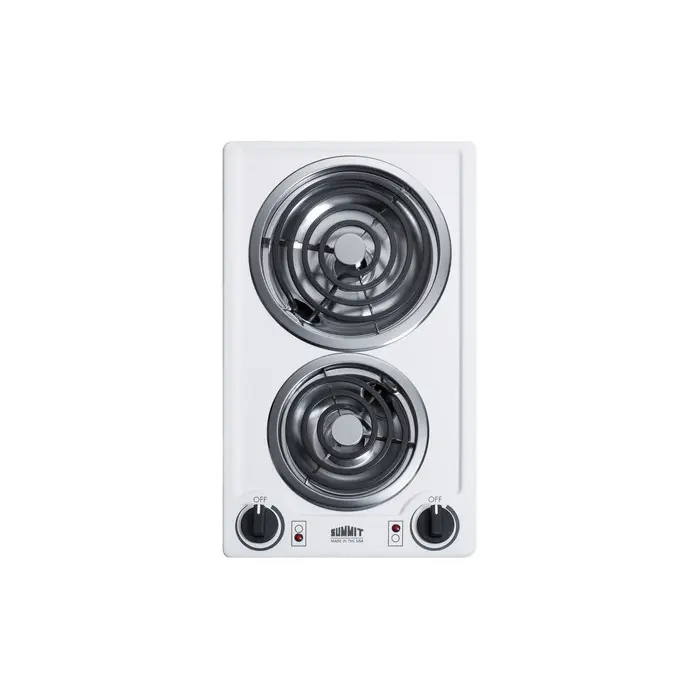

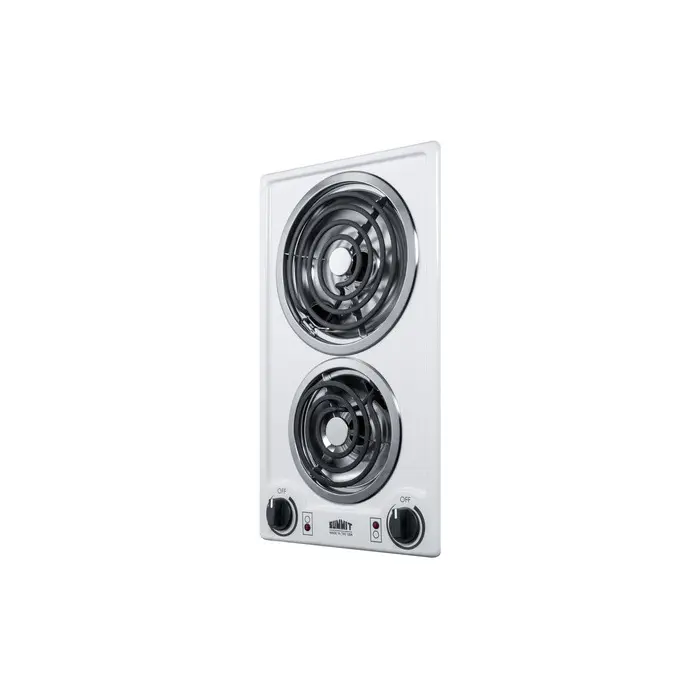

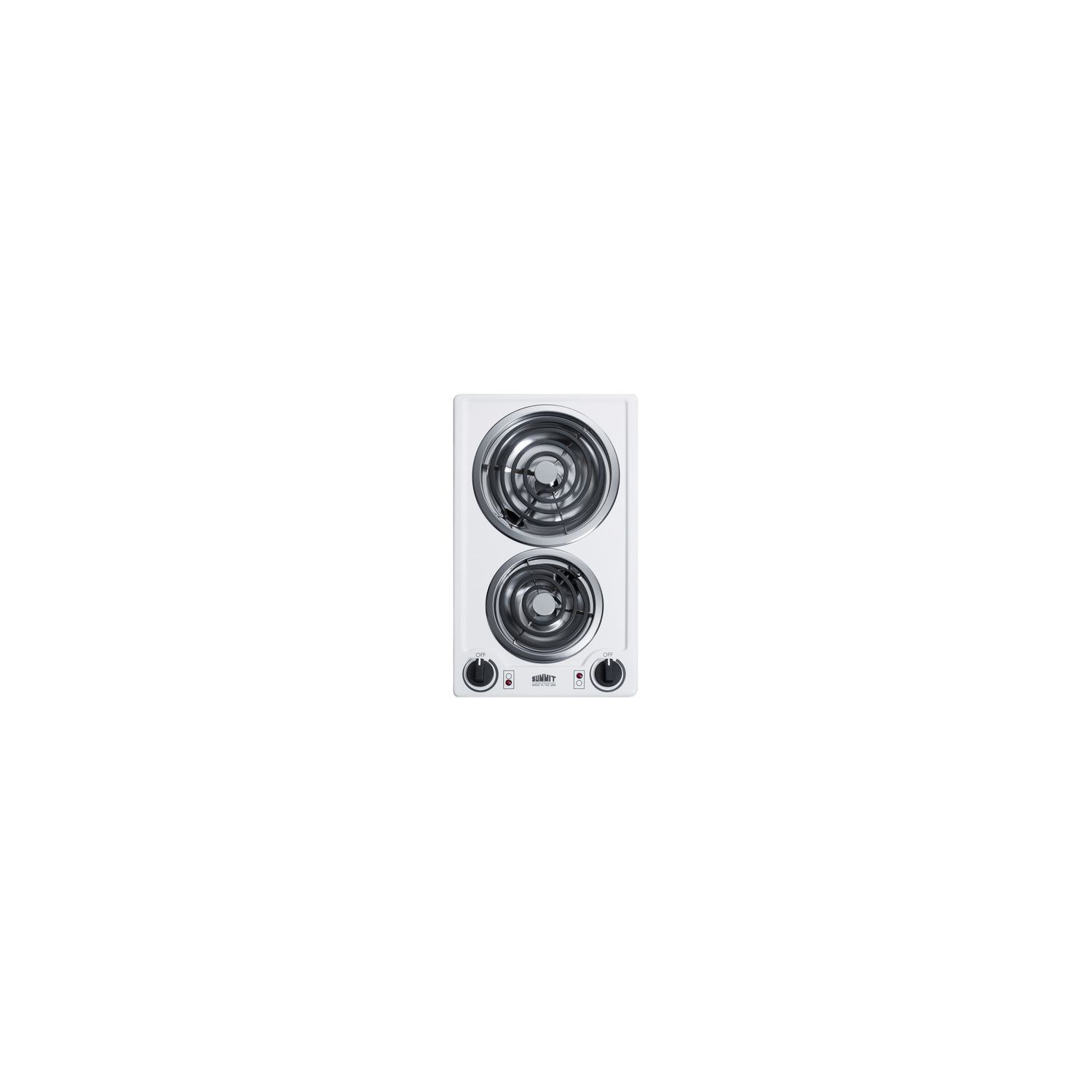

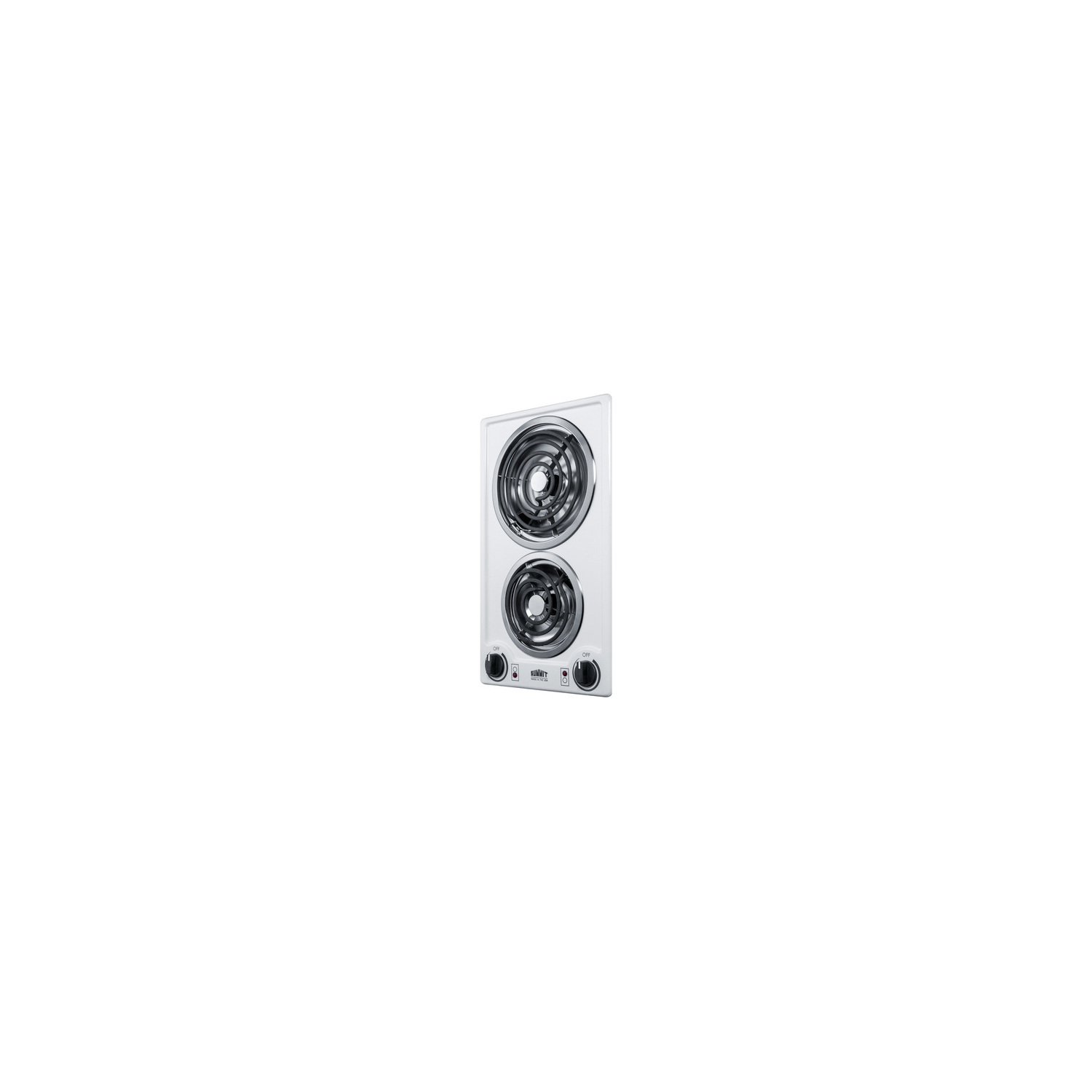

Summit 220V 2-burner coil cooktop in white, made in the USA, 7.61101e+011, CCE225WH
$376.19
Retail Price: $430.00
Shipping: $250
$ 376.19
Description
Summit offers an extensive selection of slim-fitting cooktops designed and manufactured in the USA.
The CCE225WH is a 240V cooktop with a porcelain surface in a classic white finish. Two coil elements (6" 675W in front and 8" 950W in rear) offer durable heating that holds up to everyday use. Designed to meet the most recent UL safety standards, the elements operate at low wattage, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. Upfront push-to-turn knobs are simple and intuitive, with indicator lights that show which burner is in use for added safety. The recessed design helps to contain spills for a cleaner cooking experience.

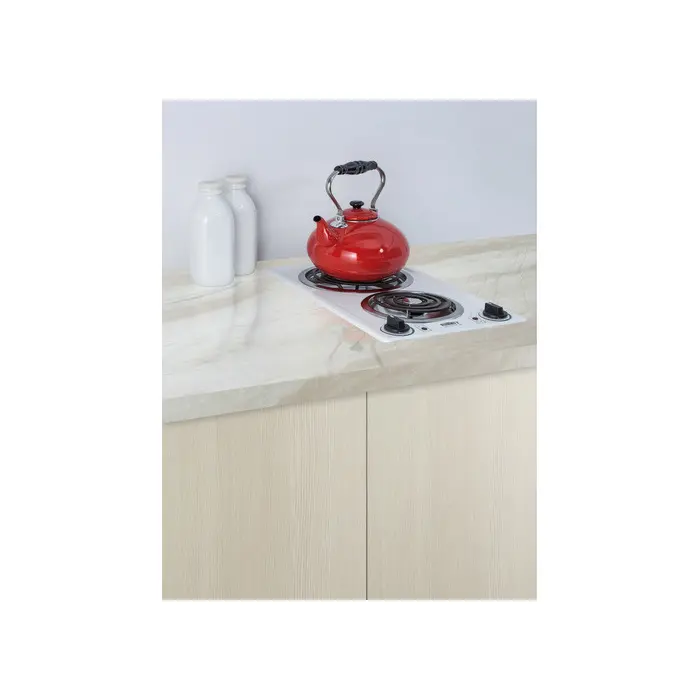

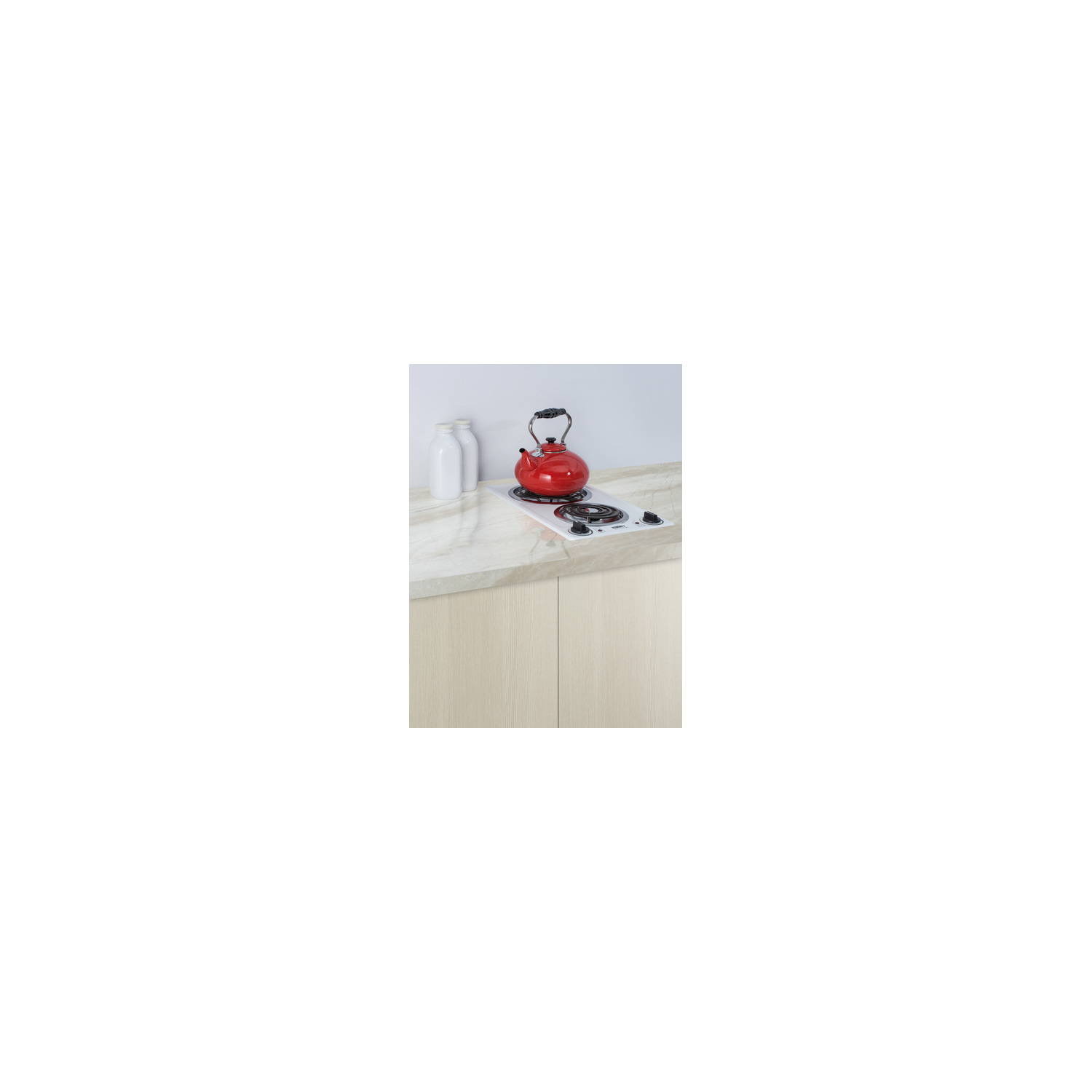

This cooktop is designed to fit common 11 1/8" W x 19 1/8" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. Additional choices are available in 115V, as well as black and stainless steel. Browse our website for our complete selection of slim-fitting cooking appliances.
SPECIFICATIONS
Overview
Nominal Height 3.25" (8 cm)
Height of Cabinet 3.25" (8 cm)
Nominal Width 12.0" (30 cm)
Width 12.0" (30 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.75" (50 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 7.0
Voltage/Frequency 230 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Parts & Labor Warranty 1 Year
UPC 761101060804
Electric Cooktop
Surface Porcelain
Element Type Coils
Number of Elements 2
Controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 11.13" (28 cm)
Countertop Cutout Depth 19.13" (49 cm)
Power Source 230V
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 8.0" (20 cm)
Element #2 Wattage 950.0
Power Cord Included No
FEATURES
Made in the USA Designed and constructed domestically
Fits popular cutout size Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens
Porcelain surface Scratch-resistant design for lasting durability
White exterior Classic design in a clean white finish to match any kitchen
Recessed top Curved design helps to contain spills on the surface
Coil elements Traditional design offers reliable heating and strong durability for everyday cooking
8" rear element Larger element is ideal for heating wider pots and pans
6" front element Standard burner accommodates most heating needs
Safety elements with low wattage outputs Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip bowls Removable drip pans for easier cleanup
Push-to-turn controls Knobs require a small amount of force for added safety
Indicator lights Upfront lights illuminate to show which burners are in use
ADA compliant design Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
220-240V operation Requires a 15 amp circuit
Professional installation required Designed for hard-wired installation (cord not included)
DOWNLOADS
REVIT MODEL (QF_Summit_CCE225WH_2_Burner_Coil_Cooktop.rfa)
