Summit 115V 2-burner coil cooktop in black, made in the USA, 7.61101e+011, CCE212BL

Summit offers an extensive selection of slim-fitting cooktops designed and manufactured in the USA.

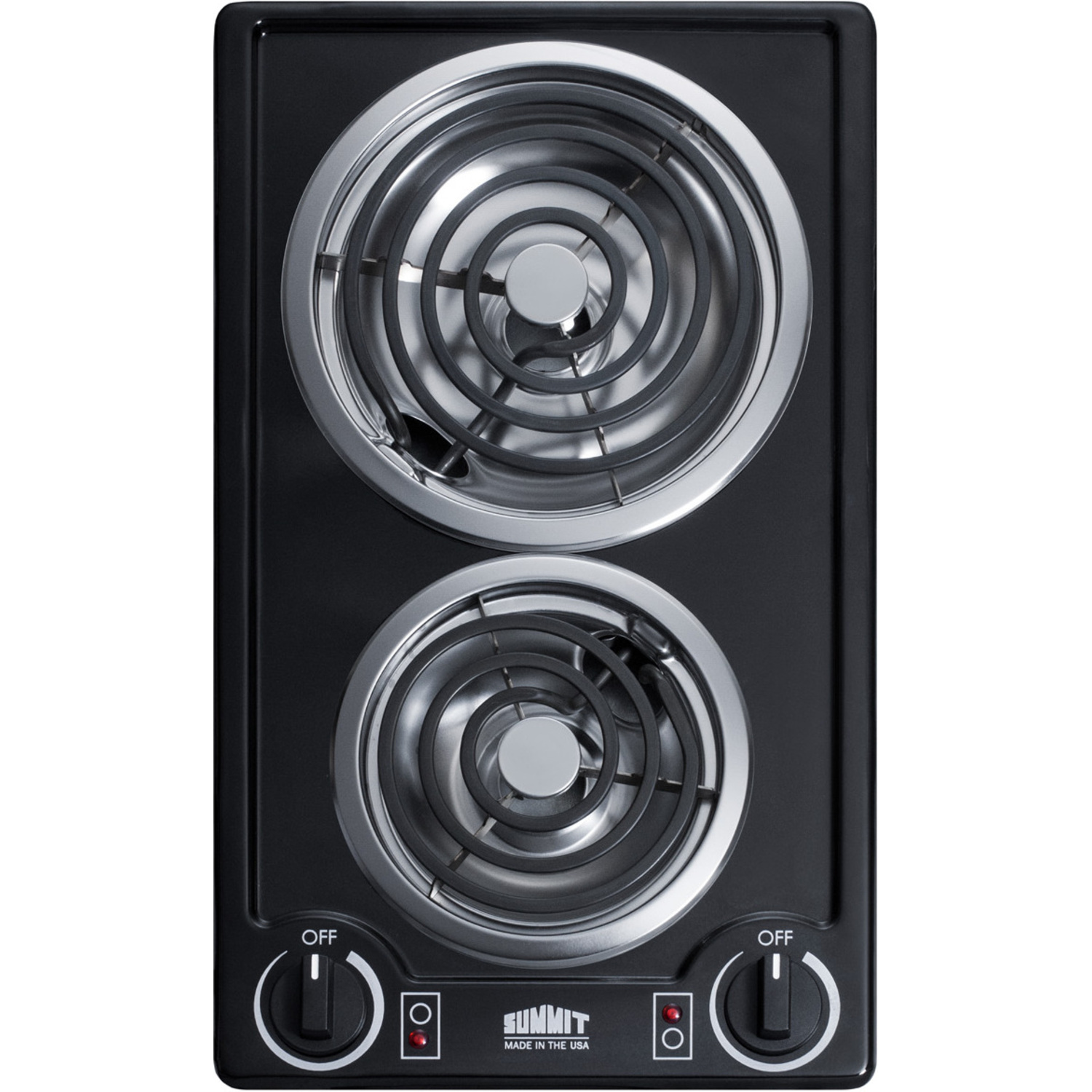

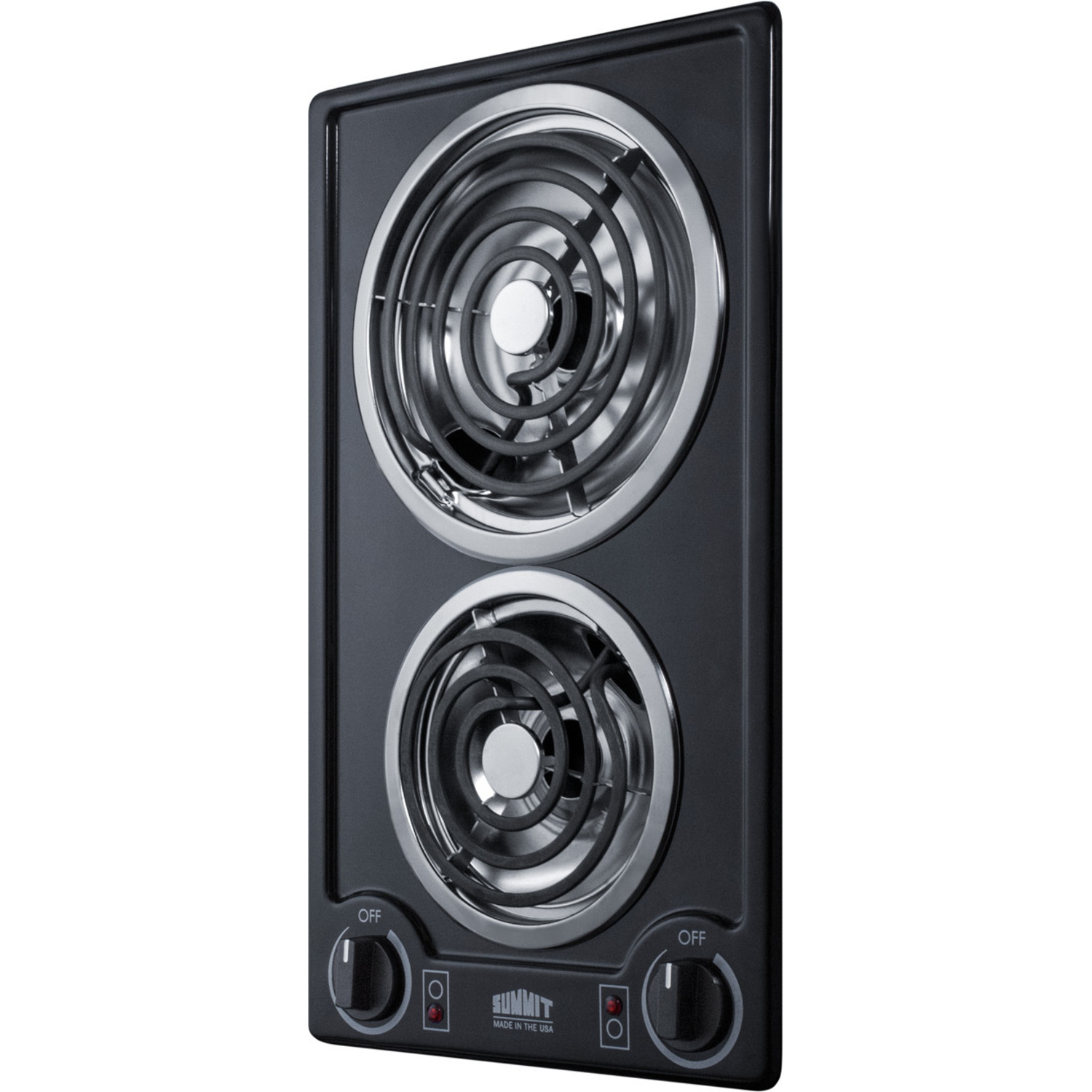

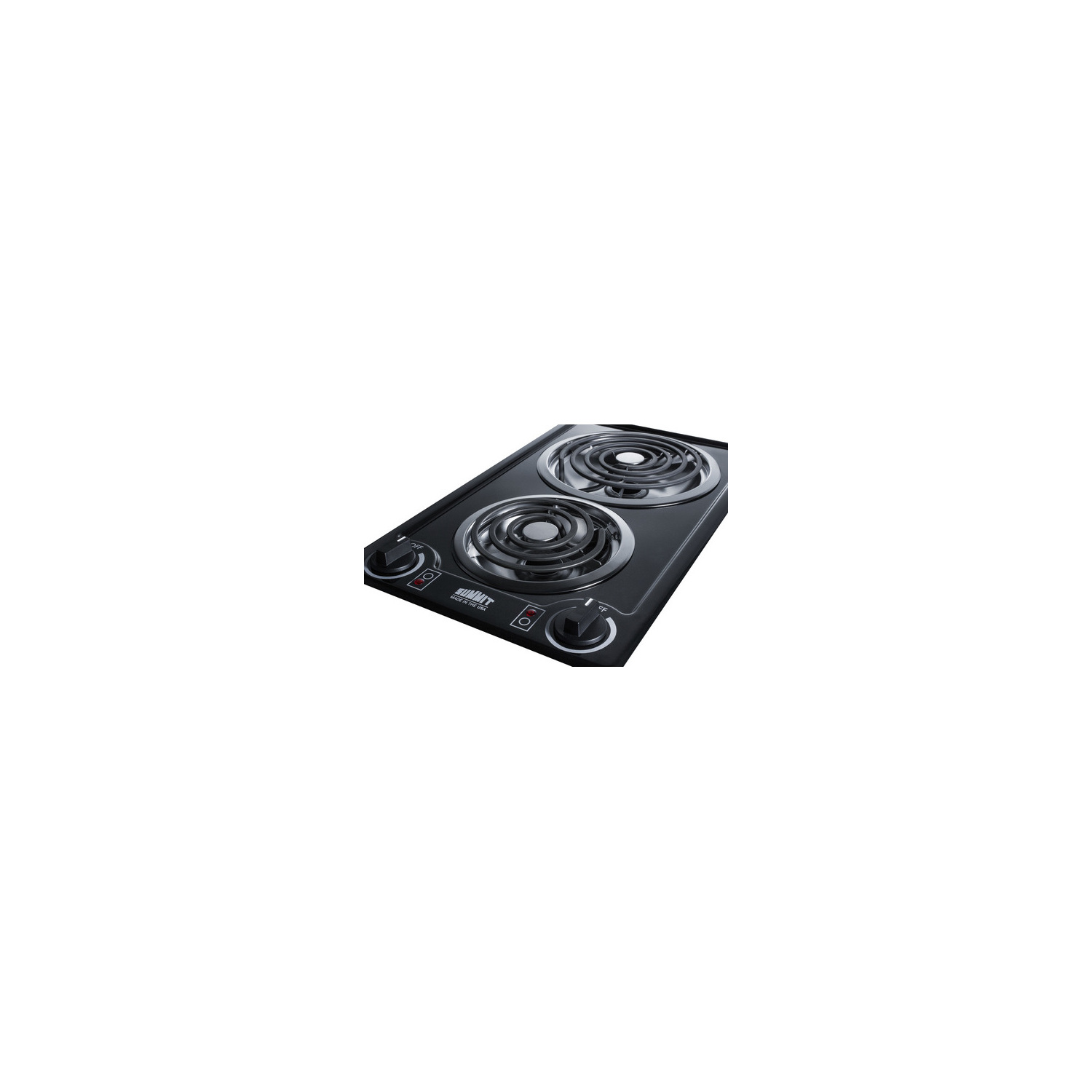

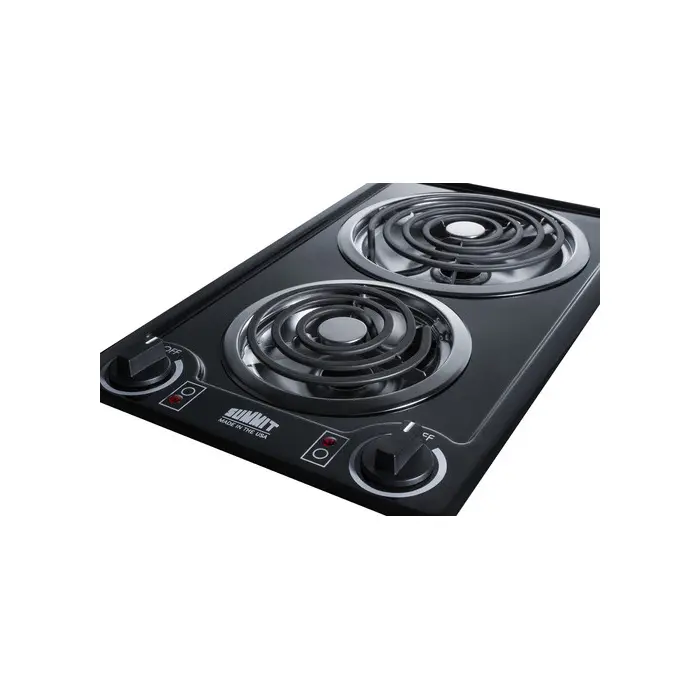

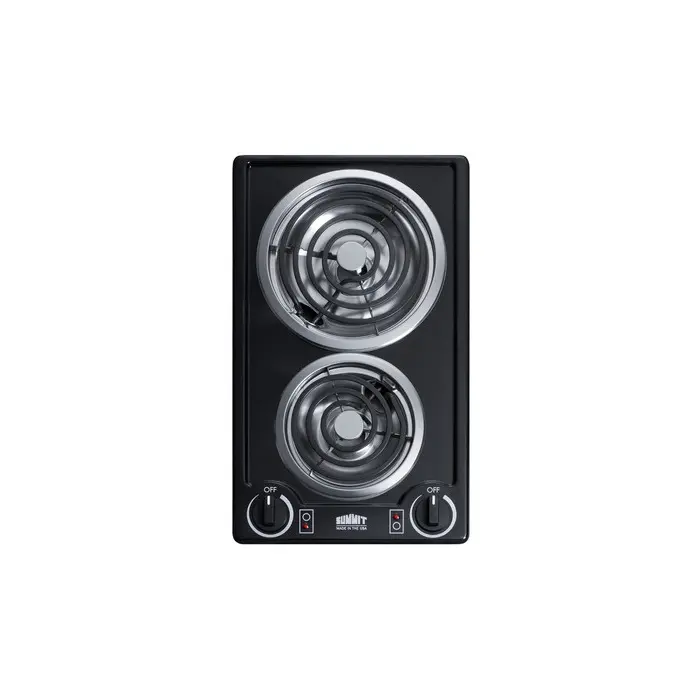

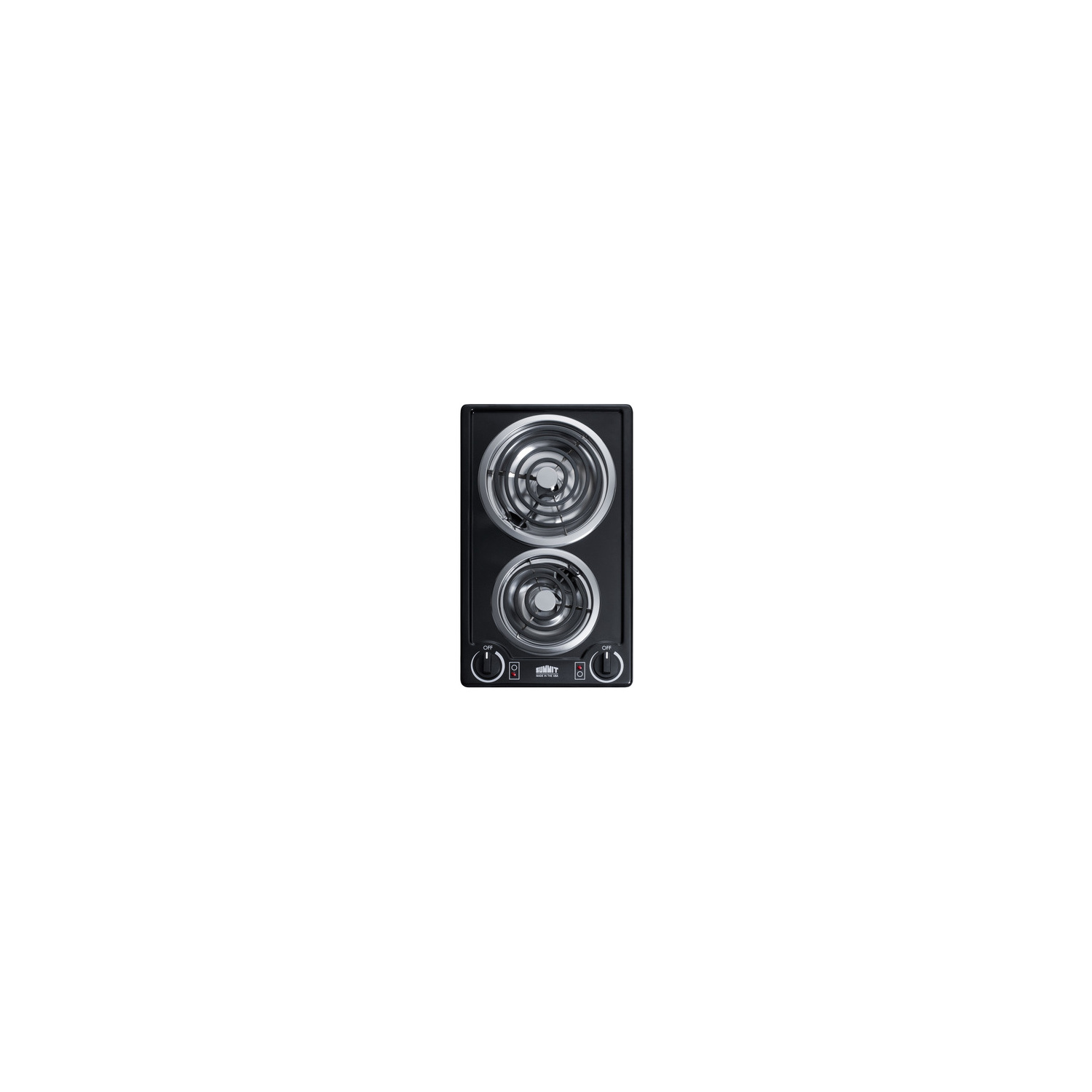

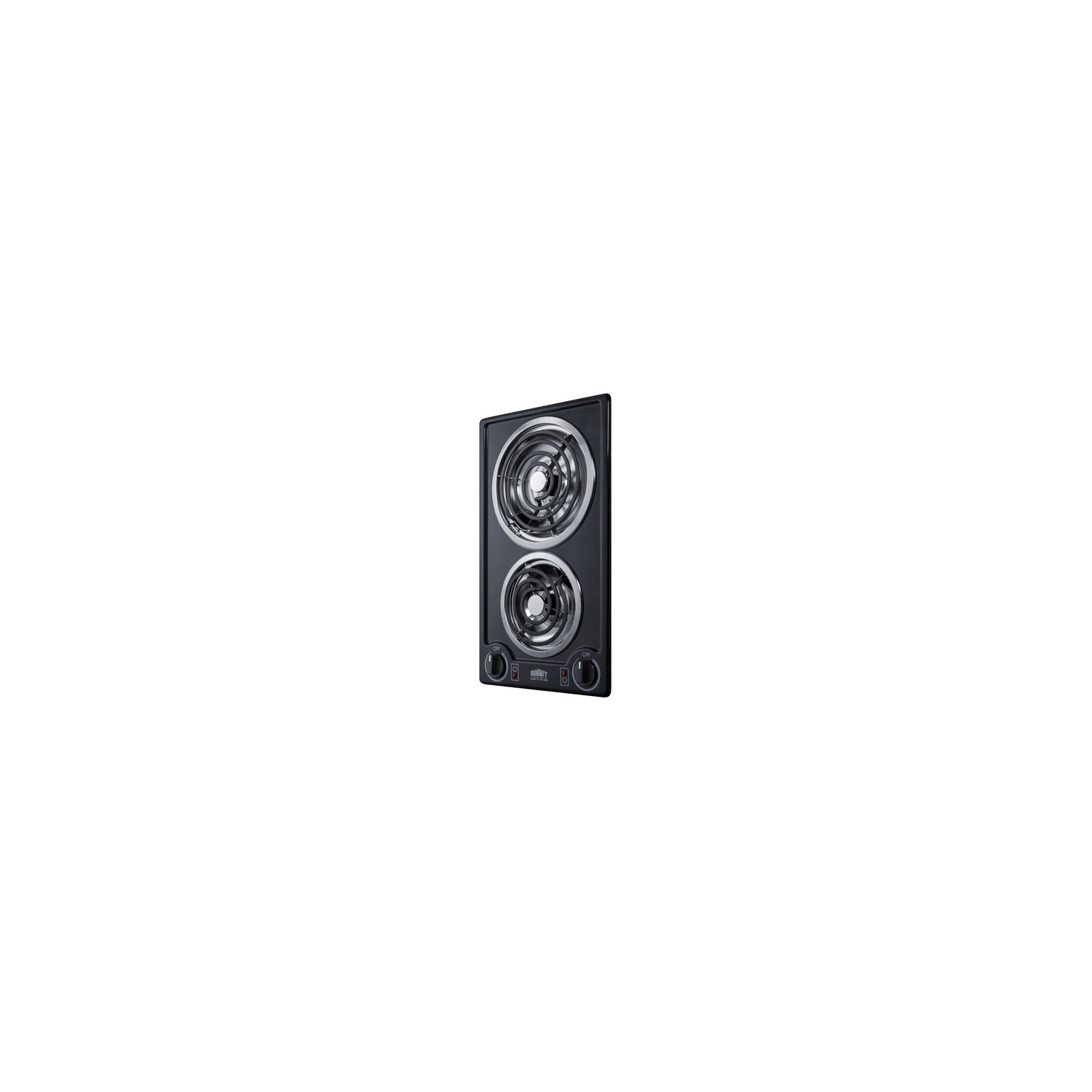

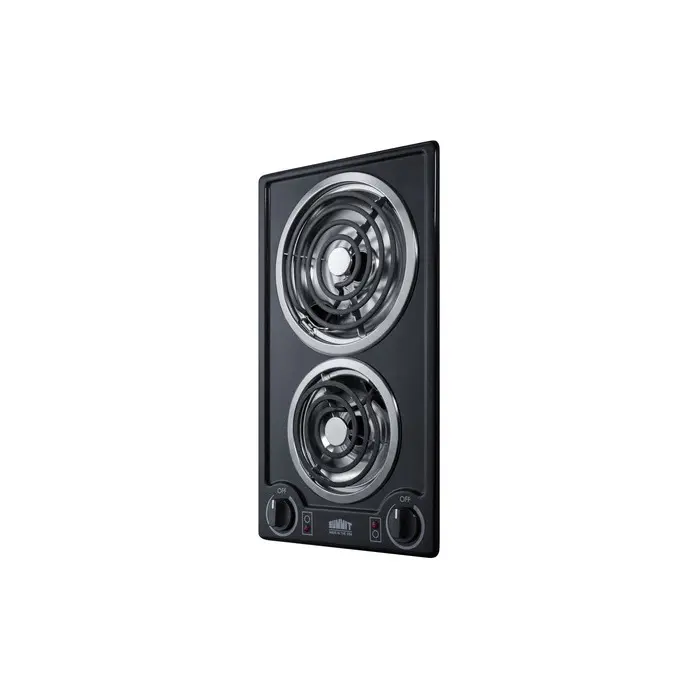

The CCE212BL is a 115V cooktop with a porcelain surface in a jet black finish. Two coil elements (6" 600W in front and 8" 900W in rear) offer durable heating, with removable chrome drip pans included. The push-to-turn knobs are simple and intuitive, with indicator lights that show which burner is in use for added safety. The recessed design helps to contain spills for a cleaner cooking experience.

This cooktop includes a 3-pronged 4' long power cord for convenient installation. It is designed to fit common 11 1/8" W x 19 1/8" D counter cutouts. Additional choices are available in white and stainless steel, as well as radiant, induction, and gas cooktops in similar sizes. Browse our website for our complete selection of slim-fitting cooking appliances.

SPECIFICATIONS

Overview

Nominal Height 3.25" (8 cm)

Height of Cabinet 3.25" (8 cm)

Nominal Width 12.0" (30 cm)

Width 12.0" (30 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.75" (50 cm)

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 12.5

Voltage/Frequency 115 V AC/60 Hz

Weight 14.0 lbs. (6 kg)

Parts & Labor Warranty 1 Year

UPC 761101060781

Electric Cooktop

Heating Type Radiant

Surface Porcelain

Element Type Coils

Number of Elements 2

Controls Dial

Countertop Cutout Height 5.0" (13 cm)

Countertop Cutout Width 11.13" (28 cm)

Countertop Cutout Depth 19.13" (49 cm)

Power Source 115V

Element #1 Size 6.0" (15 cm)

Element #1 Wattage 600.0

Element #2 Size 8.0" (20 cm)

Element #2 Wattage 900.0

Power Cord Included Yes

FEATURES

Made in the USA Designed and constructed domestically

115V operation Designed for use with 20 amp circuits

Power cord included Pre-installed 115V 3-pronged cord for easier setup

Fits popular cutout size Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens

Porcelain surface Scratch-resistant design for lasting durability

Black exterior Jet black exterior for an easy complement to any kitchen space

Coil elements Traditional design offers reliable heating and strong durability for everyday use

8" rear element Larger element is ideal for heating wider pots and pans

6" front element Standard burner accommodates most heating needs

Safety elements with low wattage outputs Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip bowls Each coil element includes a removable chrome pan for easier cleaning

Recessed top Curved design helps to contain spills on the surface

Push-to-turn controls Knobs require a small amount of force for added safety

Indicator lights Upfront lights illuminate to show which burners are in use

ADA Compliant Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
