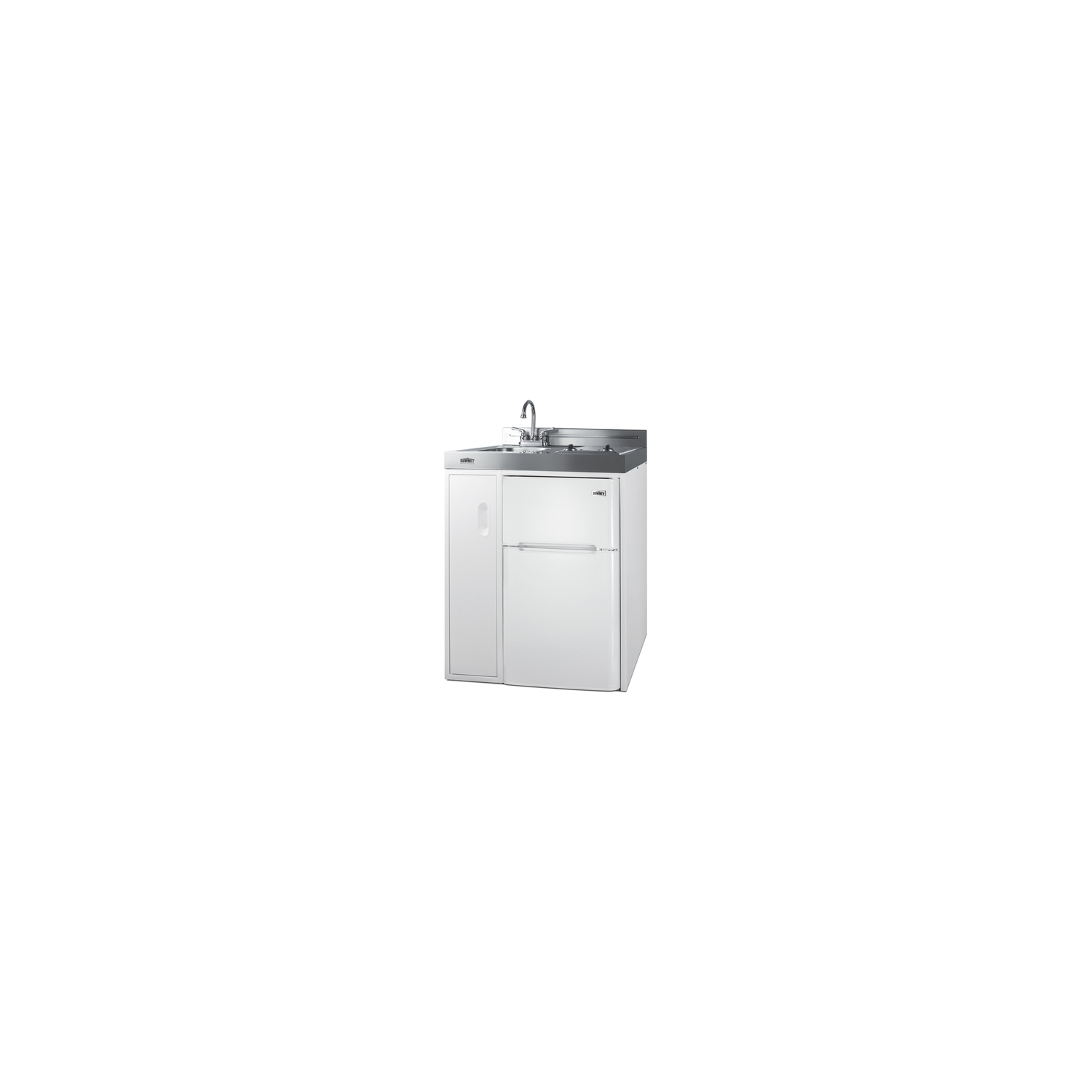

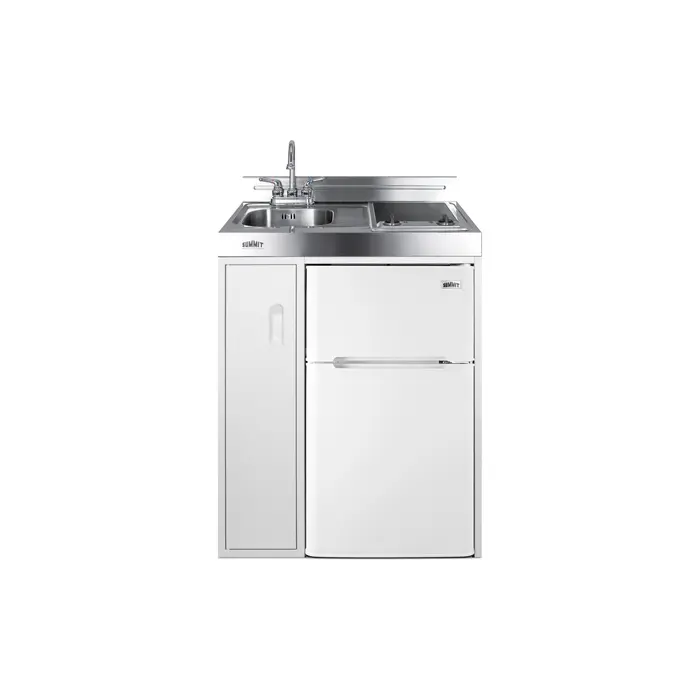

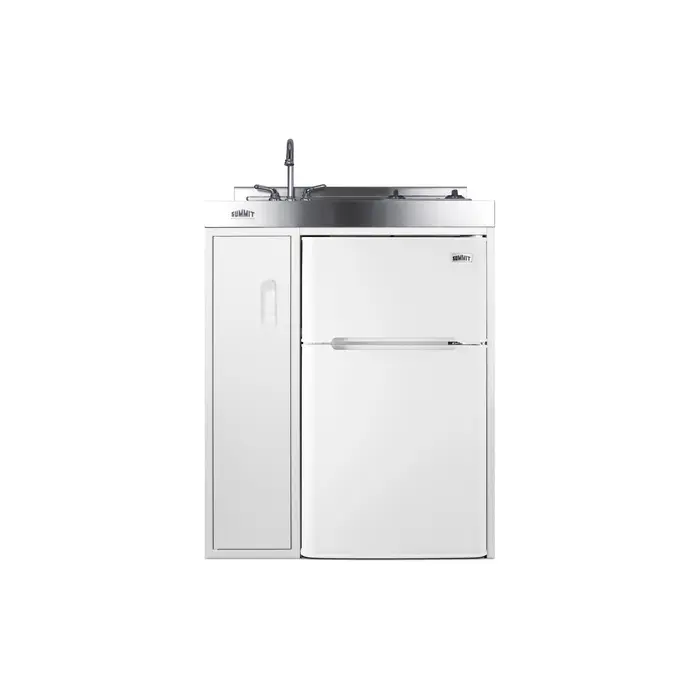

Summit 30 inch wide all-in-one kitchenette with 2-burner 115V smooth-top cooktop, refrigerator-freezer, sink, and storage cabinet, 7.61101e+011, C30ELGLASS

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner coil cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.

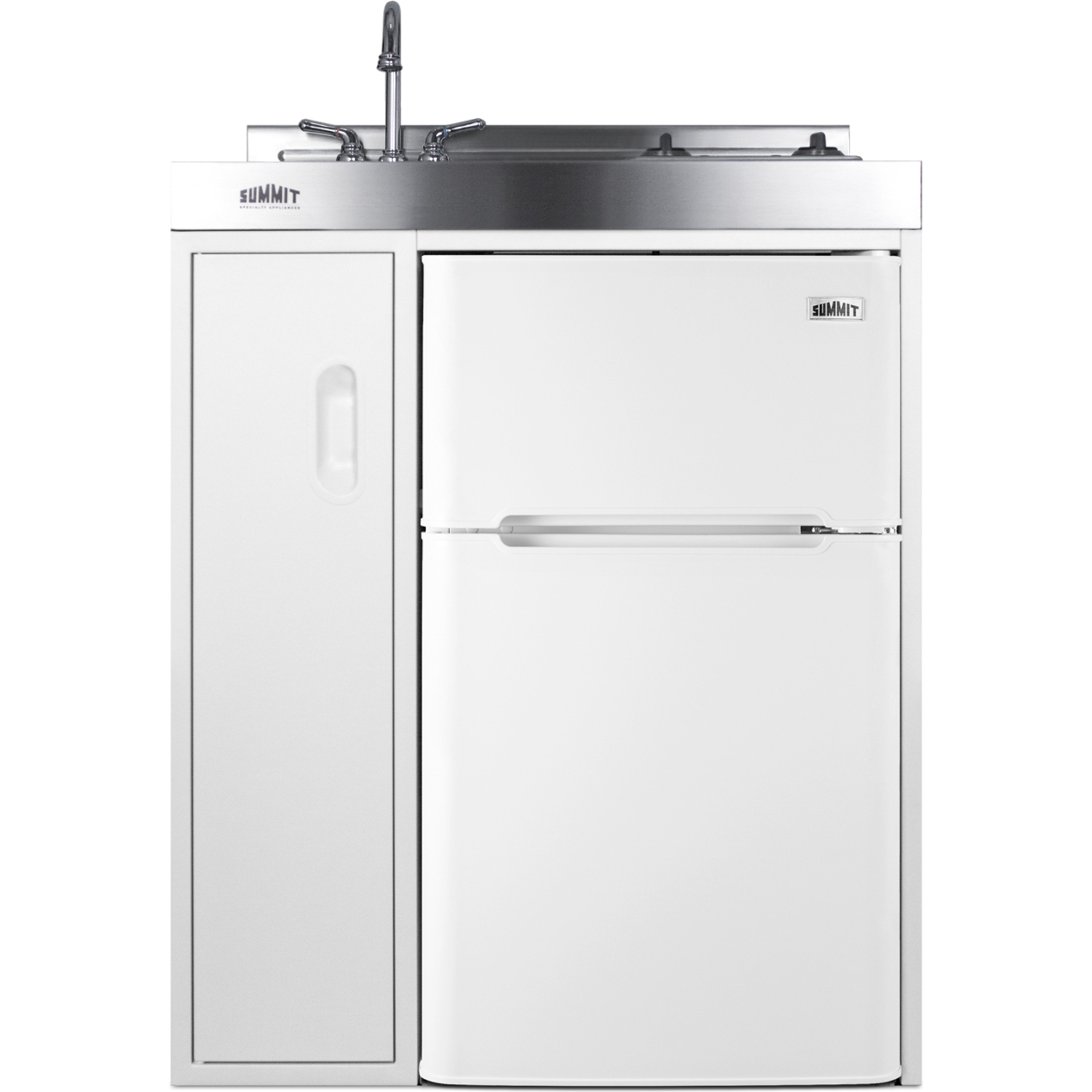

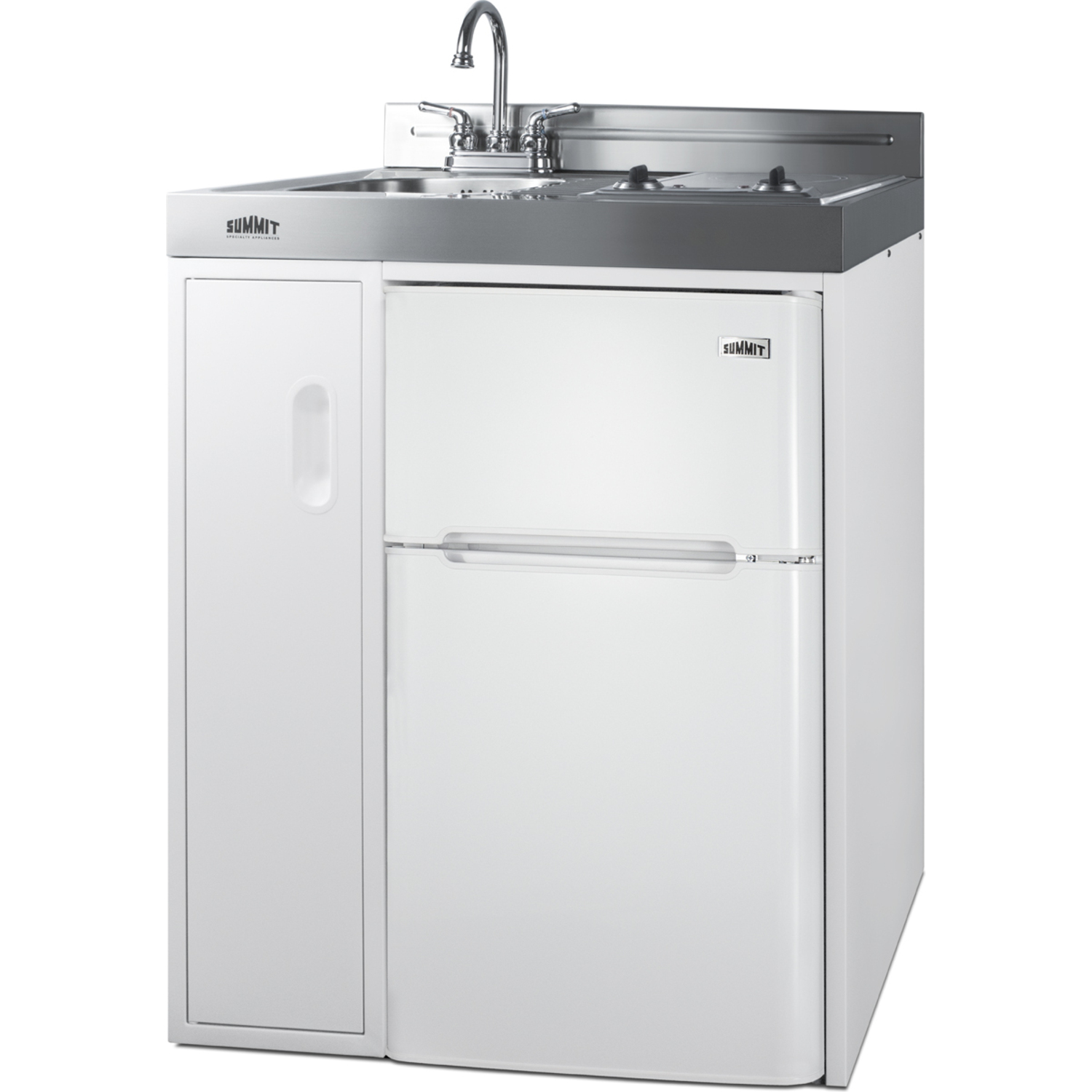

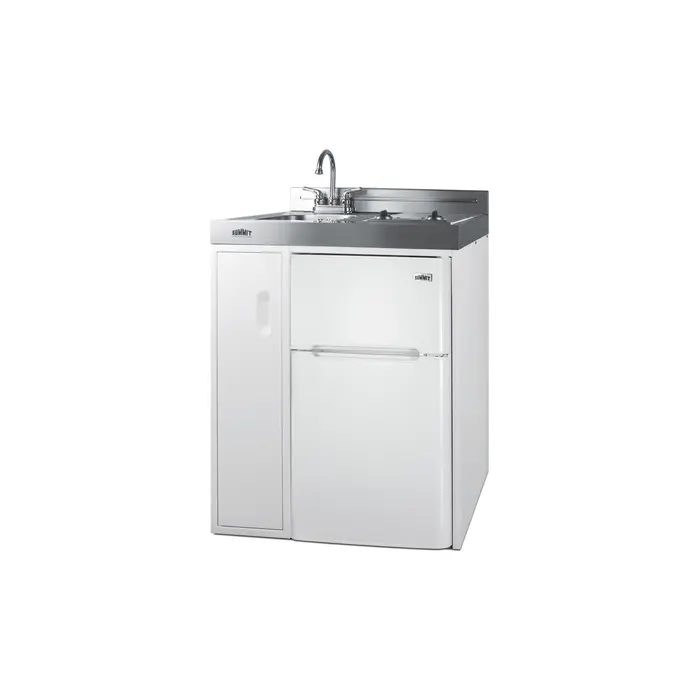

The C30ELGLASS is a 30" wide kitchenette with an easy-fitting 24" depth. The 115V radiant cooktop features a smooth black glass surface with a 6" 600W and 7" 900W heating element and pre-installed cord. The stainless steel surface countertop offers durability with a professional look. This unit includes a compact sink with ready-to-use faucet included. A cabinet with a removable shelf is located below the sink for dry storage.

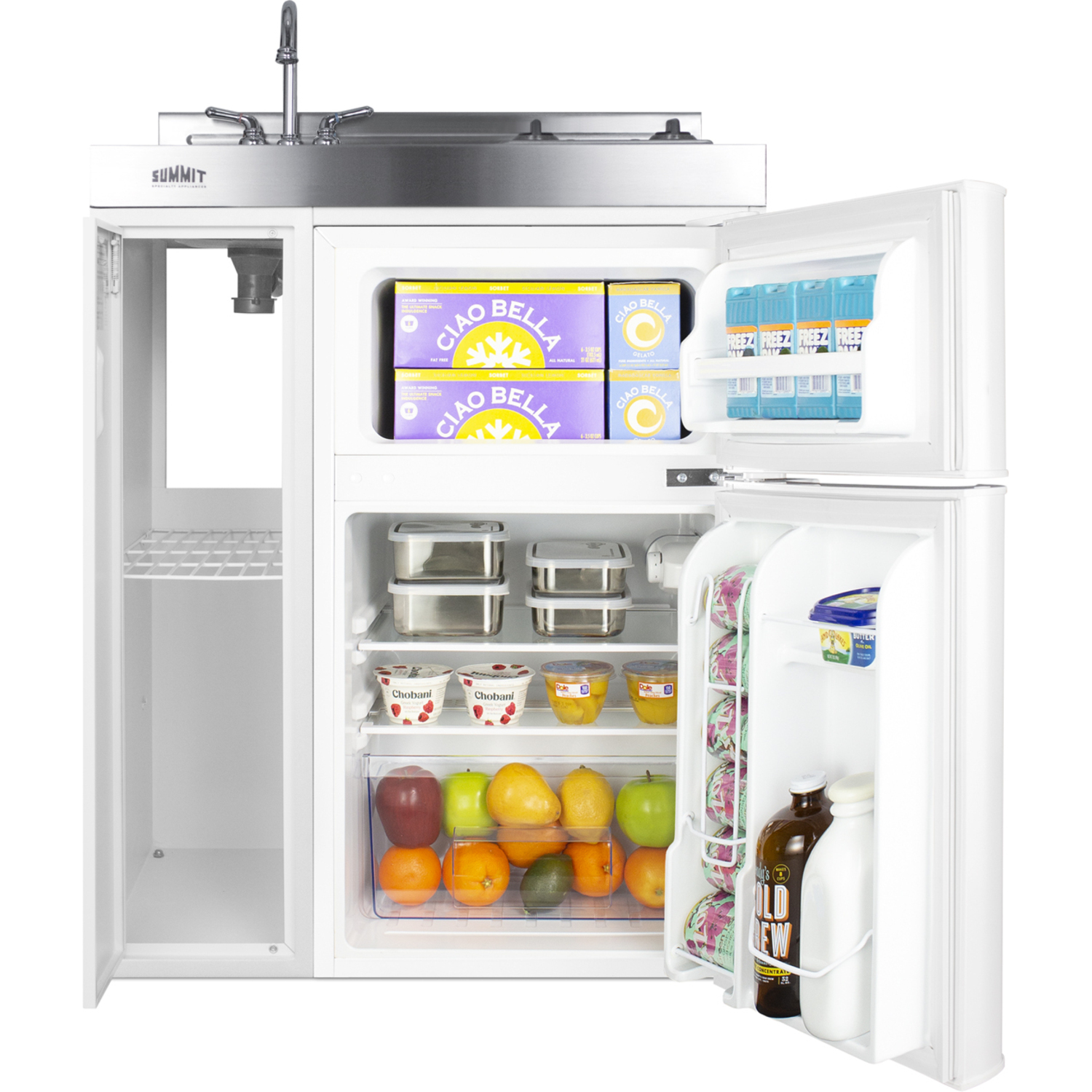

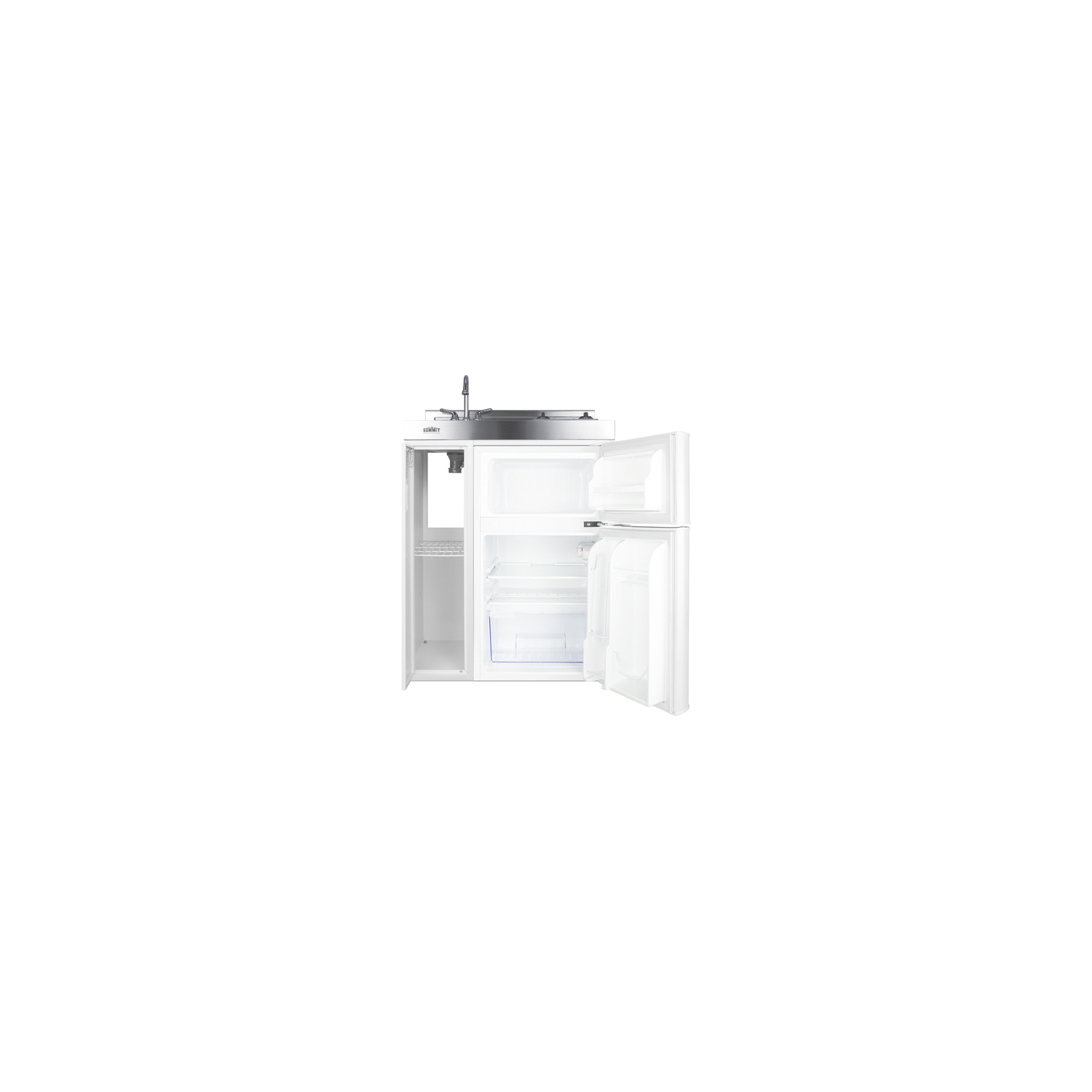

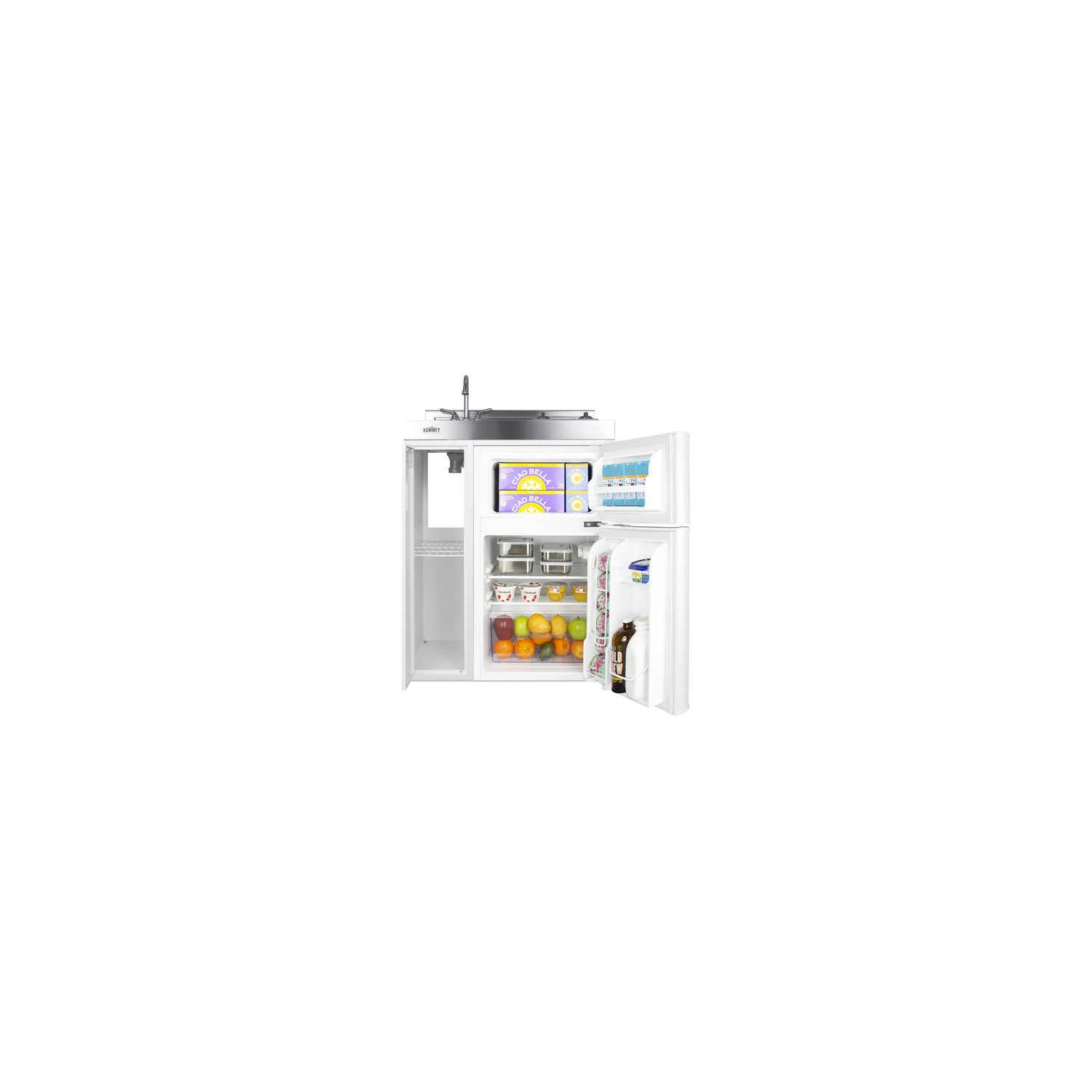

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The C30ELGLASS includes the two-door, ENERGY STAR certified CP34W, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.

The C30ELGLASS is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully featured compact kitchenette at one great price.

SPECIFICATIONS

Overview

Nominal Height 41.0" (104 cm)

Height of Cabinet 41.0" (104 cm)

Nominal Width 30.0" (76 cm)

Width 30.0" (76 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.75" (60 cm)

Capacity 2.93 cu.ft. (83 L)

Defrost Type Manual

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 14.0

Voltage/Frequency 115 V AC/60 Hz

Weight 108.0 lbs. (49 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101033693

Kitchenette

Refrigerator Included CP34W

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 1

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Smooth-Top Cooktop

Number of Burners 2

Cooktop Controls Dial

FEATURES

Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation

115V operation with pre-installed cords Both the cooktop (12 amps) and refrigerator (1.3 amps) include 3-pronged cords for easy setup

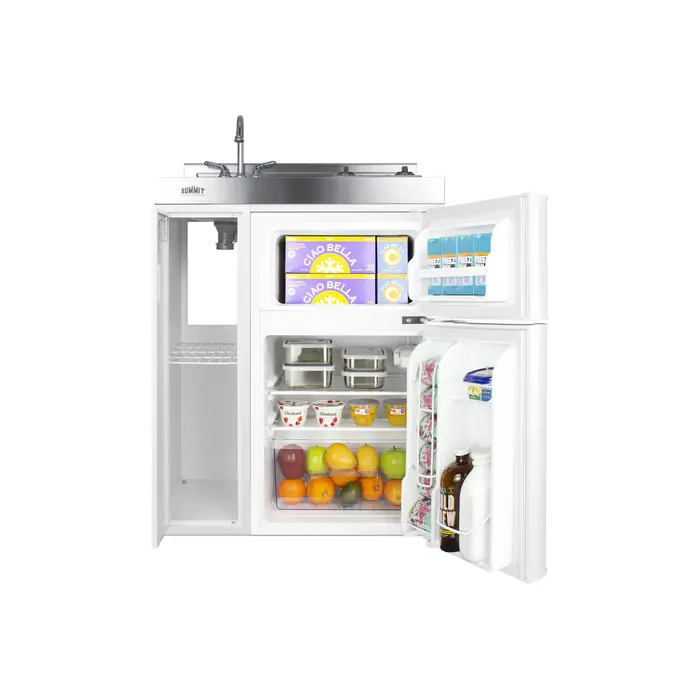

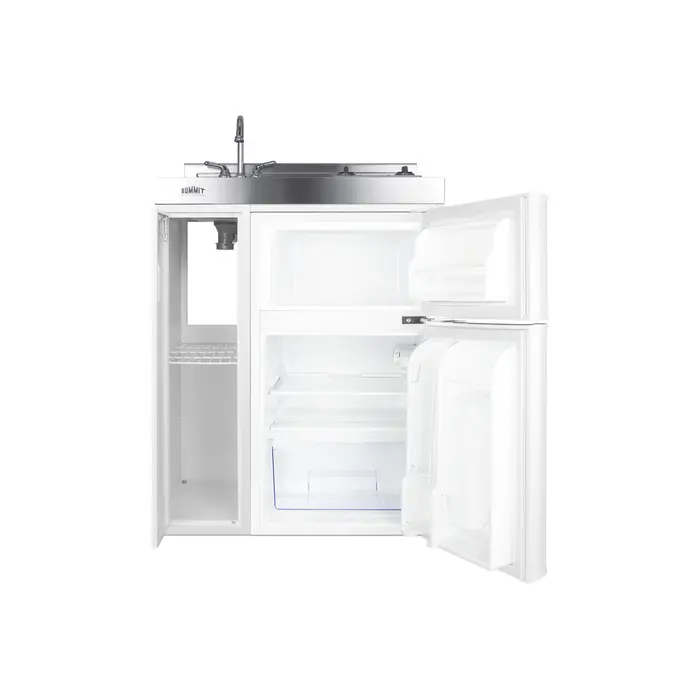

2-door refrigerator-freezer included CP34W is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods

One piece stainless steel countertop Easy-to-clean surface with a professional look

Indicator lights Operating indicators light up to show which burner is in use

Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

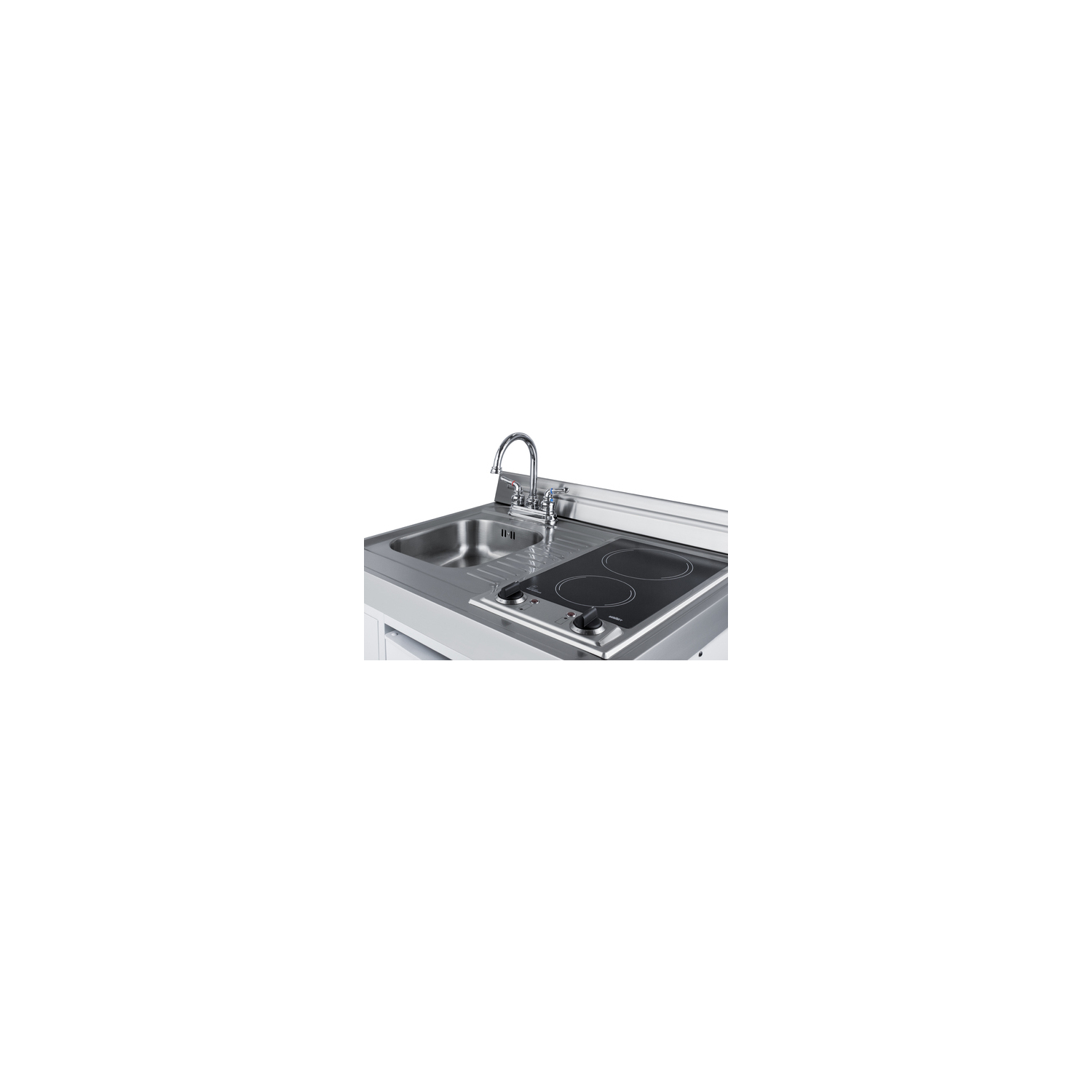

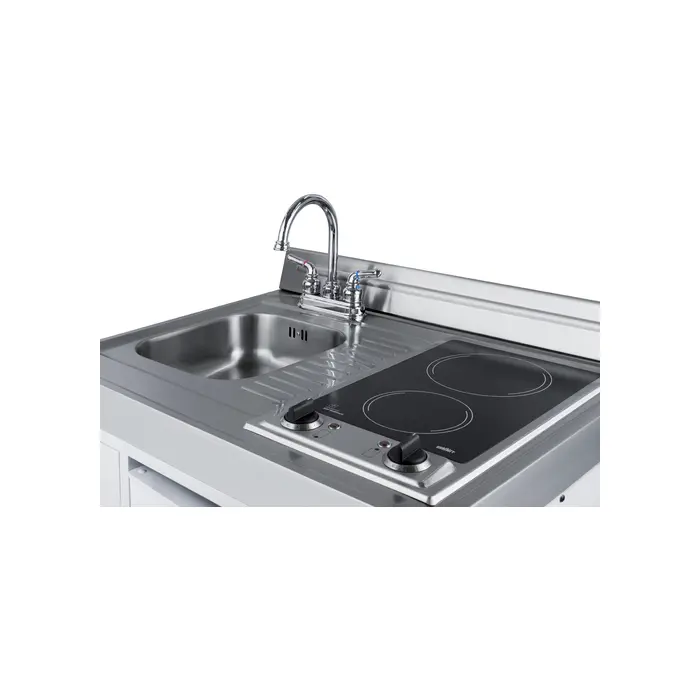

2-burner smooth-top cooktop Includes a 5 3/4" 600W front element and 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking

Sink and faucet Stainless steel sink with ready-to-use gooseneck faucet included

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible doors User-reversible door swing on the refrigerator for added flexibility

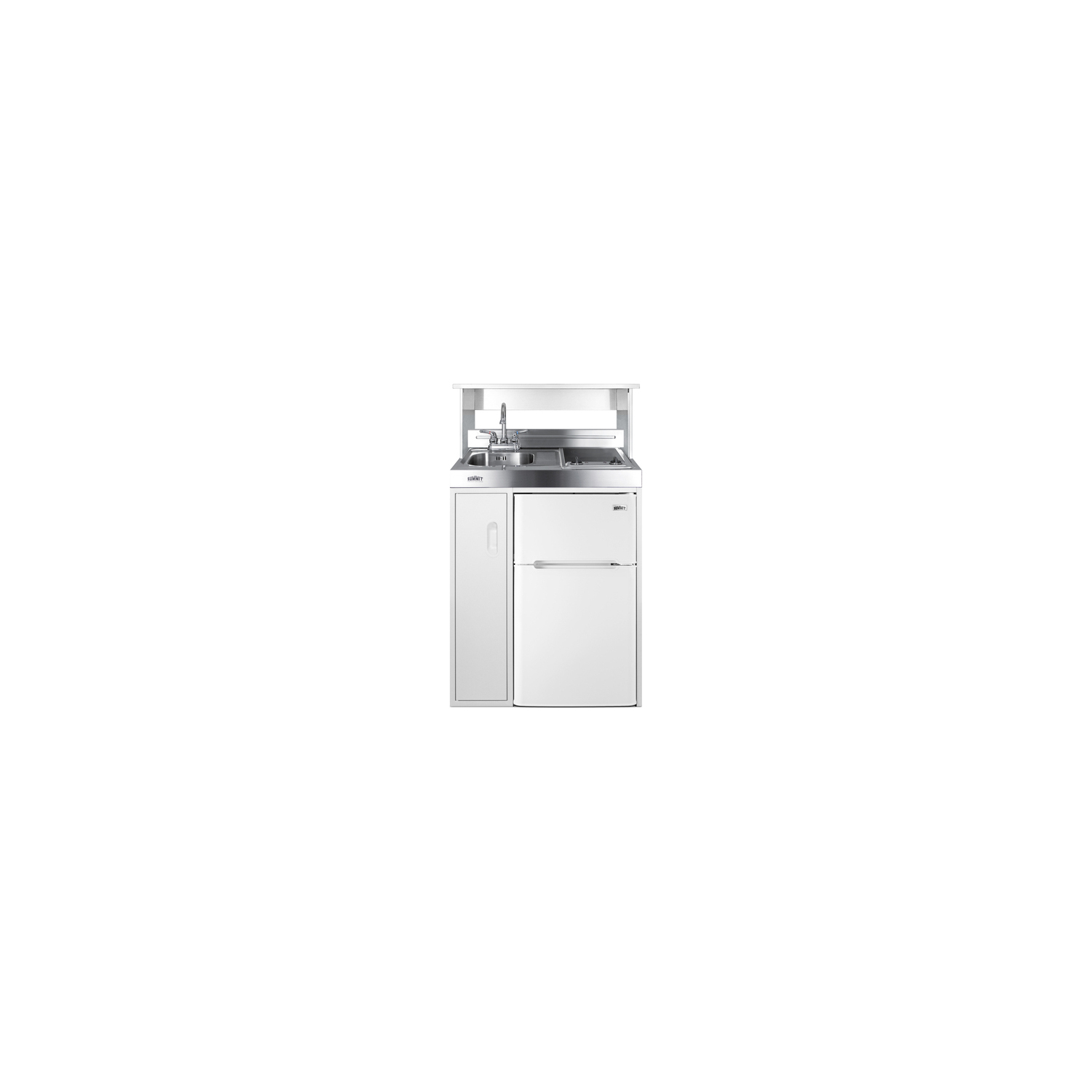

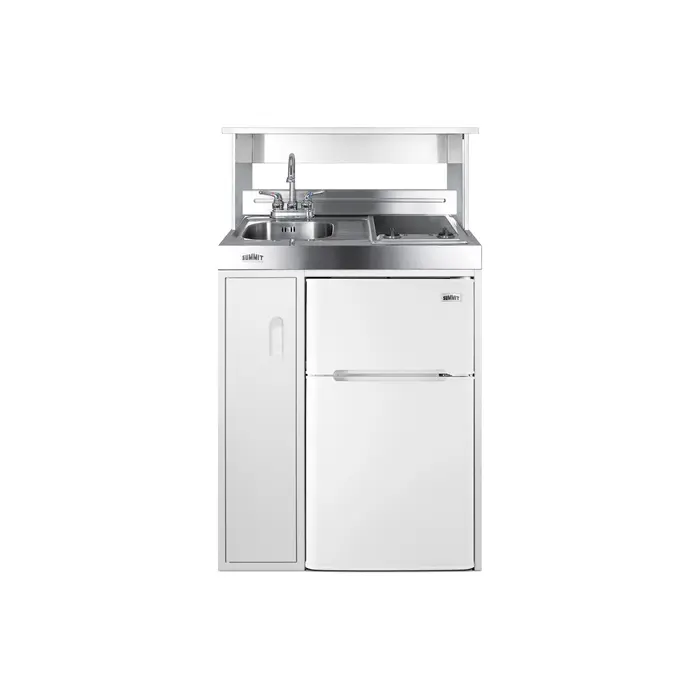

Optional storage shelf Add more storage convenience with the APSS30 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

Ships fully assembled in one box Kitchenette is shipped in one piece, with reinforced packaging for added protection

100% CFC free Environmentally friendly design without ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (C30ELGLASS.pdf)

TECHNICAL DRAWING (.dwg) (C30ELGLASS.dwg)

ASSEMBLY DRAWING (C30ELGLASS-Assembly.pdf)

REVIT MODEL (QF_Summit_C30ELGLASS_Kitchenette.rfa)

ENERGY GUIDES (EnergyGuide-CP34W.pdf)

USE & CARE (C30ELGLASS-User-Manual.pdf)

USE & CARE (C30ELGLASS-User-Manual_2.pdf)
