Summit 30 inch wide all-in-one kitchenette with 2-burner 115V coil cooktop, refrigerator-freezer, sink, and storage cabinet, C30ELBK

Summit brings true convenience to smaller spaces with all-in-one combination kitchenettes. Available in a variety of sizes and finishes, these units come fully featured with everything you need for the home foodservice experience, including a 2-burner coil cooktop, sink, storage cabinet, and refrigerator with a freezer compartment.

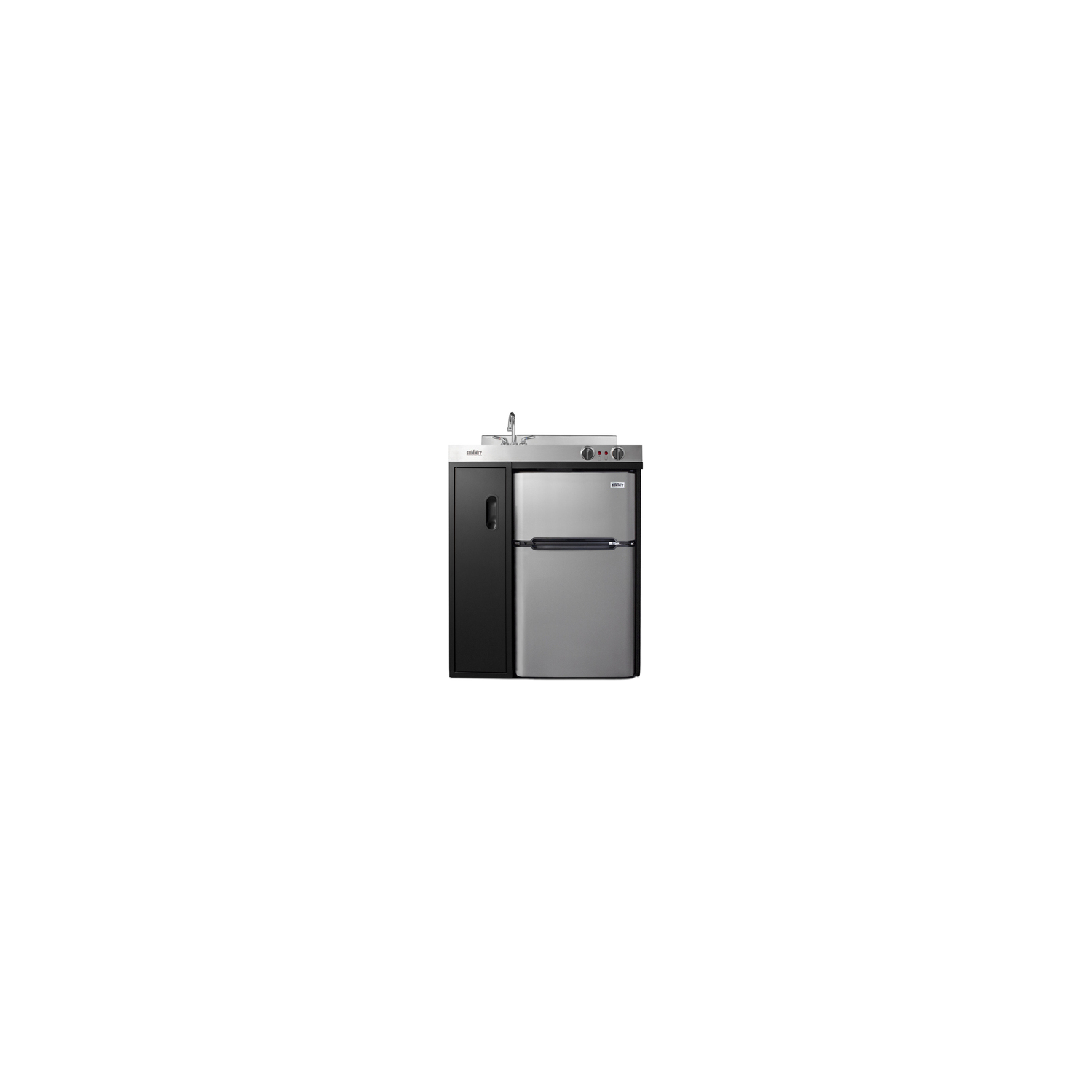

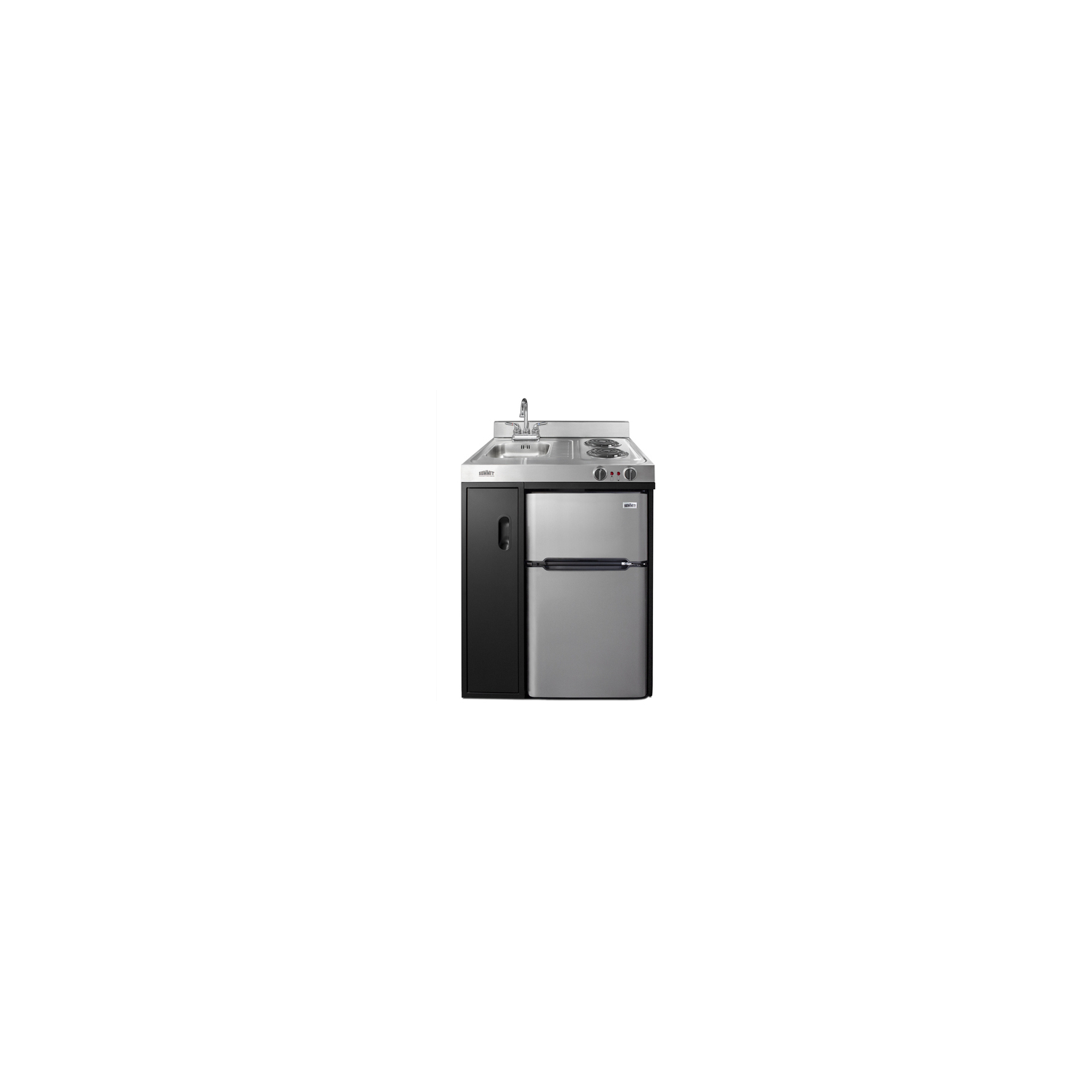

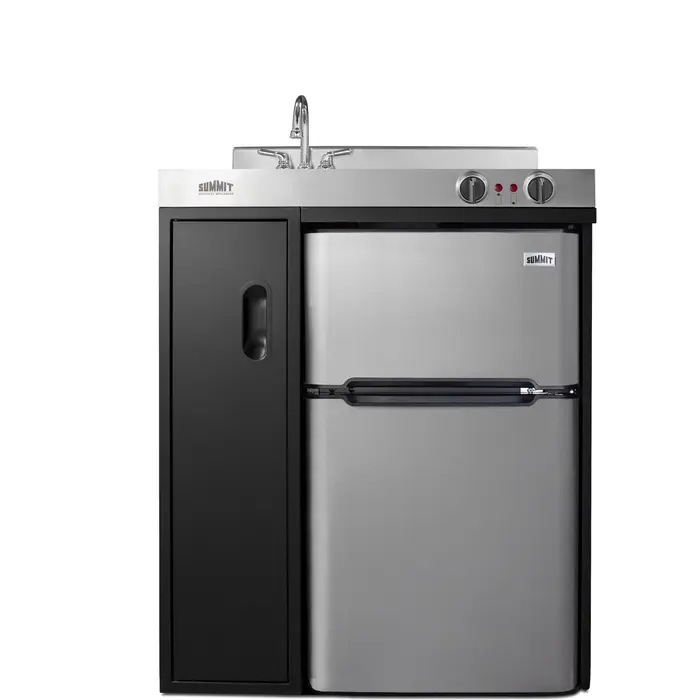

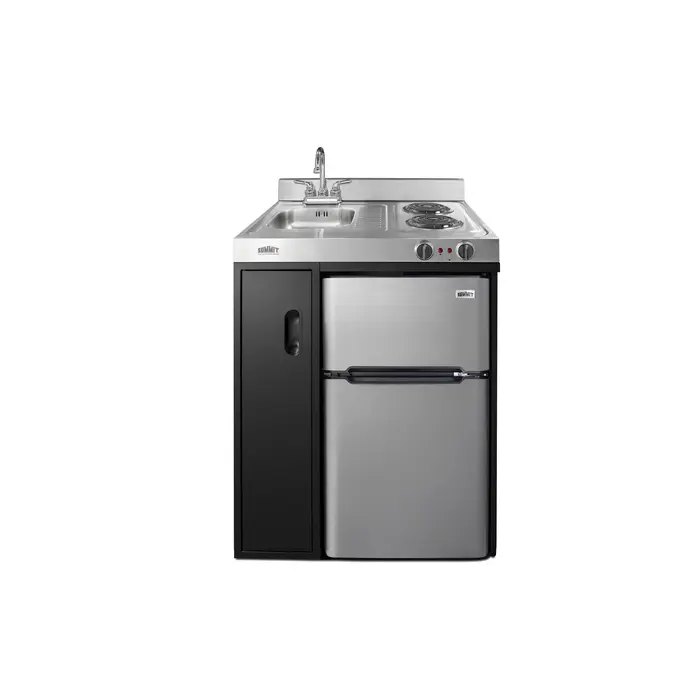

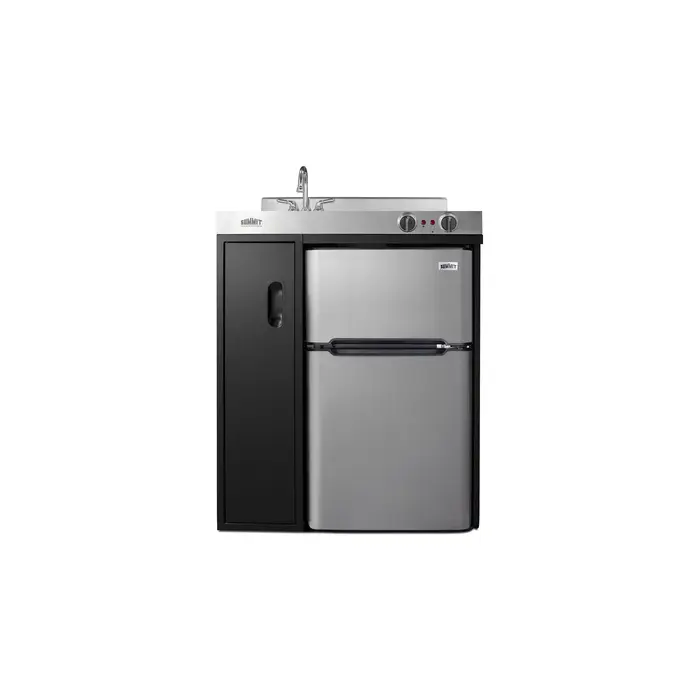

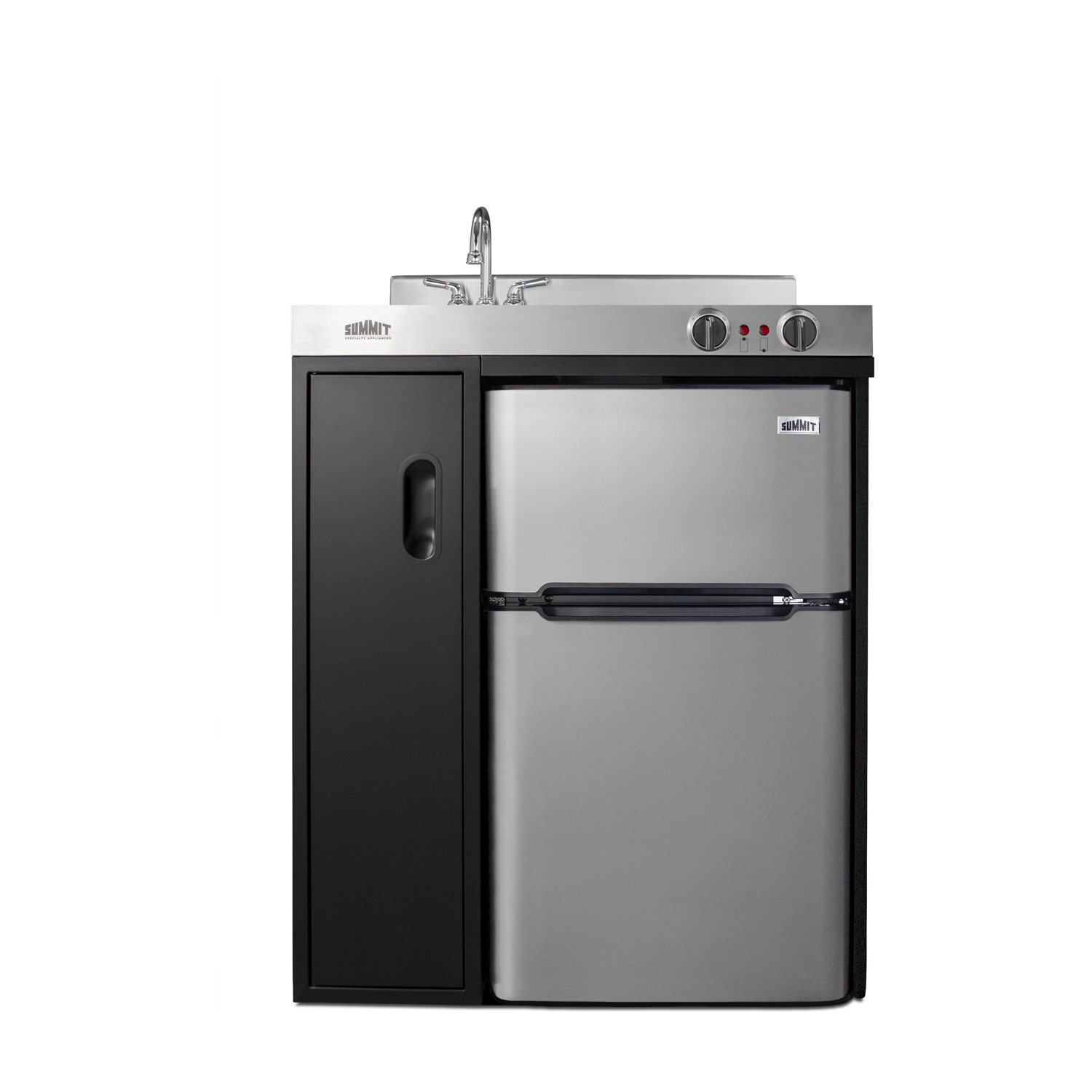

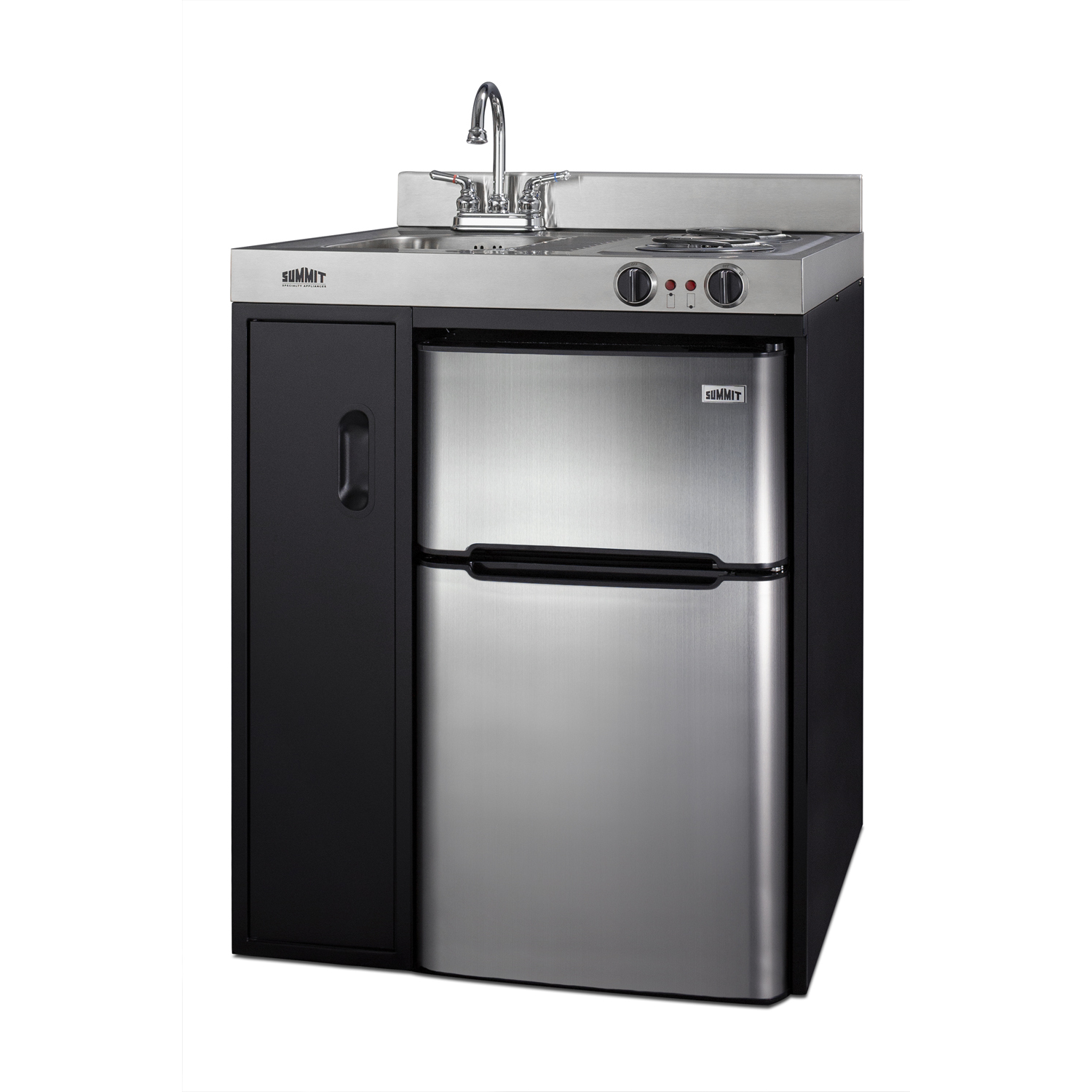

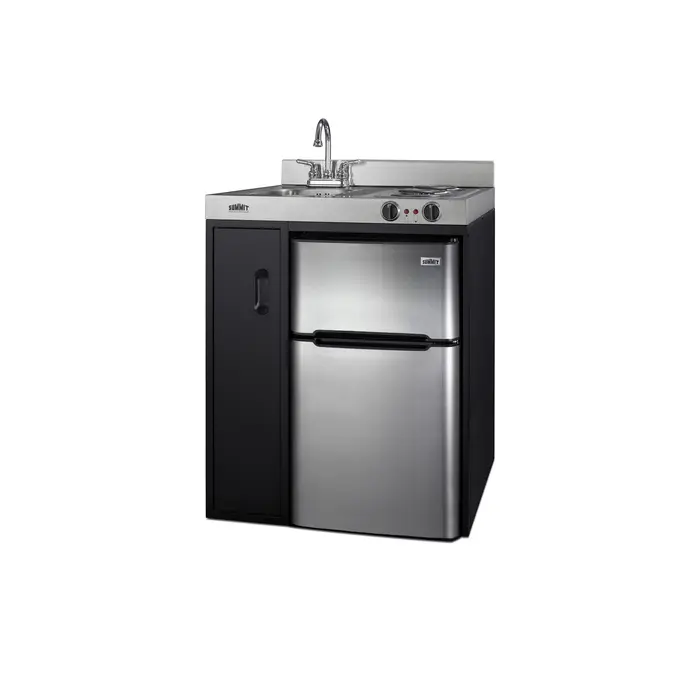

The C30ELBK is a 30" wide kitchenette with an easy-fitting 24" depth. Its black exterior brings a modern look to efficiency spaces, with added touches of stainless steel on the kitchenette work surface and refrigerator doors. It comes fully equipped with a 115V cooktop with 900W and 500W coil elements, front-located push-to-turn knobs, and a preinstalled power cord. This unit includes a compact sink with ready-to-use faucet included. A cabinet with a removable shelf is located below the sink for dry storage.

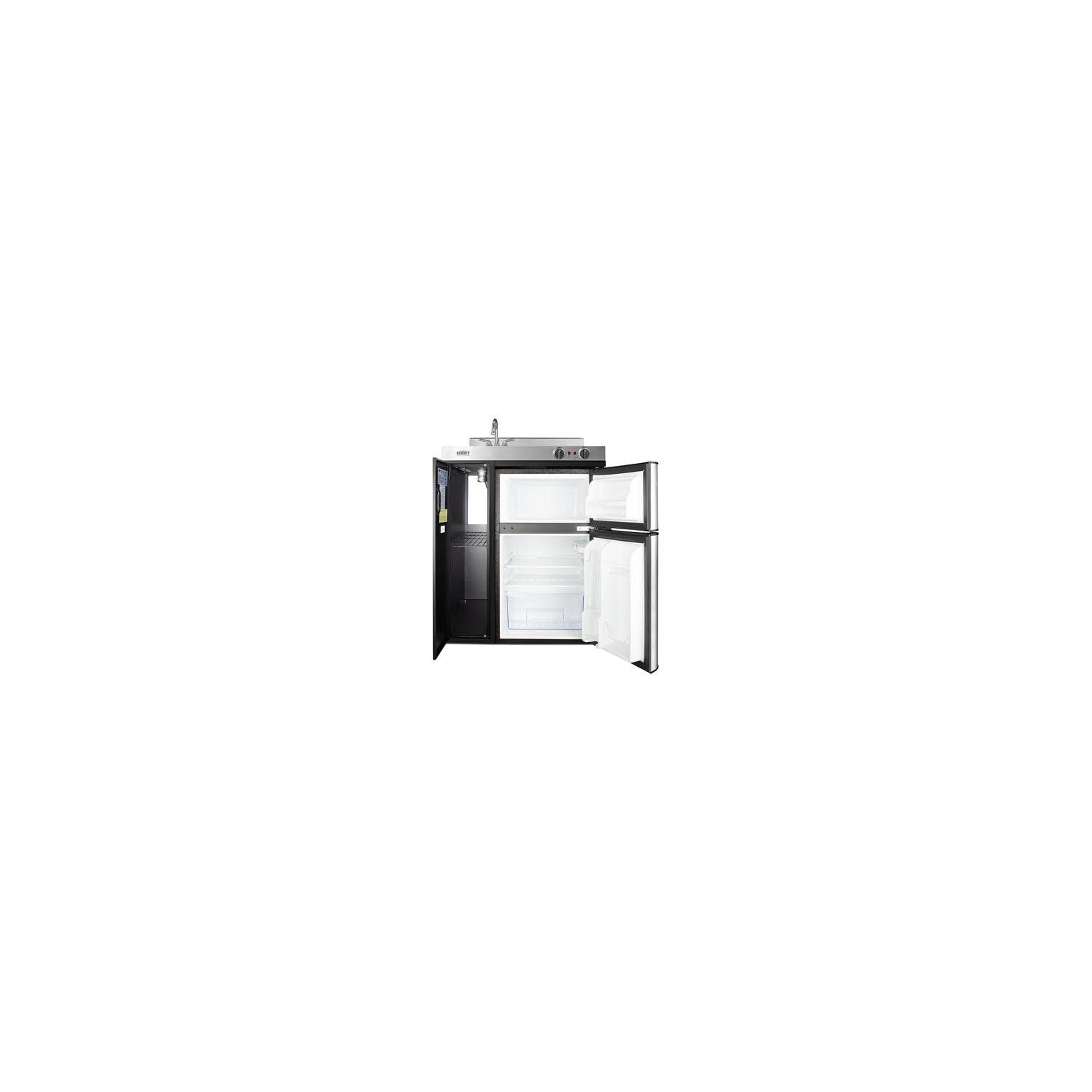

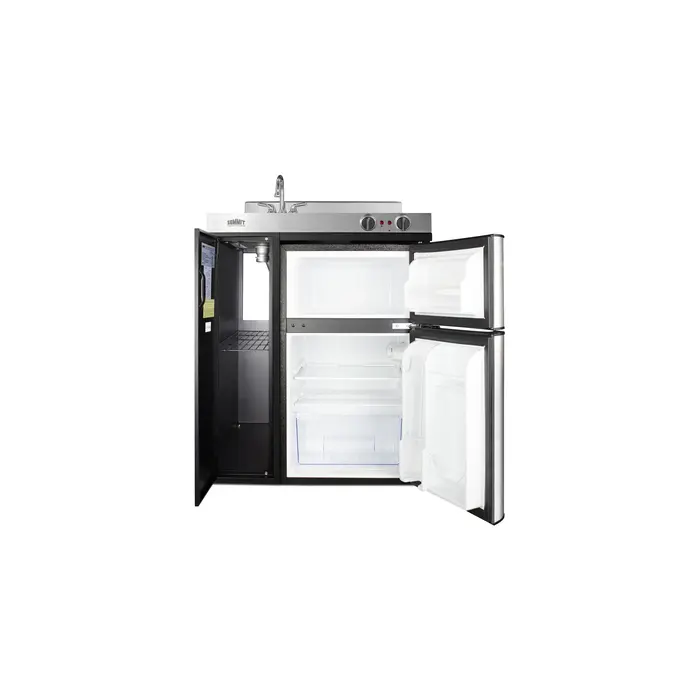

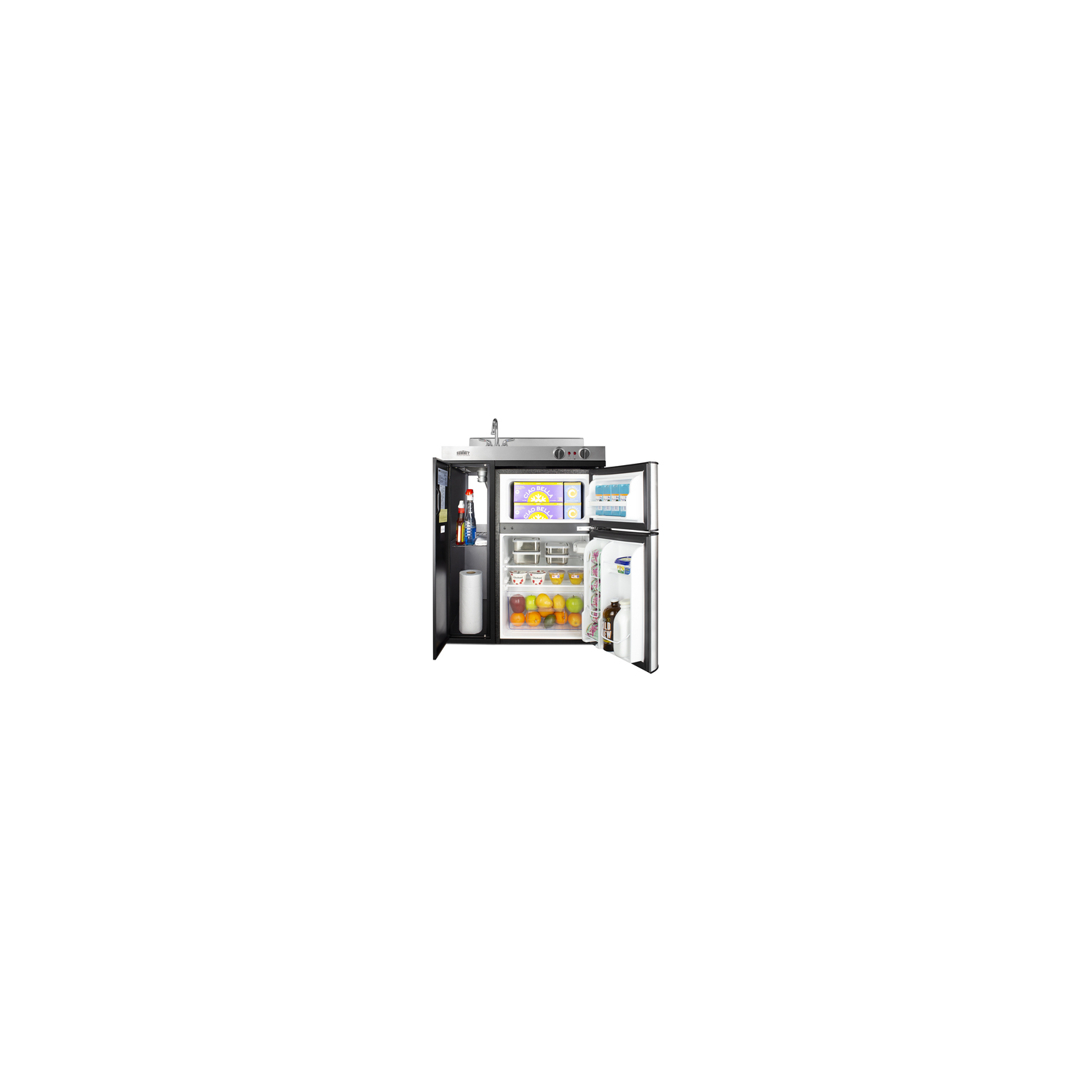

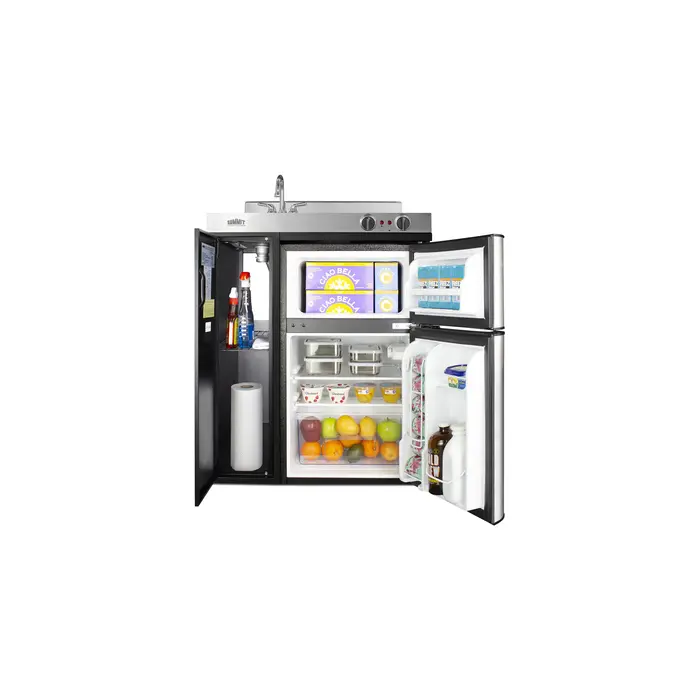

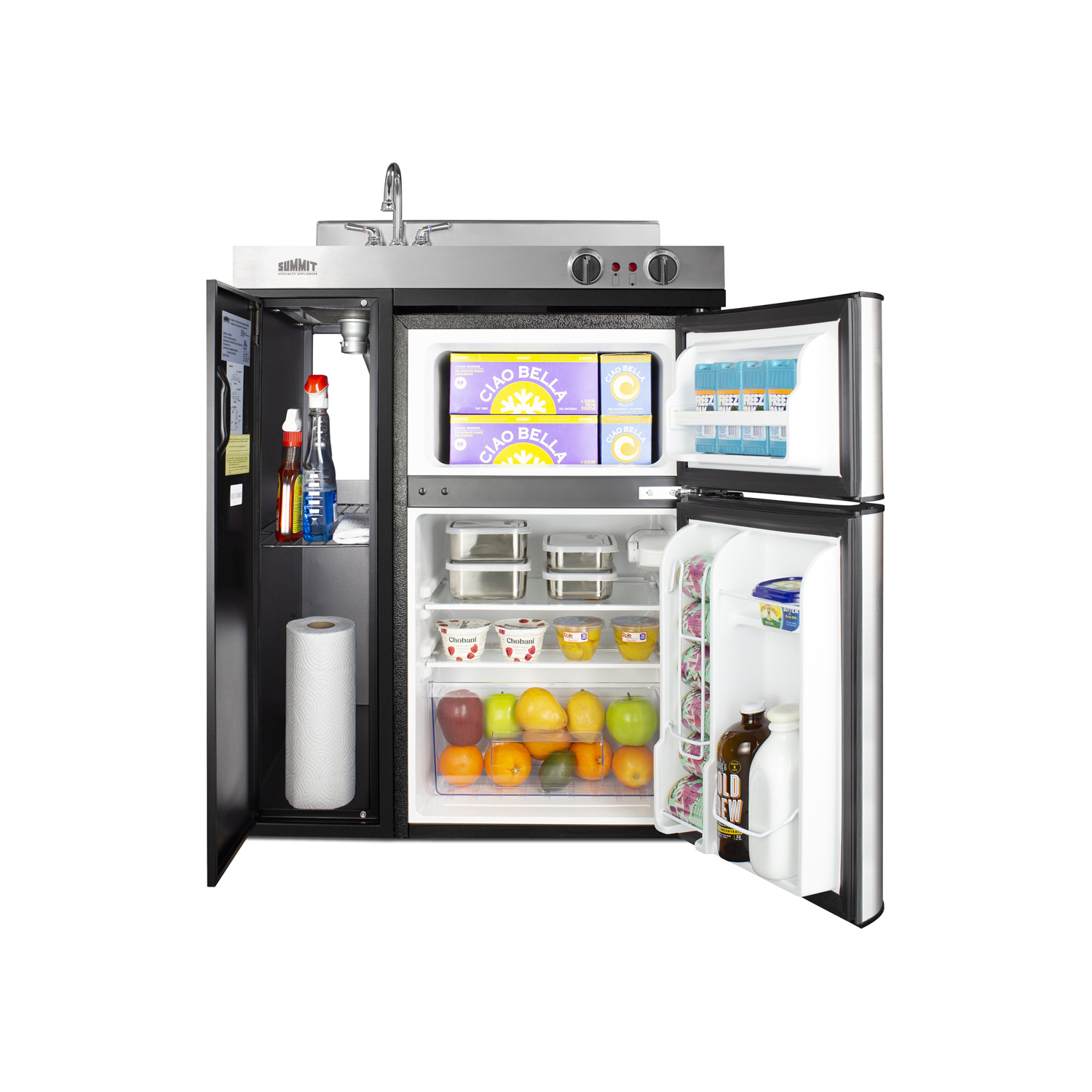

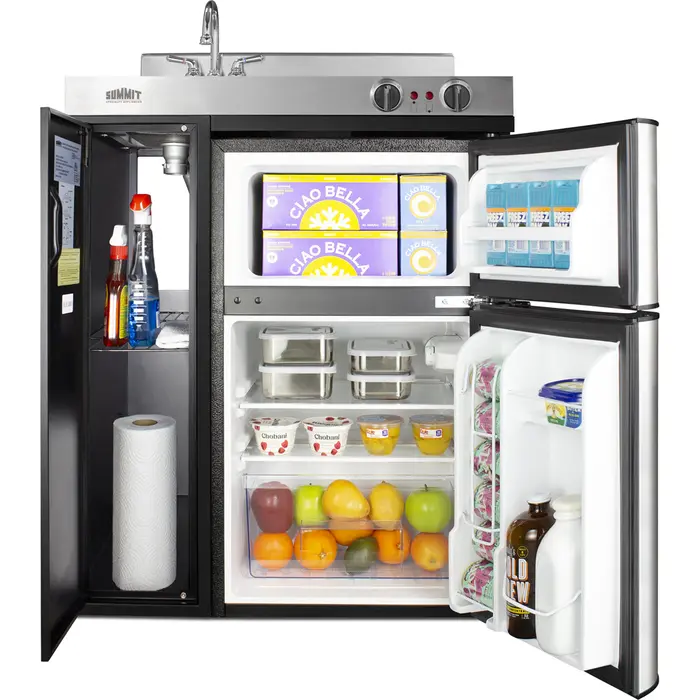

Unlike many other brands' kitchenettes, all Summit units include a refrigerator with a freezer compartment to cover all of your cold storage needs. The C30ELBK includes the two-door, ENERGY STAR certified CP34BSS, with 3.2 cu.ft. of storage space. A dual evaporator system separately cools the auto defrost refrigerator section and manual defrost freezer compartment for improved overall performance. This model also includes an adjustable glass shelf, door storage, and a crisper.

The C30ELBK is packaged and shipped in one box. Perfect for studio apartments, hotel rooms, dormitories, assisted living facilities, temporary kitchen facilities, and any other location in need of a low maintenance, fully-featured compact kitchenette at one great price.

SPECIFICATIONS

Overview

Nominal Height 42.0" (107 cm)

Height of Cabinet 41.5" (105 cm)

Nominal Width 30.0" (76 cm)

Width 30.0" (76 cm)

Nominal Depth 24.0" (61 cm)

Depth 23.63" (60 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 41.88" (106 cm)

Capacity 3.2 cu.ft. (91 L)

Defrost Type Cycle

Door Black/SS

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 13.1

Voltage/Frequency 115 V AC/60 Hz

Weight 108.0 lbs. (49 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101073194

Kitchenette

Refrigerator Included CP34BSS

Refrigerator Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Shelf Type Glass

Shelf Qty 2

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Full Door Shelves 2

Can Storage Yes

Thermostat Type Dial

Interior Light Yes

Refrigerant Type R600a

Refrigerant Amount 1.16 oz.

High Side PSI 250.0

Low Side PSI 88.0

Cooking Type Coil Cooktop

Number of Burners 2

Cooktop Controls Dial

Interior Height 1 18.5" (47 cm)

Interior Width 1 15.75" (40 cm)

Interior Depth 1 15.0" (38 cm)

Interior Height 2 7.5" (19 cm)

Interior Width 2 14.0" (36 cm)

Interior Depth 2 14.0" (36 cm)

FEATURES

Complete one-piece kitchenette All-in-one kitchen is built with virtually everything you need for meal preparation

Refrigerator-freezer included CP34BSS is packaged inside the kitchenette. This 3.2 cu.ft. ENERGY STAR certified refrigerator includes adjustable glass shelves, door storage, and a freezer compartment

Sink and faucet Stainless steel sink with ready-to-use gooseneck faucet included

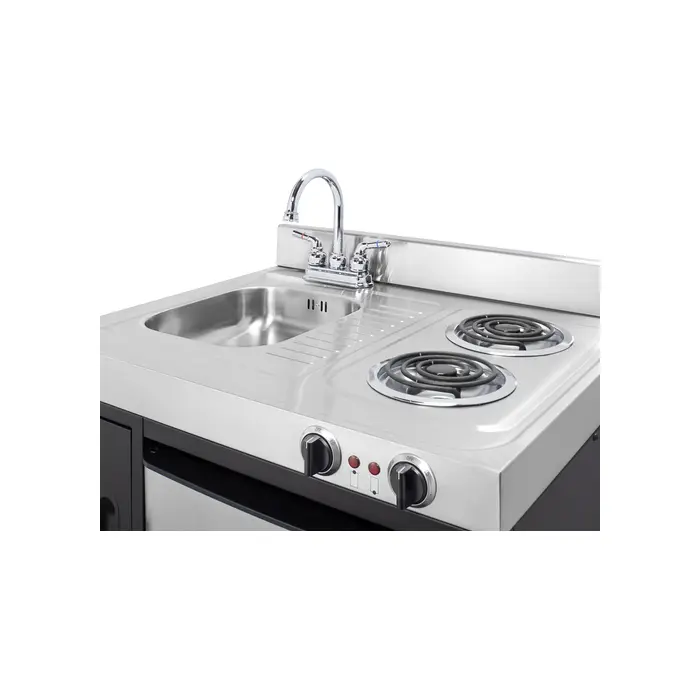

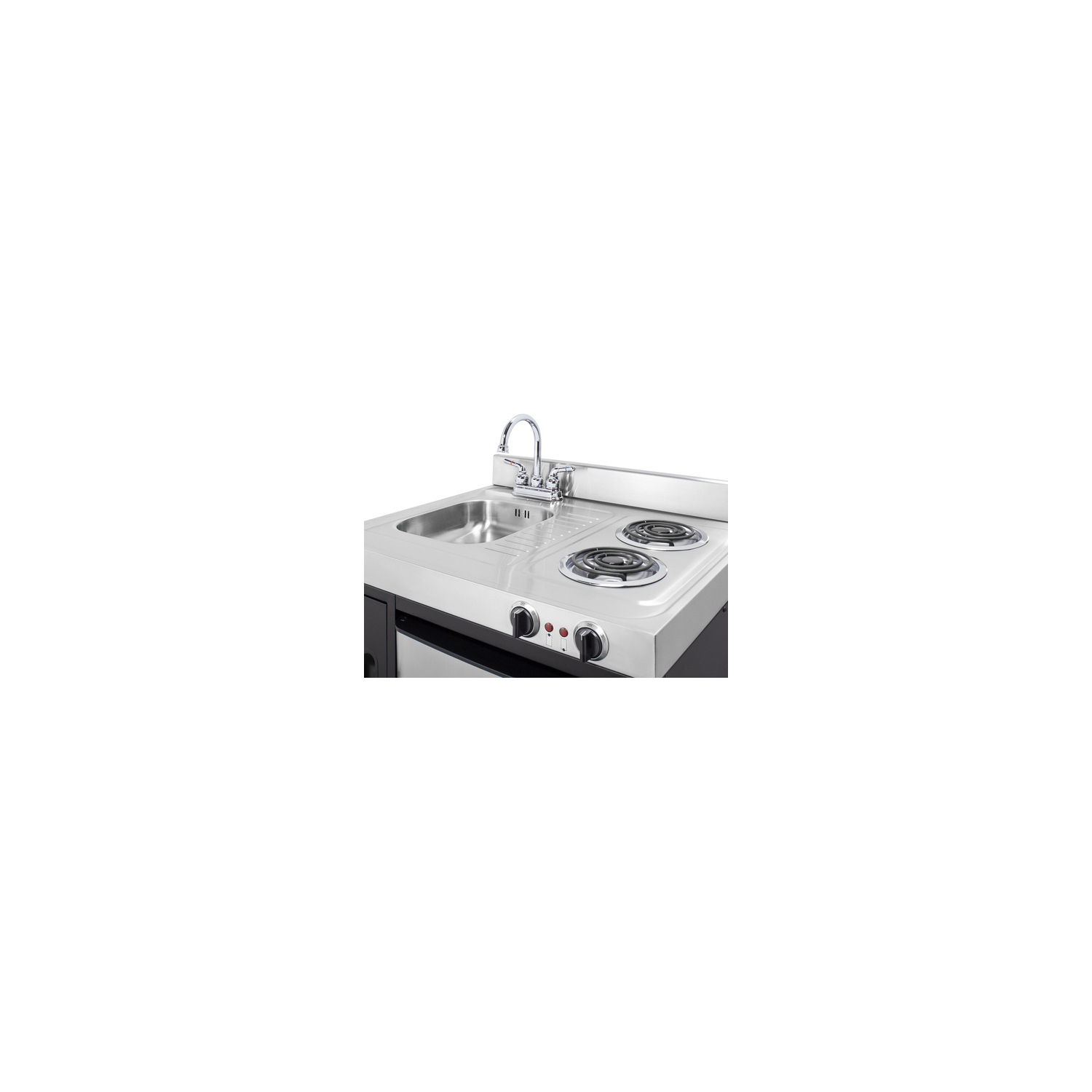

2-burner cooktop Includes two coil elements, with a rear 500W burner and front 900W burner to accommodate a range of heating options

115V operation with pre-installed cords Both the cooktop (12 amps) and refrigerator (1.1 amps) include 3-pronged cords for easy setup

Push-to-turn knobs Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents

Indicator lights Operating indicators light up to show which burner is in use

Black and stainless steel exterior finish Modern design with a jet black powder-coated metal cabinet, stainless steel surface, and stainless steel refrigerator doors

One piece stainless steel countertop Easy-to-clean surface with a professional look

Storage compartment Convenient lower cabinet with adjustable shelf lets you store dry goods

Ships fully assembled in one box Kitchenette is shipped in one piece, with reinforced packaging for added protection

Stainless steel backguard Includes a 4" high backguard to complete the look and offer added protection to your walls

Reversible doors User-reversible door swings on the refrigerator-freezer for added flexibility

Optional storage shelf Add more storage convenience with the APSS30 Appliance Station, a stainless steel shelving system designed for easy installation on this unit

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (C30ELBK.pdf)

TECHNICAL DRAWING (.dwg) (C30ELBK.dwg)

REVIT MODEL (QF_Summit_C30ELBK_Kitchenette.rfa)

REVIT MODEL (QF_Summit_C30EL_Kitchenette.rfa)

USE & CARE (C30ELBK-User-Manual.pdf)

USE & CARE (C30ELBK-User-Manual_2.pdf)

ENERGY GUIDES (EnergyGuide-CP34BSS.pdf)
