Summit Undercounter 24 inch refrigerator-freezer for residential use with cobalt blue door, stainless steel handle, and white cabinet, 7.61101e+011, BRF611WHB

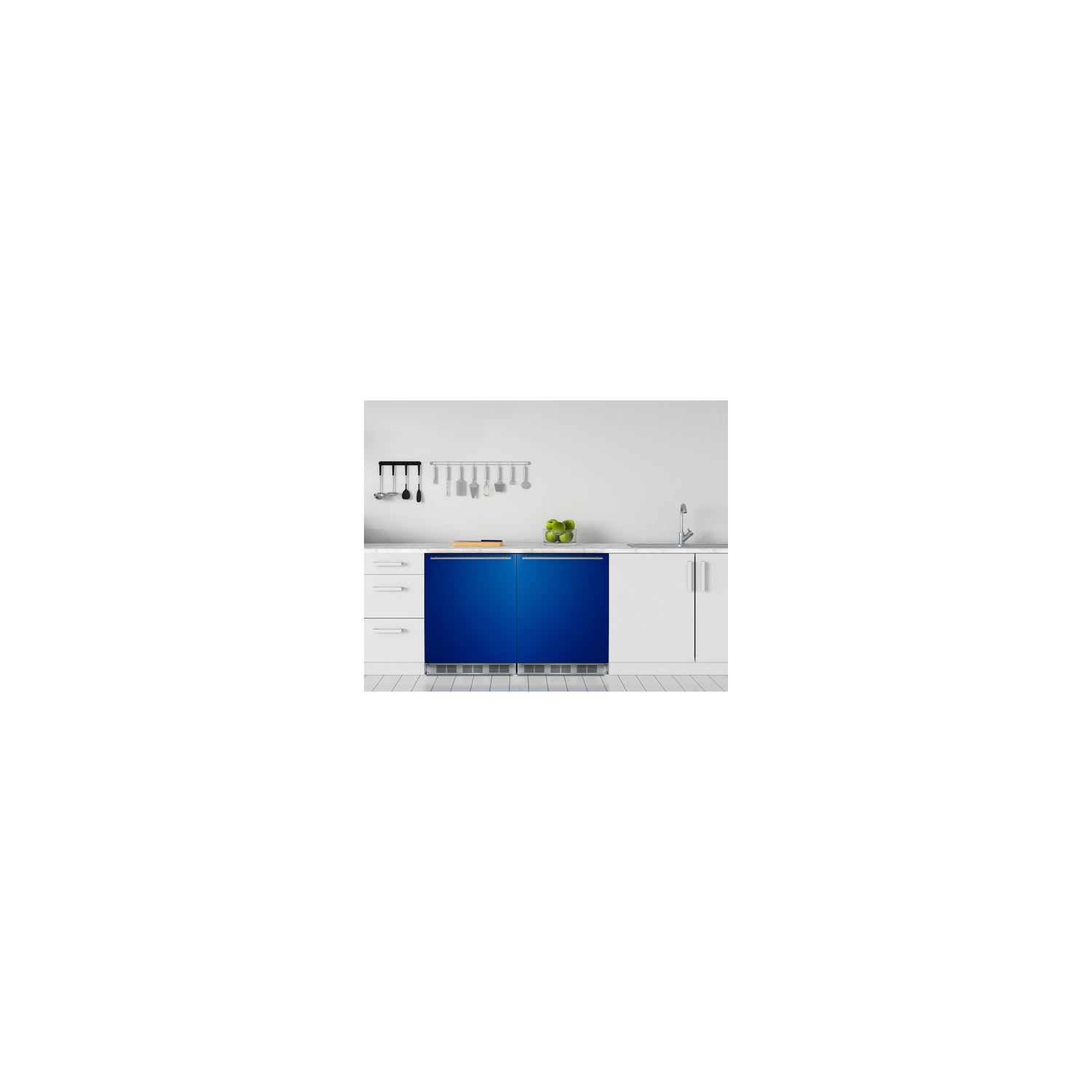

Make a statement under the counter with Summit's exclusive European collection of boldly colored refrigerators, available in standard or ADA compliant height.

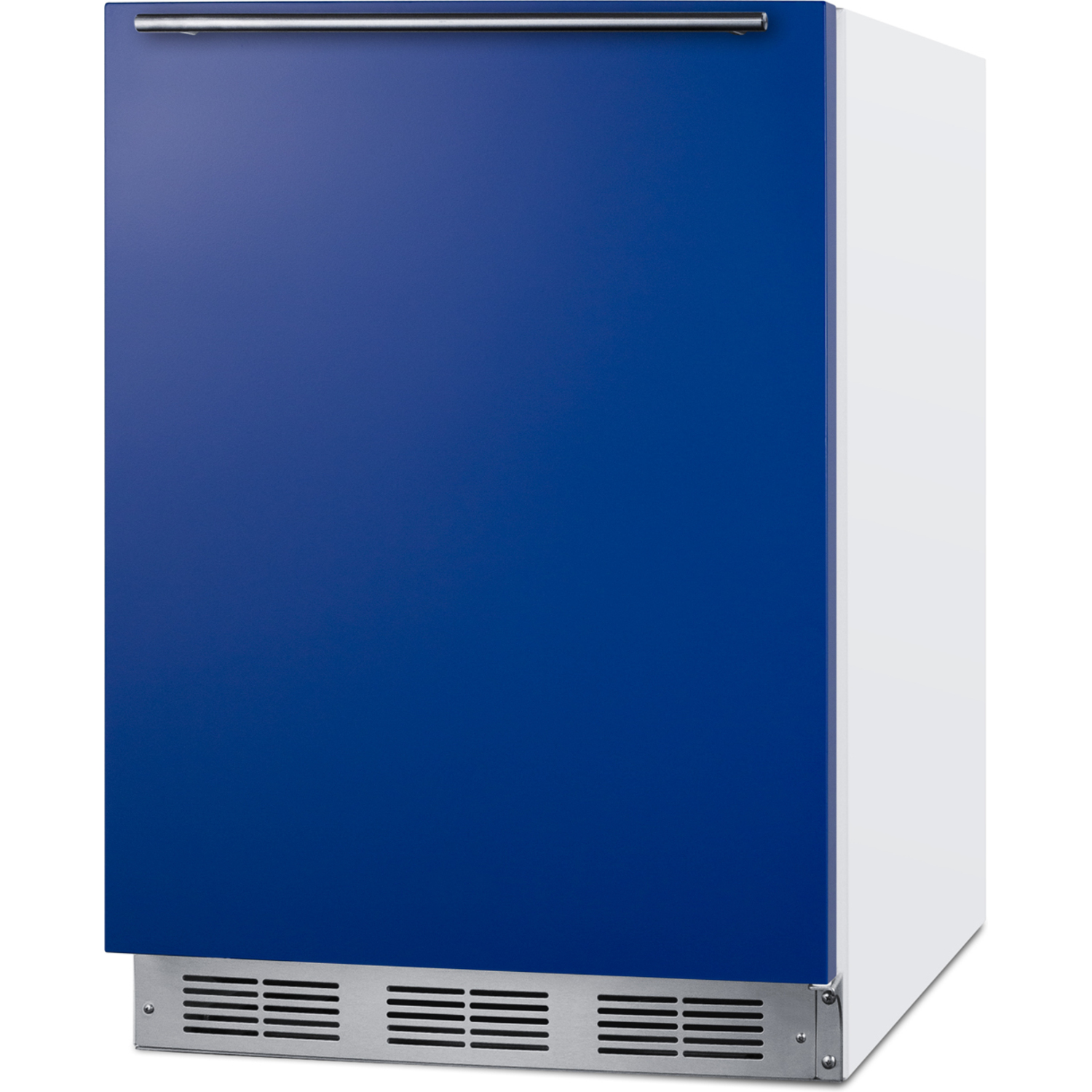

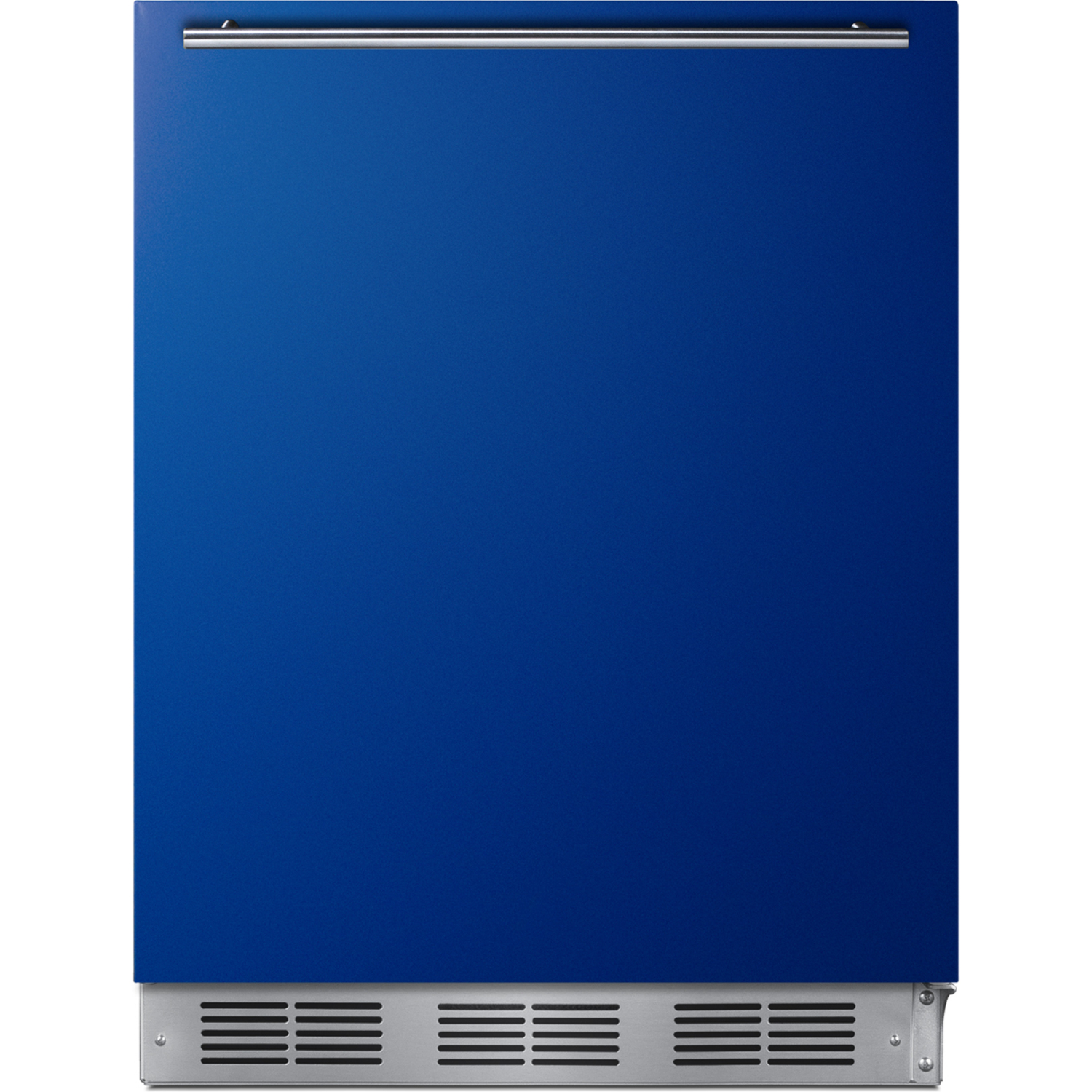

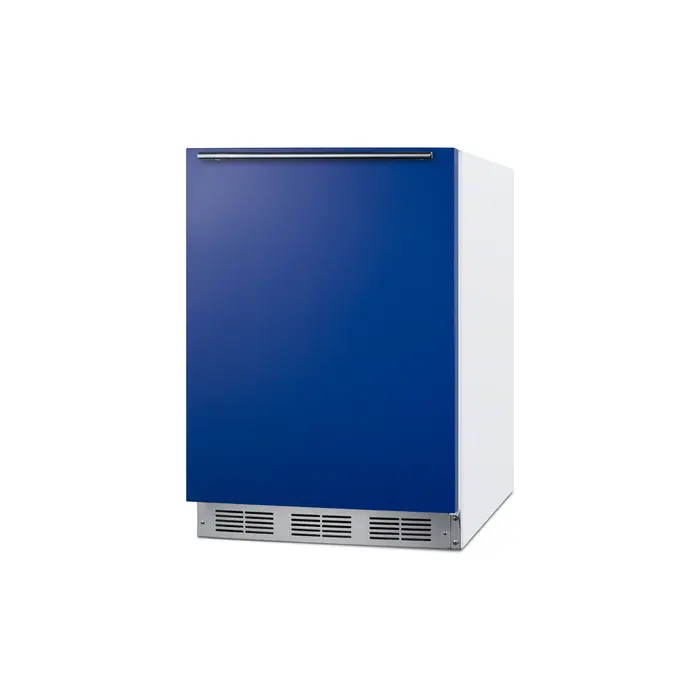

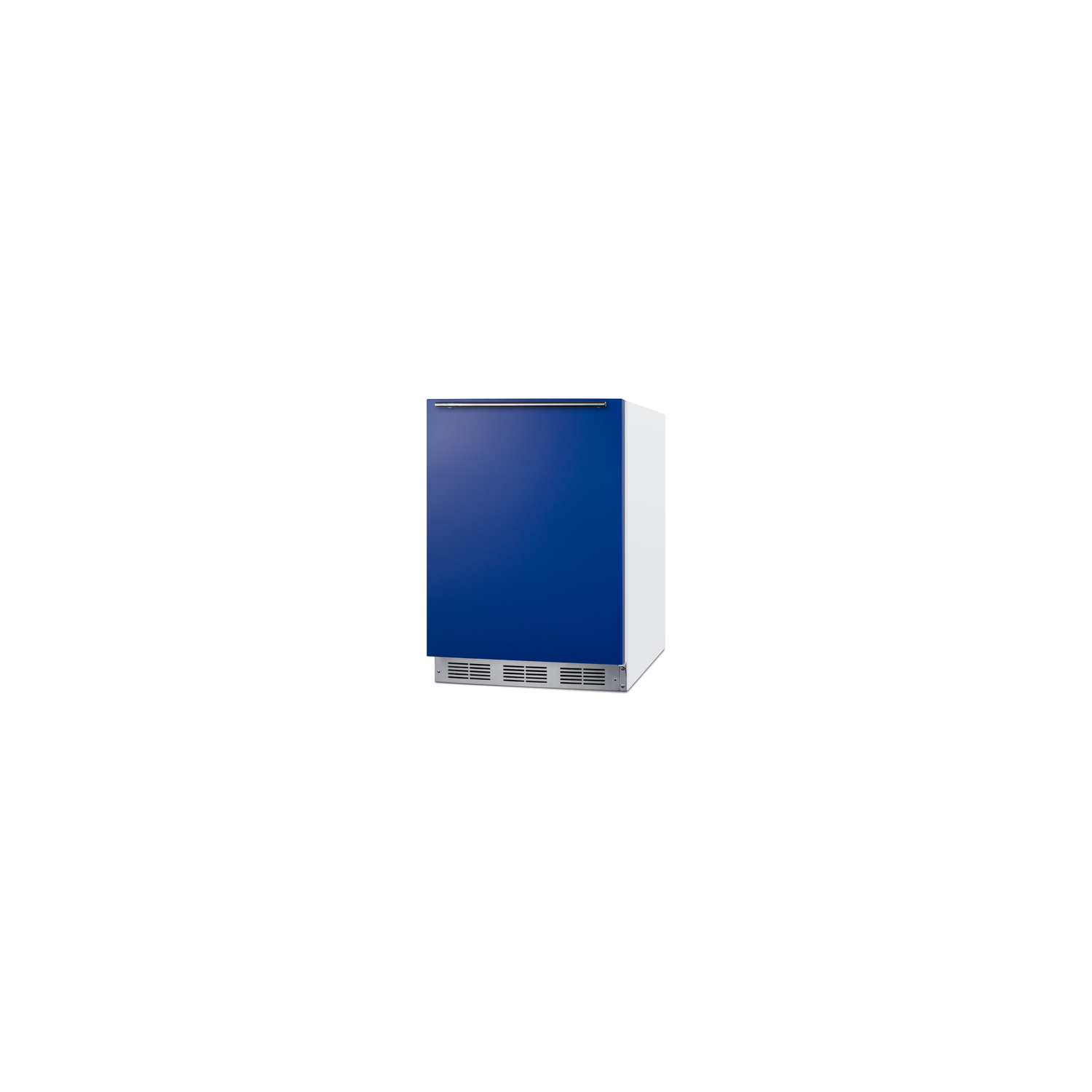

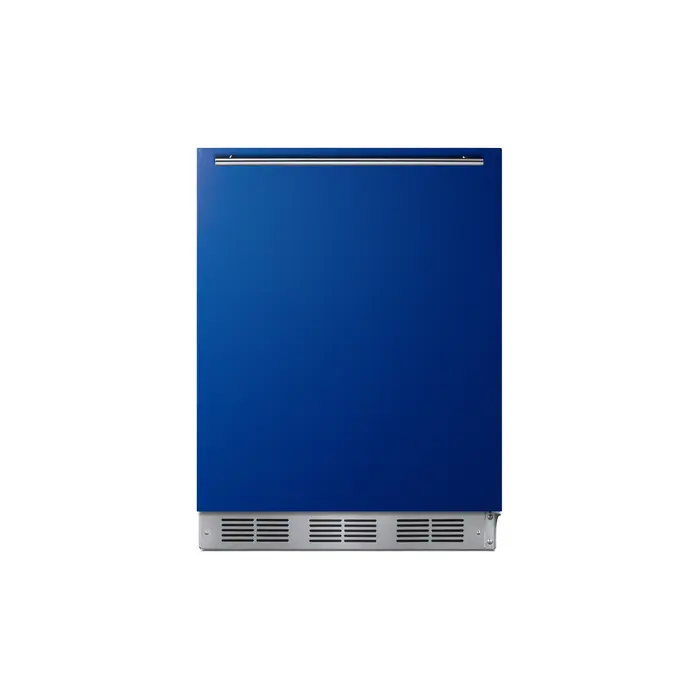

Model BRF611WHB is a 24" wide refrigerator-freezer with a generous capacity of more than 5 cu.ft. to meet general storage needs. The door finish comes in a striking cobalt blue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. This unit has a white exterior cabinet. It is manufactured in Europe and modified in the United States with domestic steel finishing.

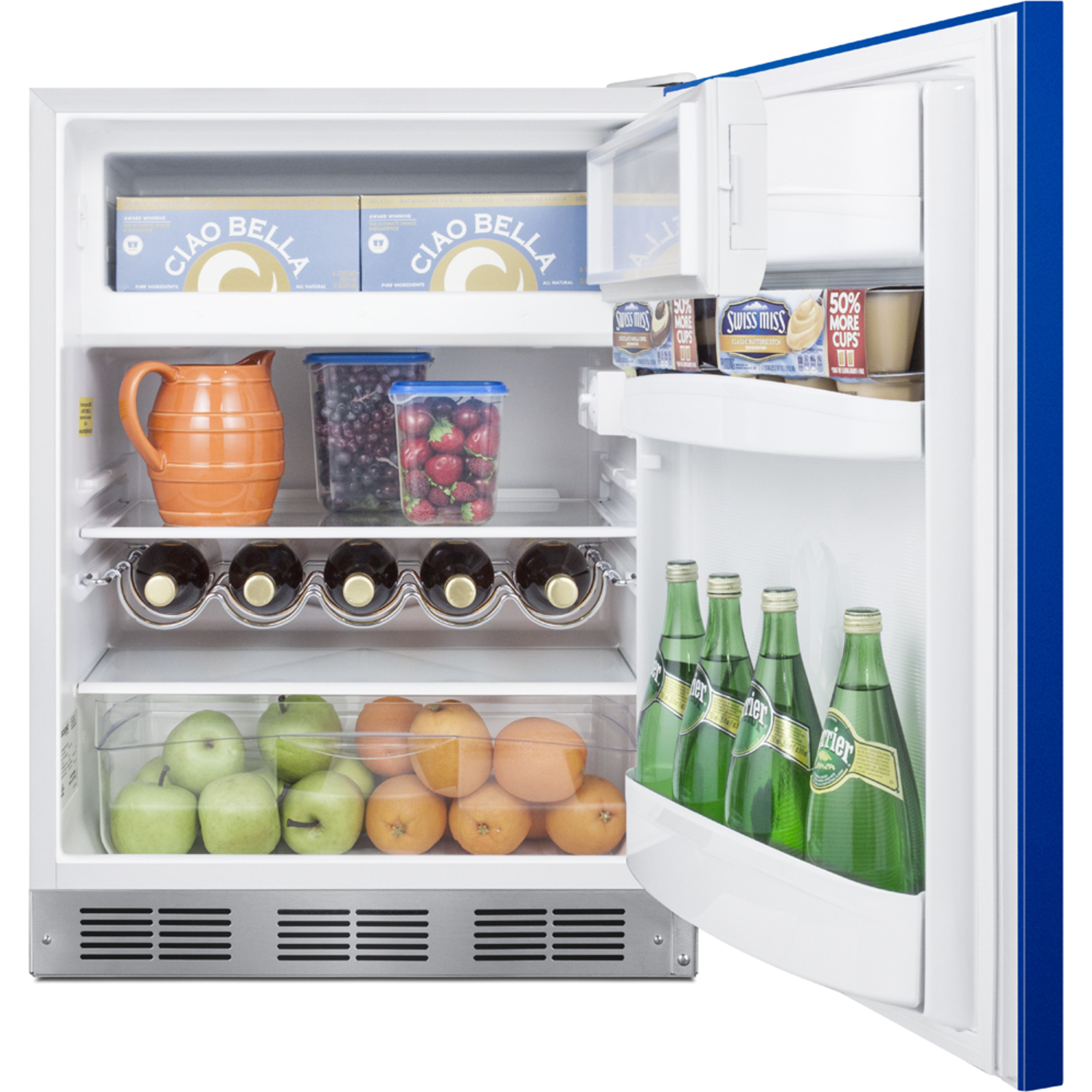

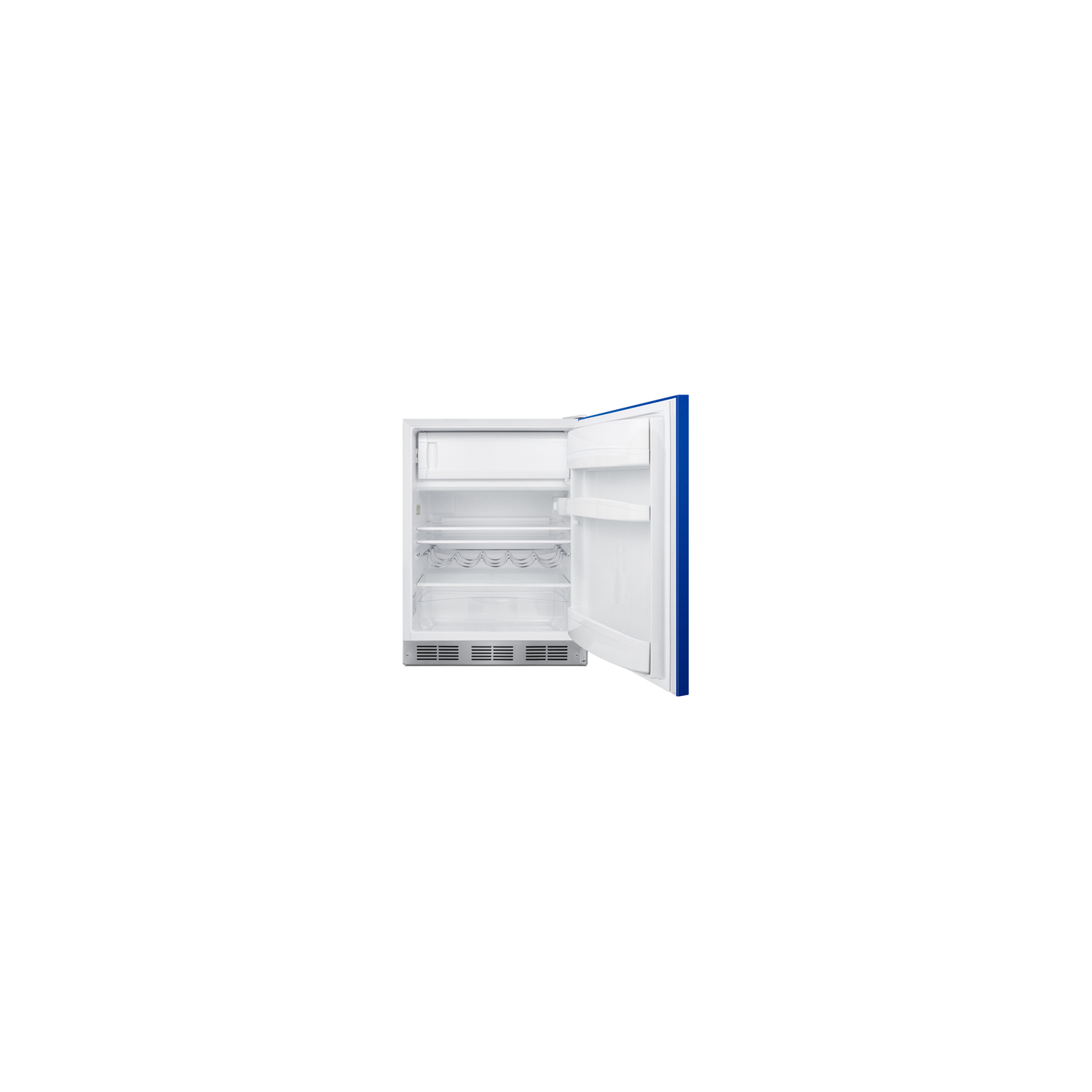

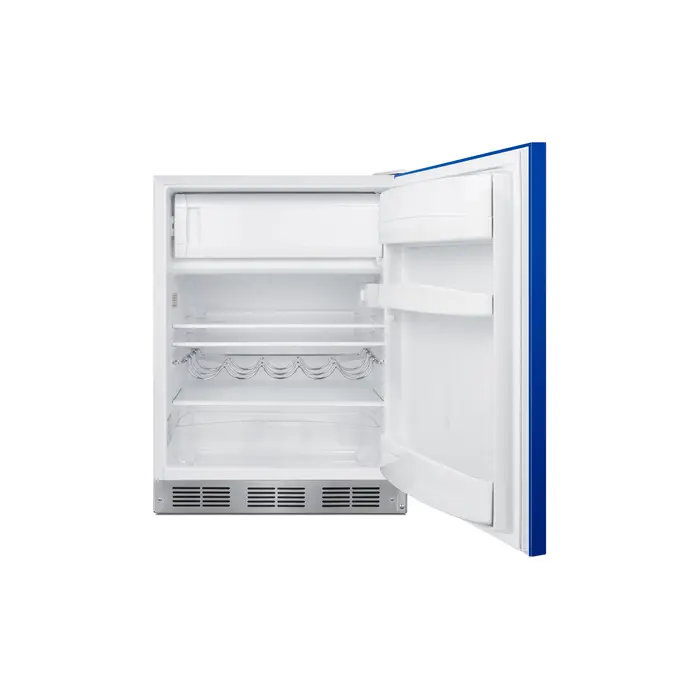

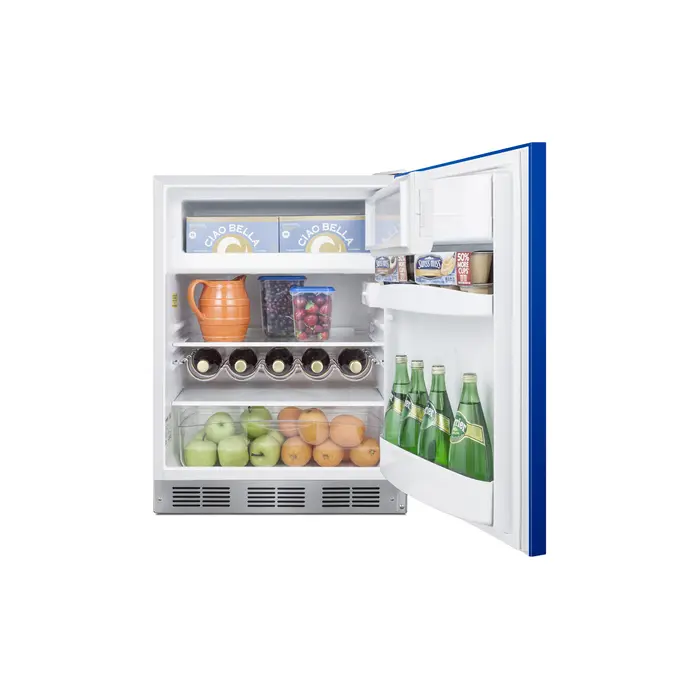

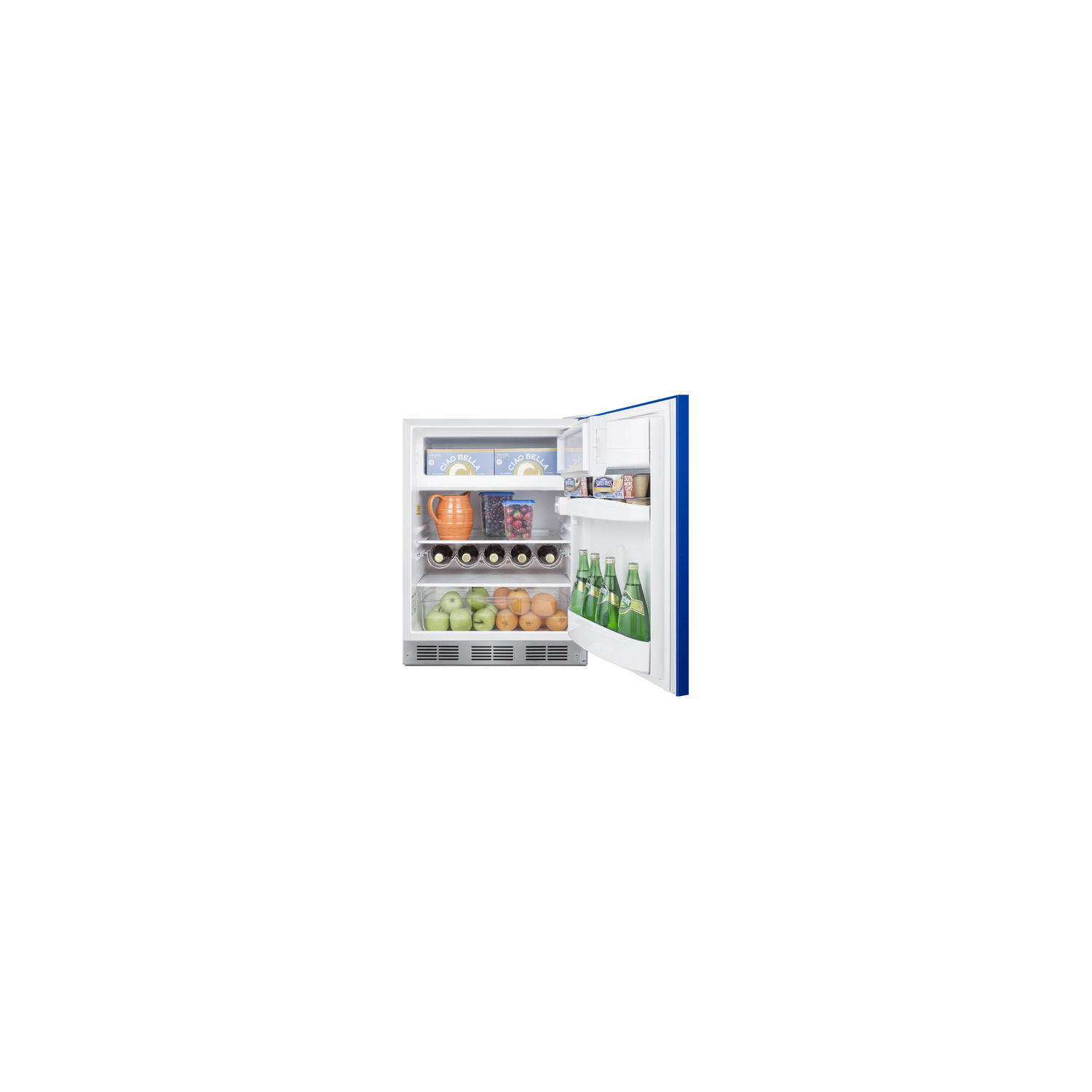

Inside, the BRF611WHB features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.

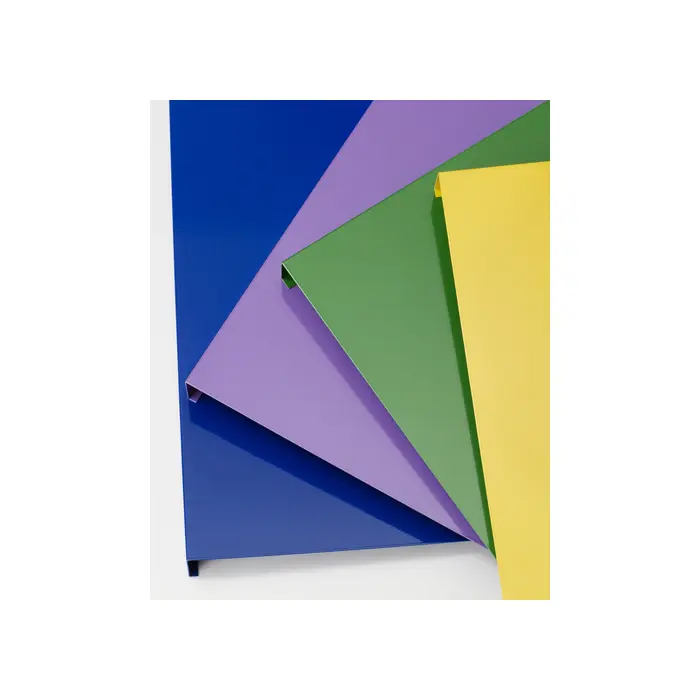

Additional colors are available, including saffron gold, cobalt blue, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.

SPECIFICATIONS

Overview

Nominal Height 33.0" (84 cm)

Height of Cabinet 32.63" (83 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 23.0" (58 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 45.25" (115 cm)

Capacity 5.04 cu.ft. (143 L)

Defrost Type Cycle

Door Blue

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 330.0kWh/year

Amps 1.2

Voltage/Frequency 115 V AC/60 Hz

Weight 110.0 lbs. (50 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101087702

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Wine Bottle Shelving Yes

Interior Light Yes

Refrigerator - Interior Height 18.0" (46 cm)

Refrigerator - Interior Width 21.0" (53 cm)

Refrigerator - Interior Depth 18.0" (46 cm)

Refrigerator - Capacity 4.5 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.25" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Freezer - Capacity 0.6 cu.ft

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

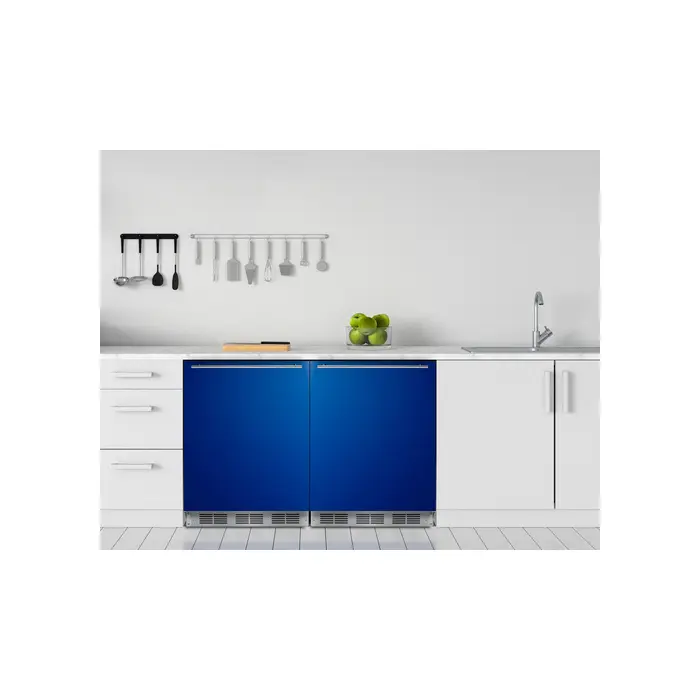

24" wide European refrigerator-freezer Designed for freestanding or recessed installation in 24" wide spaces

Slim counter height dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

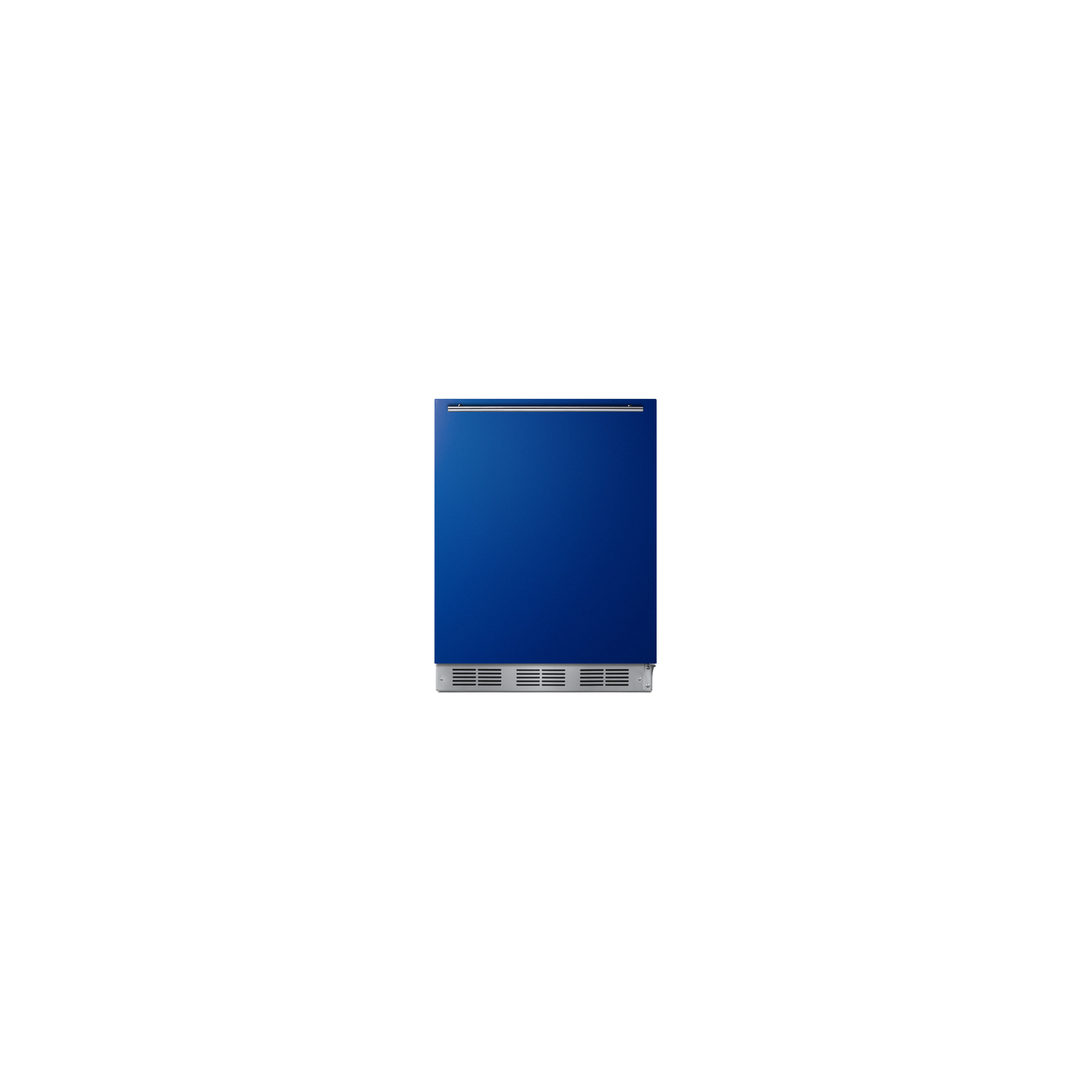

Cobalt blue door Deep blue finish with a slight gloss to elevate your undercounter space

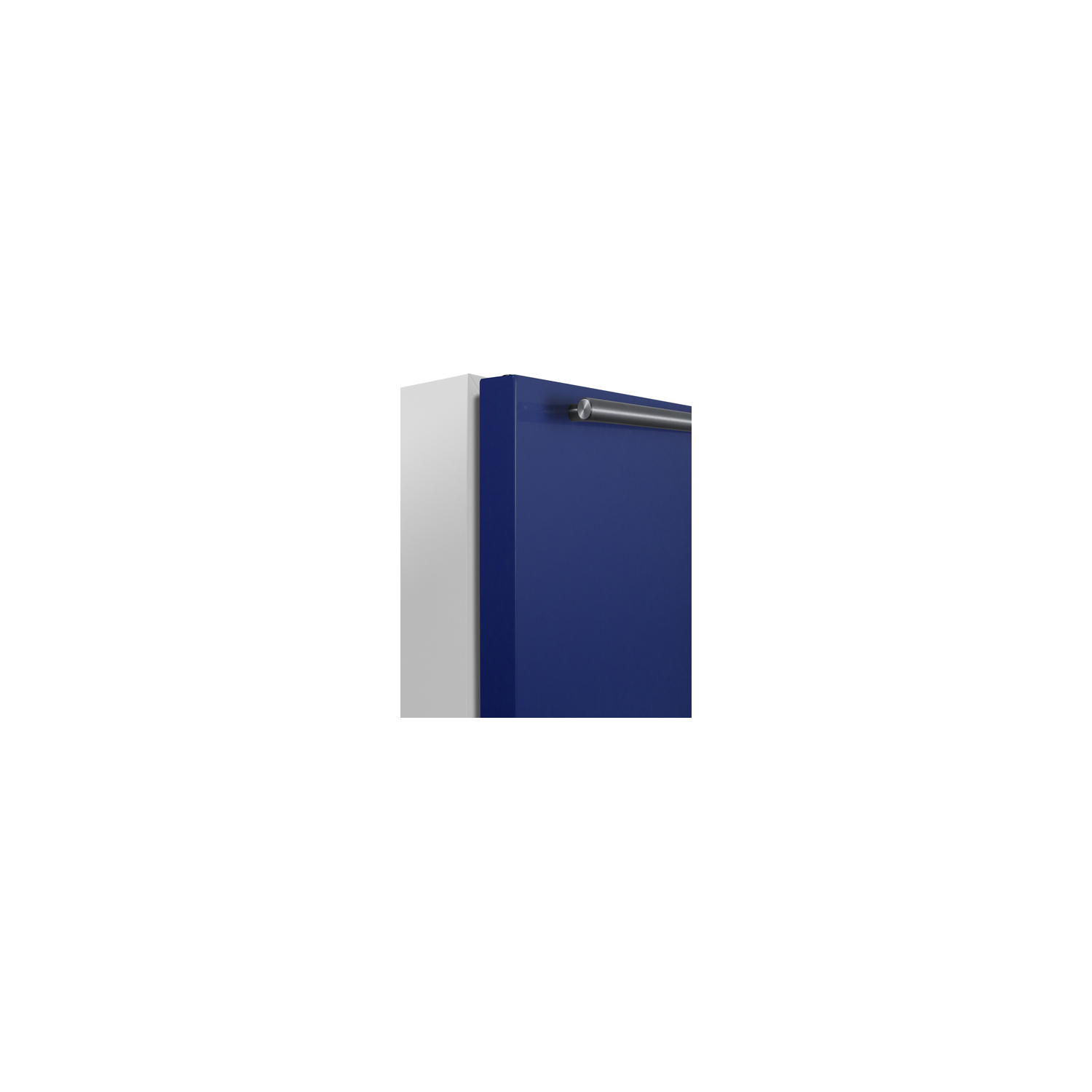

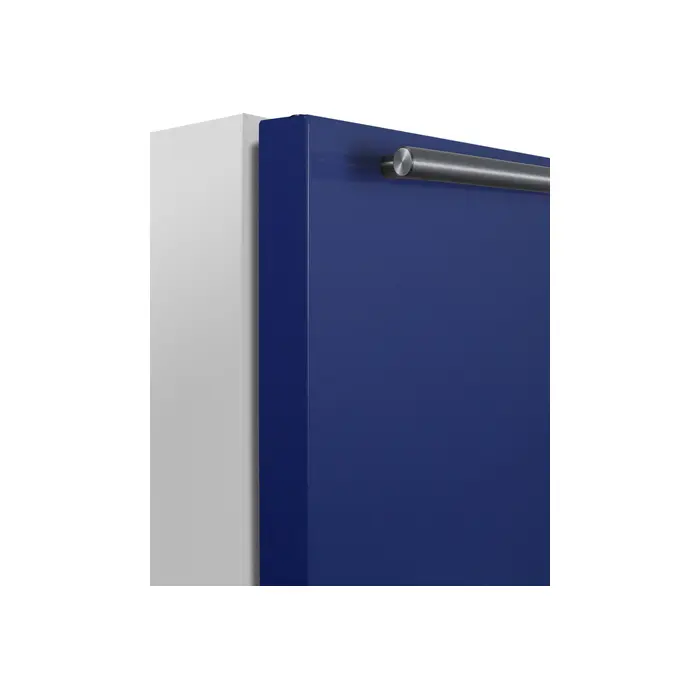

Professional handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Door shelves Store tall bottles and condiments right on the door for convenient access

Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

Crisper drawer Get the longest life and best taste out of produce by storing greens in lower slide drawer

Interior light Automatically illuminates when the door is opened

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat Dial thermostat located inside for easy and intuitive temperature management

Reversible door User-reversible door swing for added flexibility

Stainless steel kickplate Added touch of style to complement the handle and complete the look

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design does not contain ozone-damaging chemicals

DOWNLOADS

BROCHURE w/ DRAWINGS (BRF611WHB.pdf)

TECHNICAL DRAWING (.dwg) (CT66_1W-3BK_SSHH__w-COLOR_.dwg)

ASSEMBLY DRAWING (CT66_1W-3BK_SSHH__w-COLOR_-Assembly.pdf)

USE & CARE (BRF611WHB-User-Manual.pdf)

Energy Guide
