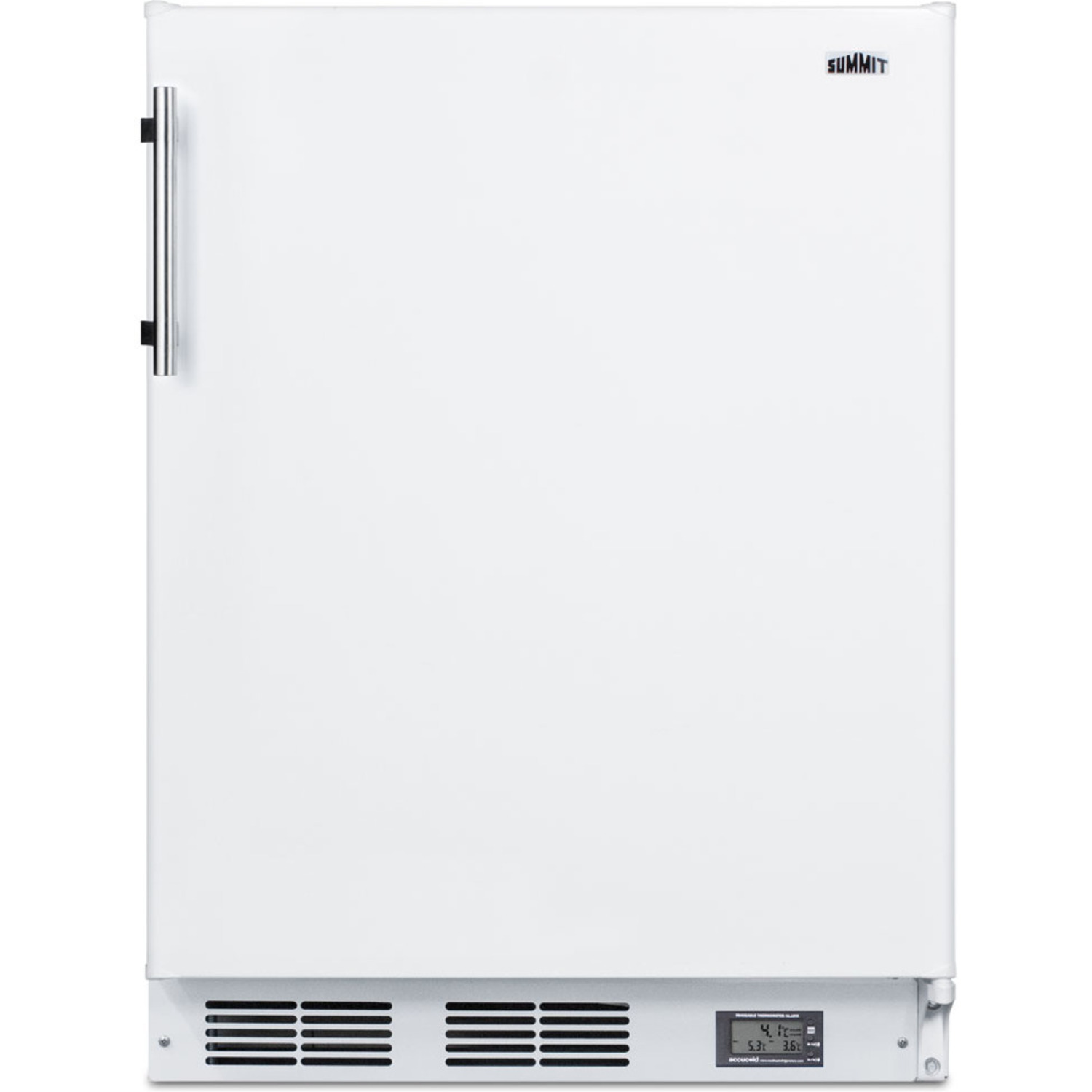

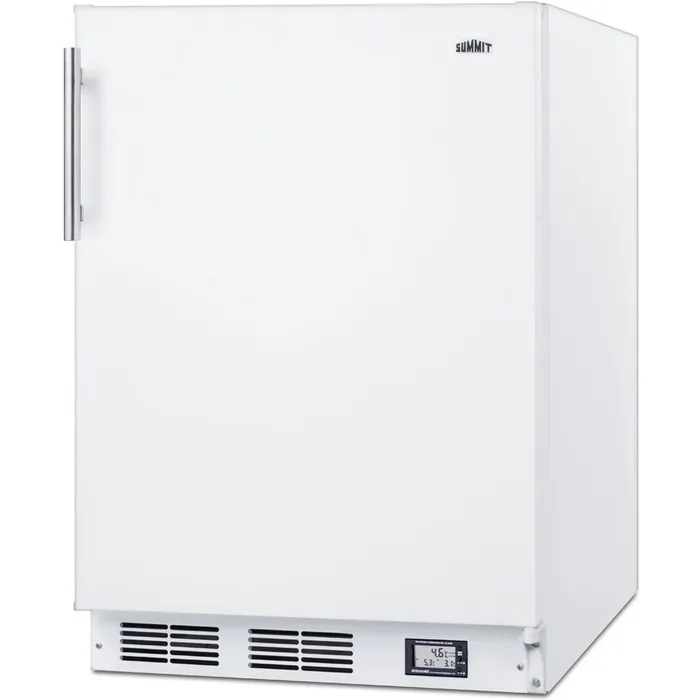

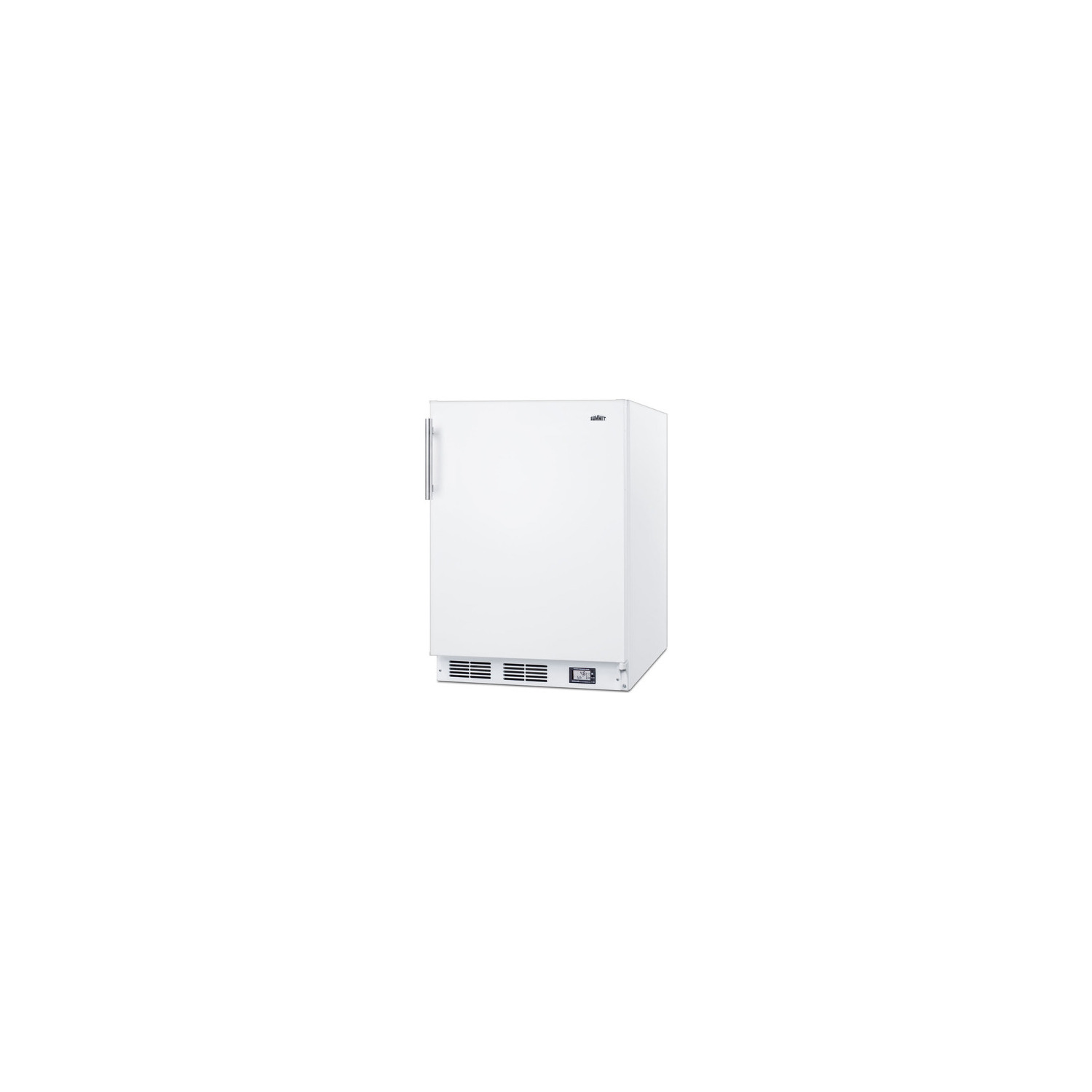

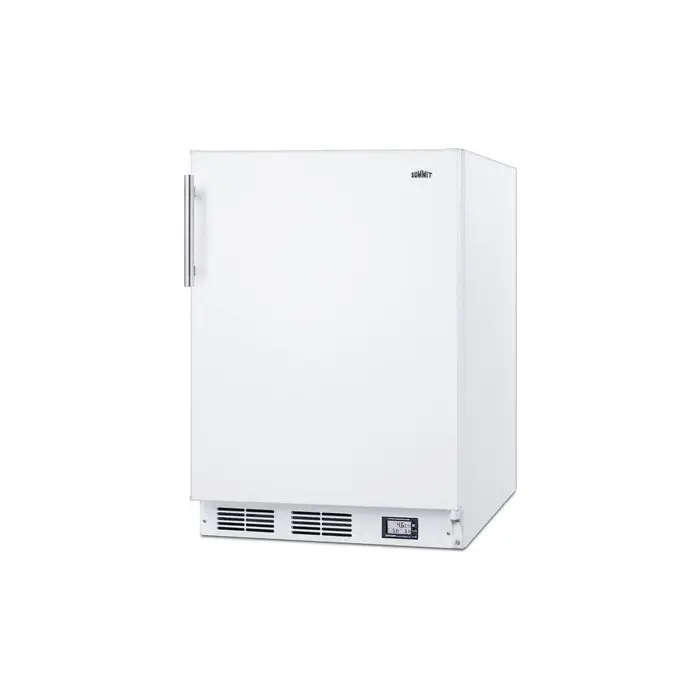

Summit Built-in undercounter ADA compliant break room refrigerator-freezer in white with NIST calibrated thermometer and alarm, 7.61101e+011, BKRF661BIADA

SUMMIT's selection of break room refrigeration features a variety of units for convenient and reliable storage in hospitals, clinics, and other facilities.

The BKRF661BIADA is a built-in undercounter refrigerator-freezer made in Europe and sized with a 24" footprint. It features a white exterior finish and stainless steel handle, with a user-reversible door swing for added flexibility. A factory-installed NIST calibrated thermometer is located in the kickplate to provide a continuous display of the current and high/low temperatures of the refrigerator compartment to the nearest tenth of a degree. Temperature can be viewed in Celsius or Fahrenheit for added convenience. The device also includes an audible alarm to warn of major temperature fluctuations.

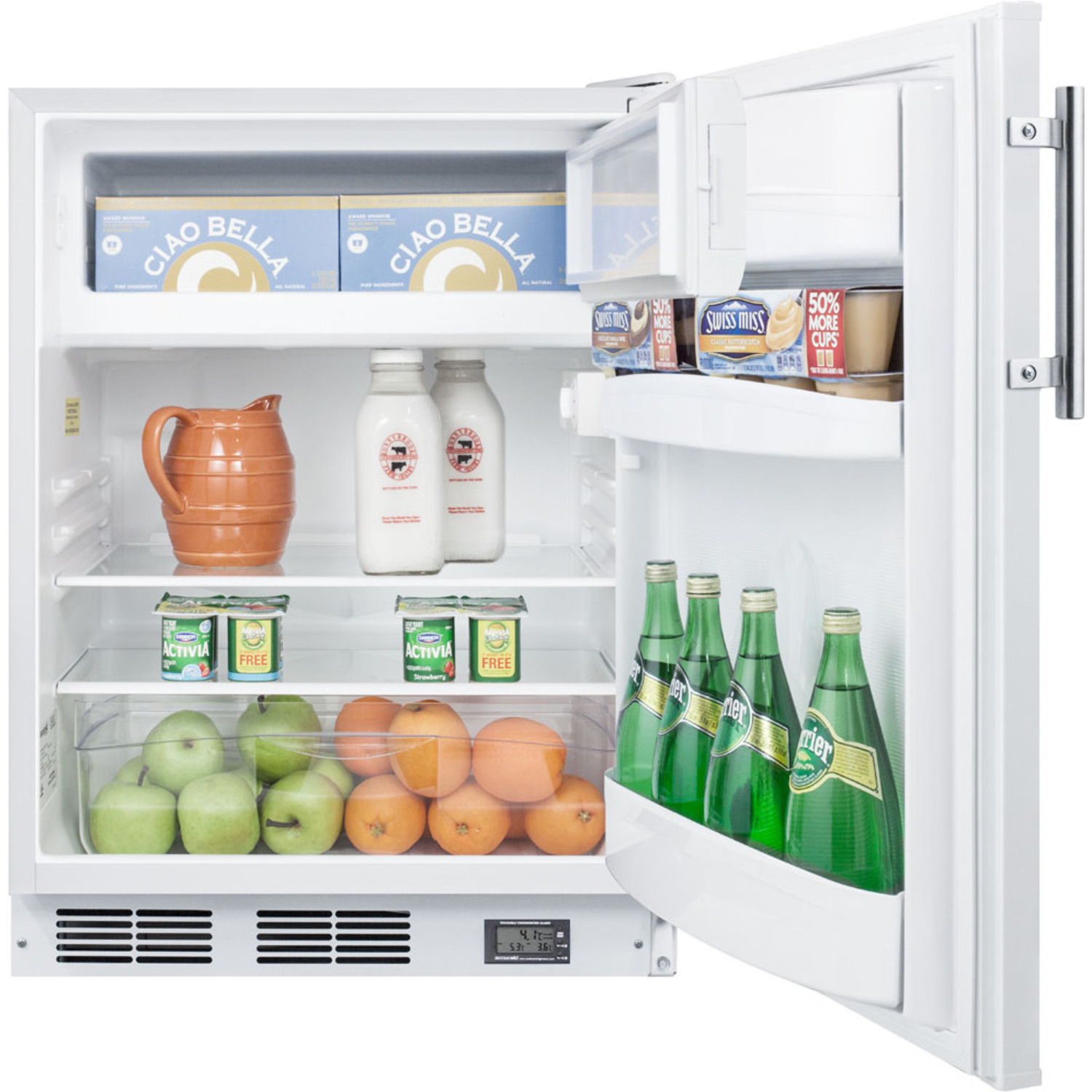

Inside, the BKRF661BIADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for frozen food. Additional features include adjustable glass shelves, a crisper drawer, door racks for condiments and tall bottles, and an automatic interior light.

The BKRF661BIADA features a front-breathing design for built-in installation under counters, but can also be used freestanding. This unit is sized at 32" high for use under lower ADA compliant counter spaces. For this unit in black, see the BKRF663BBIADA.

Note: Model prefix "BKRF" is a marketing designation. Actual unit will carry Summit model number CT661BIADA.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 23.0" (58 cm)

Depth with Handle 24.63" (63 cm)

Depth with door at 90° 45.38" (115 cm)

Capacity 5.1 cu.ft. (144 L)

Defrost Type Cycle

Door White

Cabinet White

US Electrical Safety UL

Canadian Electrical Safety ULC

Energy Usage/Year 365.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101061368

Refrigerator-Freezer

Door Swing RHD

Reversible Yes

Adjustable Shelves Yes

Crisper Qty 1

Crisper Finish Transparent

Crisper Cover Glass

Interior Light Yes

Refrigerator - Interior Height 18.0" (46 cm)

Refrigerator - Interior Width 21.0" (53 cm)

Refrigerator - Interior Depth 18.0" (46 cm)

Refrigerator - Capacity 4.5 cu.ft

Refrigerator - Shelf Type Glass

Refrigerator - Shelf Qty 2

Refrigerator - Full Door Shelves 3

Freezer - Interior Height 5.25" (13 cm)

Freezer - Interior Width 19.0" (48 cm)

Freezer - Interior Depth 11.5" (29 cm)

Freezer - Capacity 0.6 cu.ft

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.92 oz.

High Side PSI 180.0

Low Side PSI 80.0

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

ADA Compliant Sized at 32" high for use under lower ADA compliant counters

Slim counter height dimensions Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

NIST calibrated thermometer Thermometer provides an external readout of the current and high/low refrigerator temperature to the nearest tenth of a degree

High/low temperature alarm Audible alarm sounds if the refrigerator interior temperature rises or falls out of set range

Cycle defrost This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment

Dual evaporator cooling Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators

Adjustable glass shelves Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Fruit and vegetable crisper Get the longest life and best taste out of produce by storing it in a convenient slide drawer

Door storage Store tall bottles and condiments right on the door for convenient access

Interior light Automatically illuminates when you open the door

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Adjustable thermostat Dial thermostat located inside for easy temperature management

Reversible door User-reversible door swing for added flexibility

Height adjustable Adjustable legs allow the unit to be sized from 32 1/2" to 34" high

Fully finished cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (BKRF661BIADA.pdf)

TECHNICAL DRAWING (.dwg) (CT661ADA_CT663BADA__BI__Ref._Fre._a-c_2000_.dwg)

USE & CARE (BKRF661BIADA-User-Manual.pdf)

USE & CARE (BKRF661BIADA-User-Manual_2.pdf)

Energy Guide
