Summit 85 lb. commercial clear cube ice machine, BIM85

Summit's series of commercially approved ice machines bring powerful performance, user-friendly convenience, and professional style to commercial settings.

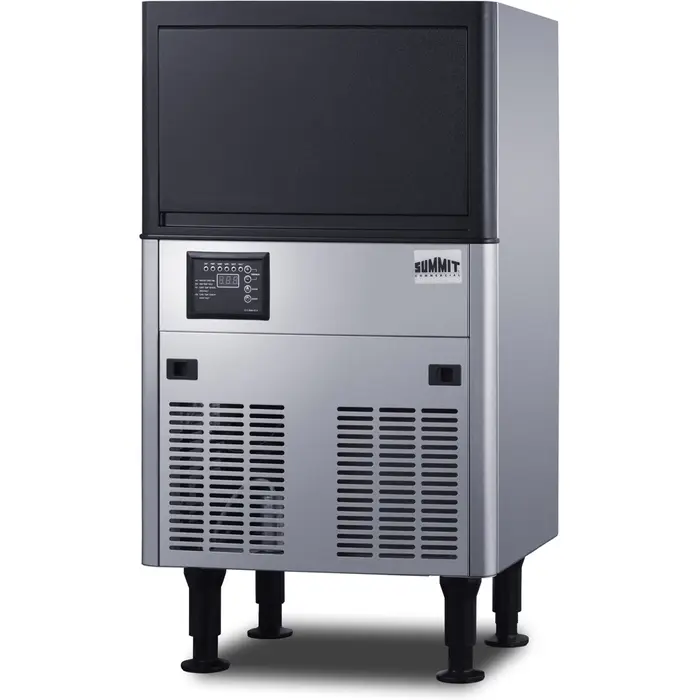

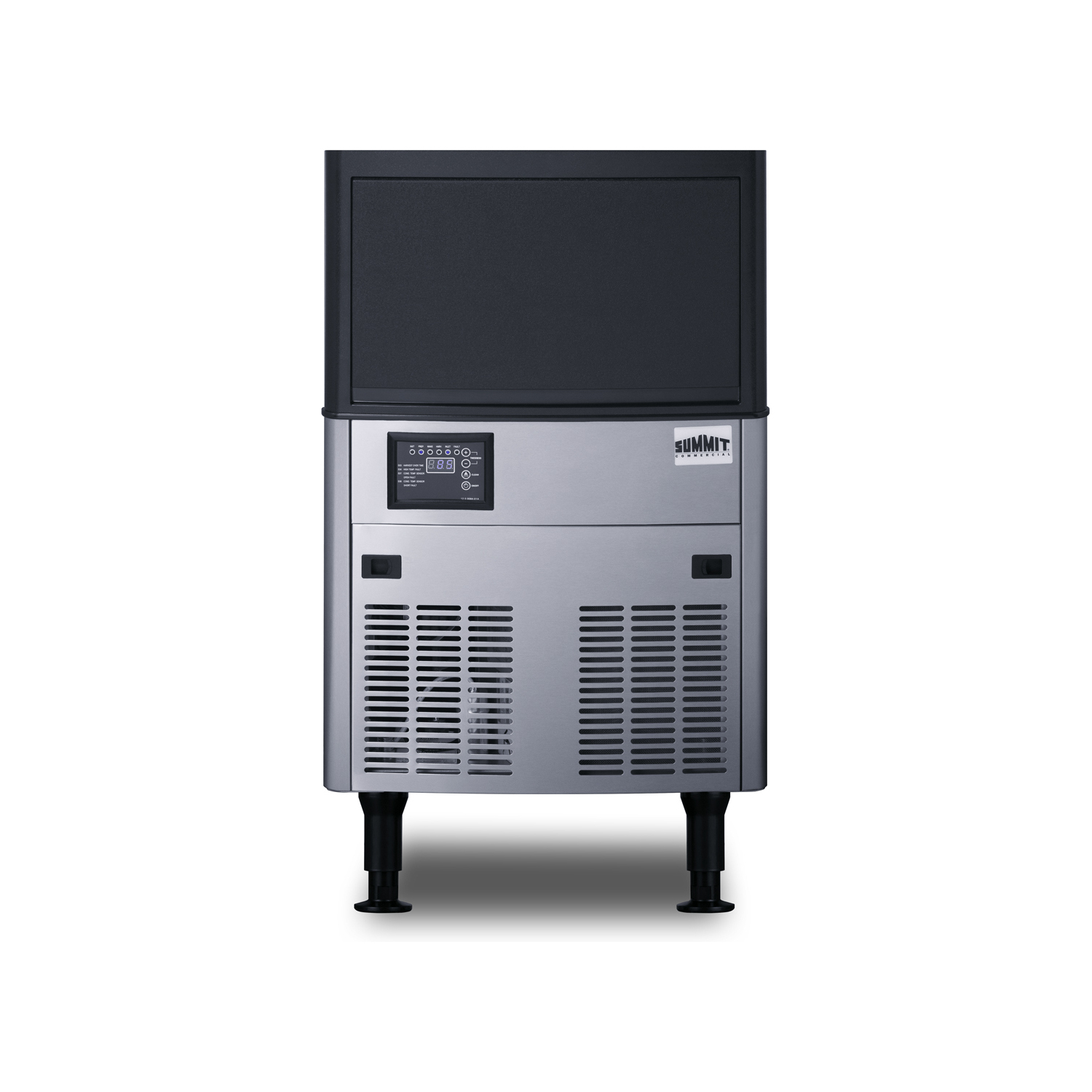

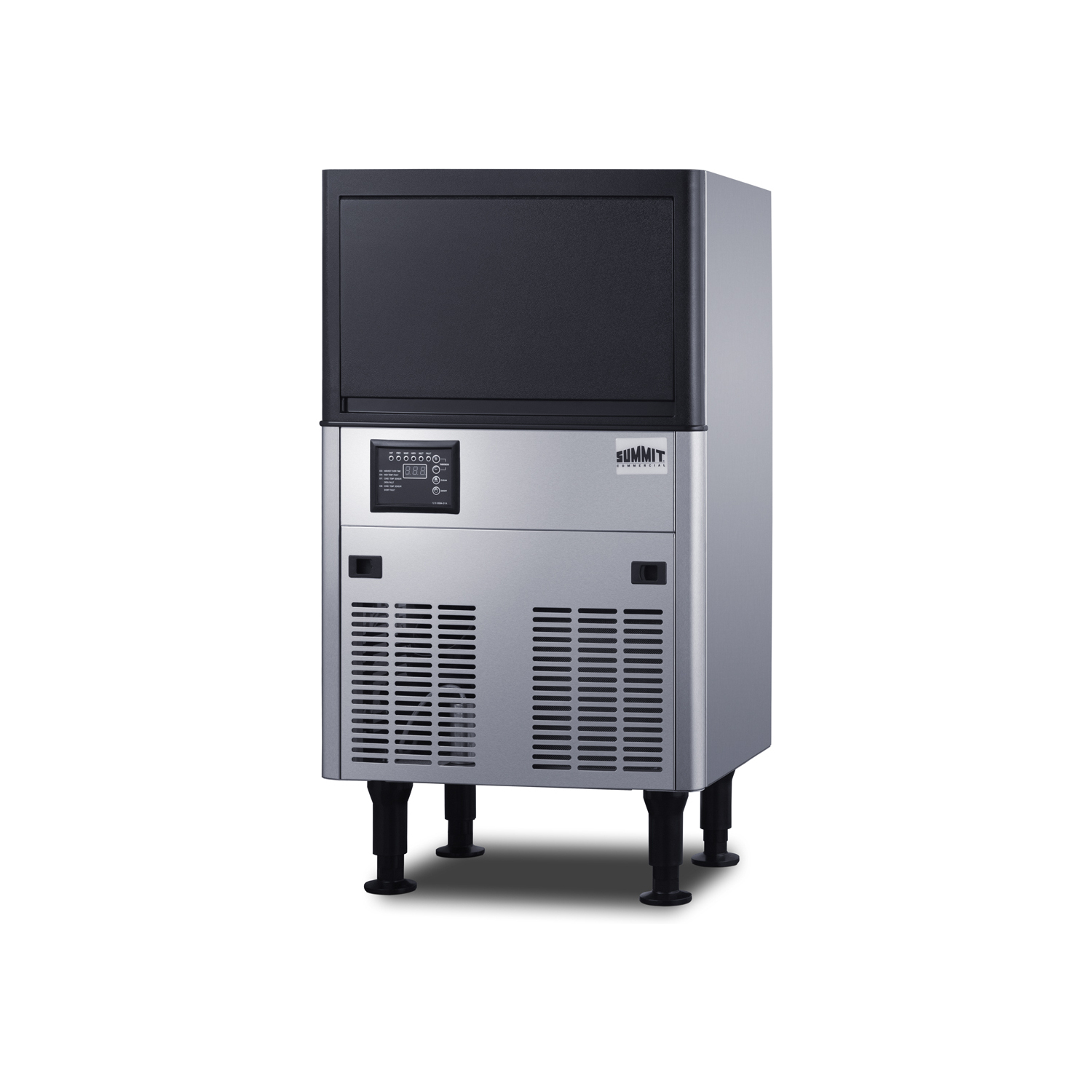

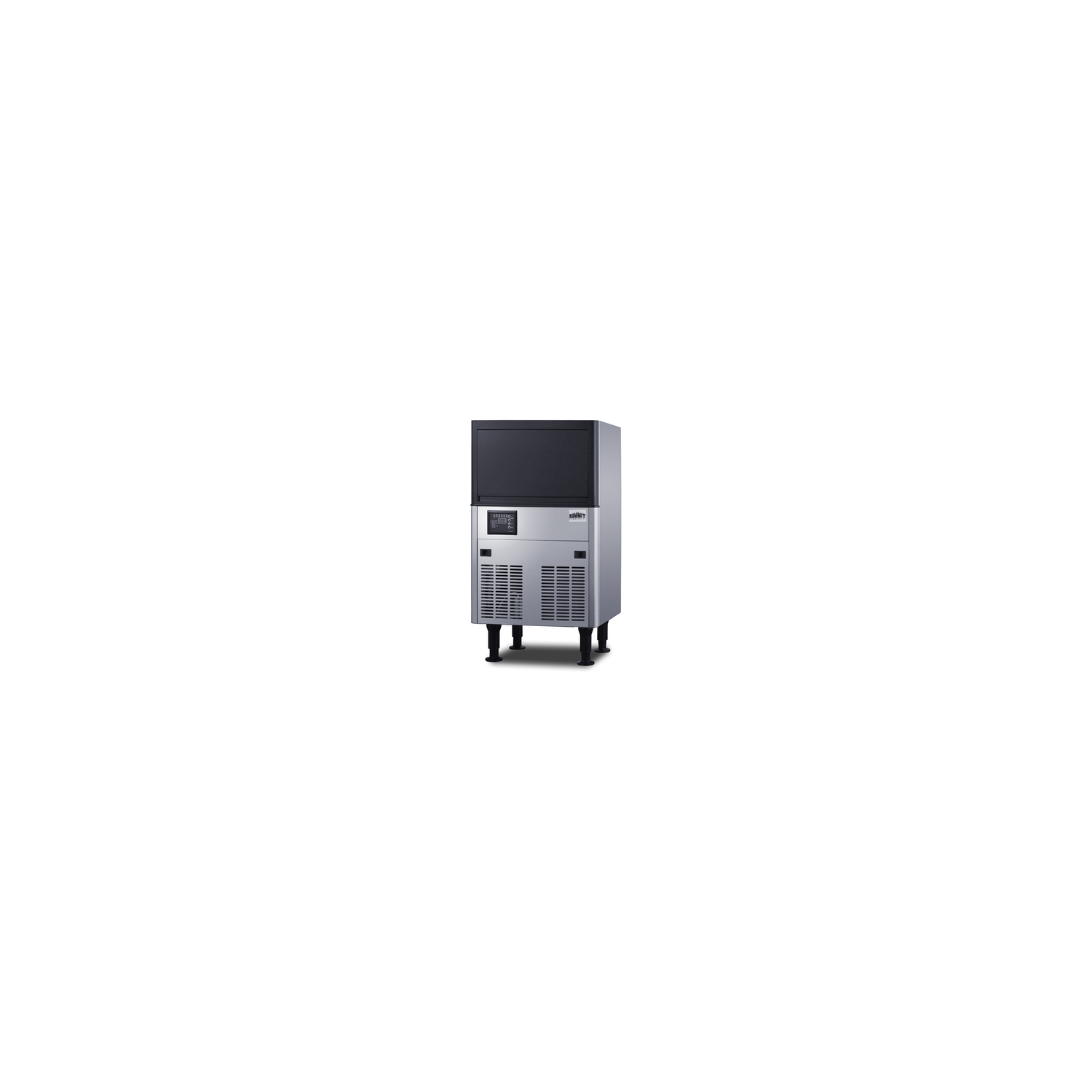

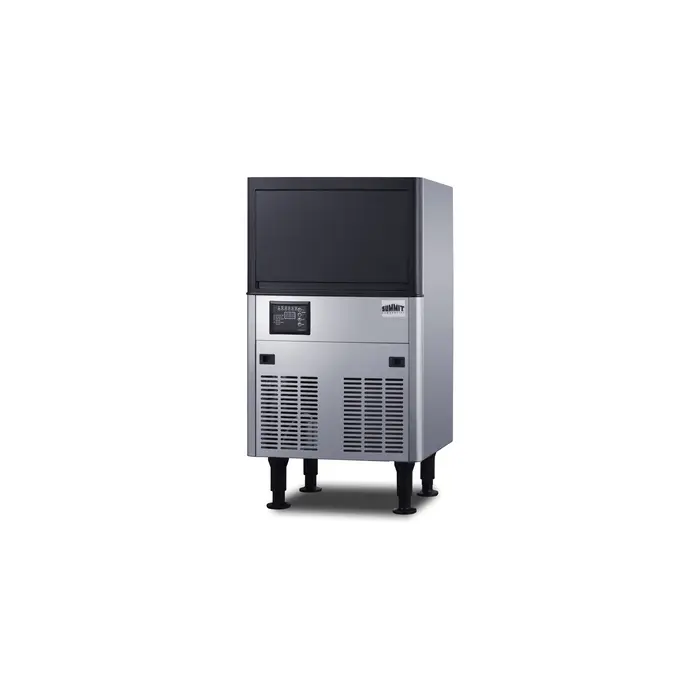

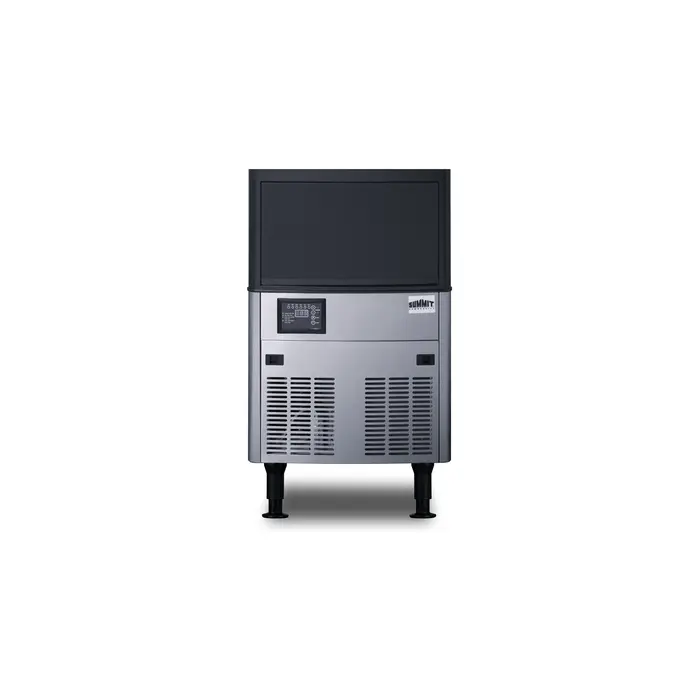

Model BIM85 is an ENERGY STAR certified 18" deep commercial ice machine that is ETL-S listed to NSF-12 standards. This ice machine features a fully finished stainless steel cabinet and a jet black front with an easy-to-use slide-up lid. It is designed for freestanding use and features an air-cooled system to prevent overheating.

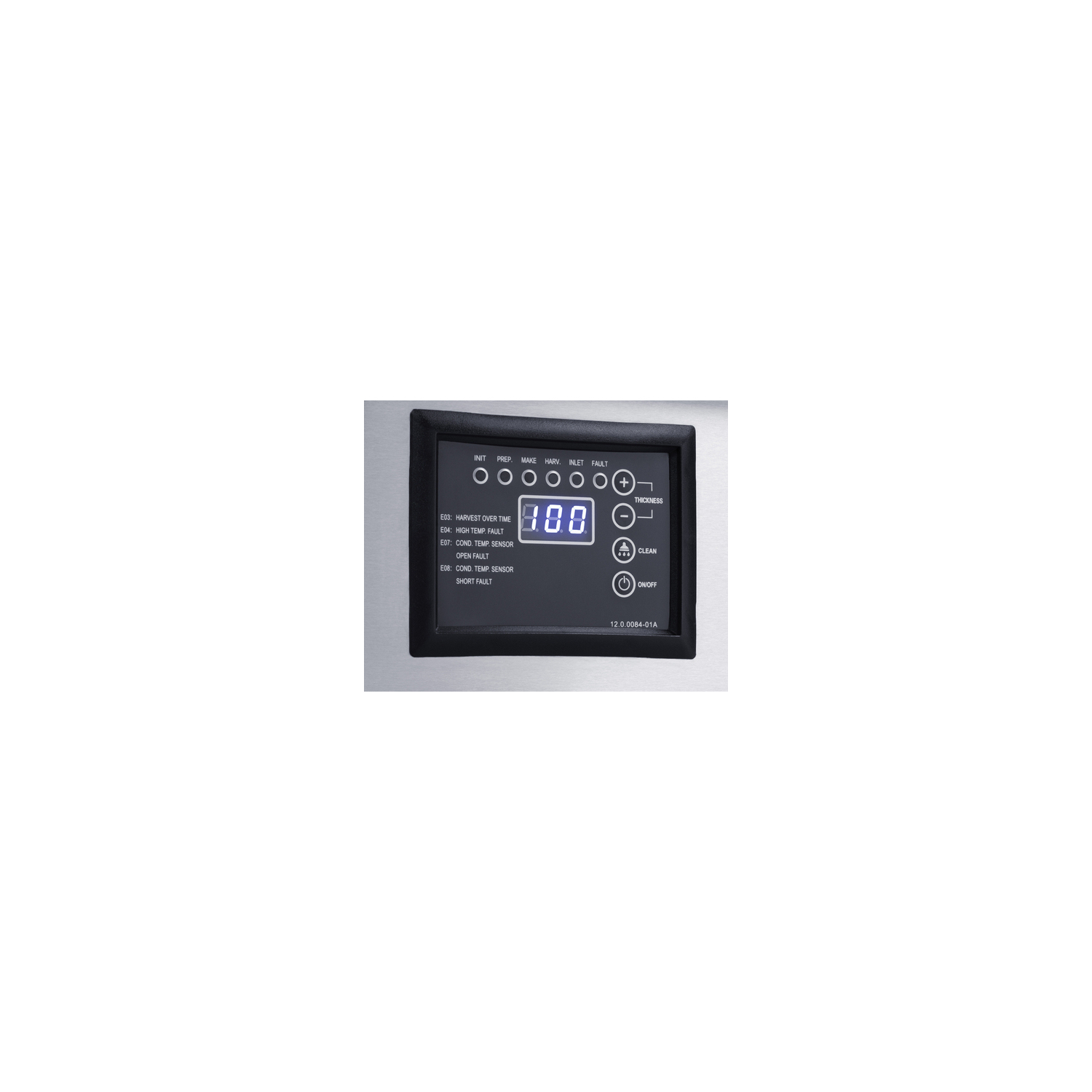

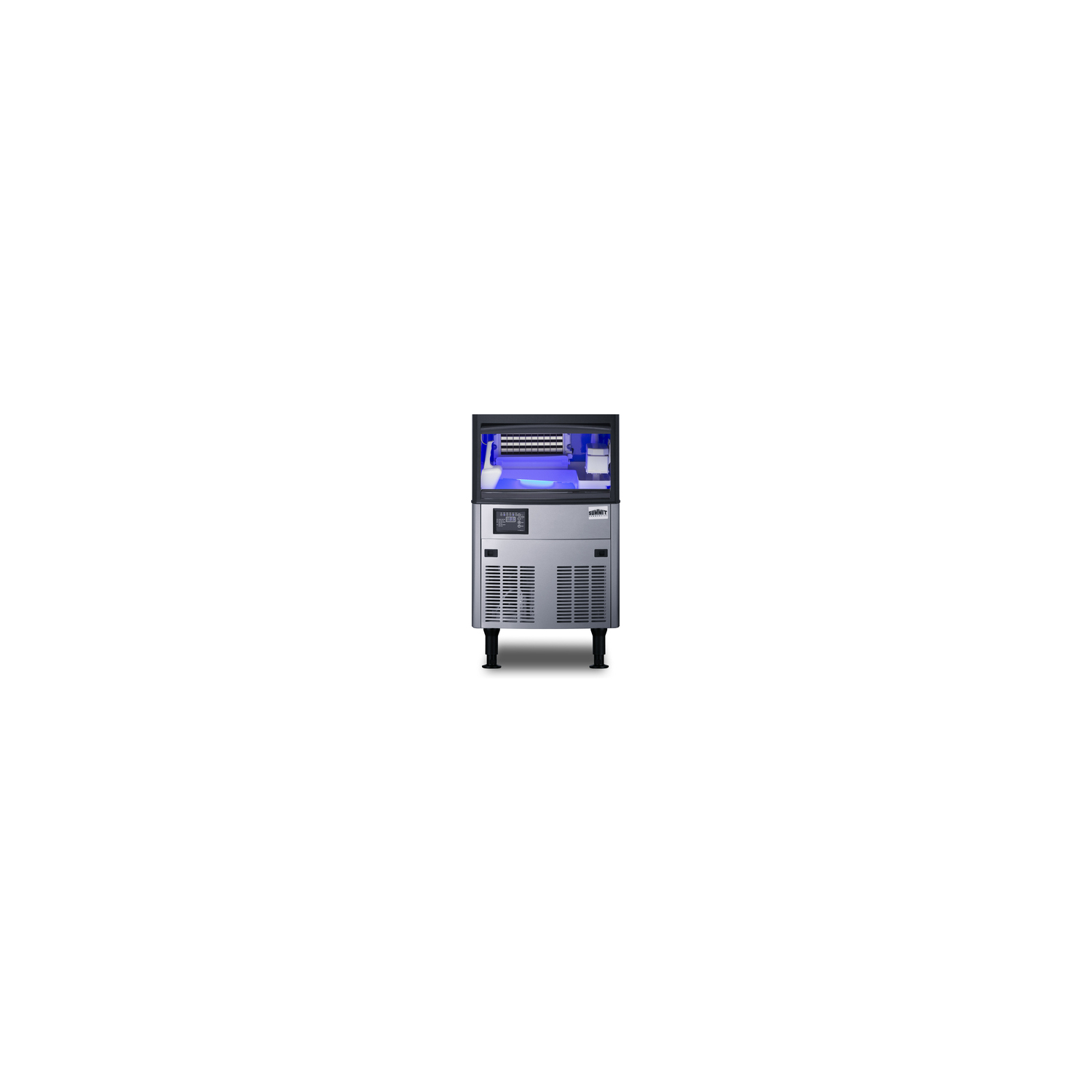

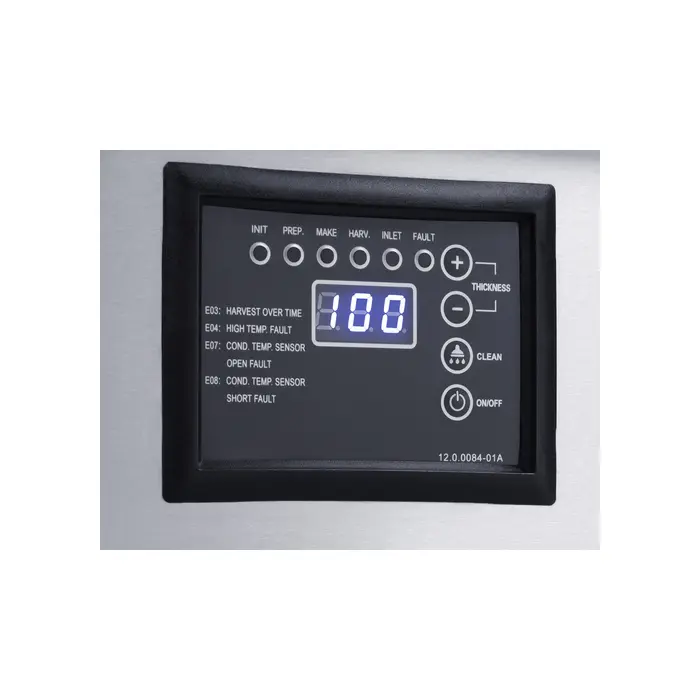

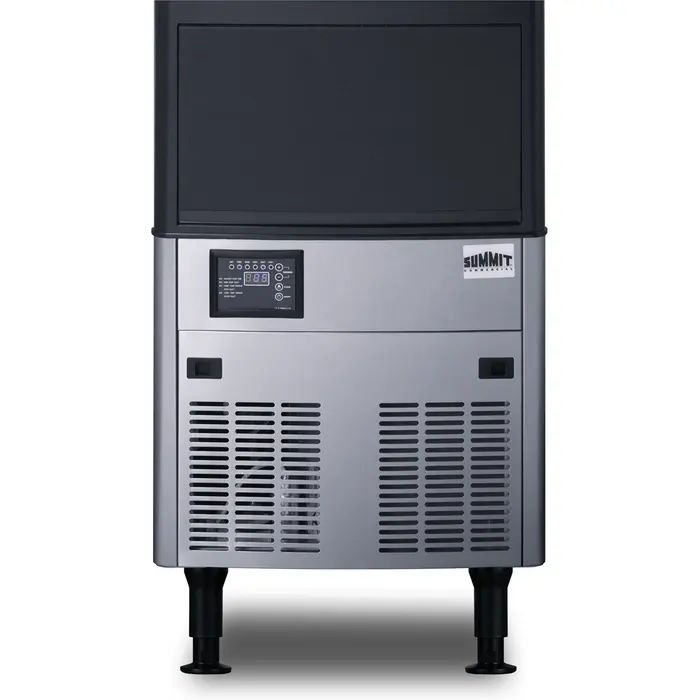

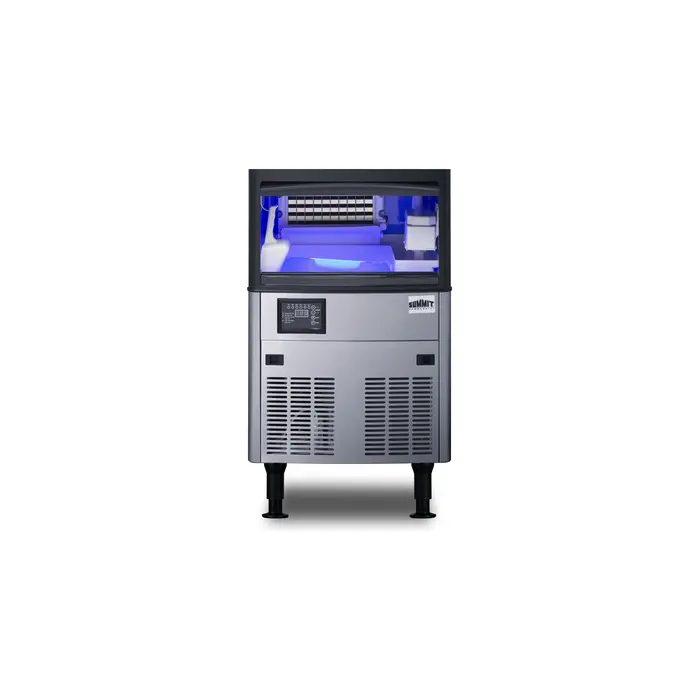

Inside, the BIM85 produces up to 80 lbs. of clear, cube-style ice cubes daily. The interior can store up to 33 lbs. to help meet the needs of high-traffic commercial environments. All digital controls are conveniently located in front, including a function to adjust the thickness of each ice cube. This unit also has a water filter and a removable mesh filter at the rear to ensure easier condenser maintenance. This automatic ice machine features a clean function, a full bin sensor, attractive LED lighting, and an ice scoop to maximize convenience.

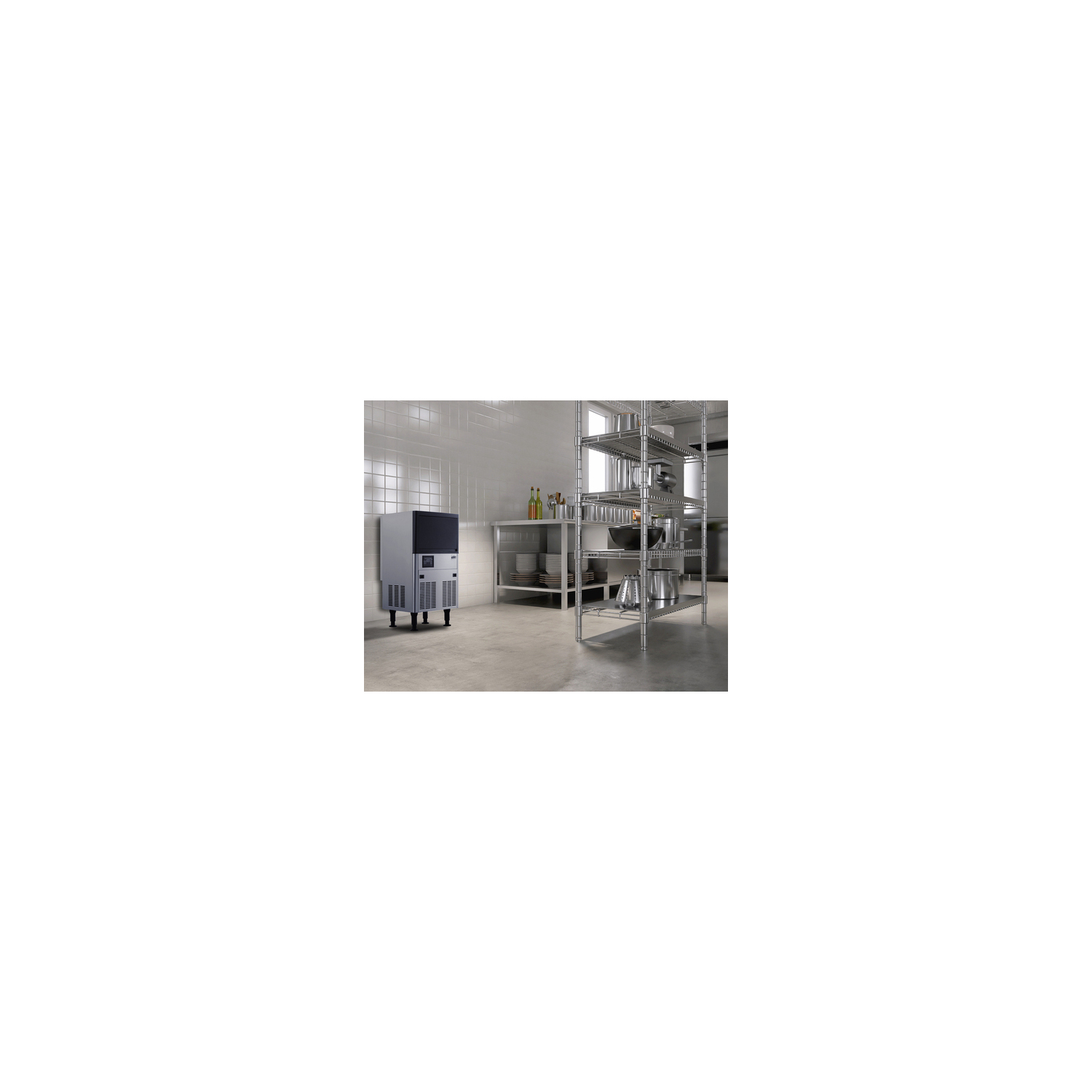

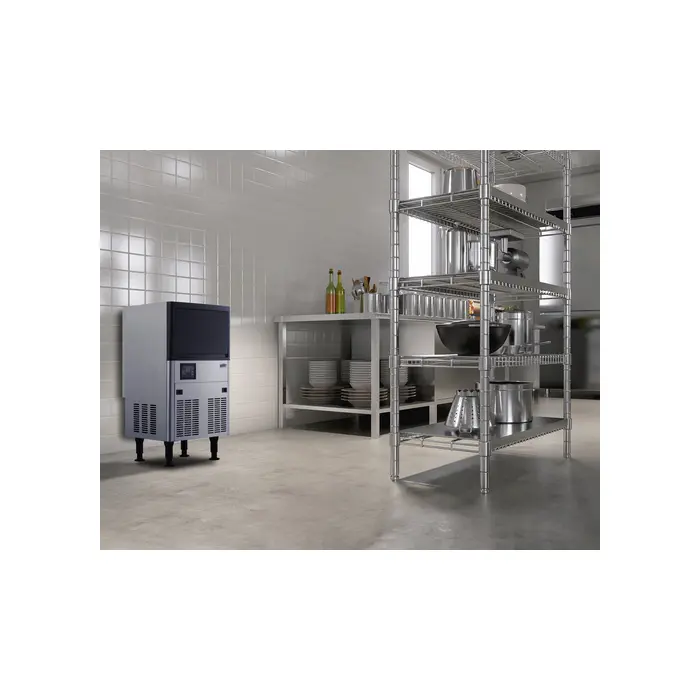

With its unique size, user-friendly controls, and large ice production capacity, the BIM85 is a great fit for break rooms, bars, restaurants, cafes, hotels, and similar spaces. For this ice machine with a larger production capacity, see model BIM125.

Explore all of Summit's ice machines and icemakers at summitappliance.com

SPECIFICATIONS

Overview

Nominal Height 36.0" (91 cm)

Height of Cabinet 36.0" (91 cm)

Nominal Width 20.0" (51 cm)

Width 19.75" (50 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Defrost Type Automatic

Door Black

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Amps 3.5

Voltage/Frequency 115 V AC/60 Hz

Weight 80.0 lbs. (36 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101146898

Icemaker

Door Swing Lift-Up

Drain Required Yes

Daily Ice Production 80.0 lbs. (36 kg)

Ice Storage Capacity 33.0 lbs. (15 kg)

Ice Shape Cube

Size of Cube 1" x 1"

Number of Ice Cube Sizes 1

Interior Light Yes

Fan Type Interior

Refrigerant Type R290

Refrigerant Amount 2.82 oz.

High Side PSI 295.0

Low Side PSI 135.0

Interior Height 18.0" (46 cm)

Interior Width 18.0" (46 cm)

Interior Depth 17.25" (44 cm)

Level Legs 4

FEATURES

20" Wide Commercial Ice Machine Commercially approved clear cube icemaker ideal for use in restaurants, bars, break rooms, and other settings

ENERGY STAR certified commercial performance Efficient performance for commercial use

Shallow depth Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Commercially approved ETL-S listed to NSF-12 commercial standards for use in foodservice settings

Large production capacity Can make up to 80 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.

Generous storage space Interior holds up to 33 lbs. of ice

Sliding door Top lid is on lift-up glides for easy access to the ice bin

Full bin sensor Automatic sensor alerts when bin is full and stops ice production to prevent overfill

Clean function Clean mode allows you to periodically clean the system as needed with a neutral detergent

Air filter Removable mesh filter located in the rear of the icemaker makes it easy to keep the condenser clean

Water filter Ice machine comes with a water filter to remove harmful impurities and prevent scale buildup

Adjustable thickness Easily increase or decrease ice cube thickness to desired size via digital controls

Ice scoop Ice scoop included for added convenience

Fully finished cabinet Durable finish allows the unit to be used freestanding

Easy cleaning Included leg set allows you to clean the space below the icemaker

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
