Summit 15 inch wide 62 lb. built-in undercounter commercially listed indoor/outdoor clear icemaker with internal pump and complete stainless steel exterior finish, 7.61101e+011, BIM68OSPUMP

Summit's commercially listed BIM68OS series icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor location.

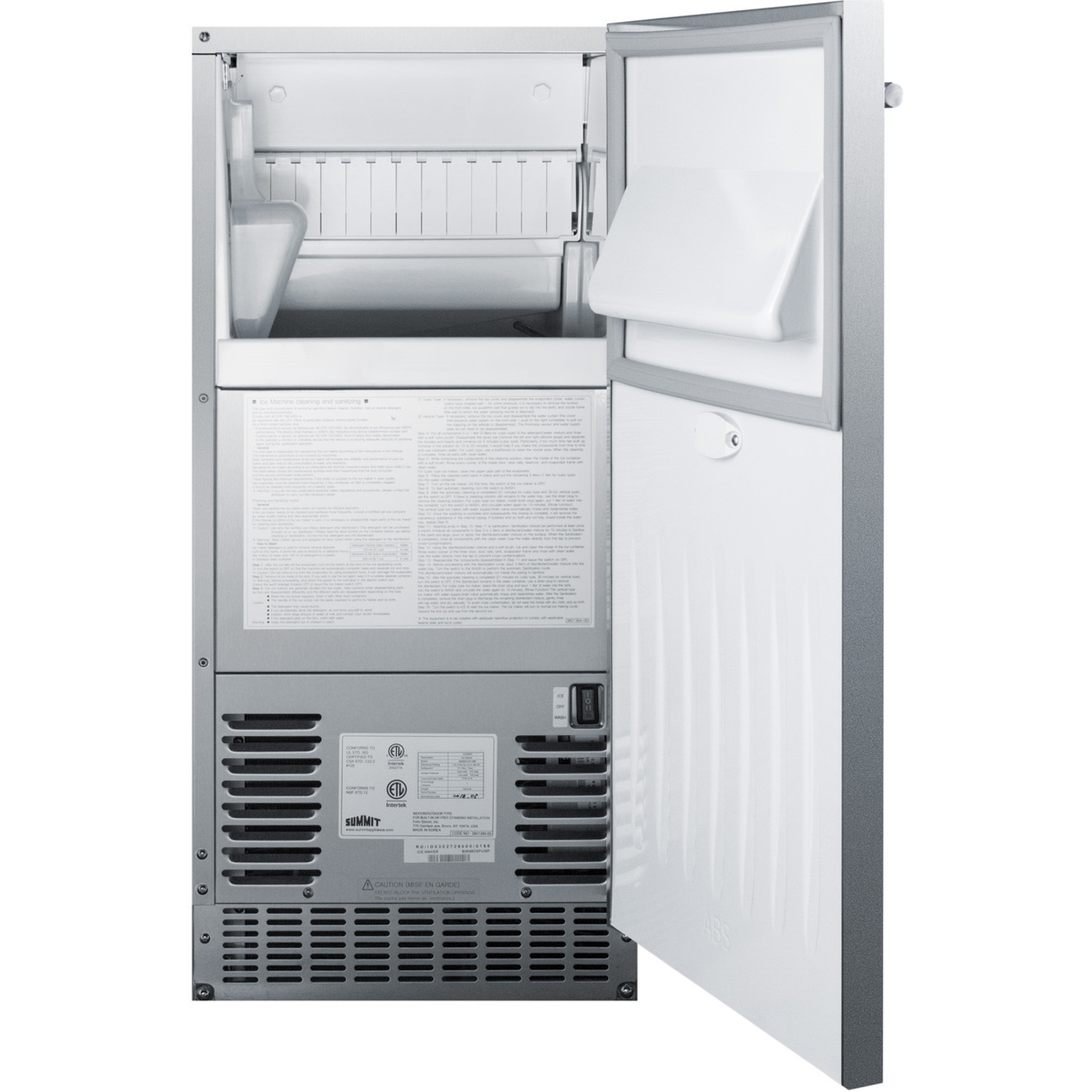

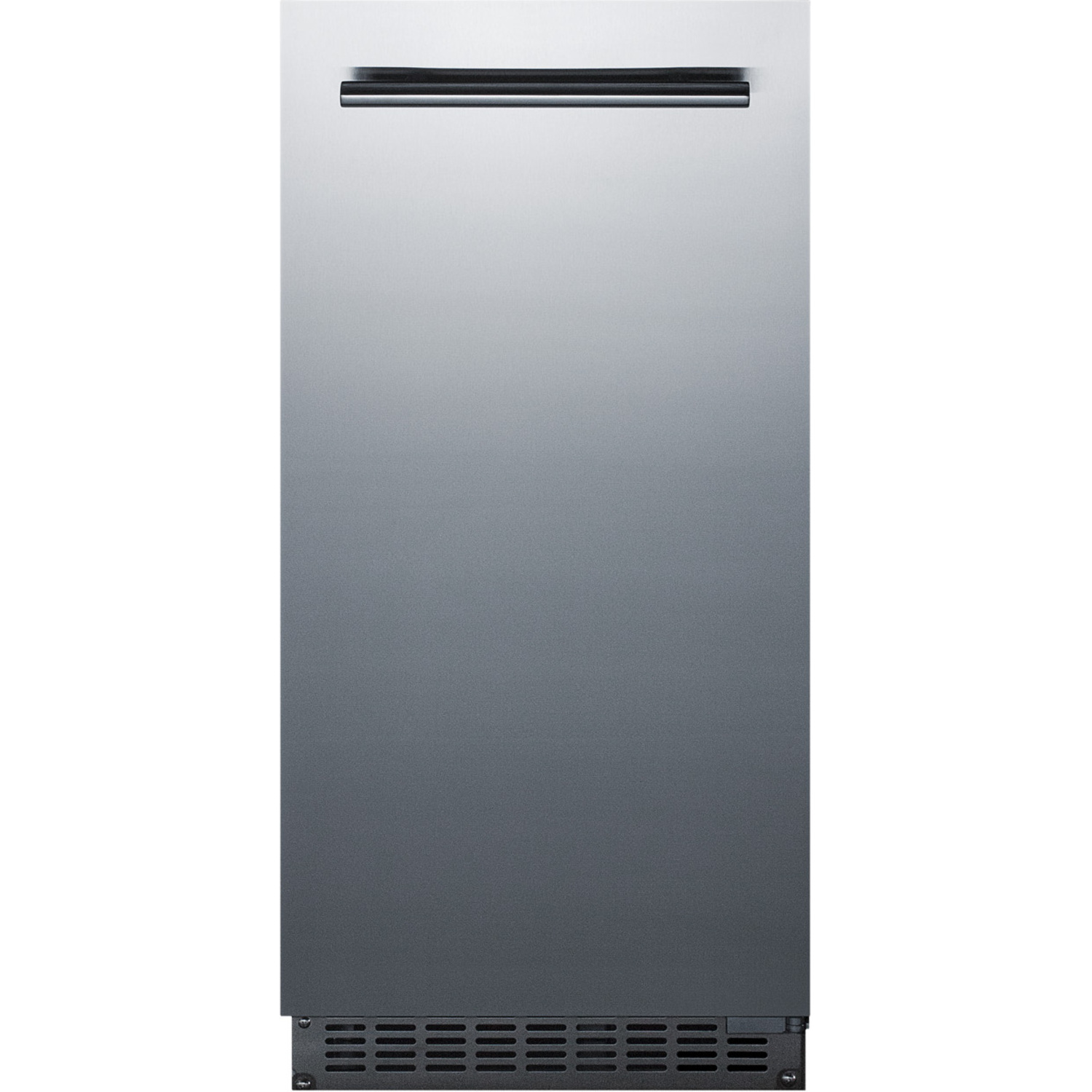

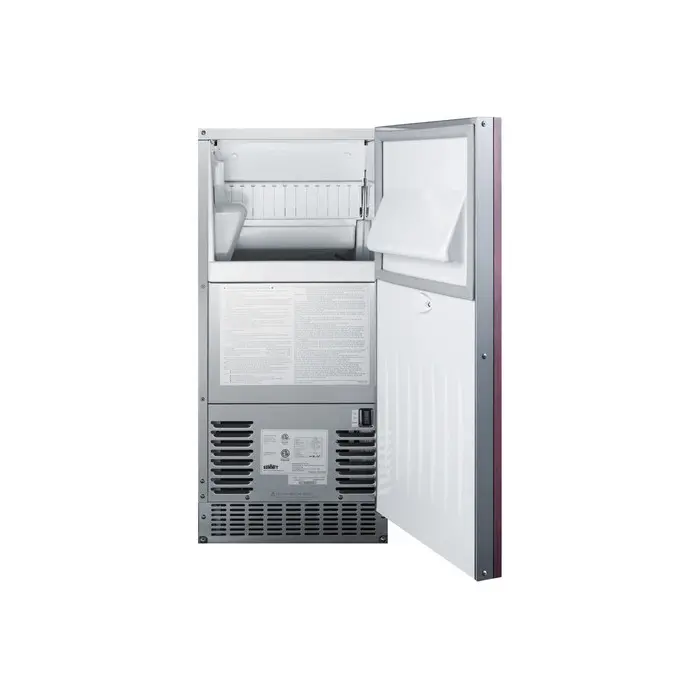

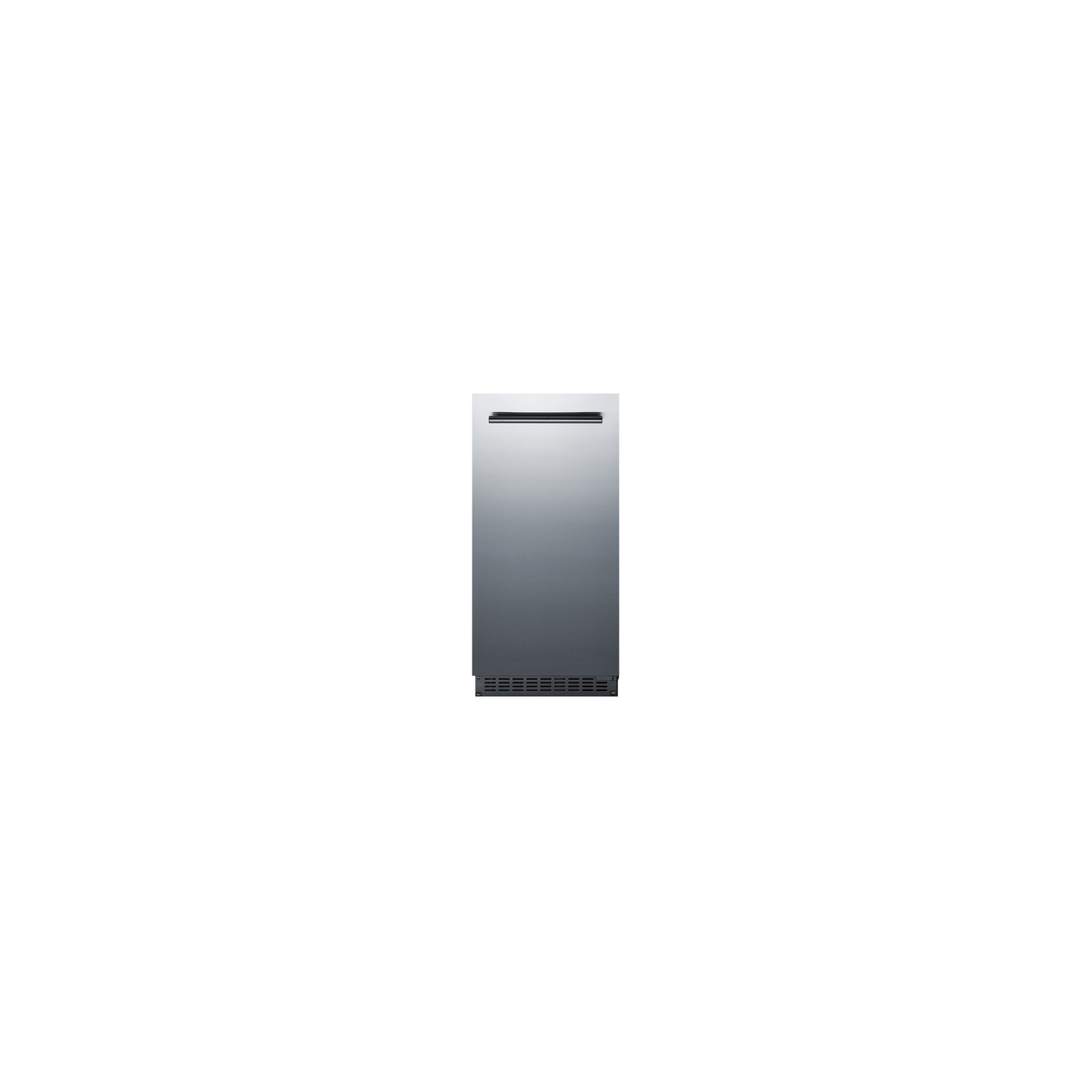

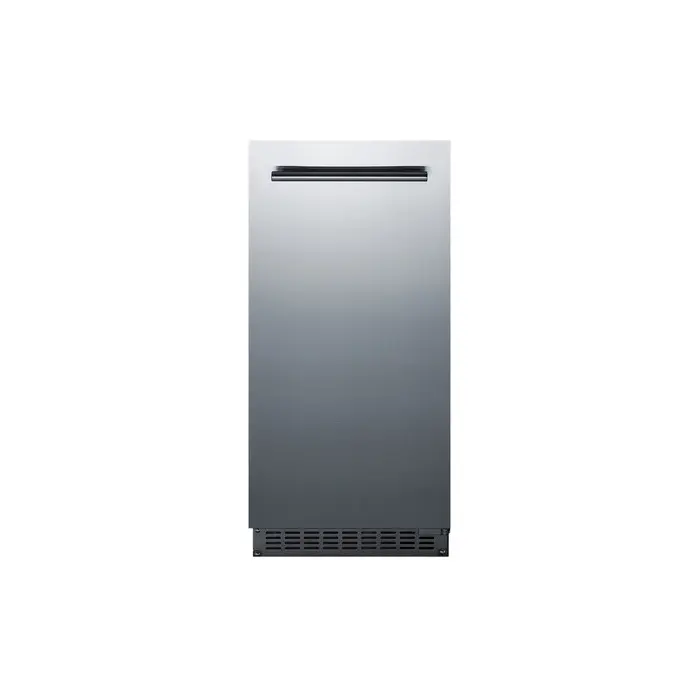

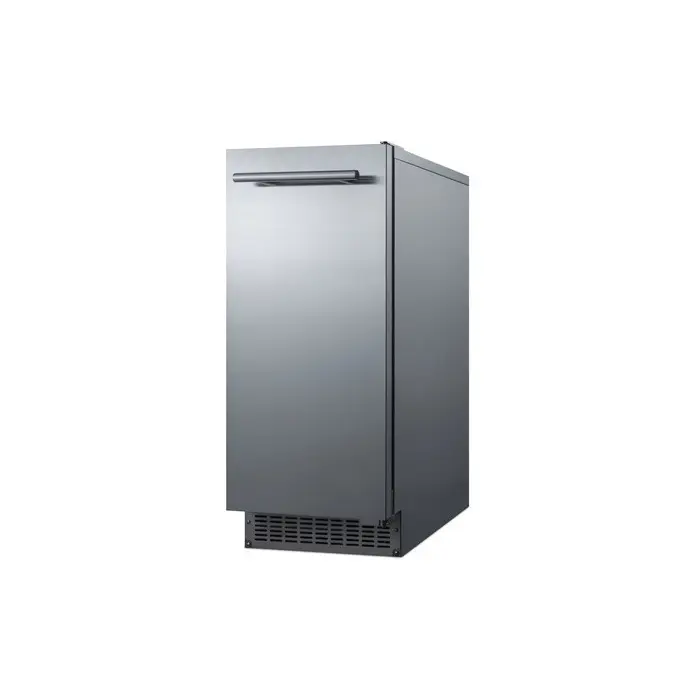

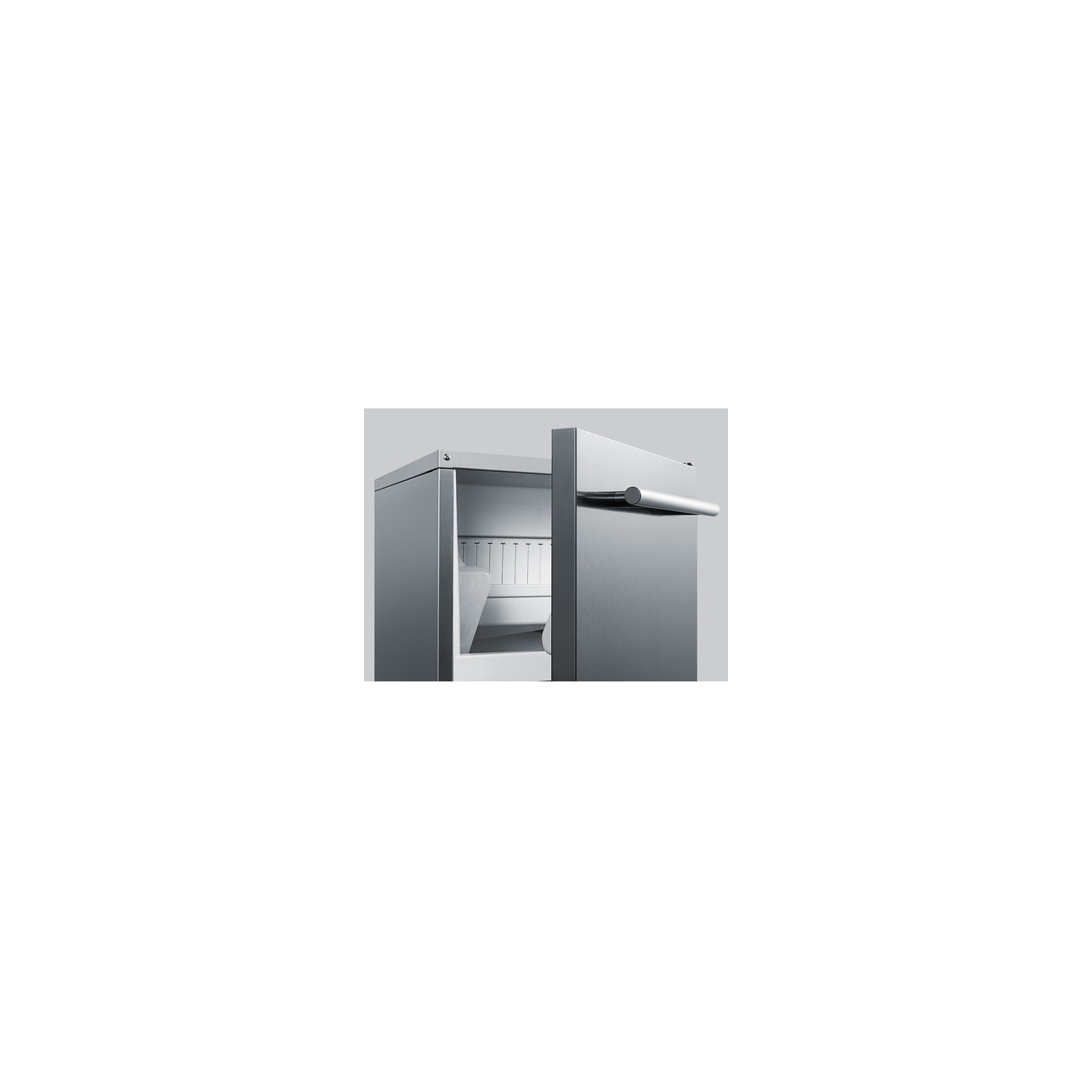

Sized at 15" wide, the BIM68OSPUMP features a complete 304 grade stainless steel exterior specially built to hold up to the elements. The user-reversible door is designed with a powerful magnetic gasket to ensure proper insulation, with a stainless steel handle mounted horizontally for a modern look. The front-breathing design allows built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. The internal pump allows more flexibility in where you choose to place the unit. This unit has a sealed back to ensure added outdoor protection and easier cleanup.

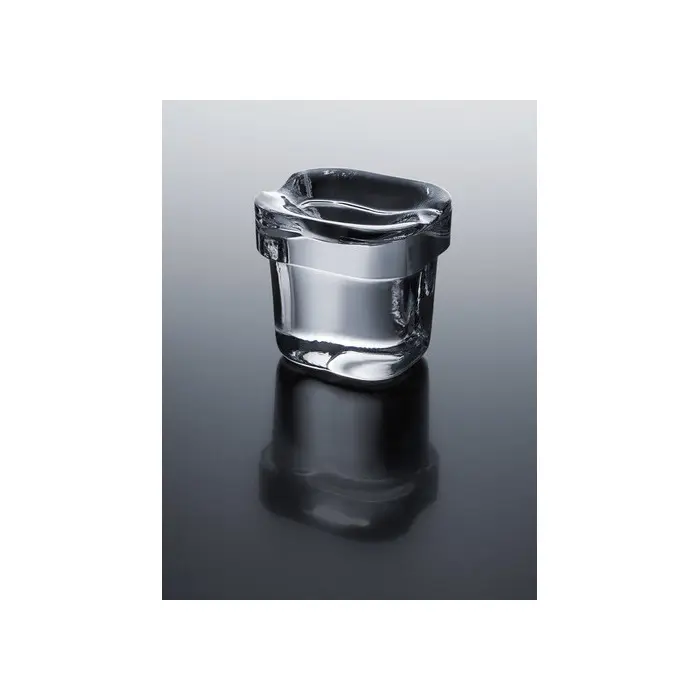

The BIM68OSPUMP produces clear gourmet dice-style ice cubes, perfect for keeping any beverage cold without diluting the flavor. Under standard operating conditions, this unit can make up to 47 lbs. in a day cycle, while the storage bin can hold up to 26 lbs at a time. We include an ice scoop that can be hung inside for easy use. Frost-free operation eliminates the need to defrost the interior.

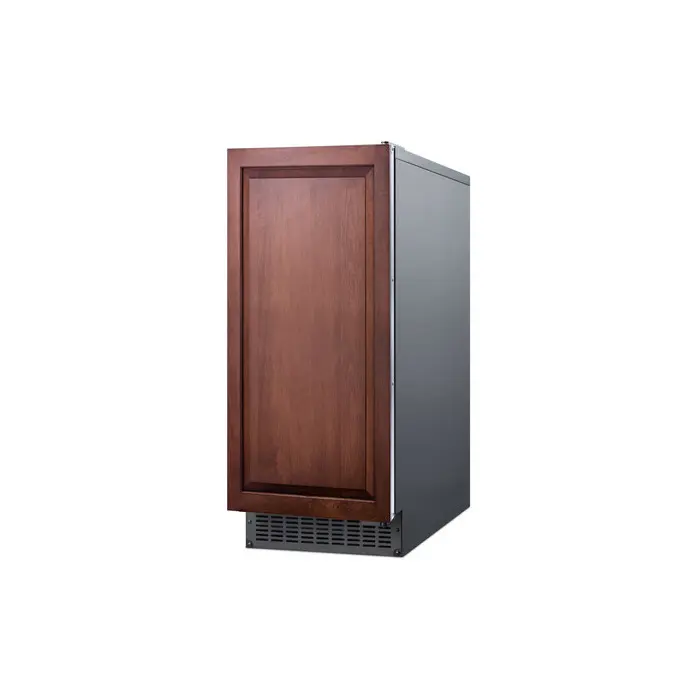

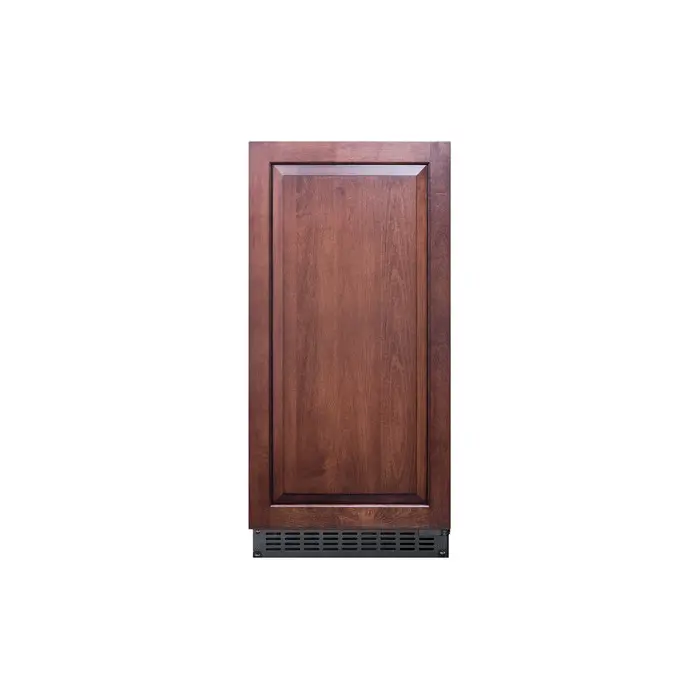

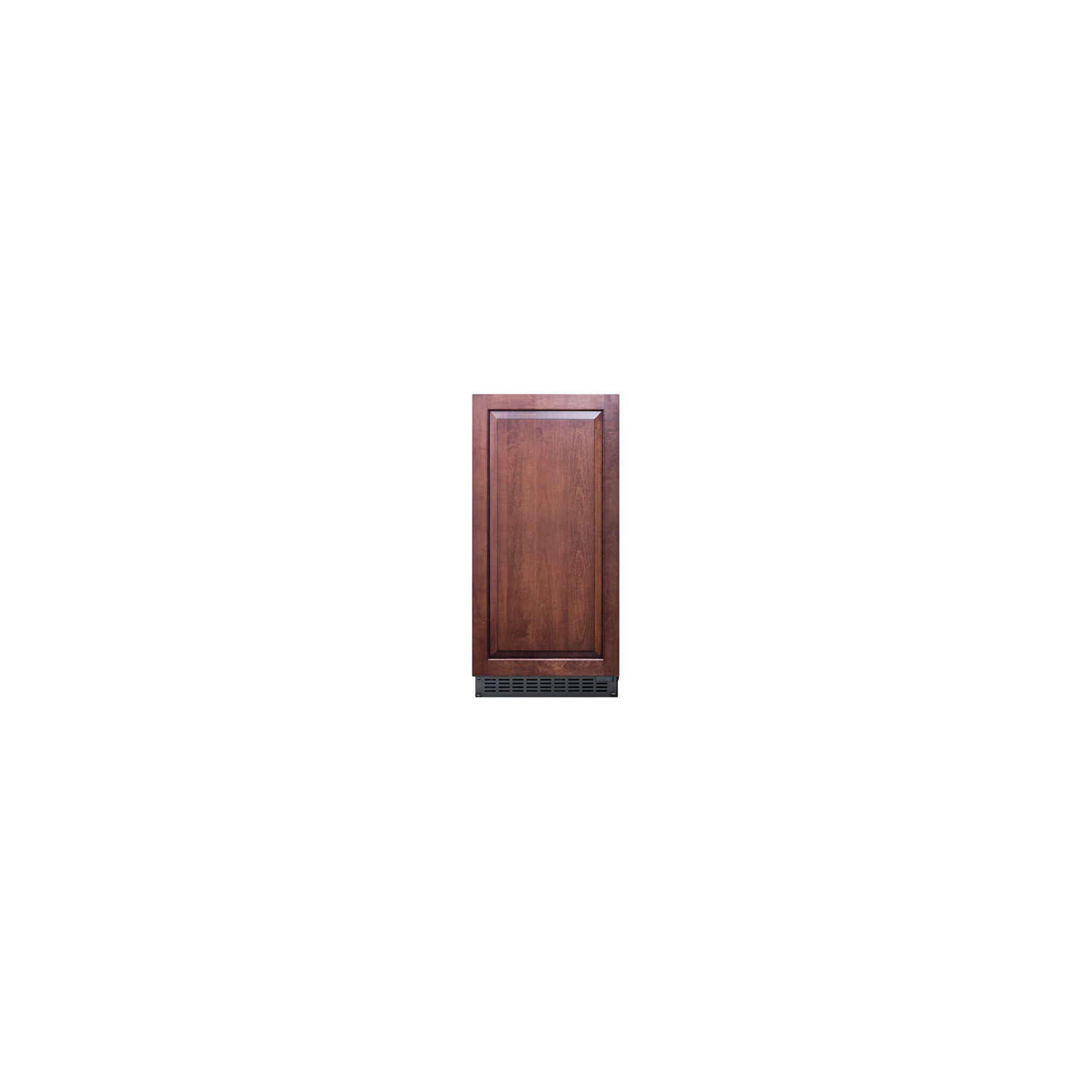

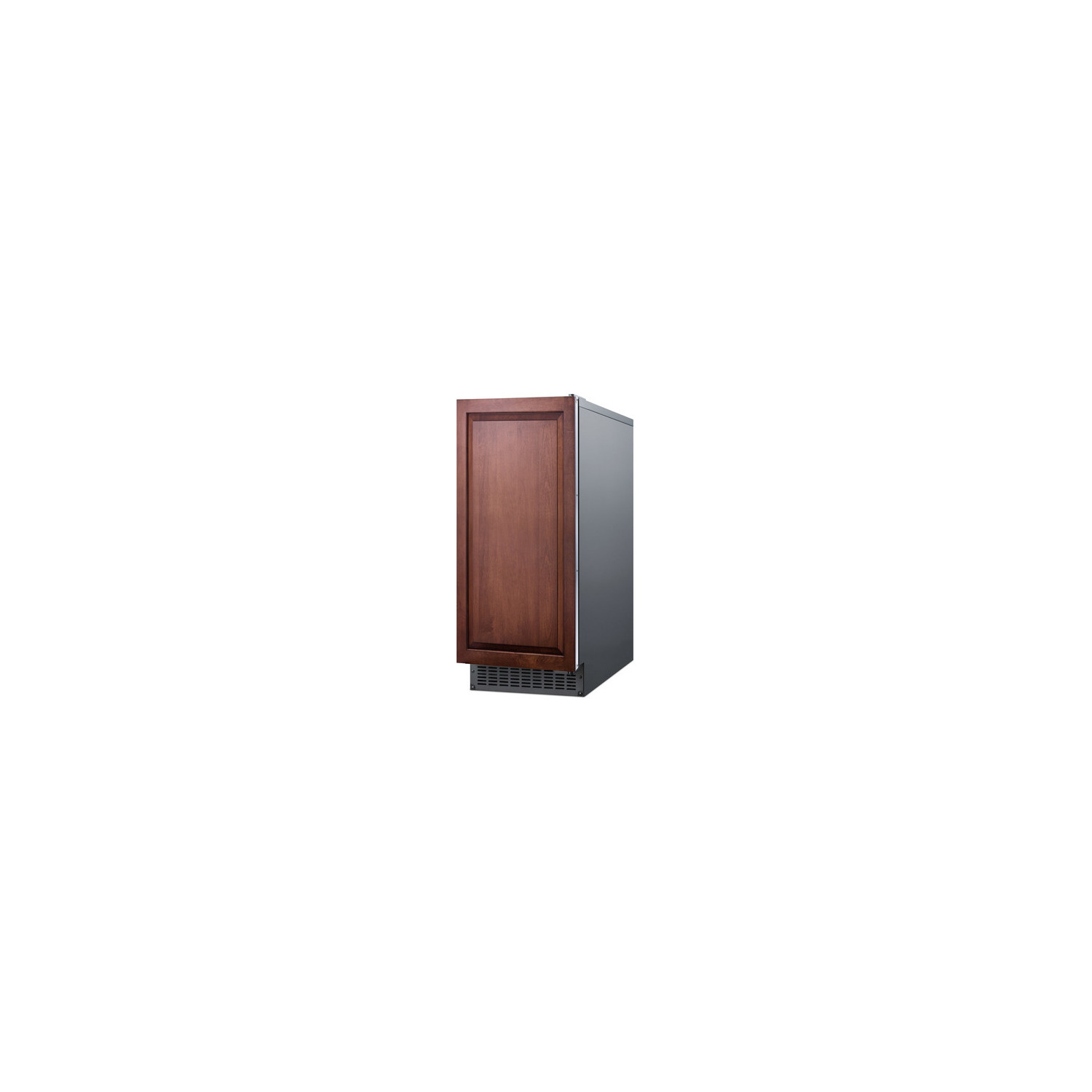

Designed and manufactured for us in South Korea, the BIM68OSPUMP is UL-S listed to NSF-12 commercial standards for use in foodservice settings. The weatherproof constructed allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar. A panel-ready version (BIM68OSPUMP) is also available.

NOTE: This unit requires professional installation. Drain hose and other connection equipment is not included.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.5" (85 cm)

Height to Hinge Cap 33.63" (85 cm)

Nominal Width 15.0" (38 cm)

Width 14.88" (38 cm)

Nominal Depth 23.0" (58 cm)

Depth 22.63" (57 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 37.25" (95 cm)

Capacity 0.98 cu.ft. (28 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation UL-S

Amps 1.7

Voltage/Frequency 115 V AC/60 Hz

Weight 105.0 lbs. (48 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101057095

Icemaker

Door Swing RHD

Reversible Yes

Daily Ice Production 47.0 lbs. (21 kg)

Ice Storage Capacity 26.0 lbs. (12 kg)

Ice Shape Top hat

Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D

Number of Ice Cube Sizes 1

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 3.5 oz.

High Side PSI 127.0

Low Side PSI 40.0

Interior Height 12.75" (32 cm)

Interior Width 12.75" (32 cm)

Interior Depth 9.25" (23 cm)

Level Legs 4

FEATURES

Outdoor Clear Icemaker 15" wide built-in undercounter icemaker produces 47 lbs. of clear gourmet ice cubes

Indoor/outdoor capable Versatile design can be installed inside or out

Commercially approved UL-S listed to NSF-12 commercial standards for use in foodservice settings

Weatherproof design Durable construction for safe installation in outdoor kitchens

47 lb. production capacity Can make up to 47 lbs. in a day cycle, producing 24 cubes in a 30 minute span

Built-in pump Internal pump allows more flexibility in placing the unit

Built-in capable Make the best use of space by installing your icemaker under the counter and flush with other cabinets

Stainless steel wrapped exterior Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

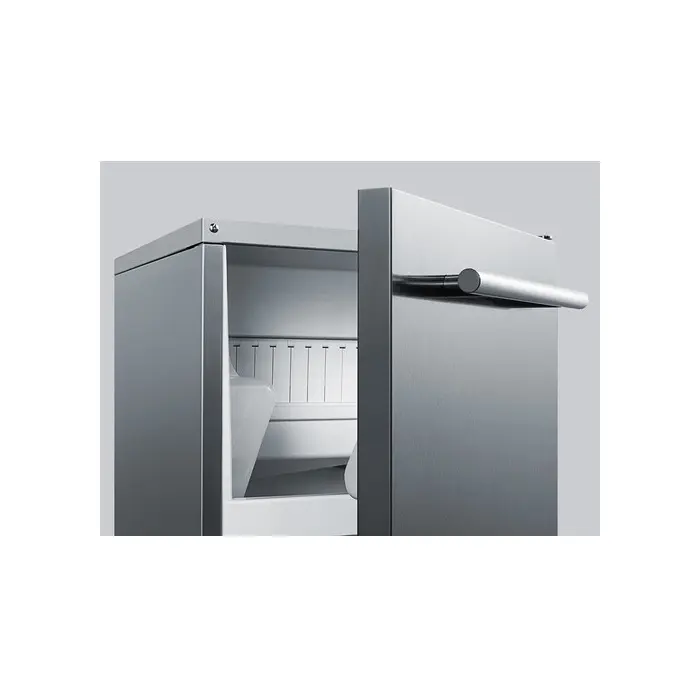

Professional handle Horizontally mounted towel bar style handle in stainless steel

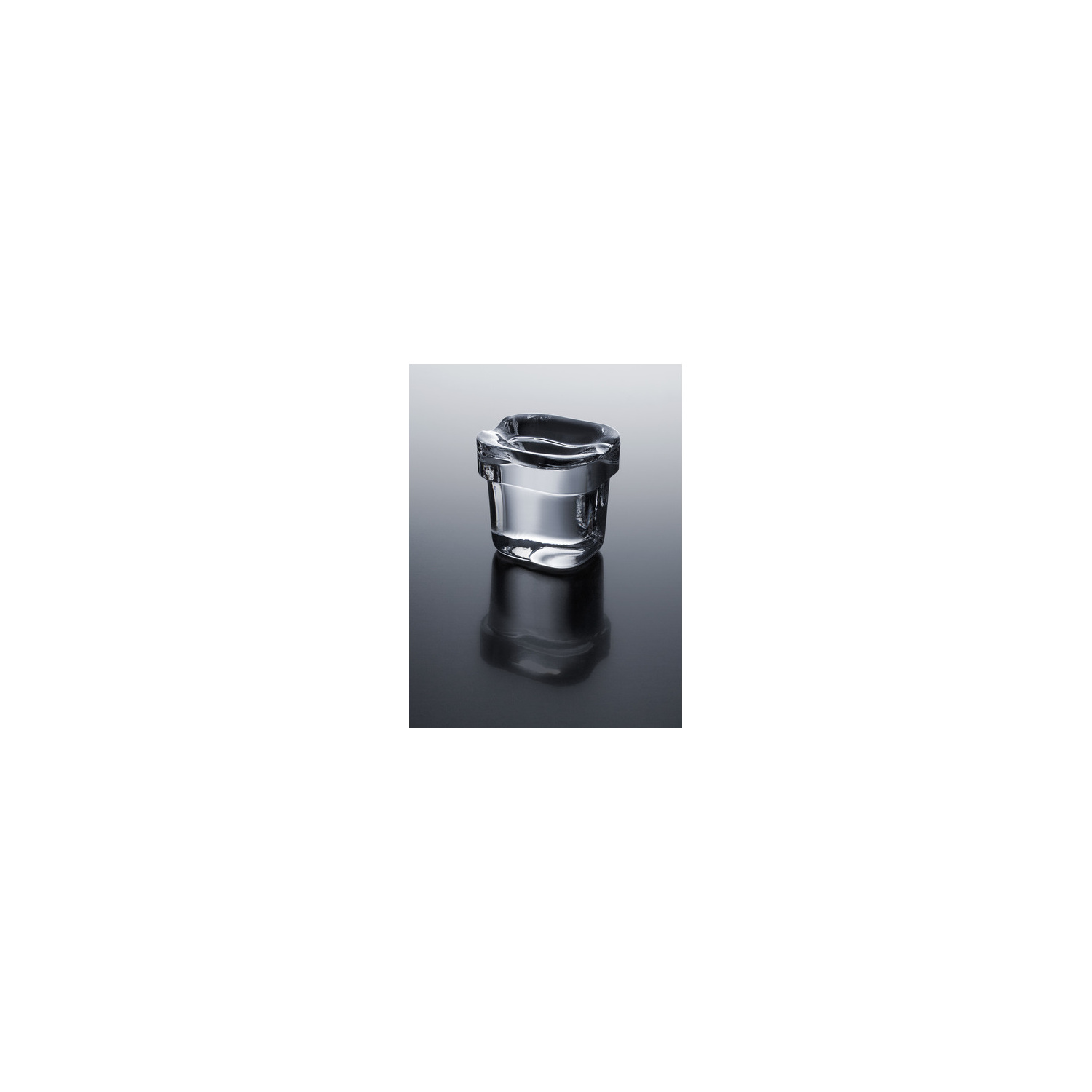

Clear ice cube production Gourmet style rounded dice-style ice cubes

Frost-free operation No-frost operation for minimum user maintenance

Reversible door User-reversible door swing for flexible placement

Standard water hookup Operates with a standard 1/4” OD water supply line

Sealed back Space-saving design with easier cleanability

Fully finished cabinet Allows the unit to be used freestanding

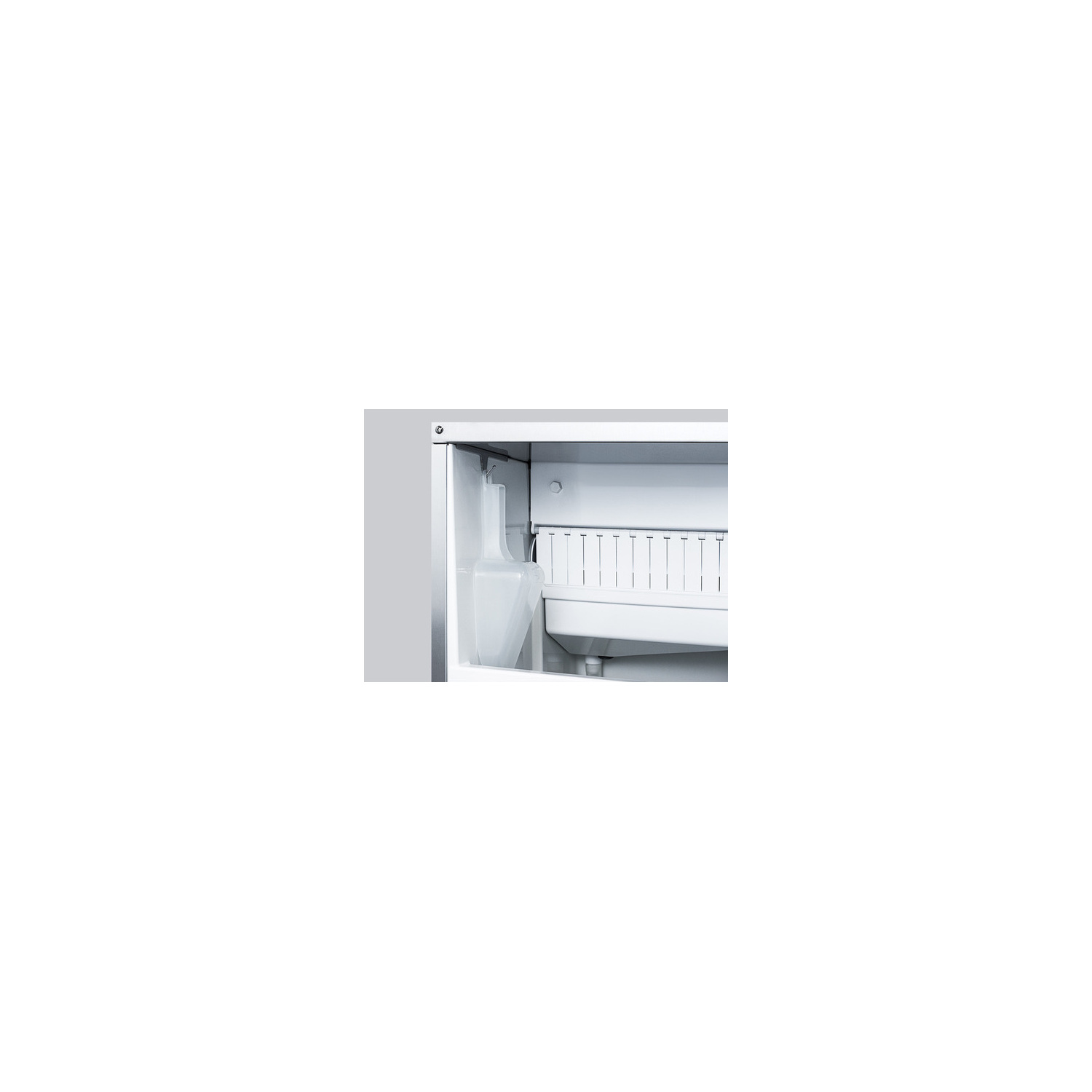

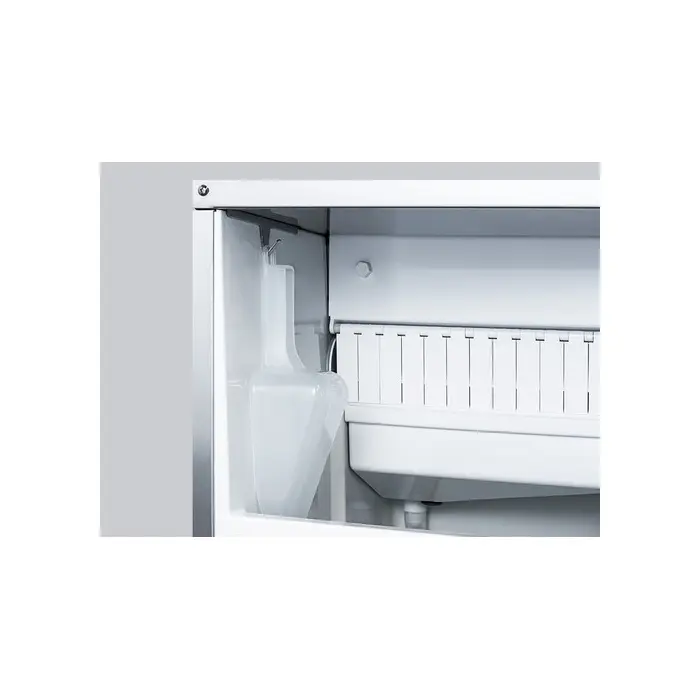

Ice scoop included Interior wall includes hook to hang for easy storage

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
