Summit 15 inch wide outdoor built-in undercounter NSF-listed clear icemaker with automatic defrost and internal pump, 7.61101e+011, BIM47OS

Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space.

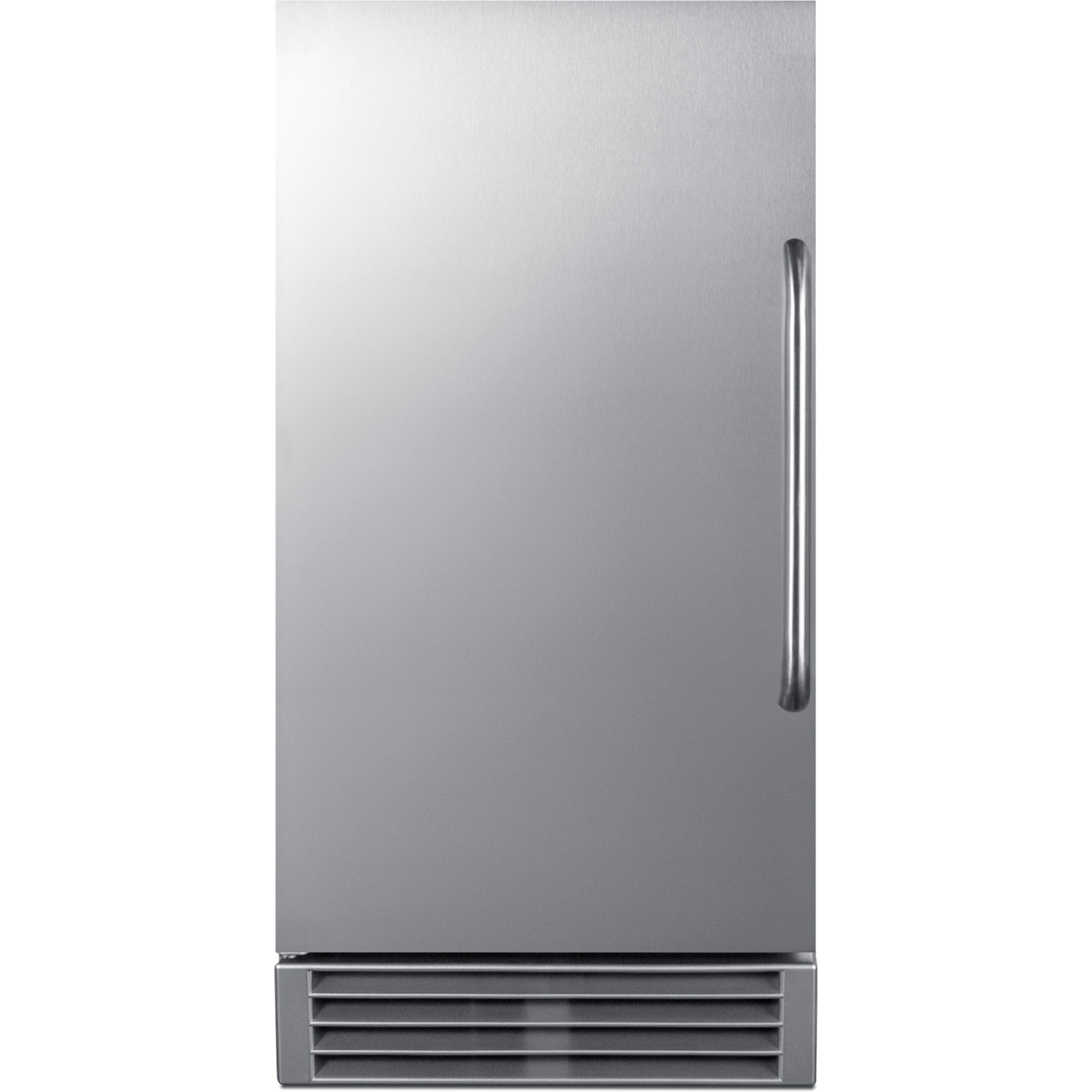

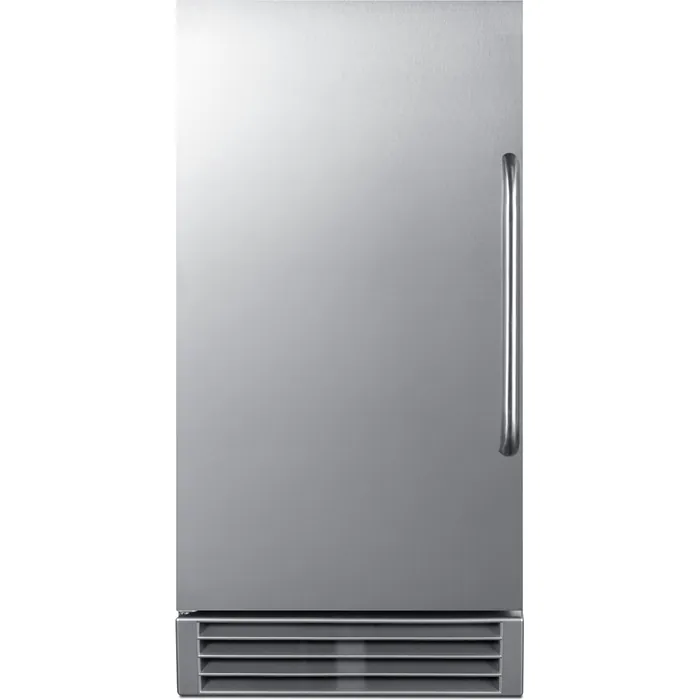

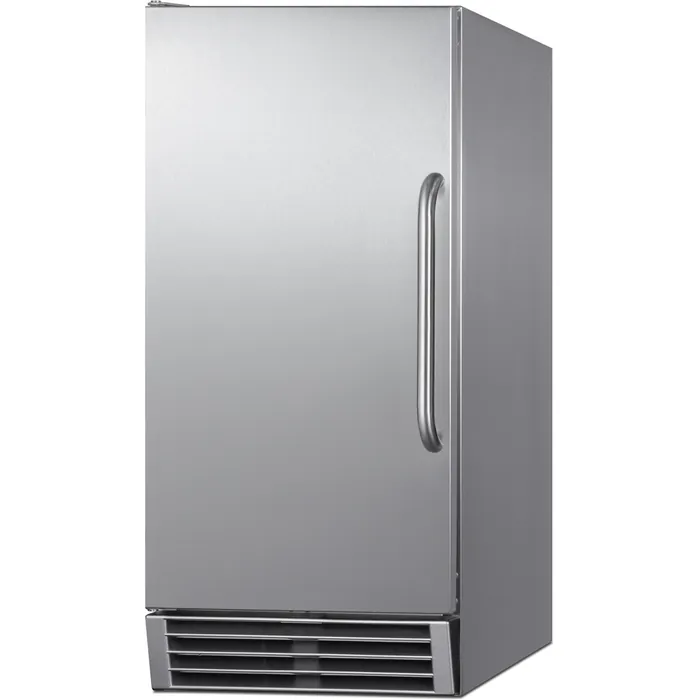

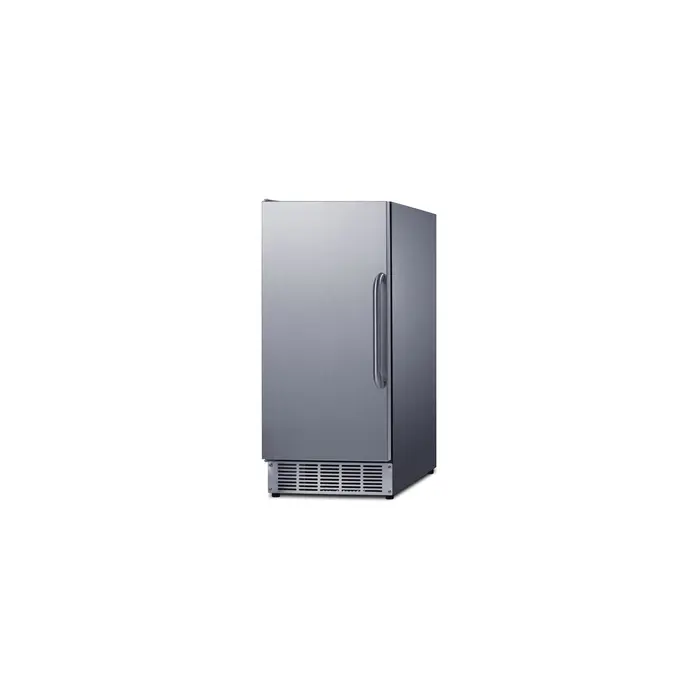

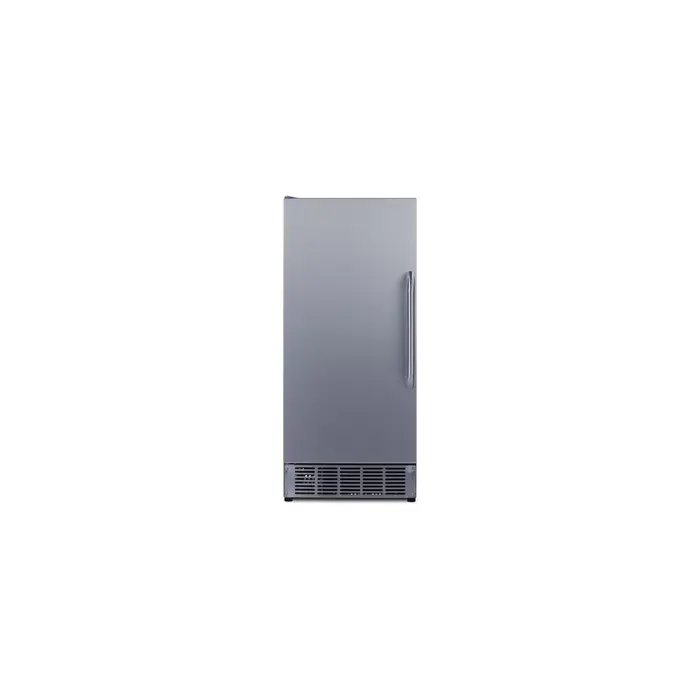

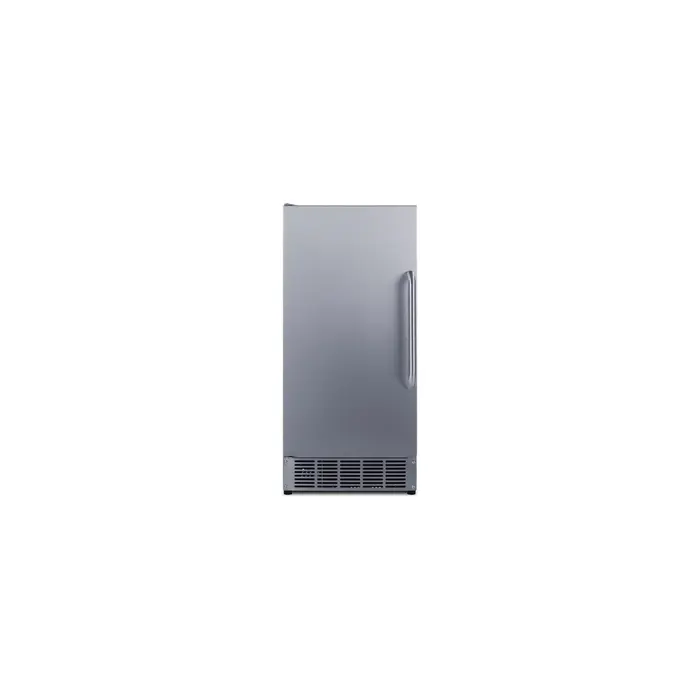

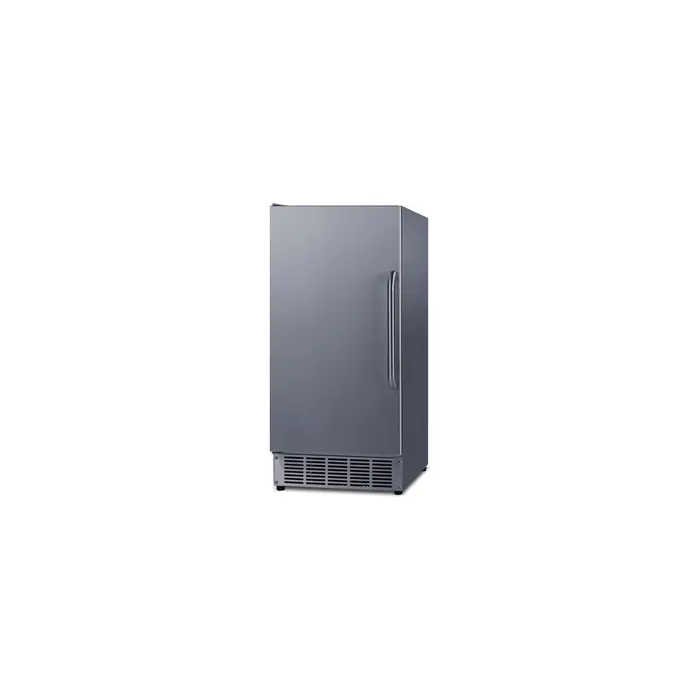

ENERGY STAR certified for commercial use, BIM47OS features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home.

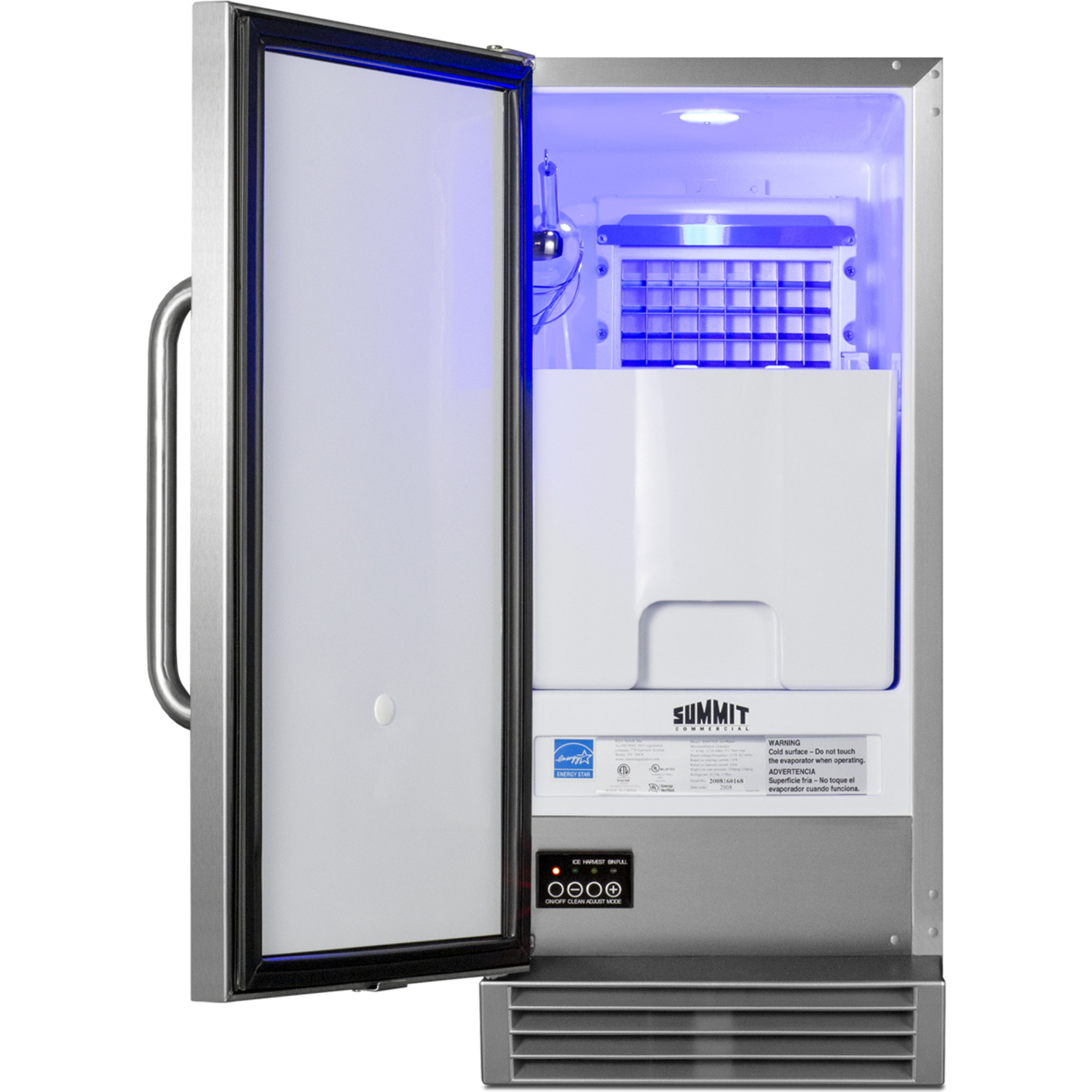

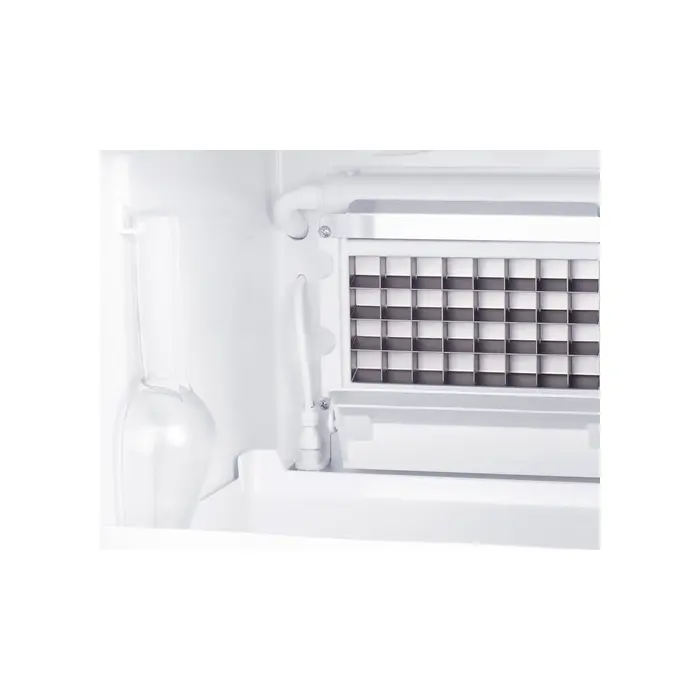

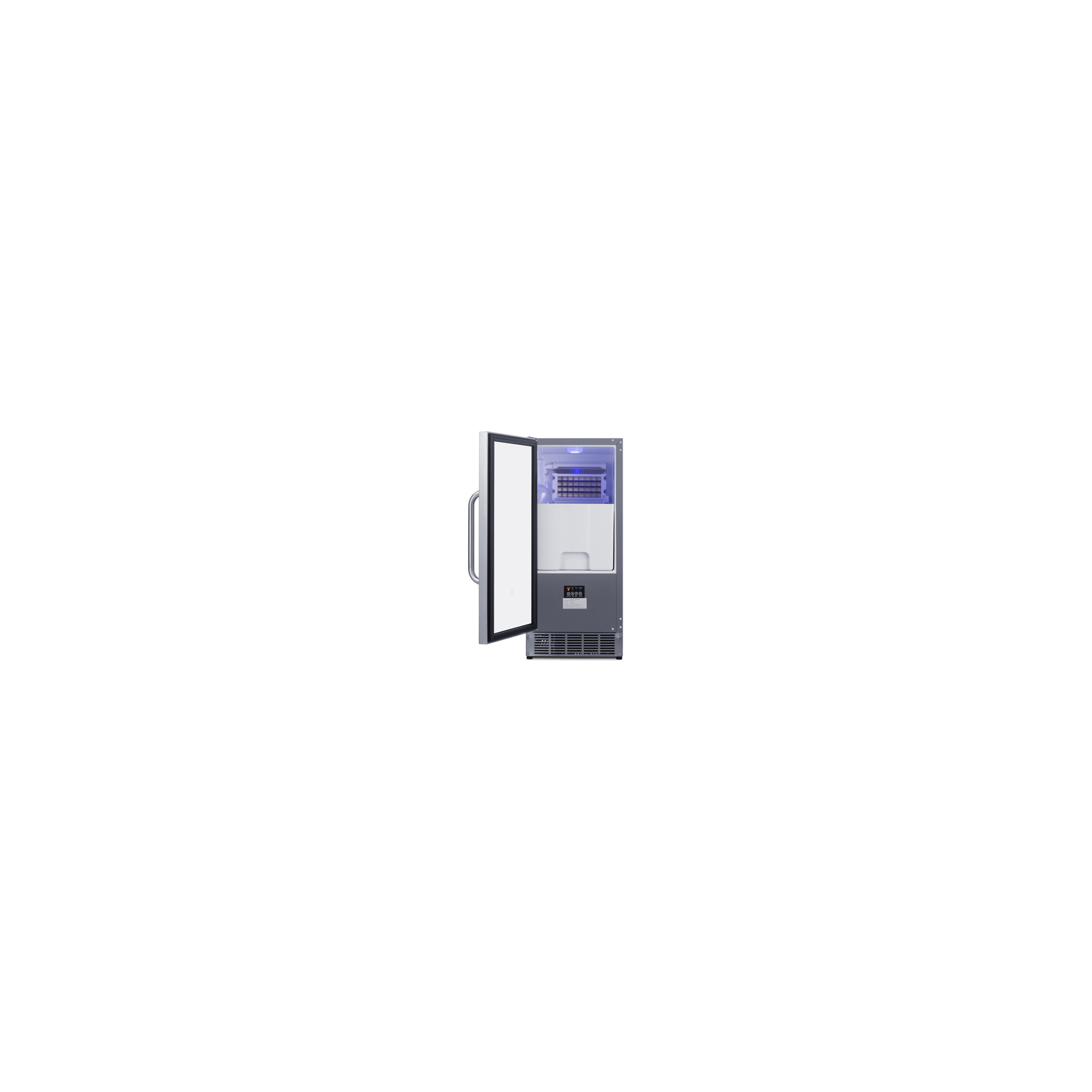

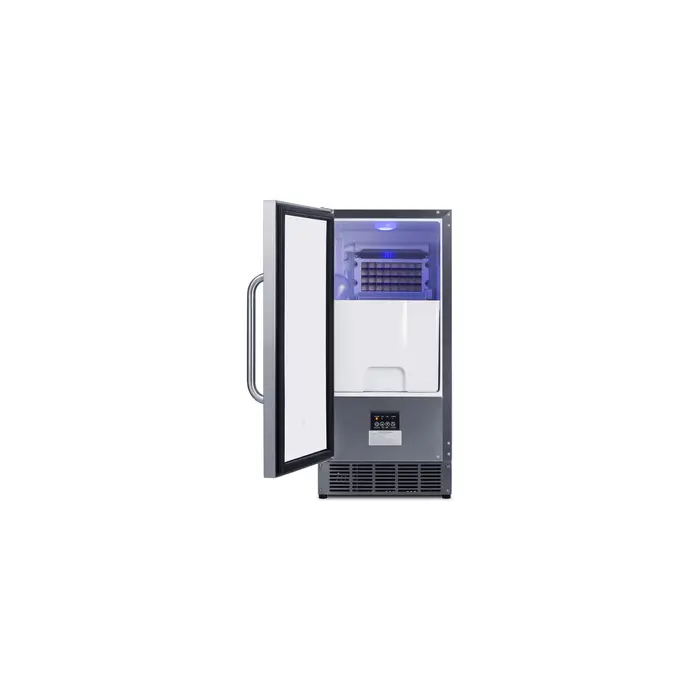

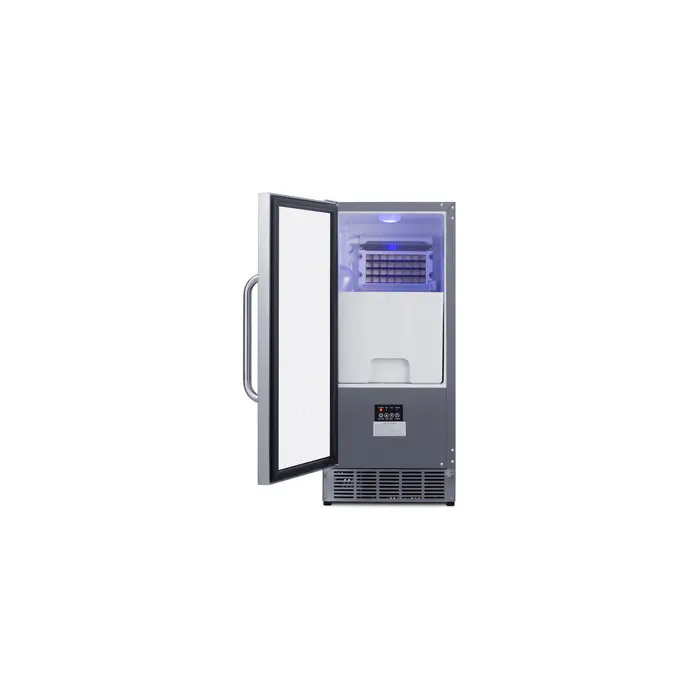

Inside, the BIM47OS has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 45 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces.

Sized at 15" wide, BIM47OS is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For an ADA compliant version of this unit, see the BIM47OSADA.

SPECIFICATIONS

Overview

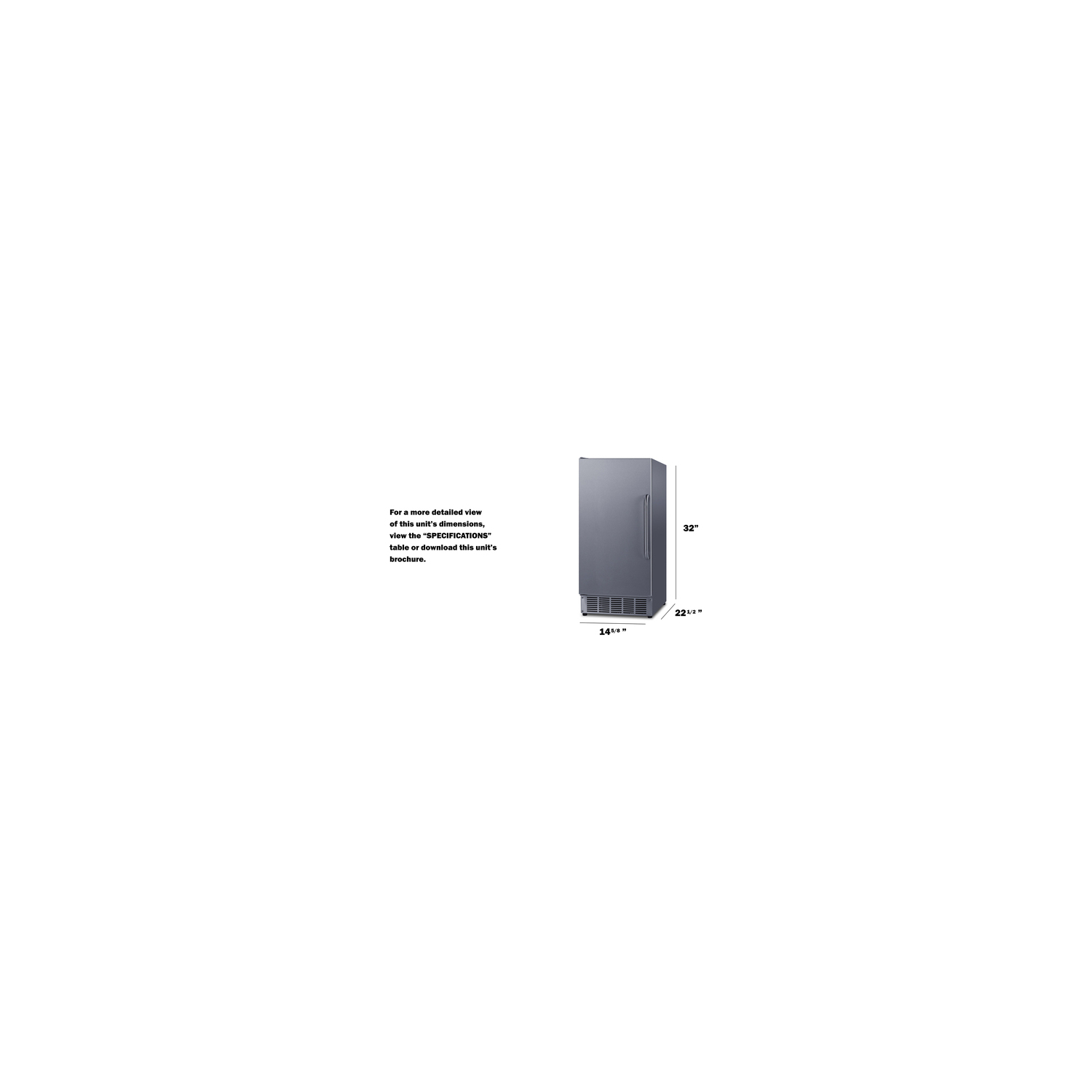

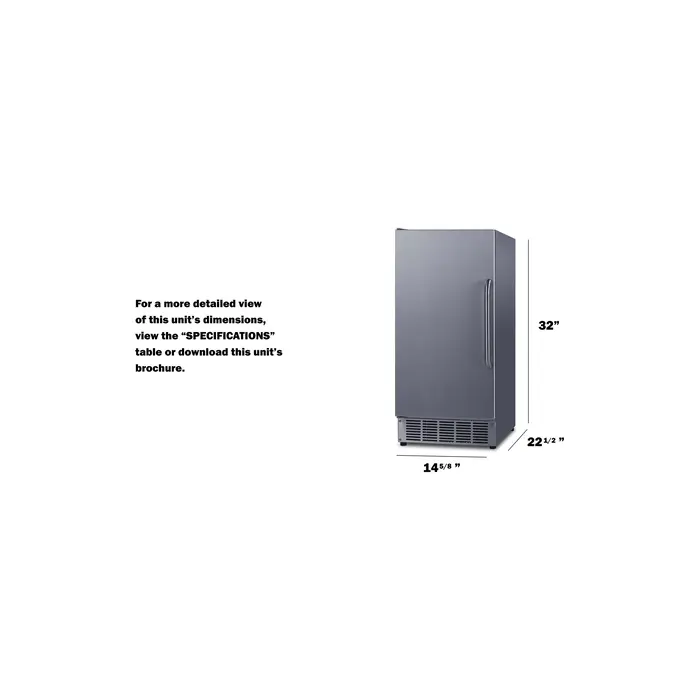

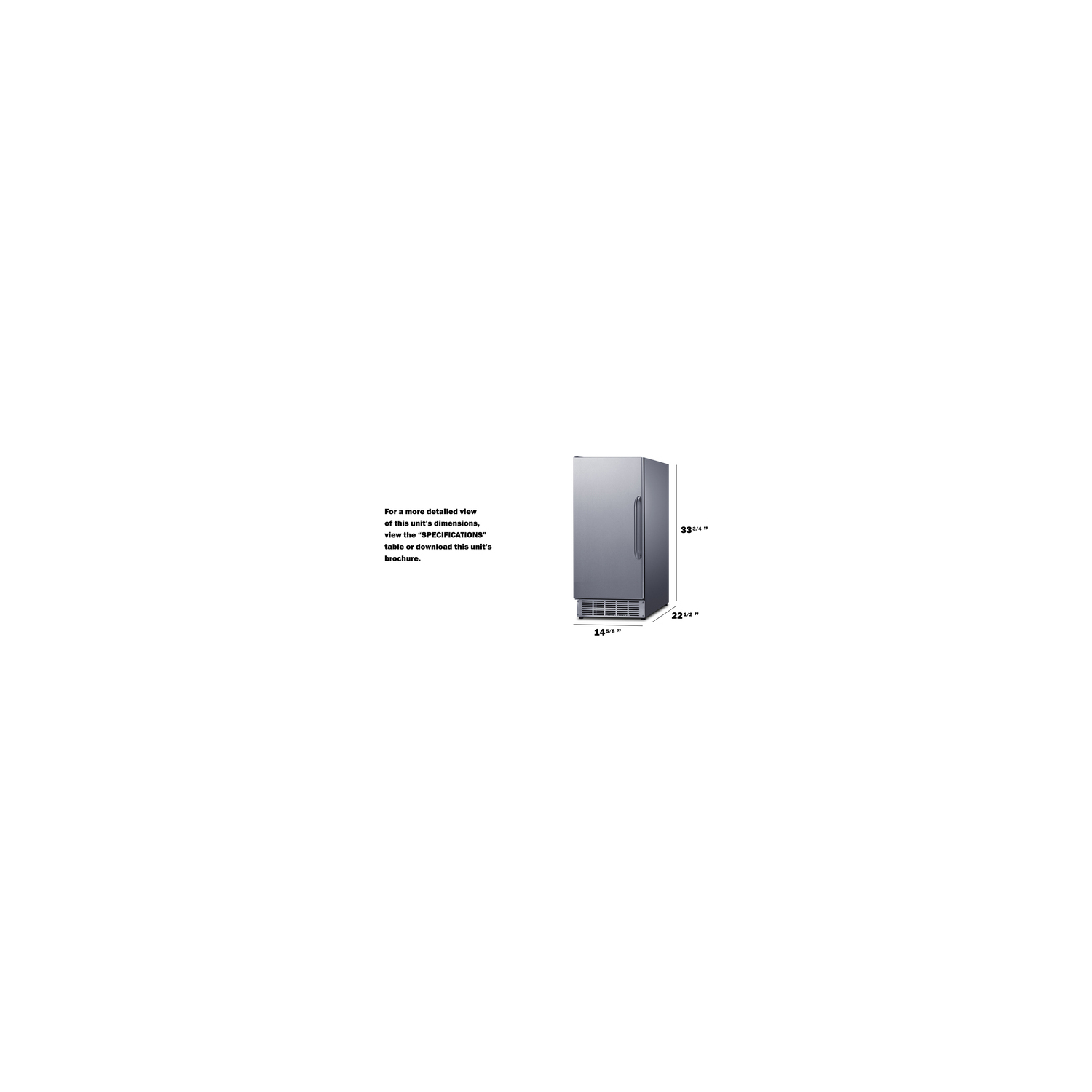

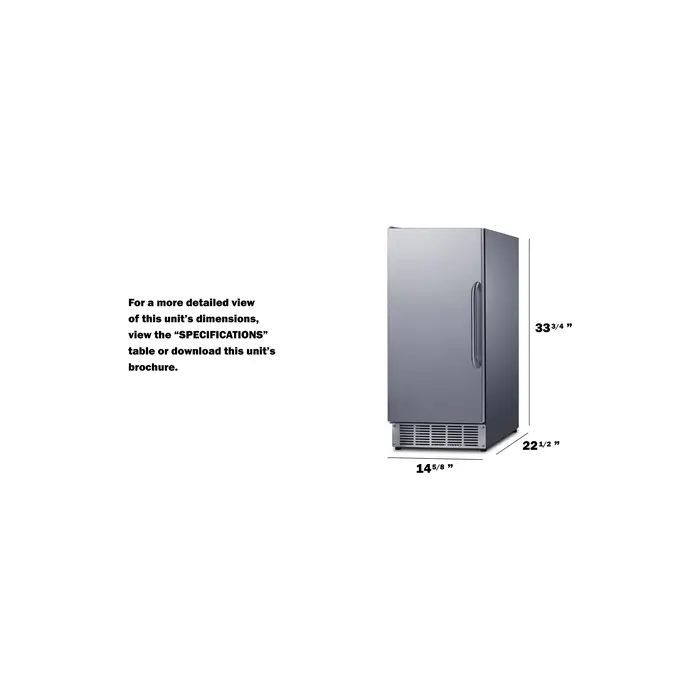

Height of Cabinet 33.63" (85 cm)

Width 14.63" (37 cm)

Depth 22.5" (57 cm)

Depth with Handle 24.5" (62 cm)

Depth with door at 90° 36.25" (92 cm)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation ETL-S

Amps 2.5

Plug Type NEMA 5-15P

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101067742

Icemaker

Door Swing LHD

Reversible Yes

Drain Required Yes

Daily Ice Production 45.0 lbs. (20 kg)

Ice Storage Capacity 25.0 lbs. (11 kg)

Ice Shape Cube

Size of Cube 7/8" x 7/8" x 7/8"

Number of Ice Cube Sizes 1

Fan Type Exterior

Refrigerant Type R290a

Refrigerant Amount 1.87 oz.

High Side PSI 286.0

Low Side PSI 110.0

Interior Height 18.75" (48 cm)

Interior Width 11.25" (29 cm)

Interior Depth 15.5" (39 cm)

Level Legs 4

FEATURES

15" Wide Outdoor Clear Icemaker Weatherproof built-in undercounter icemaker produces up to 45 lbs. of clear cubes

Commercially approved ETL-S listed to NSF-12 commercial standards

Weatherproof design Durable stainless steel construction for safe installation in outdoor spaces

ENERGY STAR certified commercial performance Efficient performance saves on energy use and costs

Built-in capable Make the best use of space by installing your icemaker under the counter

45 lb. production capacity Can make up to 45 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)

Built-in pump Internal pump affords more flexibility in placing the unit

Automatic defrost Reduced maintenance with auto defrost system

Clear ice cube production Produces 7/8" x 7/8" x 7/8" clear ice cubes

Touch control panel Provides easy operation of the unit with indicator lights for each stage of the production process

Reversible stainless steel door User-reversible door swing for flexible placement

Professional towel bar handle A curved handle in brushed stainless steel offers an easy grip

Insulated storage bin Ice stays solid longer in this cold-protected bin

Hoses included Water supply and drain hose packaged inside for easy setup

Interior light LED lighting in a soft blue hue for easy viewing of the interior

Ice scoop included Large scoop included, with a hanging hook located inside for easy storage

Fully finished stainless steel cabinet Allows the unit to be used freestanding

Sealed back Space saving design for easier cleanability

Leveling legs Four leveling legs help to keep the unit level on uneven surfaces

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE (BIM47OS.pdf)

TECHNICAL DRAWING (.dwg) (BIM44G_BIM44GCSS_BIM47OS_3.dwg)

ASSEMBLY DRAWING (BIM44G_BIM44GCSS_BIM47OS-Assembly_3.pdf)

USE & CARE (BIM47OS-User-Manual.pdf)
