Summit Built-in undercounter manual defrost outdoor icemaker with complete stainless steel wrapped exterior finish; no drain required, 7.61101e+011, BIM271OS

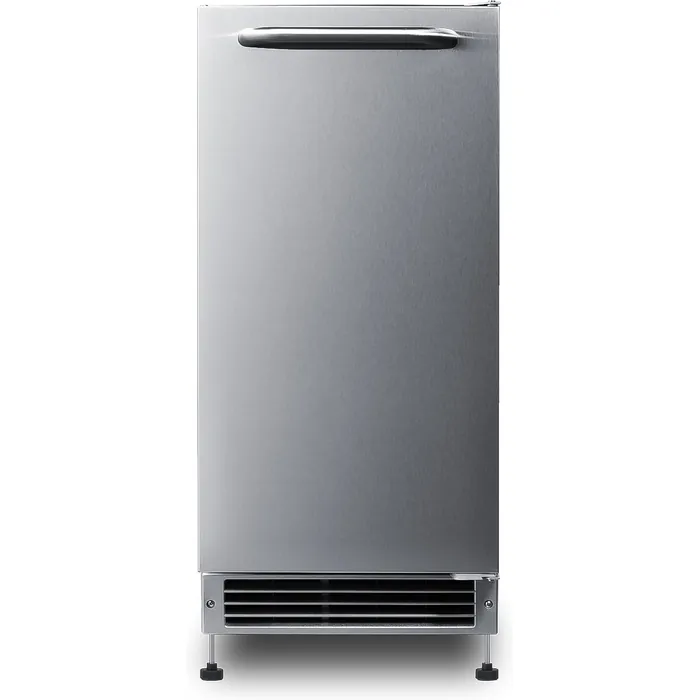

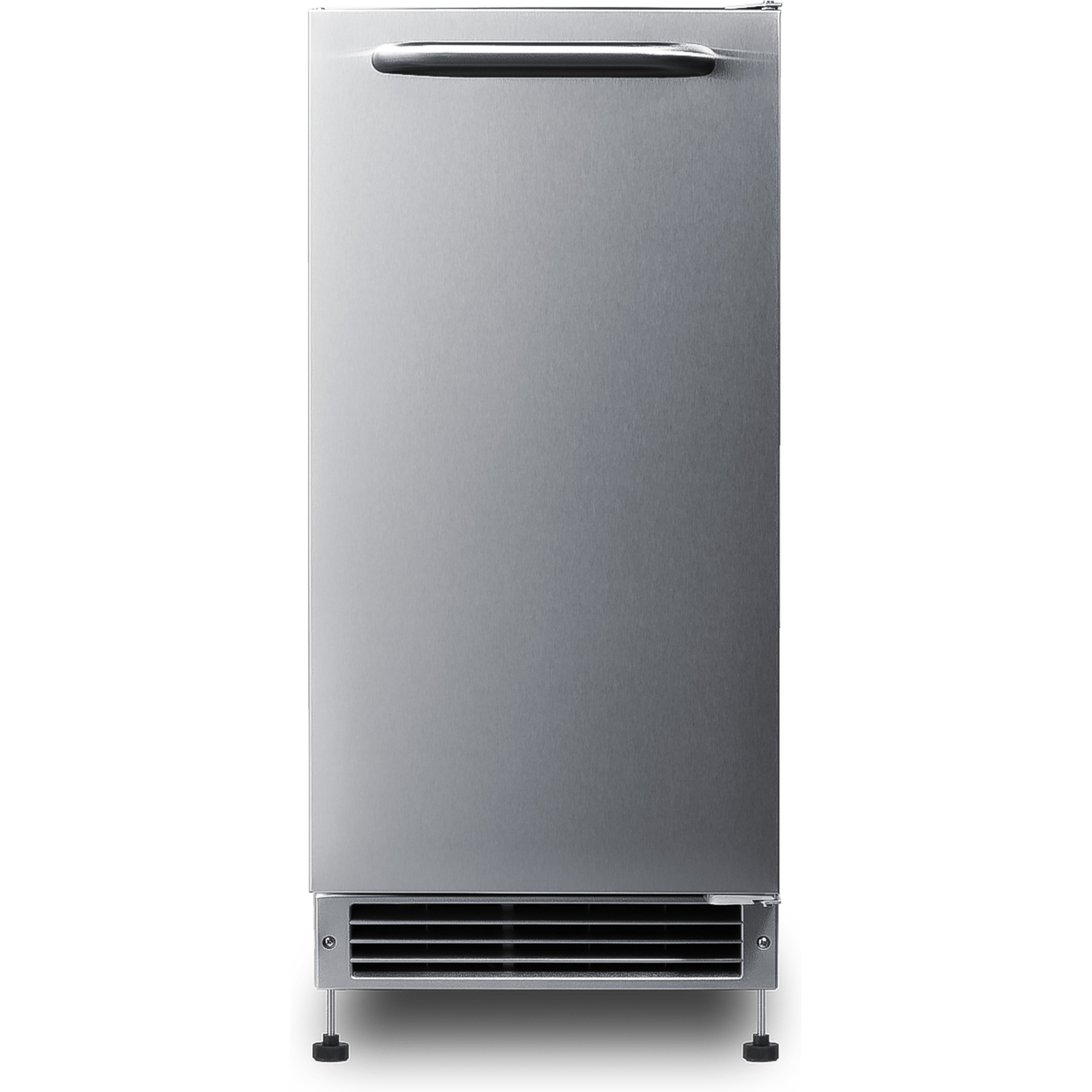

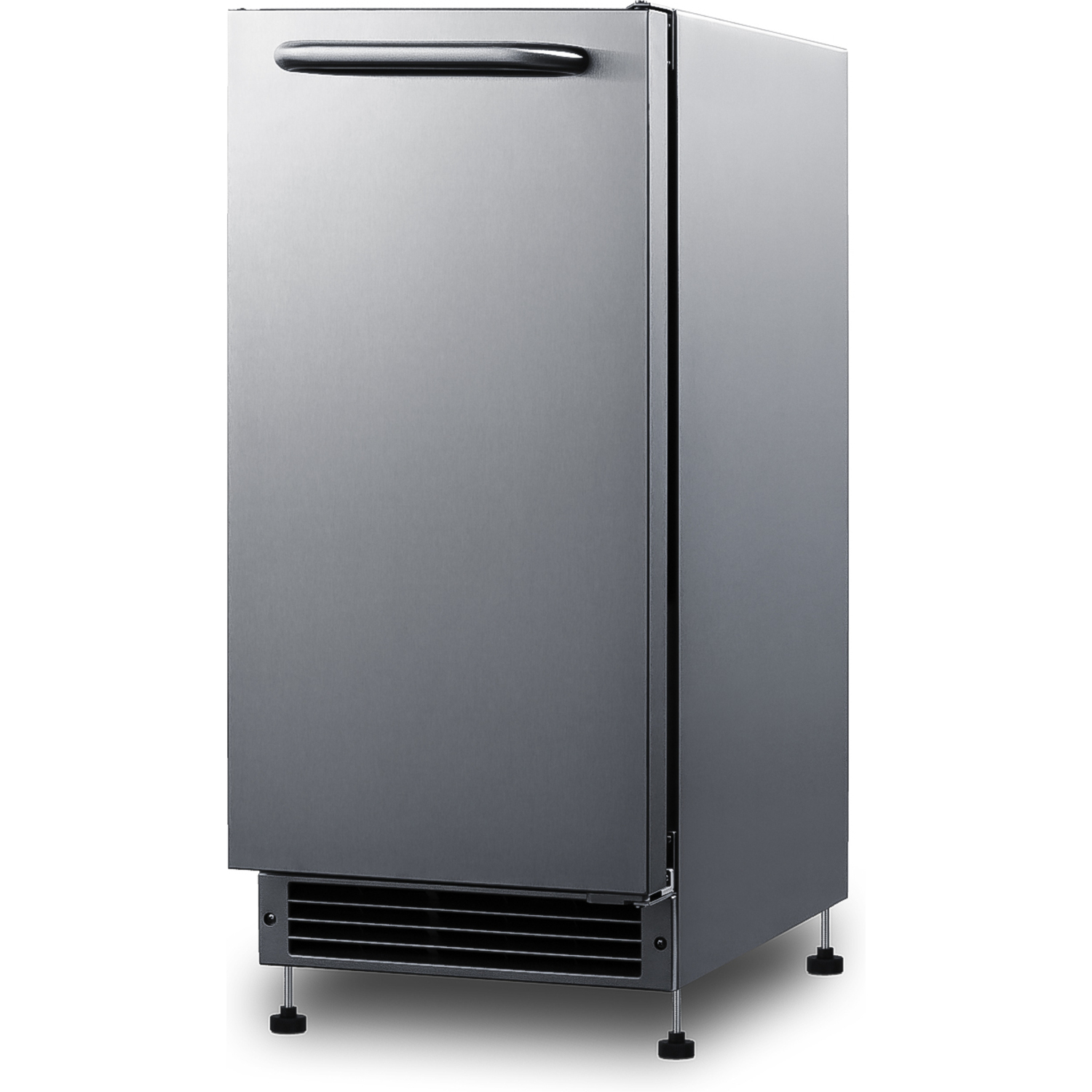

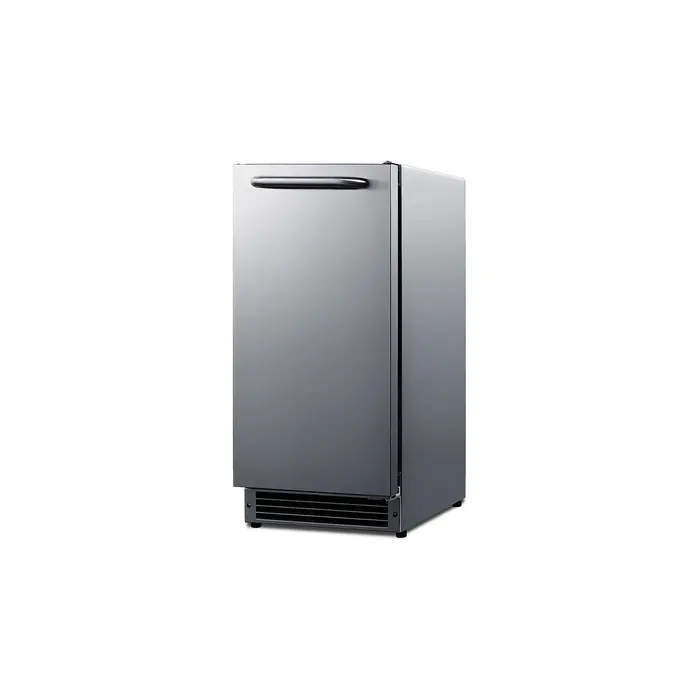

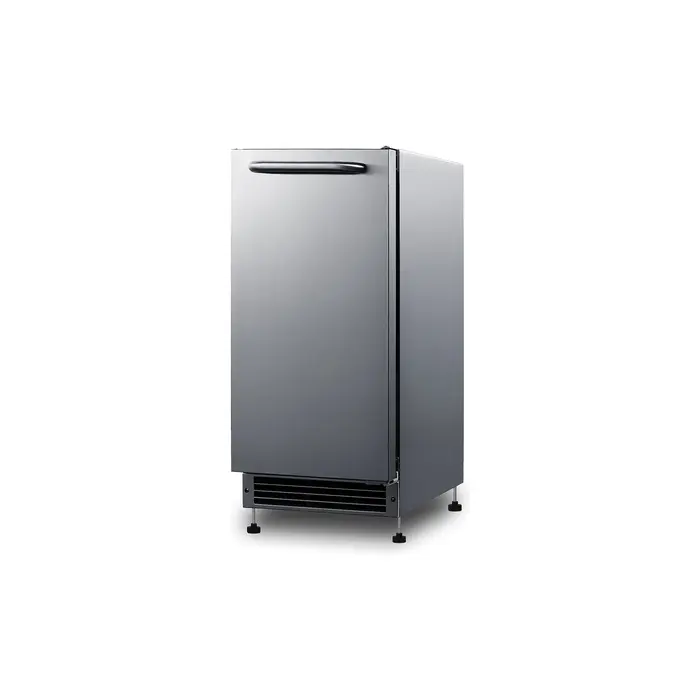

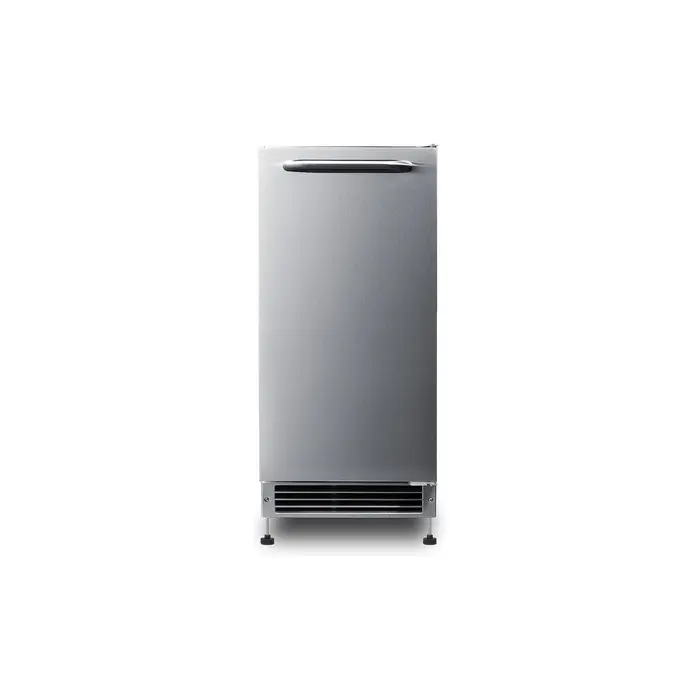

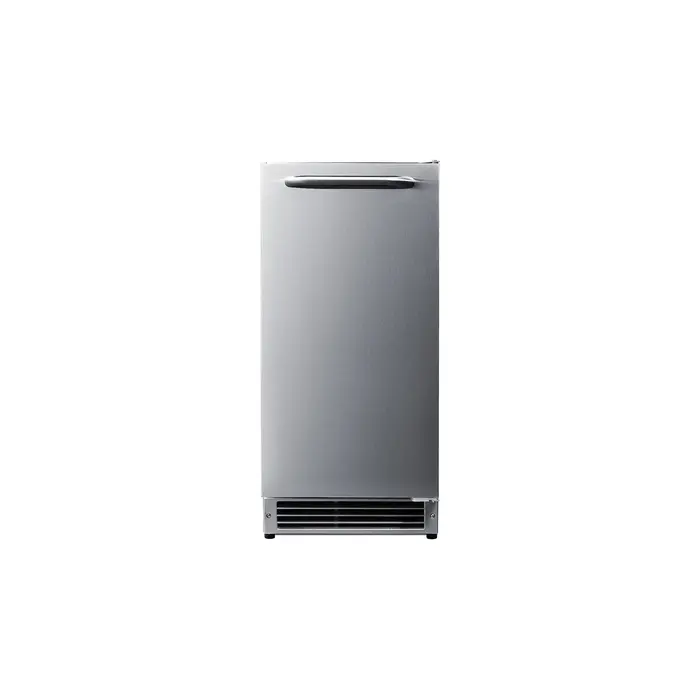

Summit combines convenience and luxury to craft the BIM271OS - an undercounter icemaker finished in complete 304-grade stainless steel.

Sized at just under 15" wide, the BIM271OS features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters in outdoor spaces. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look.

The cabinet and user-reversible door also feature a stainless steel finish for a professional style built to last, paired with a sleek handle mounted horizontally to finish the look. There’s a sealed back to allow more flush installation. An optional water filter is included and designed to be mounted in the rear.

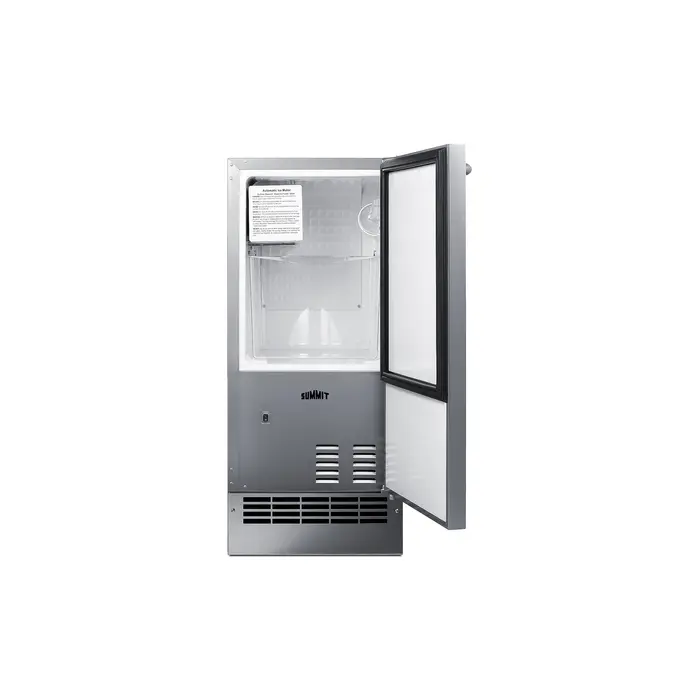

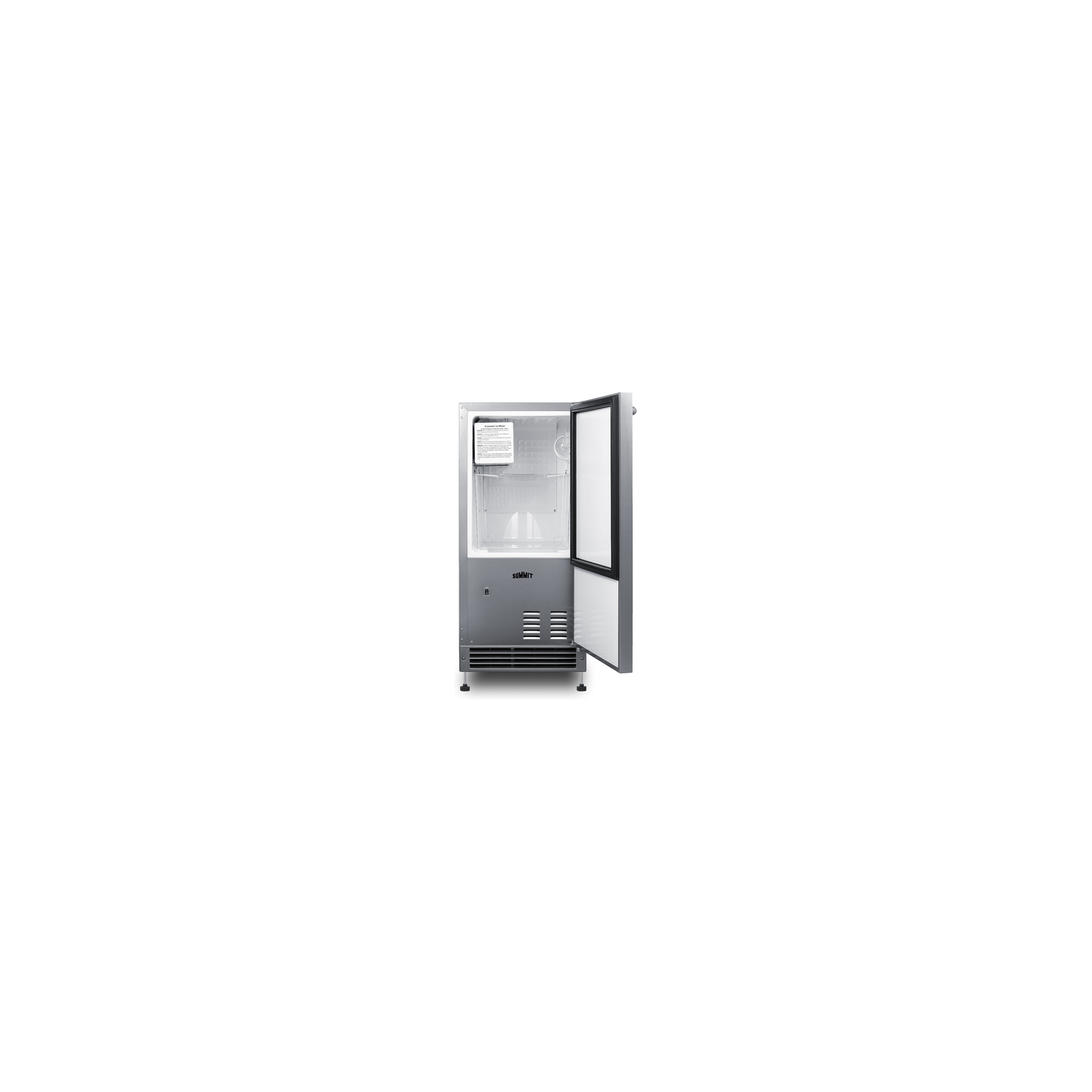

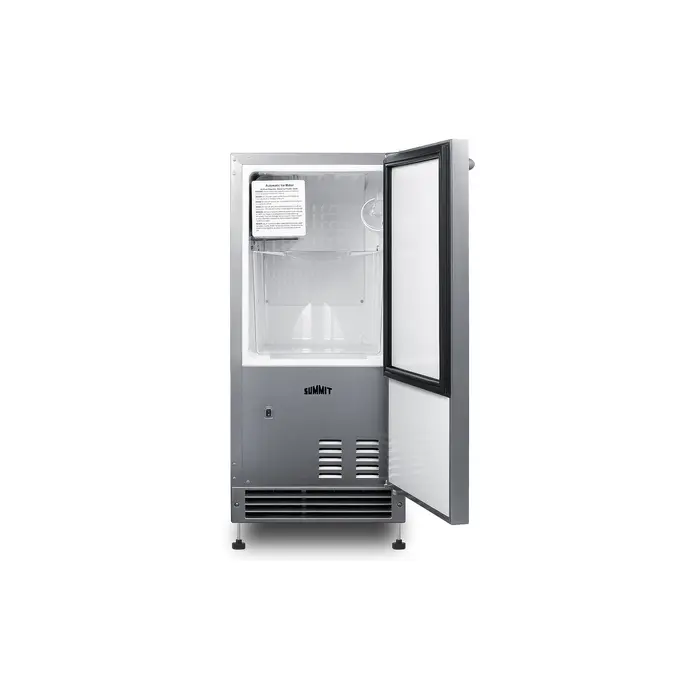

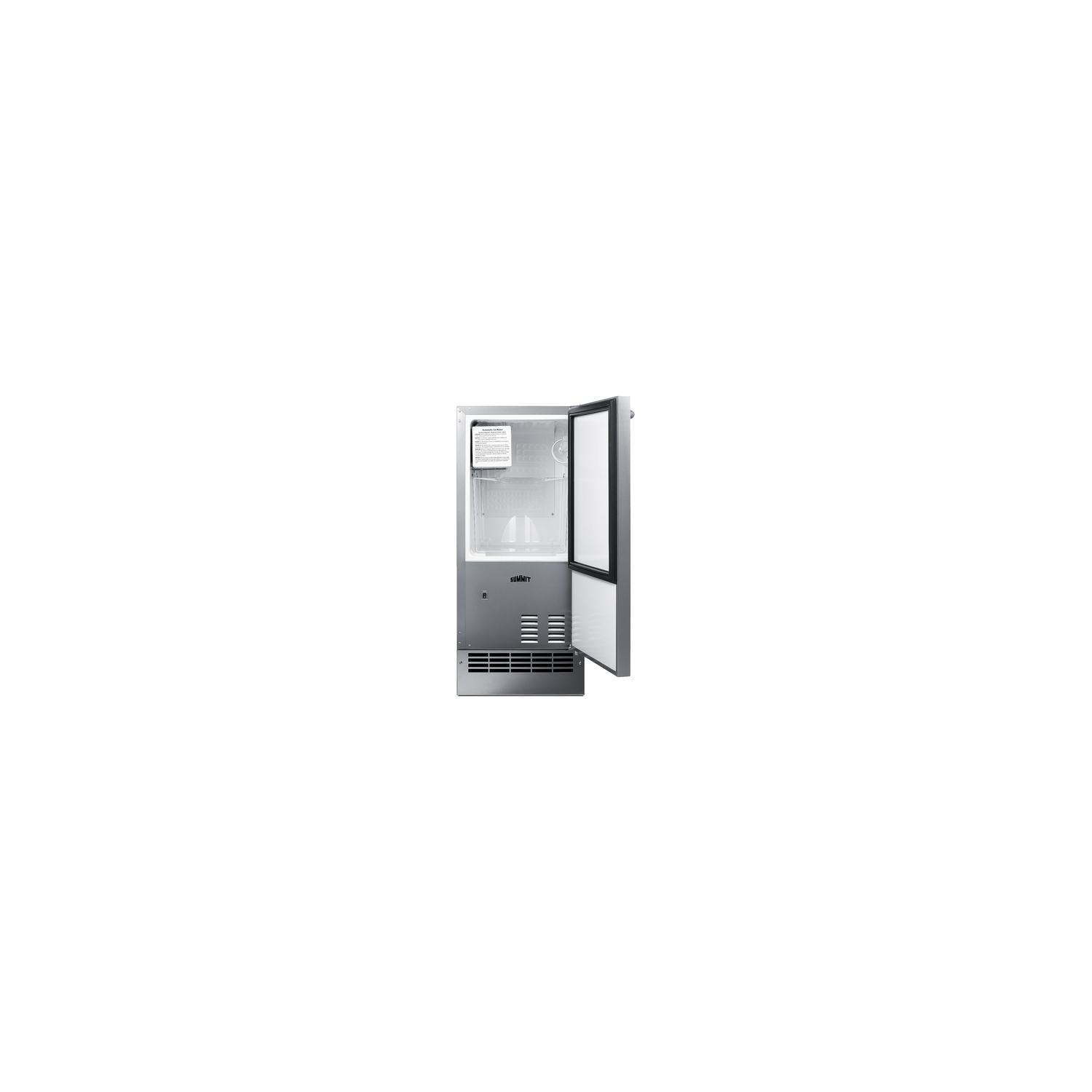

A look inside the BIM271OS shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.

With its complete stainless steel construction and low maintenance design, the BIM271OS is a great way to finish any outdoor space and allows you to maintain an entire supply of ice with less waste. The weatherproof construction allows outdoor use, but this model can also be installed indoors in any kitchen or wet bar.

Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 34.0" (86 cm)

Nominal Width 15.0" (38 cm)

Width 14.88" (38 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.38" (49 cm)

Depth with Handle 21.38" (54 cm)

Depth with door at 90° 33.63" (85 cm)

Defrost Type Manual

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.9

Voltage/Frequency 115 V AC/60 Hz

Weight 61.0 lbs. (28 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101103556

Icemaker

Door Swing RHD

Reversible Yes

Height Adjustable Yes

Daily Ice Production 25.0 lbs. (11 kg)

Ice Storage Capacity 22.0 lbs. (10 kg)

Ice Shape Crescent

Size of Cube 1/2" x 3/4" x 2 3/8"

Number of Ice Cube Sizes 1

Refrigerant Type R600a

Refrigerant Amount 1.58 oz.

High Side PSI 120.0

Low Side PSI 55.0

Interior Height 15.88" (40 cm)

Interior Width 11.88" (30 cm)

Interior Depth 12.38" (31 cm)

Level Legs 4

FEATURES

15" Wide No-Drain Icemaker No drain is required for more flexibility in placing the icemaker indoors or outside

Weatherproof design Durable construction for safe installation in outdoor kitchens

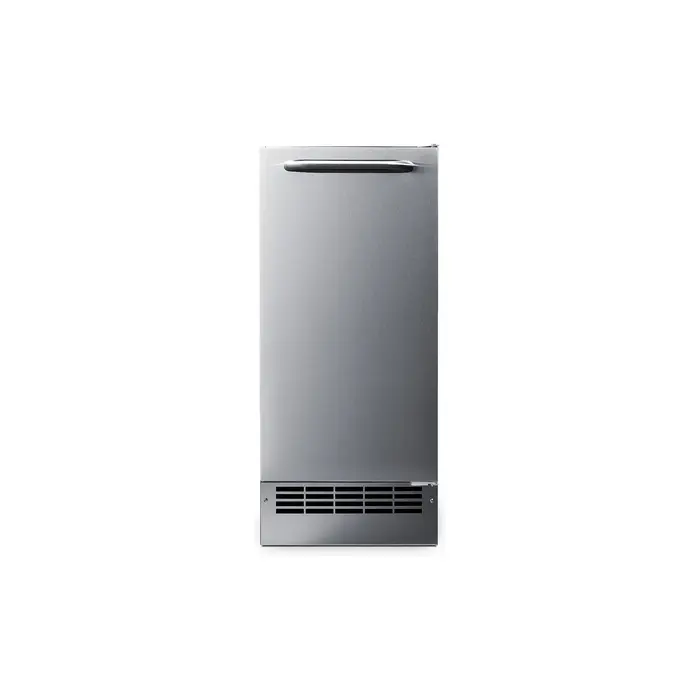

Adjustable Height This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic

Drain-free design Convenient design allows more flexibility in positioning the unit

ADA compliant Customizable height allows installation under lower ADA-compliant counters

Large capacity Produces and stores more than 20 lbs of ice per day cycle

Manual defrost Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Stainless steel exterior 304-grade stainless steel allows the icemaker to be used freestanding

Indoor/outdoor capable Versatile design allows users the ability to place the unit inside or out

Reversible door User-reversible door swing for flexible placement

Sealed back Space-saving design with easier cleanability

Standard water hookup Operates with a standard 1/4” OD water supply line

Built-In capable Make the best use of space by installing your ice maker under the counter

Modern handle Horizontally mounted towel bar style handle in stainless steel

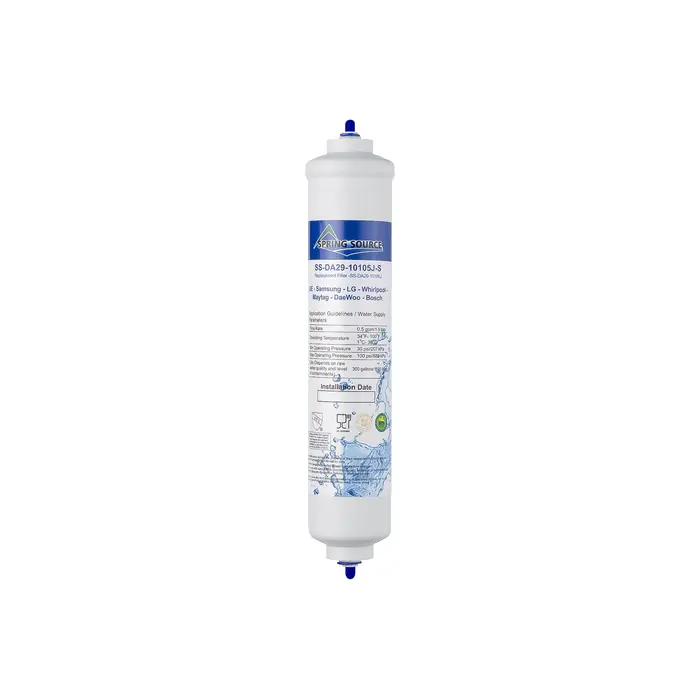

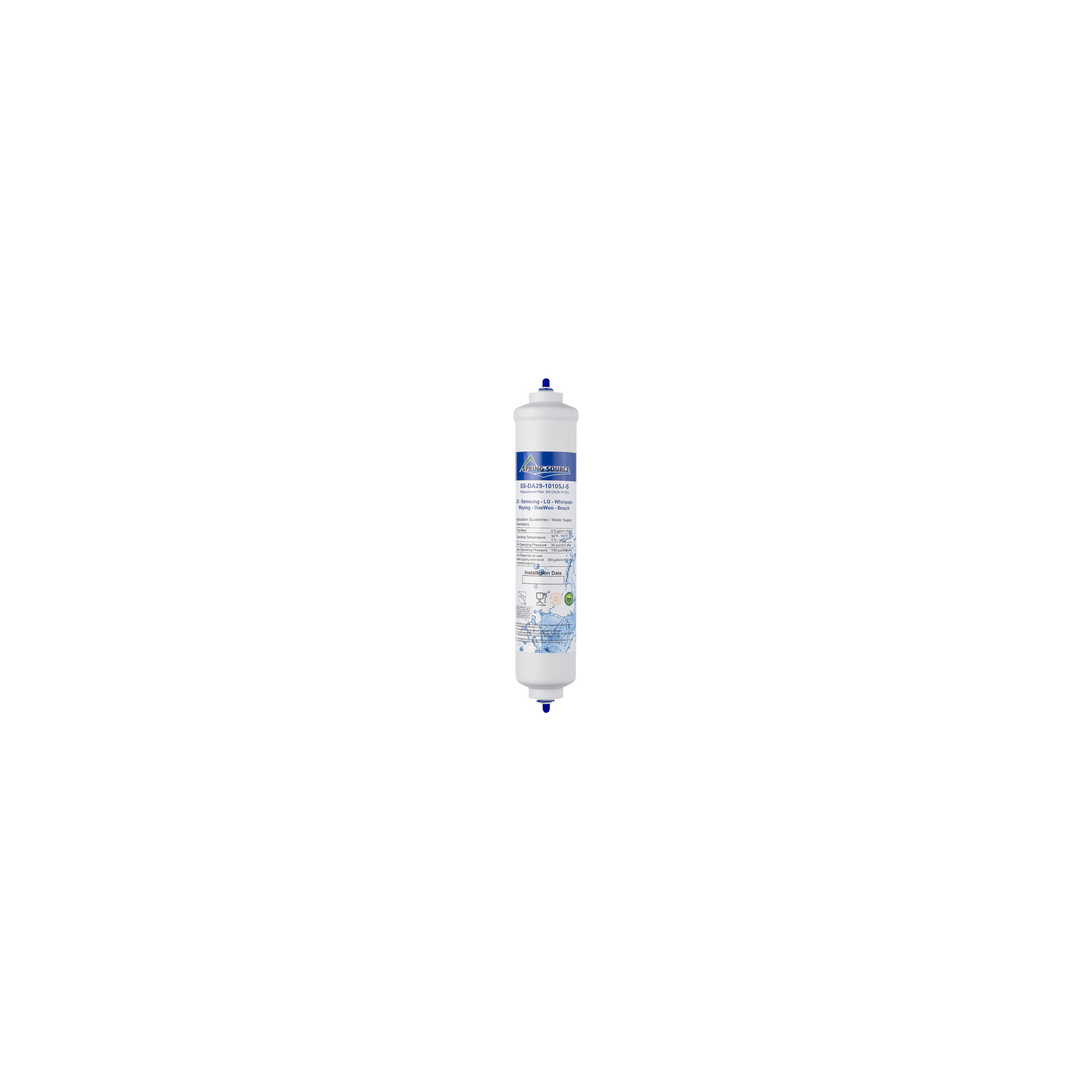

Filter included Water filter is included for optional use

Ice scoop included Large ice scoop and holder included for your convenience

Lasting ice cube production Crescent-shaped ice provides a harder and longer-lasting ice

Removable bin Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin Ice stays solid longer in this cold-protected bin

100% CFC free Environmentally friendly design without ozone-damaging chemicals

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
