Summit Built-in undercounter manual defrost icemaker with complete stainless steel wrapped exterior finish; no drain required, 7.61101e+011, BIM26H34IF
$1,719.96
Retail Price: $2,410.00
Free shipping
$ 1,719.96
Description

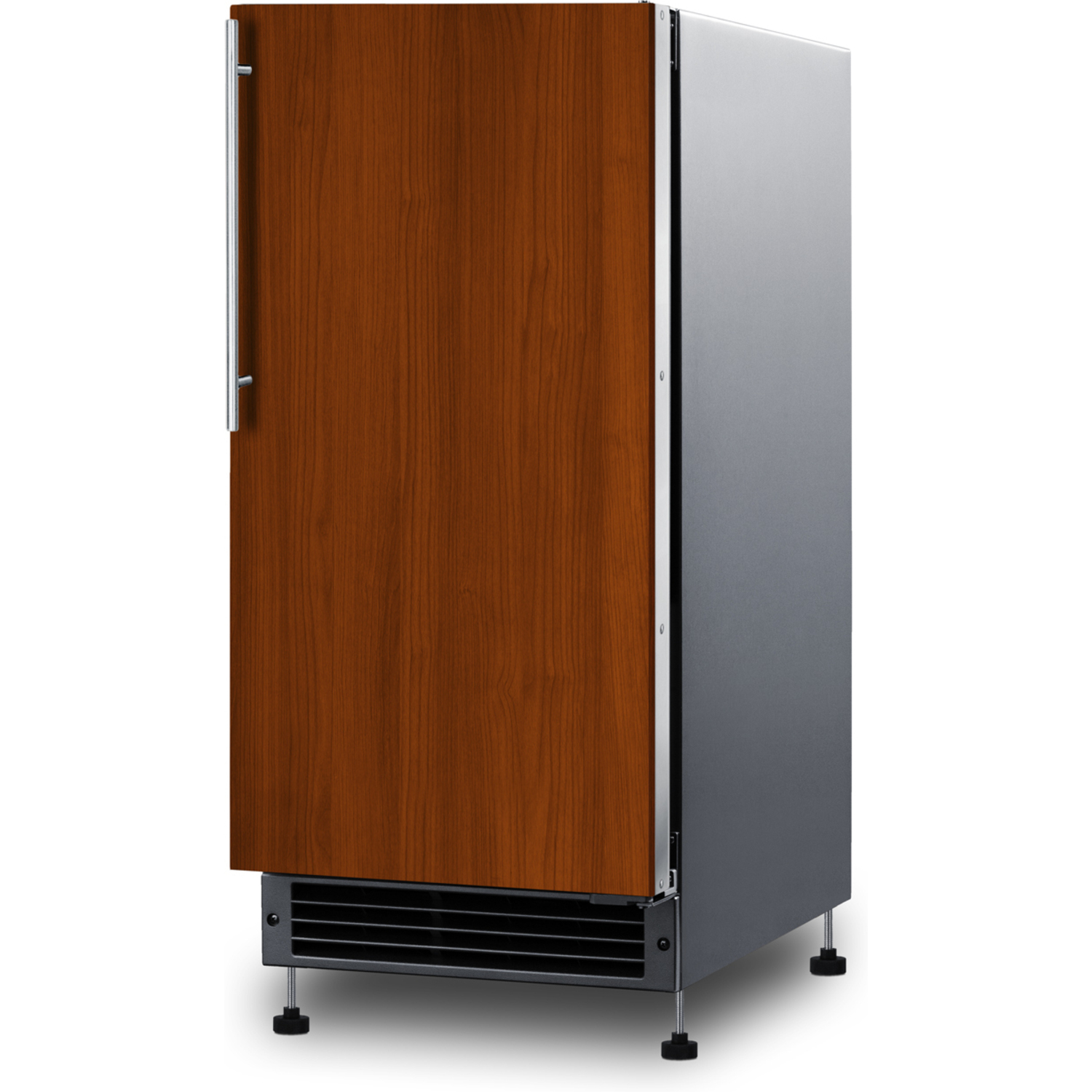

Summit combines convenience and luxury to craft the BIM26H34IF - an undercounter icemaker finished in complete 304-grade stainless steel.
Sized at just under 15" wide, the BIM26H34IF features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look.

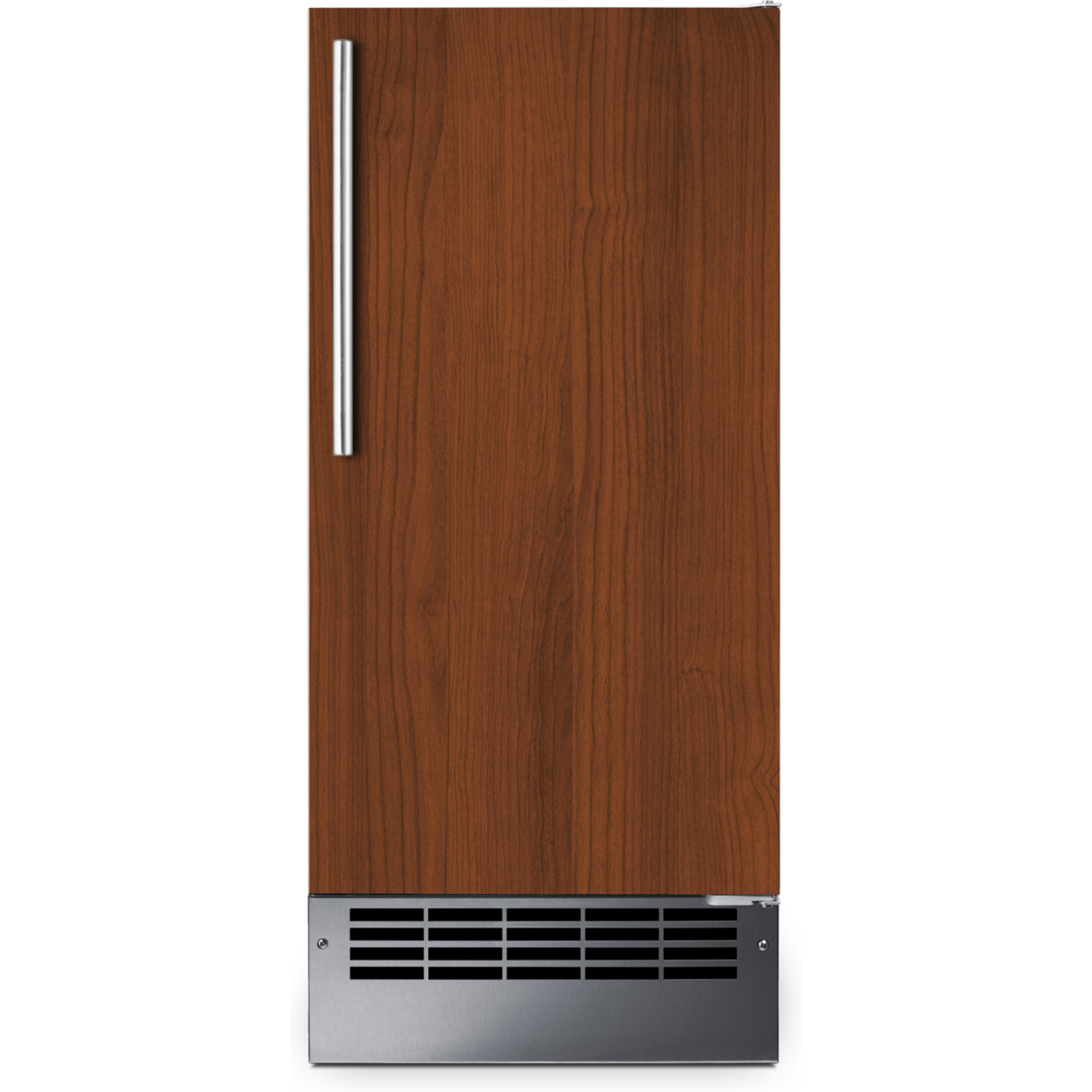

This model features a panel-ready door with an integrated stainless steel frame that lets you install your own overlay panel and handle to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16" H x 14 13/16" W at 3/4" thick). The sealed back design allows more flush installation. An optional water filter is included and designed to be mounted in the rear.
A look inside the BIM26H34IF shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop.
With its customizable exterior, stainless steel cabinet, and low maintenance design, the BIM26H34IF drain-free icemaker is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste.
SPECIFICATIONS
Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 34.0" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.88" (38 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.13" (51 cm)
Depth with door at 90° 34.38" (87 cm)
Defrost Type Manual
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.9
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101108438
Icemaker
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Daily Ice Production 25.0 lbs. (11 kg)
Ice Storage Capacity 22.0 lbs. (10 kg)
Ice Shape Crescent
Size of Cube 1/2" x 3/4" x 2 3/8"
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 120.0
Low Side PSI 55.0
Interior Height 15.88" (40 cm)
Interior Width 11.88" (30 cm)
Interior Depth 12.38" (31 cm)
Level Legs 4
FEATURES
15" Wide No-Drain Icemaker No drain is required for more flexibility in placing the icemaker indoors or outside
Adjustable Height This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
Panel-ready door Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Large capacity Produces and stores more than 20 lbs of ice per day cycle
Drain-free design Convenient design allows more flexibility in positioning the unit
Manual defrost Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Stainless steel exterior 304-grade stainless steel allows the icemaker to be used freestanding
Built-In capable Make the best use of space by installing your ice maker under the counter
Reversible door User-reversible door swing for flexible placement
Sealed back Space-saving design with easier cleanability
Standard water hookup Operates with a standard 1/4” OD water supply line
Filter included Water filter is included for optional use
Ice scoop included Large ice scoop and holder included for your convenience
Lasting ice cube production Crescent-shaped ice provides a harder and longer-lasting ice
Removable bin Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin Ice stays solid longer in this cold-protected bin
100% CFC free Environmentally friendly design without ozone-damaging chemicals
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DOWNLOADS
BROCHURE w/ DRAWINGS (BIM26H34IF.pdf)
TECHNICAL DRAWING (.dwg) (BIM26H32IF_2.dwg)
ASSEMBLY DRAWING (BIM26H32IF-Assembly_2.pdf)
