Summit 18 inch wide ADA compliant built-in undercounter manual defrost crescent icemaker with stainless steel door; no drain required, 7.61101e+011, BIM18SSADA

Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.

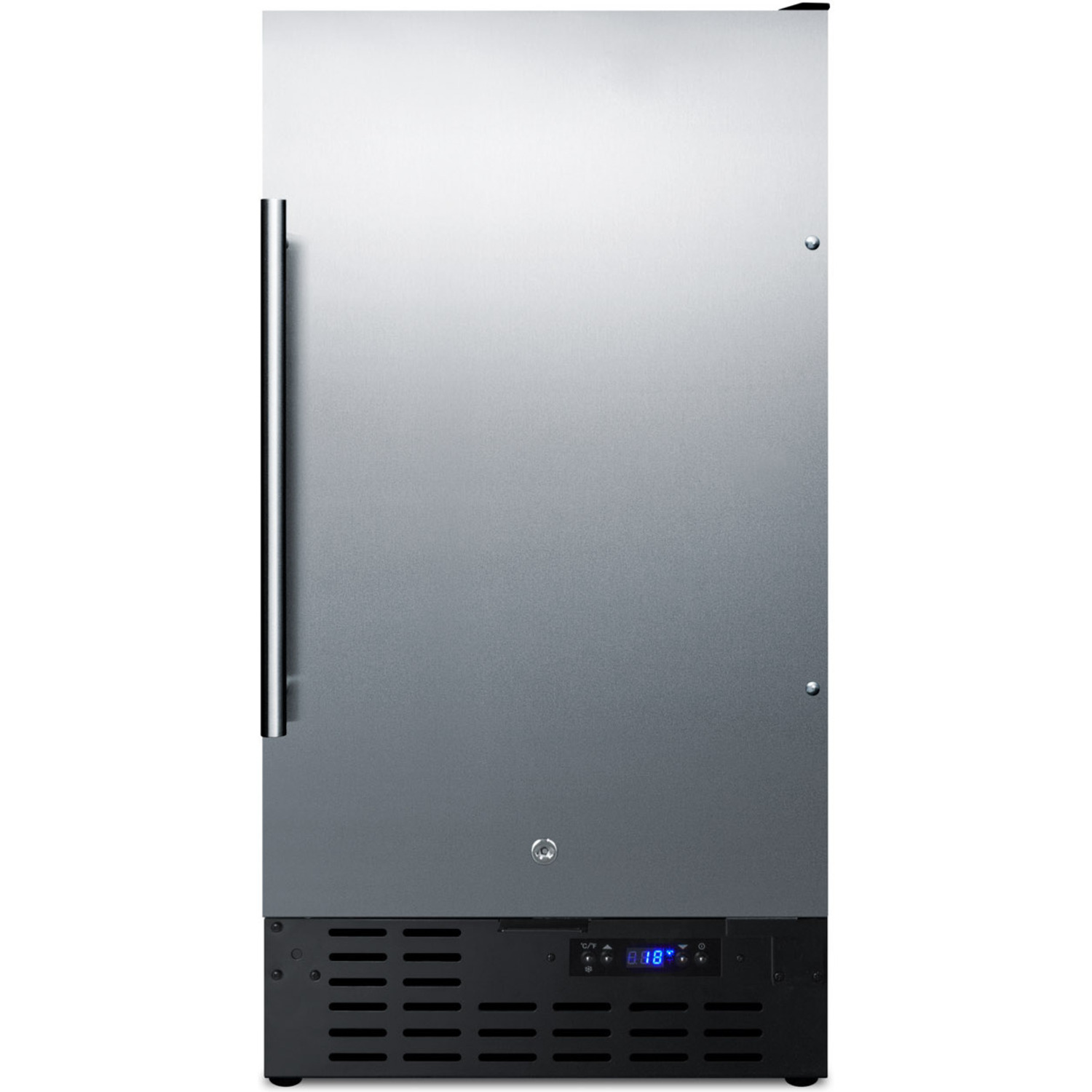

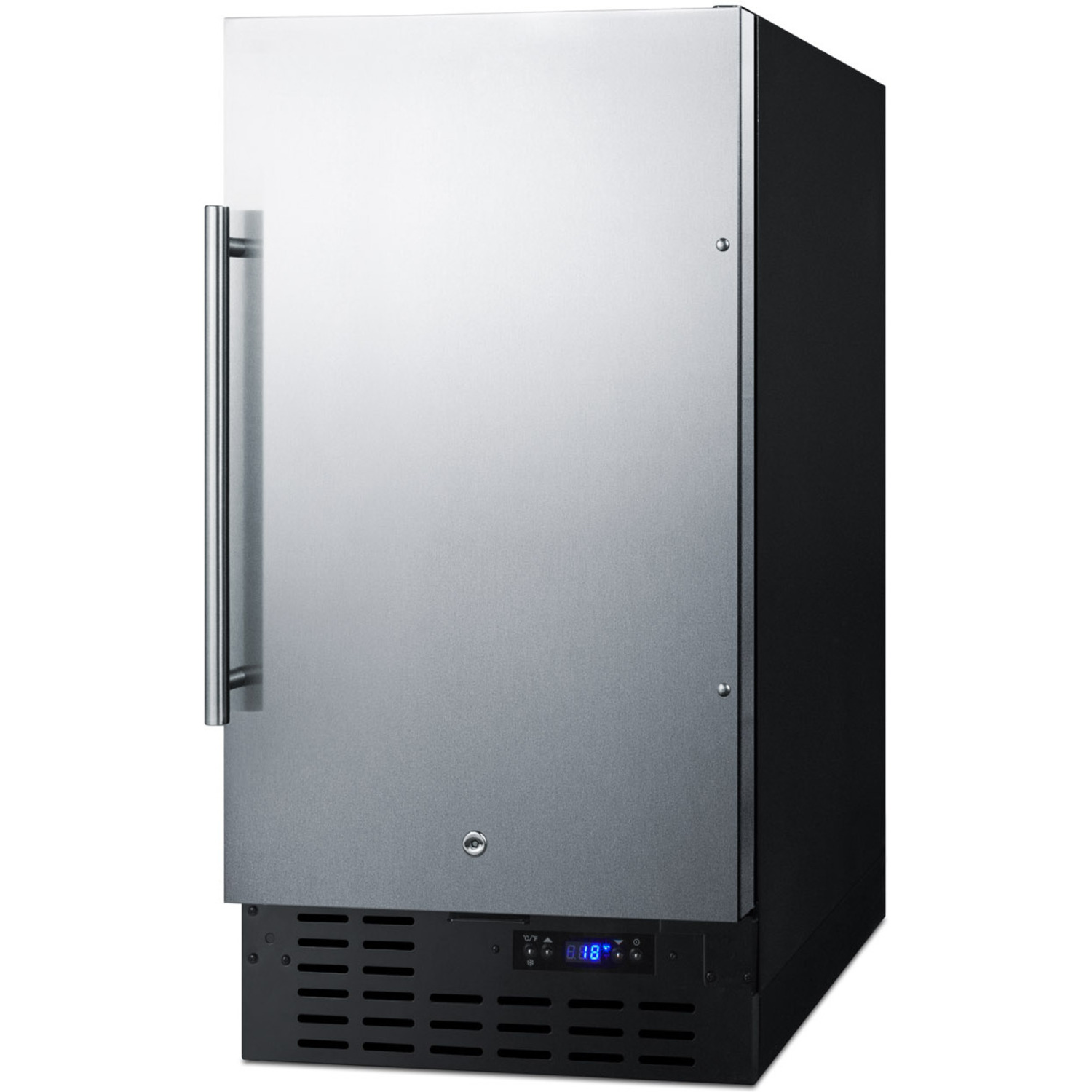

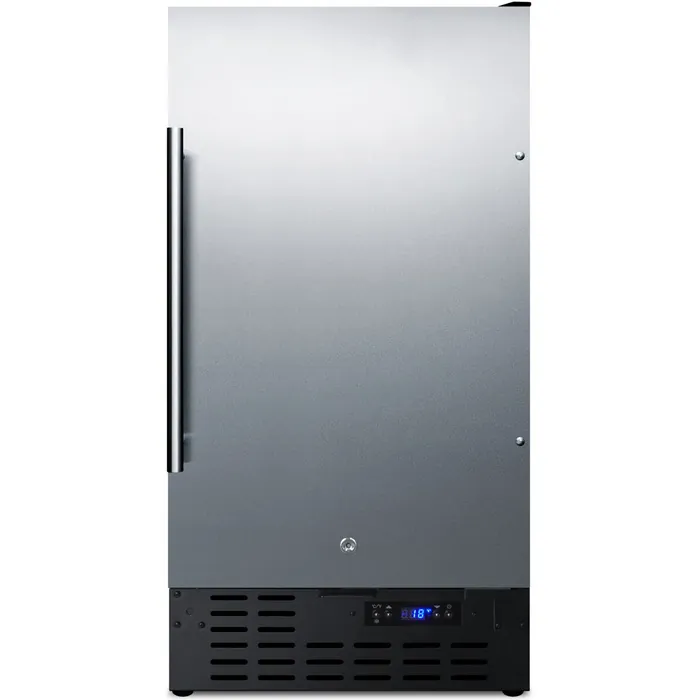

Sized just under 18 inches wide and 32 inches high, the BIM18SSADA is ideal for installation under lower counters following ADA compliant guidelines. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

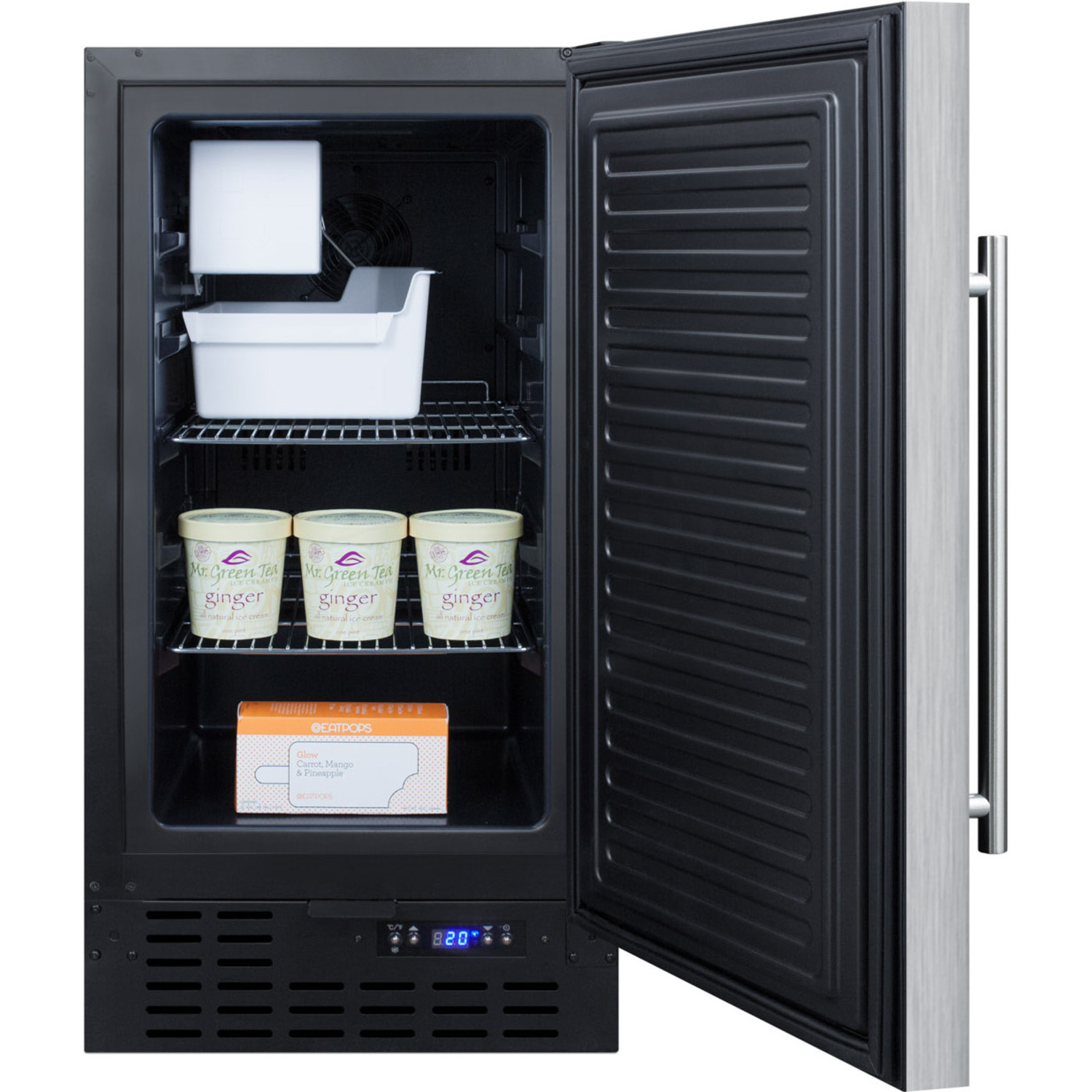

Inside, the BIM18SSADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.

With its ideal size and user-friendly design, the BIM18SSADA is a great solution to keeping a steady supply of ice on hand in ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 31.38" (80 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Nominal Depth 24.0" (61 cm)

Depth 24.0" (61 cm)

Depth with Handle 25.75" (65 cm)

Depth with door at 90° 40.0" (102 cm)

Capacity 2.7 cu.ft. (76 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 1.1

Voltage/Frequency 115 V AC/60 Hz

Weight 82.0 lbs. (37 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101063713

Icemaker

Door Swing RHD

Reversible Yes

Daily Ice Production 8.0 lbs. (4 kg)

Ice Storage Capacity 8.0 lbs. (4 kg)

Ice Shape Crescent

Number of Ice Cube Sizes 1

Interior Light Yes

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.06 oz.

High Side PSI 270.0

Low Side PSI 103.0

Interior Height 23.5" (60 cm)

Interior Width 12.75" (32 cm)

Interior Depth 16.75" (43 cm)

Compressor Step Height 4.5" (11 cm)

Compressor Step Width 12.75" (32 cm)

Compressor Step Depth 4.5" (11 cm)

Level Legs 4

Temperature Range -22 to 14ºF

FEATURES

ADA compliant Sized just under 32" high for installation under lower ADA compliant counters

Built-in capable Make the best use of space by installing your appliance under the counter

No pump or drain required Convenient design allows more flexibility in positioning the unit

Ice production Makes and stores up to 8 lbs. of crescent cubes

Stainless steel door Fully wrapped in stainless steel for a professional look

Factory installed lock Keyed lock for a secure interior (2 keys included)

Removable bin Bucket can be removed for fast and easy cleaning

Digital thermostat Electronic controls for precise temperature management.

Digital display Temperature readout can be shown in Celsius or Fahrenheit

Frost-free operation Eliminates the need to manually defrost the interior

Extra shelves Adjustable chrome shelves included to accommodate additional items

Reversible door User-reversible door swing for added flexibility

Professional handle Stainless steel handle completes the professional look

Flush back Space saving design with easier cleanability

Fully finished black cabinet Allows the unit to be used freestanding

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE w/ DRAWINGS (BIM18SSADA.pdf)

TECHNICAL DRAWING (.dwg) (SCFF1842ADA_FREEZER__A-C_2000_.dwg)

USE & CARE (BIM18SSADA-User-Manual.pdf)
