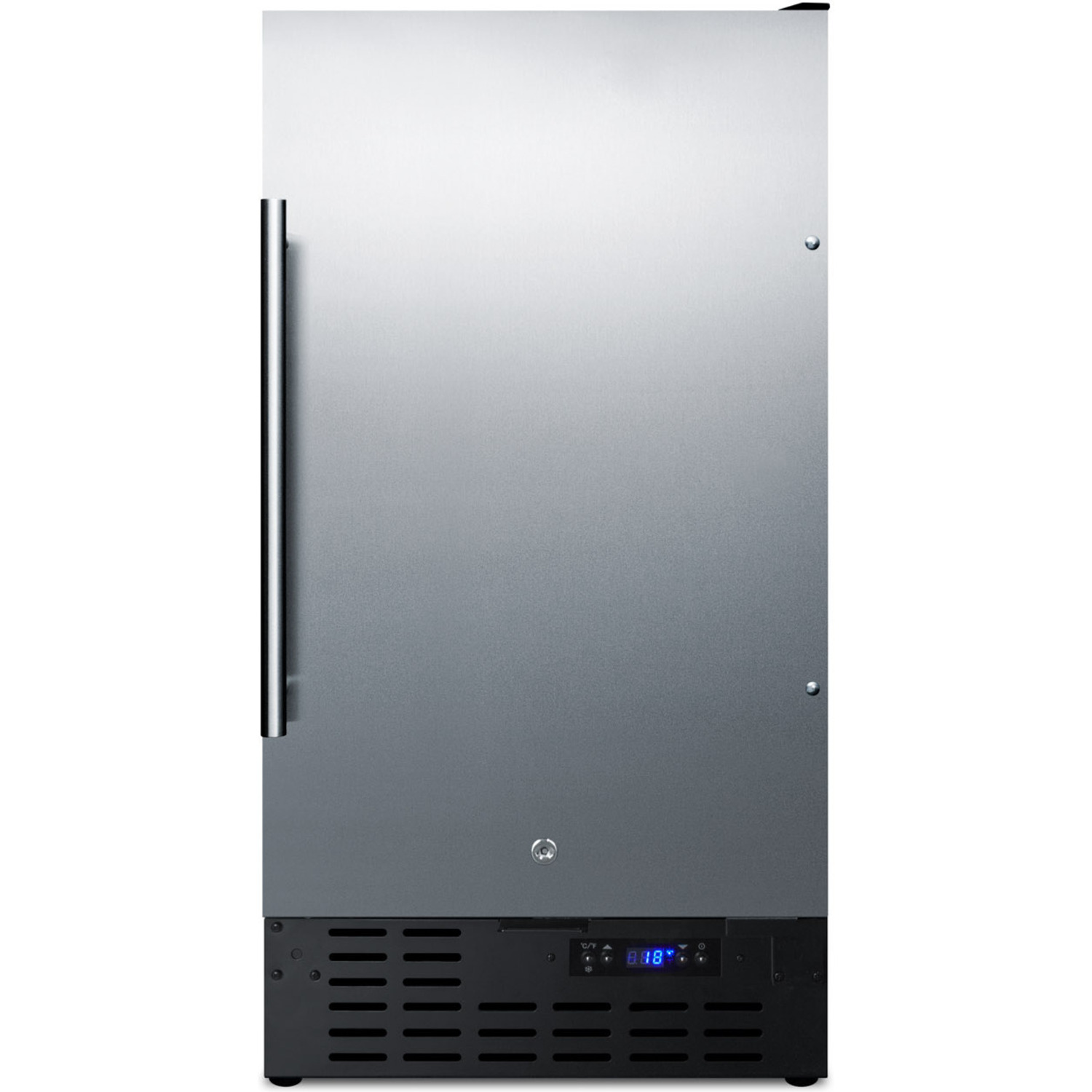

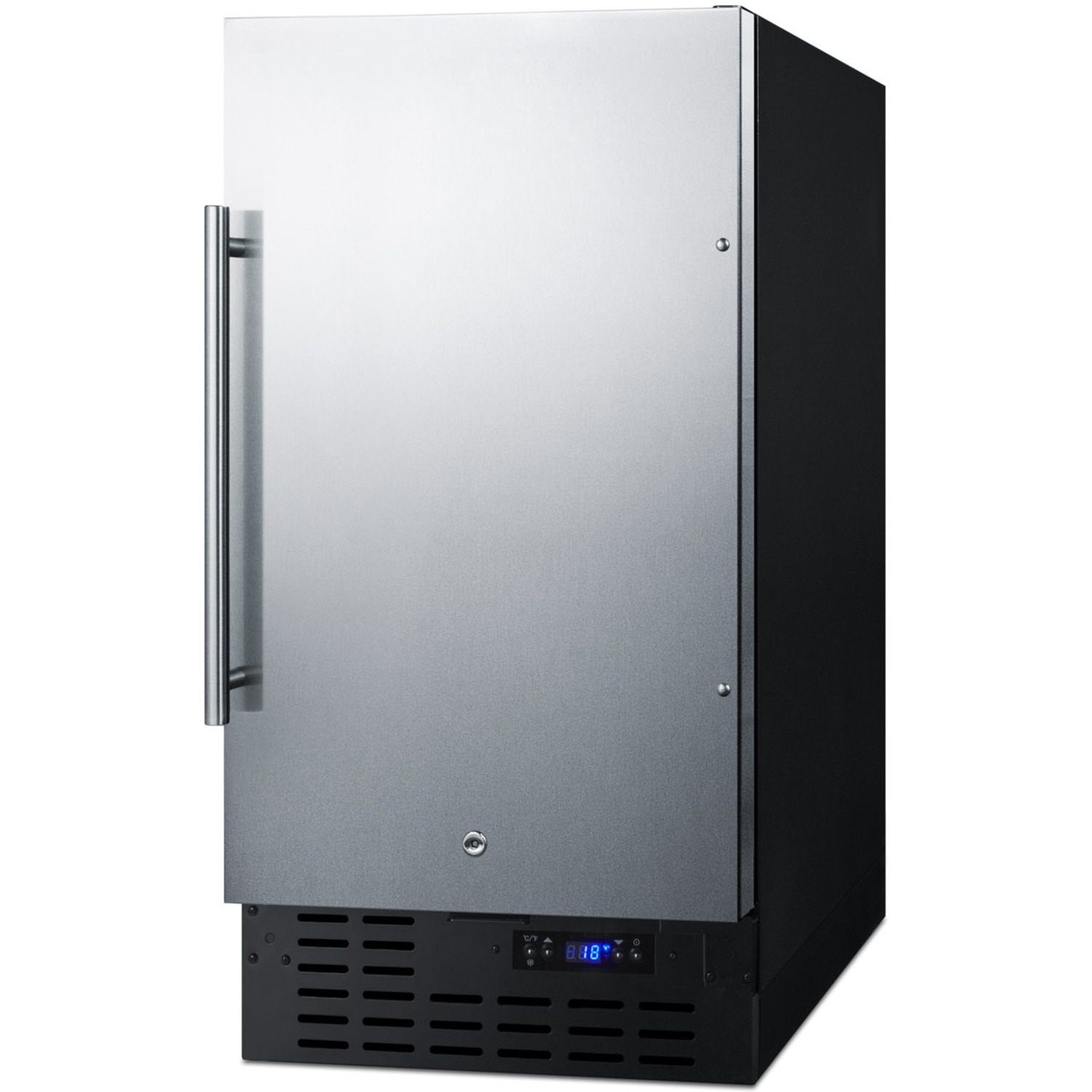

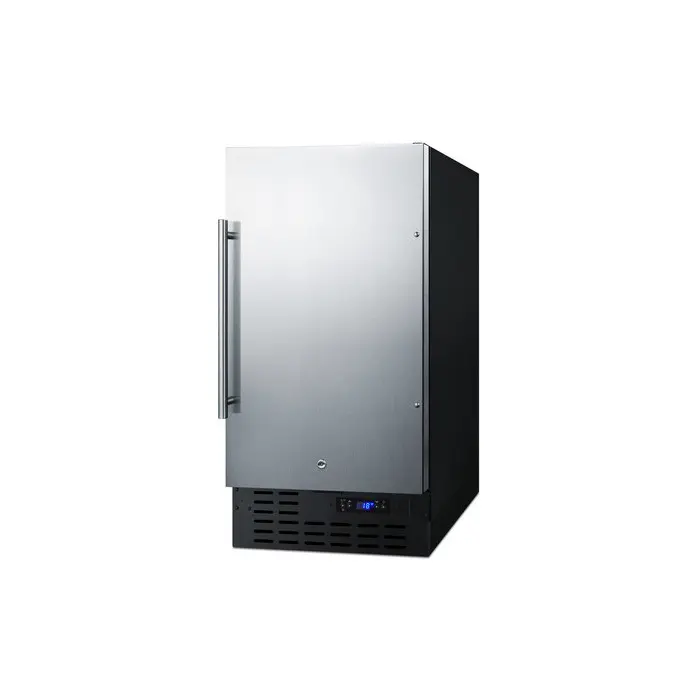

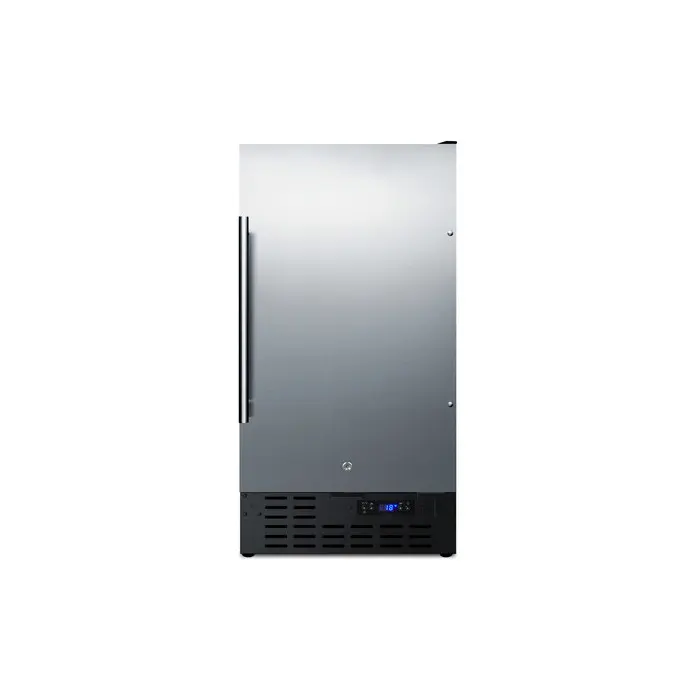

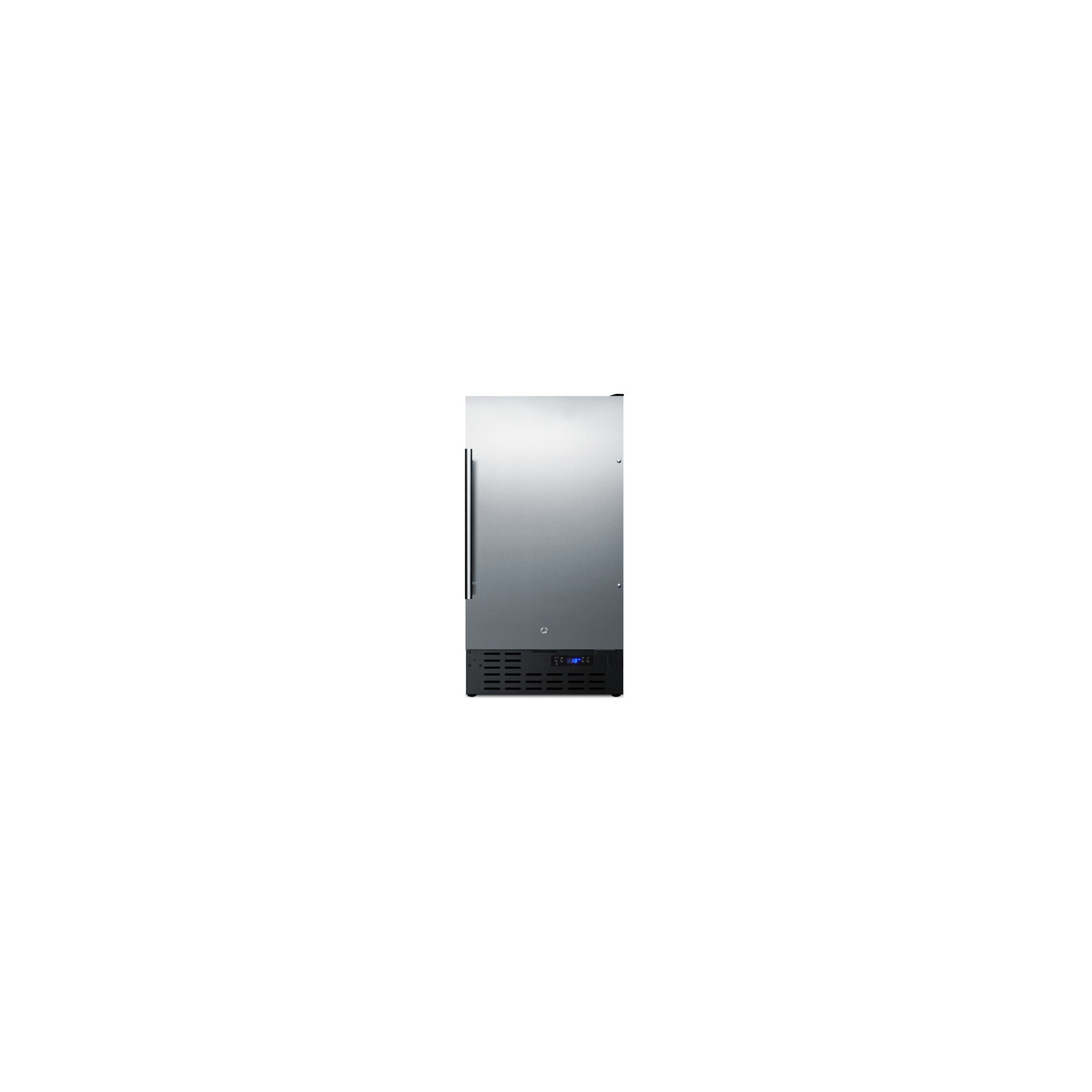

Summit 18 inch wide built-in undercounter manual defrost crescent icemaker with stainless steel door; no drain required, 7.61101e+011, BIM18SS
$1,963.56
Retail Price: $2,860.00
Free shipping
$ 1,963.56
Description
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for smaller kitchens.
Sized just under 18 inches wide, the BIM18SS features a front-breathing design for built-in installation, with a fully finished cabinet to also allow freestanding use. The 304 grade stainless steel wrapped door is user-reversible to best fit your setting. We include a pro style handle and front-mounted keyed lock for optional security. No drain or pump is required for use, offering more flexibility in where you place the unit.

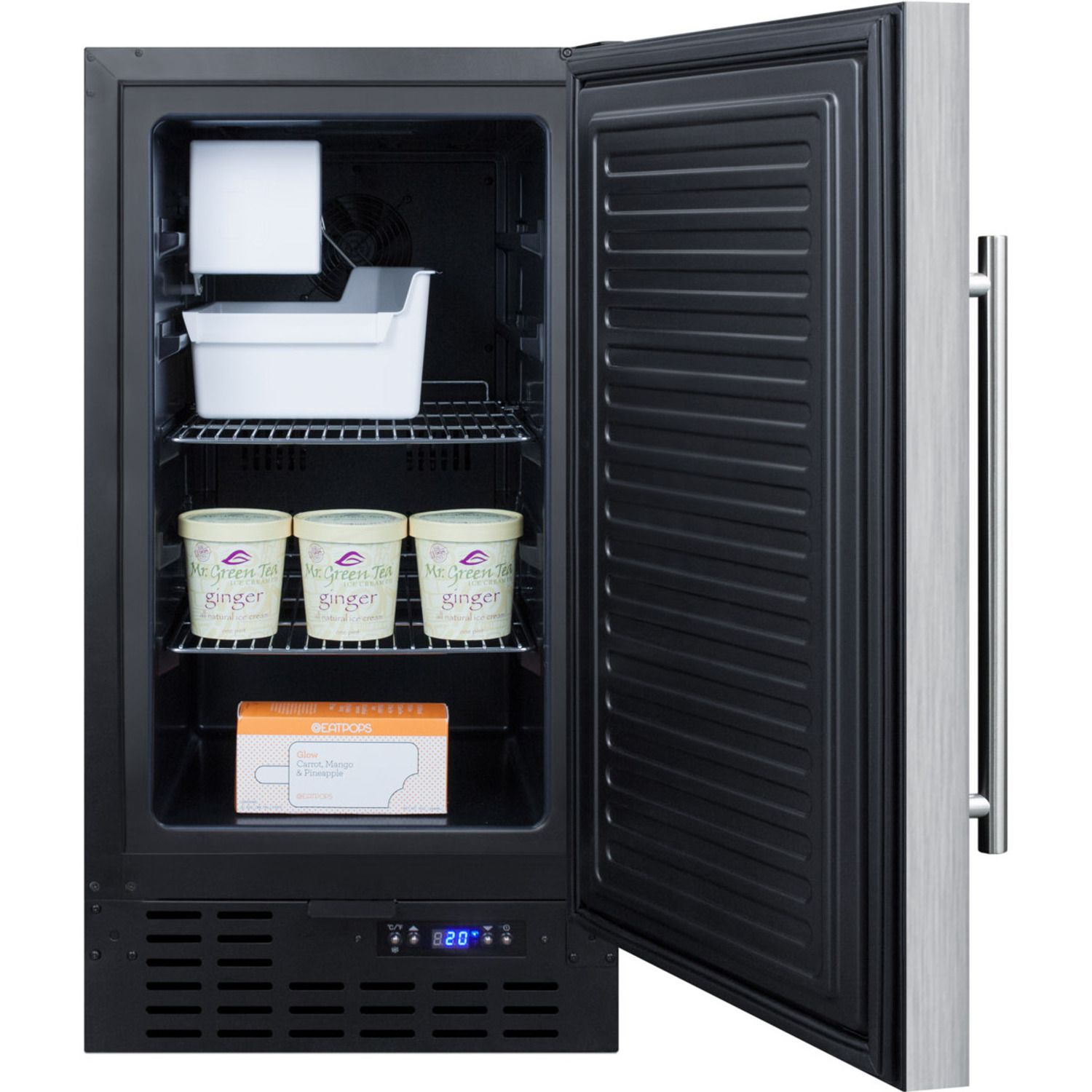

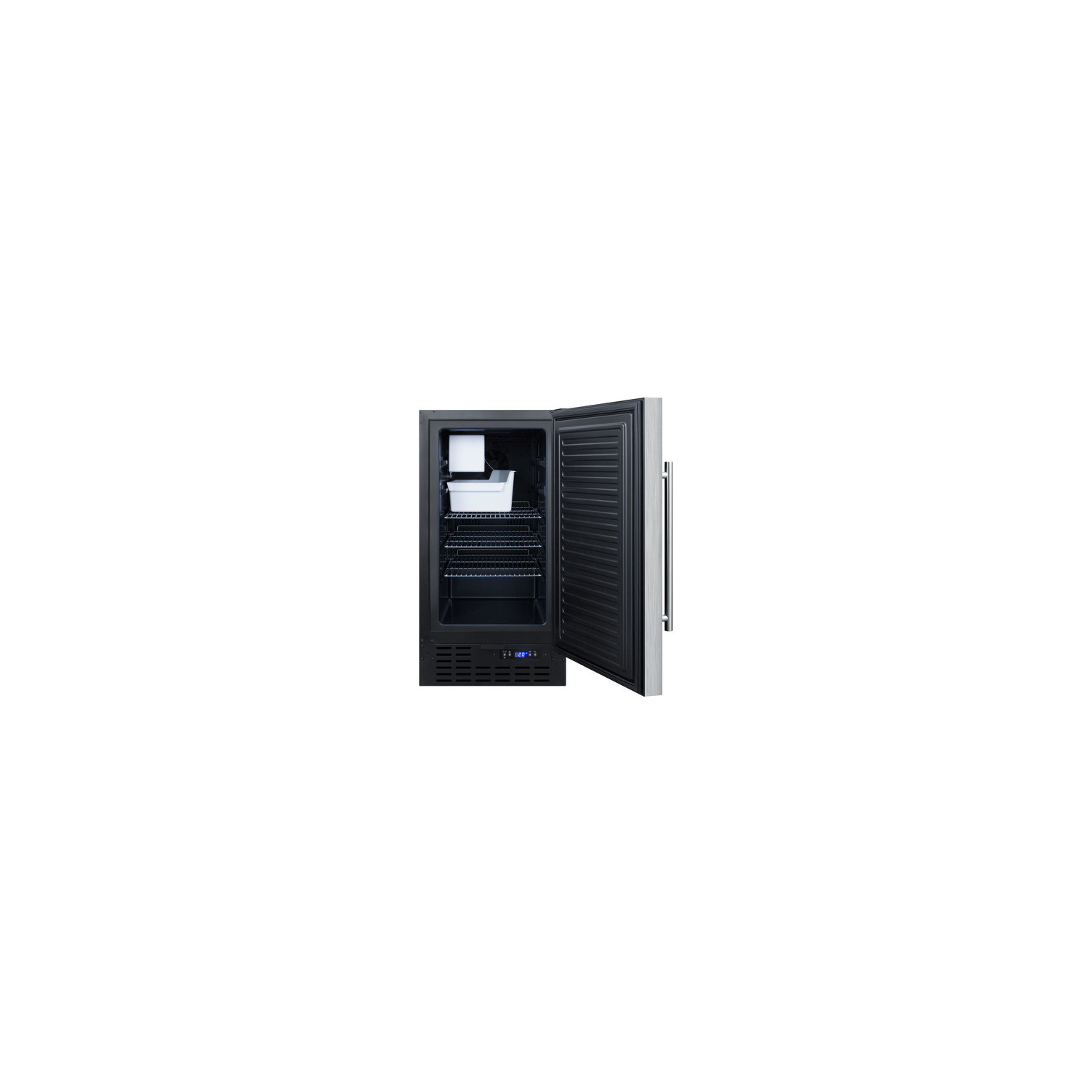

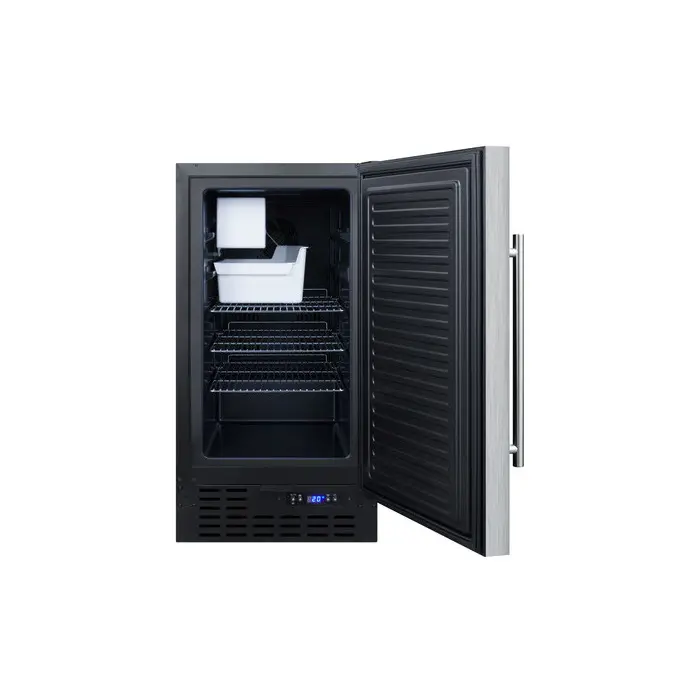

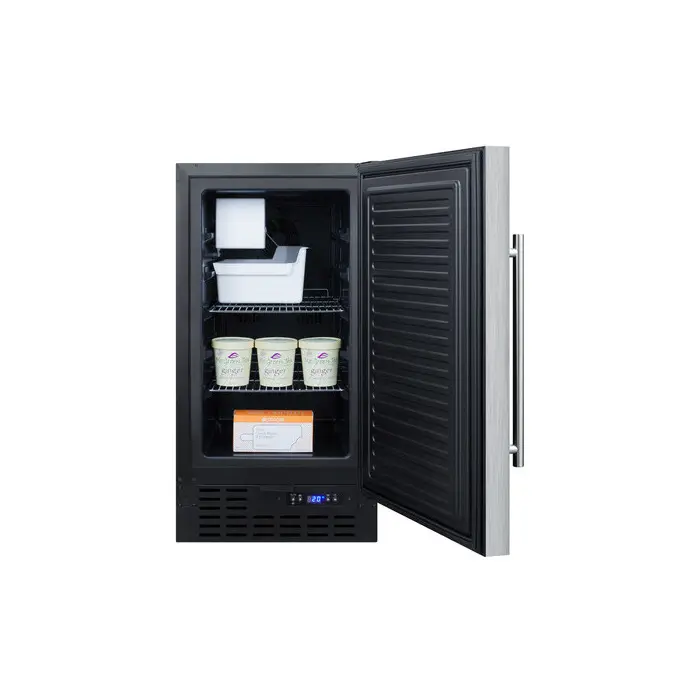

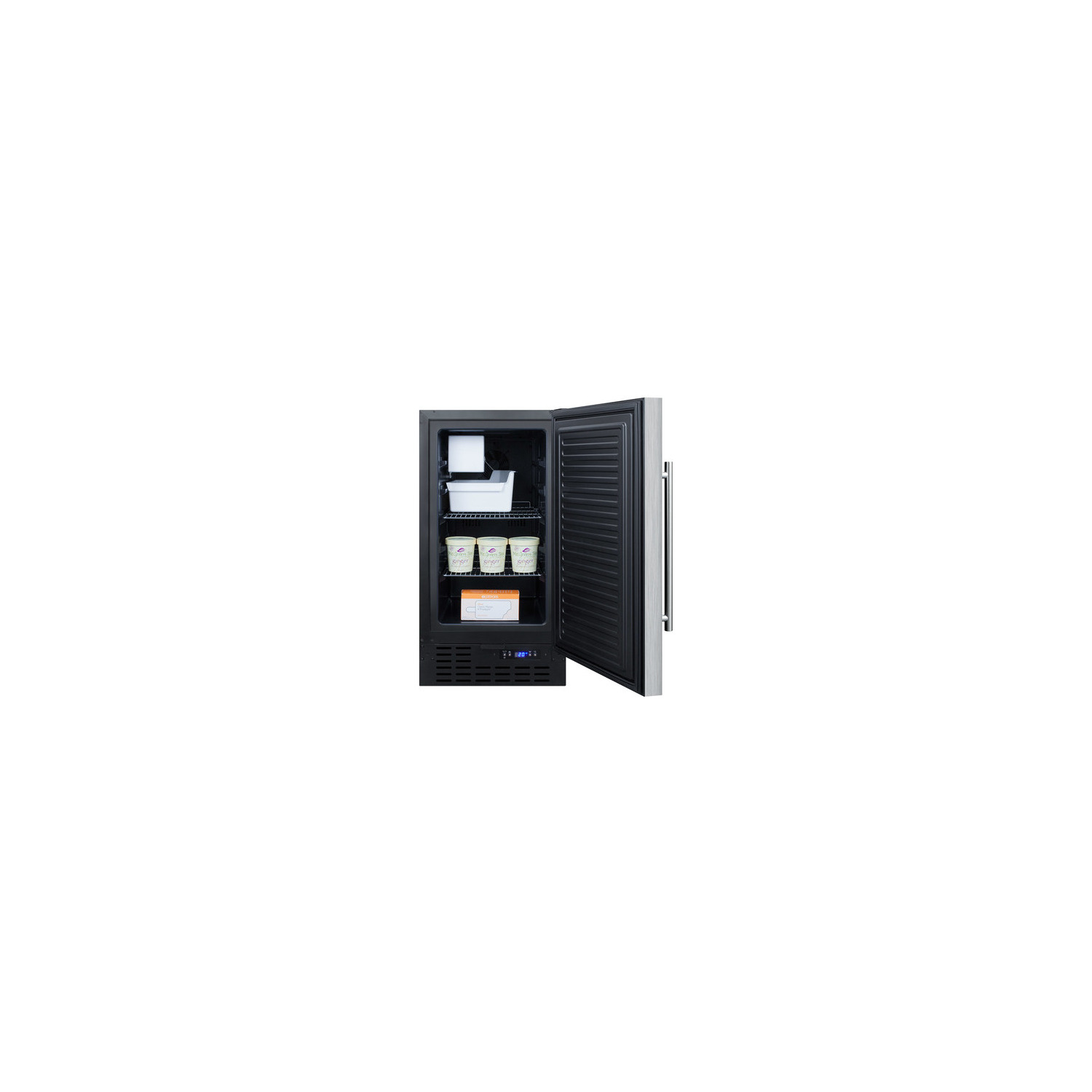

Inside, the BIM18SS can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.
With its ideal size and user-friendly design, the BIM18SS is a great solution to keeping a steady supply of ice on hand in smaller kitchen spaces. For this unit sized for ADA compliant counters, see the BIM18SSADA. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
SPECIFICATIONS
Overview
Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101063706
Icemaker
Door Swing RHD
Reversible Yes
Daily Ice Production 8.0 lbs. (4 kg)
Ice Storage Capacity 8.0 lbs. (4 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range -22 to 14ºF
FEATURES
Built-in capable Make the best use of space by installing your appliance under the counter
No pump or drain required Convenient design allows more flexibility in positioning the unit
Ice production Makes and stores up to 8 lbs. of crescent cubes
Stainless steel door Fully wrapped in stainless steel for a professional look
Factory installed lock Keyed lock for a secure interior (2 keys included)
Removable bin Bucket can be removed for fast and easy cleaning
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Frost-free operation Eliminates the need to manually defrost the interior
Extra shelves Adjustable chrome shelves included to accommodate additional items
Reversible door User-reversible door swing for added flexibility
Professional handle Stainless steel handle completes the professional look
Flush back Space saving design with easier cleanability
Fully finished black cabinet Allows the unit to be used freestanding
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
DOWNLOADS
BROCHURE w/ DRAWINGS (BIM18SS.pdf)
