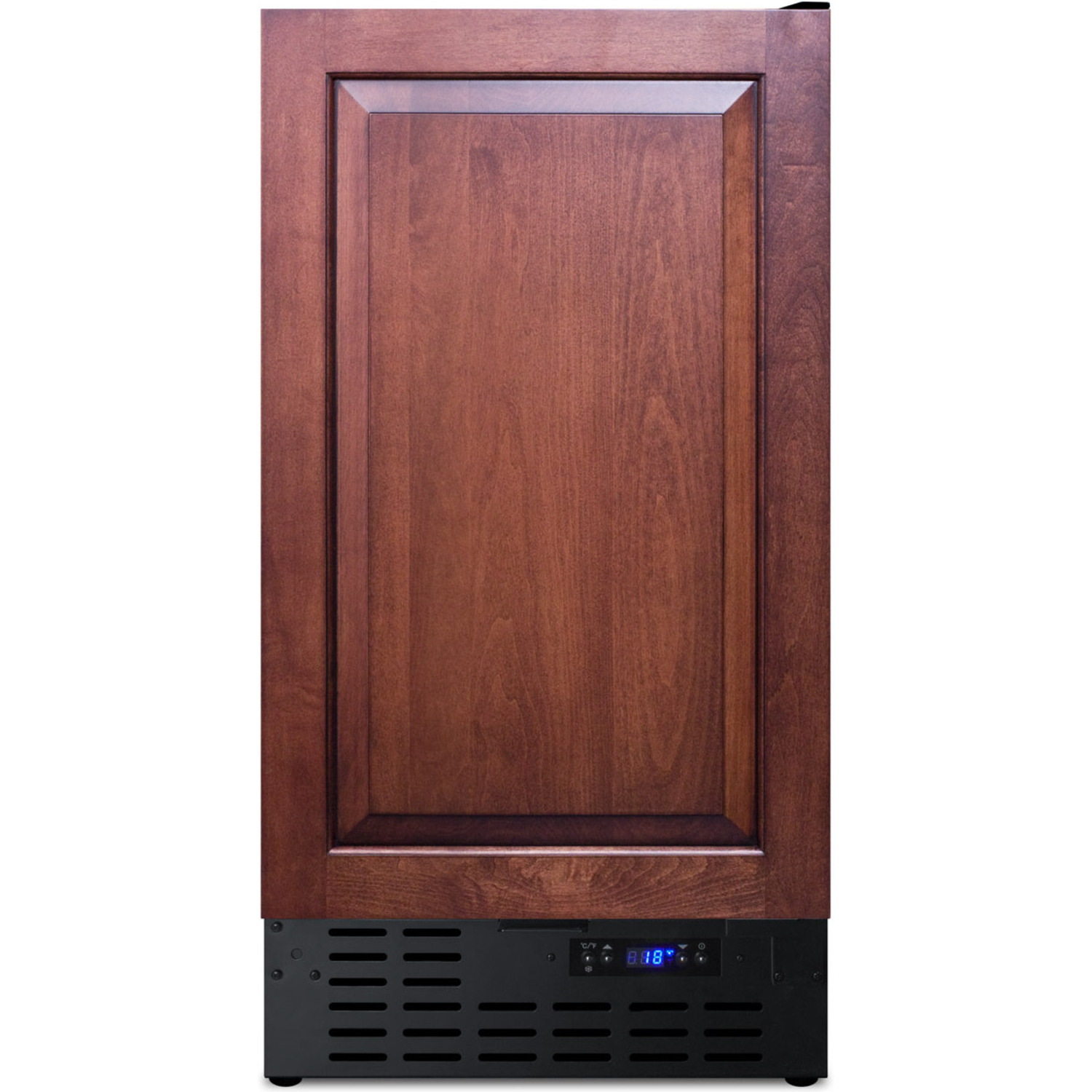

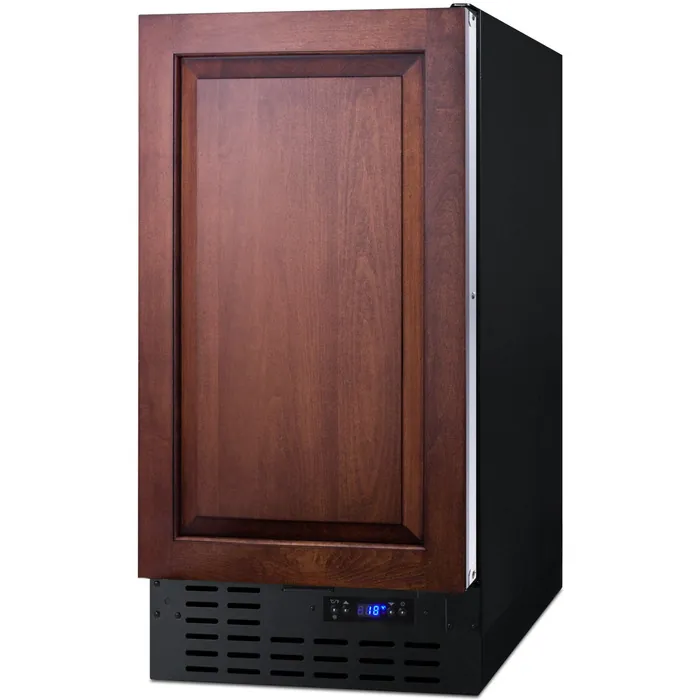

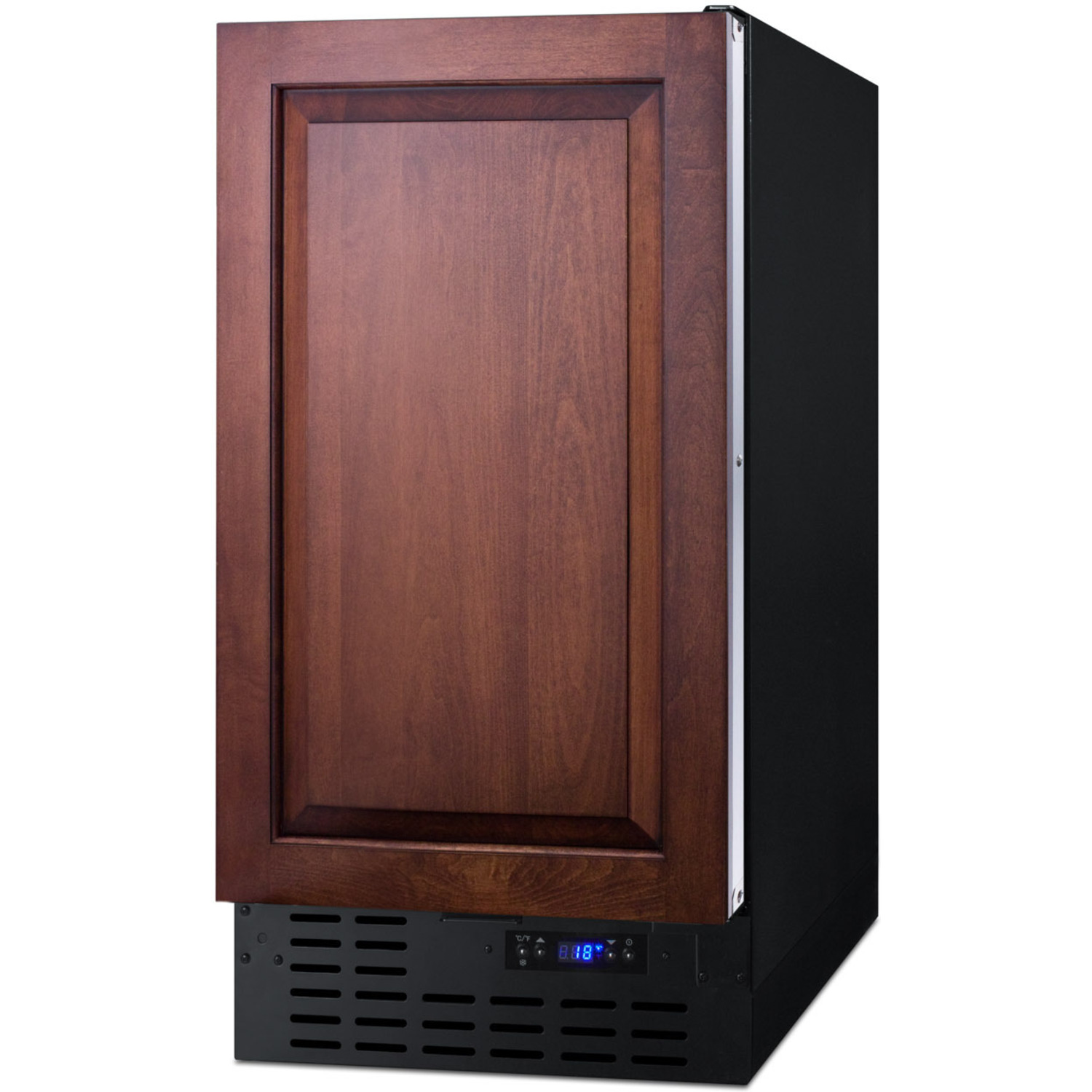

Summit 18 inch wide ADA compliant built-in undercounter manual defrost crescent icemaker with panel-ready door; no drain required, 7.61101e+011, BIM18IFADA
$2,035.48
Retail Price: $2,960.00
Free shipping
$ 2,035.48
Description
Summit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings.
Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit.

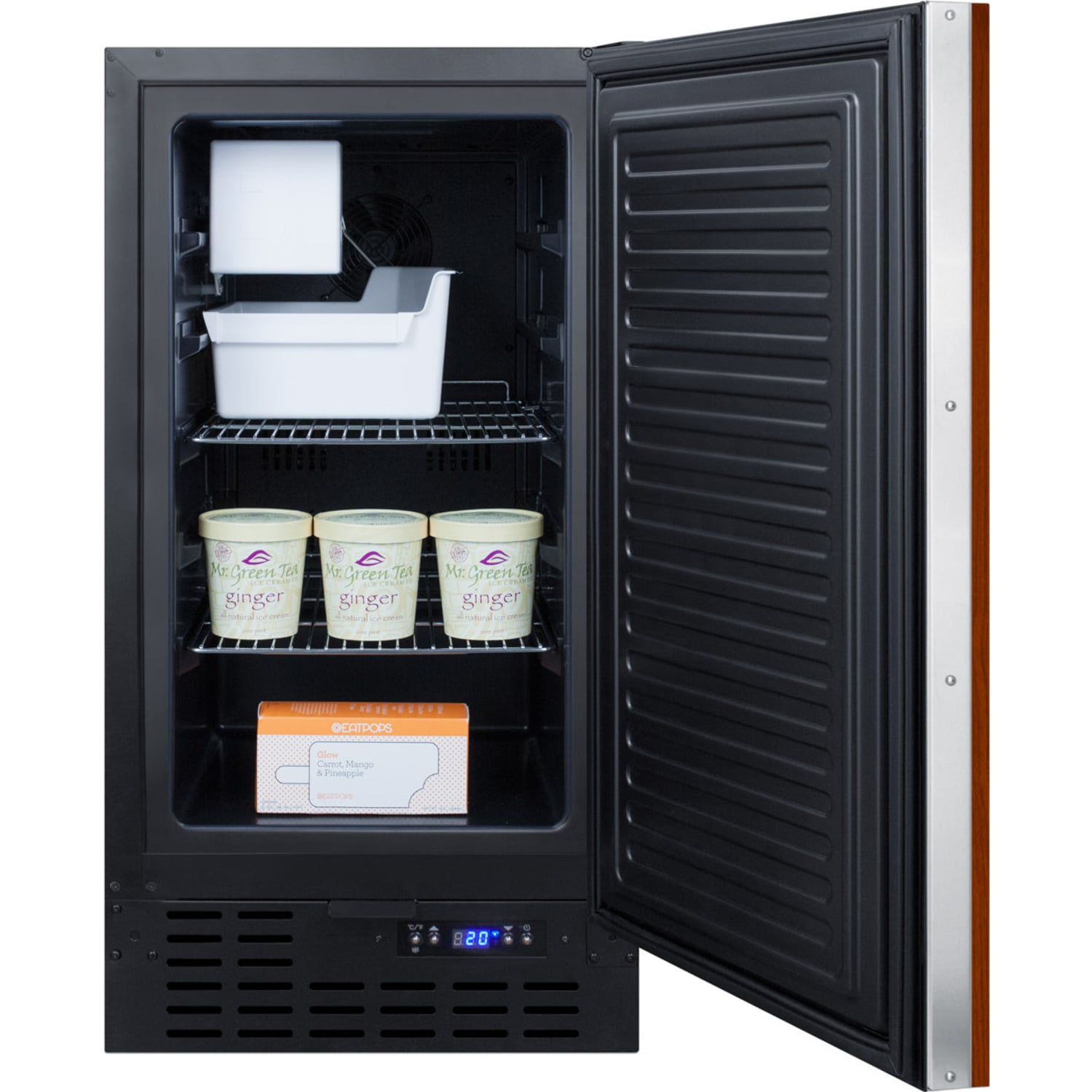

Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance.
With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.38" (80 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Nominal Depth 24.0" (61 cm)
Depth 24.0" (61 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.7 cu.ft. (76 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 82.0 lbs. (37 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101063751
Icemaker
Door Swing RHD
Reversible Factory Reversible
Daily Ice Production 8.0 lbs. (4 kg)
Ice Storage Capacity 8.0 lbs. (4 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 23.5" (60 cm)
Interior Width 12.75" (32 cm)
Interior Depth 16.75" (43 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.75" (32 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range -22 to 14ºF
FEATURES
ADA compliant Sized just under 32" high for installation under lower ADA compliant counters
Integrated door frame Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
Built-in capable Make the best use of space by installing your appliance under the counter
No pump or drain required Convenient design allows more flexibility in positioning the unit
Ice production Makes and stores up to 8 lbs. of crescent cubes
Removable bin Bucket can be removed for fast and easy cleaning
Digital thermostat Electronic controls for precise temperature management.
Digital display Temperature readout can be shown in Celsius or Fahrenheit
Frost-free operation Eliminates the need to manually defrost the interior
Extra shelves Adjustable chrome shelves included to accommodate additional items
Flush back Space saving design with easier cleanability
Fully finished black cabinet Allows the unit to be used freestanding
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
