Summit 18 inch wide clear icemaker for outdoor use, 7.61101e+011, BIM182OS
$2,146.84
Retail Price: $3,115.00
Free shipping
$ 2,146.84
Description
Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces in outdoor kitchens.

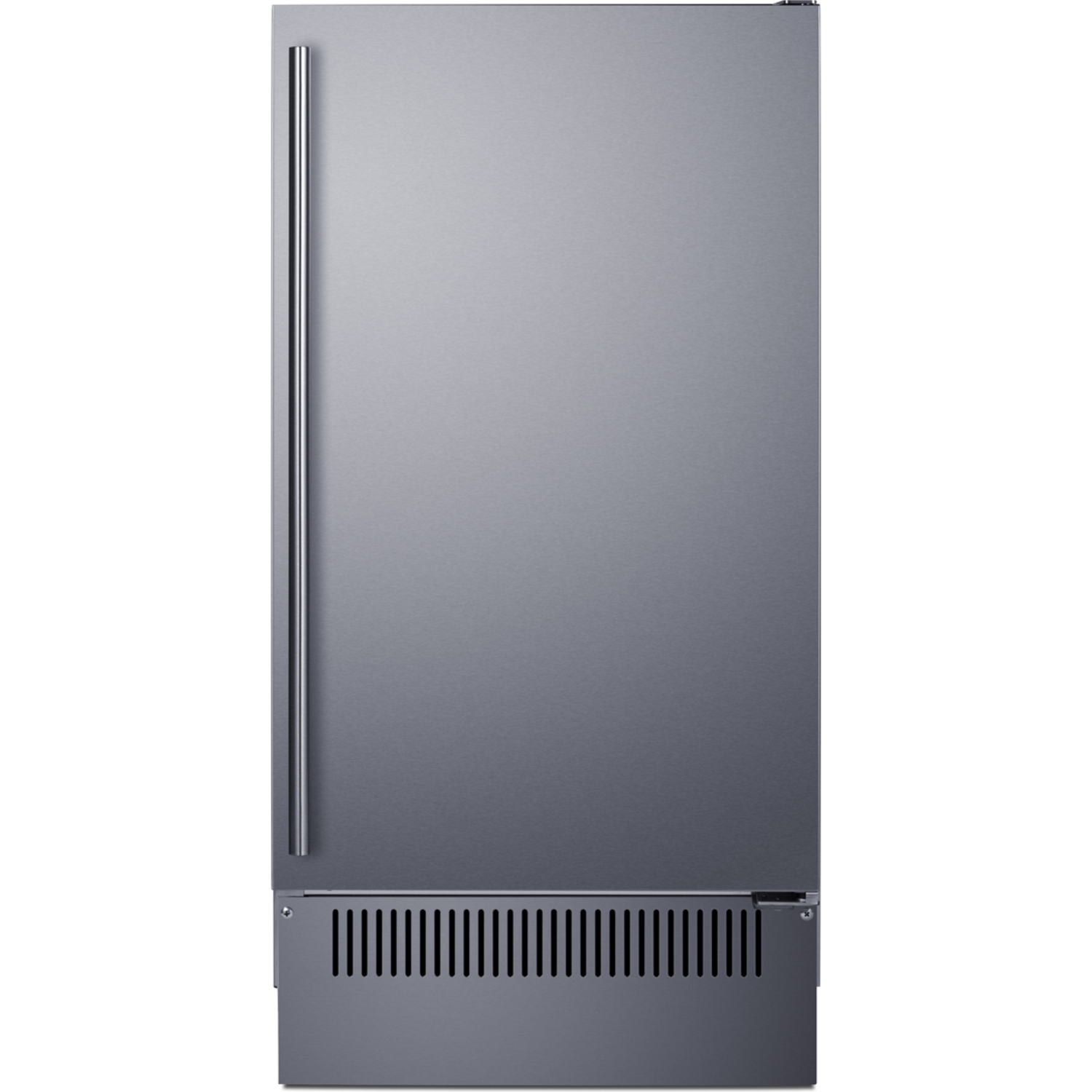

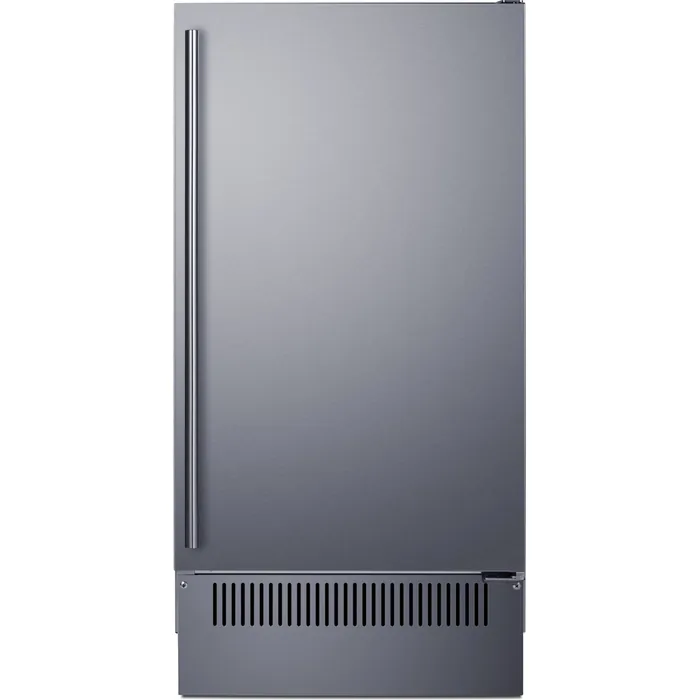

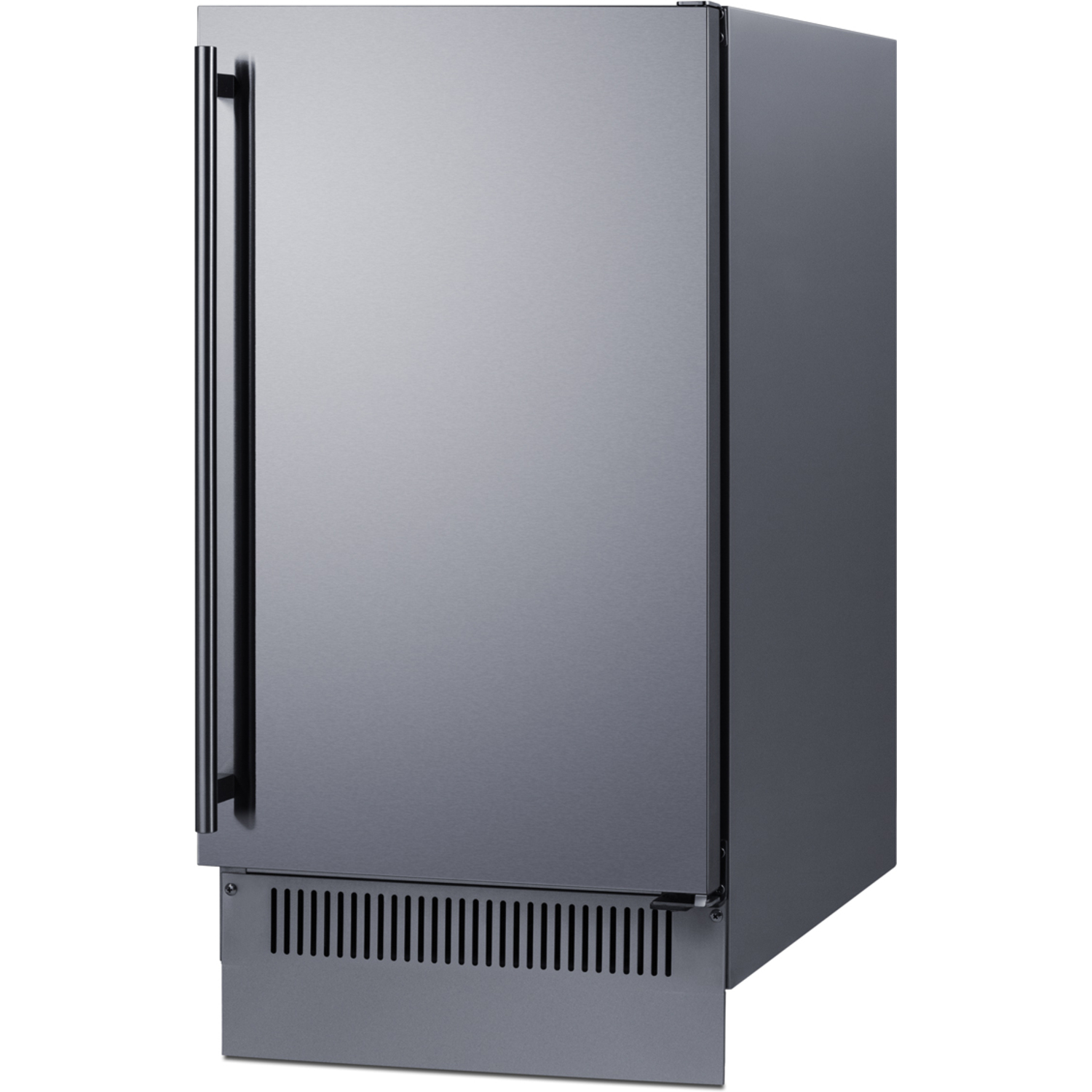

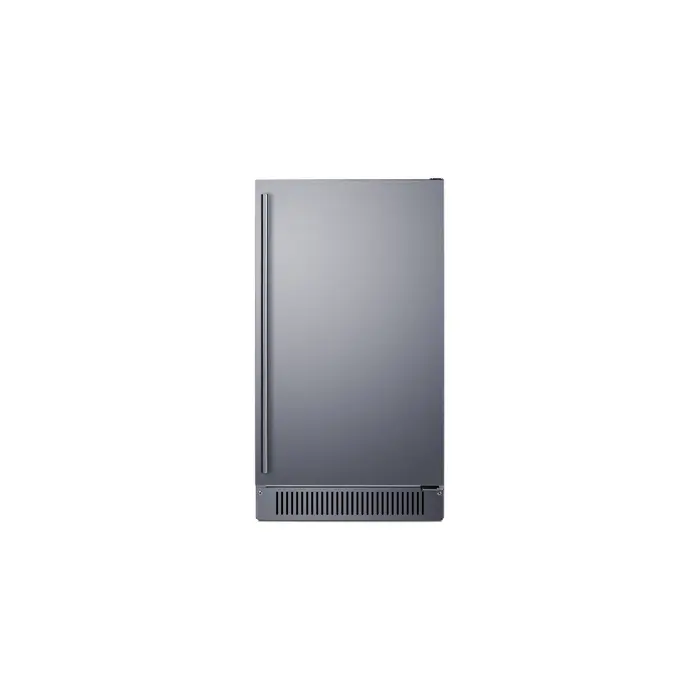

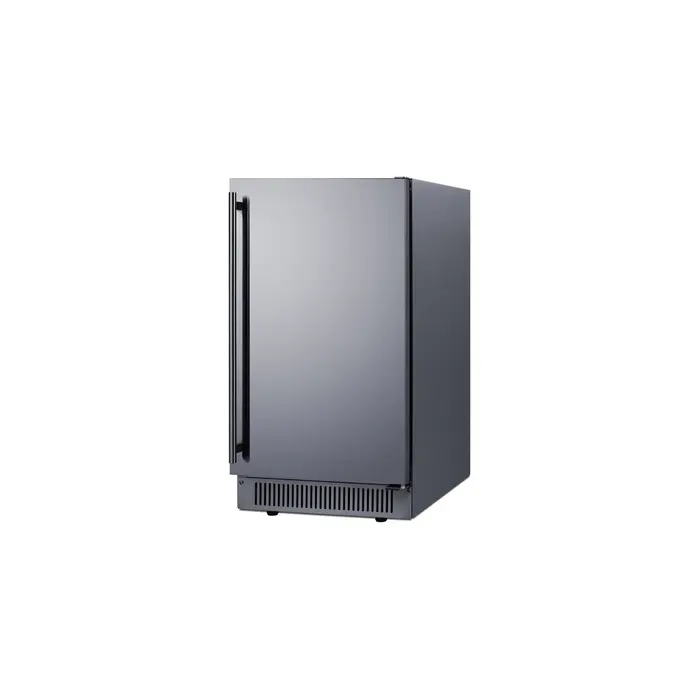

Sized just under 18 inches wide and 34.75 inches high, model BIM182OS features a front-breathing design for built-in installation. The height can also be lowered to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. This model comes with a user-reversible door to best suit your setting along with a pro-style handle. This unit features a complete stainless steel exterior specially built to hold up to the outdoor elements, a sealed back for added outdoor protection, and a right-angle plug for added space savings.

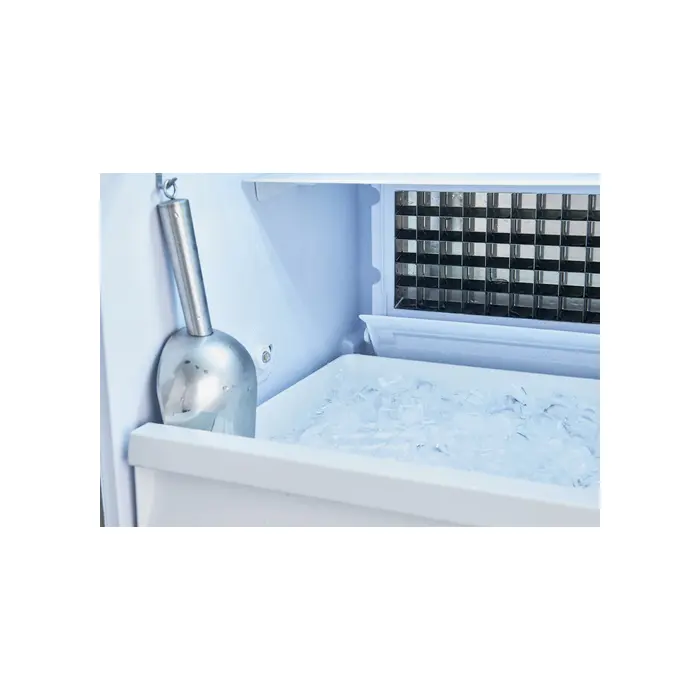

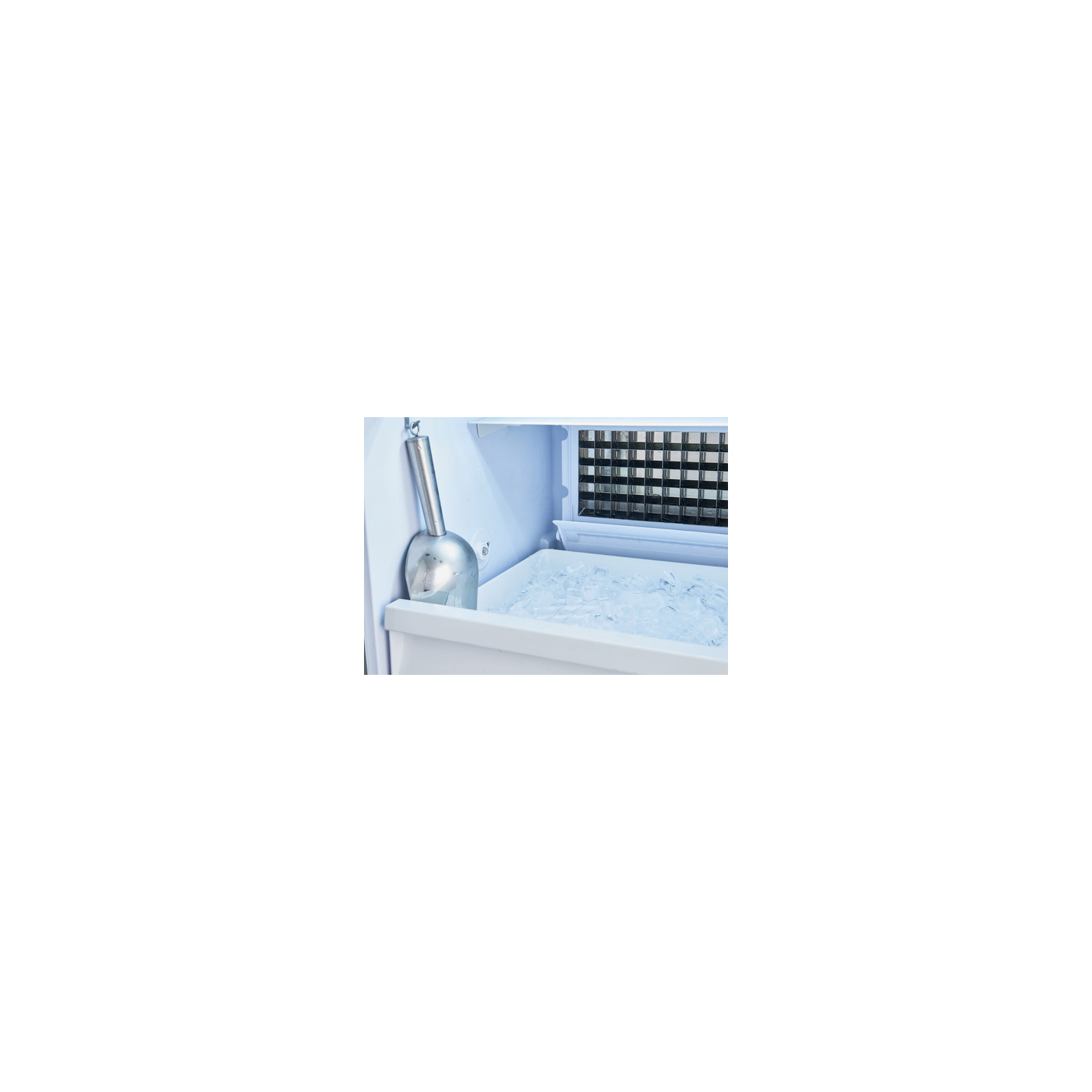

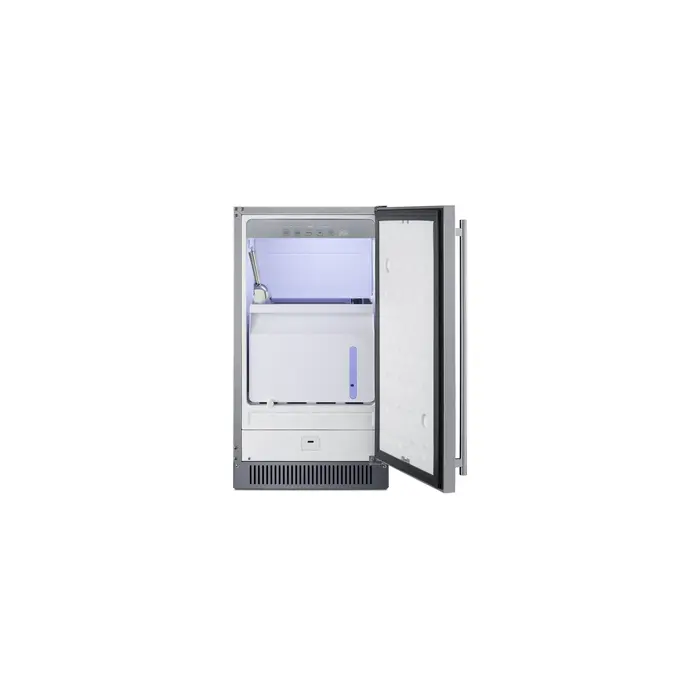

Inside, the BIM182OS shows can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with a drain hose, water hose, removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.

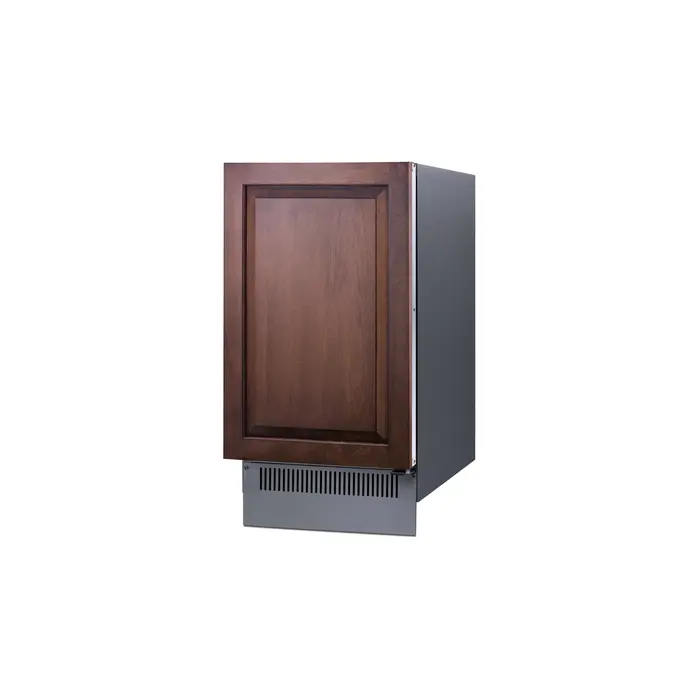

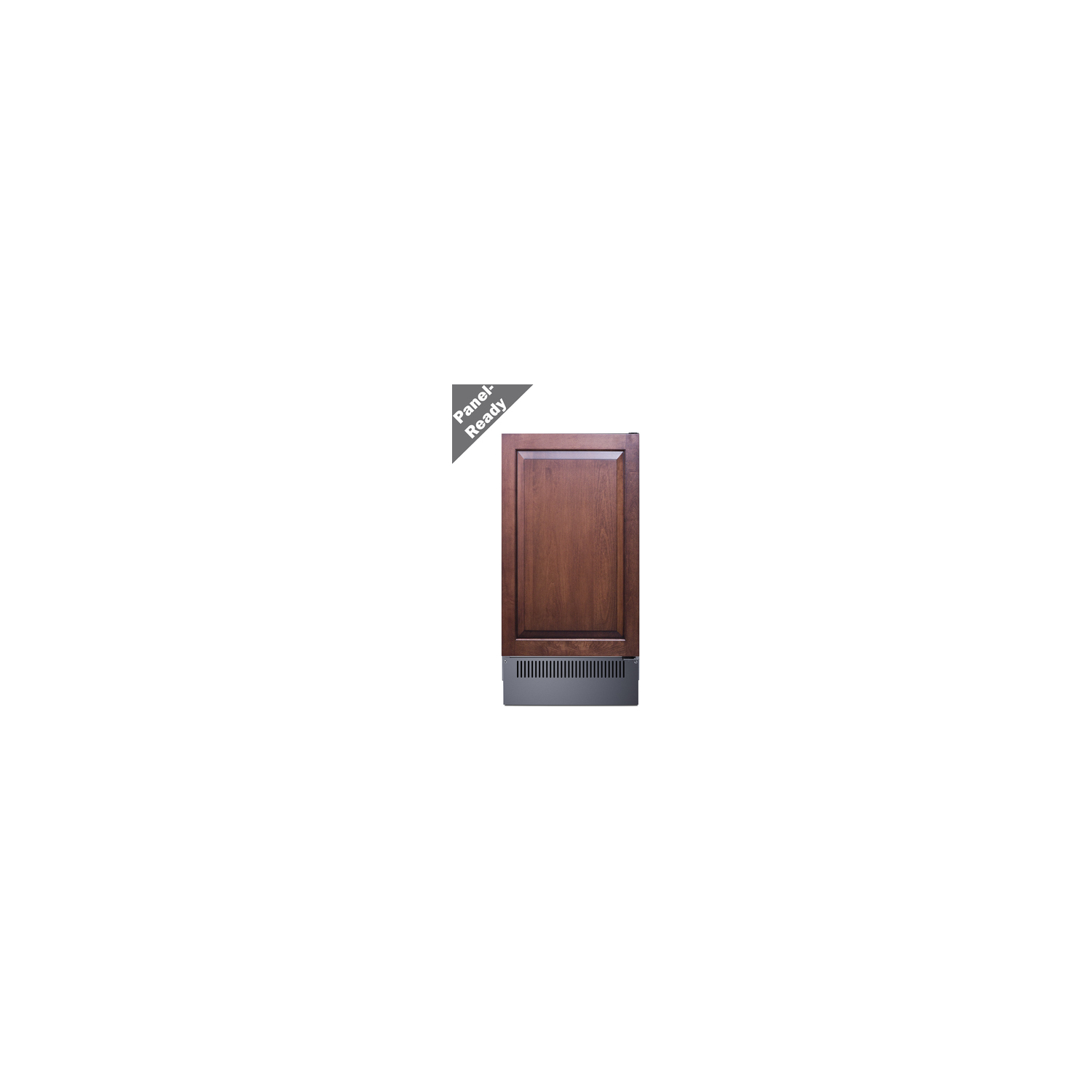

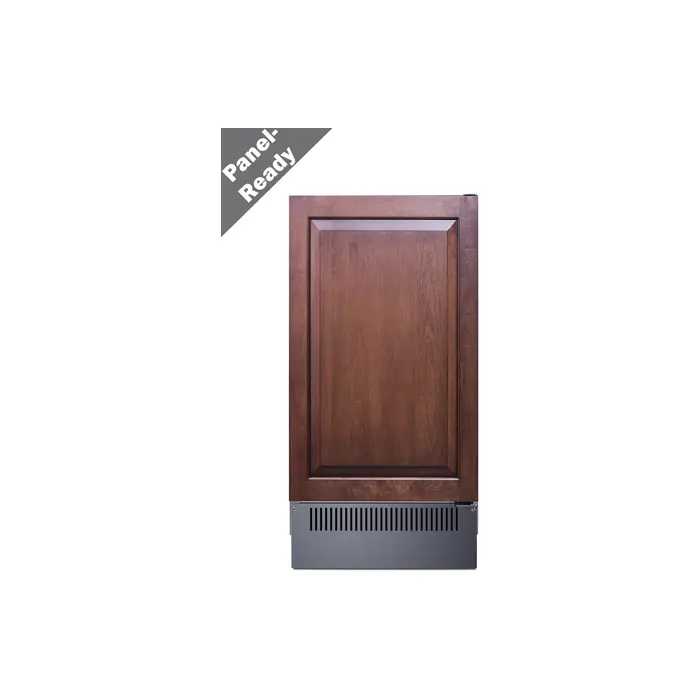

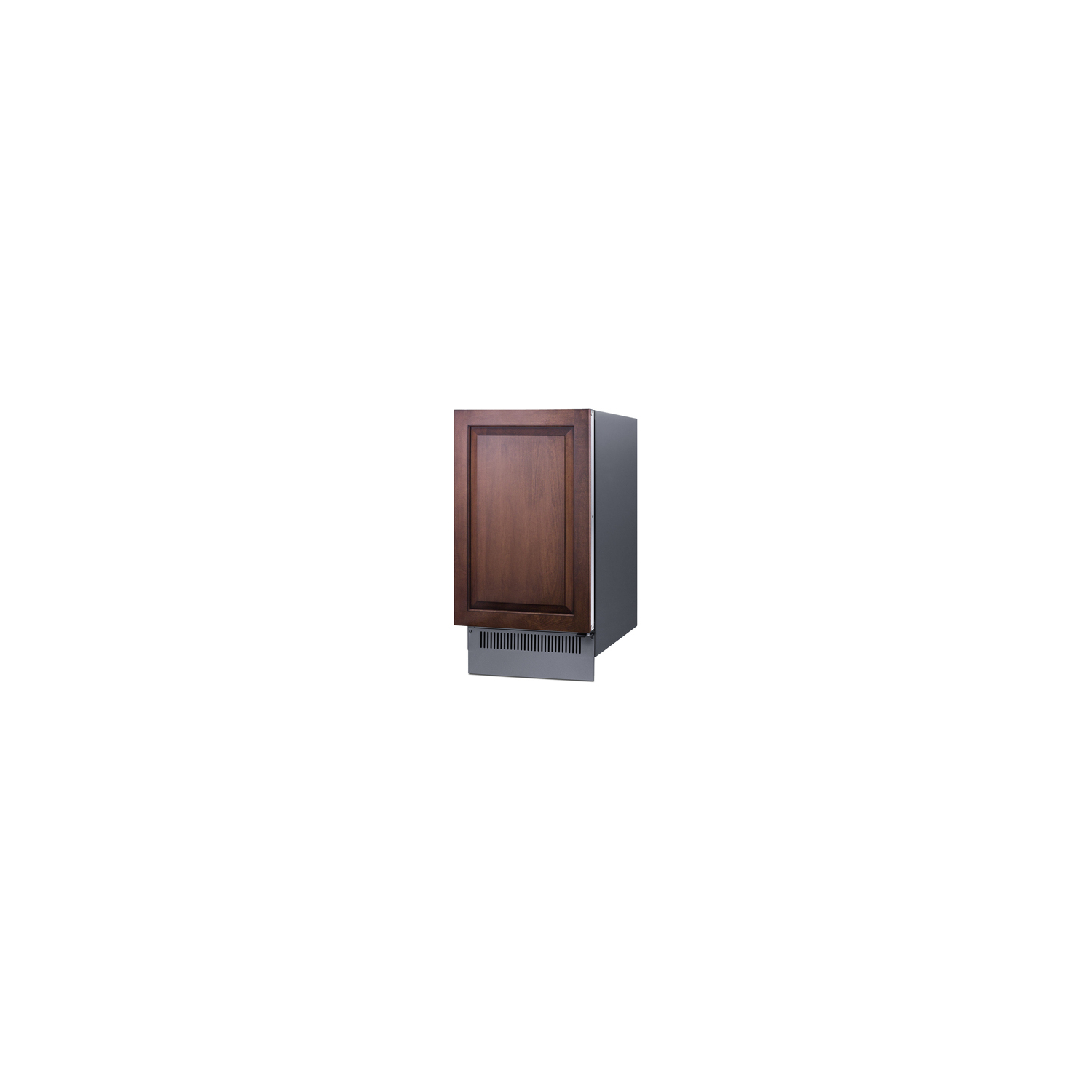

With its unique size, user-friendly design, and large capacity, the BIM182OS is a great fit for various kitchen setups. For a panel-ready version, see model BIM182IF.
In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18-inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
SPECIFICATIONS
Overview

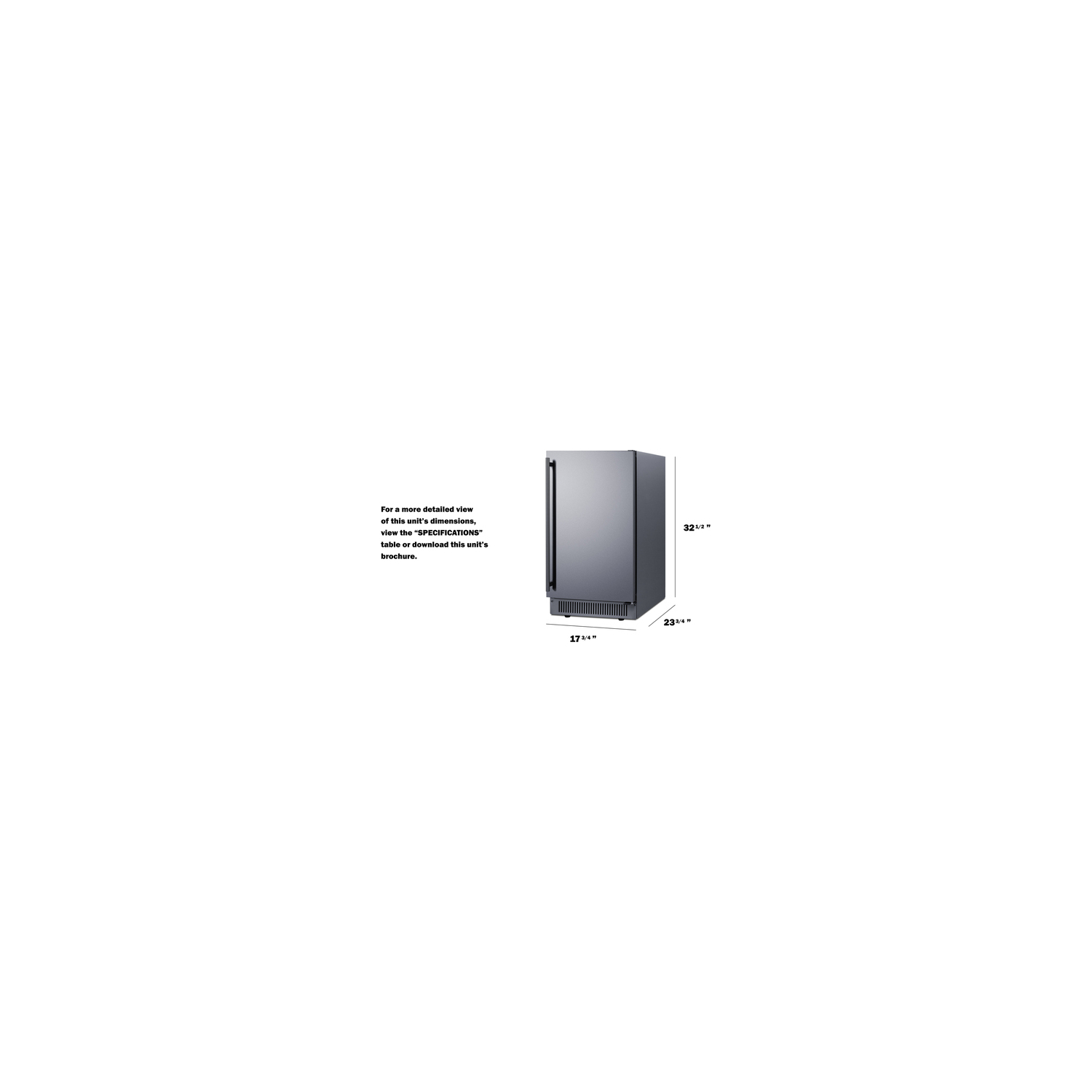

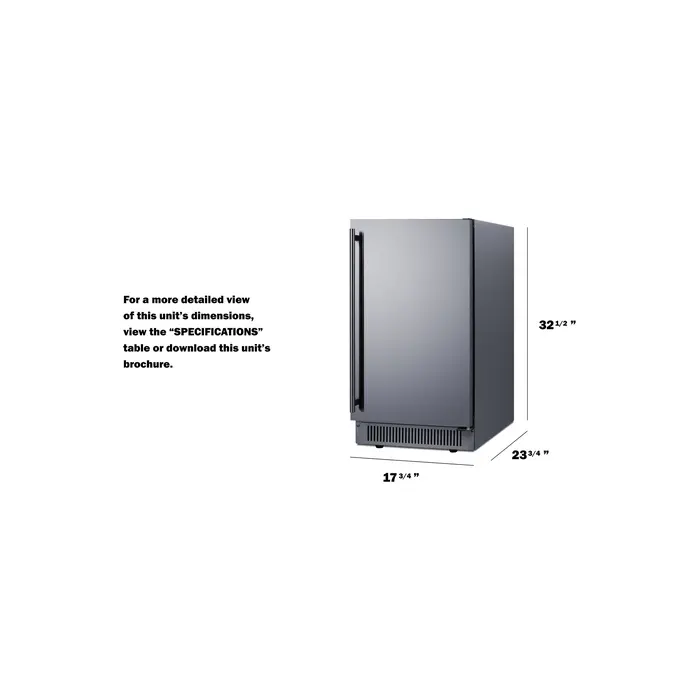

Nominal Height 32.0" (81 cm)
Height of Cabinet 34.75" (88 cm)
Nominal Width 18.0" (46 cm)
Width 17.75" (45 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 41.0" (104 cm)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 11.8
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101108162
Icemaker
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Drain Required Yes
Daily Ice Production 60.0 lbs. (27 kg)
Ice Storage Capacity 33.0 lbs. (15 kg)
Ice Shape Cube
Size of Cube .87" x .87" . 87"
Number of Ice Cube Sizes 3
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 1.37 oz.
High Side PSI 330.0
Low Side PSI 160.0
Interior Height 18.75" (48 cm)
Interior Width 14.75" (37 cm)
Interior Depth 16.75" (43 cm)
Level Legs 4
FEATURES
Outdoor 18" Wide Clear Icemaker Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
Weatherproof design Durable stainless steel construction for safe installation in outdoor spaces
Built-in capable Make the best use of space by installing your icemaker under the counter
60 lb. production capacity Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.
Height adjustable Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
Built-in pump Internal pump affords more flexibility in placing the unit

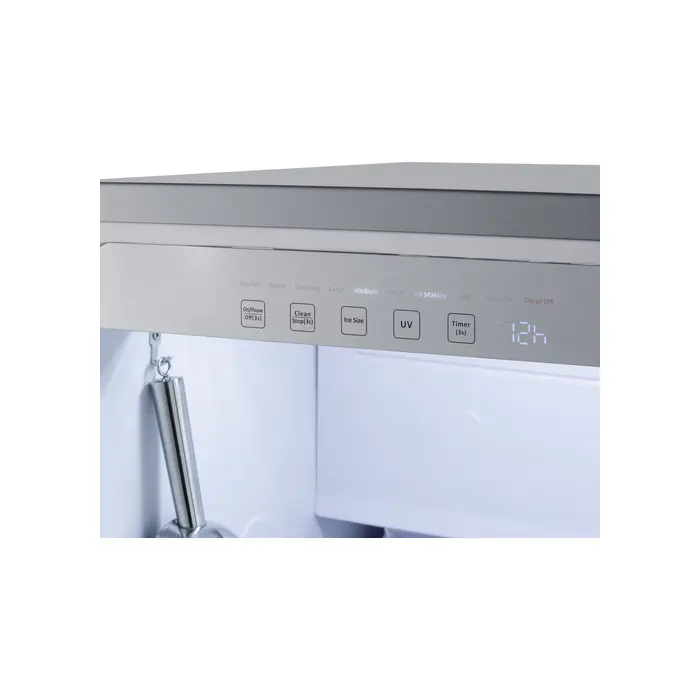

Touch control panel Provides easy operation of the unit with indicator lights for each stage of the production process
Ice selection Unit allows users to choose from small, medium, or large clear ice cubes
Automatic defrost Reduced maintenance with auto defrost system
Interior light LED lighting automatically illuminates when the door is opened
Interior UV light Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes
Ice scoop included Interior wall includes brackets to hang for easy storage
Removable bin Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin Ice stays solid longer in this cold-protected bin
Reversible stainless steel door User-reversible door swing for flexible placement
Fully finished stainless steel cabinet Allows the unit to be used freestanding
Pro style handle Vertically mounted stainless steel handle completes the look
Sealed back Space-saving design with easier cleanability
Right angle plug Flat design offers added space savings by requiring no extra depth to plug the unit in
CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
100% CFC free Environmentally friendly design without ozone-damaging chemicals
Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
