Summit 18 inch wide clear icemaker in ADA height, 7.61101e+011, BIM182ADAIFLHD

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces.

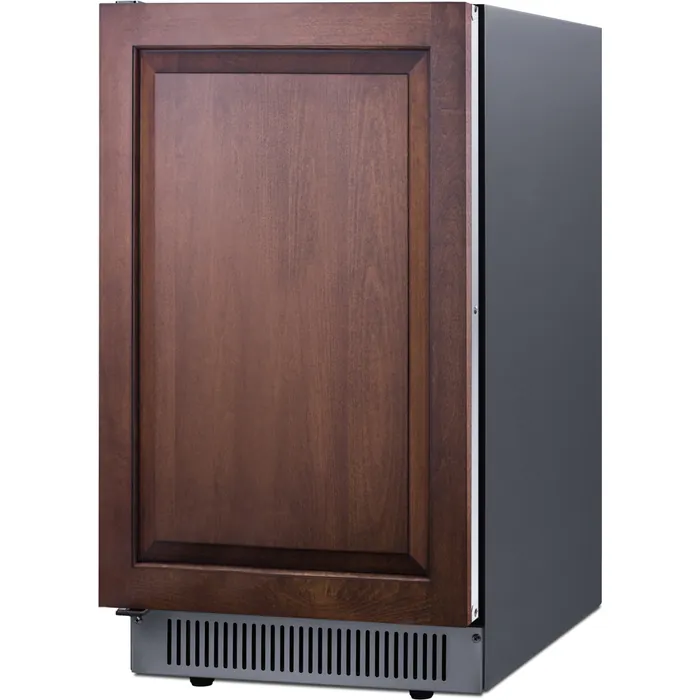

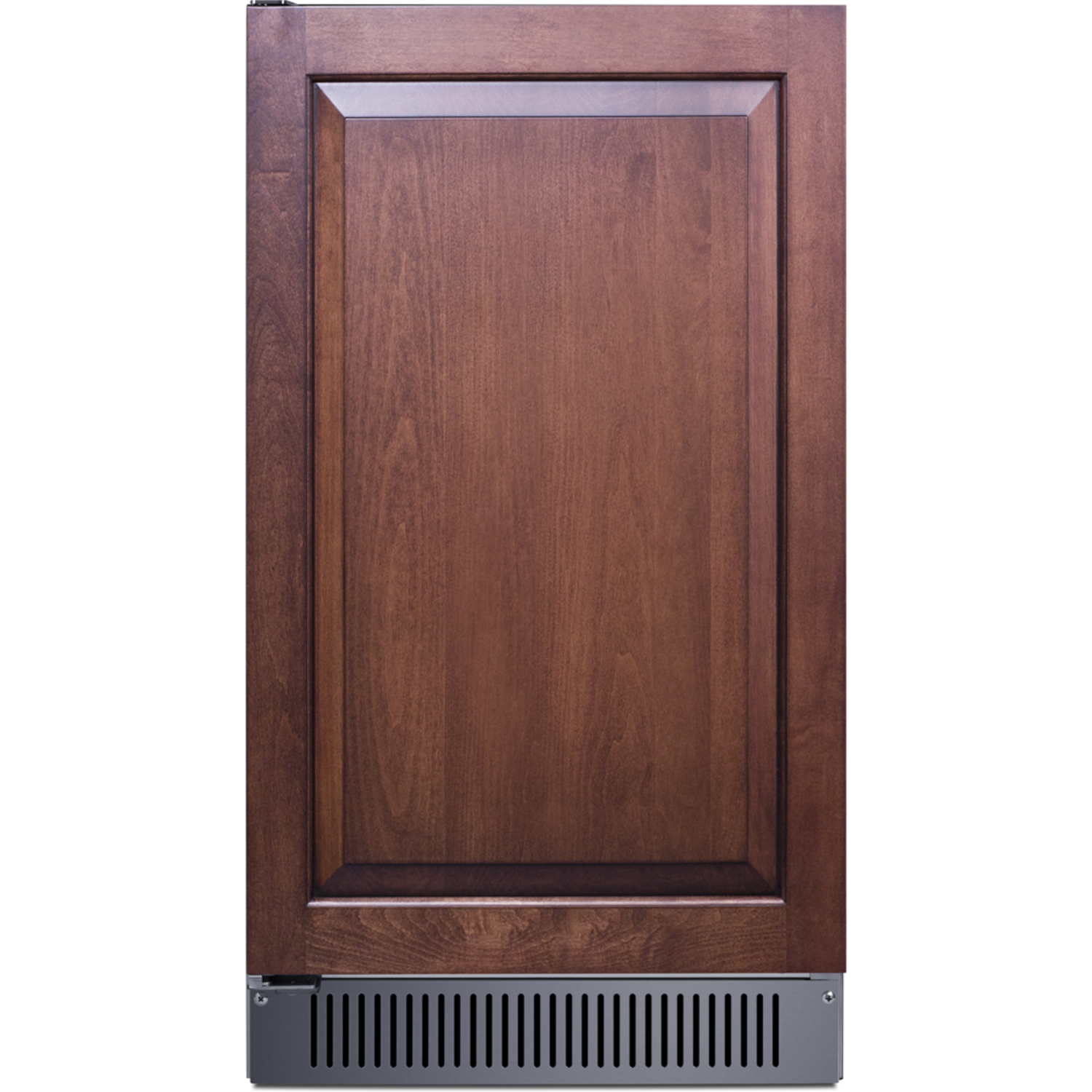

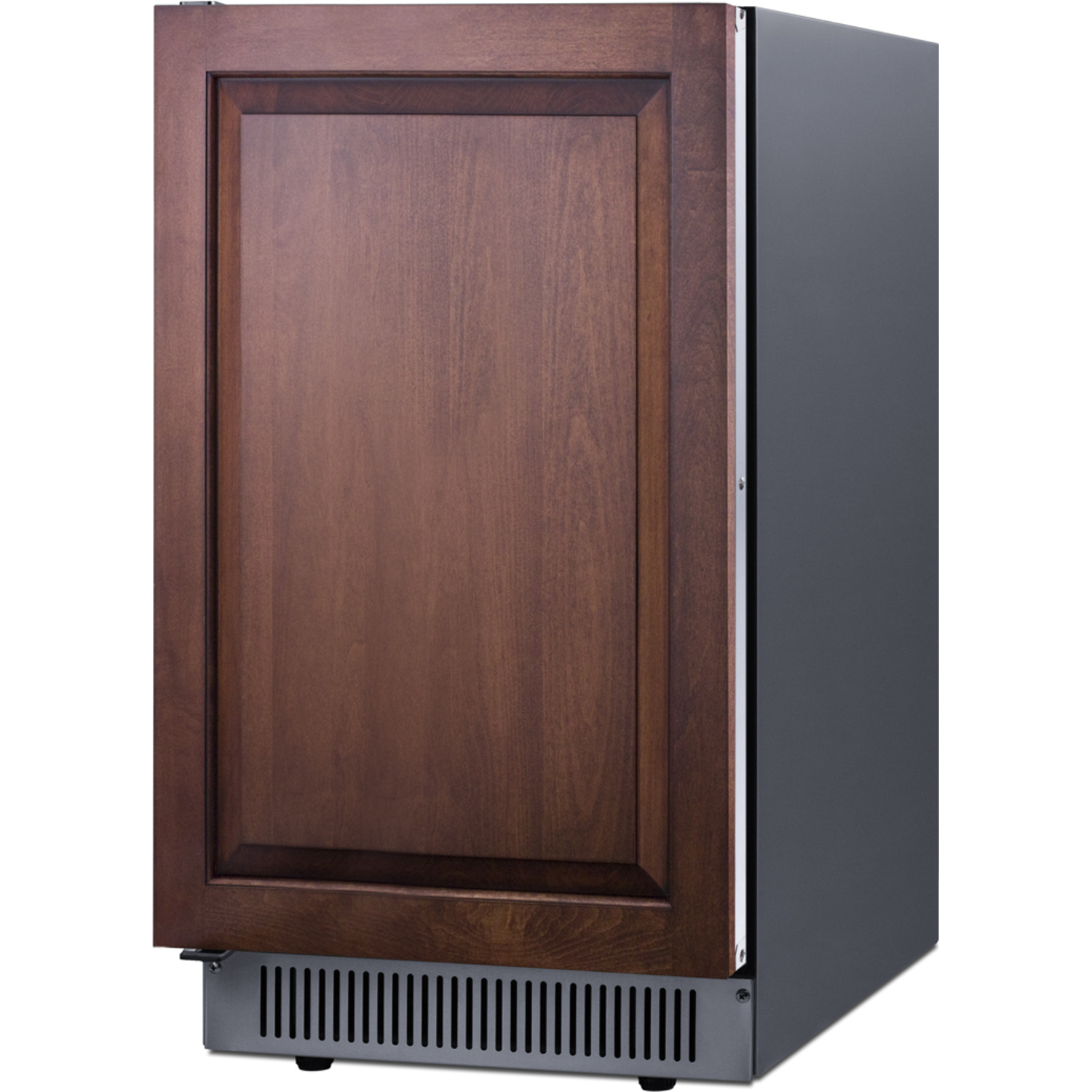

Sized just under 18 inches wide and 32.5 inches high, model BIM182ADAIFLHD features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. It comes with a left hand door swing.

Inside, the BIM182ADAIFLHD can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience.

With its unique size, user-friendly design, and large capacity, the BIM182ADAIFLHD is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSADAIFLHD.

In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.5" (83 cm)

Nominal Width 18.0" (46 cm)

Width 17.75" (45 cm)

Depth 23.75" (60 cm)

Depth with Panel 24.75" (63 cm)

Depth with door at 90° 41.0" (104 cm)

Defrost Type Automatic

Door Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 11.8

Voltage/Frequency 115 V AC/60 Hz

Weight 95.0 lbs. (43 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101150703

Icemaker

Door Swing LHD

Height Adjustable Yes

Drain Required Yes

Daily Ice Production 60.0 lbs. (27 kg)

Ice Storage Capacity 33.0 lbs. (15 kg)

Ice Shape Cube

Size of Cube .87" x .87" . 87"

Number of Ice Cube Sizes 3

Interior Light Yes

Refrigerant Type R290

Refrigerant Amount 1.37 oz.

High Side PSI 330.0

Low Side PSI 160.0

Interior Height 18.75" (48 cm)

Interior Width 14.75" (37 cm)

Interior Depth 16.75" (43 cm)

Level Legs 4

FEATURES

18" Wide Clear Icemaker Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

ADA-compliant 32.5" height allows easy installation under lower ADA compliant counters

Panel-ready door Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

Built-in capable Make the best use of space by installing your icemaker under the counter

60 lb. production capacity Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.

Height adjustable This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic

Built-in pump Internal pump affords more flexibility in placing the unit

Touch control panel Provides easy operation of the unit with indicator lights for each stage of the production process

Ice selection Unit allows users to choose from small, medium, or large clear ice cubes

Automatic defrost Reduced maintenance with auto defrost system

Interior light LED lighting automatically illuminates when the door is opened

Interior UV light Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

Ice scoop included Interior wall includes brackets to hang for easy storage

Removable bin Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin Ice stays solid longer in this cold-protected bin

Fully finished stainless steel cabinet Allows the unit to be used freestanding

Pro style handle Vertically mounted stainless steel handle completes the look

Sealed back Space-saving design with easier cleanability

Right angle plug Flat design offers added space savings by requiring no extra depth to plug the unit in

CARB compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals

Lead-free certified Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

DOWNLOADS

BROCHURE w/ DRAWINGS (BIM182ADAIFLHD.pdf)

TECHNICAL DRAWING (.dwg) (BIM182ADAIF_2.dwg)

ASSEMBLY DRAWING (BIM182ADAIF-Assembly_2.pdf)

SUPPORT (IF_Instructions_-_General.pdf)

USE & CARE (BIM182ADAIFLHD-User-Manual.pdf)
