Summit Commercially approved built-in undercounter outdoor triple tap beer kegerator in complete stainless steel, 7.61101e+011, BC74OSCOMTRIPLE

Summit manufactures a complete line of built-in kegerators designed for indoor/outdoor use in commercial settings.

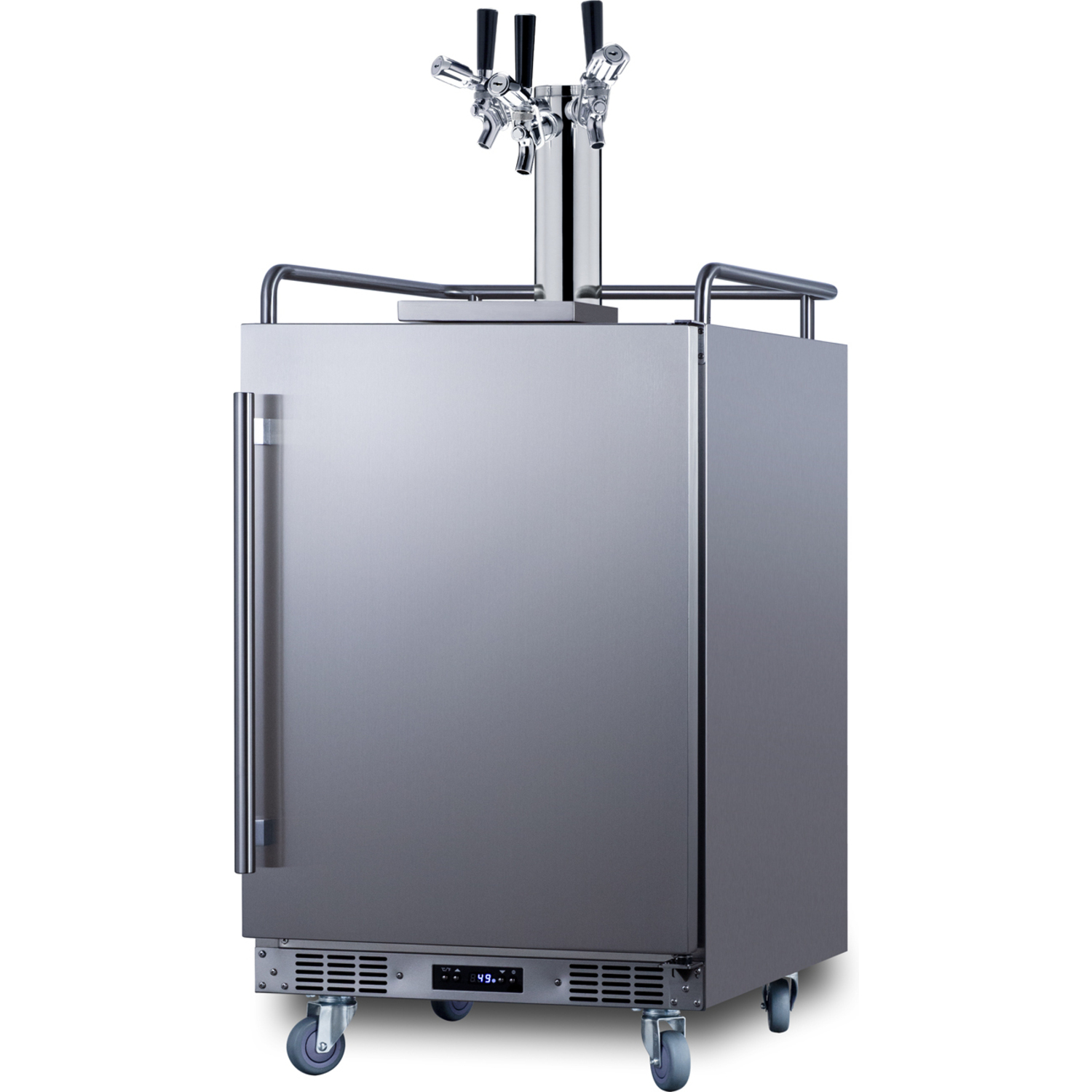

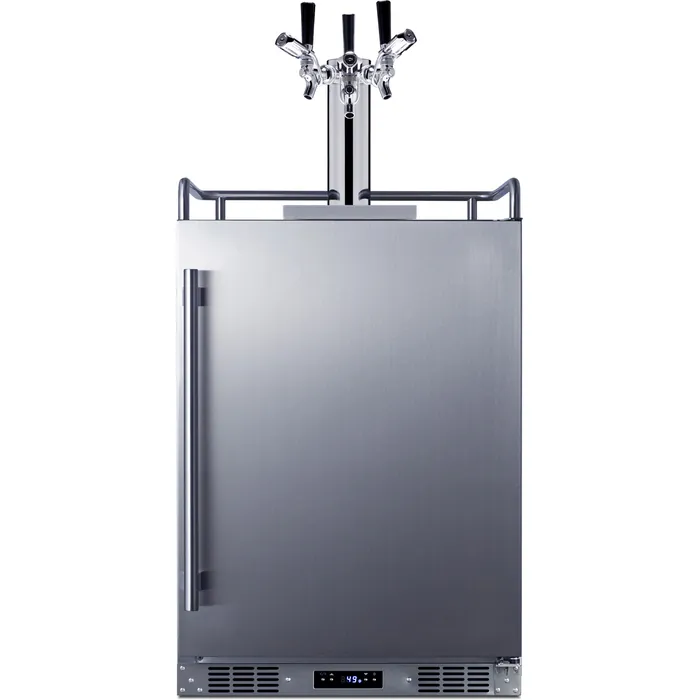

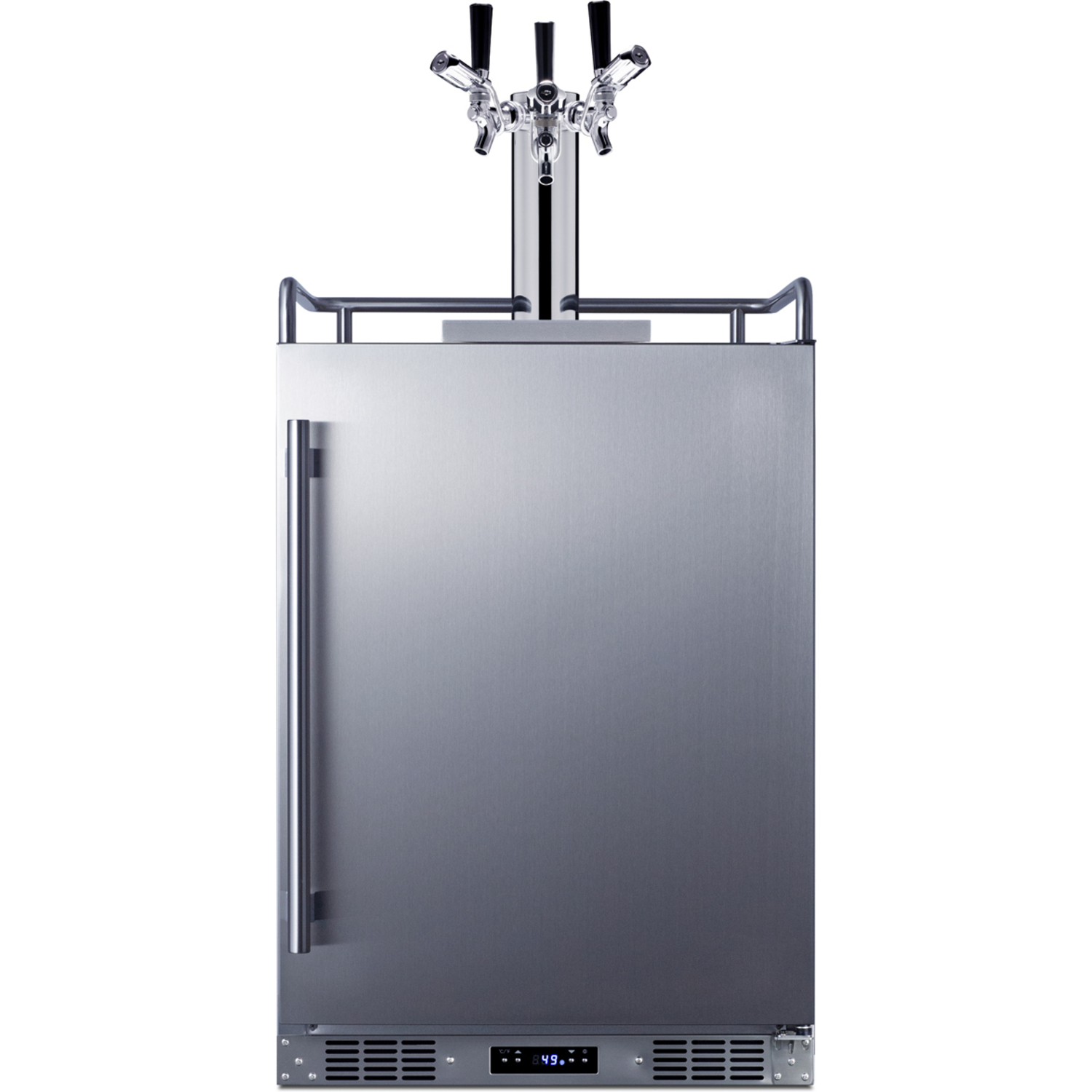

The BC74OSCOMTRIPLEis a full-size kegerator designed for dispensing beer on tap. It is ETL-S listed to NSF-7 and meets UL-471 standards for use in commercial establishments. Sized at just 24" wide, it features a weatherproof 304 grade exterior for long-lasting durability safe for use in outdoor settings. The front-breathing system allows built-in installation, while the fully finished cabinet and included caster set make for easy freestanding, portable use. This unit features a user-reversible stainless steel door with a pro style vertically mounted handle. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. For added security, we include Summit's TapLock, a removable lock that allows you to secure the tap faucet as needed to prevent unsupervised access to the kegerator contents.

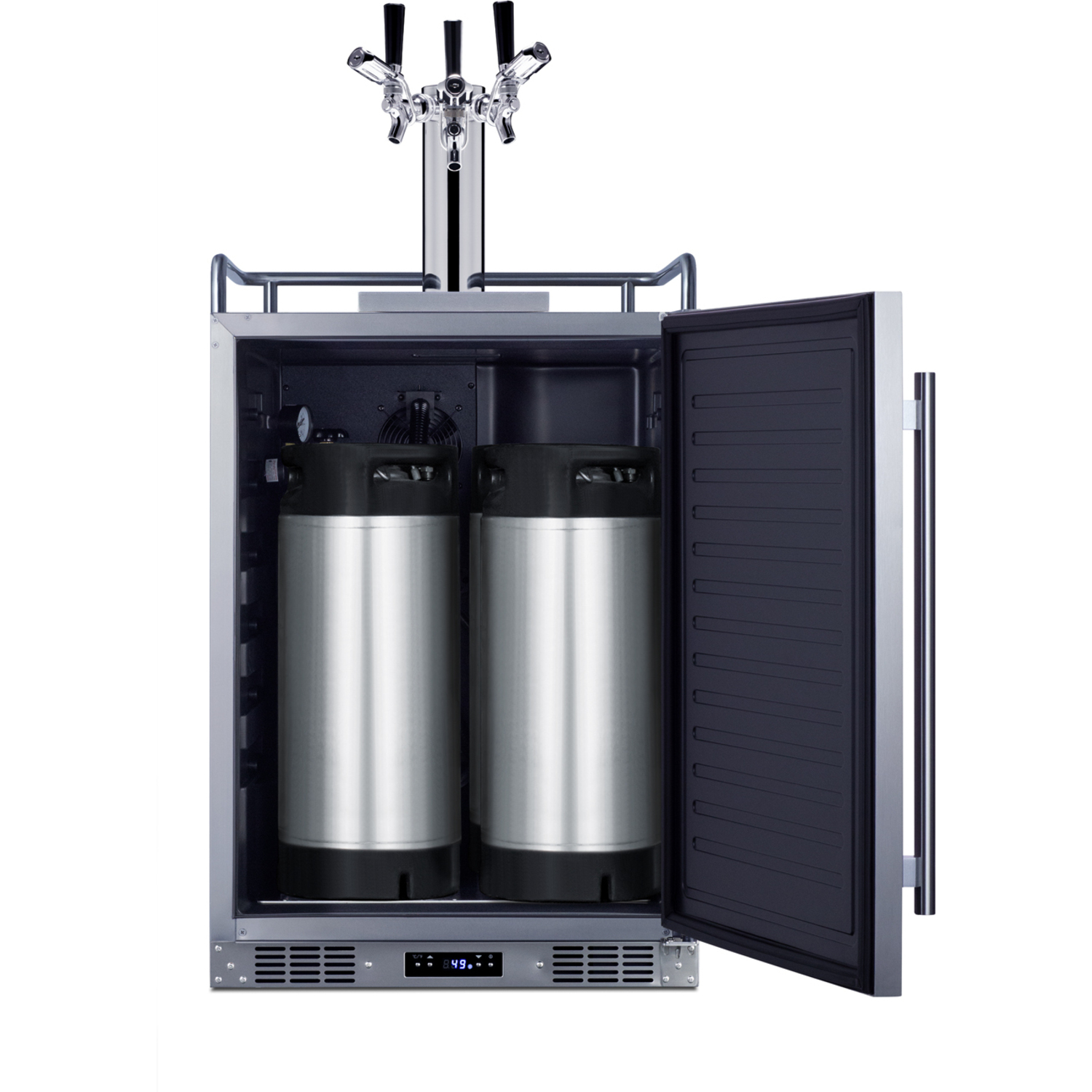

Inside, the 5.6 cu.ft. interior can accommodate a full half or slim quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade triple tap kit for dispensing your favorite beer, including a Sankey tap system and triple tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer inside the tower, and a Velcro strap holds the CO2 tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

With its solid construction, user-friendly features, and attractive design, the BC74OSCOMTRIPLE is the perfect beer dispenser for indoor or outdoor commercial settings. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.

SPECIFICATIONS

Overview

Nominal Height 34.0" (86 cm)

Height of Cabinet 33.63" (85 cm)

Nominal Width 24.0" (61 cm)

Width 23.75" (60 cm)

Nominal Depth 25.0" (64 cm)

Depth 24.25" (62 cm)

Depth with Handle 26.25" (67 cm)

Depth with door at 90° 46.75" (119 cm)

Capacity 5.6 cu.ft. (159 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 305.0kWh/year

Amps 1.25

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101084077

Kegerator

Door Swing RHD

Reversible Yes

Tap Kit Yes

Height with Tap 51.5" (131 cm)

Number of Taps 3

Adjustable Shelves Yes

Shelf Type Chrome

Shelf Qty 2

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant R600a

Refrigerant Amount 1.06 oz.

High Side PSI 150.0

Low Side PSI 50.0

Inter Height 26.75" (68 cm)

Interior Width 20.0" (51 cm)

Interior Depth 19.0" (48 cm)

Level Legs Qty 4

Wheel Qty 4

Temperature Range 34°F to 68°F (1°C to 20°C)

Sound Level 34.0 db

FEATURES

Commercially approved ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings

Large capacity kegerator 5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs

Weatherproof design Solid 304 grade stainless steel construction allows placement in the outdoors

Built-in capable Front-breathing design allows fully recessed installation under counters

Commercial tap kit Includes a 5 lb. CO2 tank and regulator, triple tap draft arm, Sankey American tap, and connection hardware

Triple tap system Triple draft tower allows you to serve from three 1/6 (sixtel) sized kegs

Automatic defrost Reduced user maintenance with auto defrost operation

Digital thermostat Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

TapLocks included Three easy-to-use removable locks allow you to secure each tap's faucet with a key to prevent unsupervised access as needed

Tap cool system Interior tube allows you to extend the cold air flow up into draft tower, ensuring beer freshly tapped stays cold (note: this can be used to cool up to two taps)

Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled) Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray Removable two-piece drip tray catches spills to help contain the mess

Adjustable shelves 2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function Recovers the unit's last settings in the case of a power outage or disruption

Reversible door User-reversible door swing for added flexibility

Casters included (ship unassembled) Four casters (two locking) afford easy portability

Pro style handle Stainless steel handle adds style to any setting

Fully finished stainless steel cabinet Allows the dispenser to be used freestanding

Sealed back Space saving design with easier cleanability

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (BC74OSCOMTRIPLE.pdf)

TECHNICAL DRAWING (.dwg) (SBC682-SBC683_Series_3.dwg)

ASSEMBLY DRAWING (SBC682-SBC683_Series-Assembly_3.pdf)

USE & CARE (BC74OSCOMTRIPLE-User-Manual.pdf)

Energy Guide
