Summit Compact allergy-free all-refrigerator with lock and warning magnets, 7.61101e+011, AZAR2W

Summit offers innovative solutions to cold storage with the AZAR2W, designed to safely refrigerate food and beverages for those with allergies and food sensitivities.

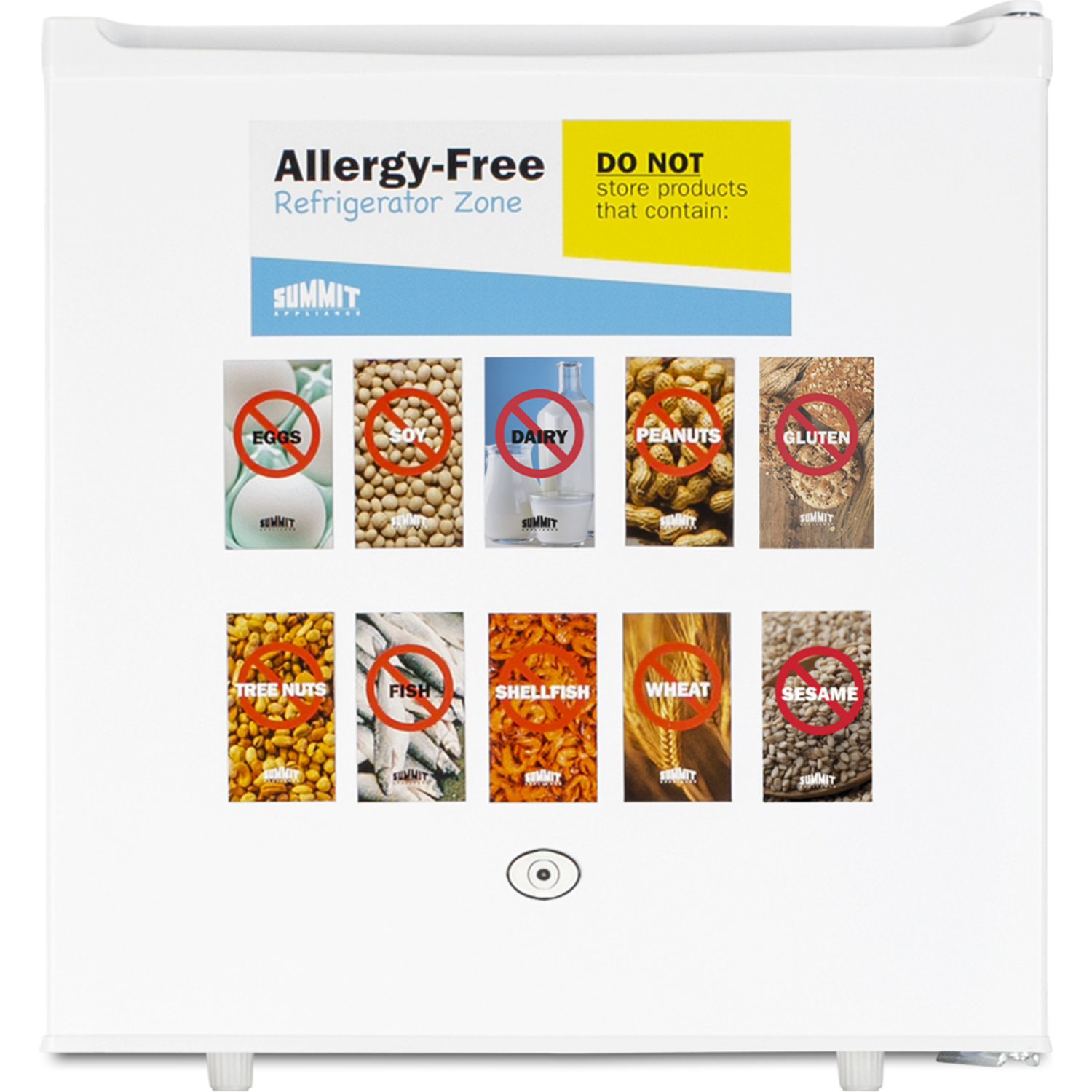

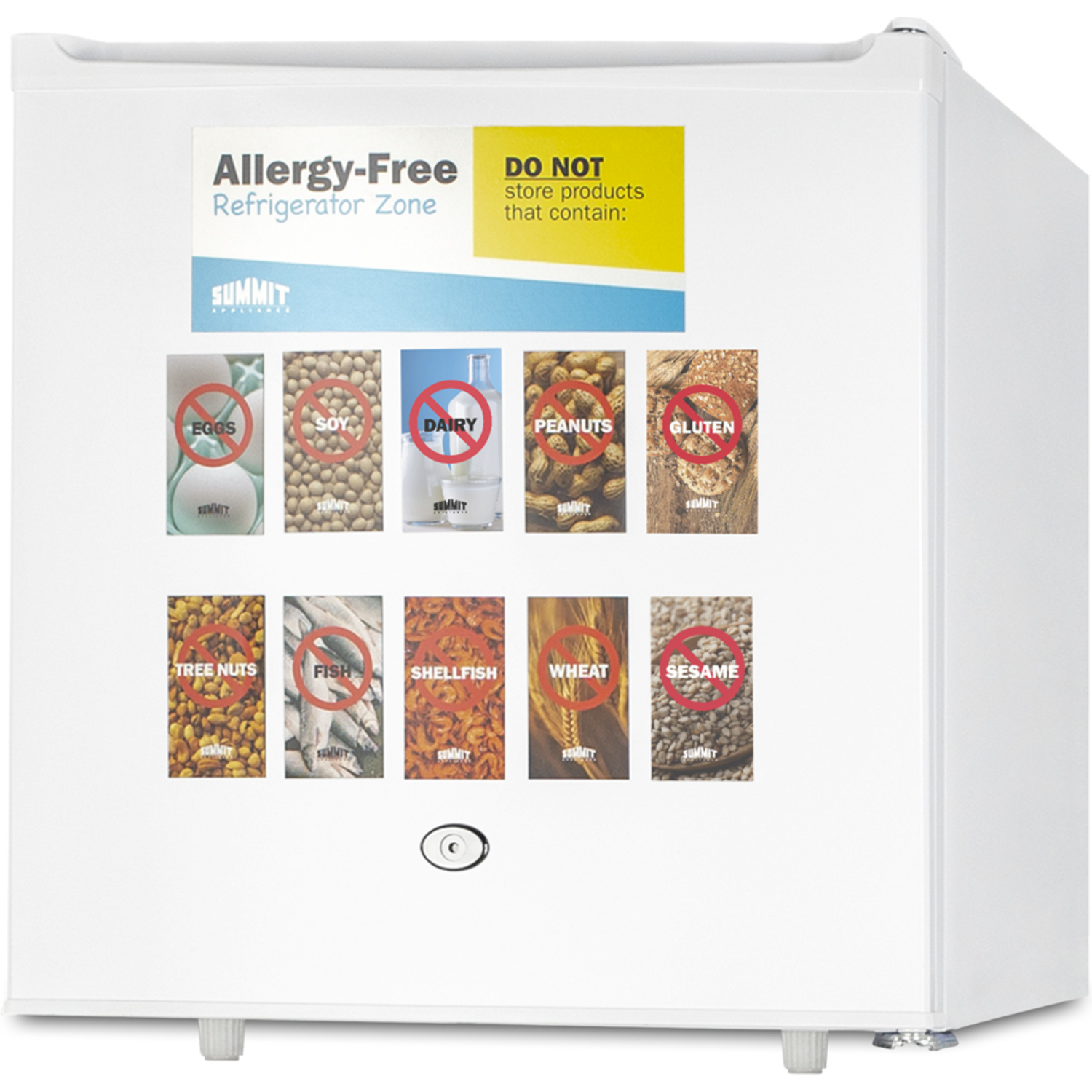

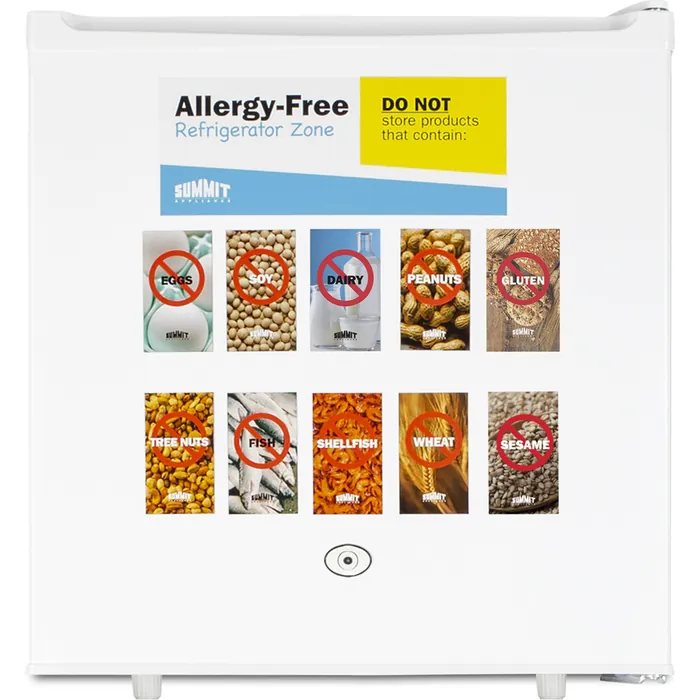

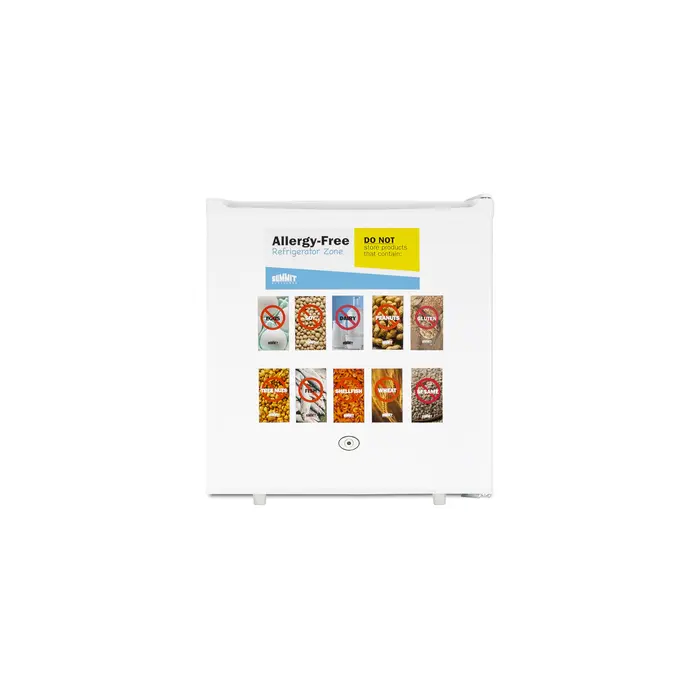

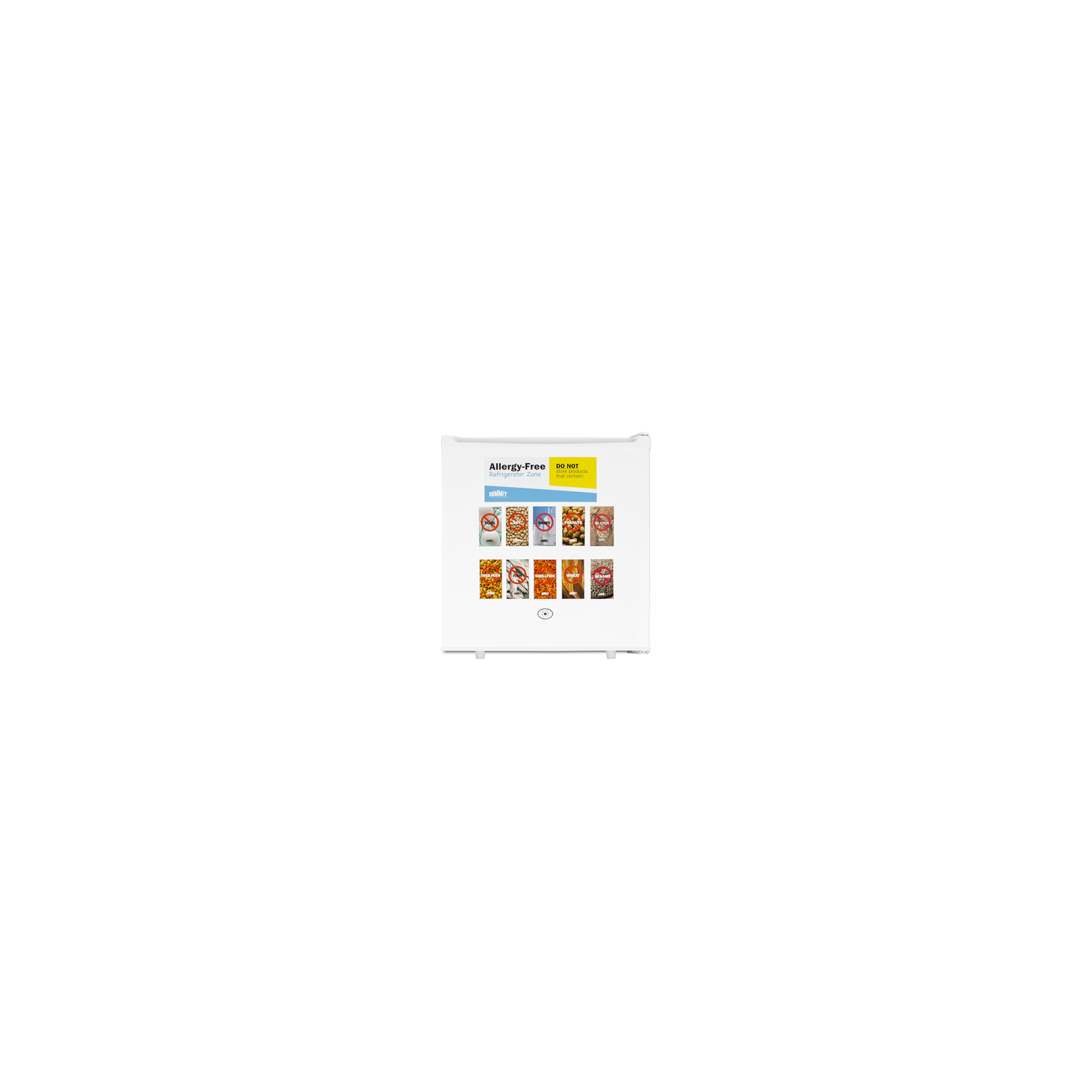

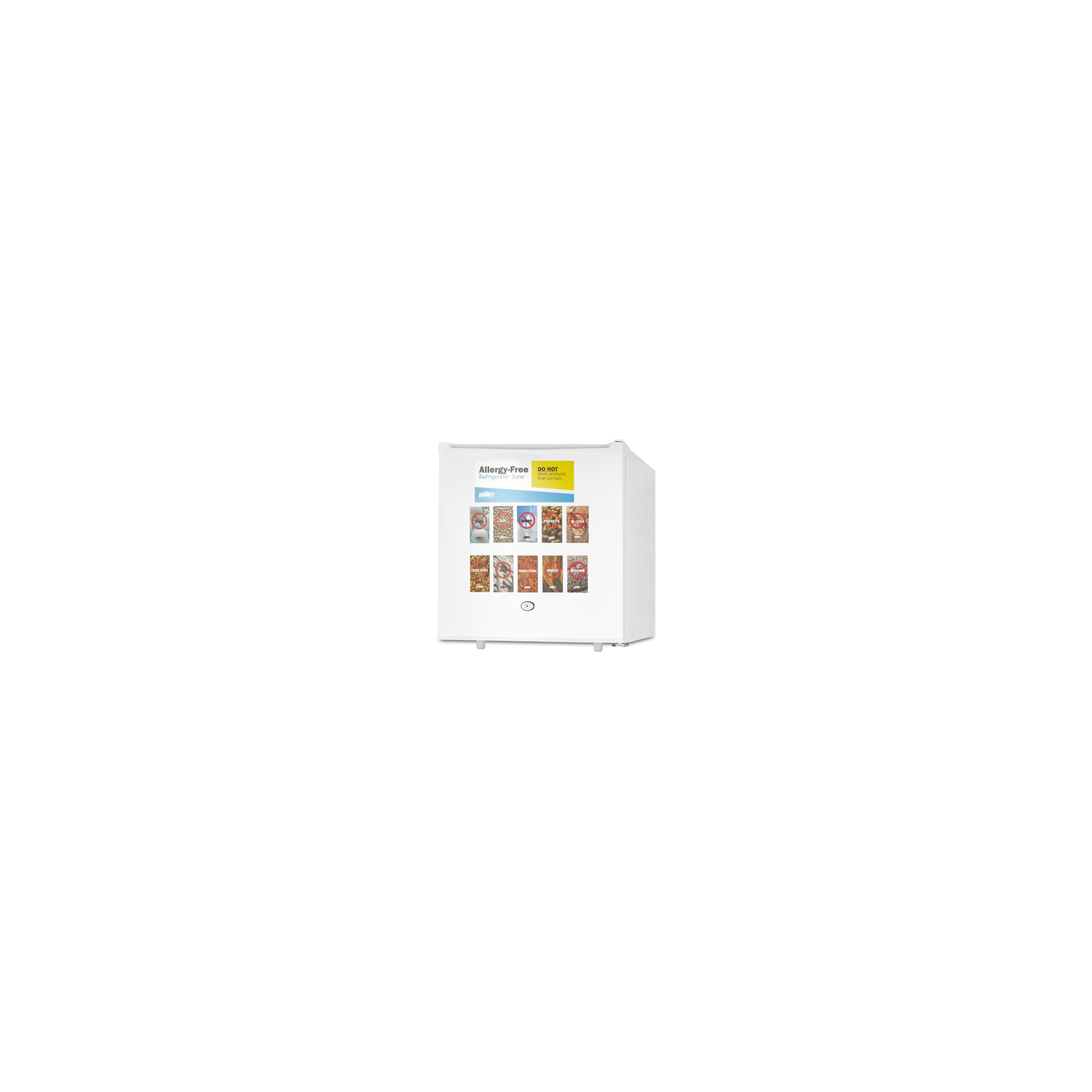

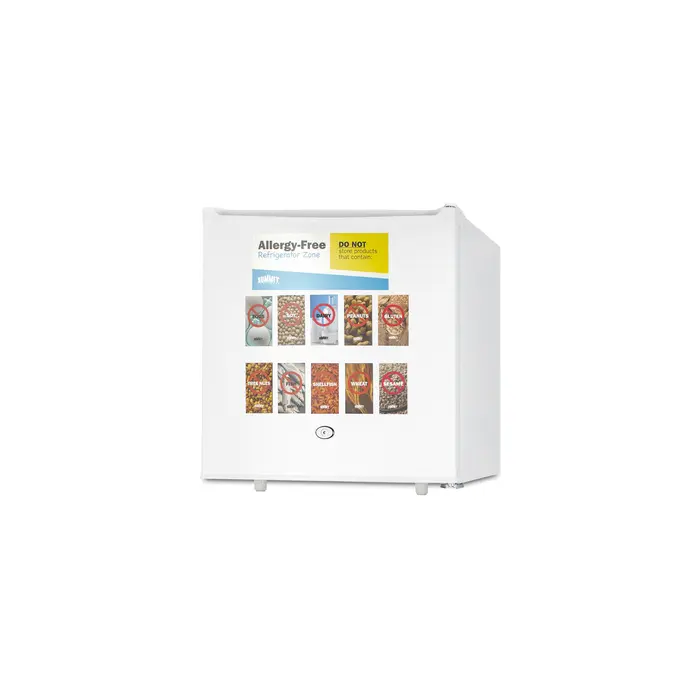

Sized just under 19" wide, the AZAR2W is a compact all-refrigerator with a white exterior finish. The front door includes a factory-installed lock for convenient security, with two keys included. We include a removable "Allergy-Free Storage Zone" decal for optional use, as well as ten allergy-specific magnets to help users identify which foods should not be stored inside. The individual magnets feature warnings for shellfish, fish, gluten, wheat, soy, dairy, tree nut, peanuts, sesame, and eggs. The sealed back helps to ensure easier cleanup and a hospital grade 'green dot' cord offers added safety in high traffic environments. This unit has a right hand door swing.

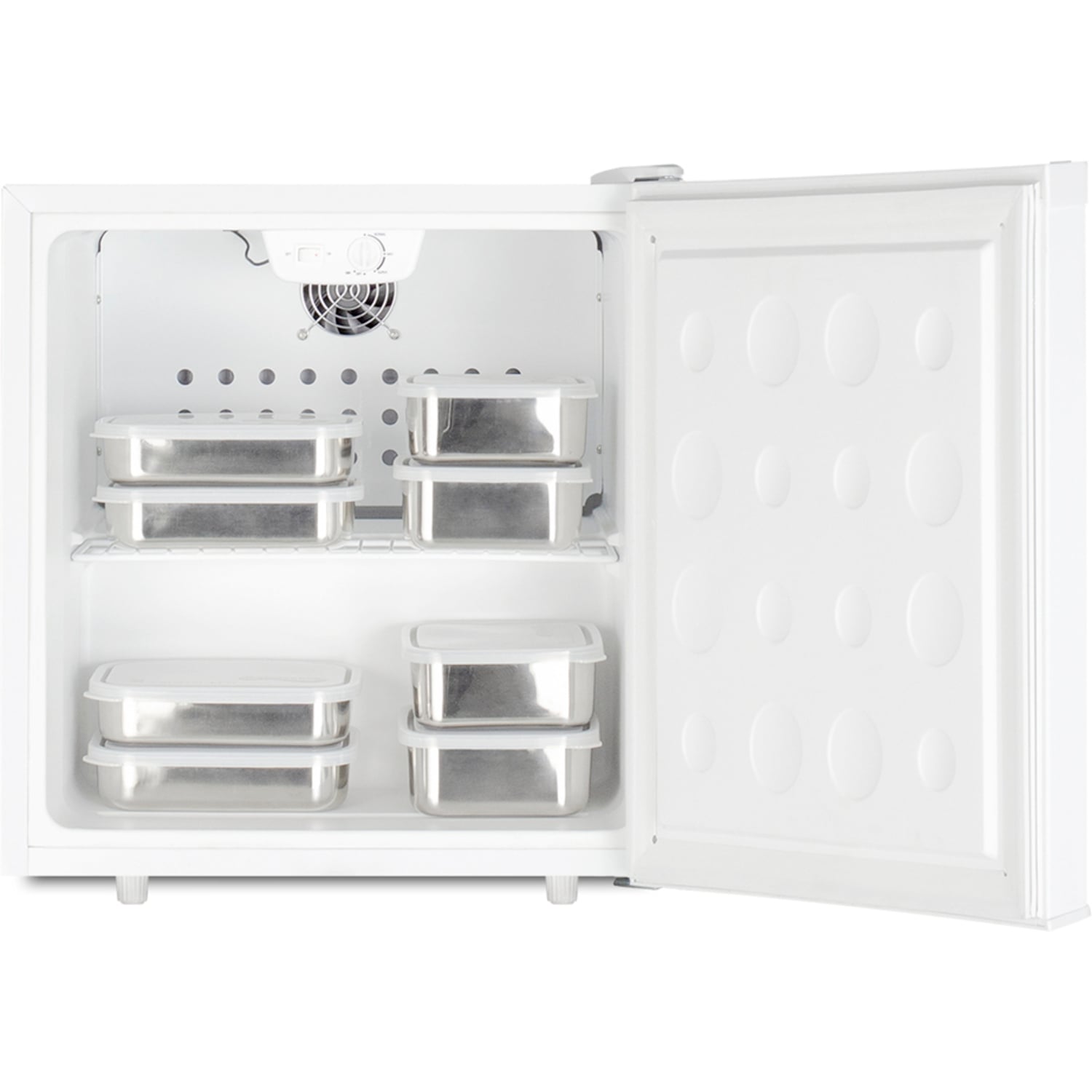

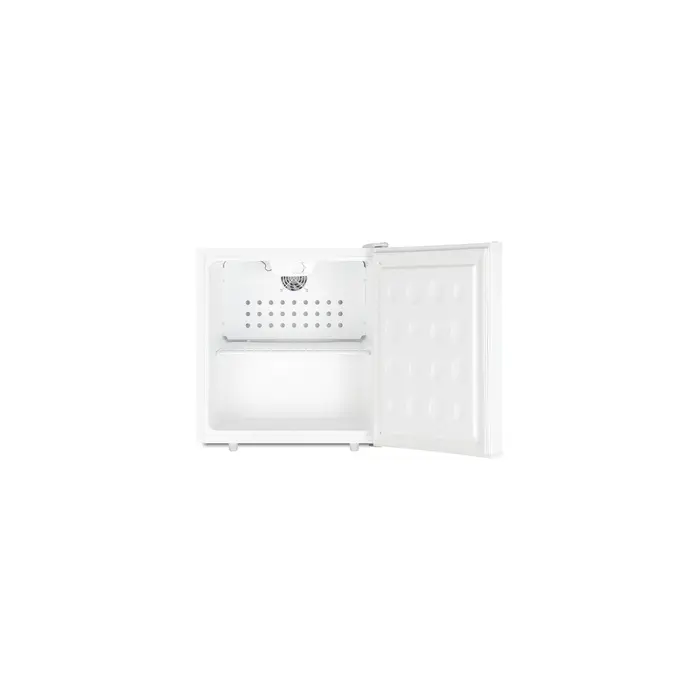

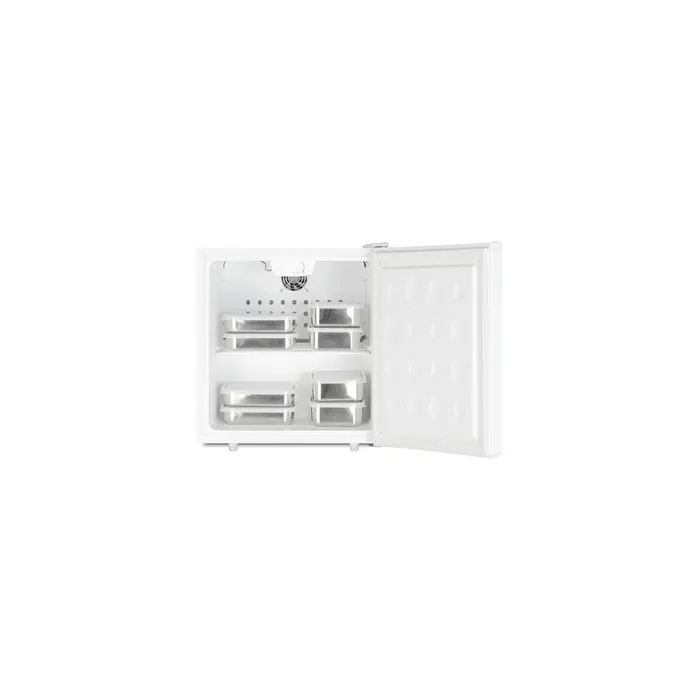

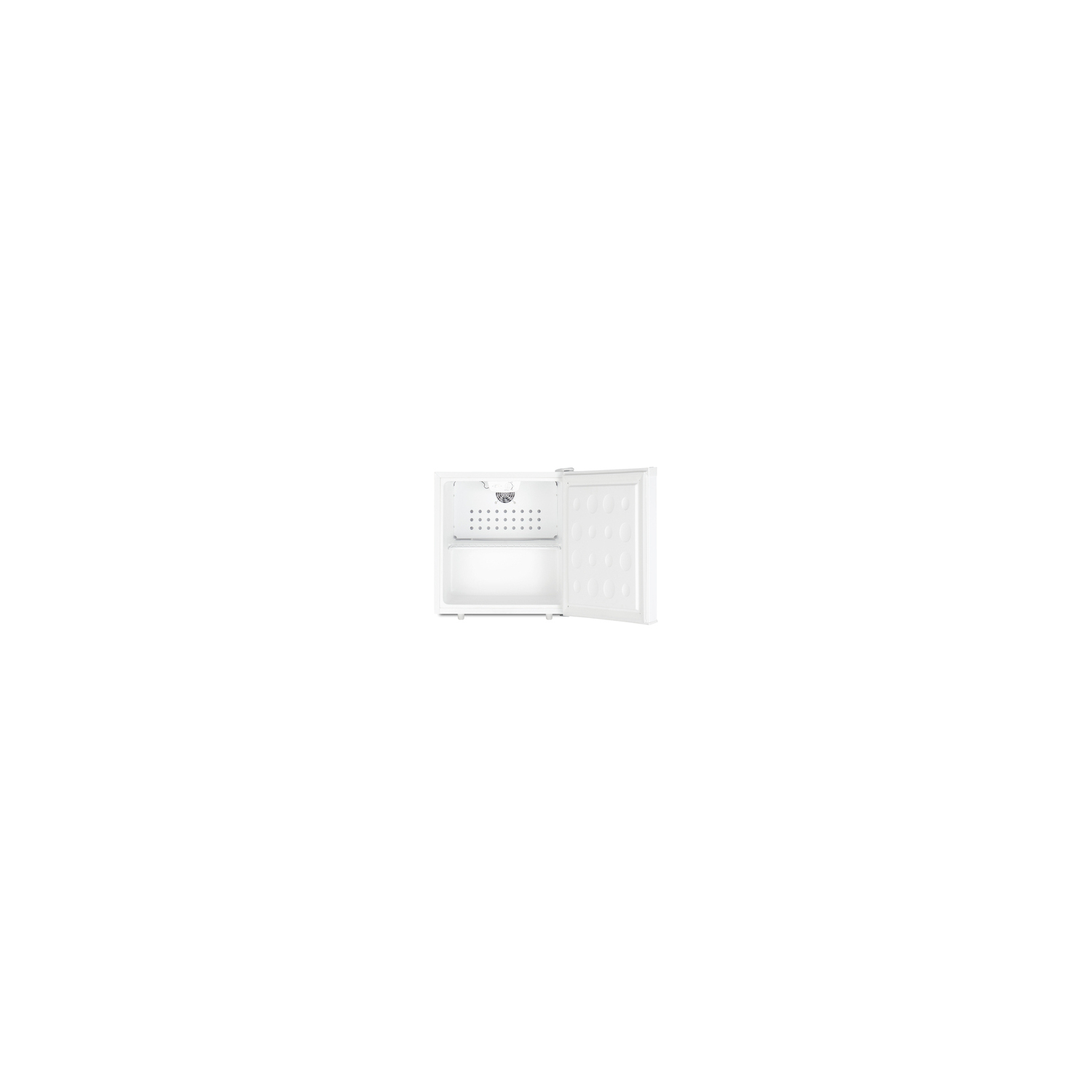

Inside, the AZAR2W utilizes automatic defrost operation for minimum user maintenance. An internal fan helps to keep a more even temperature throughout the 1.7 cu.ft. interior. A removable shelf is included to accommodate different sized storage needs. The dial thermostat is located inside, helping to prevent any accidental adjustments. This unit includes an interior LED light with an on/off rocker switch.

With its slim-fitting design and user-friendly features, the AZAR2W is perfect for schools, daycare centers, offices, and similar environments in need of separate storage for allergy-sensitive users.

SPECIFICATIONS

Overview

Nominal Height 21.0" (53 cm)

Height of Cabinet 20.25" (51 cm)

Height to Hinge Cap 20.75" (53 cm)

Nominal Width 19.0" (48 cm)

Width 18.75" (48 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.5" (44 cm)

Depth with door at 90° 35.0" (89 cm)

Capacity 1.7 cu.ft. (48 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 265.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 36.0 lbs. (16 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101076089

Refrigerator Features

Door Swing RHD

Reversible No

Shelf Type Wire

Shelf Qty 1

Thermostat Type Dial

Refrigerant Type R600a

Refrigerant Amount 0.57oz.

High Side PSI 180.0

Low Side PSI 56.0

Level Legs Qty 2

Interior Light Yes

Dimensions

Interior Height 16.25" (41 cm)

Interior Width 15.5" (39 cm)

Interior Depth 12.25" (31 cm)

Compressor Step Height 7.0" (18 cm)

Compressor Step Width 15.5" (39 cm)

Compressor Step Depth 6.5" (17 cm)

FEATURES

Compact dimensions Slim width and compact depth for easy placement on counters

Automatic defrost Reduced maintenance with auto defrost system

Front-mounted lock Keyed lock for a secure interior (2 keys included)

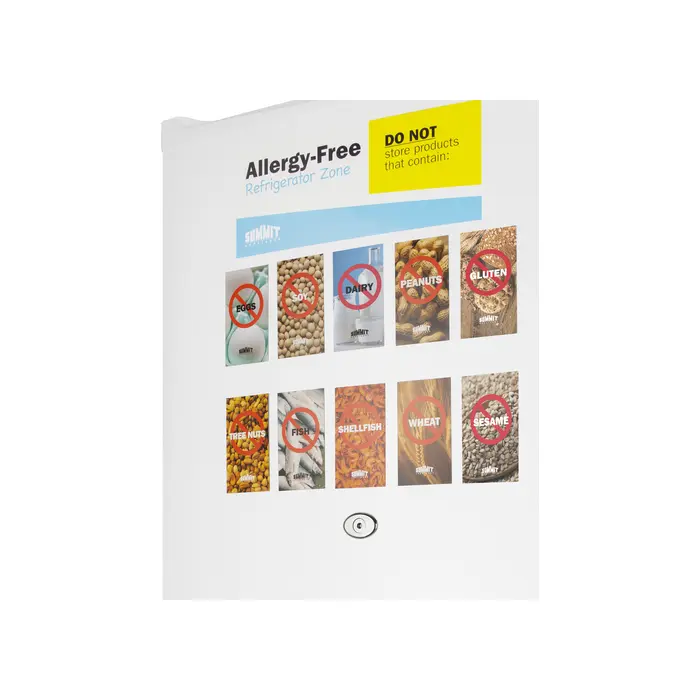

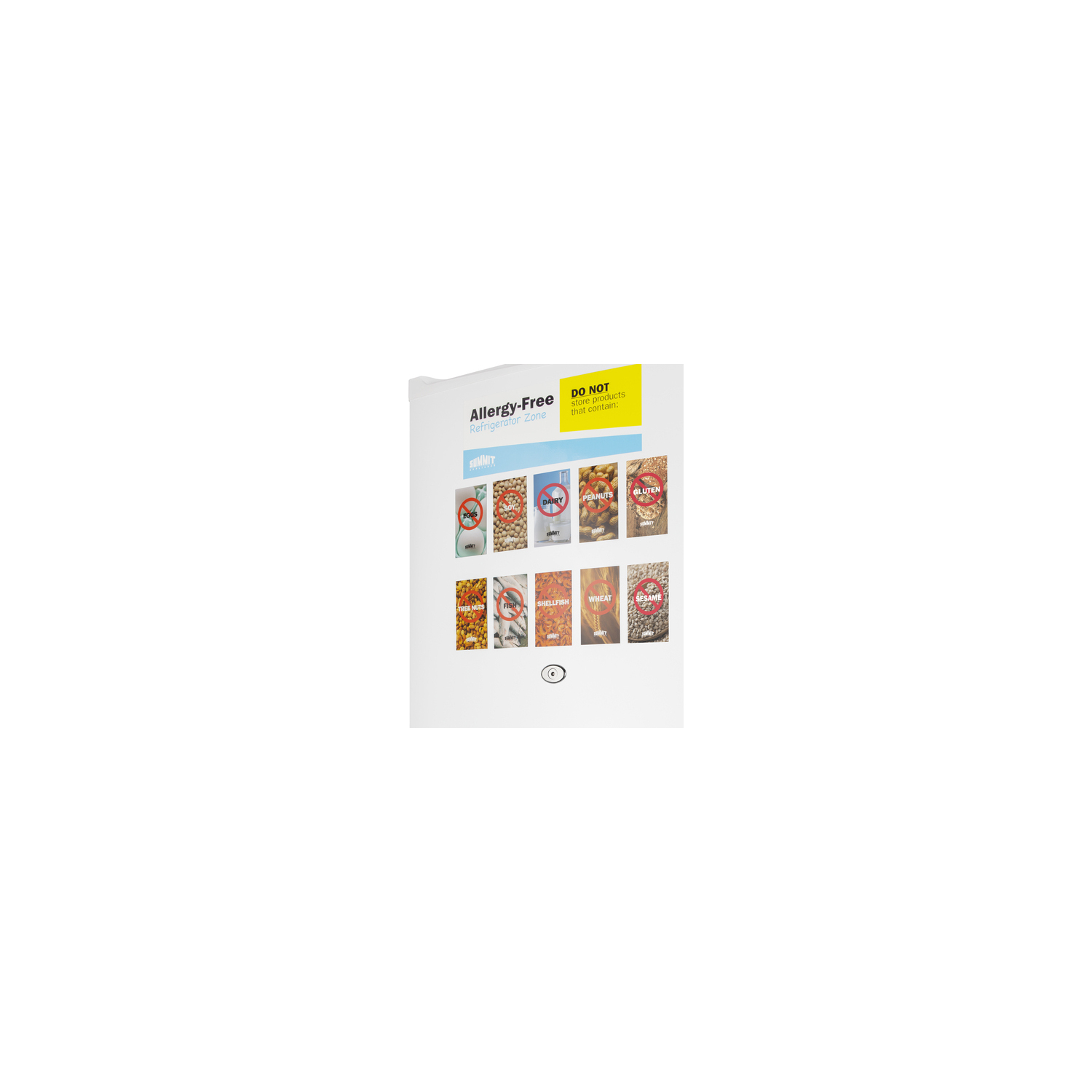

Allergy-specific magnets Ships with a pack of 10 allergy-specific magnets to denote which foods can and cannot be stored in the “allergy-free refrigeration zone.” They include: “NO PEANUTS,” “NO TREE NUTS,” “NO SHELLFISH,” “NO WHEAT,” “NO FISH,” “NO SOY,” “NO DAIRY,” "NO SESAME," “NO EGGS, ” and “NO GLUTEN’

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety in high traffic areas

LED lighting Interior light for efficient illumination with an easy on/off rocker switch

Adjustable thermostat Dial thermostat located inside unit for easy temperature management

Flat door liner Allows the interior to store deeper items, while also providing improved temperature performance by eliminating hot spots commonly found in door shelves

Removable wire shelf Half shelf included to help you organize your storage as needed

Sealed back Space-saving convenience with easier cleanability

Usage decal Ships with removable usage sticker for “ALLERGY-FREE REFRIGERATION ZONE"

Leveling legs Front legs are adjustable, allowing you to keep the refrigerator level when placed on slightly unlevel surfaces

100% CFC Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (AZAR2W.pdf)

TECHNICAL DRAWING (.dwg) (FFAR23L_REFRIGERATOR__A-C_2018_.dwg)

USE & CARE (AZAR2W-User-Manual.pdf)

Energy Guide
