Summit 18 inch deep 15 inch wide undercounter ADA height all-refrigerator, 7.61101e+011, ASDS1523

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

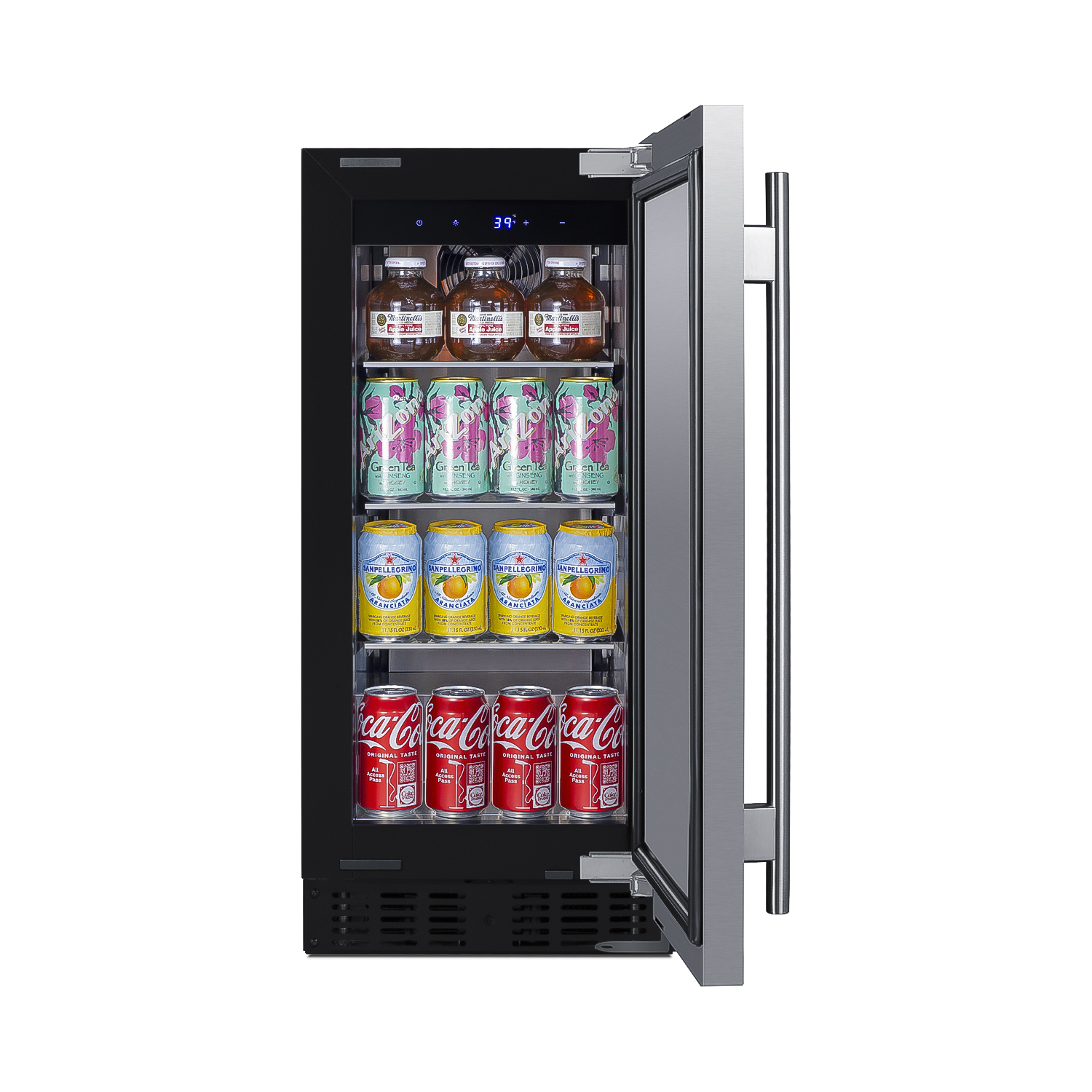

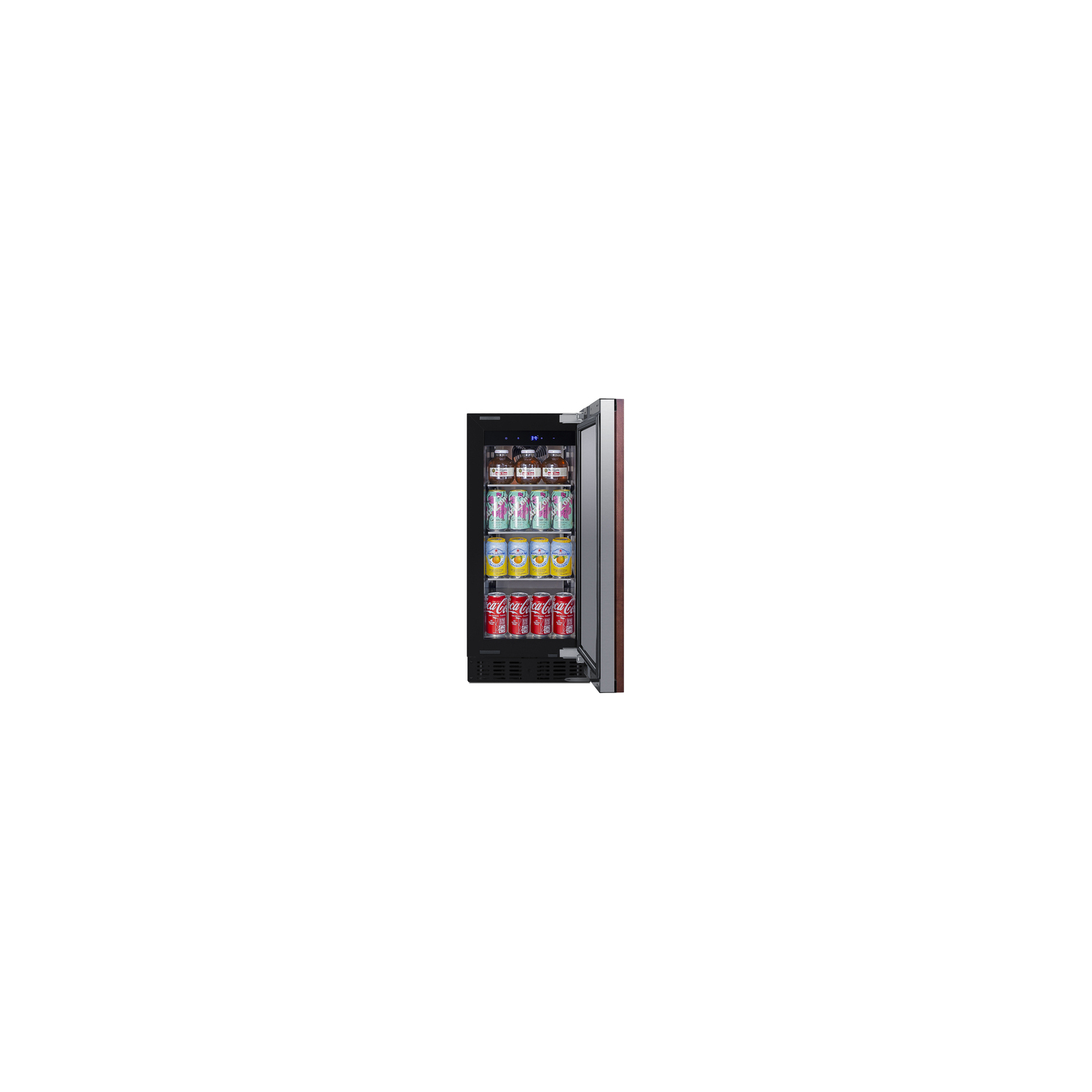

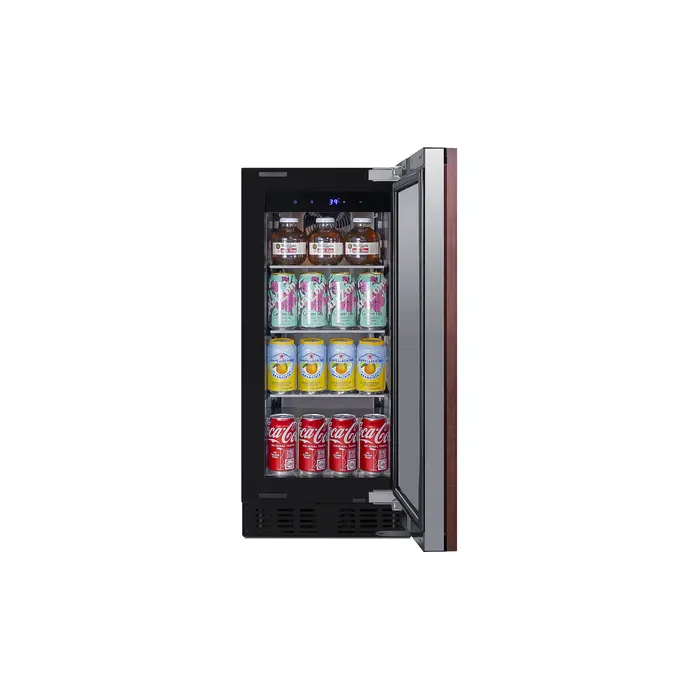

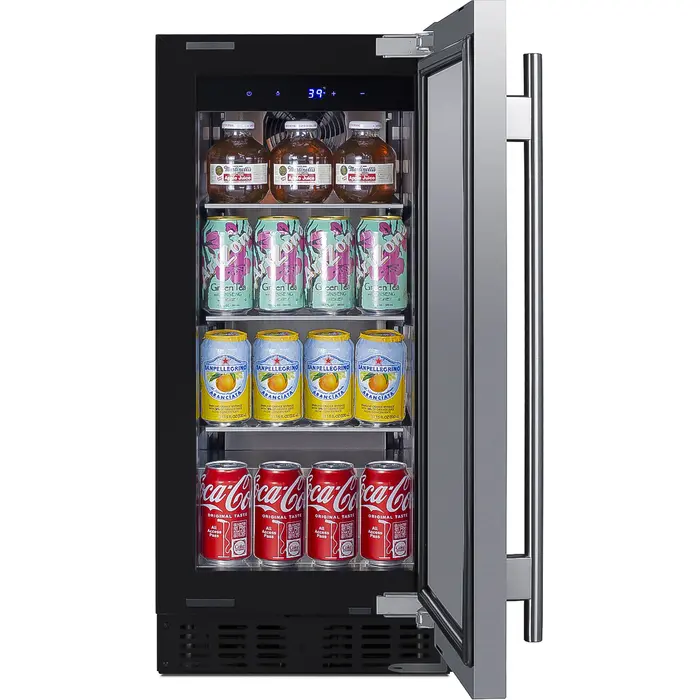

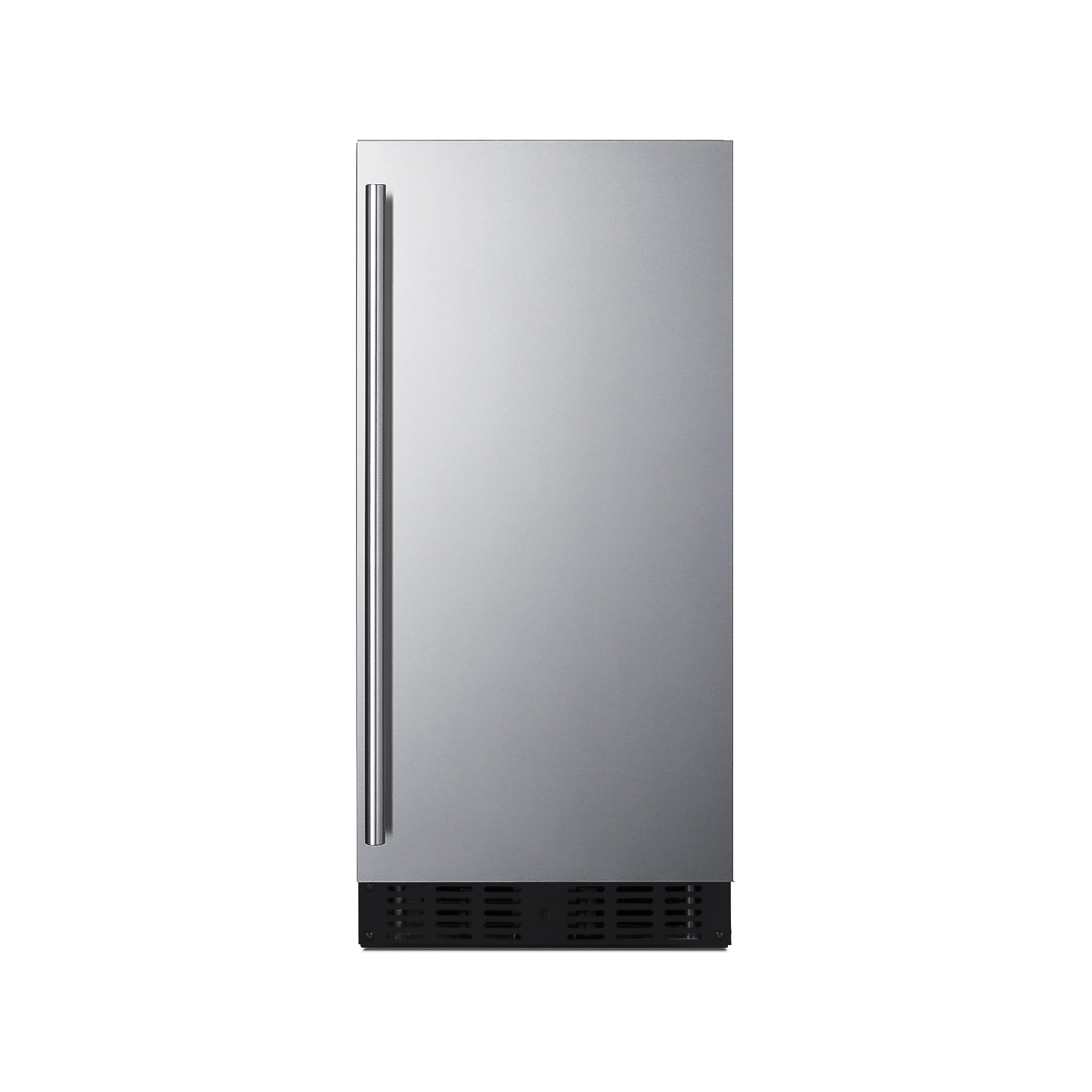

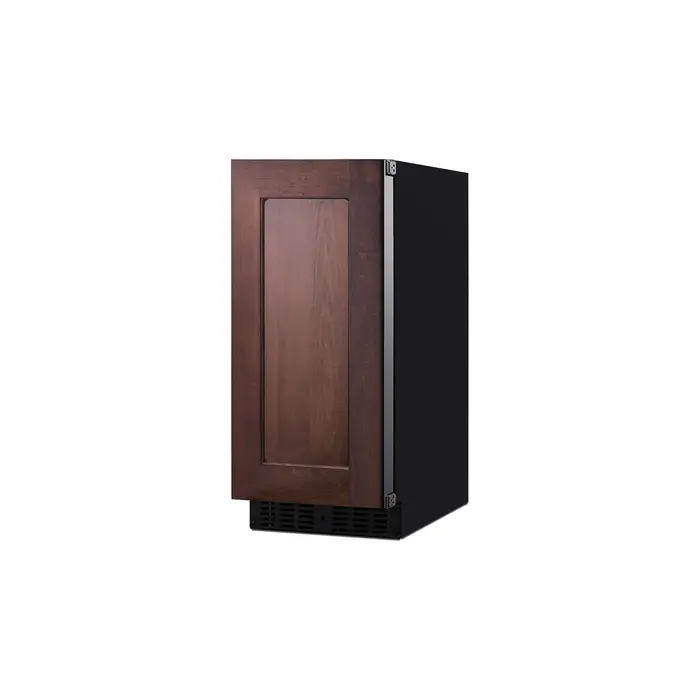

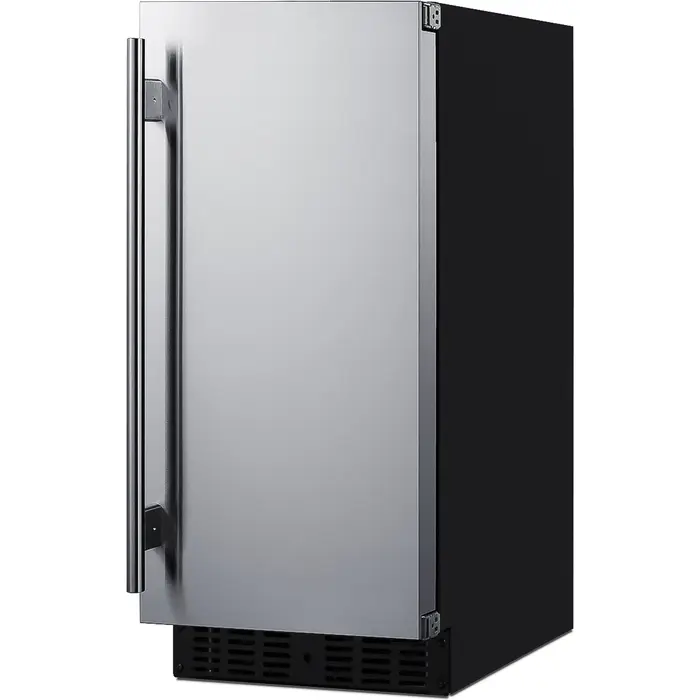

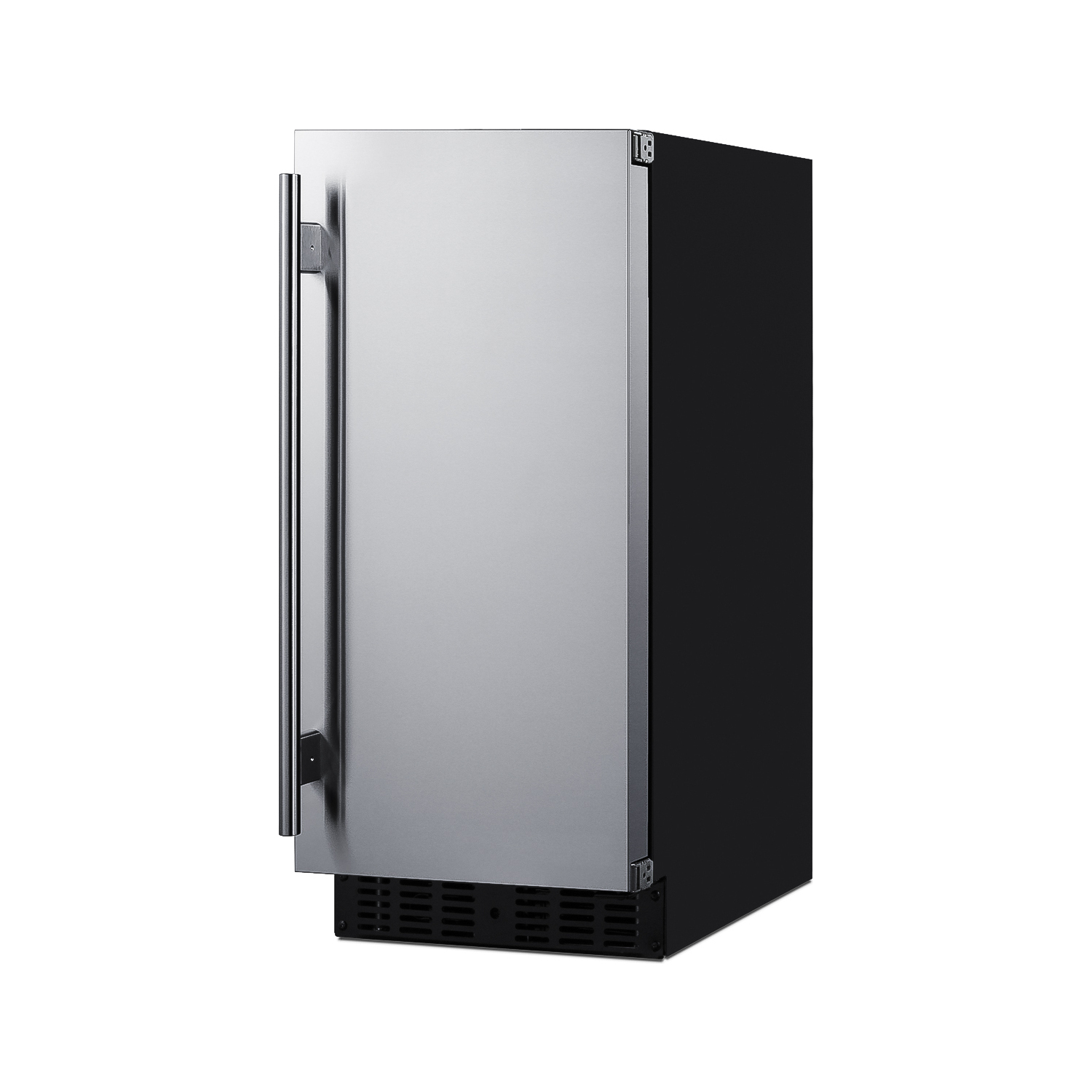

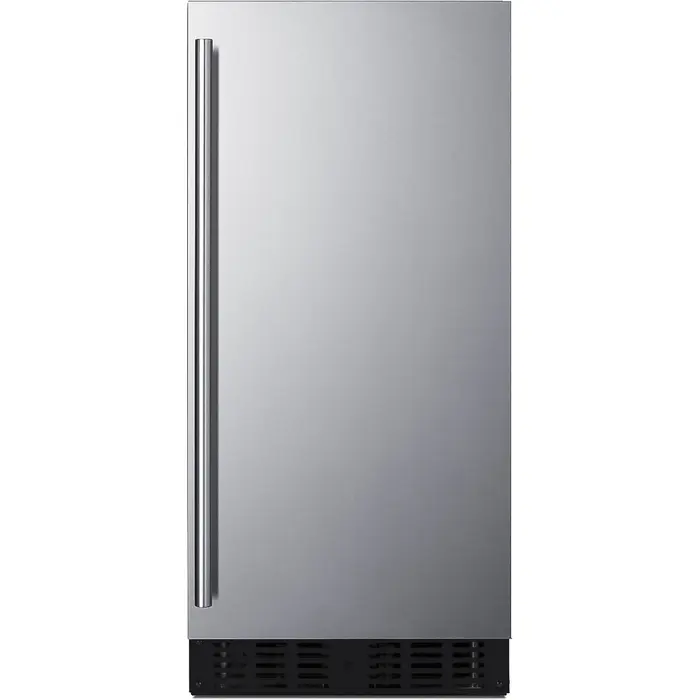

Model ASDS1523 is a 15" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The stainless steel wrapped door is user-reversible and includes a front lock and pro style handle.

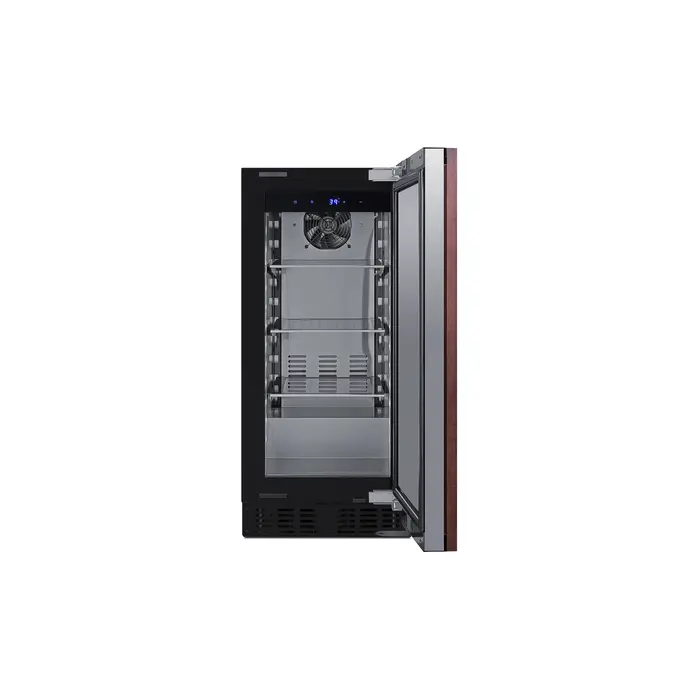

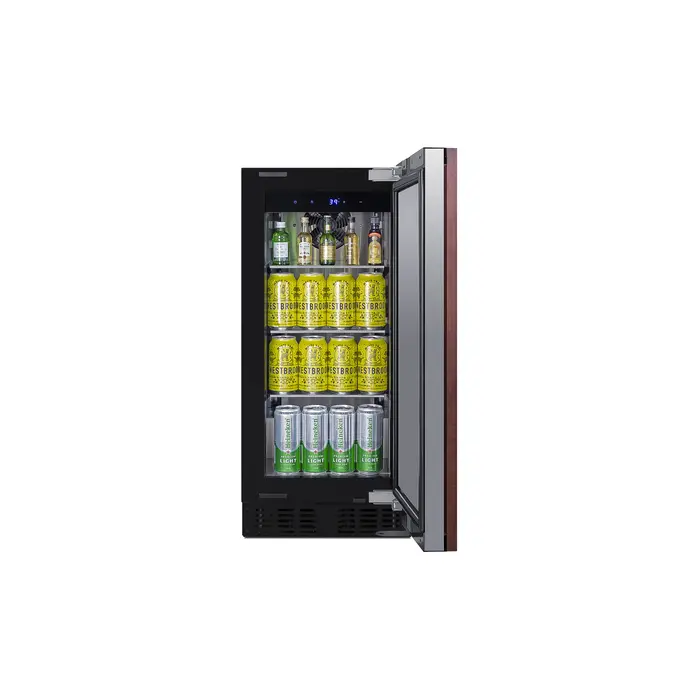

Inside, the ASDS1523 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with Handle 19.75" (50 cm)

Depth with door at 90° 31.25" (79 cm)

Capacity 1.72 cu.ft. (49 L)

Defrost Type Frost-Free

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 235.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 59.0 lbs. (27 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101079523

Refrigerator Features

Sabbath Mode Yes

Door Swing Reversible

Reversible Yes

Height Adjustable Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33 dB

Dimensions

Interior Height 24.25" (62 cm)

Interior Width 10.75" (27 cm)

Interior Depth 12.38" (31 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 10.75" (27 cm)

Compressor Step Depth 5.5" (14 cm)

FEATURES

15" wide all-refrigerator 1.7 cu.ft. interior for residential cold storage

Less than 18" deep Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

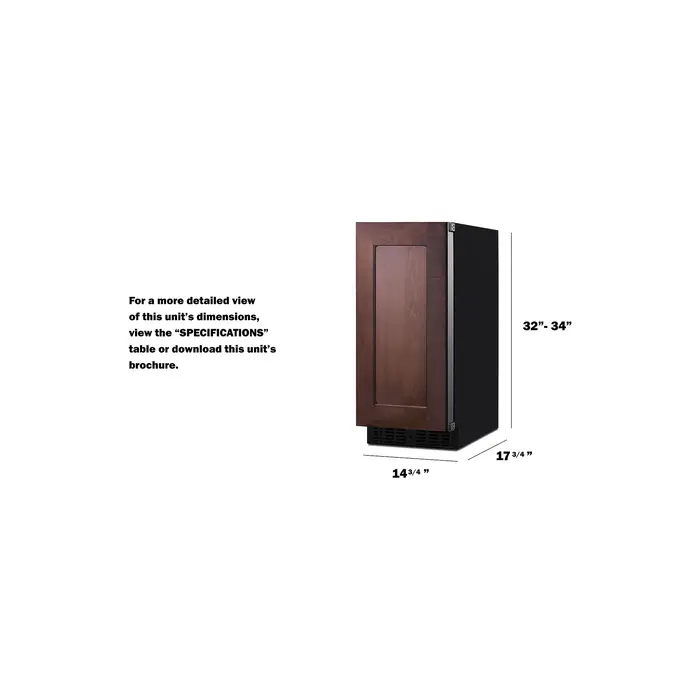

Adjustable height Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior Walls and floor are constructed from stainless steel for added strength and easy cleanup

Stainless steel door Durable construction with a professional look

Factory-installed lock Keyed lock for a secure interior (2 keys included)

Professional handle Includes a full-length pro handle in chrome

Frost-free operation No-frost operation for minimal user maintenance

Fan-forced cooling Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

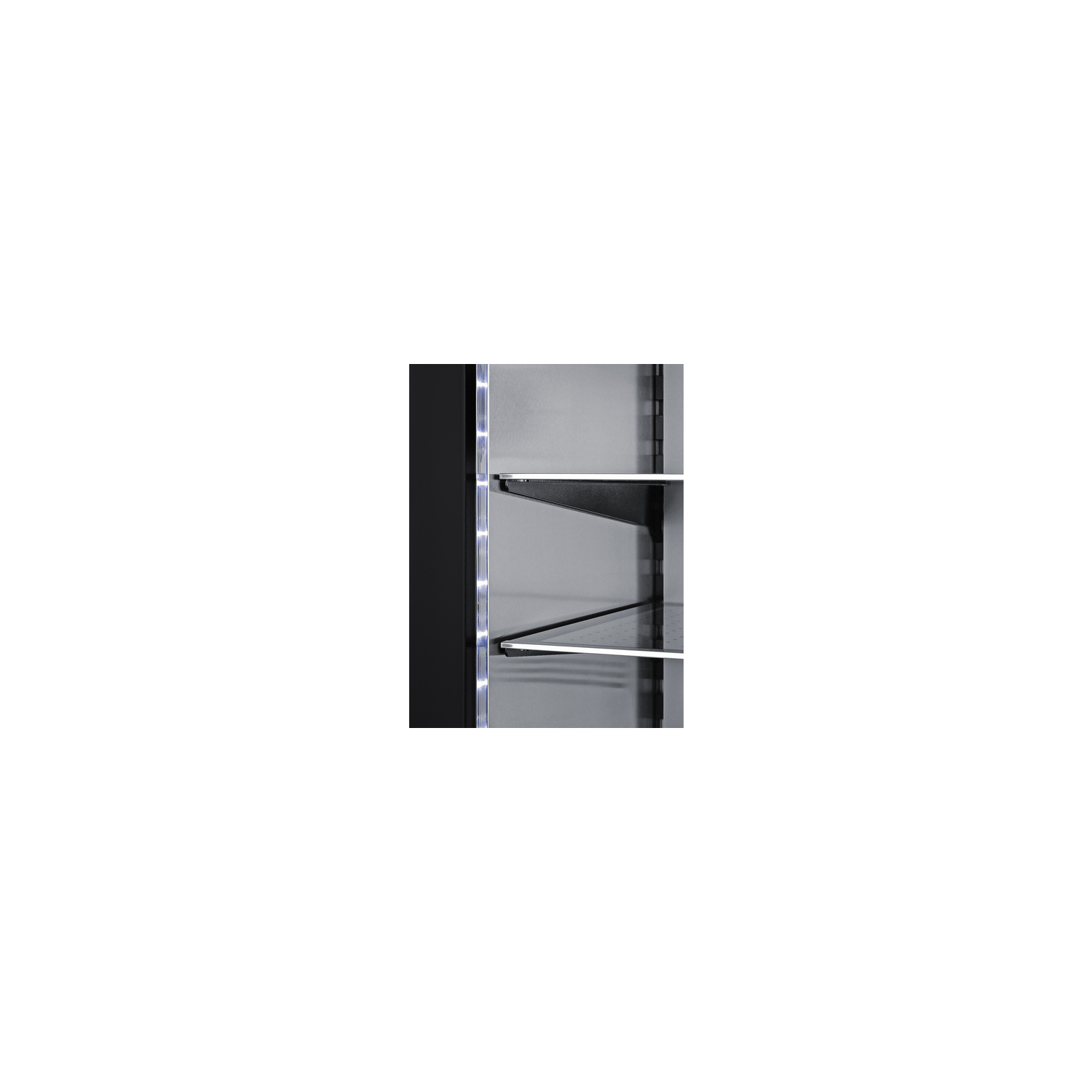

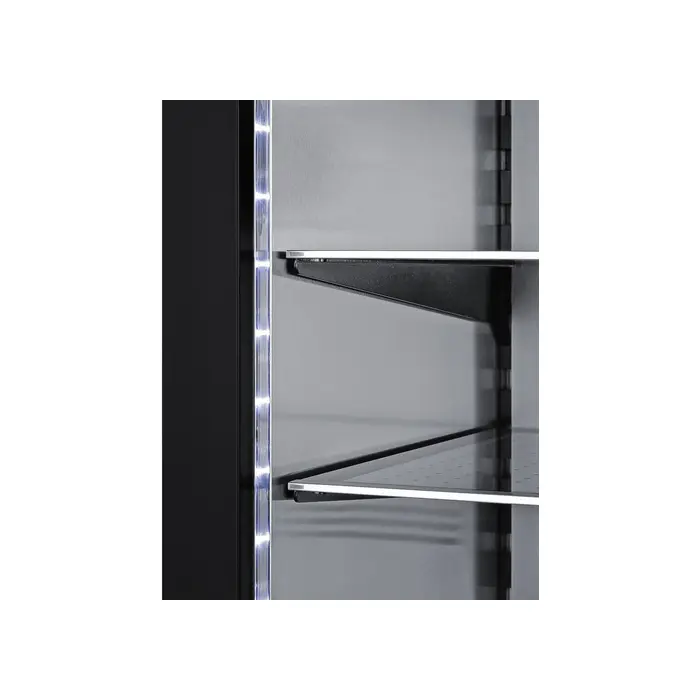

Cantilevered shelving Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

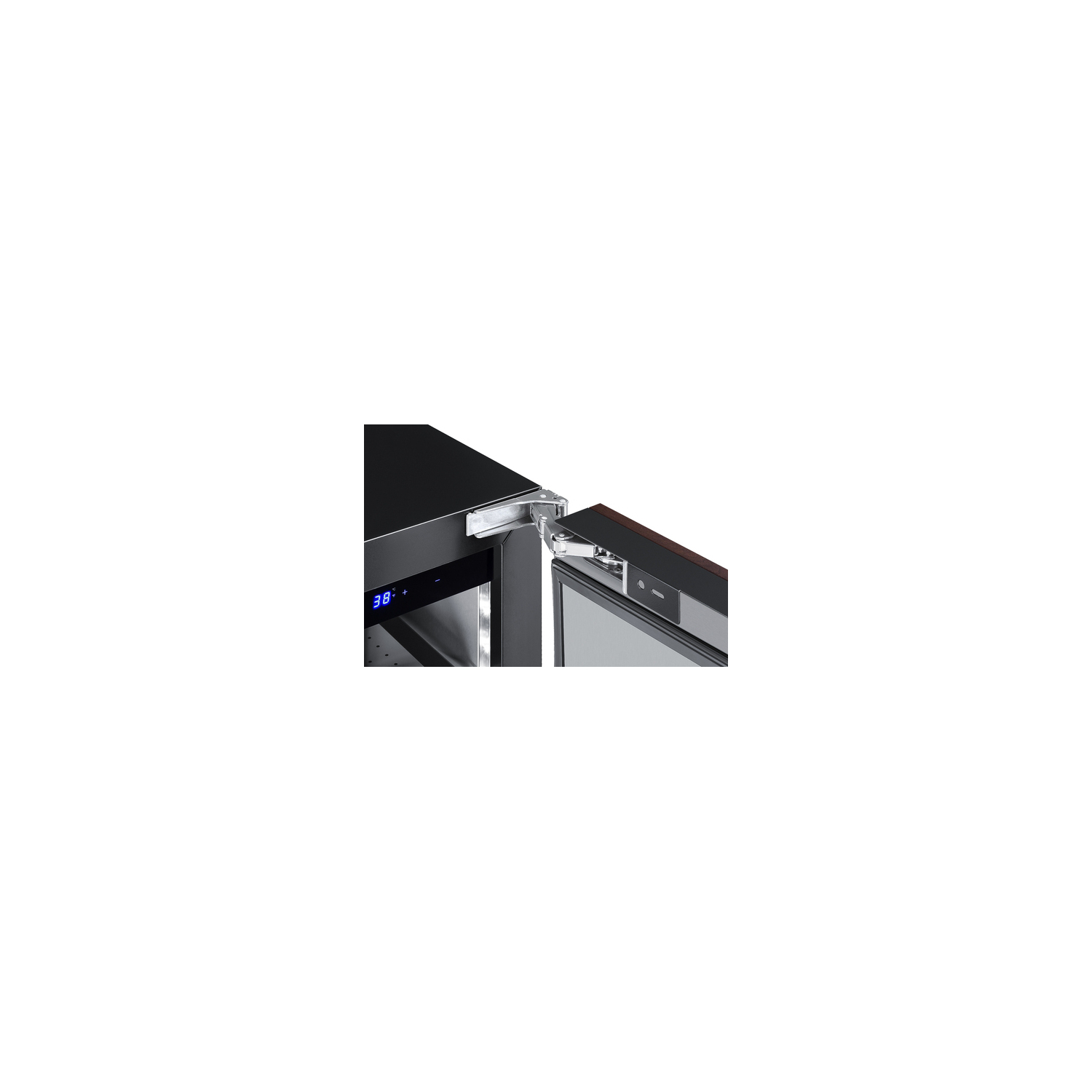

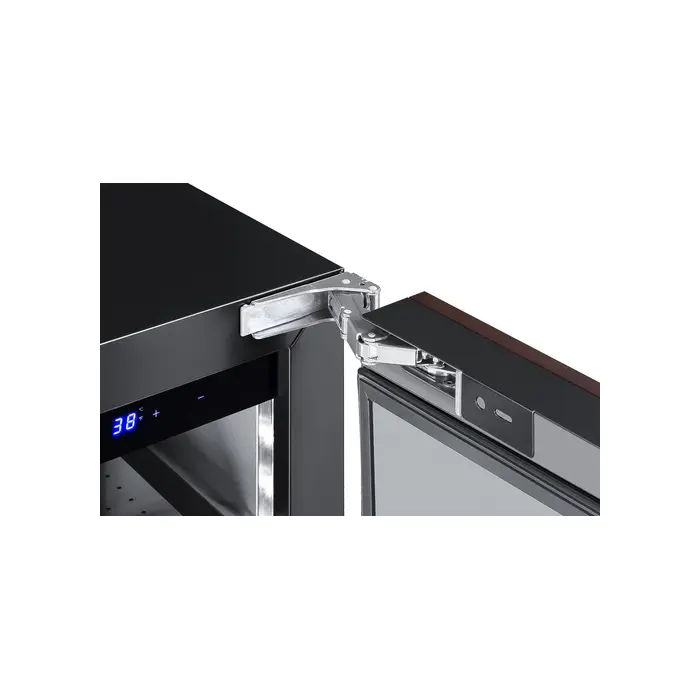

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils that offers easier cleanability

Reversible door User-reversible door swing for added flexibility

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE (ASDS1523.pdf)

TECHNICAL DRAWING (.dwg) (ASDS1523.dwg)

ASSEMBLY DRAWING (ASDS1523-Assembly.pdf)

USE & CARE (ASDS1523-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
