Summit 18 inch deep 15 inch wide undercounter ADA height drawer refrigerator, 7.61101e+011, ASDR1524PNR

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

Model ASDR1524PNR is a 15" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 14.75" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit.

Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for more versatile storage. White LED lighting makes it easy to view stored contents in the top drawer. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ASDR1524PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 15.0" (38 cm)

Width 14.75" (37 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.88" (45 cm)

Depth with door at 90° 29.63" (75 cm)

Capacity 1.7 cu.ft. (48 L)

Defrost Type Frost-Free

Door Stainless Steel/Panel-Ready

Cabinet Stainless Steel

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Sanitation ETL-S

Energy Usage/Year 235.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 65.0 lbs. (29 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101088921

Refrigerator Features

Sabbath Mode Yes

Door Swing Drawer

Height Adjustable Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Interior Drawers Yes

Interior Drawers Qty 2

Temperature Range 36 to 43ºF

Sound Level 32.9 dB

Drawer Dimensions

Interior Height 1 8.0" (20 cm)

Interior Width 1 9.0" (23 cm)

Interior Depth 1 11.25" (29 cm)

Interior Height 2 8.0" (20 cm)

Interior Width 2 9.0" (23 cm)

Interior Depth 2 11.25" (29 cm)

Dimensions

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 9.0" (23 cm)

Compressor Step Depth 4.75" (12 cm)

FEATURES

2-Drawer All-Refrigerator 15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers

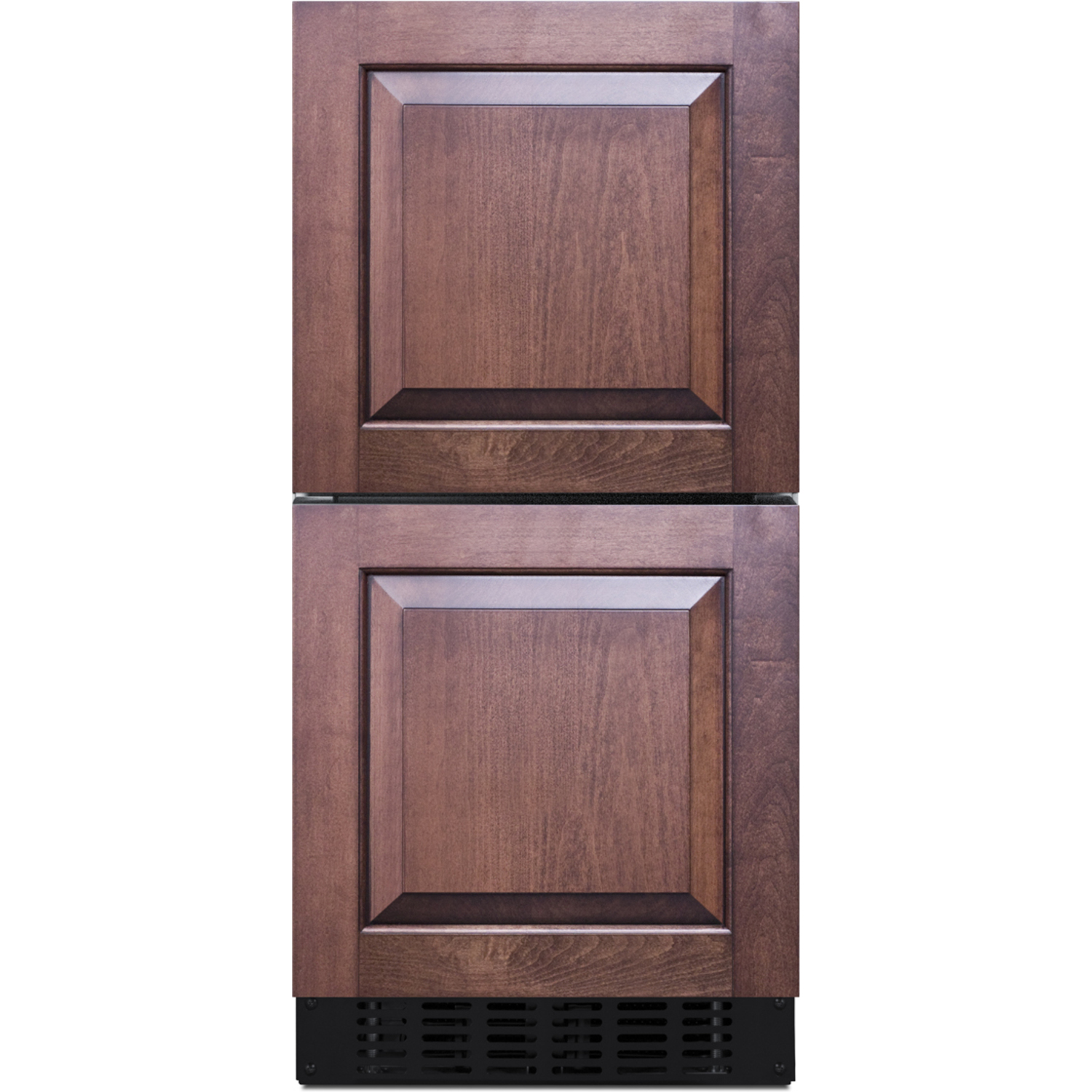

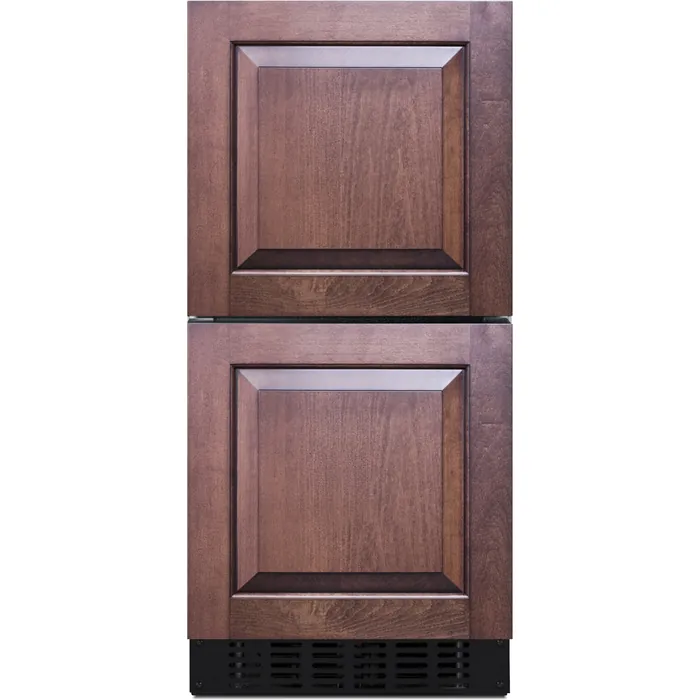

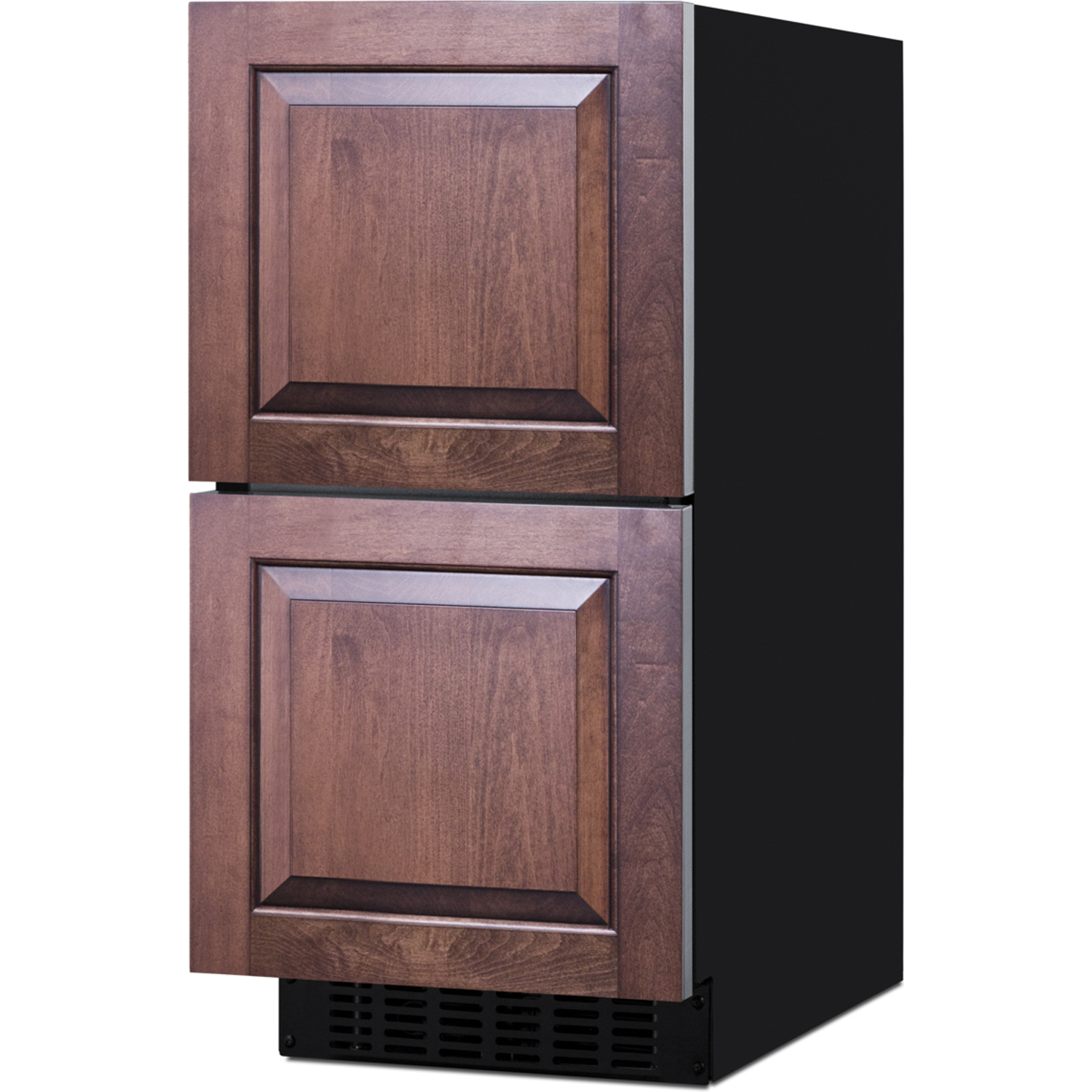

Panel-ready drawer fronts Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry

Stainless steel front finish Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels

Less than 18" deep Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design Sized just under 32" high to allow installation under lower ADA compliant counters

Adjustable height Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings

Stainless steel drawers Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

Professional handles Stainless steel handles add style to any setting

Frost-free No-frost operation for minimal user maintenance

Digital thermostat Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

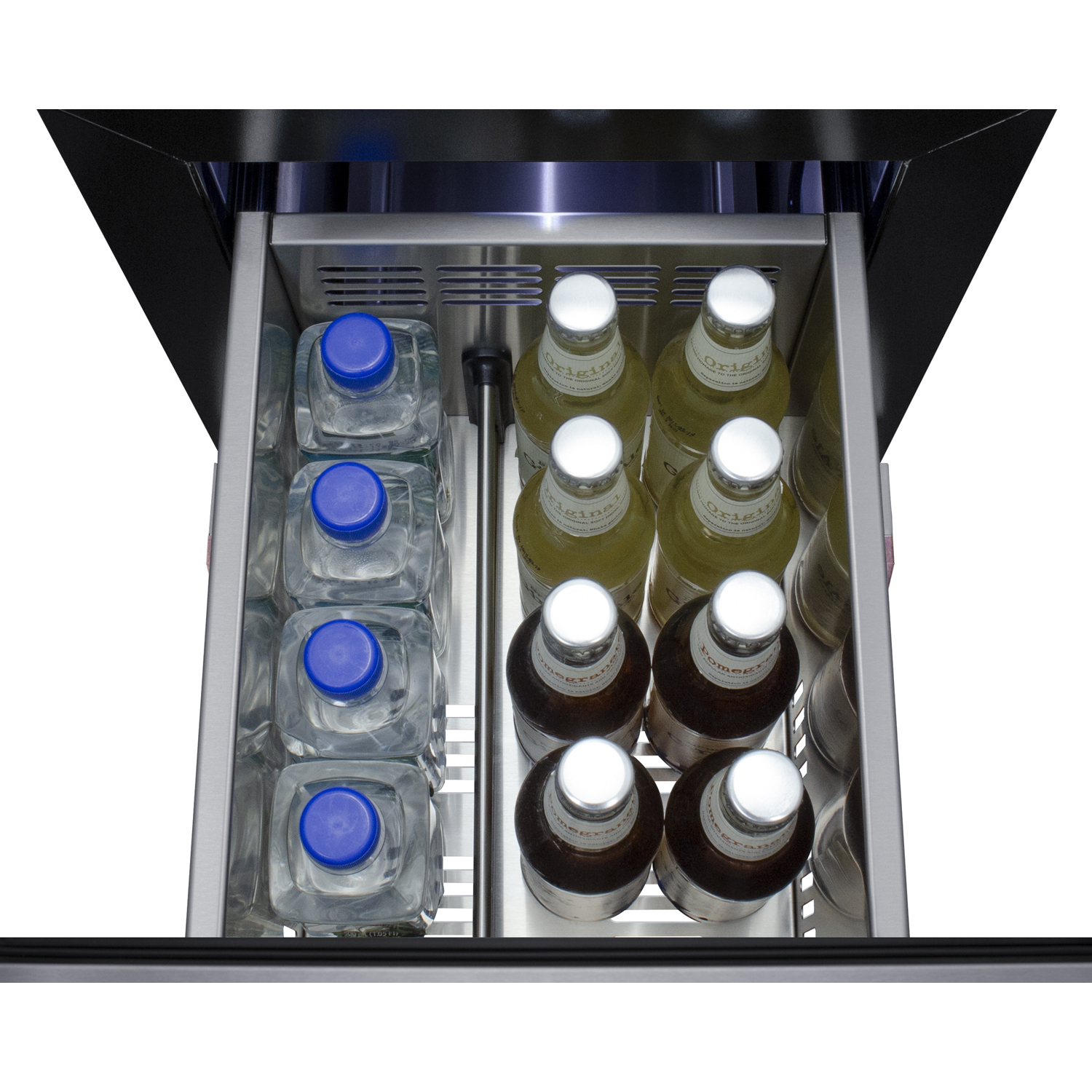

Drawer dividers Two adjustable dividers provide flexibility when organizing the interiors

Temperature alarm Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm Audible alarm will sound if either drawer is left open longer than one minute

Sabbath mode Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock Disables digital controls after two minutes of activity for added safety

Temperature memory function Unit will restore the most recent temperature settings after losing power

Sabbath mode Optional feature disables alarms, interior light, and displays for up to 96 hours

Right-angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils for easier cleanability

Fully finished black cabinet Allows the unit to be used freestanding

Fan-forced cooling Provides for efficient, even cooling of the entire unit

Temperature memory Unit will retain temperature settings after losing power

Anti-tip bracket Included and recommended for user-installation to reduce the risk of tipping

Commercially approved ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
