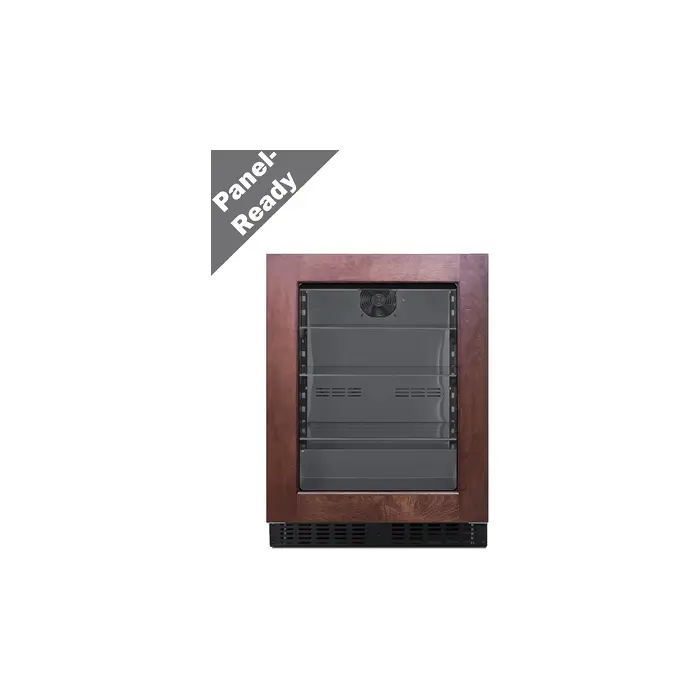

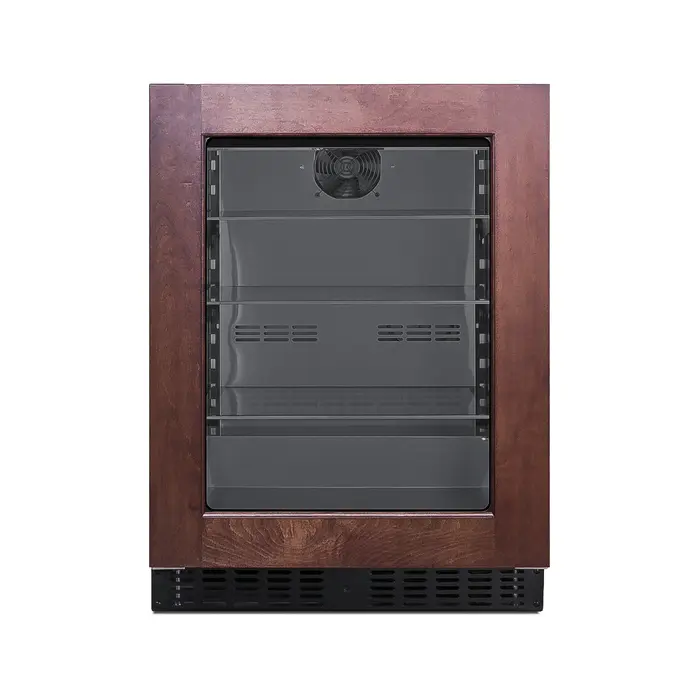

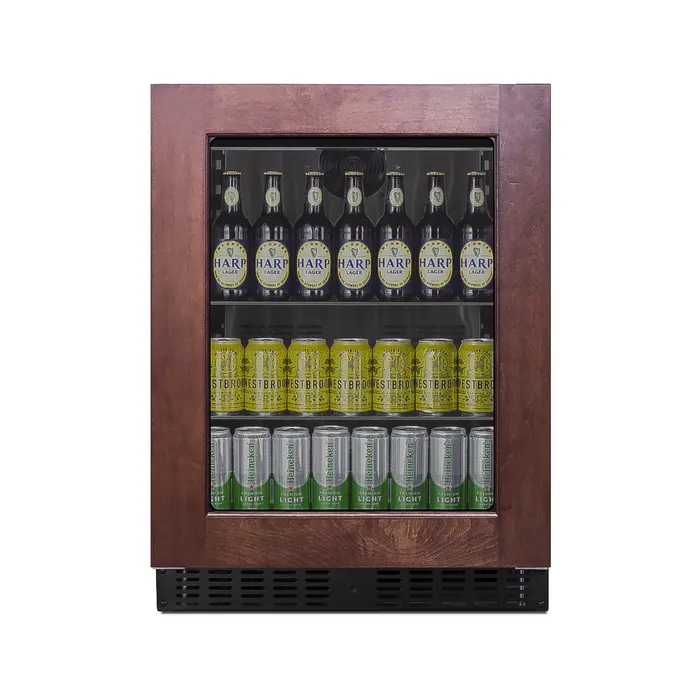

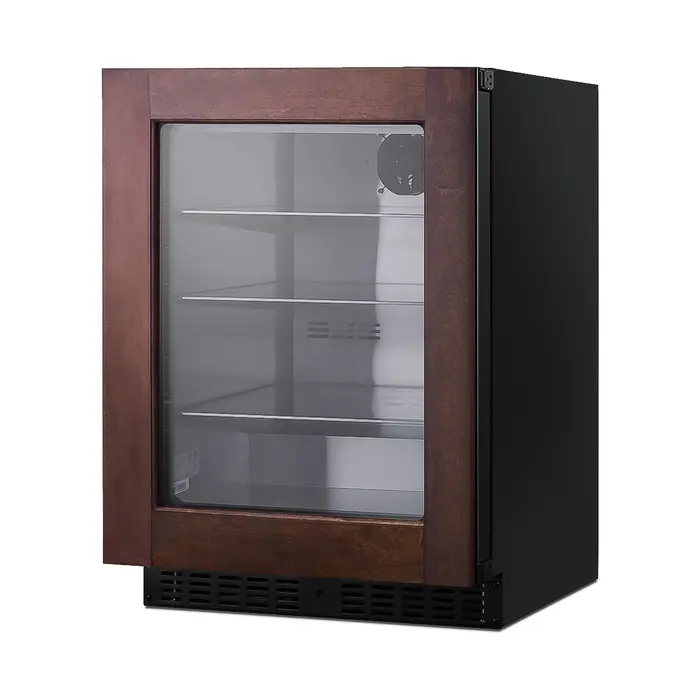

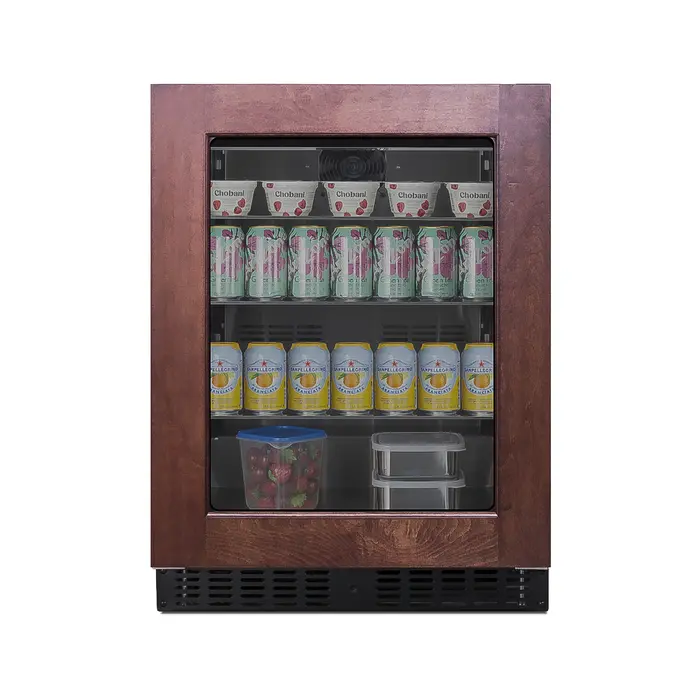

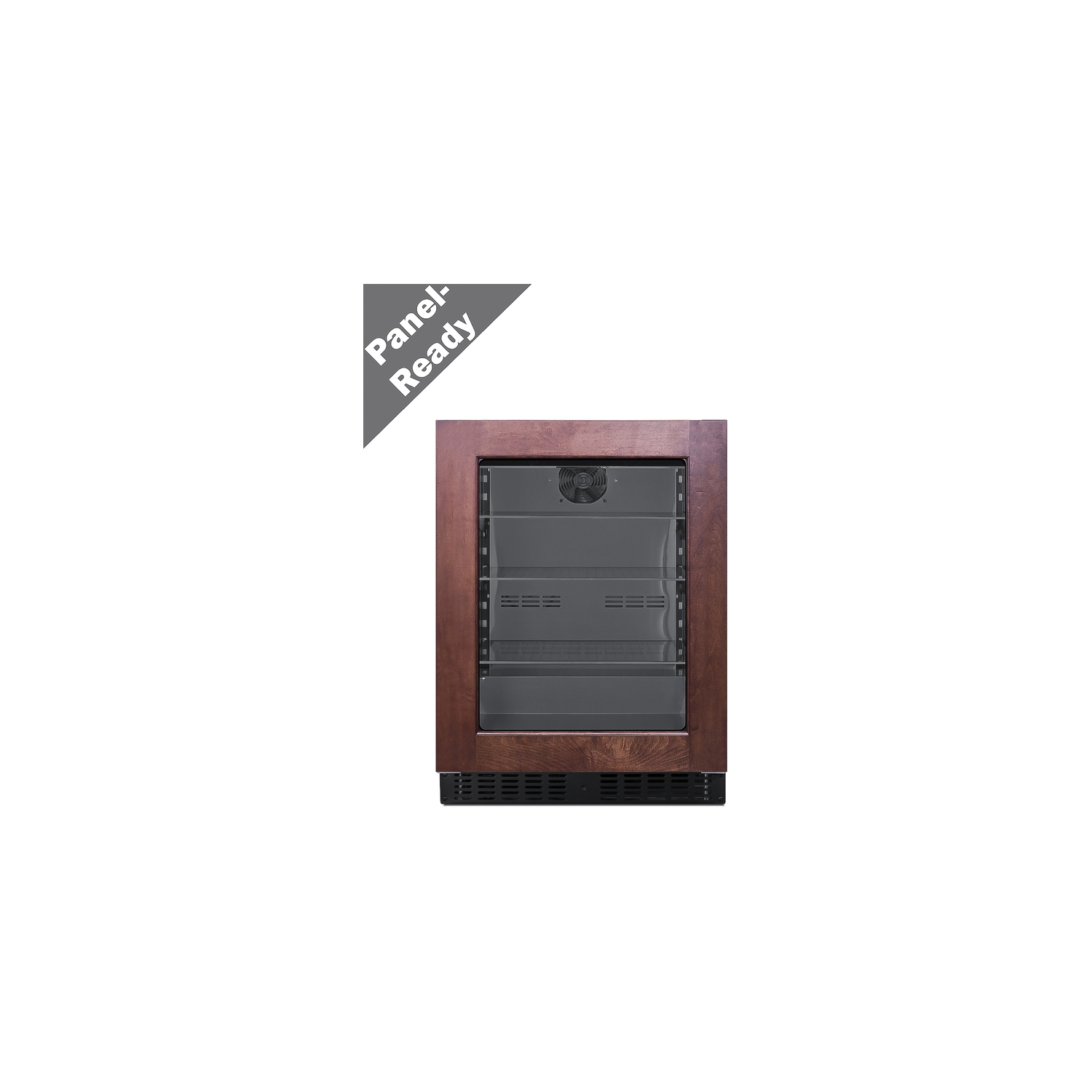

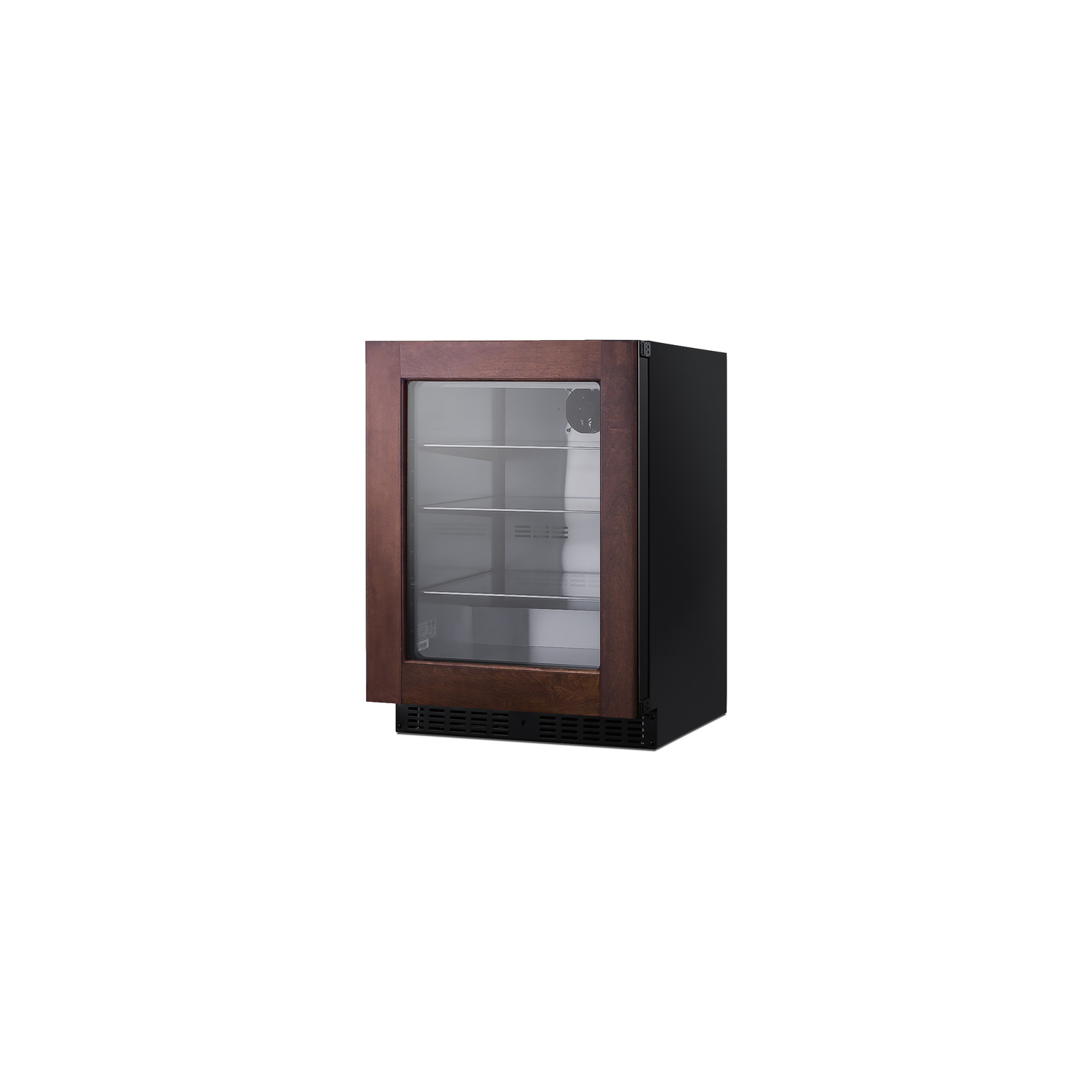

Summit 18 inch deep 24 inch wide undercounter ADA height beverage center, 7.61101e+011, ASDG2411

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

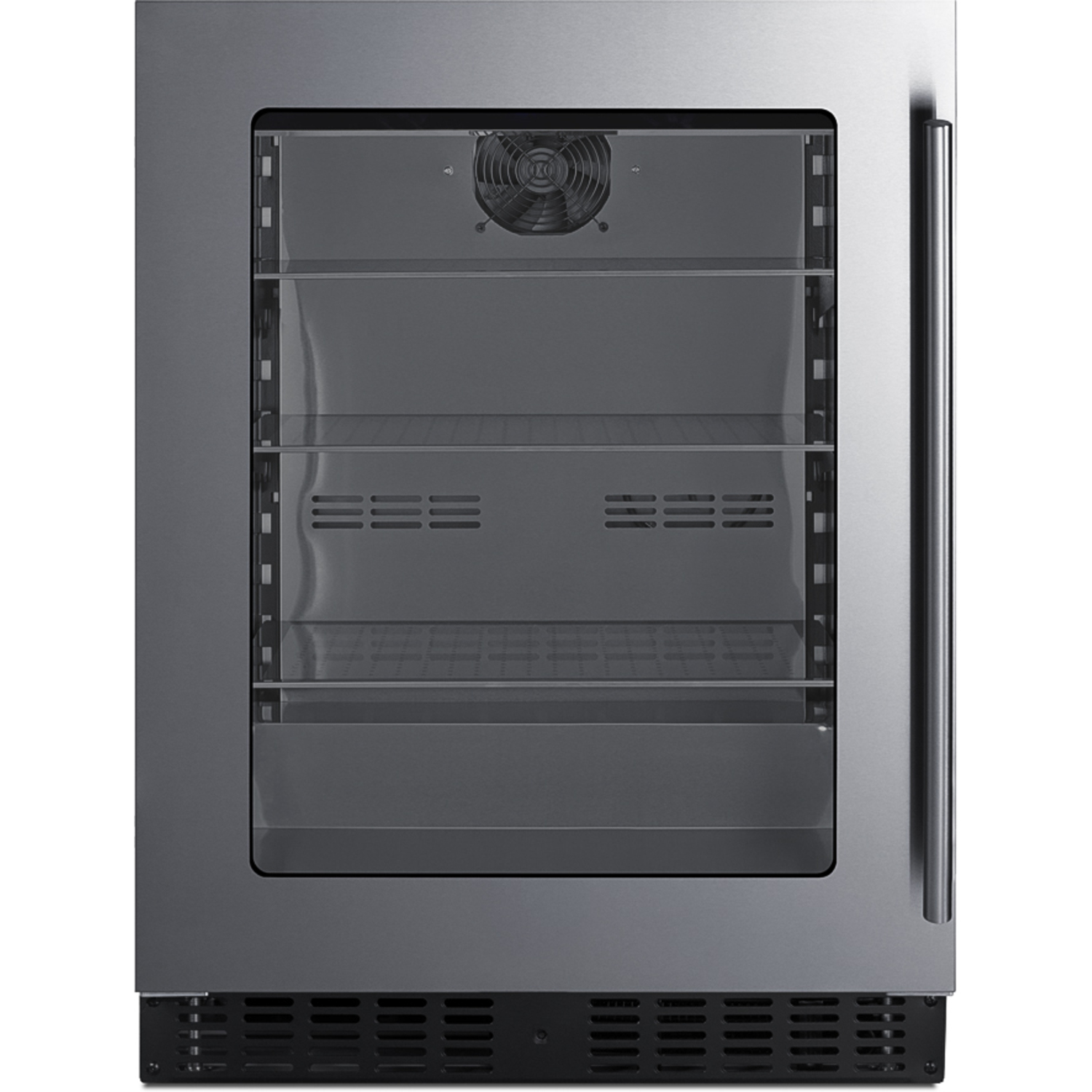

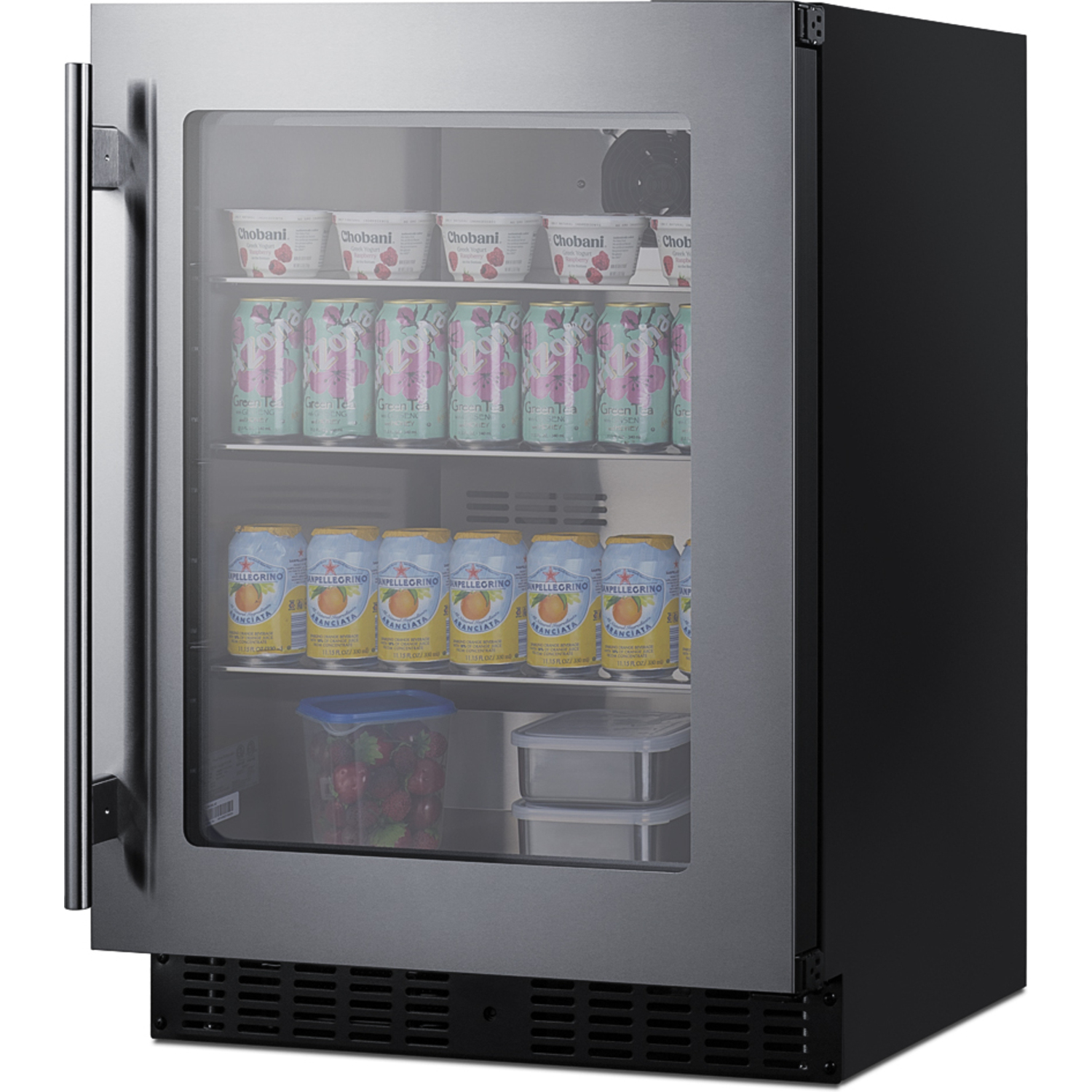

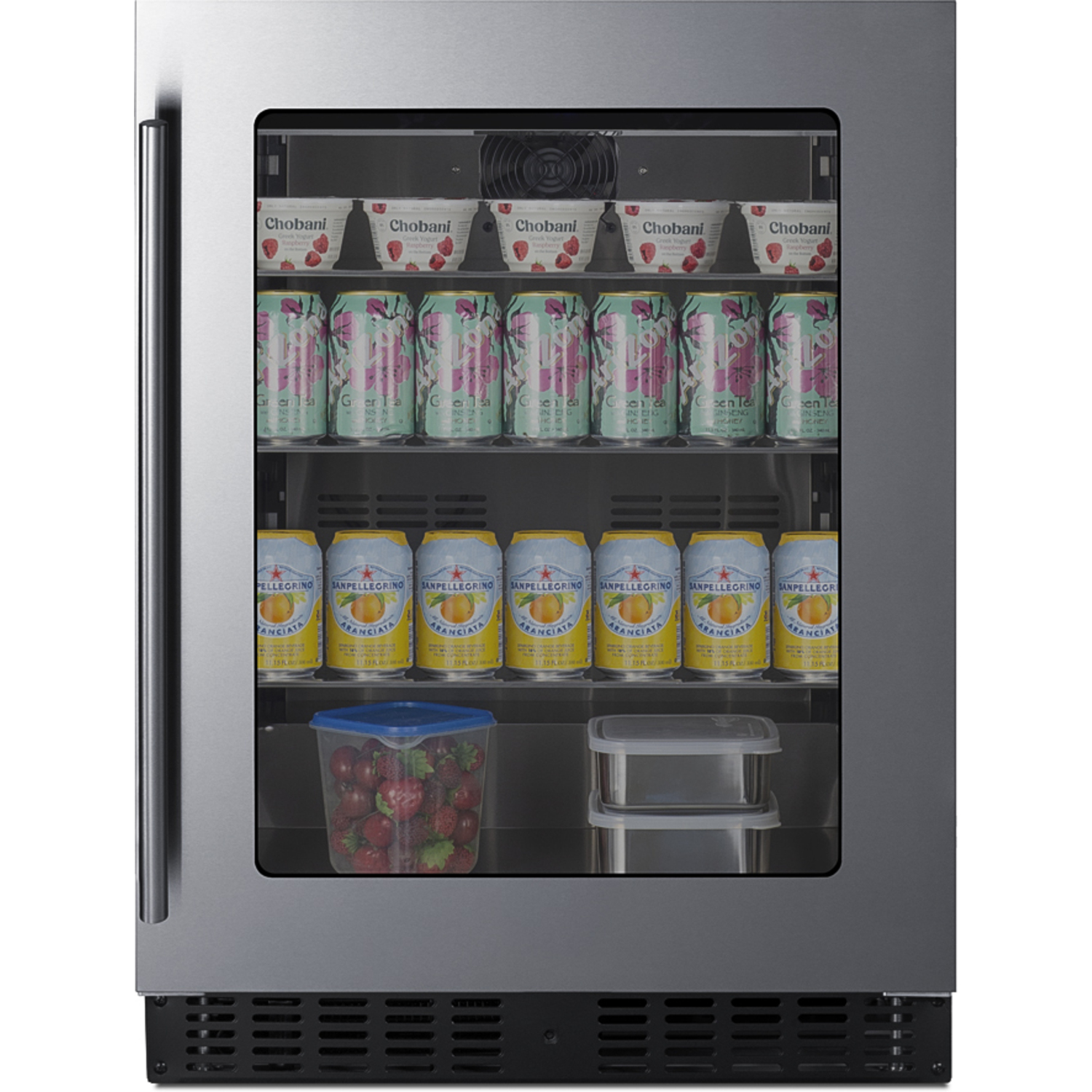

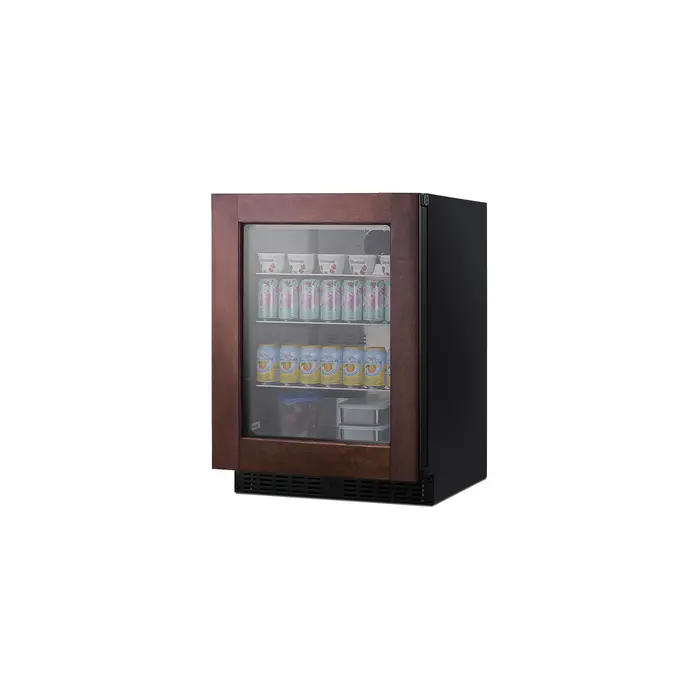

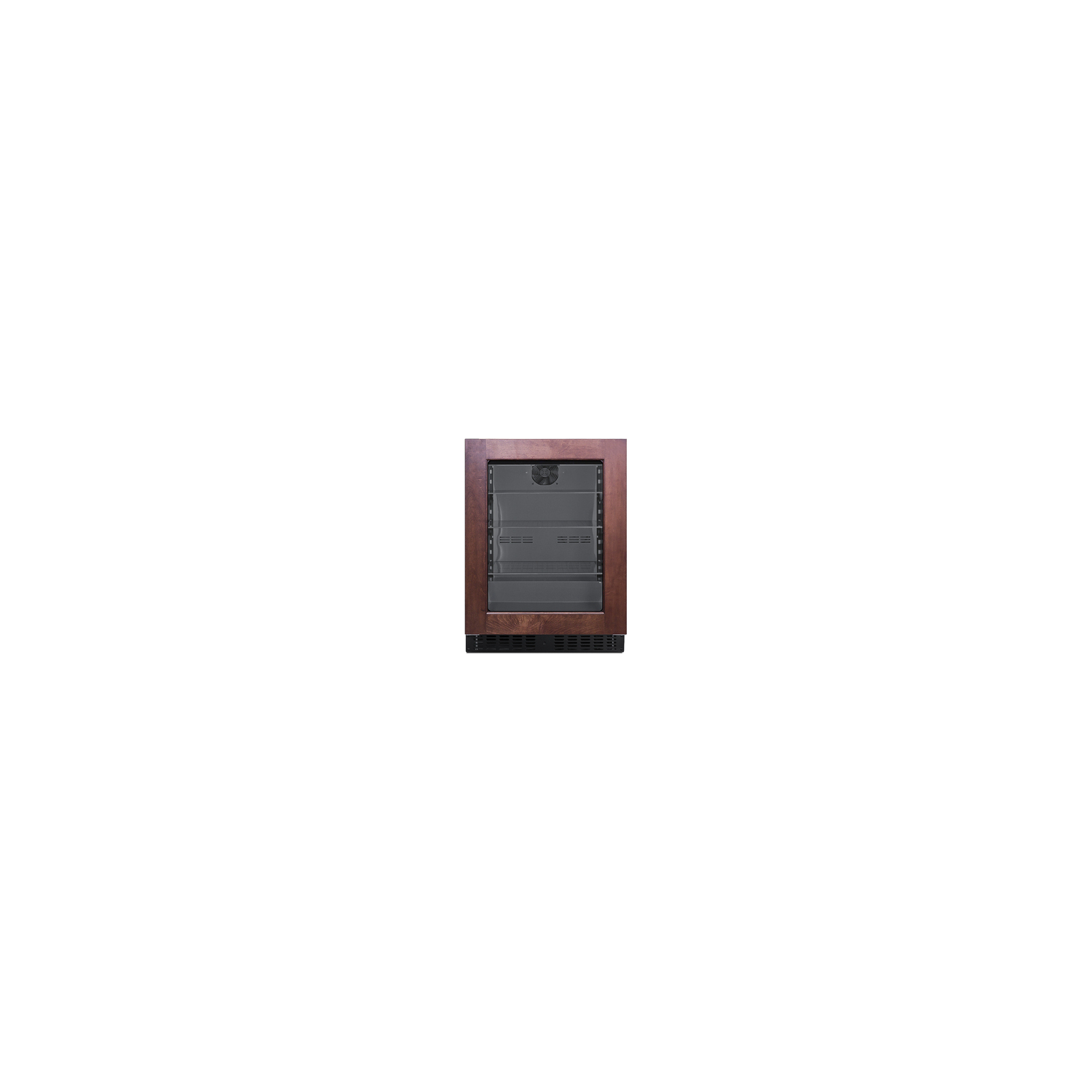

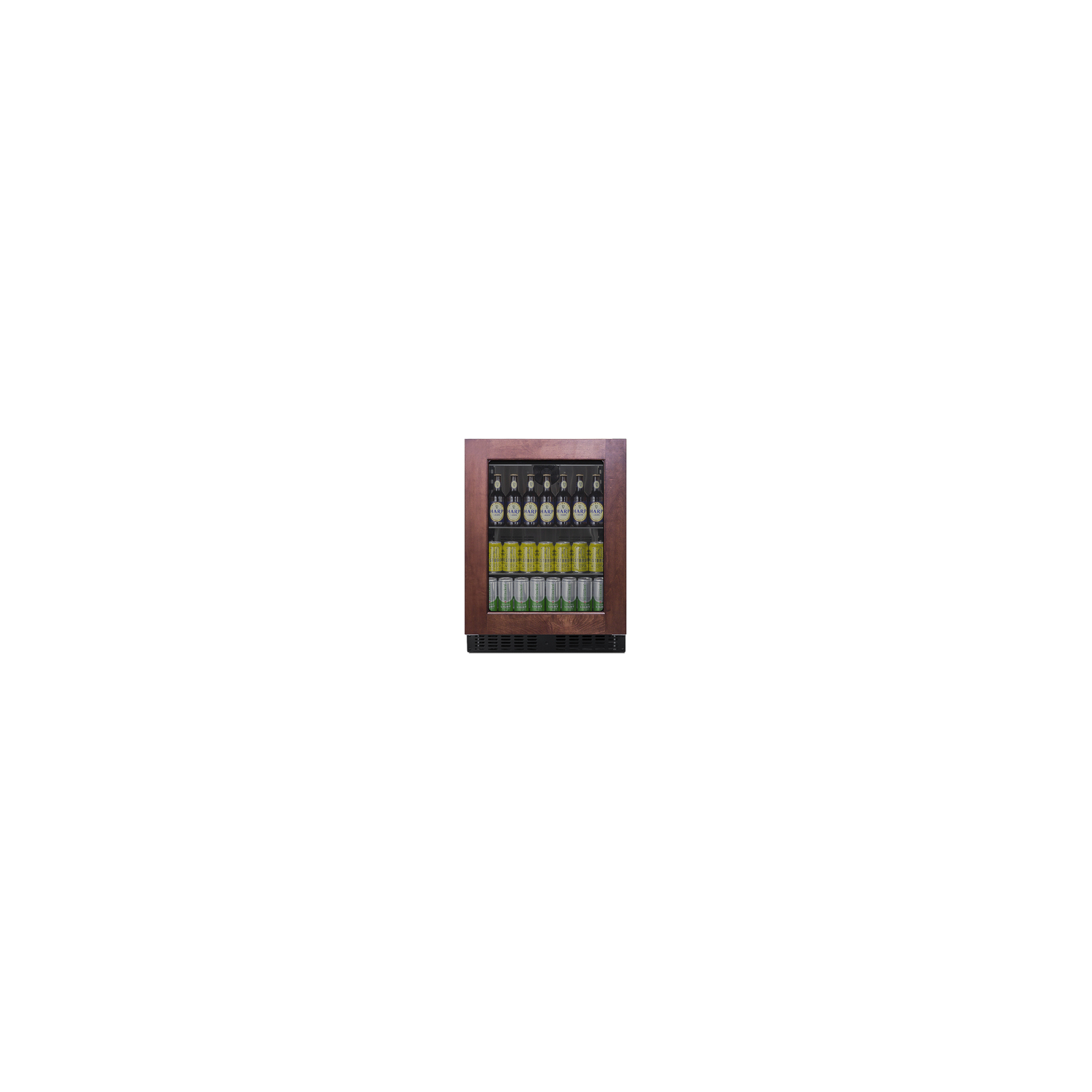

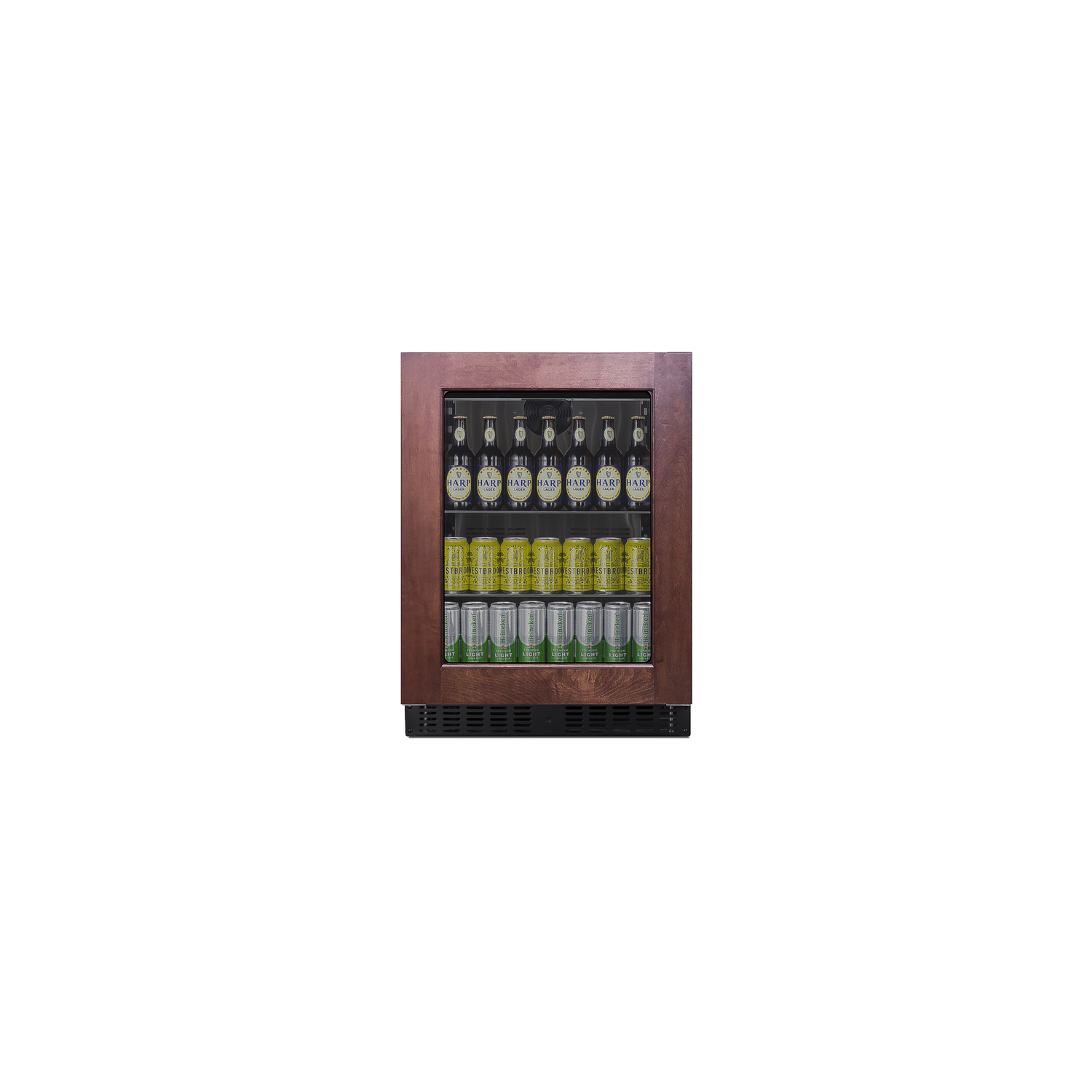

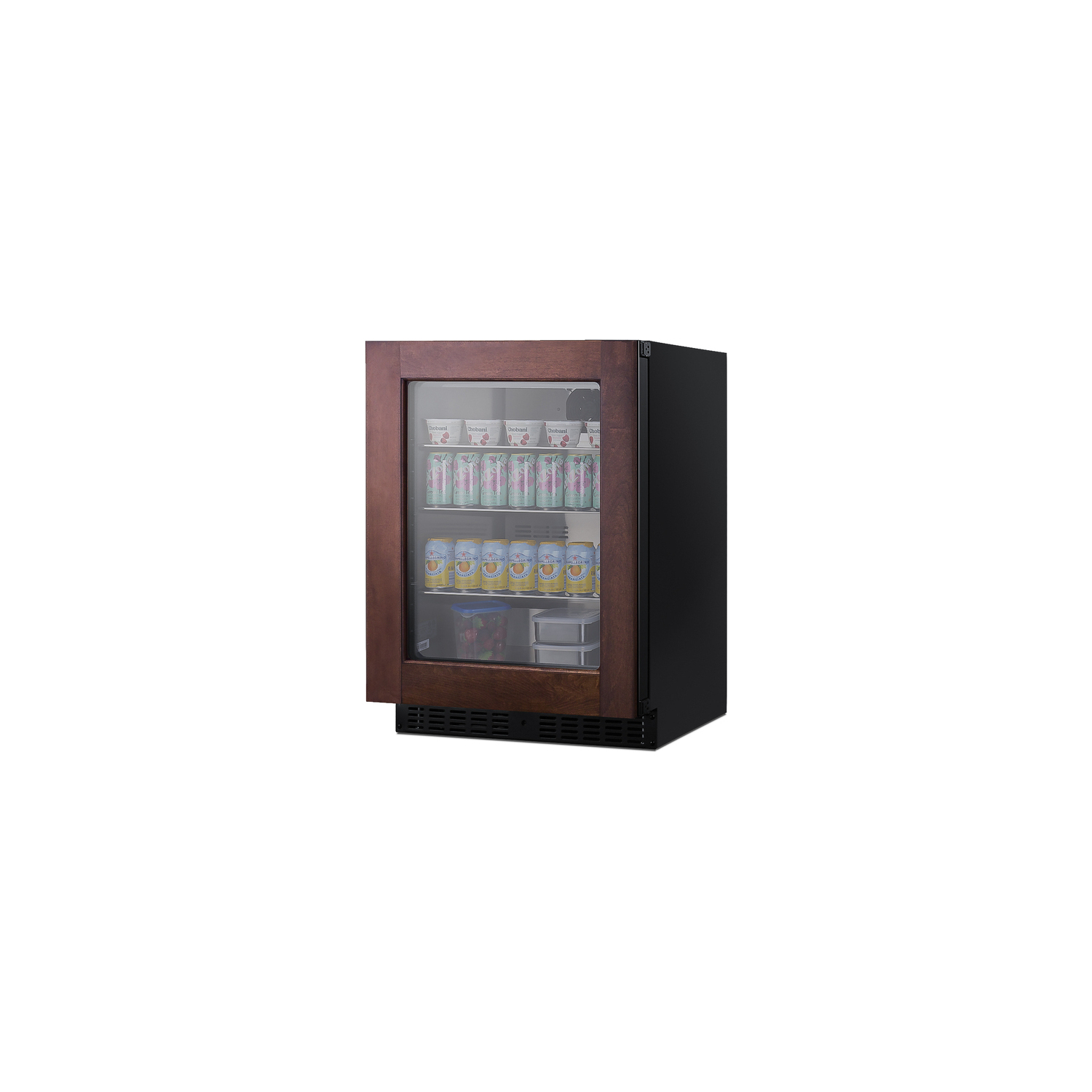

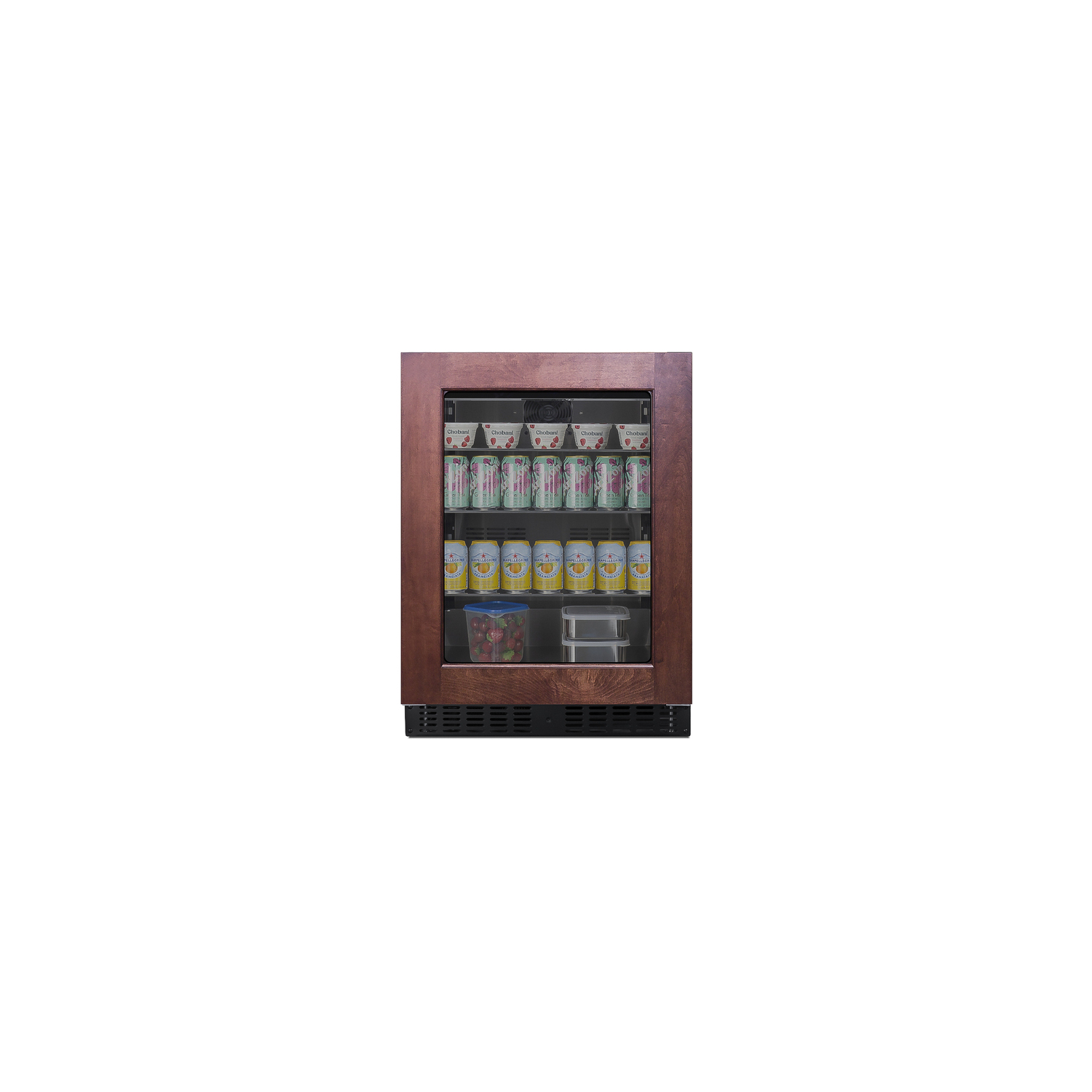

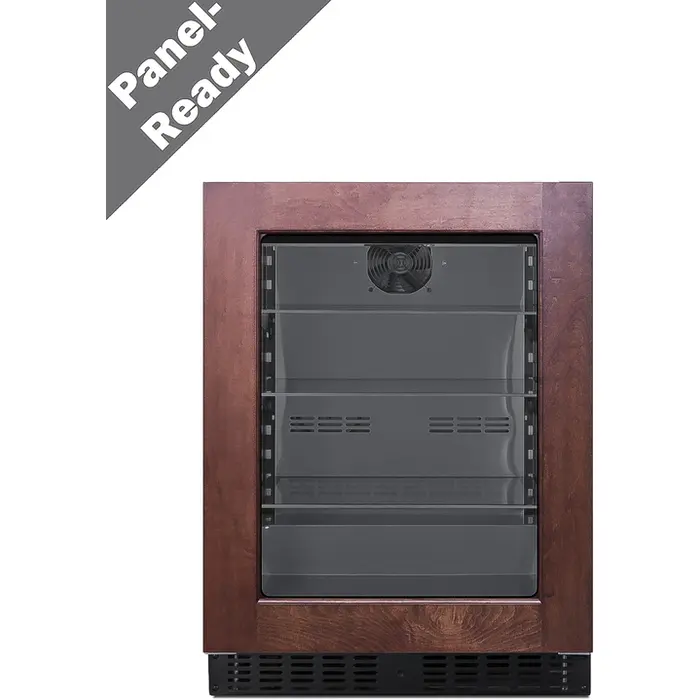

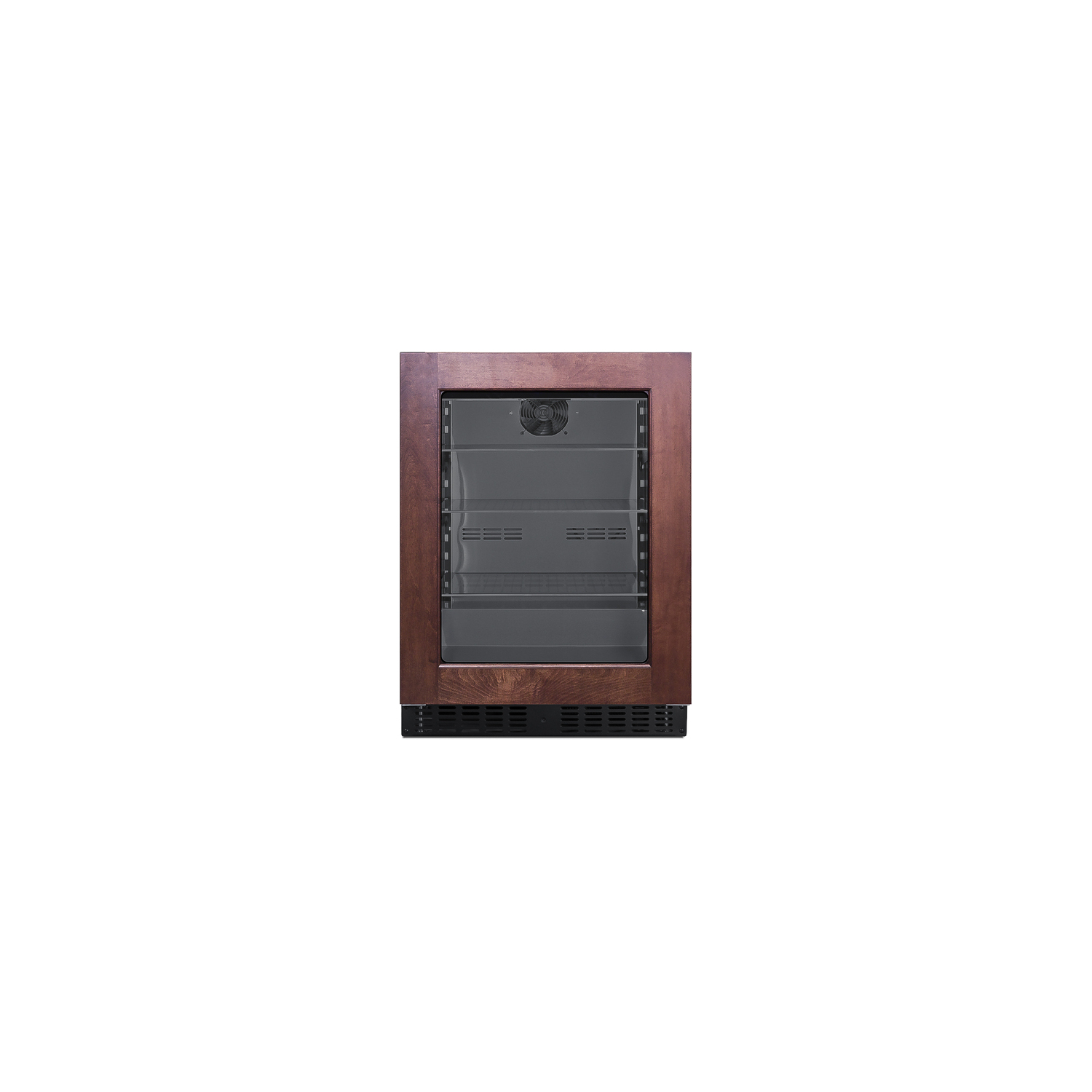

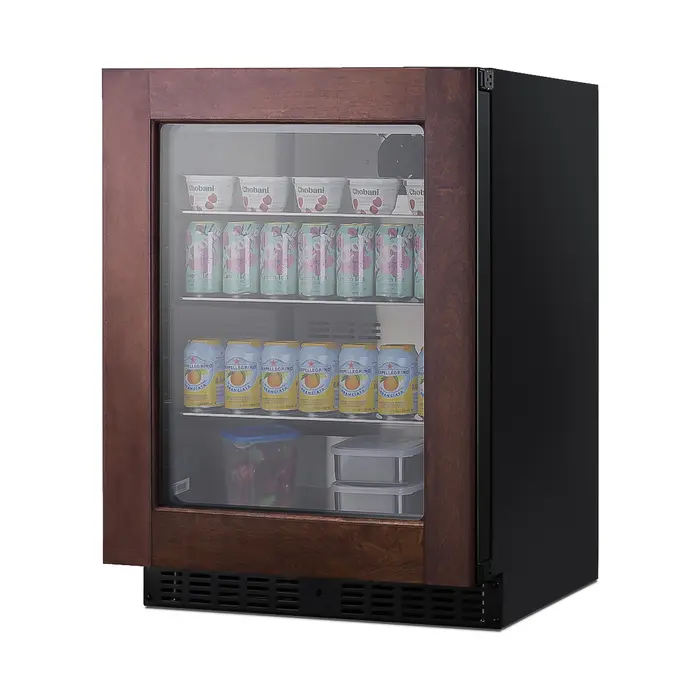

Model ASDG2411 is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock.

Inside, the ASDG2411 features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A commercial grade cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412 wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Nominal Width 24.0" (61 cm)

Width 23.38" (59 cm)

Nominal Depth 18.0" (46 cm)

Depth 17.75" (45 cm)

Depth with Handle 19.63" (50 cm)

Depth with door at 90° 39.88" (101 cm)

Capacity 3.25 cu.ft. (92 L)

Defrost Type Frost-Free

Door Glass

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 285.0kWh/year

Amps 1.0

Voltage/Frequency 115 V AC/60 Hz

Weight 120.0 lbs. (54 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101079455

Refrigerator Features

Sabbath Mode Yes

Door Swing RHD

Reversible Yes

Height Adjustable Yes

Shelf Type Glass

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior and Exterior

Refrigerant Type R600a

Refrigerant Amount 1.38oz.

High Side PSI 270.0

Low Side PSI 105.0

Level Legs Qty 4

Interior Light Yes

Temperature Range 36 to 43ºF

Sound Level 33.1 dB

Dimensions

Interior Height 24.5" (62 cm)

Interior Width 19.5" (50 cm)

Interior Depth 12.25" (31 cm)

Compressor Step Height 3.75" (10 cm)

Compressor Step Width 19.5" (50 cm)

Compressor Step Depth 4.5" (11 cm)

FEATURES

24" wide beverage center 3.25 cu.ft. interior for residential cold storage

Less than 18" deep Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design 32" height allows easy installation under lower ADA compliant counters

Adjustable height Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior Walls and floor are constructed from stainless steel for added strength and easy cleanup

Double pane tempered glass door Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock Keyed lock for a secure interior (2 keys included)

Professional handle Stainless steel handle completes the look

Digital thermostat Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

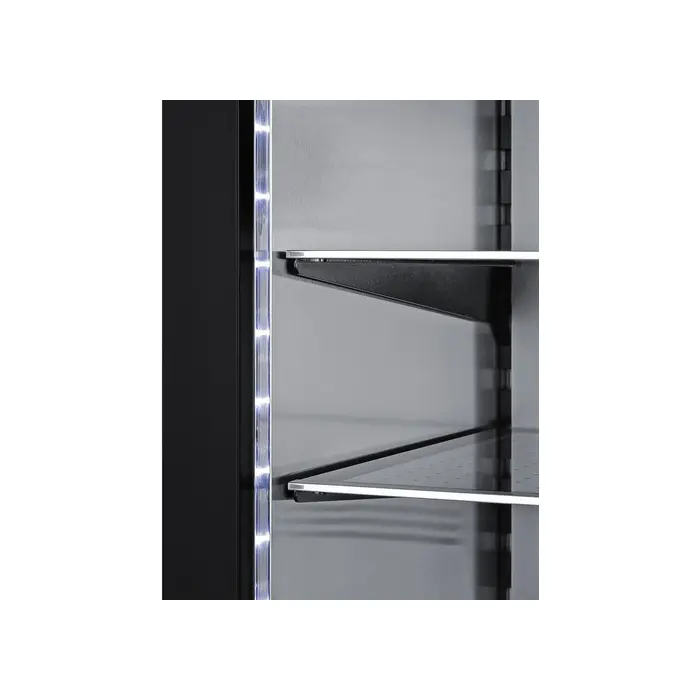

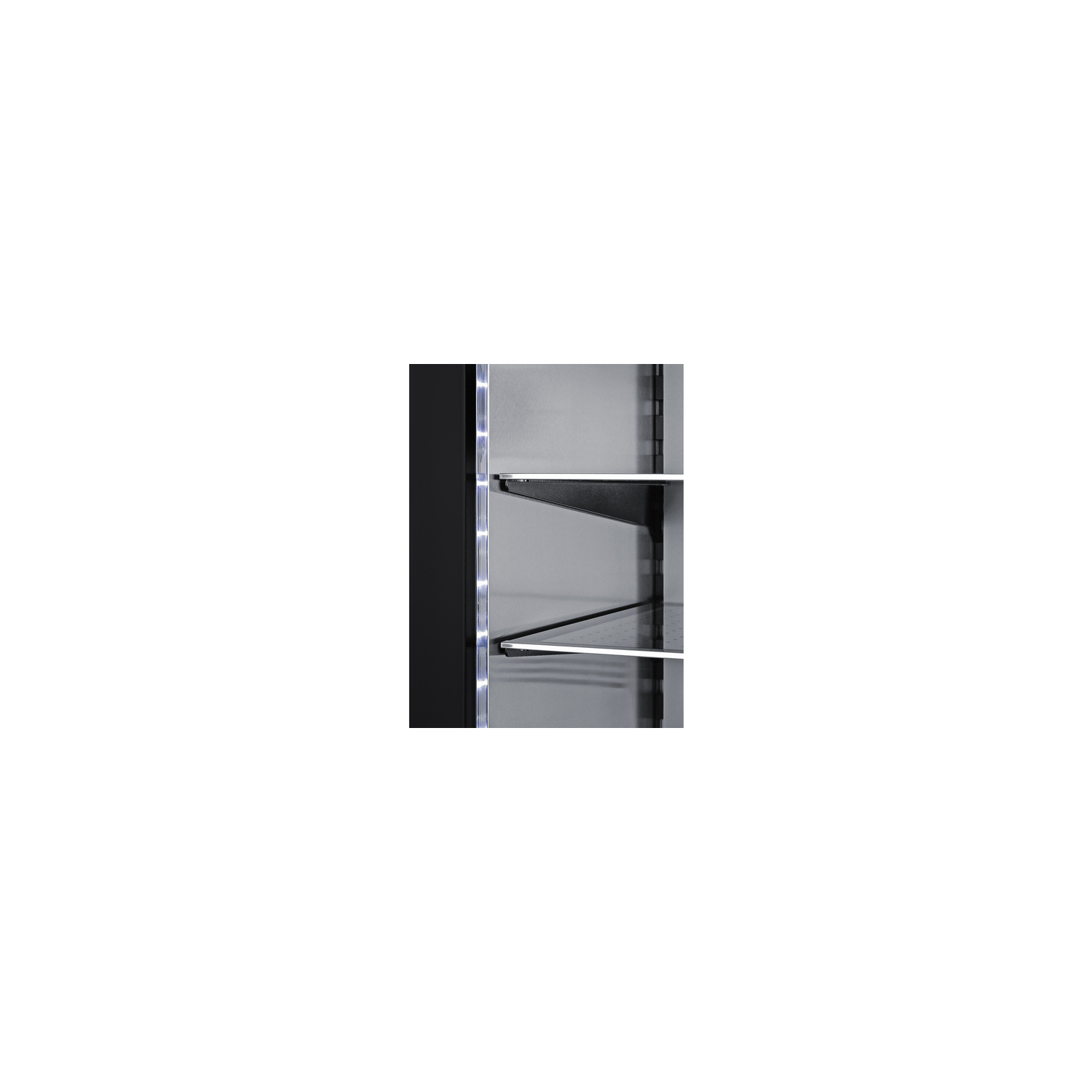

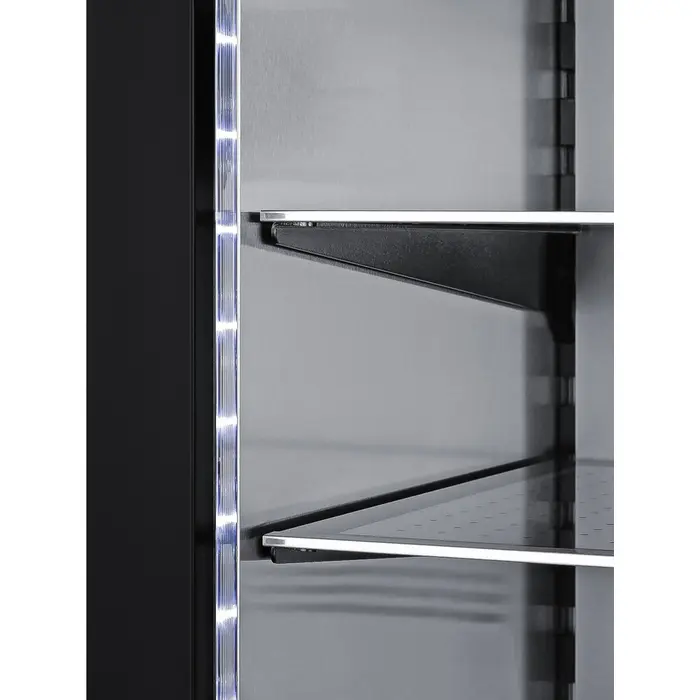

Dimmable LED lighting Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation No-frost operation for minimum user maintenance

Internal fan Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

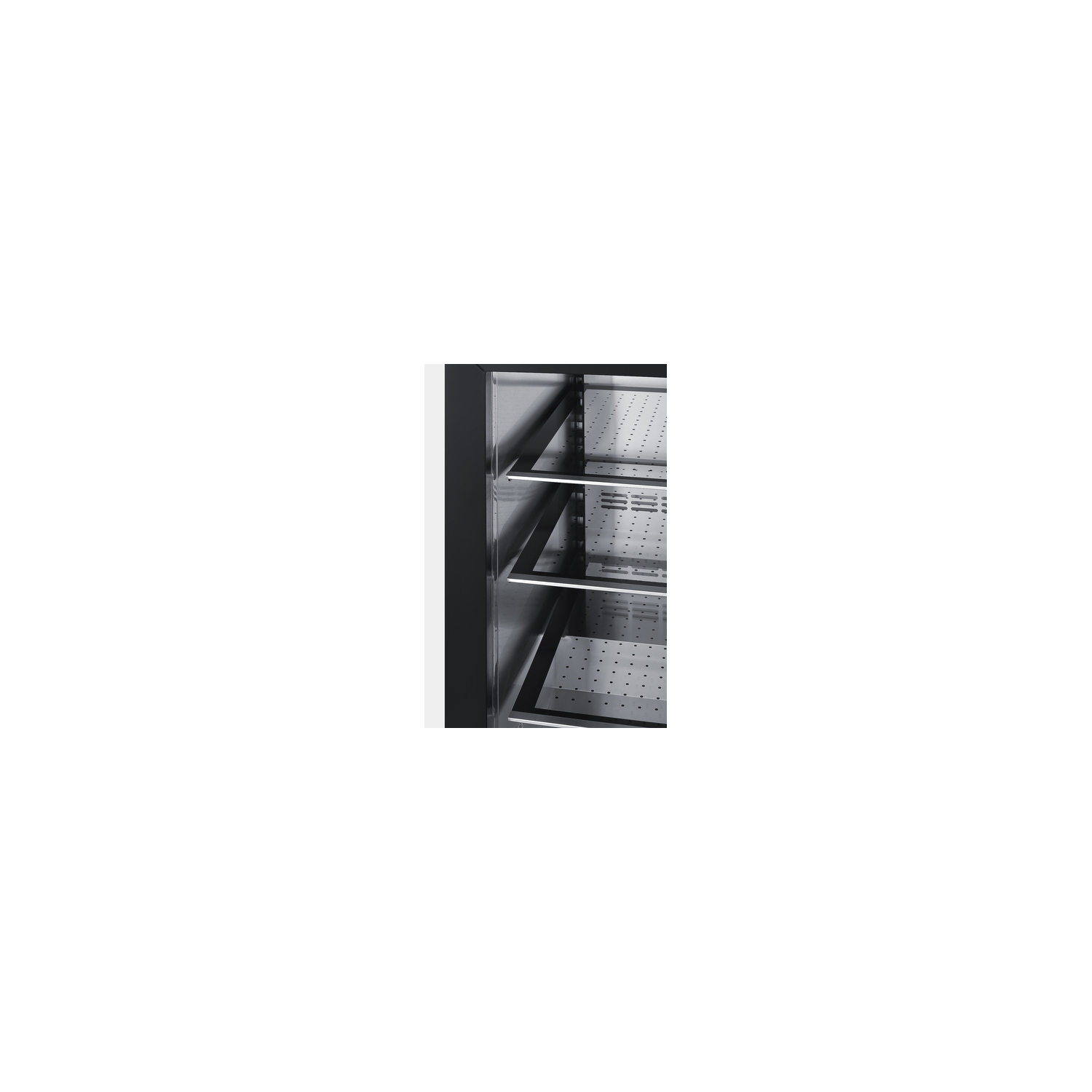

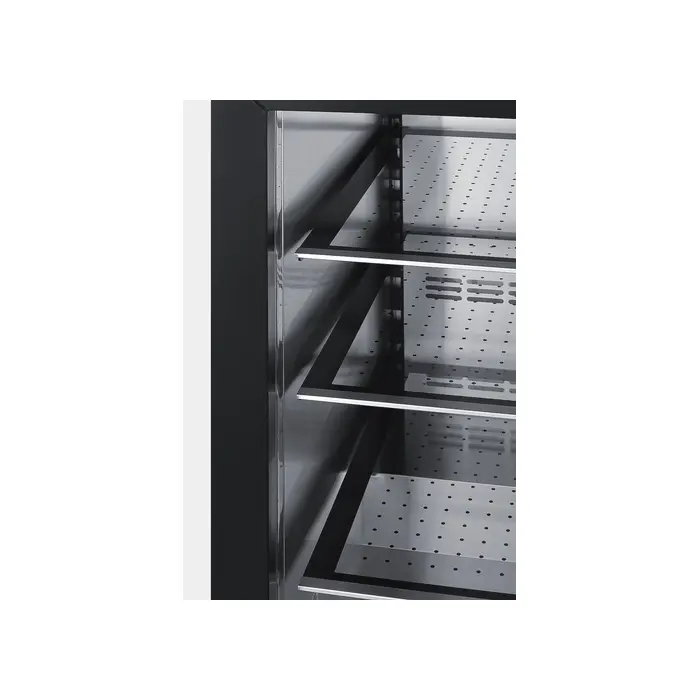

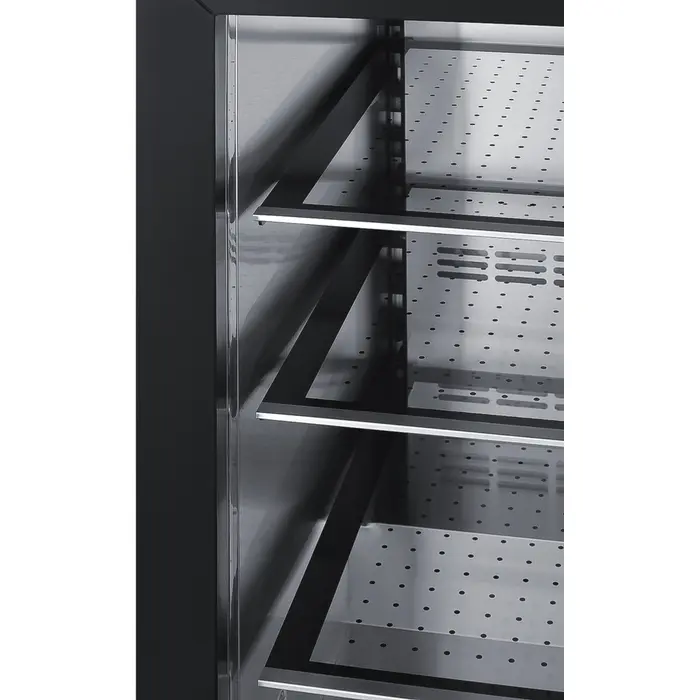

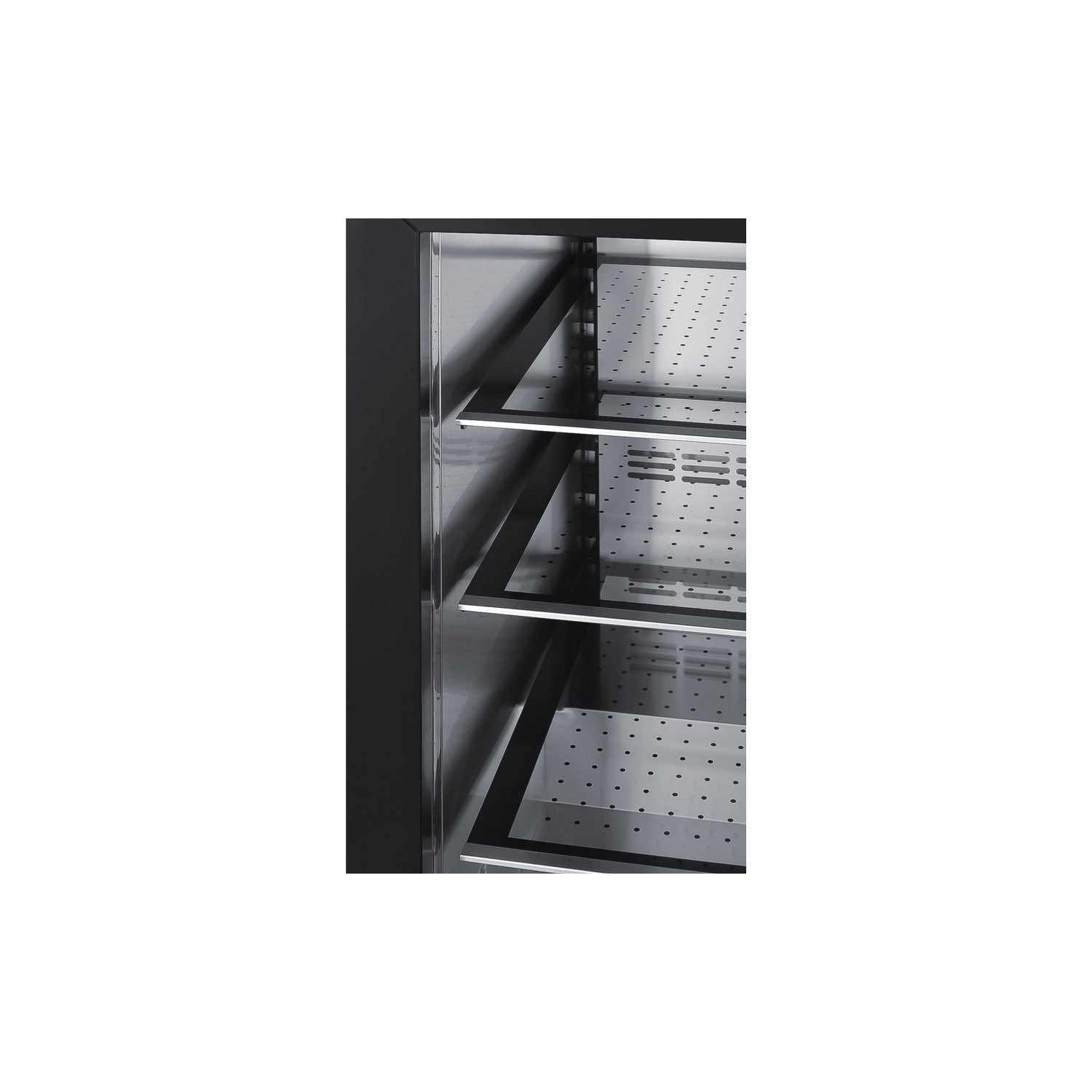

Cantilevered shelving Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm Audible alarm will sound if the door is left open longer than one minute

High temperature alarm High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss

Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back Space-saving design with no exposed coils that offers easier cleanability

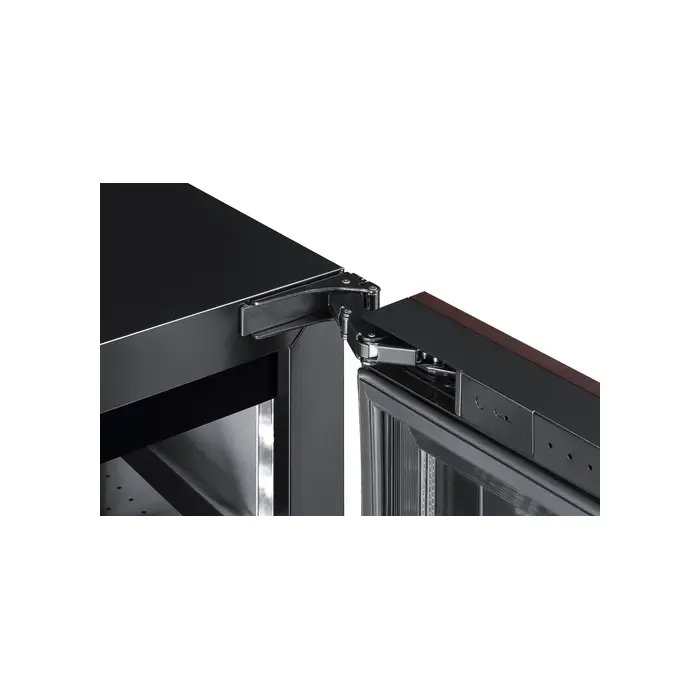

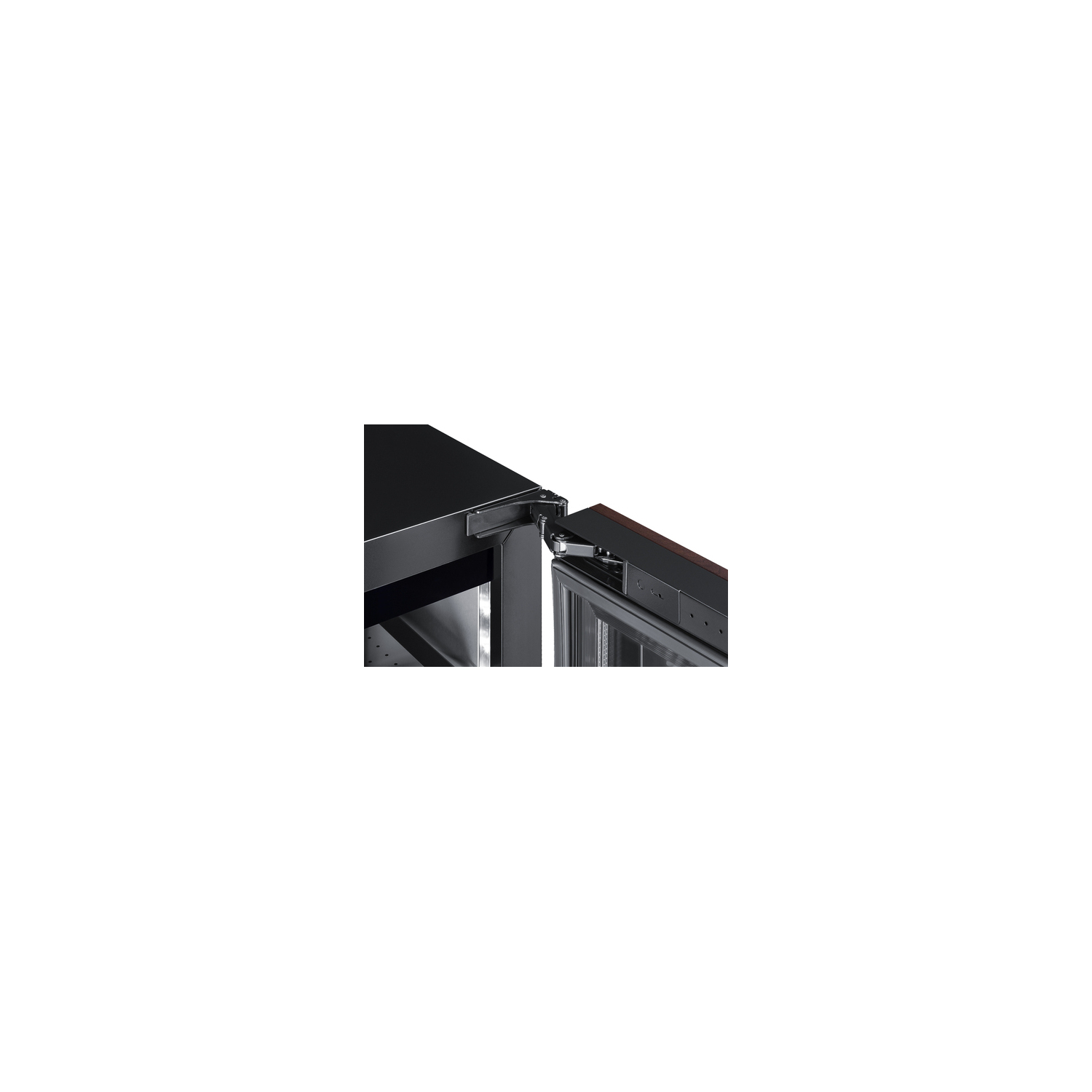

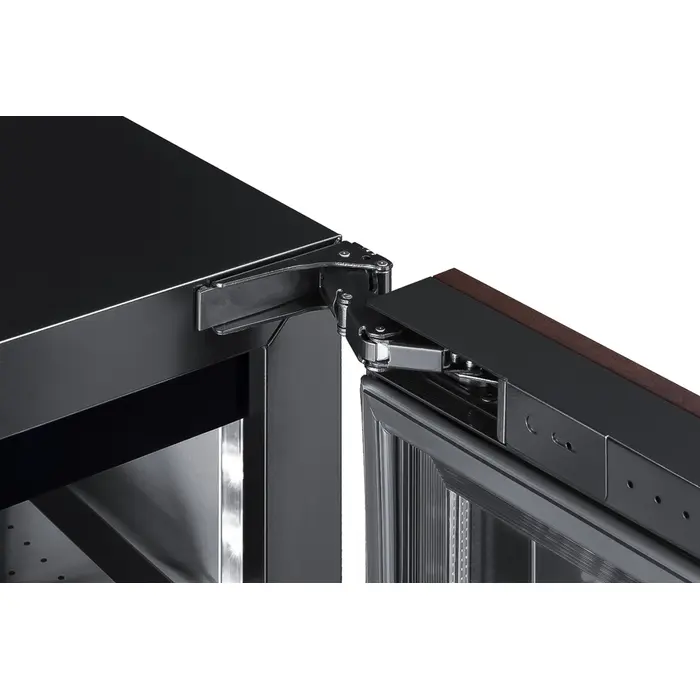

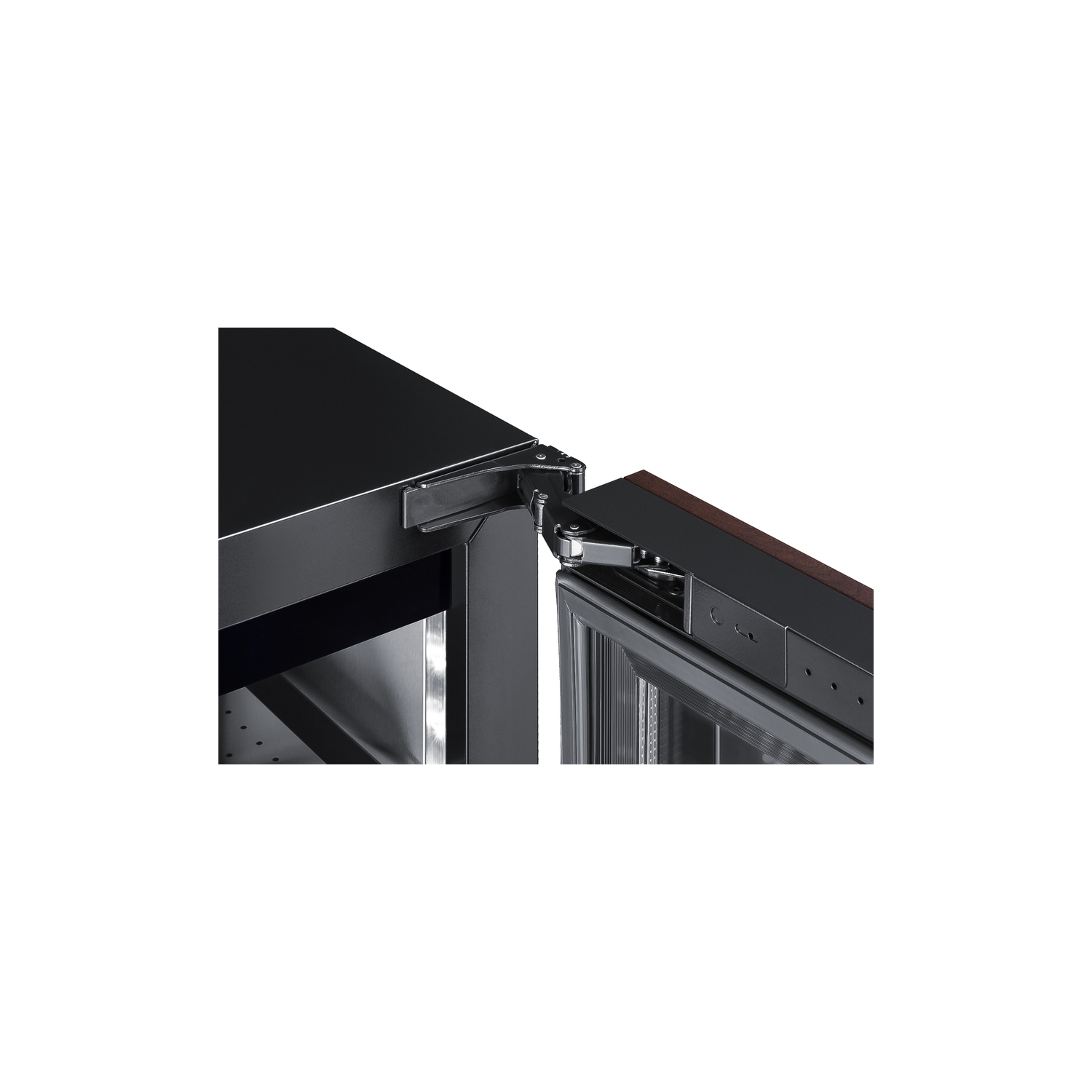

Fully articulating European style hinge Smoother opening and a better fit with an integrated European hinge

Reversible door User-reversible door swing for added flexibility

Fully finished black cabinet Allows the unit to be used freestanding

100% CFC Free Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ASDG2411.pdf)

TECHNICAL DRAWING (.dwg) (ASDG2411.dwg)

ASSEMBLY DRAWING (ASDG2411-Assembly.pdf)

REVIT MODEL (QF_Summit_ASDG2411_ADA_Compliant_Beverage_Center.rfa)

USE & CARE (ASDG2411-User-Manual.pdf)

MSDS INFORMATION (R600a_K.pdf)

Energy Guide
