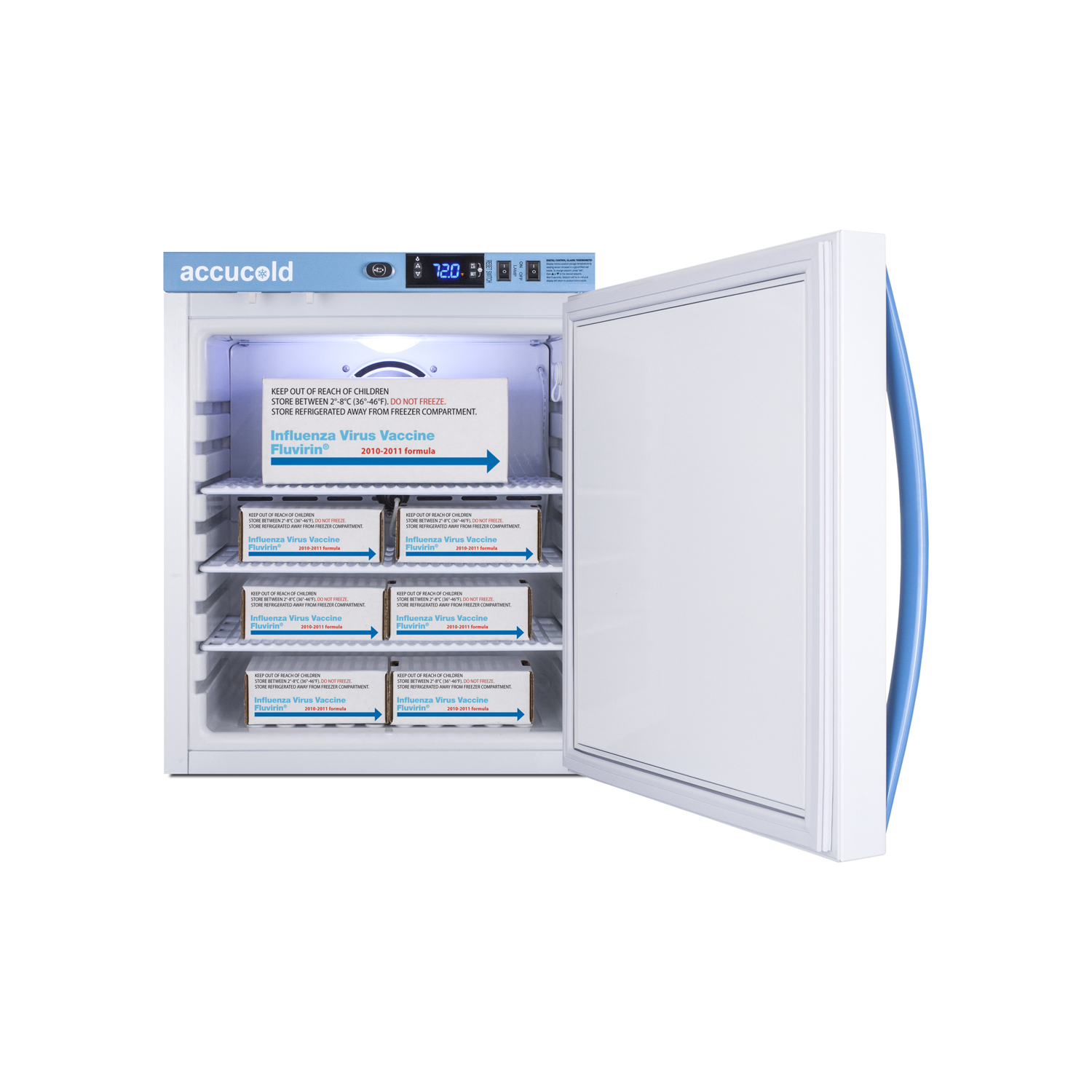

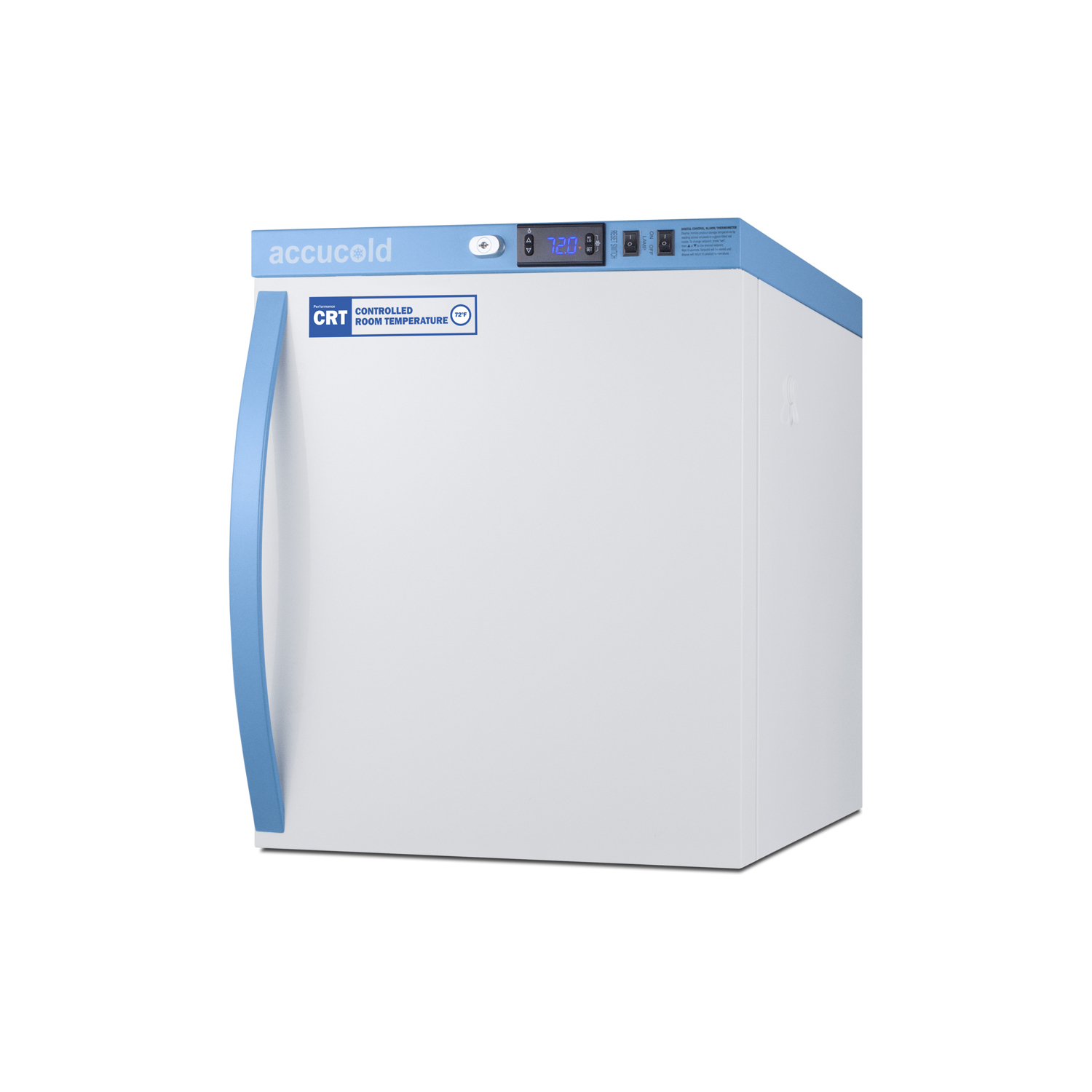

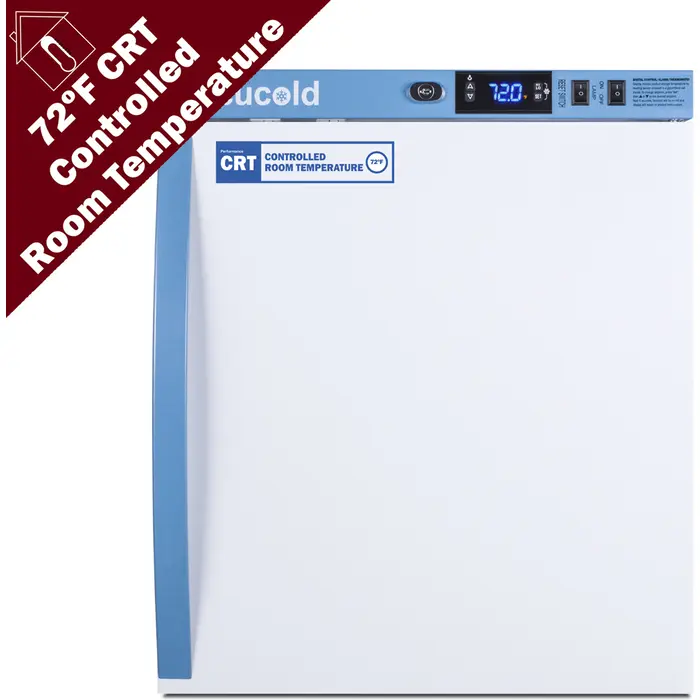

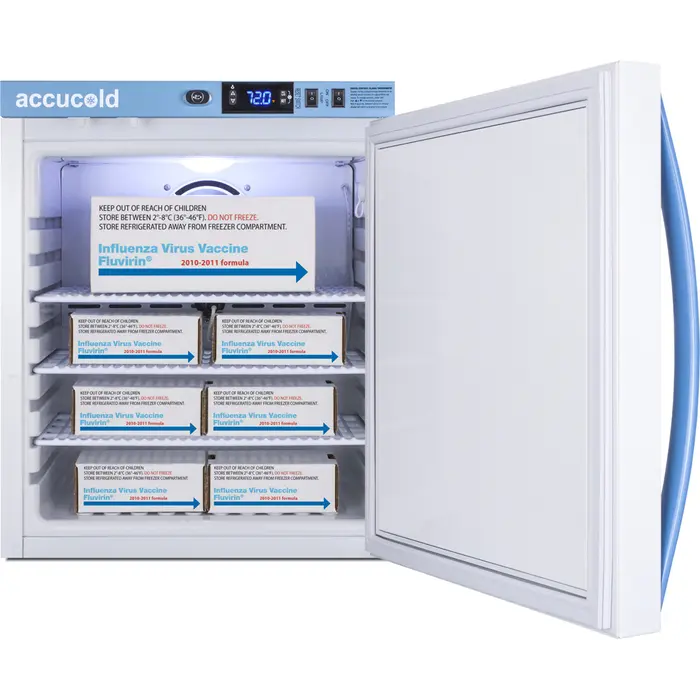

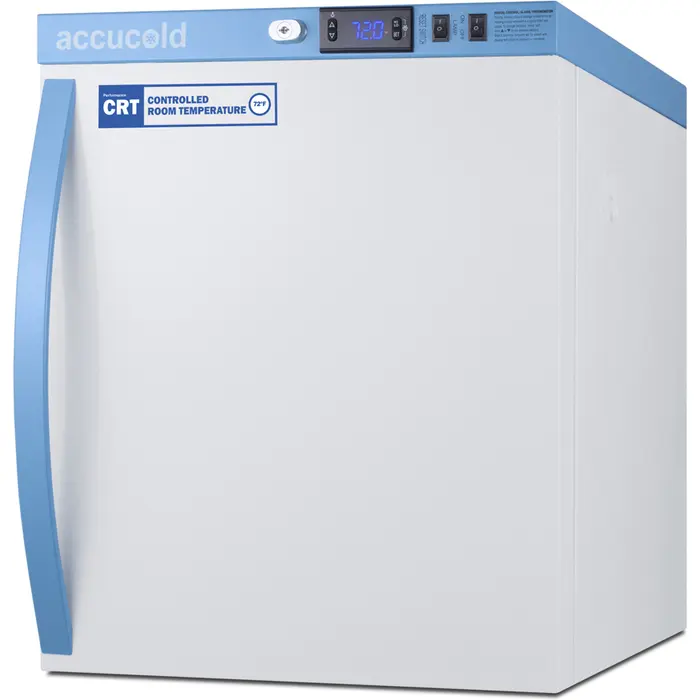

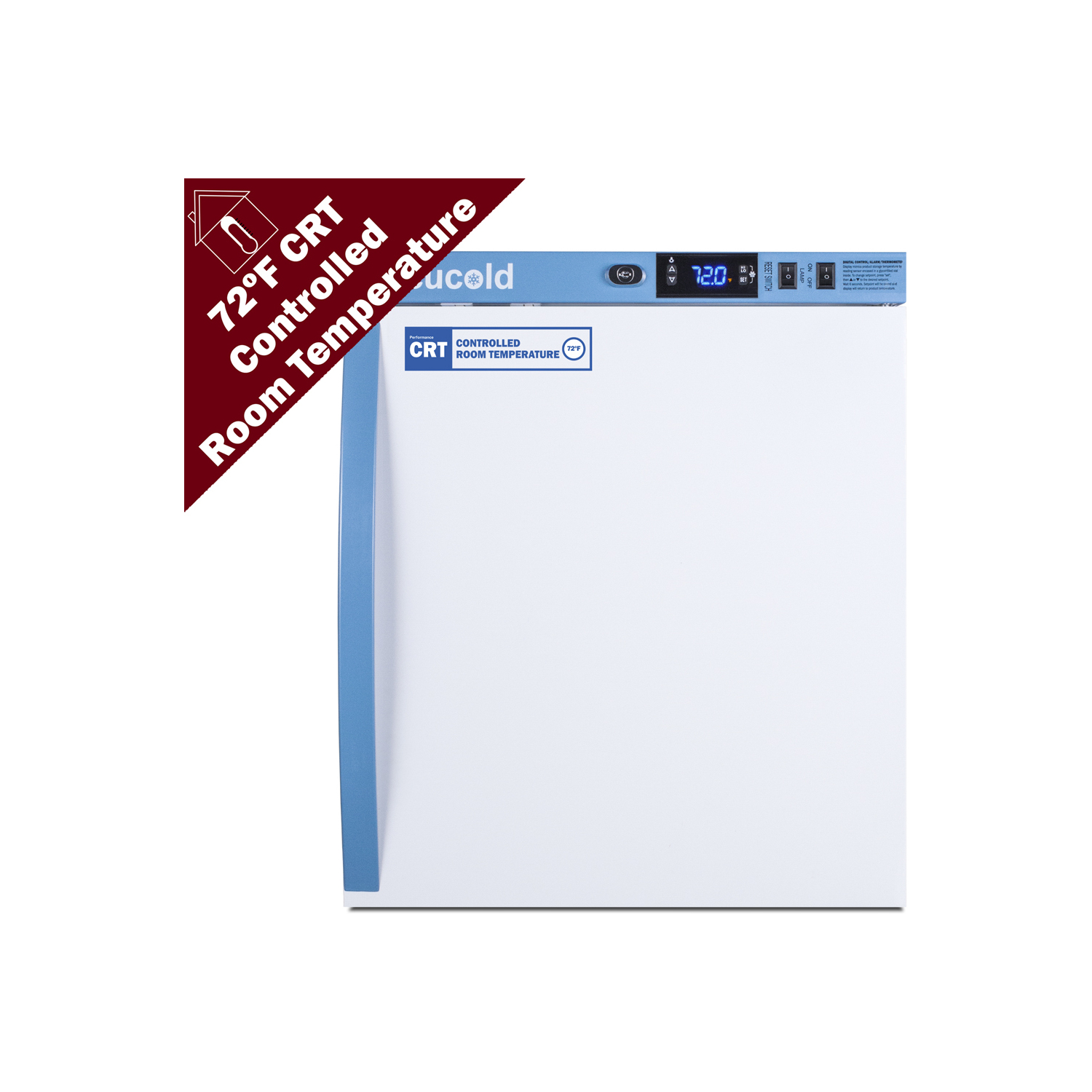

Summit Performance Series controlled room temperature cabinet with lock, ARS1PV-CRT

Accucold's Performance Series Controlled Room Temperature Cabinets offer purpose-built storage solutions for medication requiring a stable room temperature environment.

The ARS1PV-CRT is a 1 cu.ft. countertop unit pre-set to 72ºF, with an adjustable range from 68º to 77ºF. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

Inside, the ARS1PV-CRT utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS1PV-CRT comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS1PV-CRT provides an energy efficient solution to stabilized room temperature storage, even when ambient temperatures can reach temperatures as cold as 68ºF or warm as 86ºF. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as glass door options, are also available.

SPECIFICATIONS

Overview

Nominal Height 22.0" (56 cm)

Height of Cabinet 21.5" (55 cm)

Nominal Width 18.0" (46 cm)

Width 17.5" (44 cm)

Width with Door Open 18.0" (46 cm)

Nominal Depth 20.0" (51 cm)

Depth 19.75" (50 cm)

Depth with Handle 21.5" (55 cm)

Depth with door at 90° 36.0" (91 cm)

Capacity 1.0 cu.ft. (28 L)

Defrost Type Automatic

Door White

Cabinet White

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Amps 0.6

Voltage/Frequency 115 V AC/60 Hz

Weight 63.0 lbs. (29 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101090511

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Wire

Shelf Qty 3

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R600a

Refrigerant Amount 0.71oz.

Interior Light Yes

Temperature Range 68 to 77ºF (preset to 72ºF)

Sound Level 42 dB

Dimensions

Interior Height 15.75" (40 cm)

Interior Width 14.0" (36 cm)

Interior Depth 8.0" (20 cm)

FEATURES

Controlled Room Temperature Cabinet Purpose-built design to store medication, pharmaceuticals, and other sensitive materials at 72ºF

Purpose-built design Designed and purpose-built to support manufacturer recommendations for storage of pharmacy, medication, and vaccines within 20° - 25°C (68° - 77°F) as defined by USP <1079> Good Storage and Distribution Practices for Drug Products

+/-1.5ºC Variation The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Stable operation Designed to maintain a set temperature, even when ambient room temperature is as cold as 68ºF or as high as 86ºF

Antimicrobial silver ion-coated handle Powder-coated handle with naturally occurring silver ions to help reduce germ spread

Adjustable temperature Intuitive controls let you adjust the interior temperature between +68 to +77ºF

Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Access port Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm Audible and visual alarm warns if the sensor is disrupted

Password protection Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable plastic-coated wire shelves for improved circulation Multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety

Durable interior Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light Energy efficient LED lighting with internal on/off switch

Self-closing door Added protection in busy settings

Reversible door User-reversible door swing for added flexibility

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty 2 years parts and labor/5 years compressor

Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices Solid and glass door choices available from 1 to 18 cu.ft. Browse the CRT series for more information

Versatile design Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free Environmentally friendly design without ozone-damaging chemicals

CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DOWNLOADS

BROCHURE w/ DRAWINGS (ARS1PV-CRT.pdf)

TECHNICAL DRAWING (.dwg) (ARS1PV_REFRIGERATOR__A-C_2018__3.dwg)

REVIT MODEL (QF_Summit_ARS1PV_Pharma_Vac_Compact_All_Refrigerator_3.rfa)

MSDS INFORMATION (R600a_MSDS_2.pdf)

USE & CARE (CRT_Performance_Series_Use_and_Care.pdf)

ACCUCOLD CATALOG (Accucold_Cold_Storage_Solutions_Catalog.pdf)
