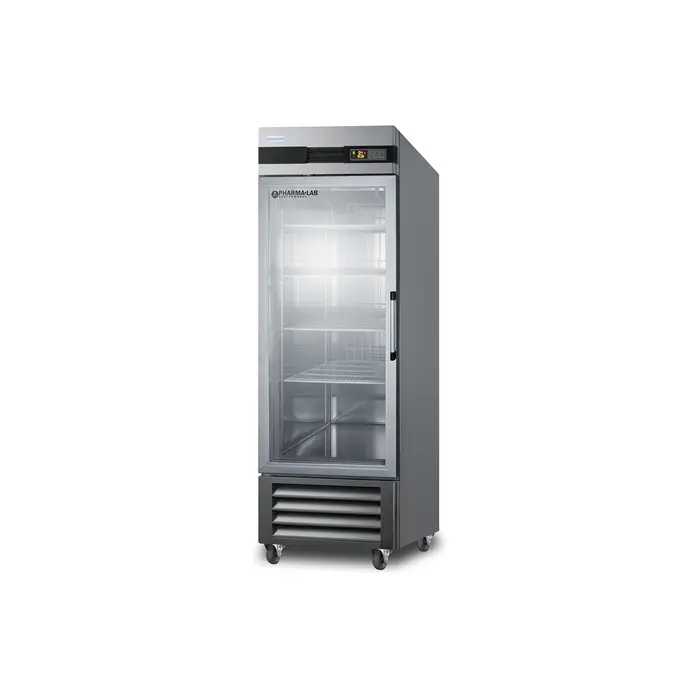

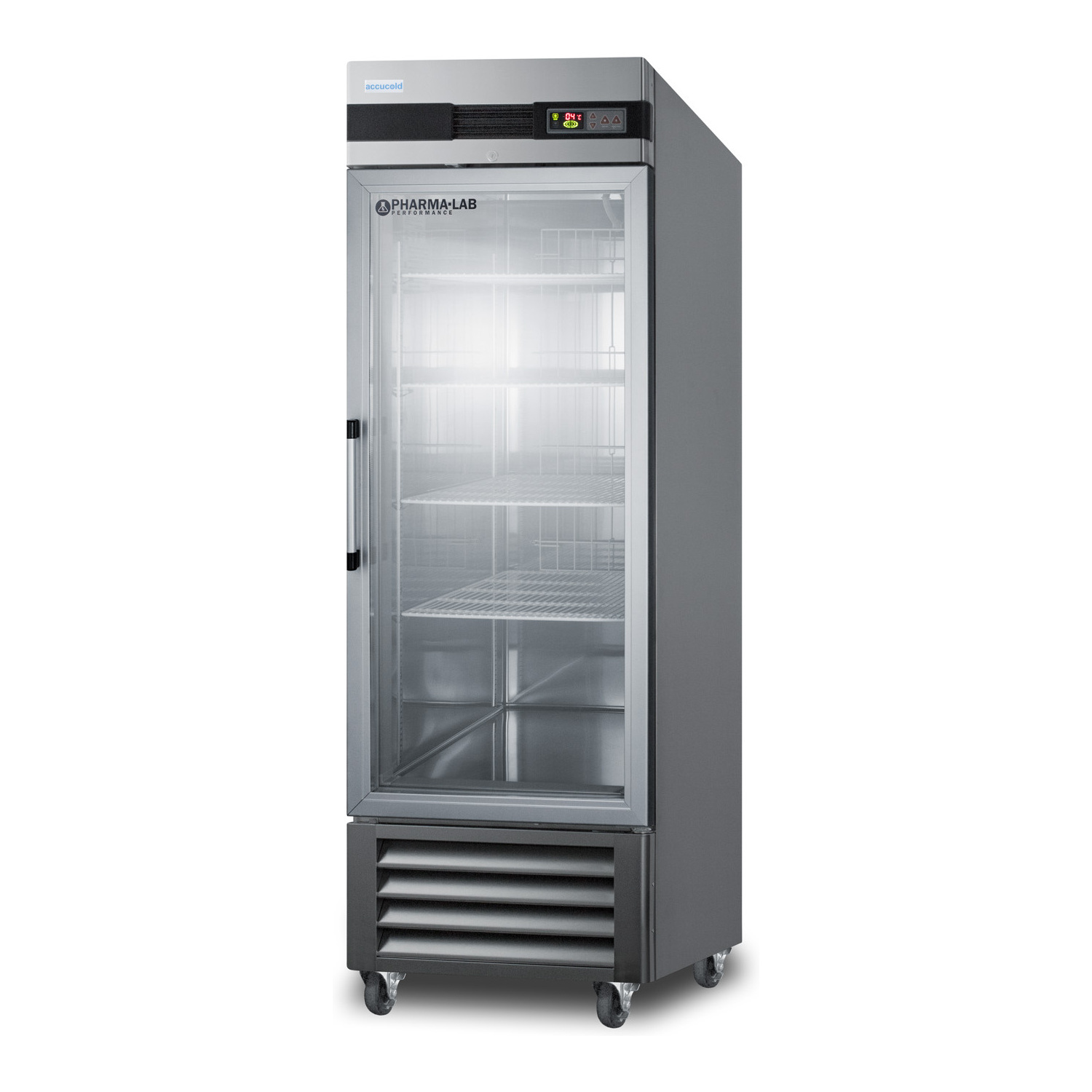

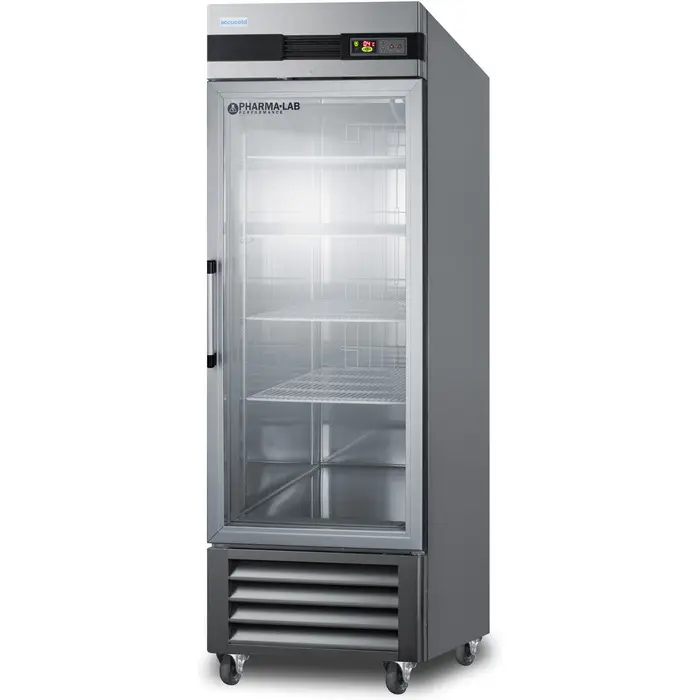

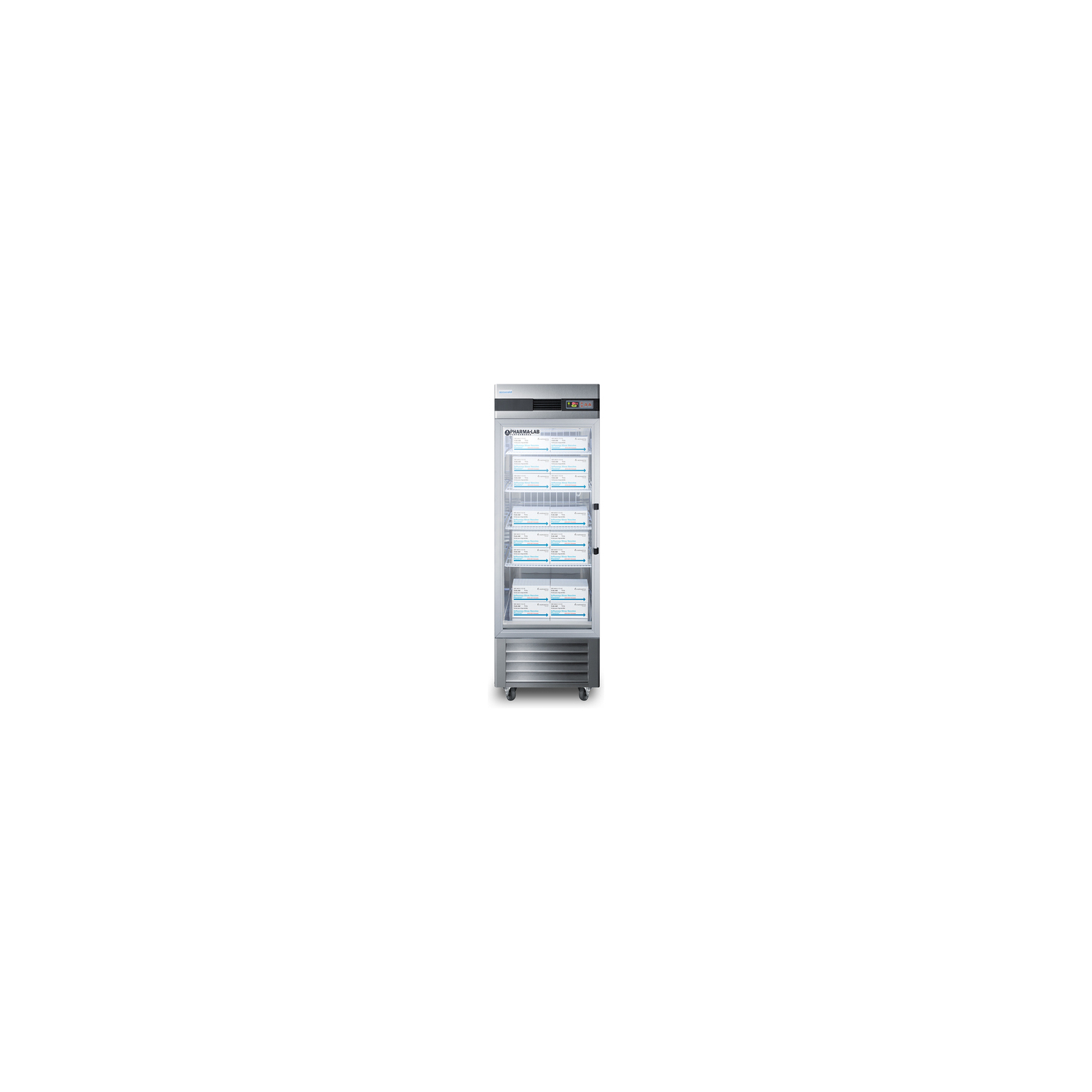

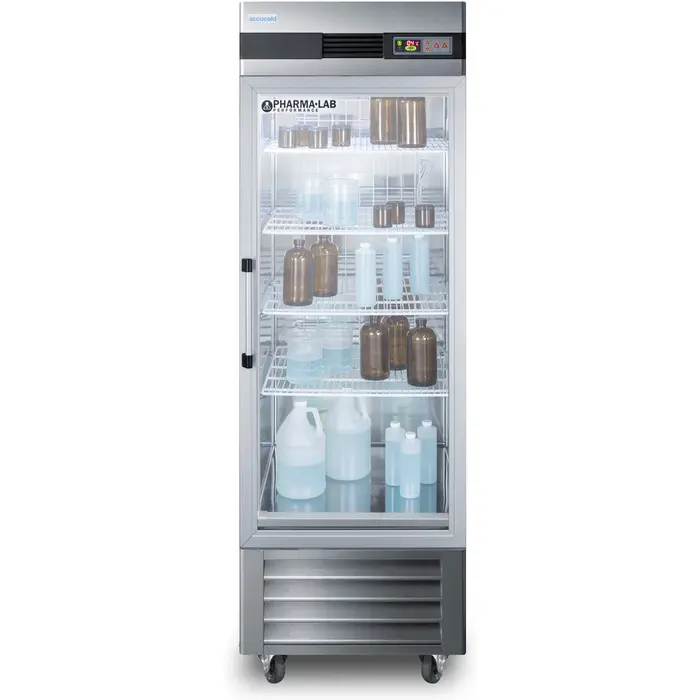

Summit Pharma-Lab Performance Series 23 cu.ft. all-refrigerator with glass door, 7.61101e+011, ARG23ML

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

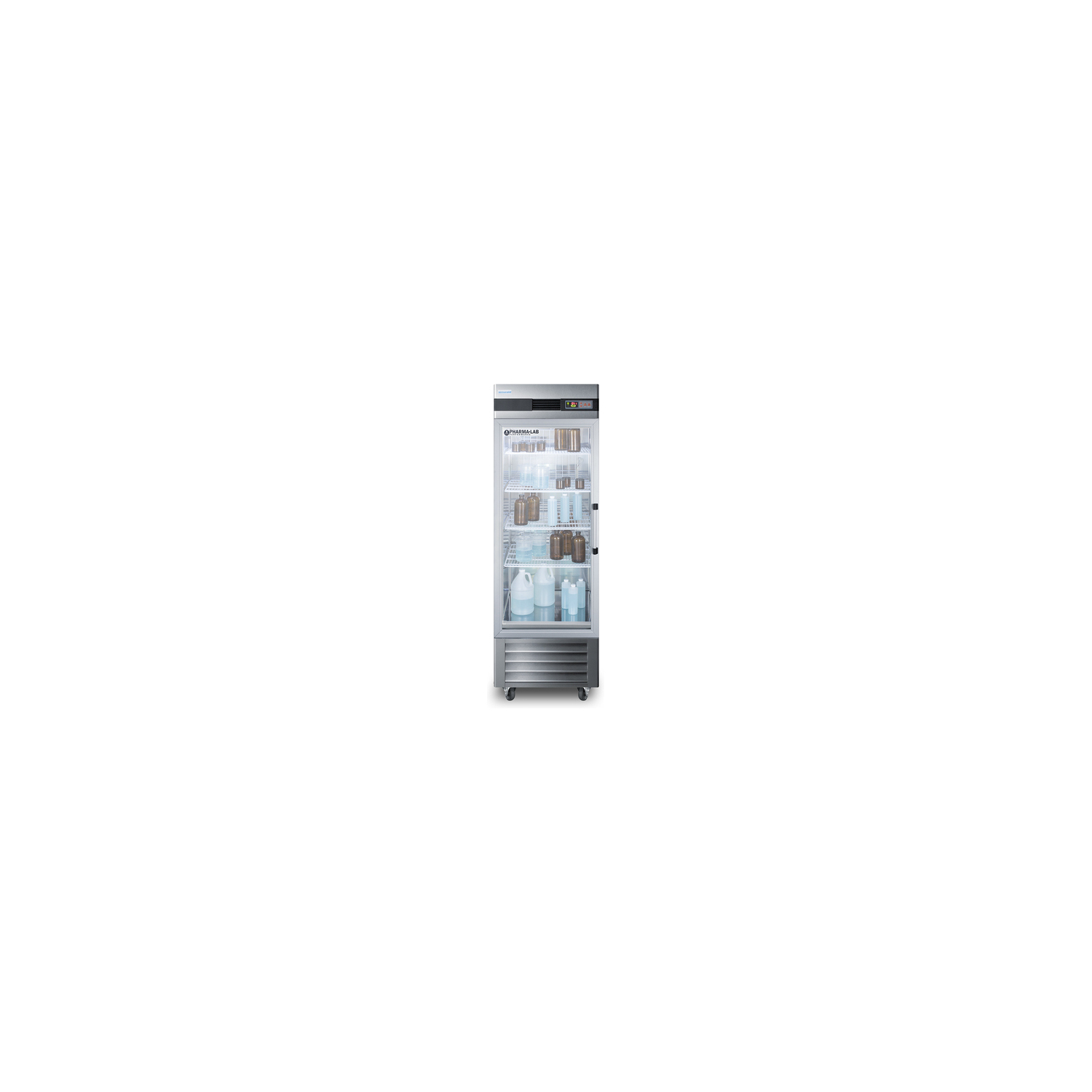

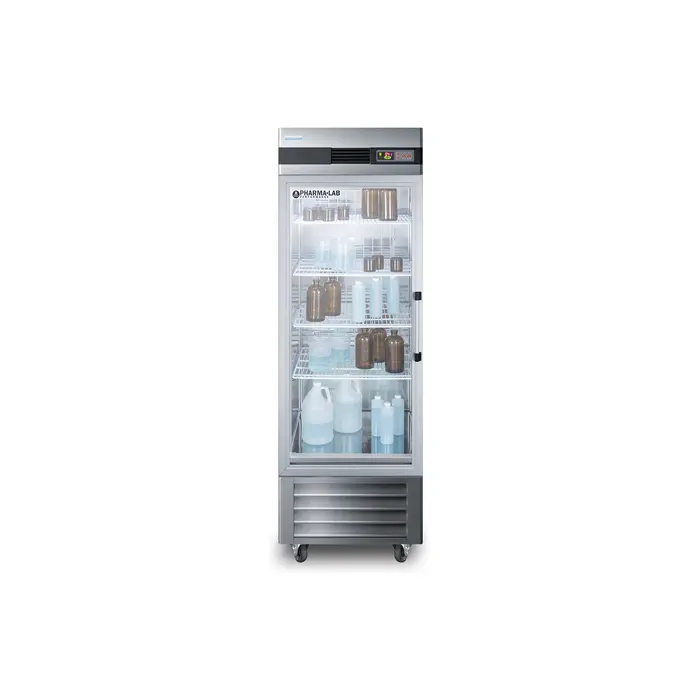

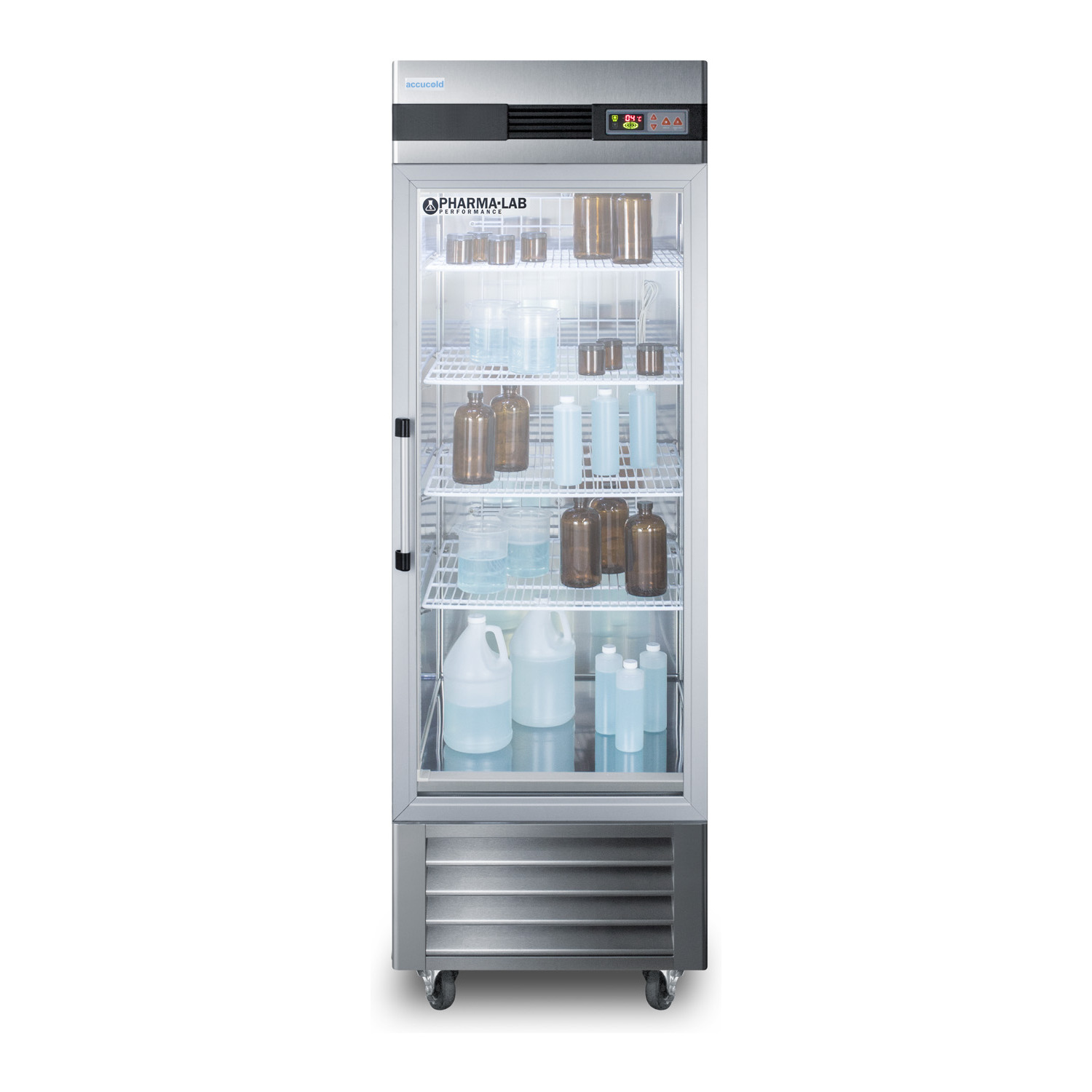

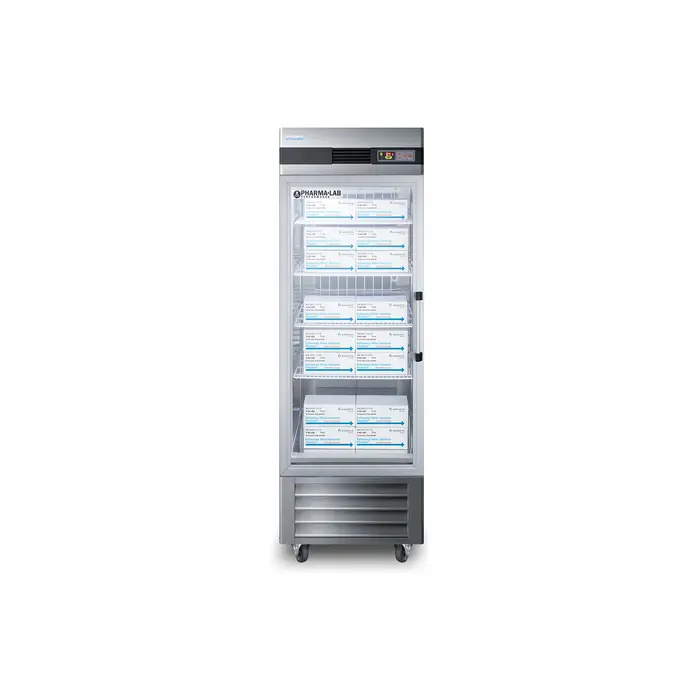

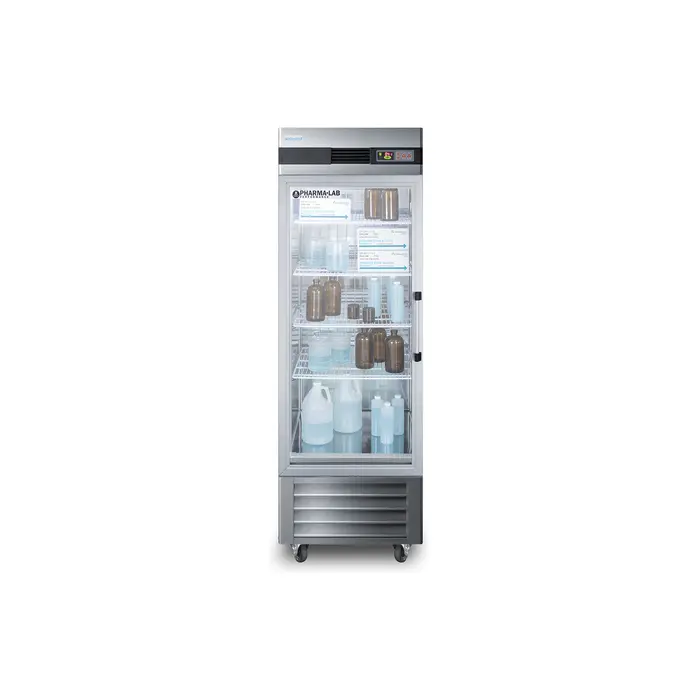

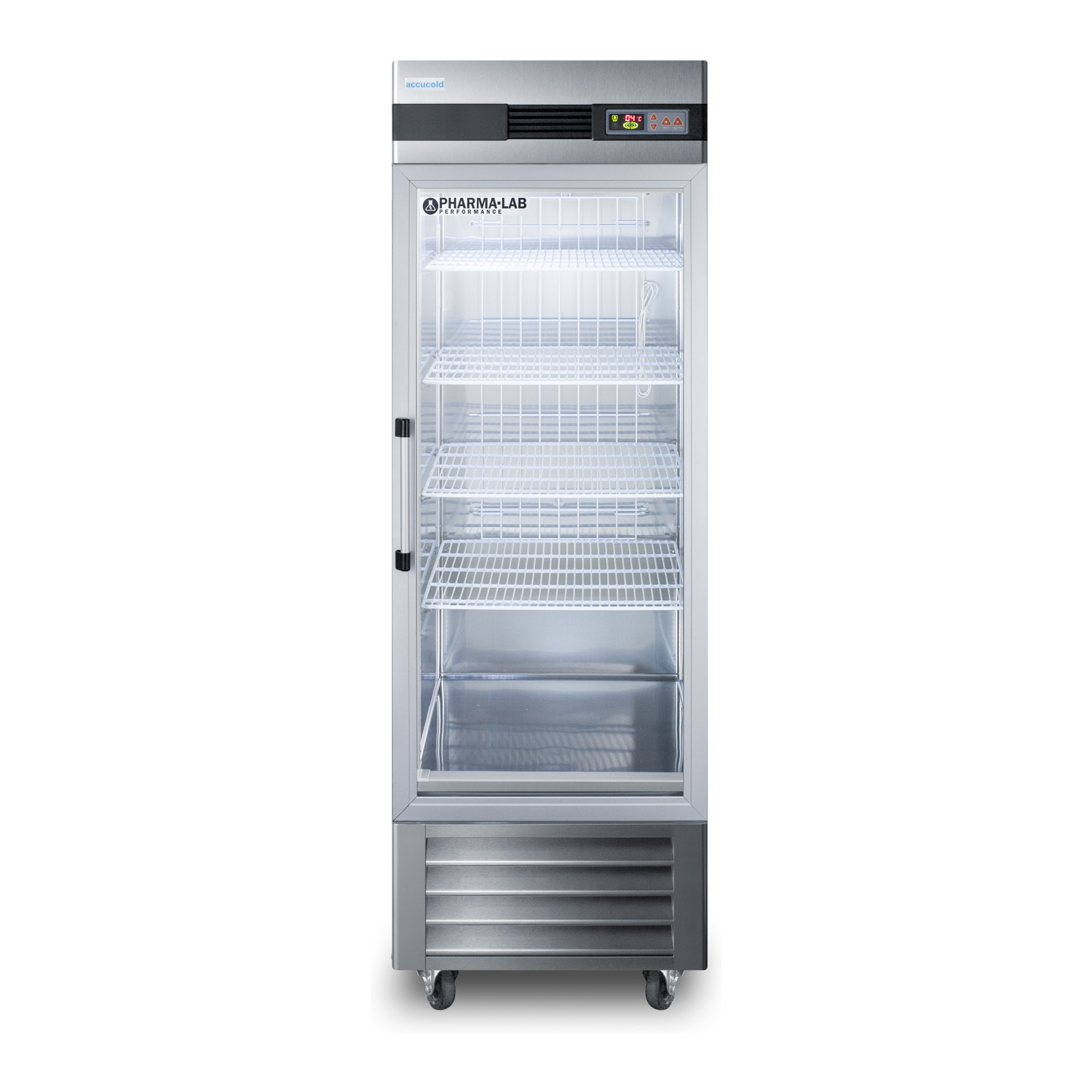

The ARG23ML is a 23 cu.ft. glass door all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

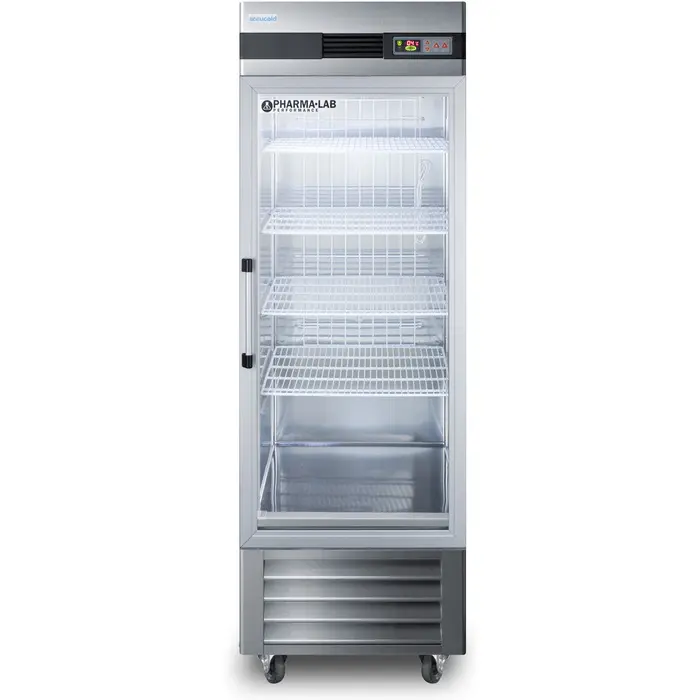

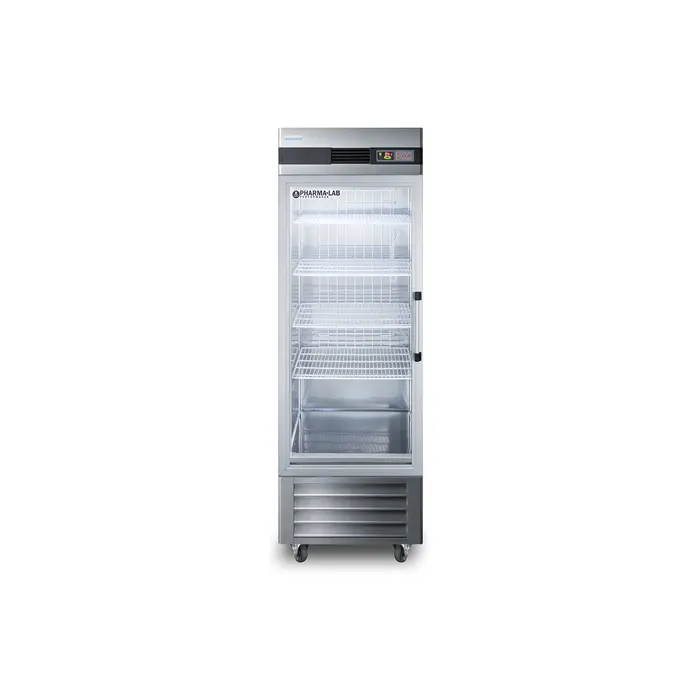

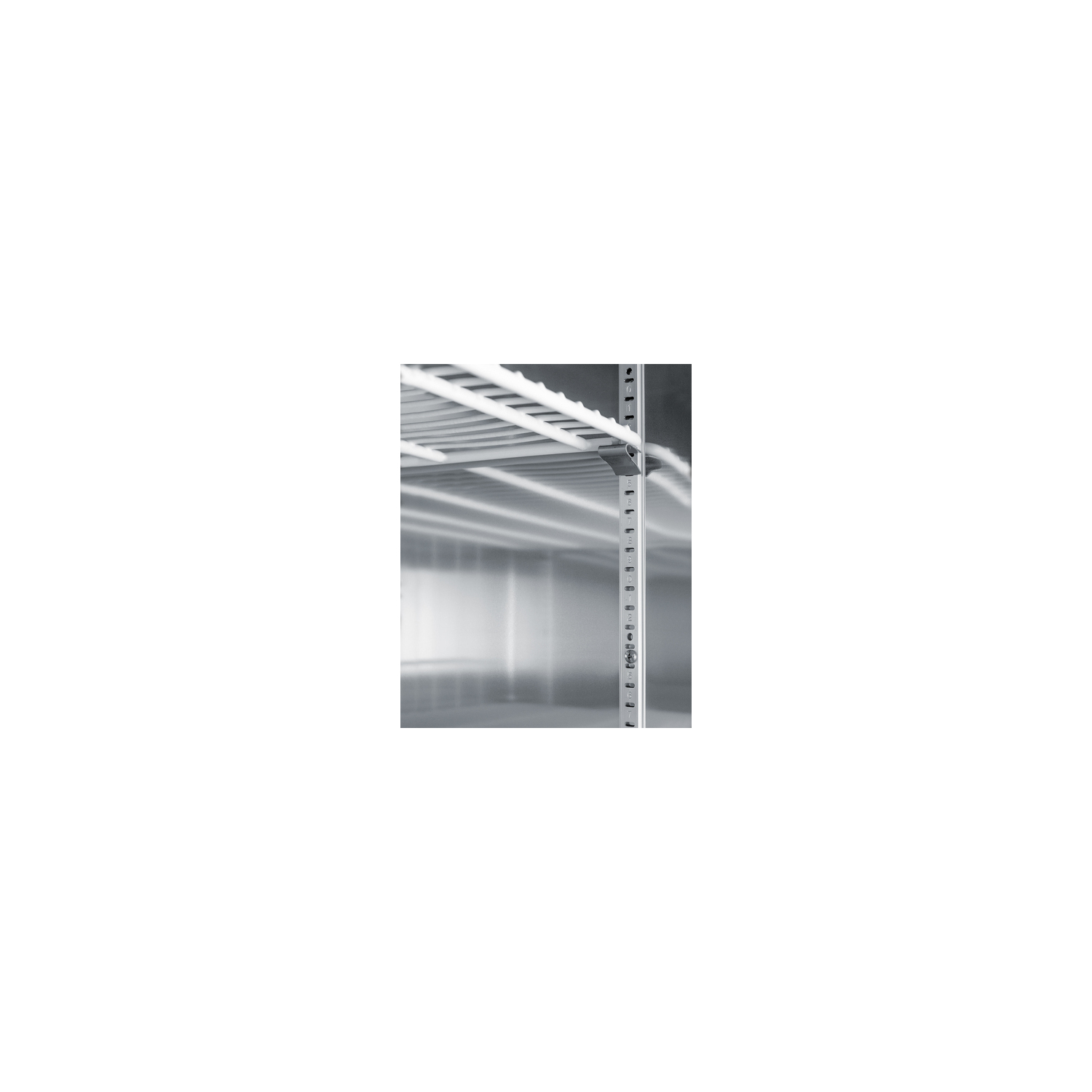

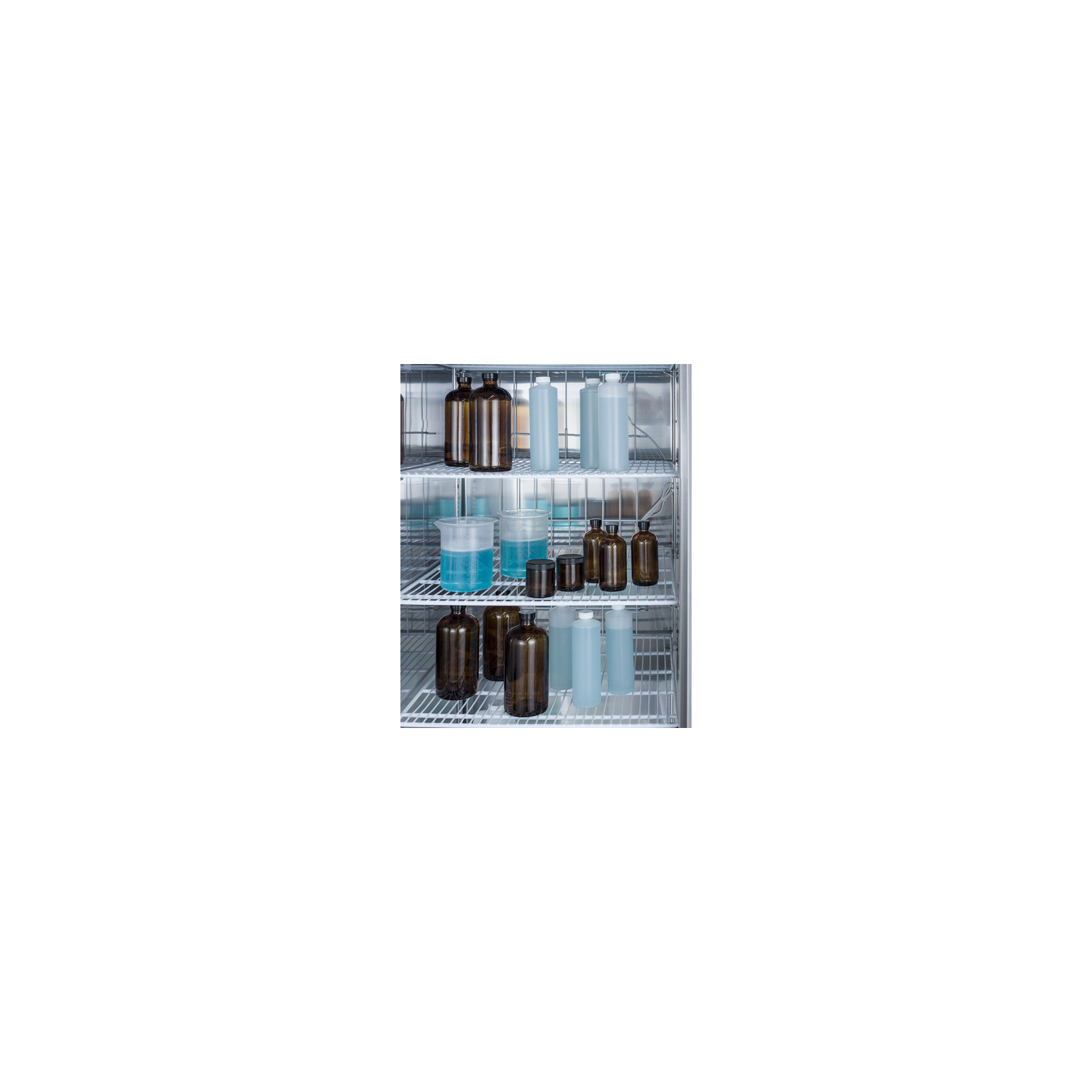

Inside, the ARG23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.

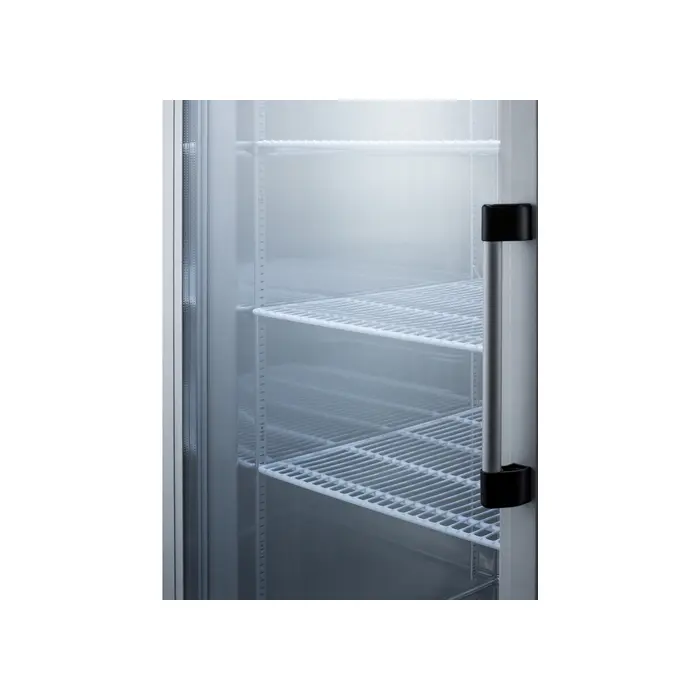

The ARG23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. The double pane tempered glass door provides a full display of the interior. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.

Designed with hydrocarbon refrigerant, the ARG23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching frost-free freezer, see the AFS23ML.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

SPECIFICATIONS

Overview

Nominal Height 84.0" (213 cm)

Height of Cabinet 83.75" (213 cm)

Nominal Width 28.0" (71 cm)

Width 27.5" (70 cm)

Nominal Depth 31.0" (79 cm)

Depth 31.0" (79 cm)

Depth with Handle 32.75" (83 cm)

Depth with door at 90° 56.5" (144 cm)

Capacity 23.0 cu.ft. (651 L)

Defrost Type Automatic

Door Glass

Cabinet Stainless Steel

US Electrical Safety UL

Canadian Electrical Safety ULC

Sanitation ETL-S

Amps 7.5

Voltage/Frequency 115 V AC/60 Hz

Weight 282.0 lbs. (128 kg)

Parts & Labor Warranty 2 Years

Compressor Warranty 5 Years

UPC 761101062334

Refrigerator Features

Door Swing RHD

Reversible No

Shelf Type Wire

Shelf Qty 4

Adjustable Shelves Yes

Thermostat Type Digital

Fan Type Interior

Refrigerant Type R290

Refrigerant Amount 2.5oz.

High Side PSI 290.0

Low Side PSI 155.0

Wheel Qty 4

Interior Light Yes

Temperature Range 2 to 10ºC

Sound Level 34.6 dB

Dimensions

Interior Height 51.5" (131 cm)

Interior Width 23.5" (60 cm)

Interior Depth 27.0" (69 cm)

FEATURES

Purpose-built design Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

Adjustable temperature Interior is pre-set to 5ºC, with an adjustable control range from 2 to 10ºC

Temperature alarm Visual and audible alarms alert if the interior temperature rises or falls out of set range

Complete stainless steel construction Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

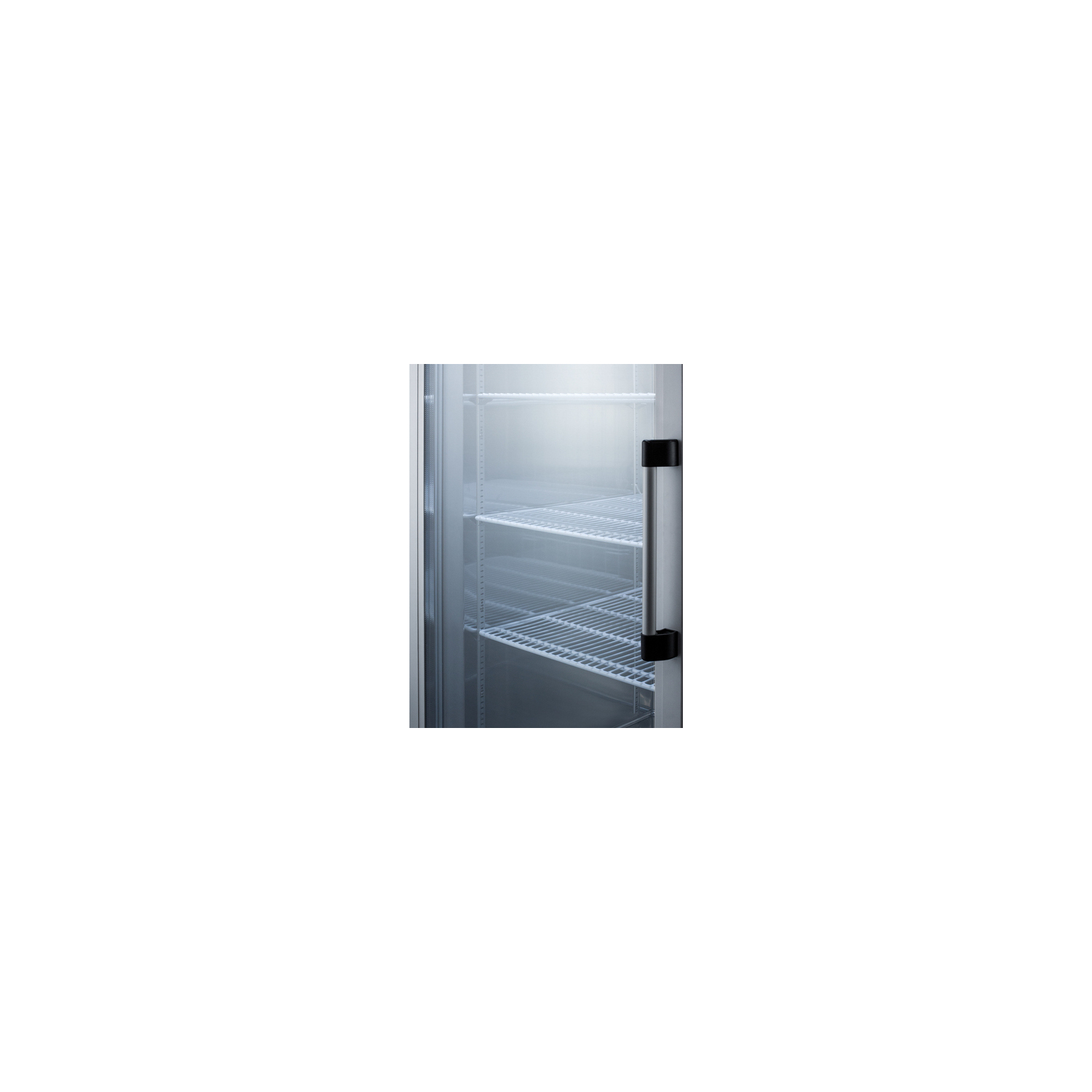

Glass door Full display of the interior, with an anti-condensate door frame heater to ensure a clear view

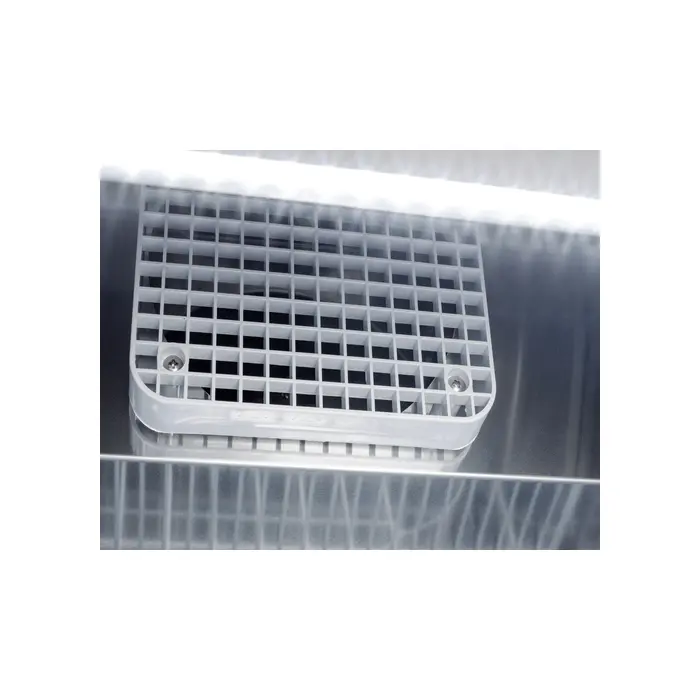

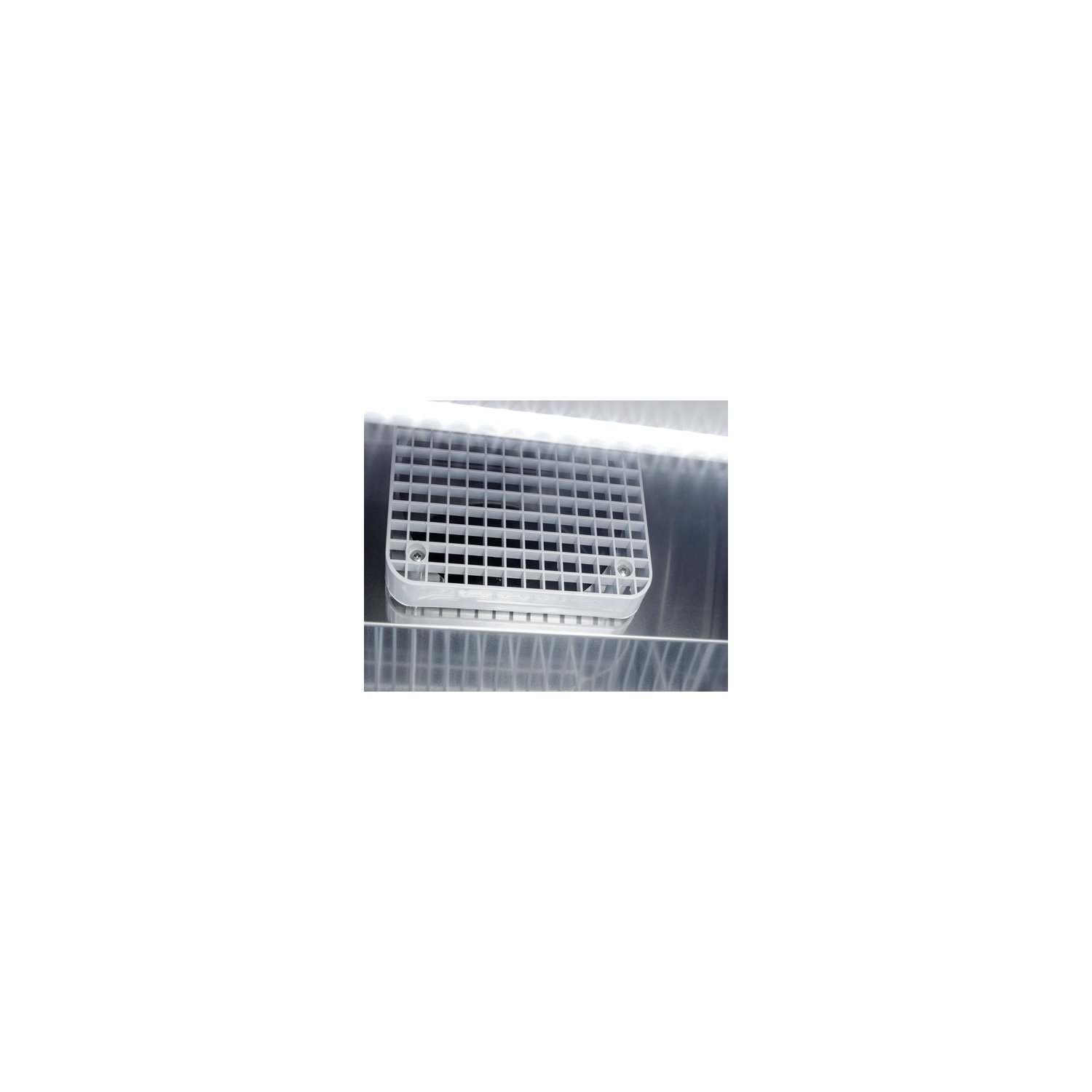

Forced air cooling Top-mounted commercial fan ensures rapid temperature recovery

Automatic defrost with adjustable cycle defrost Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Self-closing door Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading

Open door alarm Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes

6 inch casters Ships with a set of casters (2 locking) for optional user installation

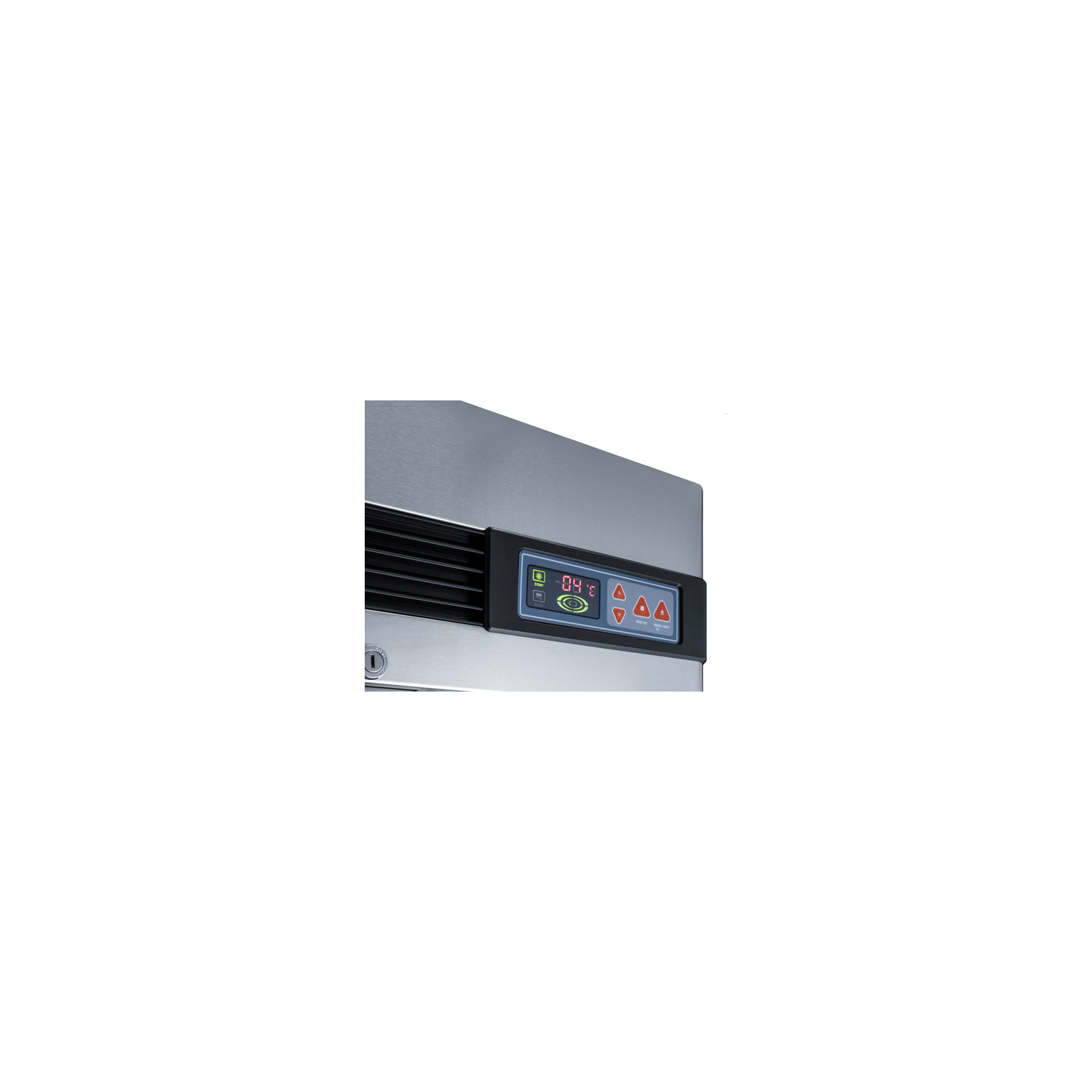

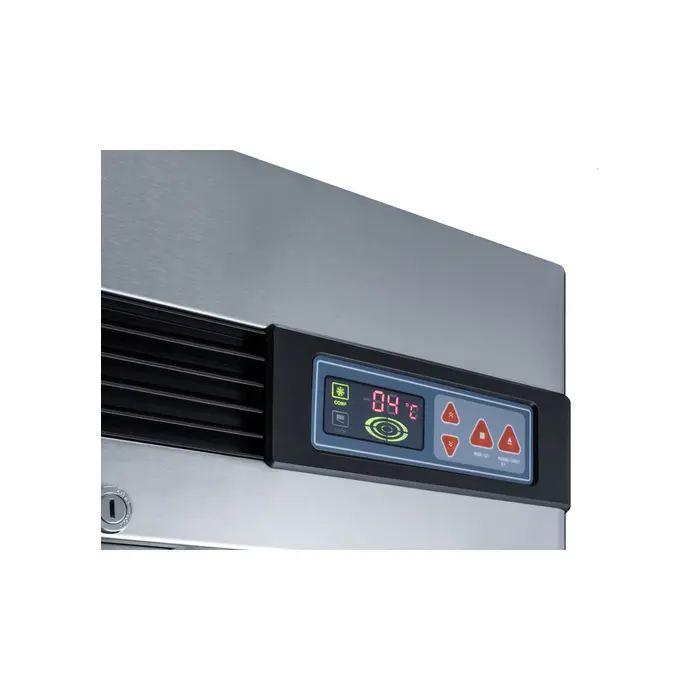

Microprocessor control panel Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Min/max display Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock Keyed lock conveniently located towards the top of the door for added security (2 keys included)

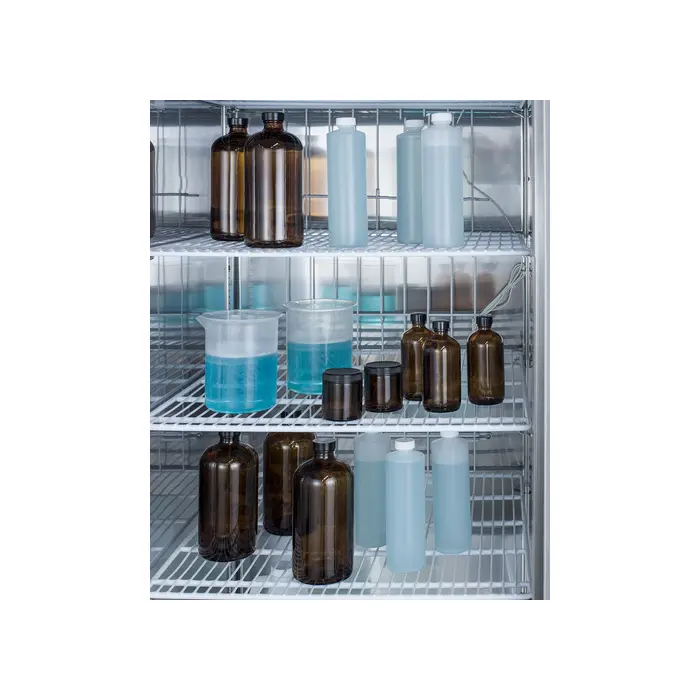

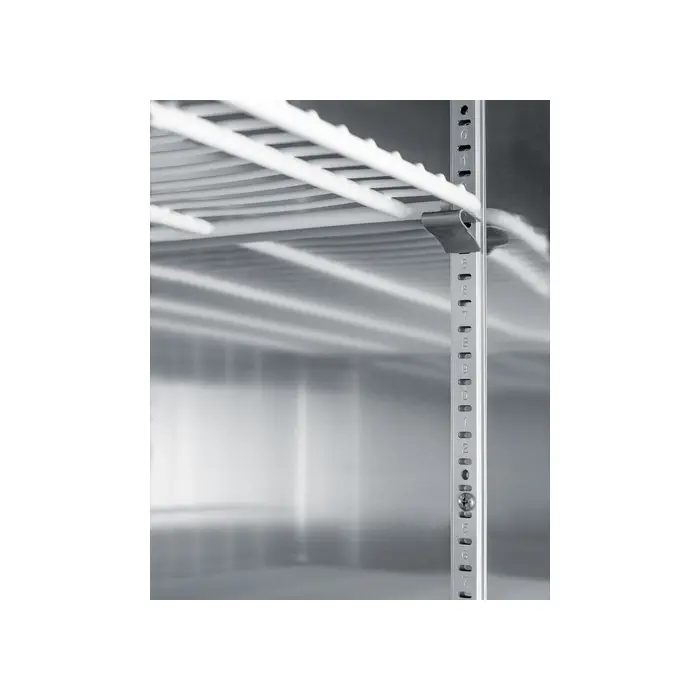

Adjustable plastic-coated wire shelves for improved circulation Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items

Interior light Energy efficient LED lighting with internal on/off switch

Large capacity 23 cubic feet of storage space inside

Sealed back Space-saving design that ensures easier cleanup

Magnetic door gasket Quality door gaskets ensure a tight seal for energy savings and improved performance

Condenser cleaning alarm In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months

Extended warranty 2 years parts and labor/5 years compressor

Commercially approved Commercial construction meeting UL commercial listing standards

Eco-Friendly Using environmentally friendly hydrocarbons refrigerants for a greener footprint

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals
