Summit ADA compliant built-in undercounter all-refrigerator with stainless steel door, 7.61101e+011, AR5BS

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

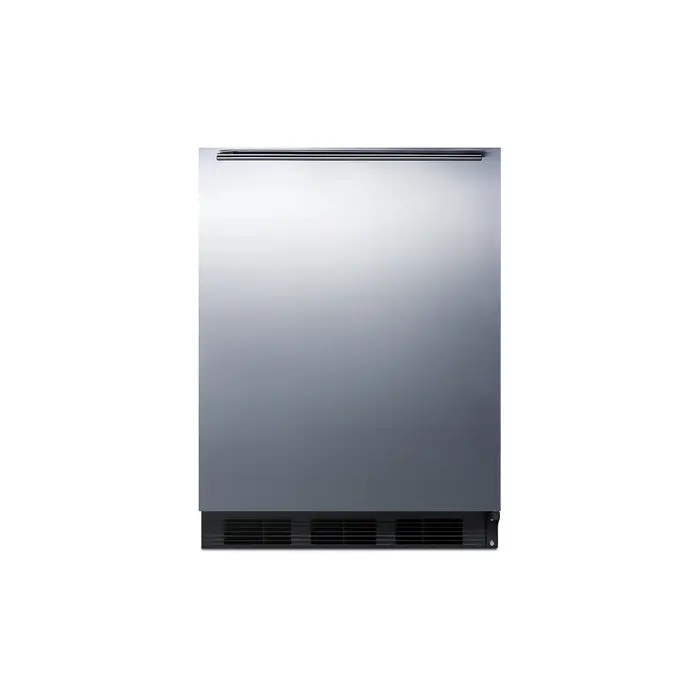

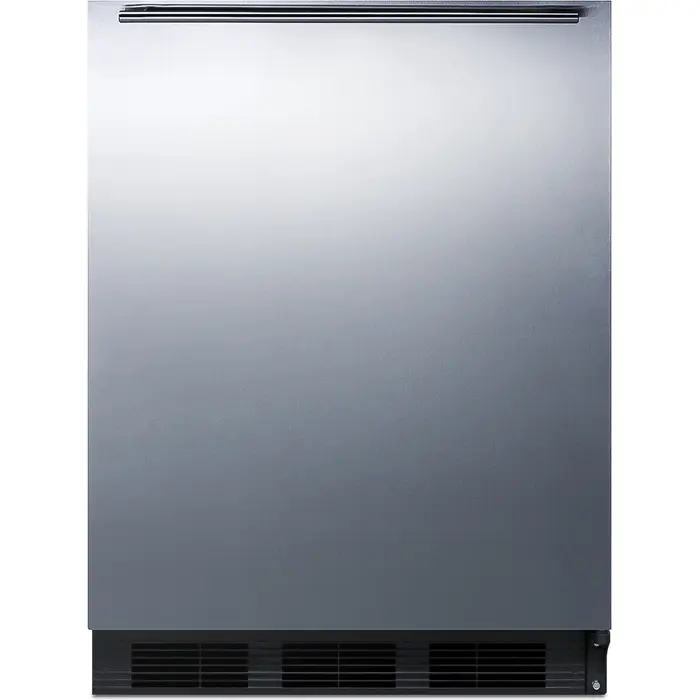

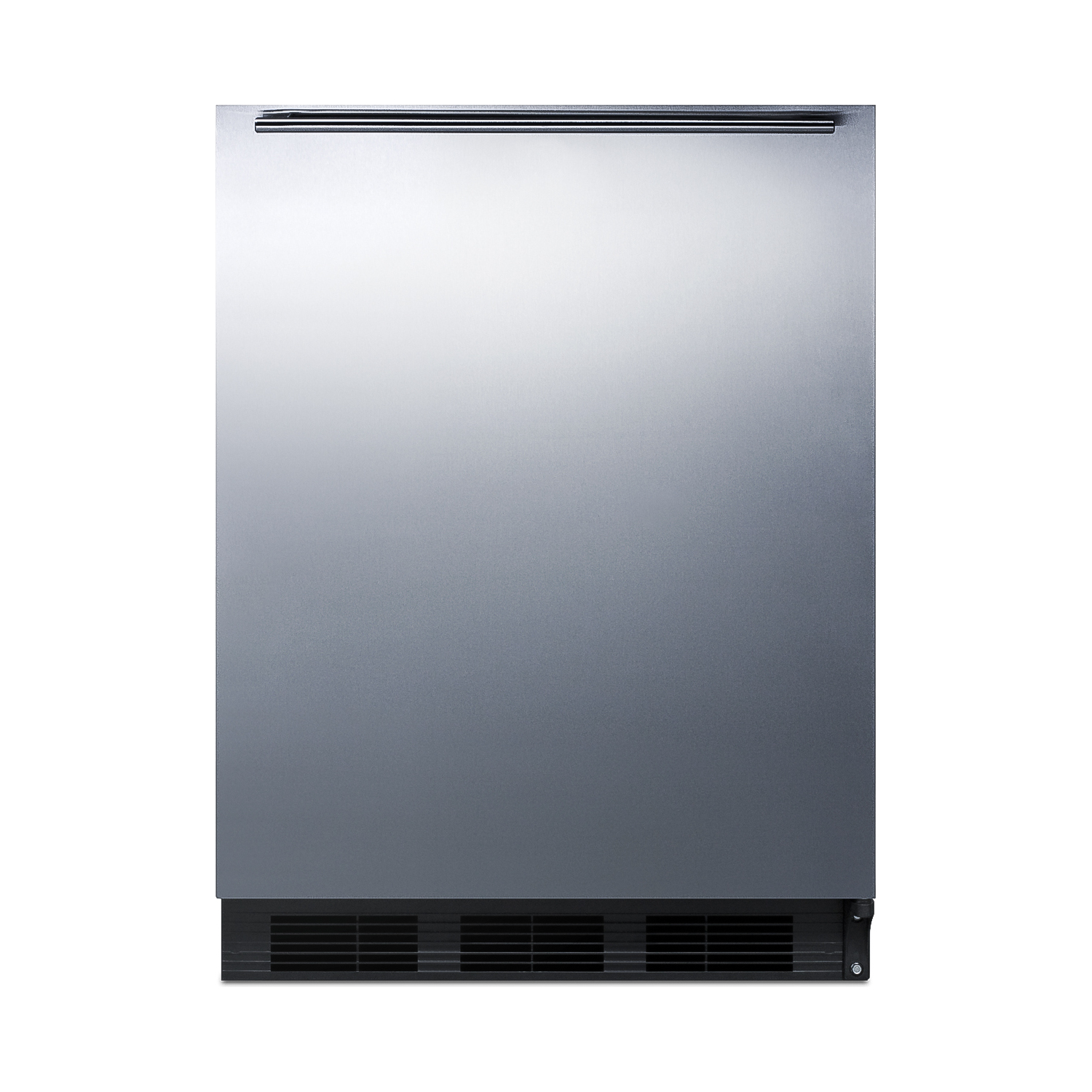

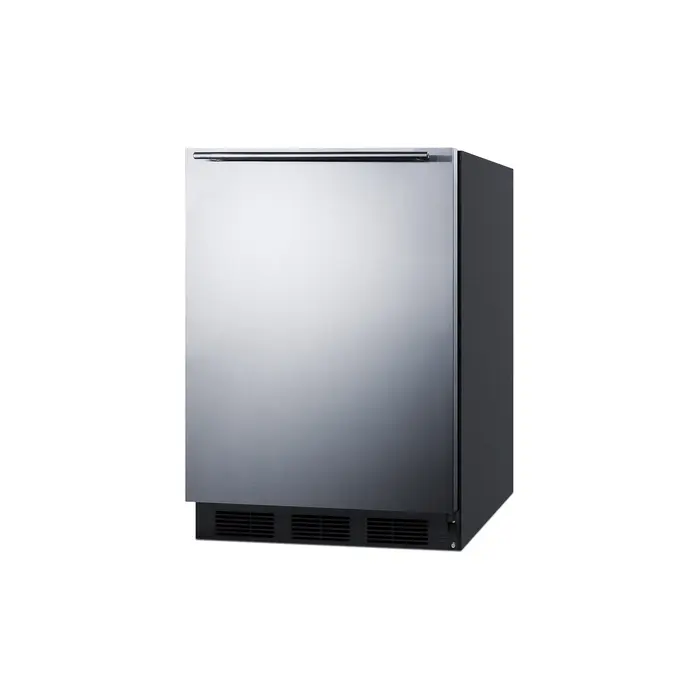

Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door.

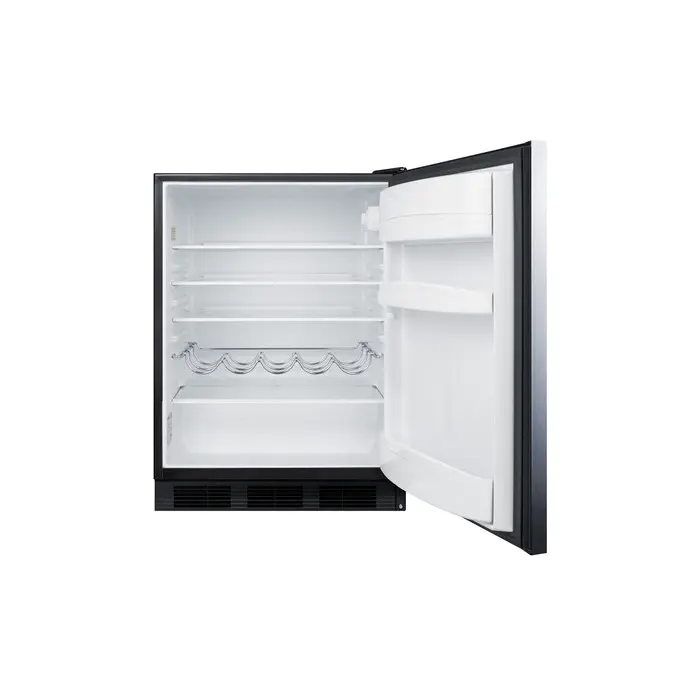

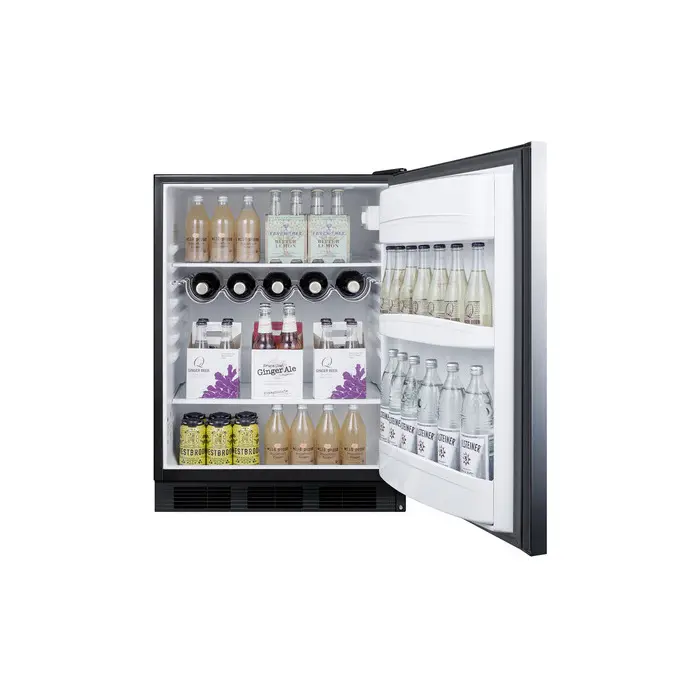

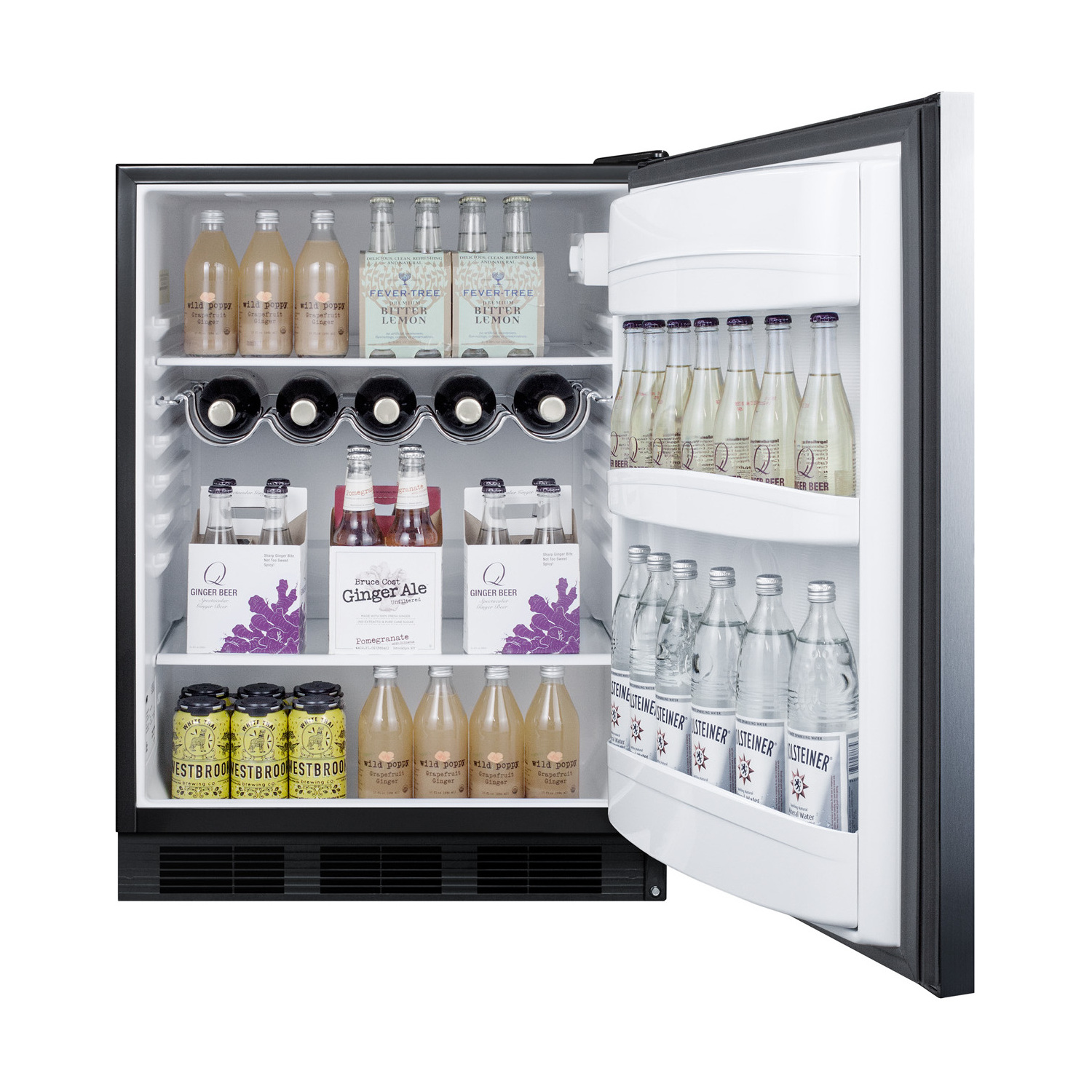

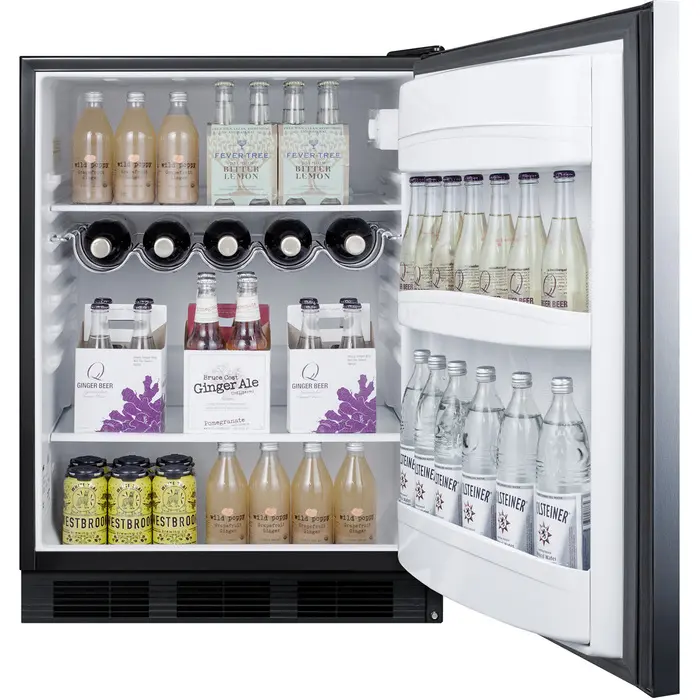

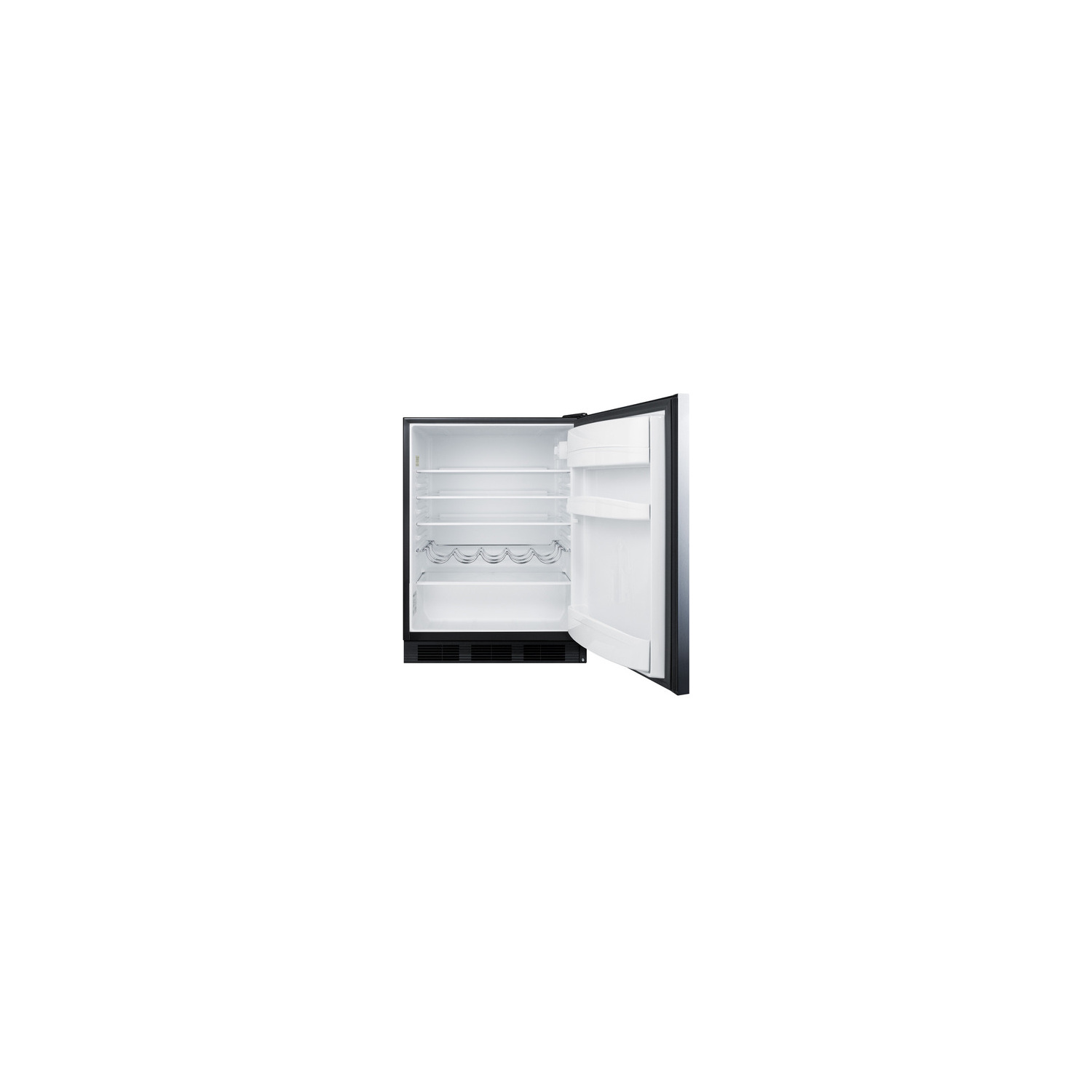

Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management.

Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.

SPECIFICATIONS

Overview

Nominal Height 32.0" (81 cm)

Height of Cabinet 32.0" (81 cm)

Height to Hinge Cap 32.25" (82 cm)

Nominal Width 24.0" (61 cm)

Width 23.63" (60 cm)

Nominal Depth 23.0" (58 cm)

Depth 23.0" (58 cm)

Depth with door at 90° 45.38" (115 cm)

Capacity 5.5 cu.ft. (156 L)

Defrost Type Automatic

Door Stainless Steel

Cabinet Black

US Electrical Safety ETL

Canadian Electrical Safety ETL-C

Energy Usage/Year 307.0kWh/year

Amps 1.4

Voltage/Frequency 115 V AC/60 Hz

Weight 100.0 lbs. (45 kg)

Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101068268

Refrigerator Features

Door Swing RHD

Reversible Yes

Shelf Type Glass

Shelf Qty 3

Full Door Shelf Qty 3

Adjustable Shelves Yes

Wine Bottle Shelves Yes

Thermostat Type Dial

Fan Type Exterior

Refrigerant Type R600a

Refrigerant Amount 0.64oz.

High Side PSI 180.0

Low Side PSI 80.0

Interior Light Yes

Dimensions

Interior Height 26.25" (67 cm)

Interior Width 21.0" (53 cm)

Interior Depth 18.0" (46 cm)

Compressor Step Height 5.5" (14 cm)

Compressor Step Width 21.0" (53 cm)

Compressor Step Depth 6.0" (15 cm)

FEATURES

ADA compliant 32" height to fit under lower ADA compliant counters

Slim undercounter dimensions Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit

Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets

Stainless steel wrapped door Durable design with lasting elegance

Professional horizontally mounted handle Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Automatic defrost Reduced maintenance with auto defrost system

Adjustable glass shelves Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

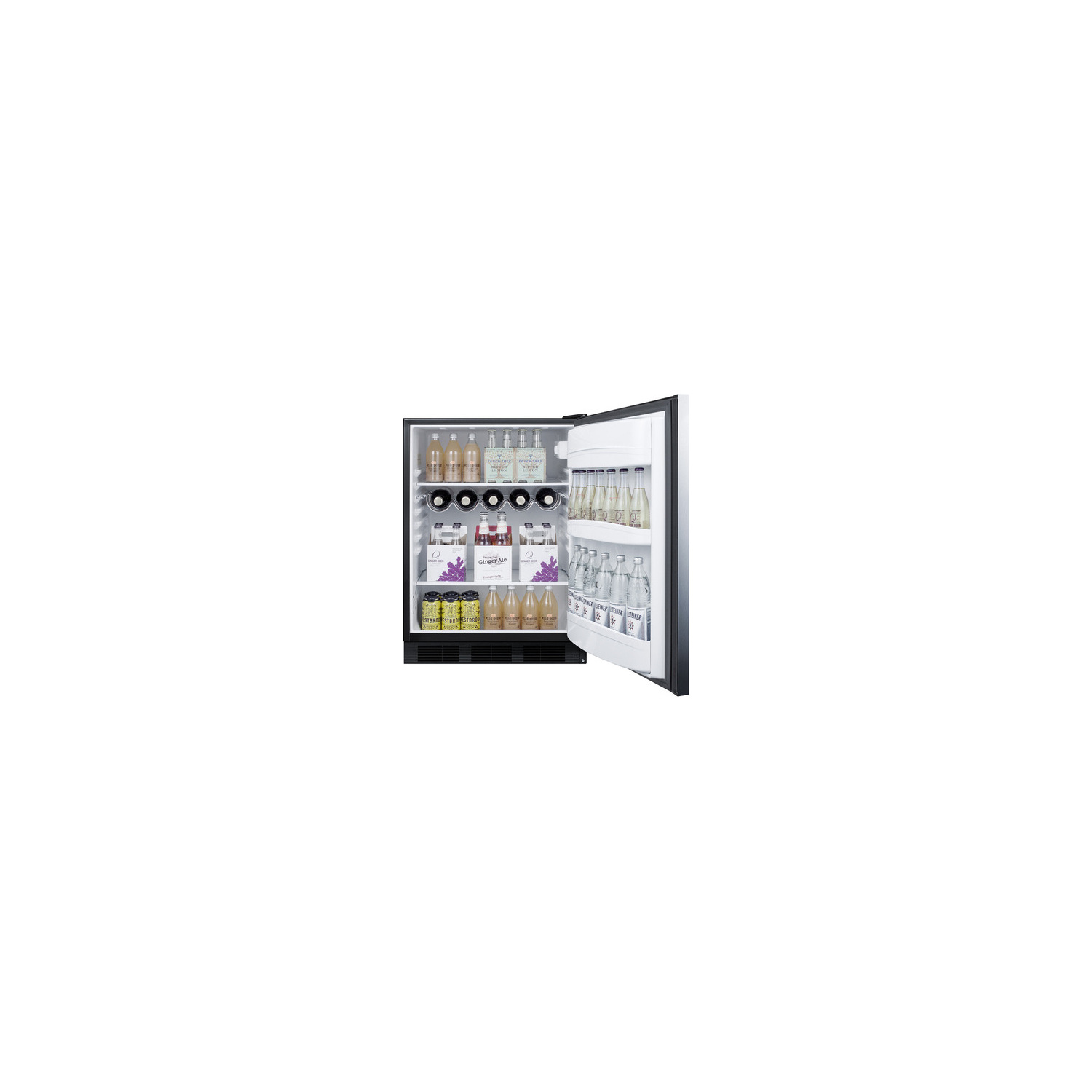

Door shelves Store tall bottles and condiments right on the door for convenient access

Wine shelf Removable scalloped wine shelf is included to store champagne and wine bottles

Interior light Automatically illuminates when you open the door

One piece interior liner Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator Cold wall design with hidden evaporator creates a seamless, easy to clean interior

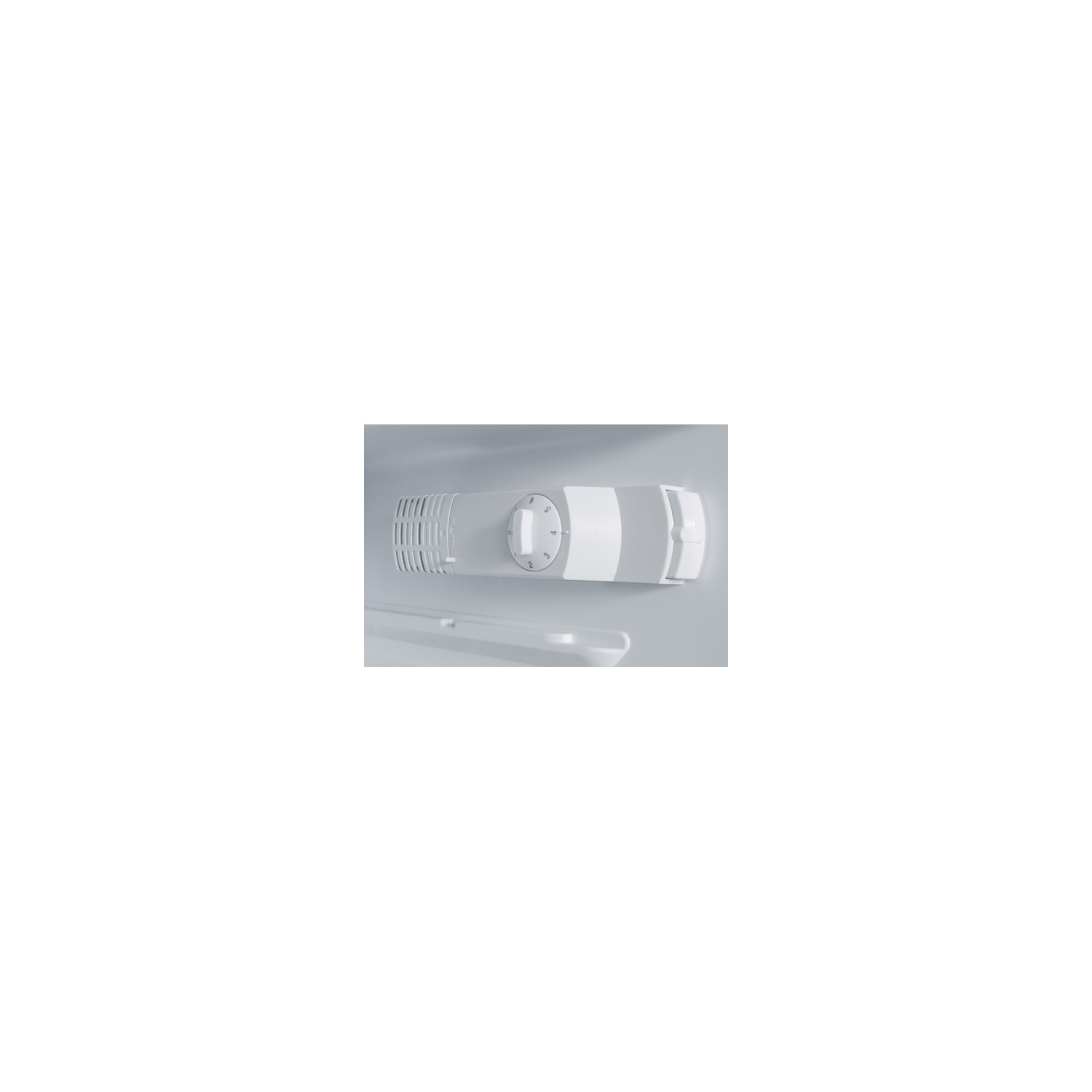

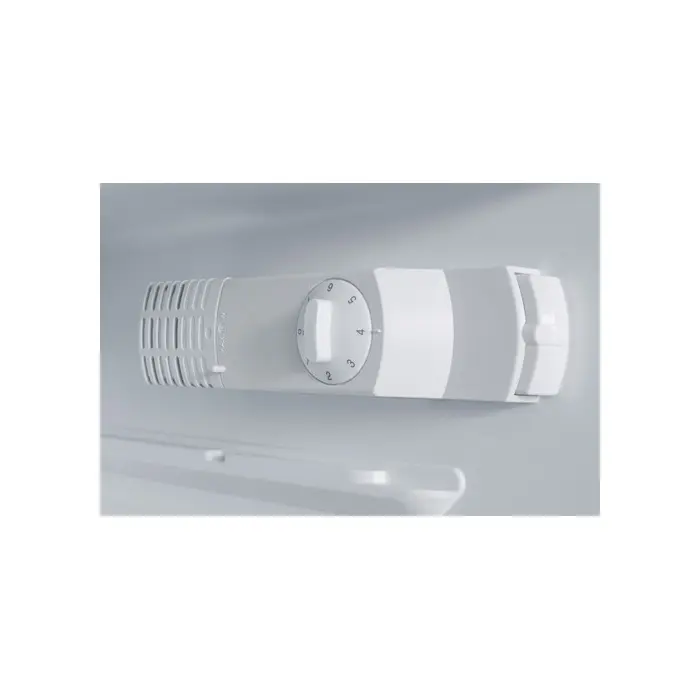

Adjustable dial thermostat Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management

Reversible door User-reversible door swing for added flexibility

Fully finished black cabinet Allows the unit to be used freestanding

CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free Environmentally friendly design without ozone-damaging chemicals
