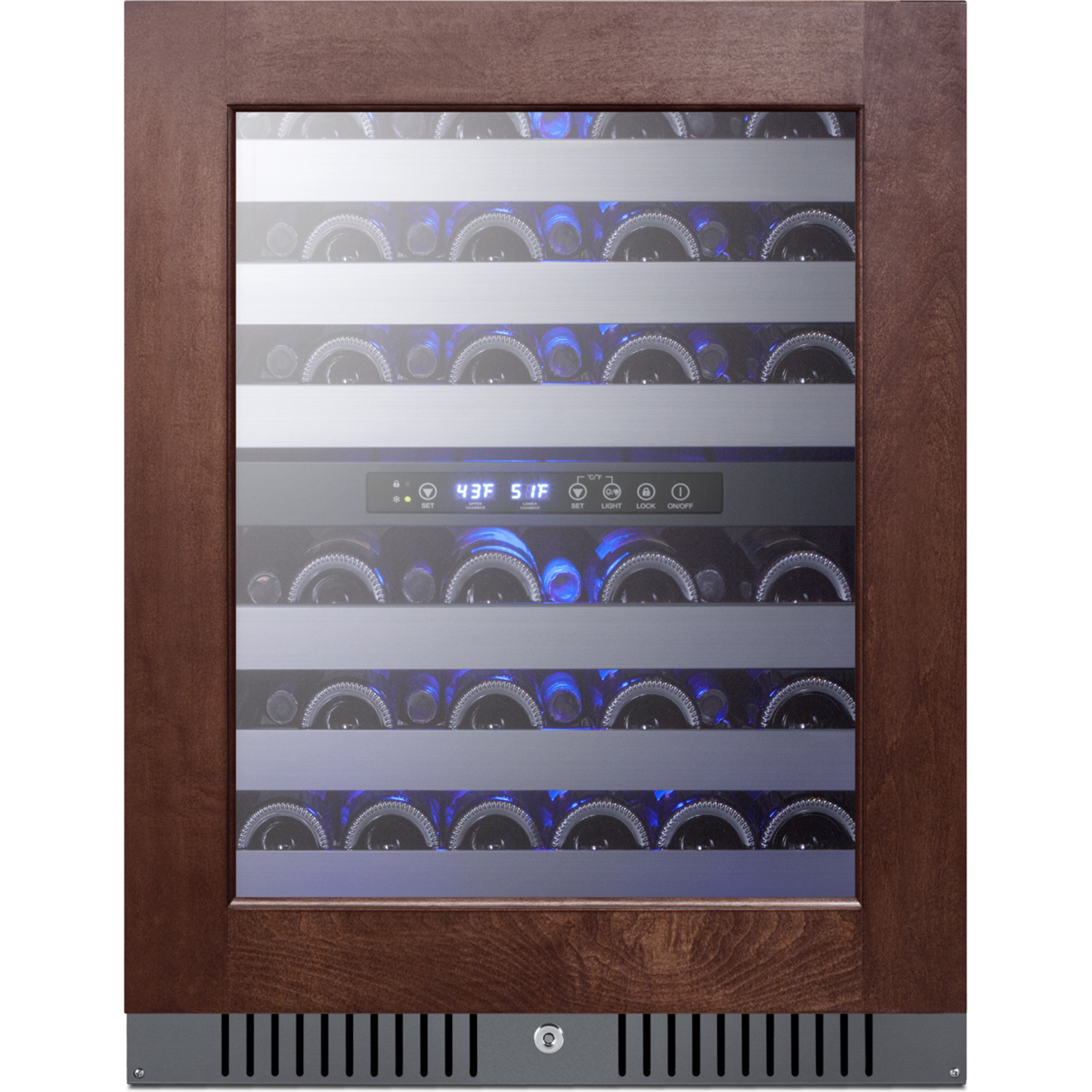

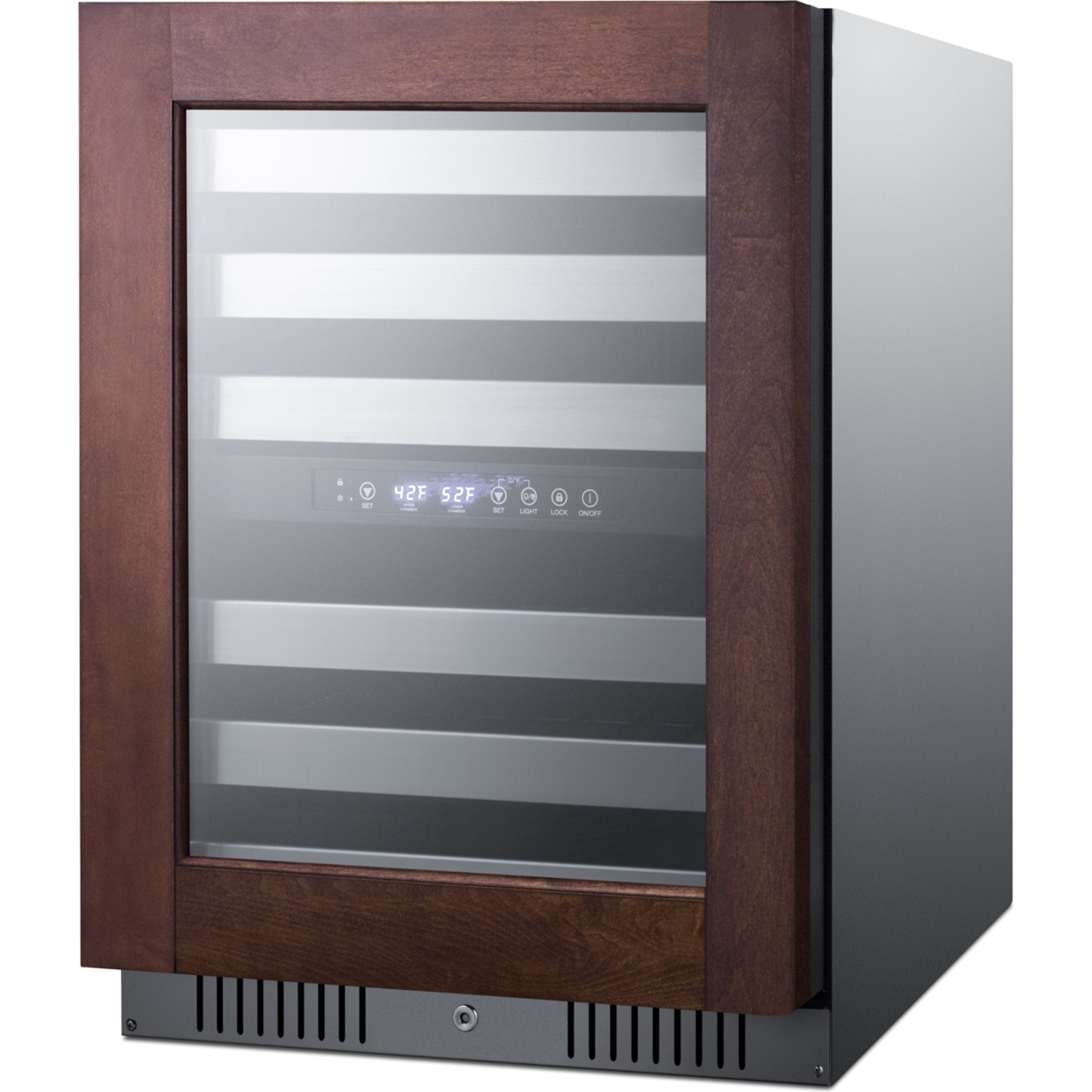

Summit 24 inch wide built-in under-counter ADA compliant dual zone wine cellar with panel-ready door trim for residential or commercial use, 7.61101e+011, ALWC532PNRLHD
$1,520.24
Retail Price: $2,225.00
Free shipping
$ 1,520.24
Description
Summit's extensive selection of built-in undercounter wine cellars includes commercially approved ADA compliant choices that let you achieve a custom look ideal for any space.
The ALWC532PNRLHD is a dual zone wine cellar sized for 24 inch spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.
Inside, the ALWC532PNRLHD is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the ALWC532PNRLHD makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.
SPECIFICATIONS
Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Depth with Panel 24.25" (62 cm)
Depth with door at 90° 47.38" (120 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101092102
Wine Cellar
Number of Zones 2
Door Swing LHD
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.63" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41 to 64ºF
Interior Height 2 11.88" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)
Sound Level 34 dB
FEATURES
24" Dual Zone Wine Cellar Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
ADA compliant Sized just under 32" high for an easy fit under lower ADA compliant counters
Commercially listed ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable Front-breathing design allows this unit to be installed under counters
Panel-ready door trim Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
Flexible commercial grade shelving Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles
Full-extension shelving Shelves move smoothly on ball-bearing glides for easier loading and unloading
Two temperature zones Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Digital control panel Easy temperature management with electronic controls located inside
Versatile readout Temperature viewable in Celsius or Fahrenheit
Automatic defrost Reduced maintenance with auto defrost system
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Interior lighting Recessed LED lighting in both compartments brings striking blue illumination to your collection
Factory installed lock Keyed lock for secure interior, with two keys included
Fully articulating hinge Smoother opening and a better fit with an integrated European style door hinge
Fully finished black cabinet Allows the unit to be used freestanding
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
